Model Whirlpool 5KSM185PSBCM4 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

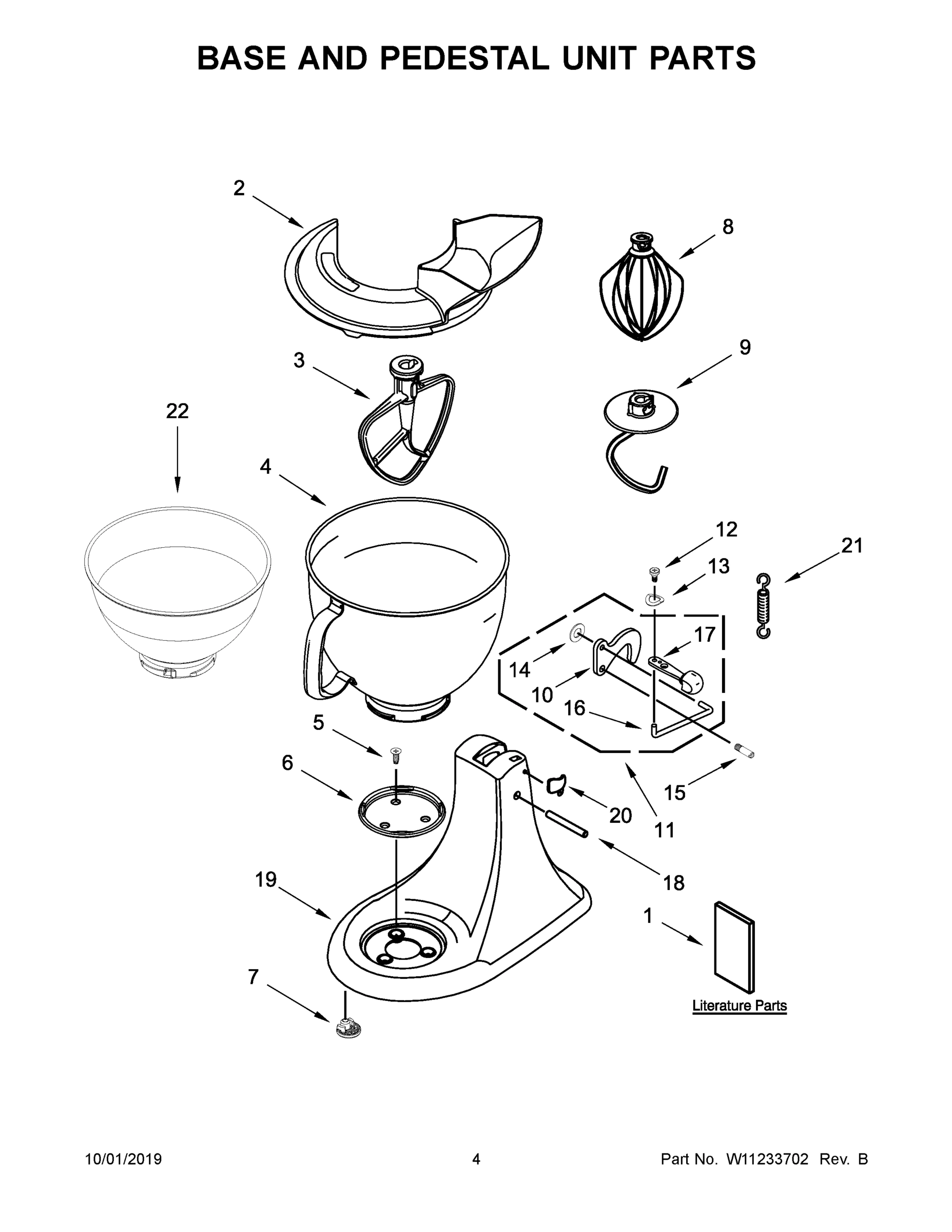

03 - BASE AND PEDESTAL UNIT PARTS

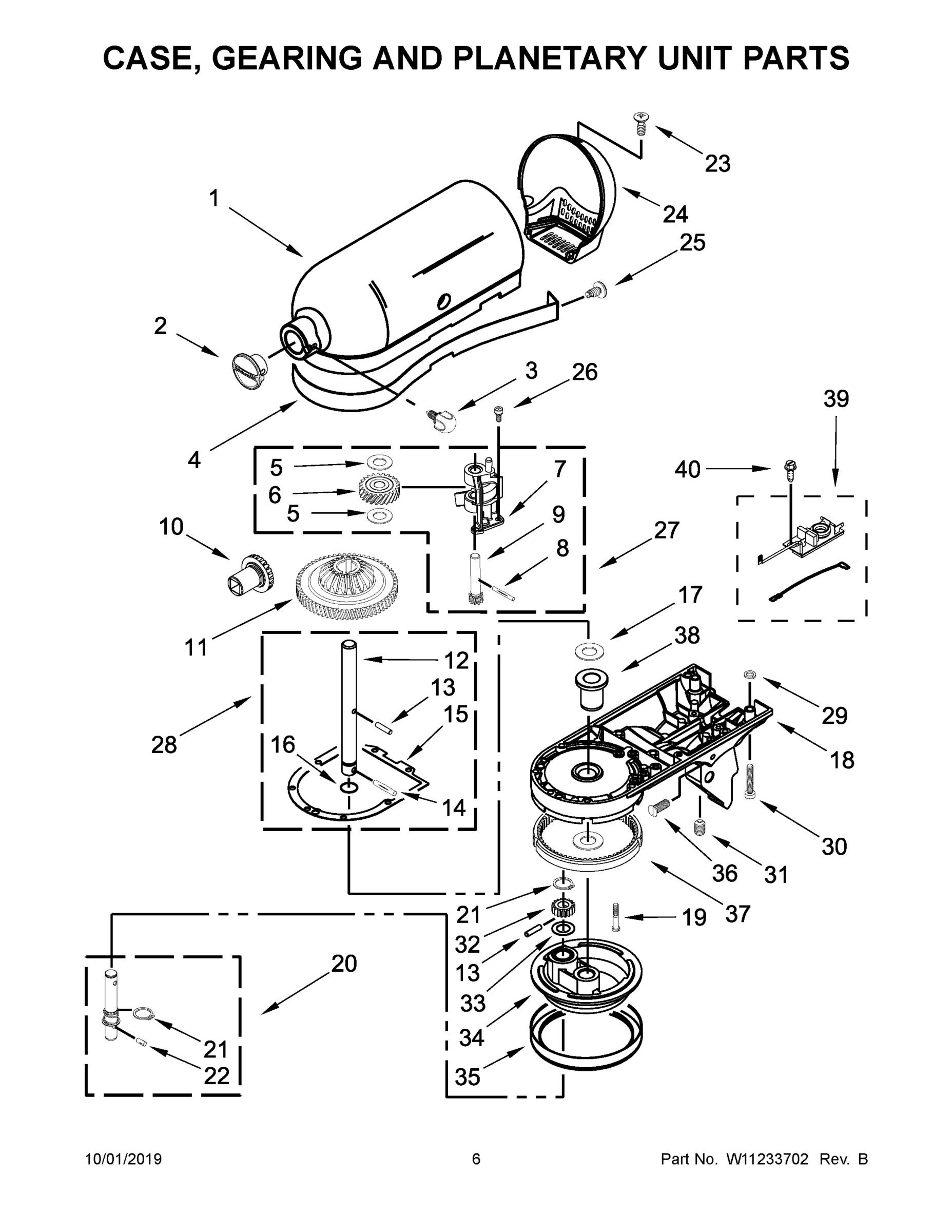

04 - CASE, GEARING AND PLANETARY UNIT PARTS

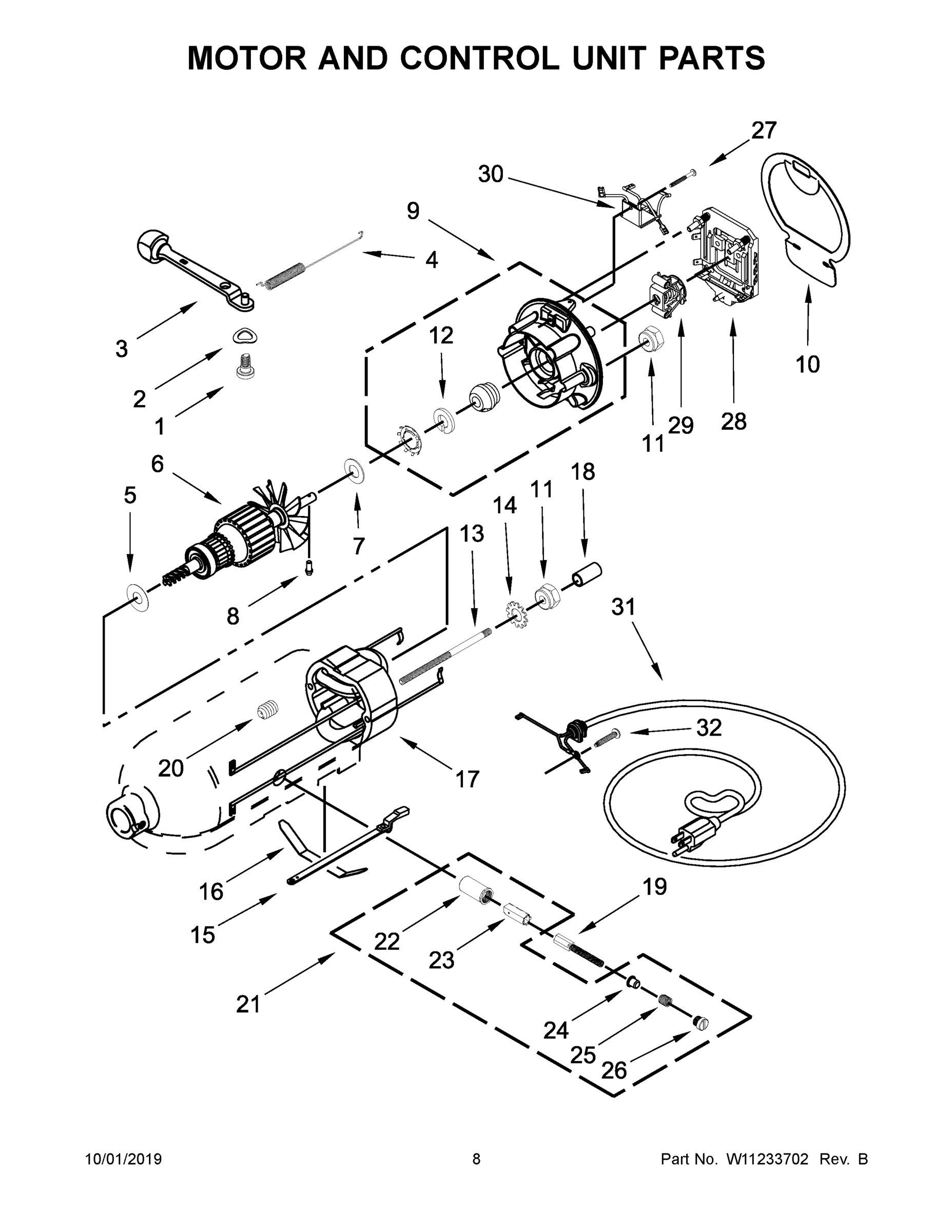

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool 5KSM185PSBCM4 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE & CARE GUIDE WPL W11456994 Contact Us For Availability
1C
MOTOR HOUSING (CANDY APPLE RED) WPL W10239115 Contact Us For Availability
1D
MOTOR HOUSING (CINNAMON) WPL W11209510 Contact Us For Availability
1E
MOTOR HOUSING (SATIN COPPER) WPL 9704752 Contact Us For Availability
1F
MOTOR HOUSING (CHROME) WPL 24029119 Contact Us For Availability
1G
MOTOR HOUSING (MATTE DRIED ROSE) WPL W11209495 Contact Us For Availability
1H
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1J
MOTOR HOUSING (BRUSHED NICKEL) WPL 9706461 Contact Us For Availability
1K
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1L
MOTOR HOUSING (BIRD OF PARADISE) WPL W11209486 Contact Us For Availability
1M
MOTOR HOUSING (PEBBLED PALM) WPL W11346223 Contact Us For Availability
1N
MOTOR HOUSING (FEATHER PINK) WPL W11431674 Contact Us For Availability
1O
MOTOR HOUSING (KYOTO GLOW) WPL W11357463 Contact Us For Availability
1P
MOTOR HOUSING (IMPERIAL GREY) WPL 24029122 Contact Us For Availability
2
TRIM BAND (DARK PLATINUM) WPL W11204018 Contact Us For Availability
3
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3A
END COVER (FROSTED AZURE) WPL W10607811 Contact Us For Availability
3B
END COVER (CAST IRON/IMPERIAL BLACK) WPL 9704805 Contact Us For Availability
3D
END COVER (CINNAMON) WPL W11209512 Contact Us For Availability
3E
END COVER (SATIN COPPER) WPL W10291365 Contact Us For Availability
3G
END COVER (MATTE DRIED ROSE) WPL W11209501 Contact Us For Availability
3H
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3J
END COVER (BRUSHED NICKEL) WPL W10291364 Contact Us For Availability
3K
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3L
END COVER (BIRD OF PARADISE) WPL W11209489 Contact Us For Availability
3M
END COVER (PEBBLED PALM) WPL W11346216 Contact Us For Availability
3N
END COVER (FEATHER PINK) WPL W11431666 Contact Us For Availability
3O
END COVER (KYOTO GLOW) WPL W11357462 Contact Us For Availability
3P
END COVER (IMPERIAL GREY) WPL 24025323 Contact Us For Availability
4
PLANETARY (ALMOND CREAM/CREME) WPL 24028618 Contact Us For Availability
4
BOWL, 5 QT. WPL W11203341 Contact Us For Availability
4A
PLANETA WPL W10607813 Contact Us For Availability
4B
WPL 9704797 WPL 9704797 Contact Us For Availability
4C
WPL W10239112 WPL W10239112 Contact Us For Availability
4D
WPL W11209507 WPL W11209507 Contact Us For Availability
4E
WPL 9704755 WPL 9704755 Contact Us For Availability
4F
WPL 24028621 WPL 24028621 Contact Us For Availability
4G
WPL W11209496 WPL W11209496 Contact Us For Availability
4H
WPL 24028623 WPL 24028623 Contact Us For Availability
4J
WPL 9706271 WPL 9706271 Contact Us For Availability
4K
WPL 24028616 WPL 24028616 Contact Us For Availability
4L
WPL W11209487 WPL W11209487 Contact Us For Availability
4M
WPL W11346226 WPL W11346226 Contact Us For Availability
4N
WPL W11431675 WPL W11431675 Contact Us For Availability
4O
WPL W11357469 WPL W11357469 Contact Us For Availability
4P
WPL 24028624 WPL 24028624 Contact Us For Availability
5
WPL 24035062 WPL 24035062 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL W10607815 WPL W10607815 Contact Us For Availability
5B
WPL 9707103 WPL 9707103 Contact Us For Availability
5C
WPL W10245786 WPL W10245786 Contact Us For Availability
5D
WPL W11209505 WPL W11209505 Contact Us For Availability
5E
WPL 9704749 WPL 9704749 Contact Us For Availability
5G
WPL W11209493 WPL W11209493 Contact Us For Availability
5H
WPL 24035091 WPL 24035091 Contact Us For Availability
5K
WPL 24035056 WPL 24035056 Contact Us For Availability
5L
WPL W11209481 WPL W11209481 Contact Us For Availability
5M
WPL W11346221 WPL W11346221 Contact Us For Availability
5N
WPL W11431679 WPL W11431679 Contact Us For Availability
5O
WPL W11357465 WPL W11357465 Contact Us For Availability
5P
WPL 24035086 WPL 24035086 Contact Us For Availability
6
WPL 9703248 WPL 9703248 Contact Us For Availability
6A
WPL W10638032 WPL W10638032 Contact Us For Availability
6B
WPL W10648651 WPL W10648651 Contact Us For Availability
6C
WPL W10245720 WPL W10245720 Contact Us For Availability
6D
WPL W11209503 WPL W11209503 Contact Us For Availability
6E
WPL W10571720 WPL W10571720 Contact Us For Availability
6F
WPL 3184277 WPL 3184277 Contact Us For Availability
6G
WPL W11209491 WPL W11209491 Contact Us For Availability
6H
WPL 3184280 WPL 3184280 Contact Us For Availability
6J
WPL 9706456 WPL 9706456 Contact Us For Availability
6K
WPL 3184275 WPL 3184275 Contact Us For Availability
6L
WPL W11209479 WPL W11209479 Contact Us For Availability
6M
WPL W11346220 WPL W11346220 Contact Us For Availability
6N
WPL W11431673 WPL W11431673 Contact Us For Availability
6O
WPL W11357472 WPL W11357472 Contact Us For Availability
6P
WPL 9703998 WPL 9703998 Contact Us For Availability
8
WHIP, WIRE WPL W11181074 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
22
BOWL, 3 QUART WPL W10713675 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
31
CORD, POWER (BLACK) WPL W11103222 Contact Us For Availability
32
SCREW WPL 3184609 Contact Us For Availability
34
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
35
RING, PLANETARY DRIP (POLISHED) WPL 2402852 Contact Us For Availability
40
SCREW WPL 7101P11560 Contact Us For Availability
× ![]()
