Model Whirlpool 5KSM175PSSER4 SMALL APPLIANCE, STAND MIXER, TILT HEAD – Common Parts & Diagrams

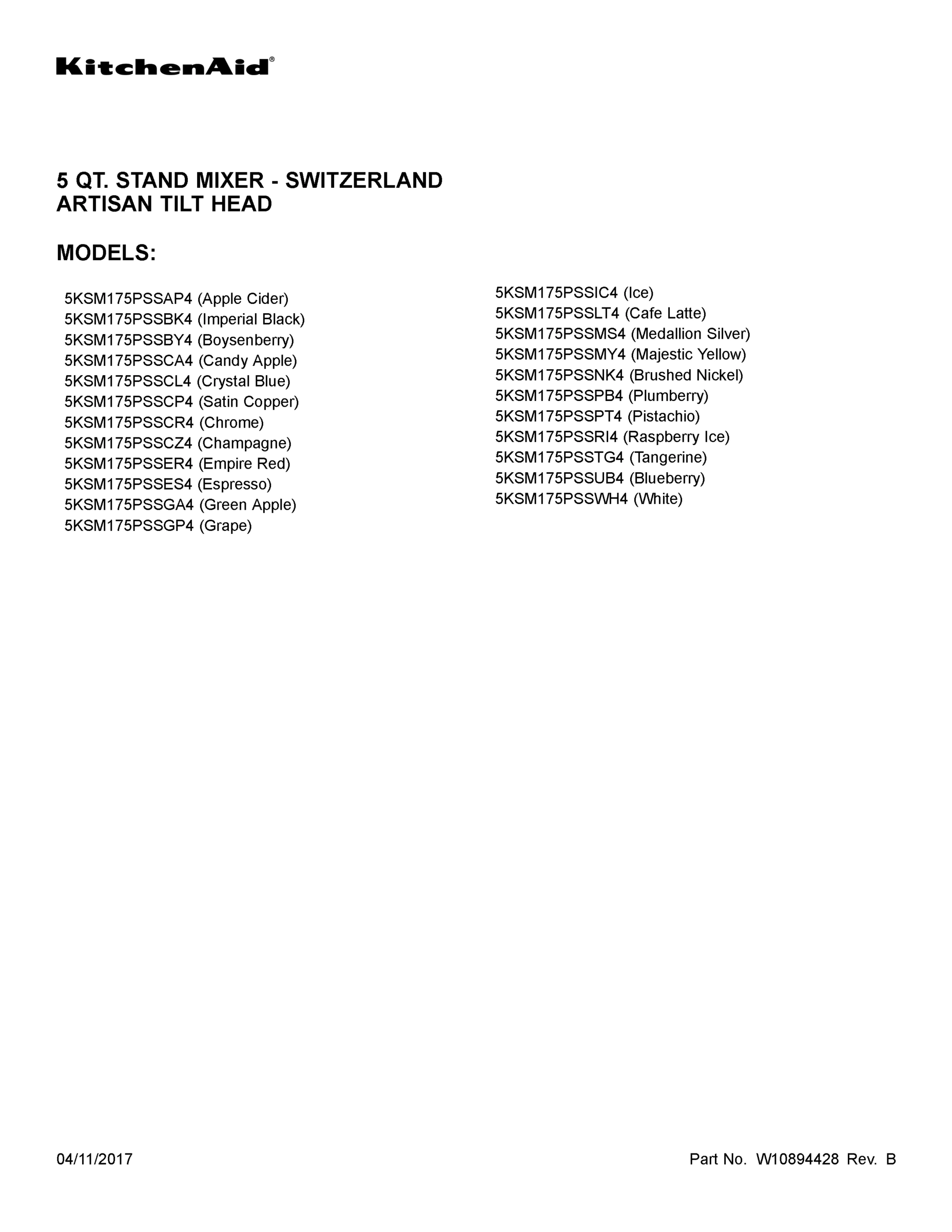

01 - COVER SHEET

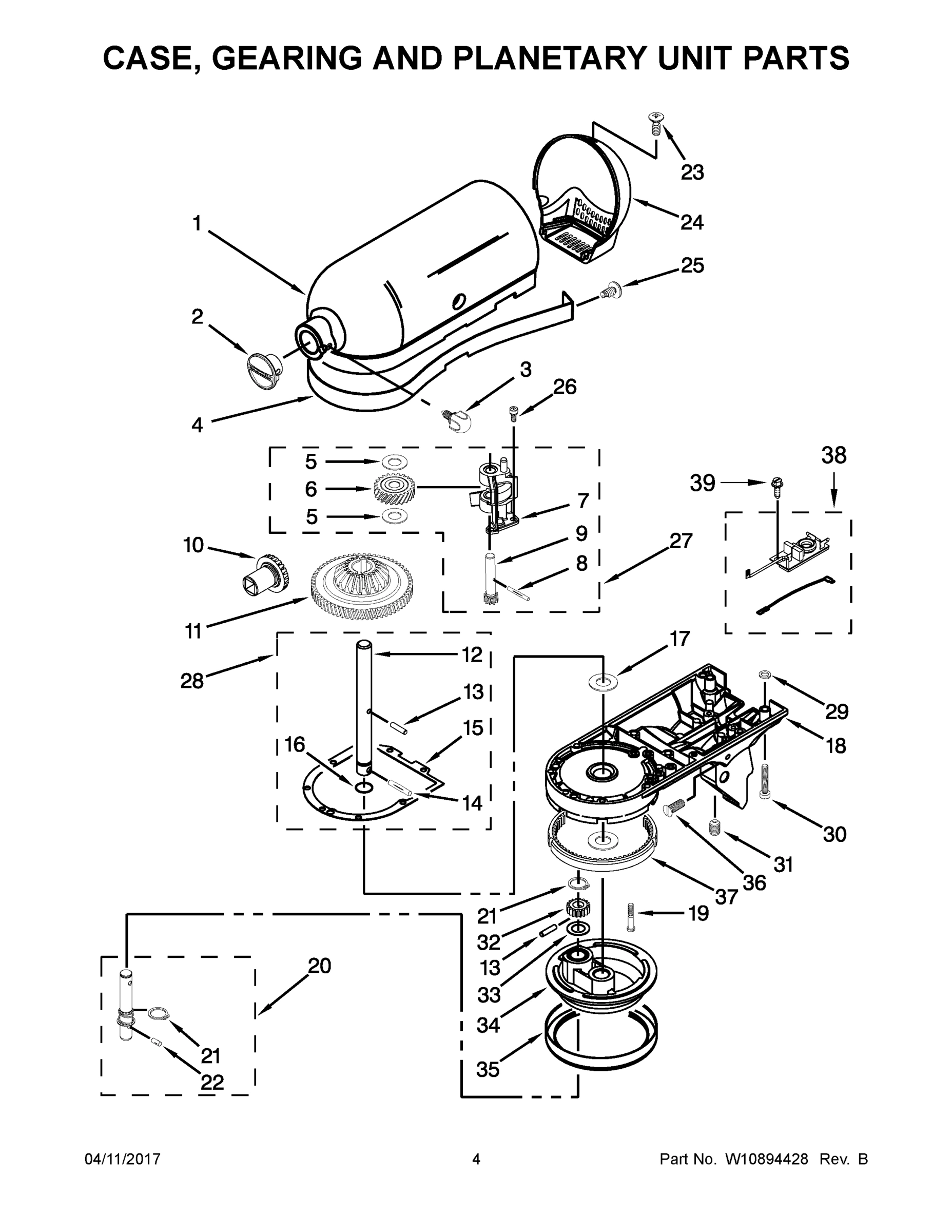

03 - CASE, GEARING AND PLANETARY UNIT PARTS

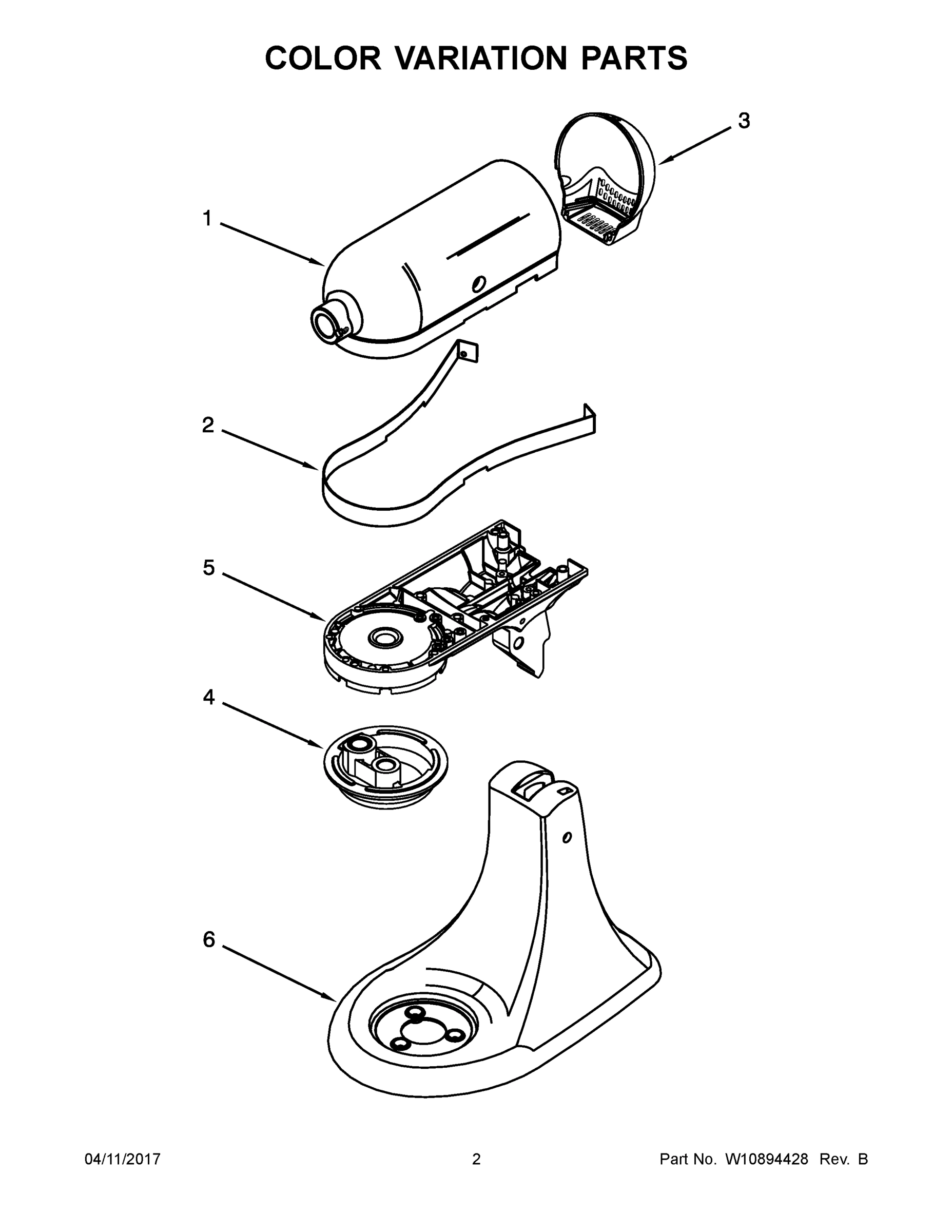

02 - COLOR VARIATION PARTS

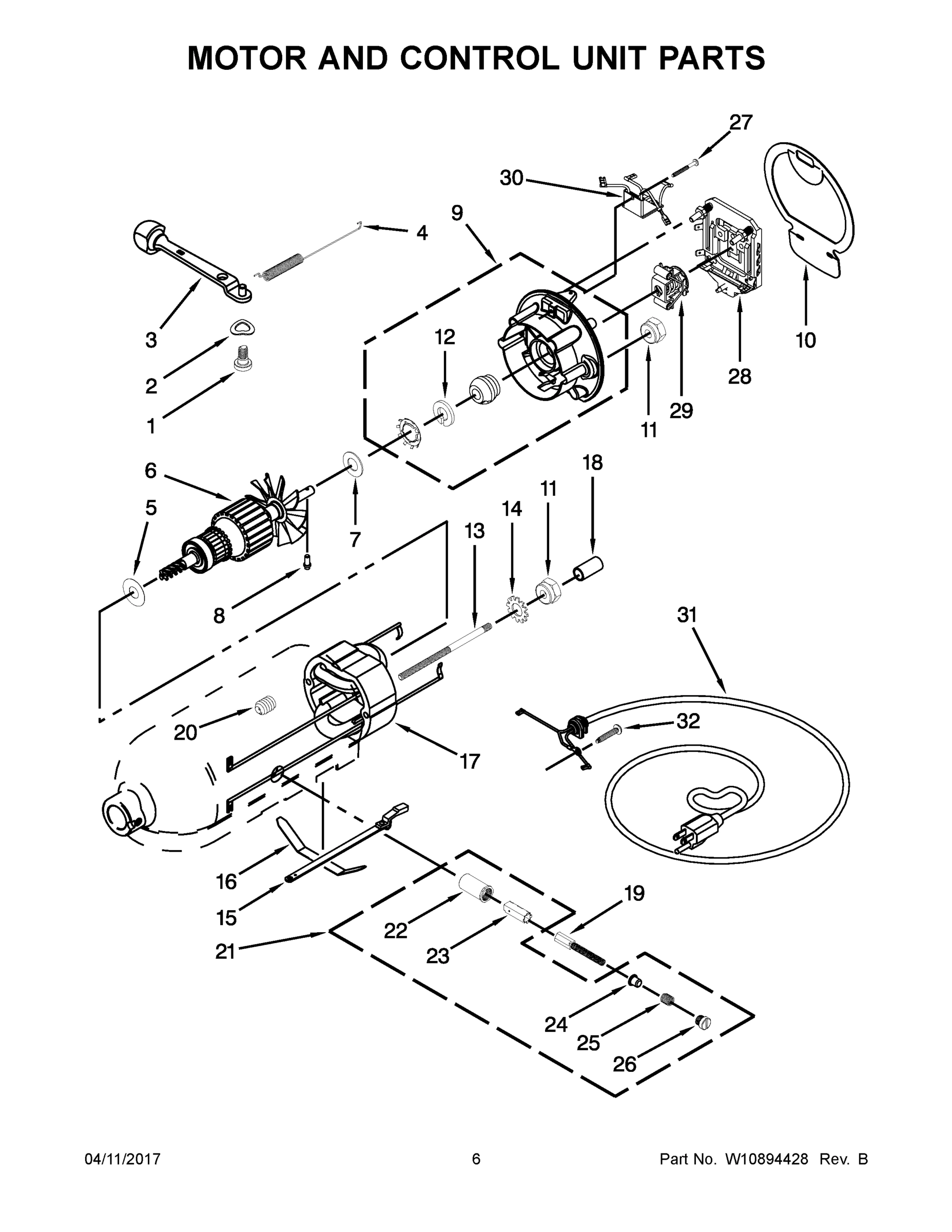

04 - MOTOR AND CONTROL UNIT PARTS

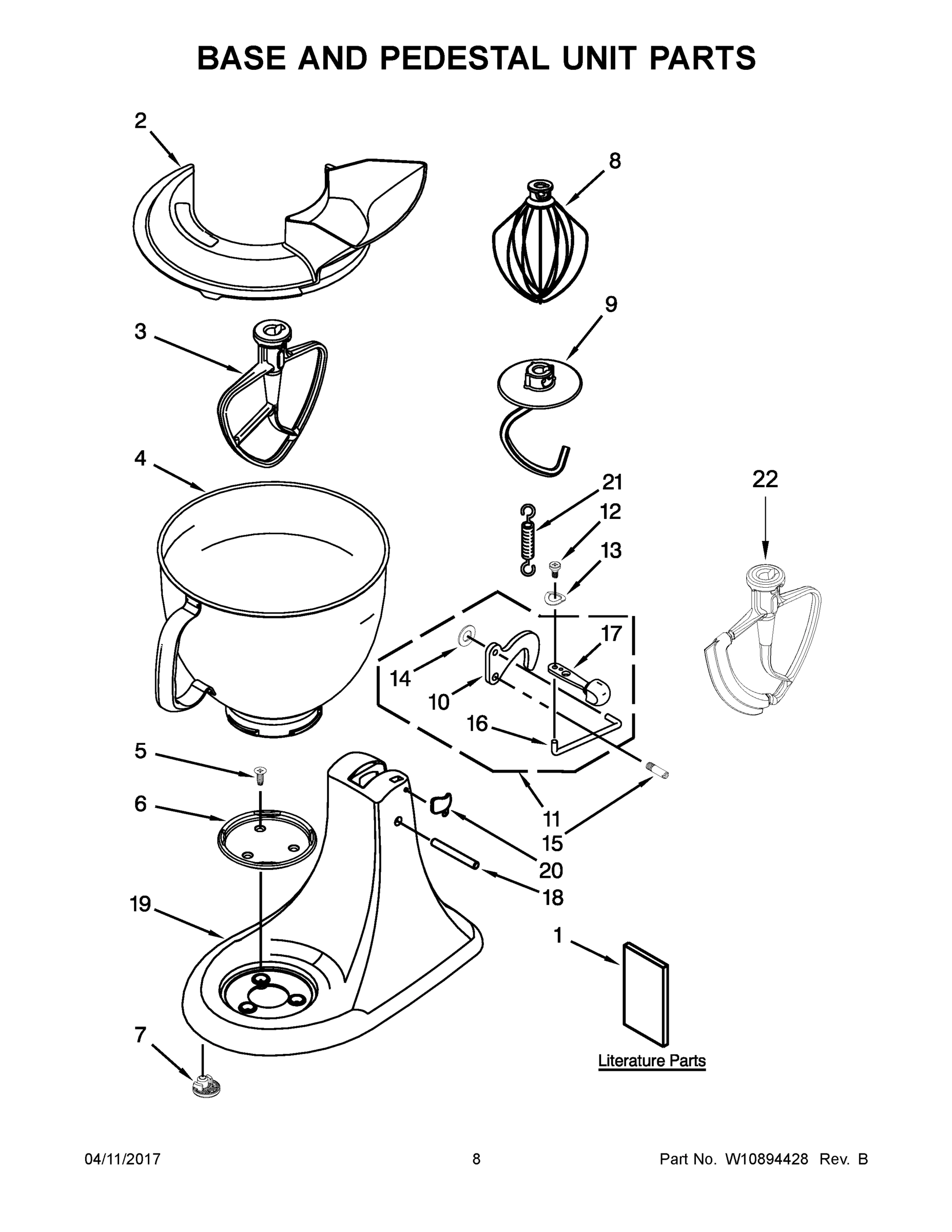

05 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool 5KSM175PSSER4 SMALL APPLIANCE, STAND MIXER, TILT HEAD
1
MOTOR HOUSING (APPLE CIDER) WPL W10383541 Contact Us For Availability
1
USE & CARE GUIDE WPL W10863290 Contact Us For Availability
1A
MOTOR HOUSING (IMPERIAL BLACK) WPL 9704790 Contact Us For Availability
1B
MOTOR HOUSING (BOYSENBERRY) WPL W10140801 Contact Us For Availability
1C
MOTOR HOUSING (CANDY APPLE) WPL W10239115 Contact Us For Availability
1D
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1E
MOTOR HOUSING (SATIN COPPER) WPL 9704752 Contact Us For Availability
1F
MOTOR HOUSING (CHROME) WPL 24029119 Contact Us For Availability
1G
MOTOR HOUSING (CHAMPAGNE) WPL W10754815 Contact Us For Availability
1H
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1I
MOTOR HOUSING (ESPRESSO) WPL W10383627 Contact Us For Availability
1J
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1L
MOTOR HOUSING (ICE) WPL 9707662 Contact Us For Availability
1M
MOTOR HOUSING (CAFE LATTE) WPL W10384490 Contact Us For Availability
1O
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1P
MOTOR HOUSING (BRUSHED NICKEL) WPL 9706461 Contact Us For Availability
1Q
MOTOR HOUSING (PLUMBERRY) WPL W10572196 Contact Us For Availability
1R
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1S
MOTOR HOUSING (RASPBERRY ICE) WPL W10384420 Contact Us For Availability
1T
MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability
1U
MOTOR HOUSING (BLUEBERRY) WPL W10564354 Contact Us For Availability
1V
MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability
3
END COVER (APPLE CIDER) WPL W10383578 Contact Us For Availability
3A
END COVER (IMPERIAL BLACK) WPL 9704805 Contact Us For Availability
3B
END COVER (BOYSENBERRY) WPL W10140796 Contact Us For Availability
3D
END COVER (CRYSTAL BLUE) WPL W10476773 Contact Us For Availability
3E
END COVER (SATIN COPPER) WPL W10291365 Contact Us For Availability
3G
END COVER (CHAMPAGNE) WPL W10754809 Contact Us For Availability
3H
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3I
END COVER (ESPRESSO) WPL W10383633 Contact Us For Availability
3J
END COVER (GREEN APPLE) WPL 9709683 Contact Us For Availability
3K
END COVER (GRAPE) WPL 9707131 Contact Us For Availability
3L
END COVER (ICE) WPL 9707667 Contact Us For Availability
3M
END COVER (CAFE LATTE) WPL W10384495 Contact Us For Availability
3O
END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability
3P
END COVE WPL W10291364 Contact Us For Availability
3Q
WPL W10572183 WPL W10572183 Contact Us For Availability
3R
WPL 9706841 WPL 9706841 Contact Us For Availability
3S
WPL W10384429 WPL W10384429 Contact Us For Availability
3T
WPL 9706854 WPL 9706854 Contact Us For Availability
3U
WPL W10564336 WPL W10564336 Contact Us For Availability
3V
WPL 2402531 WPL 2402531 Contact Us For Availability
4
WPL W10383560 WPL W10383560 Contact Us For Availability
4A
WPL 9704797 WPL 9704797 Contact Us For Availability
4B
WPL W10140798 WPL W10140798 Contact Us For Availability
4C
WPL W10239112 WPL W10239112 Contact Us For Availability
4D
WPL W10476794 WPL W10476794 Contact Us For Availability
4E
WPL 9704755 WPL 9704755 Contact Us For Availability
4F
WPL 24028621 WPL 24028621 Contact Us For Availability
4G
WPL W10754811 WPL W10754811 Contact Us For Availability
4H
WPL 24028623 WPL 24028623 Contact Us For Availability
4I
WPL W10383631 WPL W10383631 Contact Us For Availability
4J
WPL 9709685 WPL 9709685 Contact Us For Availability
4K
WPL 9707129 WPL 9707129 Contact Us For Availability
4L
WPL 9707665 WPL 9707665 Contact Us For Availability
4M
WPL W10384493 WPL W10384493 Contact Us For Availability
4O
WPL 24028622 WPL 24028622 Contact Us For Availability
4P
WPL 9706271 WPL 9706271 Contact Us For Availability
4Q
WPL W10572188 WPL W10572188 Contact Us For Availability
4R
WPL 9706839 WPL 9706839 Contact Us For Availability
4S
WPL W10384425 WPL W10384425 Contact Us For Availability
4T
WPL 9706852 WPL 9706852 Contact Us For Availability
4U
WPL W10564342 WPL W10564342 Contact Us For Availability
4V
WPL 2402861 WPL 2402861 Contact Us For Availability
5
WPL W10383533 WPL W10383533 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 9707103 WPL 9707103 Contact Us For Availability
5B
WPL W10140804 WPL W10140804 Contact Us For Availability
5C
WPL W10245786 WPL W10245786 Contact Us For Availability
5D
WPL W10476775 WPL W10476775 Contact Us For Availability
5E
WPL 9704749 WPL 9704749 Contact Us For Availability
5G
WPL W10754813 WPL W10754813 Contact Us For Availability
5H
WPL 24035091 WPL 24035091 Contact Us For Availability
5I
WPL W10383623 WPL W10383623 Contact Us For Availability
5J
WPL 9709691 WPL 9709691 Contact Us For Availability
5K
WPL 9707123 WPL 9707123 Contact Us For Availability
5L
WPL 9708868 WPL 9708868 Contact Us For Availability
5M
WPL W10384487 WPL W10384487 Contact Us For Availability
5O
WPL 24035093 WPL 24035093 Contact Us For Availability
5Q
WPL W10572192 WPL W10572192 Contact Us For Availability
5R
WPL 9706832 WPL 9706832 Contact Us For Availability
5S
WPL W10384415 WPL W10384415 Contact Us For Availability
5T
WPL 9707936 WPL 9707936 Contact Us For Availability
5U
WPL W10564348 WPL W10564348 Contact Us For Availability
5V
WPL 2403504 WPL 2403504 Contact Us For Availability
6
WPL W10383526 WPL W10383526 Contact Us For Availability
6A
WPL W10648651 WPL W10648651 Contact Us For Availability
6B
WPL W10189051 WPL W10189051 Contact Us For Availability
6C
WPL W10245720 WPL W10245720 Contact Us For Availability
6D
WPL W10476774 WPL W10476774 Contact Us For Availability
6E
WPL W10571720 WPL W10571720 Contact Us For Availability
6F
WPL 3184277 WPL 3184277 Contact Us For Availability
6G
WPL W10755436 WPL W10755436 Contact Us For Availability
6H
WPL 3184280 WPL 3184280 Contact Us For Availability
6I
WPL W10383620 WPL W10383620 Contact Us For Availability
6J
WPL W10128411 WPL W10128411 Contact Us For Availability
6K
WPL 9708637 WPL 9708637 Contact Us For Availability
6L
WPL 9708865 WPL 9708865 Contact Us For Availability
6M
WPL W10384485 WPL W10384485 Contact Us For Availability
6O
WPL 3184281 WPL 3184281 Contact Us For Availability
6P
WPL 9706456 WPL 9706456 Contact Us For Availability
6Q
WPL W10638037 WPL W10638037 Contact Us For Availability
6R
WPL 970963 WPL 970963 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
15
LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
31
POWER CORD (WHITE) WPL 9704389 Contact Us For Availability
31A
POWER CORD (BLACK) WPL 9704390 Contact Us For Availability
32
SCREW WPL 7101P11560 Contact Us For Availability
35
RING, PLANETARY DRIP (POLISHED) WPL 2402852 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
NI
BOWL, 3 QUART WPL W10713675 Contact Us For Availability
× ![]()
