Model Whirlpool 5KSM175PSSCU5 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

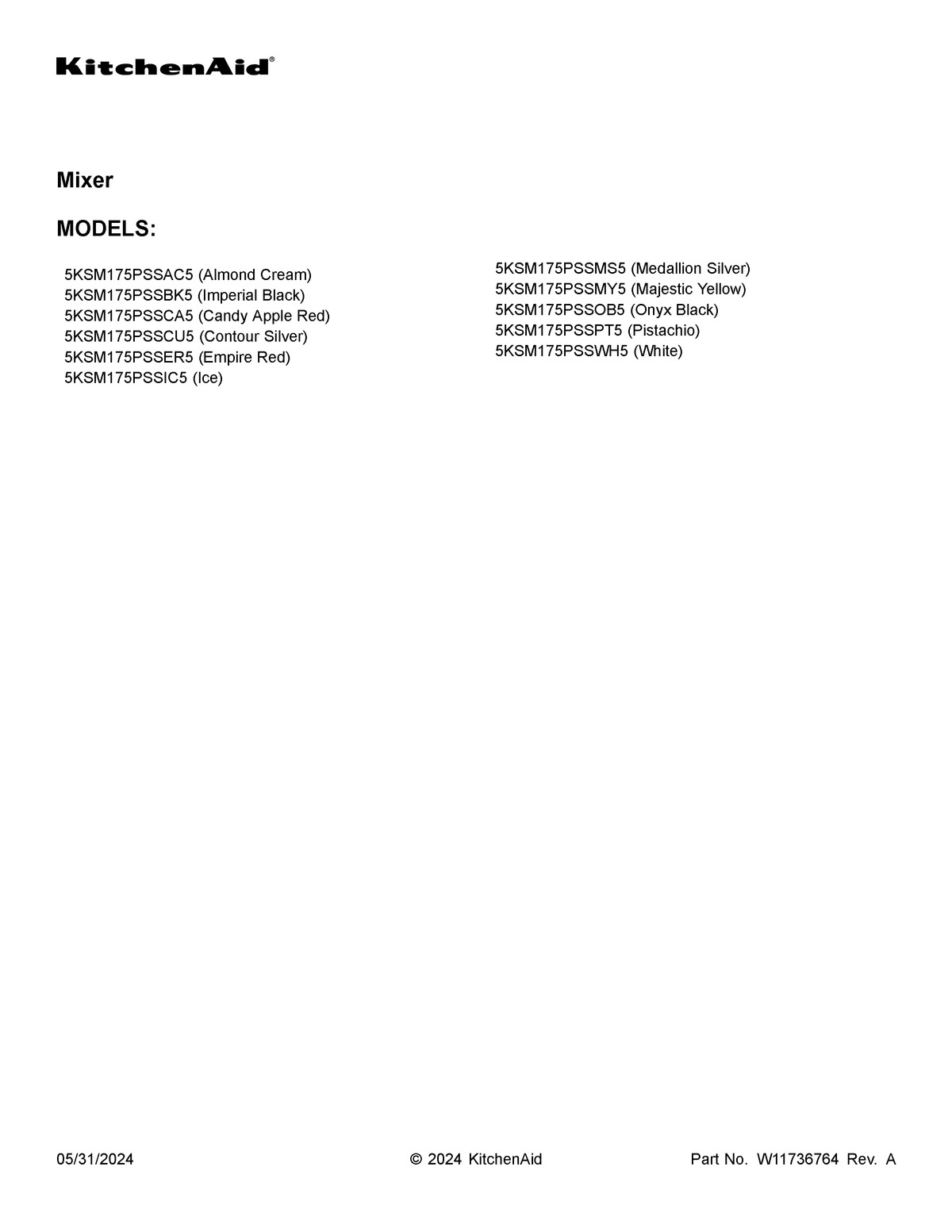

01 - COVER SHEET

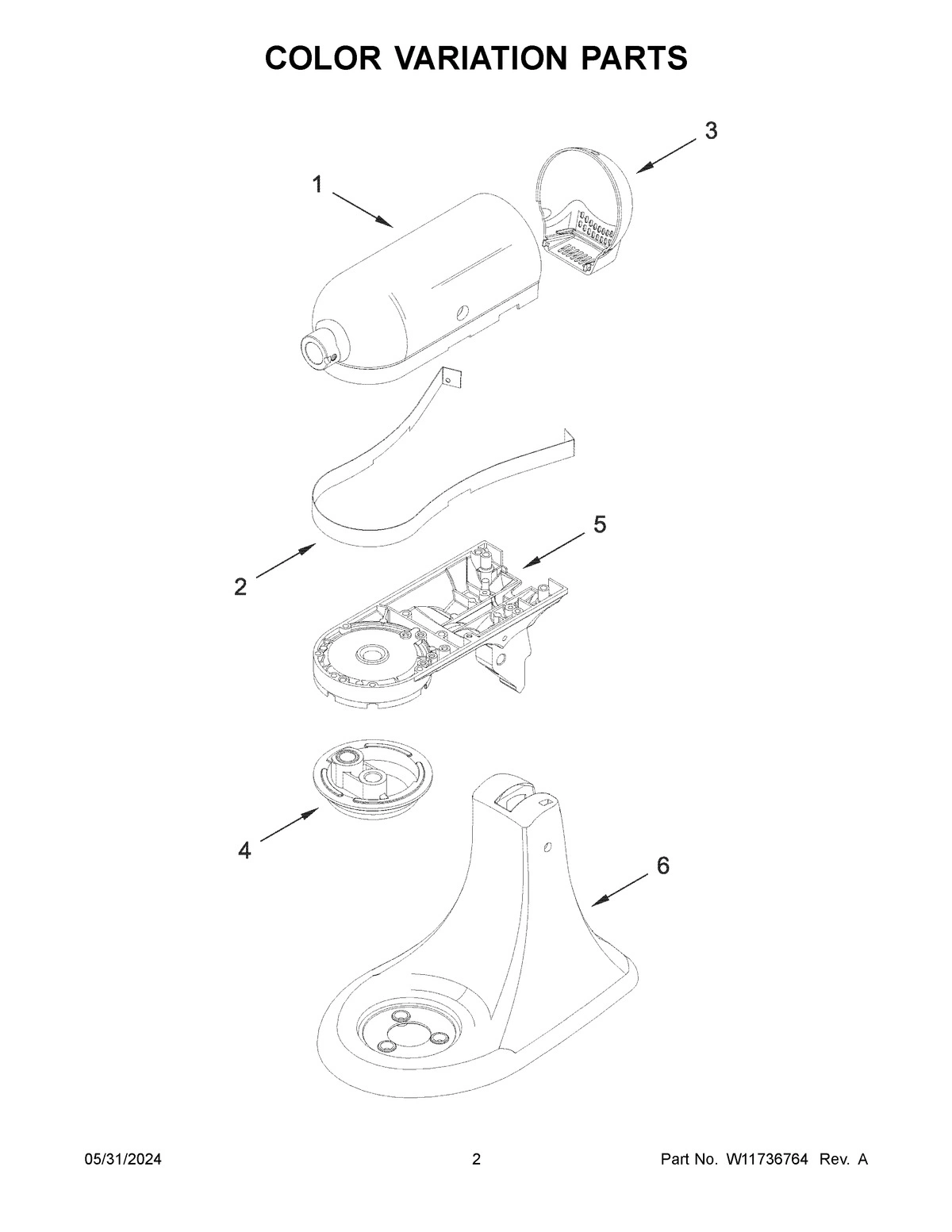

02 - COLOR VARIATION PARTS

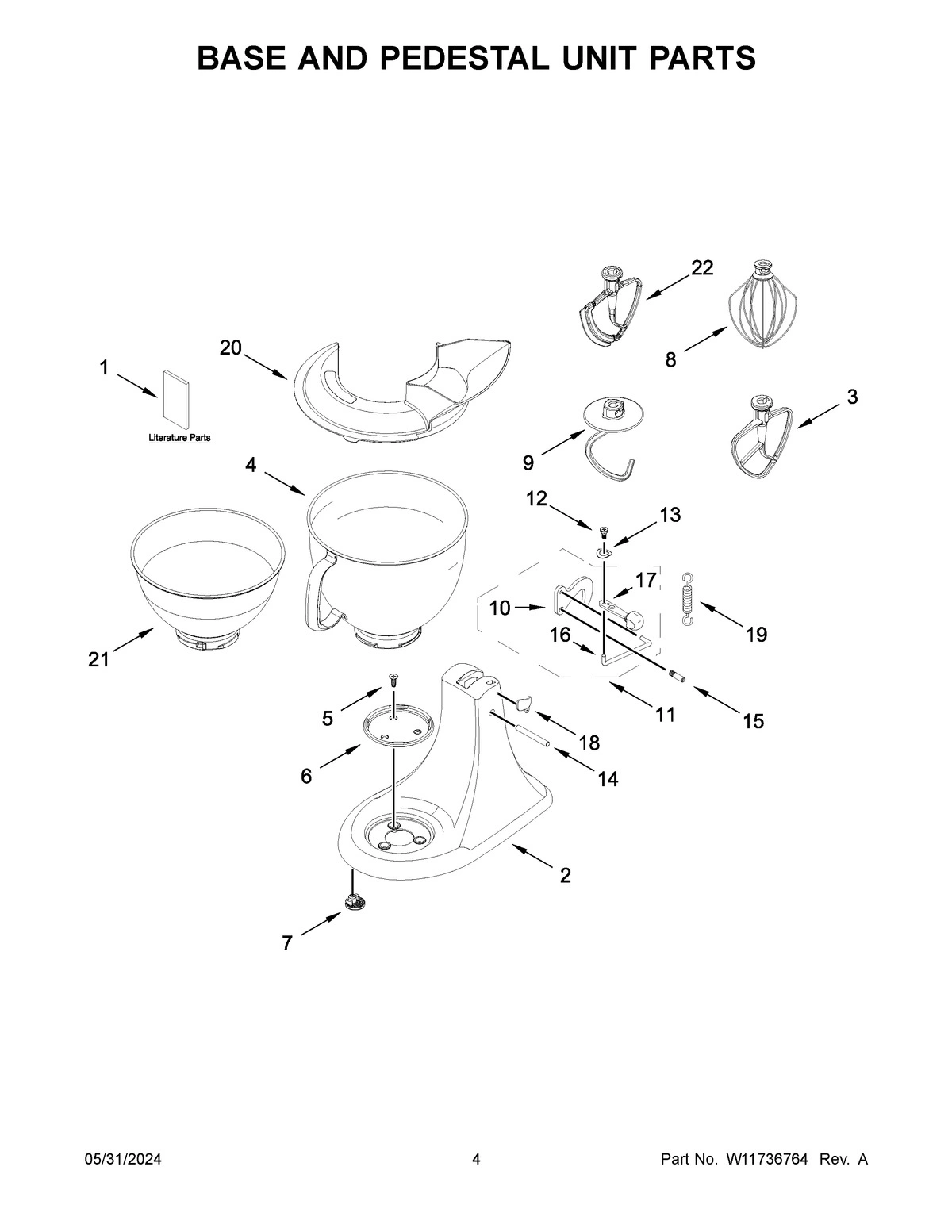

03 - BASE AND PEDESTAL UNIT PARTS

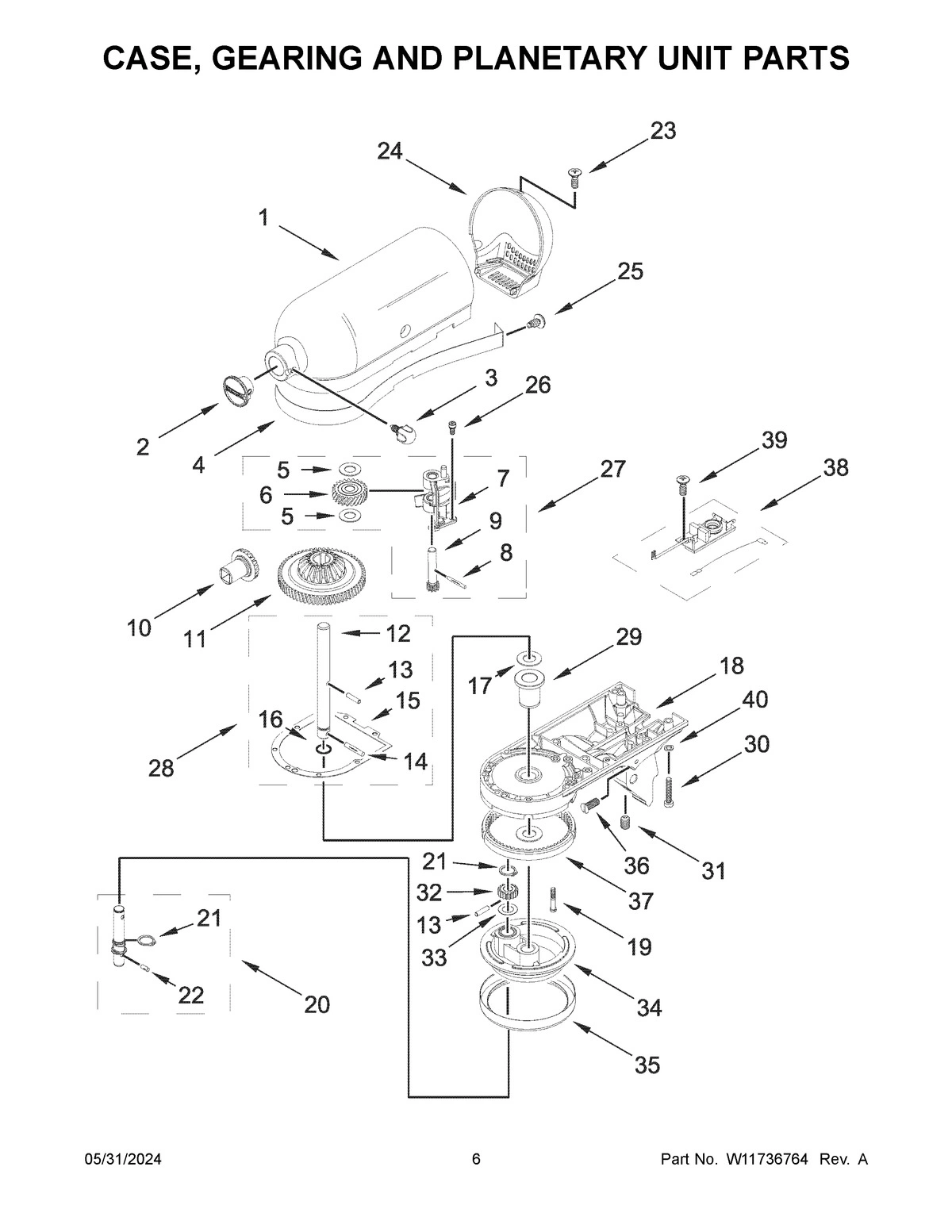

04 - CASE, GEARING AND PLANETARY UNIT PARTS

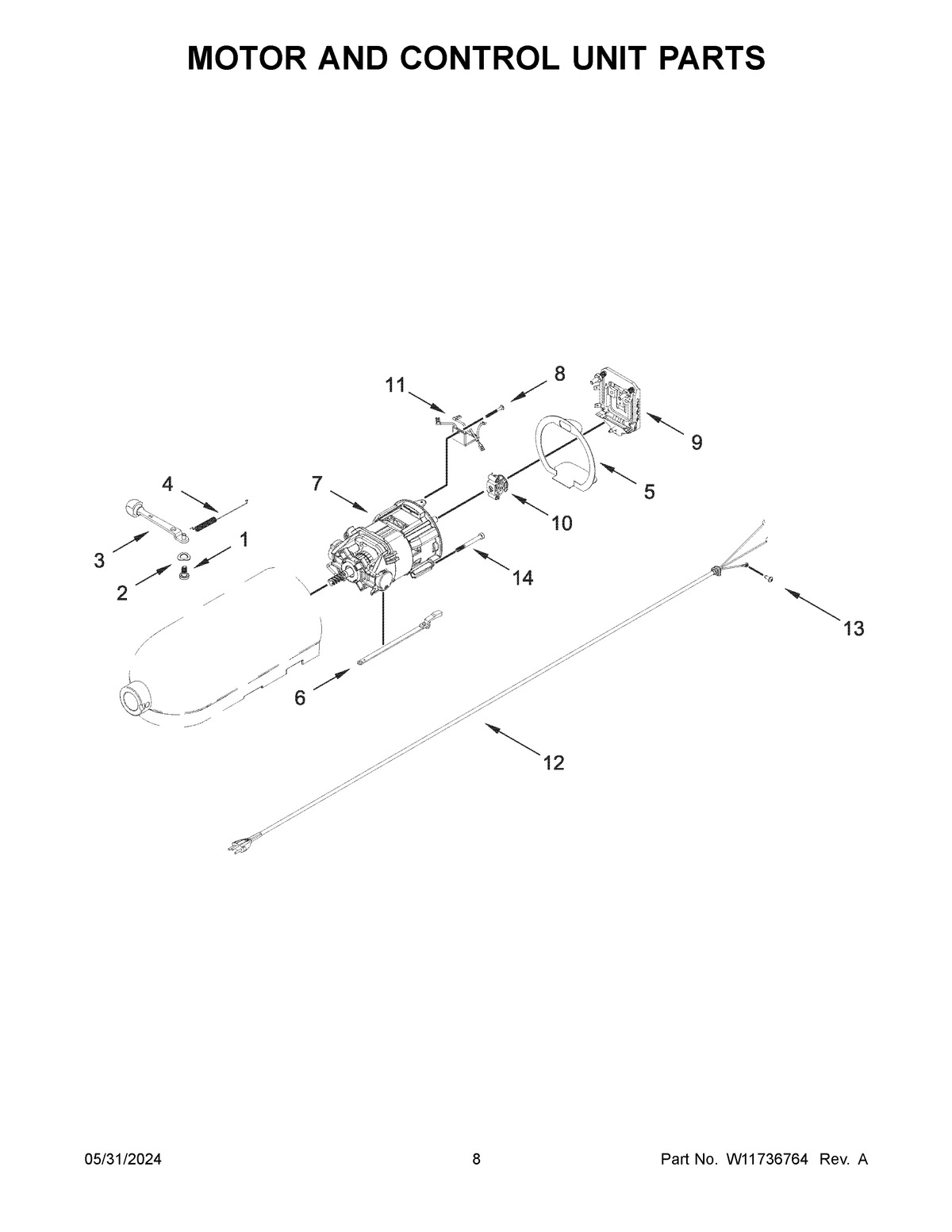

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool 5KSM175PSSCU5 SMALL APPLIANCE, STAND MIXER
1
USE & CARE GUIDE WPL W11615827 Contact Us For Availability
1
GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT WPL ARI33F21CE8839E6A9E729A46FBA298BEC9 Contact Us For Availability
1A
MOTOR HOUSING (CAST IRON/IMPERIAL BLACK) WPL W11604104 Contact Us For Availability
1B
MOTOR HOUSING (CANDY APPLE RED) WPL W11605631 Contact Us For Availability
1C
MOTOR HOUSING (CONTOUR SILVER) WPL W11601770 Contact Us For Availability
1D
MOTOR HOUSING (EMPIRE RED) WPL W11601656 Contact Us For Availability
1E
MOTOR HOUSING (ICE/ICE BLUE) WPL W11617715 Contact Us For Availability
1F
MOTOR HOUSING (MEDALLION SILVER) WPL W11604411 Contact Us For Availability
1G
MOTOR HOUSING (MAJESTIC YELLOW) WPL W11603995 Contact Us For Availability
1H
MOTOR HOUSING (ONYX BLACK) WPL W11601672 Contact Us For Availability
1I
MOTOR HOUSING (PISTACHIO) WPL W11603687 Contact Us For Availability
1J
MOTOR HOUSING (WHITE) WPL W11601255 Contact Us For Availability
2
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL ARIF75EE2D15D3C0612D837BA31F9C56284 Contact Us For Availability
3
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3A
END COVER (CAST IRON/IMPERIAL BLACK) WPL 9704805 Contact Us For Availability
3C
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
3D
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3E
END COVER (ICE/ICE BLUE) WPL 9707667 Contact Us For Availability
3G
END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability
3H
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3I
END COVER (PISTACHIO) WPL 9706841 Contact Us For Availability
3J
END COVER (WHITE) WPL 2402531 Contact Us For Availability
4
PLANETARY (ALMOND CREAM/CREME) WPL 24028618 Contact Us For Availability
4
BAND, TRIM (REFER TO COLOR VARIATION PARTS PA WPL ARIBCA4922FCDA0811E32A4250D3BAC8839 Contact Us For Availability
4A
PLANETARY (CAST IRON/IMPERIAL BLACK) WPL 9704797 Contact Us For Availability
4B
PLANETARY (CANDY APPLE RED) WPL W10239112 Contact Us For Availability
4C
PLANETARY (CONTOUR SILVER) WPL W10350465 Contact Us For Availability
4D
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
4E
PLANETARY (ICE/ICE BLUE) WPL 9707665 Contact Us For Availability
4G
PLANETARY (MAJESTIC YELLOW) WPL 24028622 Contact Us For Availability
4H
PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability
4I
PLANETARY (PISTACHIO) WPL 9706839 Contact Us For Availability
4J
PLANETARY (WHITE) WPL 2402861 Contact Us For Availability
5
LOWER GEARCASE (ALMOND CREAM/CREME) WPL 24035062 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5
SEAL, END WPL 2407751 Contact Us For Availability
5A
LOWER GEARCASE (CAST IRON/IMPERIAL BLACK) WPL 9707103 Contact Us For Availability
5B
LOWER G WPL W10245786 Contact Us For Availability
5C
WPL W10350459 WPL W10350459 Contact Us For Availability
5D
WPL 24035091 WPL 24035091 Contact Us For Availability
5E
WPL 9708868 WPL 9708868 Contact Us For Availability
5G
WPL 24035093 WPL 24035093 Contact Us For Availability
5H
WPL 24035056 WPL 24035056 Contact Us For Availability
5I
WPL 9706832 WPL 9706832 Contact Us For Availability
5J
WPL 2403504 WPL 2403504 Contact Us For Availability
6
WPL 9705577 WPL 9705577 Contact Us For Availability
6A
WPL W10648651 WPL W10648651 Contact Us For Availability
6B
WPL W10245720 WPL W10245720 Contact Us For Availability
6C
WPL W10482478 WPL W10482478 Contact Us For Availability
6D
WPL 3184280 WPL 3184280 Contact Us For Availability
6E
WPL 9708865 WPL 9708865 Contact Us For Availability
6G
WPL 3184281 WPL 3184281 Contact Us For Availability
6H
WPL 3184275 WPL 3184275 Contact Us For Availability
6I
WPL 9709637 WPL 9709637 Contact Us For Availability
7
FOOT WPL W11626982 Contact Us For Availability
7
MOTOR ASSEMBLY WPL W11610691 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
12
POWER CORD (BLACK) WPL W11649501 Contact Us For Availability
12A
POWER CORD (WHITE) WPL W11649502 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
14
SCREW, MOTOR MOUNTING WPL W11573199 Contact Us For Availability
15
GASKET, TRANSMISSION WPL 240684 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
18
LOWER GEAR CASE (REFER TO COLOR VARIATION PAR WPL ARIEEF1A622BEAEFB23DF6AAD74FAA5F1B3 Contact Us For Availability
21
BOWL, 3 QUART WPL W10713675 Contact Us For Availability
24
COVER, END (REFER TO COLOR VARIATION PARTS PA WPL ARIA42AF3C648852D218FE775E70963B46D Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
34
PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL ARIE1E6A119255DCE4ACEB73D1DA4BBAB1D Contact Us For Availability
39
SCREW WPL 7101P11560 Contact Us For Availability
× ![]()
