Whirlpool 5KSM175PSIMS5 SMALL APPLIANCE, STAND MIXER

1

WP110679 Whirlpool Screw Backorder WPL WP110679 $2.91

View on Model

1

USE & CARE GUIDE (ISRAEL) WPL W11051500 Contact Us For Availability

View on Model

2

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $7.08

View on Model

2

WP116241 Whirlpool Washer Backorder WPL WP116241 $2.91

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $13.43

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $4.32

View on Model

3

WPW10672617 Whirlpool Stand Mixer Flat Beater In Stock WPL WPW10672617 $14.66

View on Model

4

W11324096 Whirlpool Mixer Bowl In Stock WPL W11324096 $67.02

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $3.06

View on Model

4D

WPW10444039 Whirlpool Planetary Mixer Backorder WPL WPW10444039 $24.14

View on Model

4E

PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability

View on Model

4F

PLANETARY Backorder WPL 9706839 $31.00

View on Model

4G

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

5

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $3.06

View on Model

5

LOWER GEARCASE (ALMOND CREAM/CREME) WPL 24035062 Contact Us For Availability

View on Model

5

SCREW WPL 3400020 Contact Us For Availability

View on Model

5

SEAL, END WPL 2407751 Contact Us For Availability

View on Model

5A

GEARCASE Backorder WPL 9707103 $43.85

View on Model

5B

GEARCASE Backorder WPL W10350459 $43.85

View on Model

5C

GEARCASE Backorder WPL W11209451 $48.71

View on Model

5D

WPW10444068 Whirlpool Gearcase Assembly Backorder WPL WPW10444068 $79.53

View on Model

5E

LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability

View on Model

5F

9706832 Whirlpool Gearcase Backorder WPL 9706832 $43.85

View on Model

5G

LOWER GEARCASE (WHITE) WPL 2403504 Contact Us For Availability

View on Model

6

W11557271 Whirlpool Link Speed Backorder WPL W11557271 $2.43

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $9.20

View on Model

6

WPW10191926 Whirlpool Cap Screw In Stock WPL WPW10191926 $12.24

View on Model

6

PEDESTAL, W/FEET AND HEADLOCK (ALMOND CREAM/C WPL 9705577 Contact Us For Availability

View on Model

6A

PEDESTL Backorder WPL W10648651 $62.86

View on Model

6B

PEDESTL Backorder WPL W10482478 $62.86

View on Model

6C

WPL W11209449 WPL W11209449 Contact Us For Availability

View on Model

6D

WPW10444067 Whirlpool Pedestal Backorder WPL WPW10444067 $63.30

View on Model

6E

WPL 3184275 WPL 3184275 Contact Us For Availability

View on Model

6F

PEDESTL Backorder WPL 9709637 $62.86

View on Model

6G

WP3184273 Whirlpool Pedestal Backorder WPL WP3184273 $71.53

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $9.66

View on Model

7

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $3.73

View on Model

7

MOTOR ASSEMBLY WPL W11610691 Contact Us For Availability

View on Model

8

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $2.91

View on Model

8

WP9704329 Whirlpool Wire Whip In Stock WPL WP9704329 $18.85

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $3.88

View on Model

9

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $11.77

View on Model

9

WPW10674618 Whirlpool Dough Hook In Stock WPL WPW10674618 $14.59

View on Model

9

GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability

View on Model

10

W11246352 Whirlpool Latch Mechanism Backorder WPL W11246352 $2.43

View on Model

10

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $10.52

View on Model

11

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $30.38

View on Model

11

W11204851 Whirlpool Phase Board Backorder WPL W11204851 $18.68

View on Model

11

WP3184200 Whirlpool Latch Lever Backorder WPL WP3184200 $8.69

View on Model

12

CORD-POWER Backorder WPL W10327836 $34.22

View on Model

12

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.71

View on Model

12A

CORD-POWER Backorder WPL W10327831 $34.04

View on Model

13

W10914506 Whirlpool Screw Backorder WPL W10914506 $2.91

View on Model

13

PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability

View on Model

14

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $2.91

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $3.06

View on Model

14

SCREW, MOTOR MOUNTING WPL W11573199 Contact Us For Availability

View on Model

15

W10802060 Whirlpool Screw Backorder WPL W10802060 $2.91

View on Model

15

GASKET, TRANSMISSION WPL 240684 Contact Us For Availability

View on Model

16

W11232016 Whirlpool Latch Link Backorder WPL W11232016 $2.43

View on Model

16

"O" RING WPL 6750055 Contact Us For Availability

View on Model

17

WP9709267 Whirlpool Latch Lever Backorder WPL WP9709267 $2.91

View on Model

17

WPW10323378 Whirlpool Washer In Stock WPL WPW10323378 $6.06

View on Model

18

WP3184264 Whirlpool Headlock Assembly Backorder WPL WP3184264 $5.05

View on Model

19

W11170598 Whirlpool Screw Backorder WPL W11170598 $2.91

View on Model

19

W11188450 Whirlpool Spring Backorder WPL W11188450 $2.91

View on Model

20

W11573560 Whirlpool Pour Shelf In Stock WPL W11573560 $29.98

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.87

View on Model

21

BOWL, 3 QUART WPL W10713675 Contact Us For Availability

View on Model

22

W10917788 Whirlpool Mixer Beater Backorder WPL W10917788 $40.30

View on Model

22

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

25

W10853069 Whirlpool Screw Backorder WPL W10853069 $2.91

View on Model

26

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

27

WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

29

WP16897 Whirlpool Bearing In Stock WPL WP16897 $4.08

View on Model

30

W11173547 Whirlpool Screw Backorder WPL W11173547 $2.91

View on Model

31

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $2.91

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $3.73

View on Model

34

CABINET (NOT A SERVICABLE PART) WPL NP Contact Us For Availability

View on Model

35

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $5.64

View on Model

36

W11028216 Whirlpool Screw Backorder WPL W11028216 $3.06

View on Model

37

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

38

4176340 Whirlpool Refrigerator Mixer Filter Backorder WPL 4176340 $22.31

View on Model

39

SCREW WPL 7101P11560 Contact Us For Availability

View on Model

All Categories

Brands

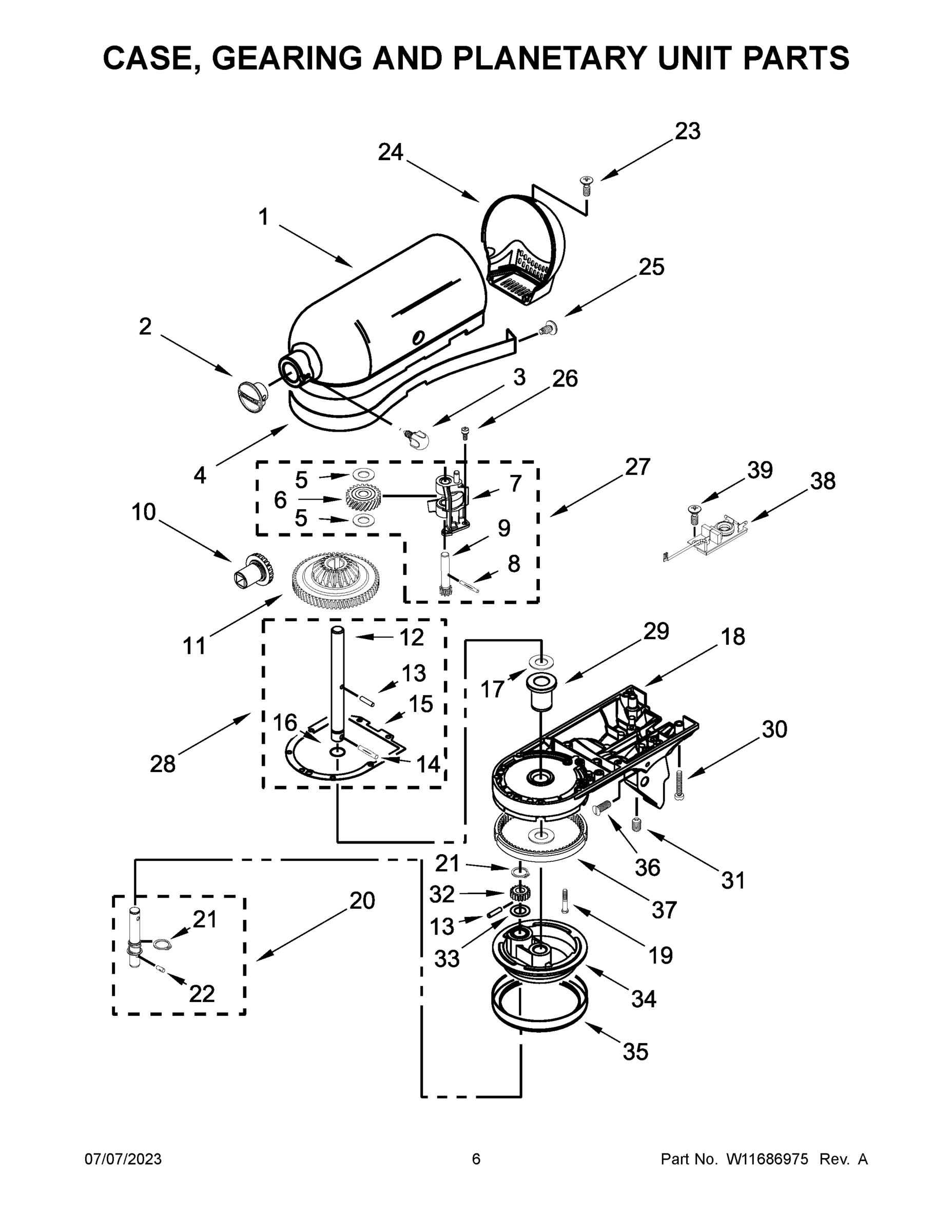

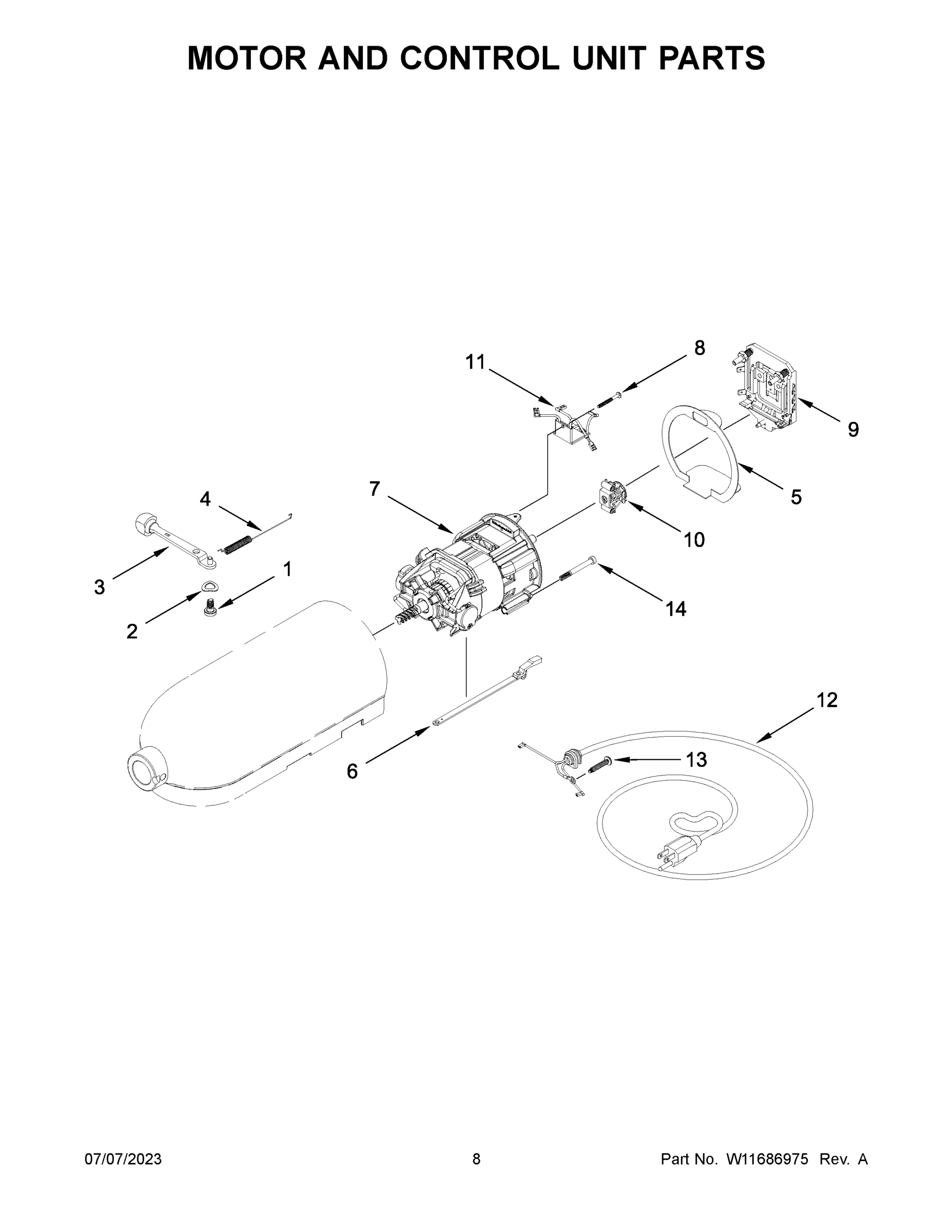

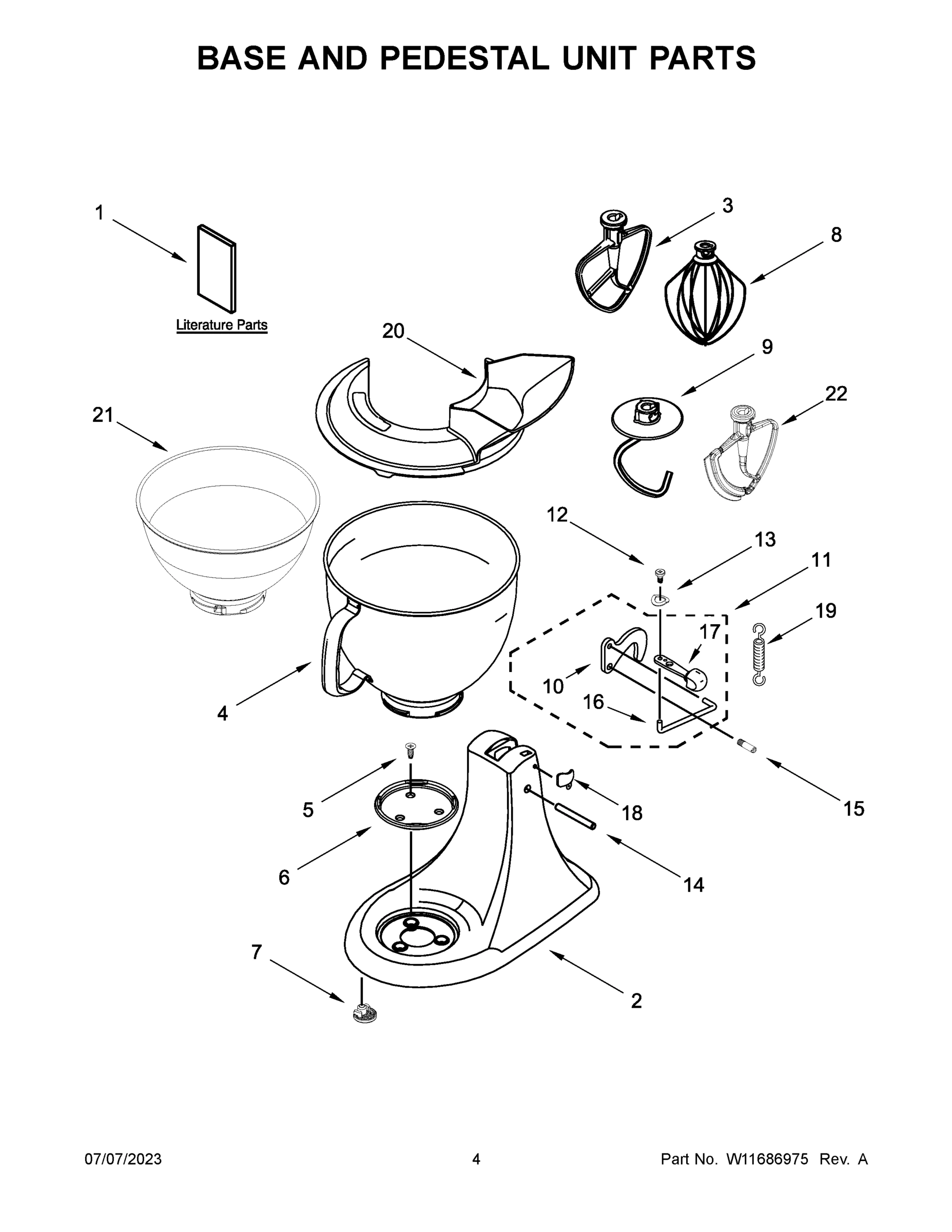

Model Whirlpool 5KSM175PSIMS5 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
