Model Whirlpool 5KSM160APSWCS0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams

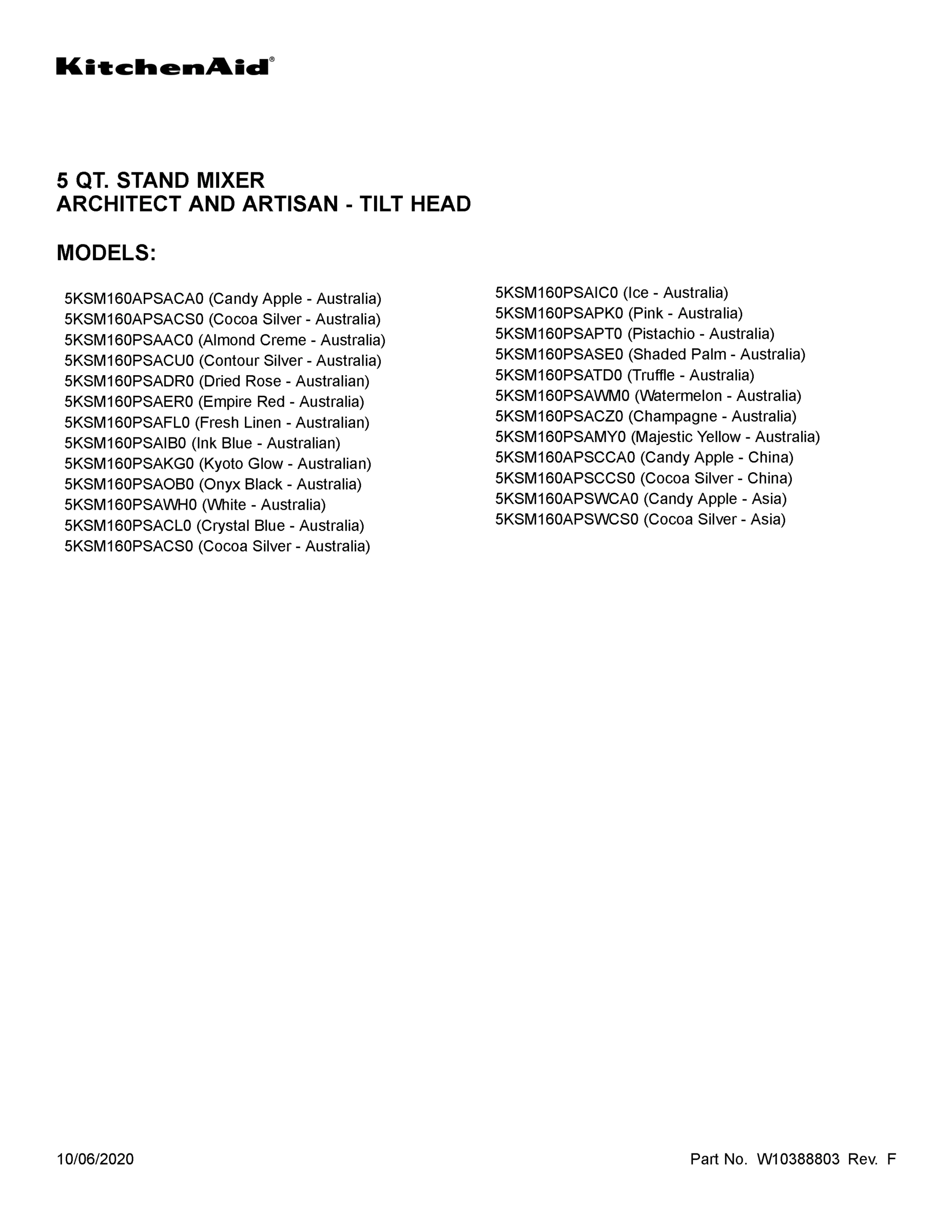

01 - COVER SHEET

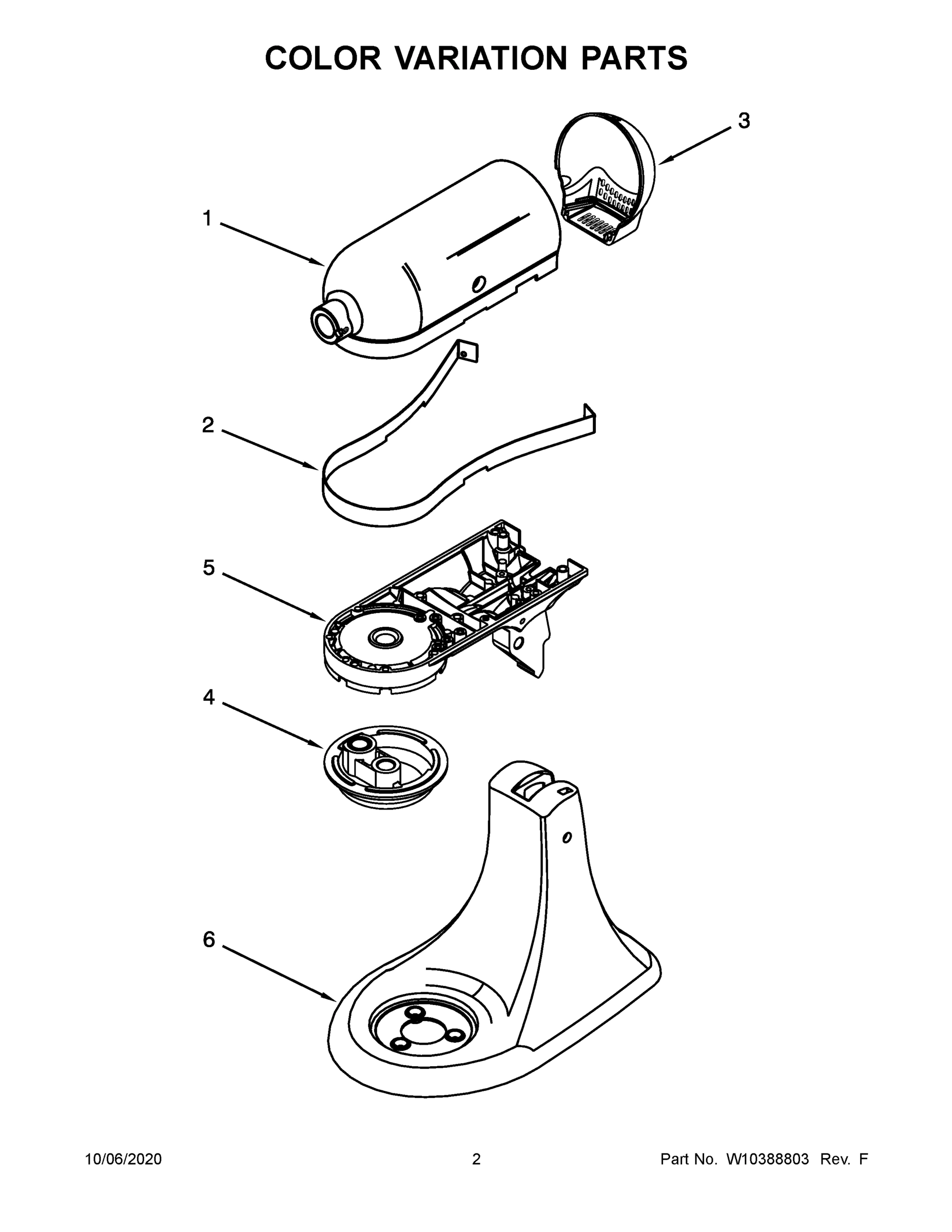

02 - COLOR VARIATION PARTS
03 - CASE, GEARING AND PLANETARY UNIT PARTS
04 - MOTOR AND CONTROL UNIT PARTS
05 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool 5KSM160APSWCS0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE AND CARE GUIDE (EUROPE/ASIA/AUSTRALIA) WPL W10544160 Contact Us For Availability
1A
USE AND CARE GUIDE, (CHINA) WPL W10190231 Contact Us For Availability
1B
MOTOR HOUSING (ALMOND CREAM/CREME) WPL 24029116 Contact Us For Availability
1C
MOTOR HOUSING (CONTOUR SILVER) WPL W10350463 Contact Us For Availability
1D
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1E
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1F
MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability
1G
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1H
MOTOR HOUSING (ICE/ICE BLUE) WPL 9707662 Contact Us For Availability
1I
MOTOR HOUSING (PINK) WPL 9706473 Contact Us For Availability
1J
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1K
MOTOR HOUSING (TRUFFLE) WPL W10539816 Contact Us For Availability
1L
MOTOR HOUSING (WATERMELON) WPL W10564356 Contact Us For Availability
1M
MOTOR HOUSING (CHAMPAGNE) WPL W10754815 Contact Us For Availability
1N
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1O
MOTOR HOUSING (MATTE DRIED ROSE) WPL W11209495 Contact Us For Availability
1P
MOTOR HOUSING (INK BLUE) WPL W11113875 Contact Us For Availability
1Q
MOTOR HOUSING (MATTE FRESH LINEN) WPL W11209454 Contact Us For Availability
1R
MOTOR HOUSING (KYOTO GLOW) WPL W11357463 Contact Us For Availability
1S
MOTOR HOUSING (SHADED PALM) WPL W11349621 Contact Us For Availability
1T
MOTOR HOUSING (BLACK MATTE) WPL W10885700 Contact Us For Availability
1U
MOTOR HOUSING (MATTE LAVENDER CREAM) WPL W10678736 Contact Us For Availability
1V
MOTOR HOUSING (MATCHA) WPL W11431677 Contact Us For Availability
1W
MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability
1X
MOTOR HOUSING (MINERAL WATER BLUE) WPL W11444673 Contact Us For Availability
1Y
MOTOR HOUSING (SCORCHED ORANGE) WPL W11444680 Contact Us For Availability
1Z
MOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE WPL W11209471 Contact Us For Availability
2
TRIM BAND (BRUSHED) WPL W10341538 Contact Us For Availability
3
END COVER (COCOA SILVER) WPL W10171581 Contact Us For Availability
3B
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3C
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
3D
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3E
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3F
END COVER (WHITE) WPL 2402531 Contact Us For Availability
3G
END WPL W10476773 Contact Us For Availability
3H
WPL 9707667 WPL 9707667 Contact Us For Availability
3I
WPL 9706469 WPL 9706469 Contact Us For Availability
3J
WPL 9706841 WPL 9706841 Contact Us For Availability
3K
WPL W10539809 WPL W10539809 Contact Us For Availability
3L
WPL W10564338 WPL W10564338 Contact Us For Availability
3M
WPL W10754809 WPL W10754809 Contact Us For Availability
3N
WPL 24025321 WPL 24025321 Contact Us For Availability
3O
WPL W11209501 WPL W11209501 Contact Us For Availability
3P
WPL W11113833 WPL W11113833 Contact Us For Availability
3Q
WPL W11209458 WPL W11209458 Contact Us For Availability
3R
WPL W11357462 WPL W11357462 Contact Us For Availability
3S
WPL W11349627 WPL W11349627 Contact Us For Availability
3T
WPL W10885707 WPL W10885707 Contact Us For Availability
3U
WPL W10678729 WPL W10678729 Contact Us For Availability
3V
WPL W11431671 WPL W11431671 Contact Us For Availability
3W
WPL W11113835 WPL W11113835 Contact Us For Availability
3X
WPL W11444606 WPL W11444606 Contact Us For Availability
3Y
WPL W11444613 WPL W11444613 Contact Us For Availability
3Z
WPL W11209472 WPL W11209472 Contact Us For Availability
4A
WPL W10239112 WPL W10239112 Contact Us For Availability
4B
WPL 24028618 WPL 24028618 Contact Us For Availability
4C
WPL W10350465 WPL W10350465 Contact Us For Availability
4D
WPL 24028623 WPL 24028623 Contact Us For Availability
4E
WPL 24028616 WPL 24028616 Contact Us For Availability
4F
WPL 2402861 WPL 2402861 Contact Us For Availability
4G
WPL W10476794 WPL W10476794 Contact Us For Availability
4H
WPL 9707665 WPL 9707665 Contact Us For Availability
4I
WPL 9706475 WPL 9706475 Contact Us For Availability
4J
WPL 9706839 WPL 9706839 Contact Us For Availability
4K
WPL W10539813 WPL W10539813 Contact Us For Availability
4L
WPL W10564344 WPL W10564344 Contact Us For Availability
4M
WPL W10754811 WPL W10754811 Contact Us For Availability
4N
WPL 24028622 WPL 24028622 Contact Us For Availability
4O
WPL W11209496 WPL W11209496 Contact Us For Availability
4P
WPL W11113890 WPL W11113890 Contact Us For Availability
4Q
WPL W11209453 WPL W11209453 Contact Us For Availability
4R
WPL W11357469 WPL W11357469 Contact Us For Availability
4S
WPL W11349622 WPL W11349622 Contact Us For Availability
4U
WPL W10678731 WPL W10678731 Contact Us For Availability
4V
WPL W11431678 WPL W11431678 Contact Us For Availability
4W
WPL W11113886 WPL W11113886 Contact Us For Availability
4X
WPL W11444675 WPL W11444675 Contact Us For Availability
4Y
WPL W11444682 WPL W11444682 Contact Us For Availability
4Z
WPL W11209470 WPL W11209470 Contact Us For Availability
5
WPL W10171589 WPL W10171589 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL W10245786 WPL W10245786 Contact Us For Availability
5B
WPL 24035062 WPL 24035062 Contact Us For Availability
5C
WPL W10350459 WPL W10350459 Contact Us For Availability
5D
WPL 24035091 WPL 24035091 Contact Us For Availability
5E
WPL 24035056 WPL 24035056 Contact Us For Availability
5F
WPL 2403504 WPL 2403504 Contact Us For Availability
5G
WPL W10476775 WPL W10476775 Contact Us For Availability
5H
WPL 9708868 WPL 9708868 Contact Us For Availability
5I
WPL 9707364 WPL 9707364 Contact Us For Availability
5J
WPL 9706832 WPL 9706832 Contact Us For Availability
5K
WPL W10539814 WPL W10539814 Contact Us For Availability
5L
WPL W10564350 WPL W10564350 Contact Us For Availability
5M
WPL W10754813 WPL W10754813 Contact Us For Availability
5N
WPL 24035093 WPL 24035093 Contact Us For Availability
5O
WPL W11209493 WPL W11209493 Contact Us For Availability
5P
WPL W11113862 WPL W11113862 Contact Us For Availability
5Q
WPL W11209451 WPL W11209451 Contact Us For Availability
5R
WPL W11357465 WPL W11357465 Contact Us For Availability
5S
WPL W11349619 WPL W11349619 Contact Us For Availability
5T
WPL W10885699 WPL W10885699 Contact Us For Availability
5U
WPL W10678734 WPL W10678734 Contact Us For Availability
5V
WPL W11431681 WPL W11431681 Contact Us For Availability
5W
WPL W11113859 WPL W11113859 Contact Us For Availability
5X
WPL W1 WPL W1 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
19
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
20
BOWL, 3 QUART WPL W10713675 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
31A
CORD, POWER (BLACK (AUSTRALIA)) WPL W10704839 Contact Us For Availability
39
LEAD, FILTER WPL 9702311 Contact Us For Availability
40
SCREW WPL 7101P11560 Contact Us For Availability
× ![]()
