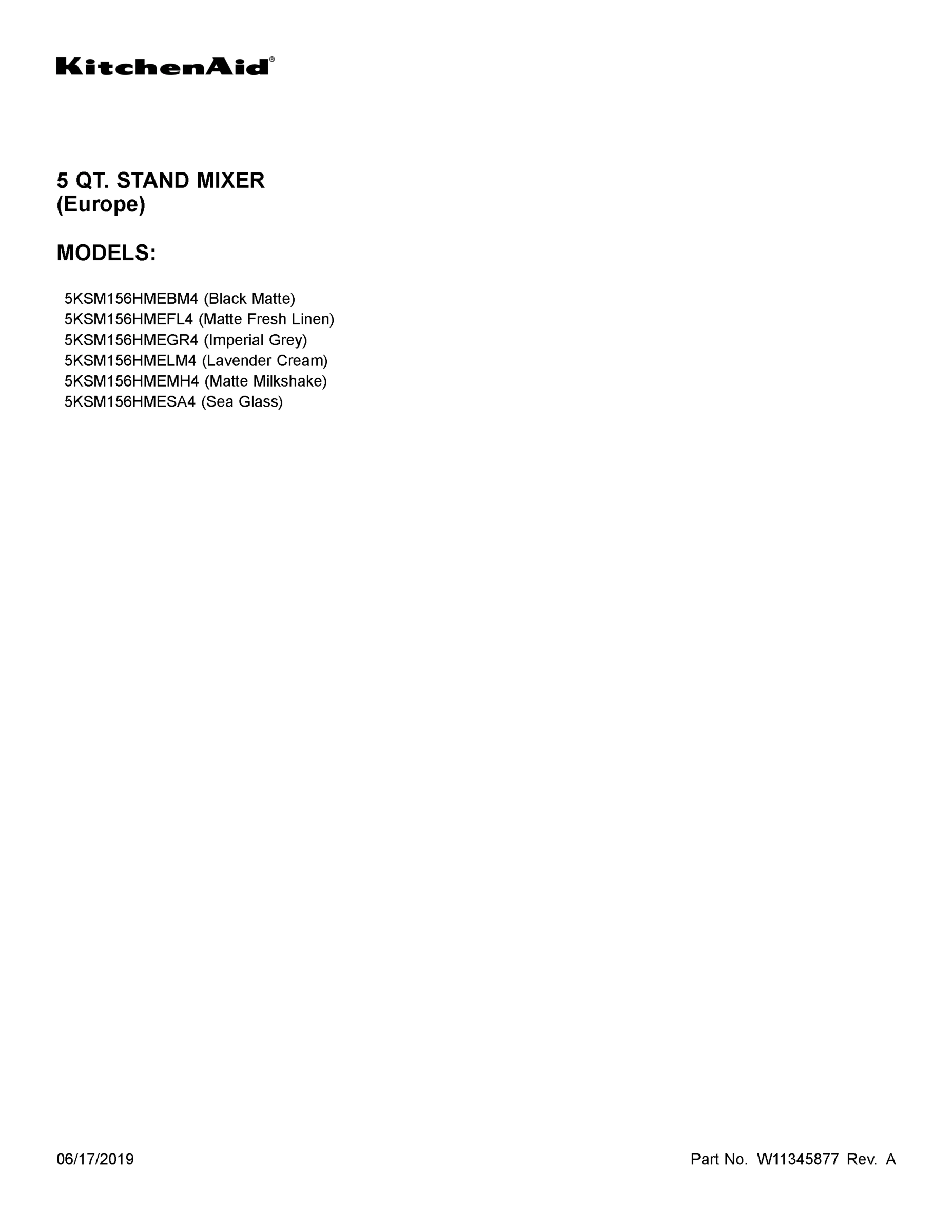

Whirlpool 5KSM156HMEGR4 SMALL APPLIANCE, STAND MIXER, 5 QT

1A

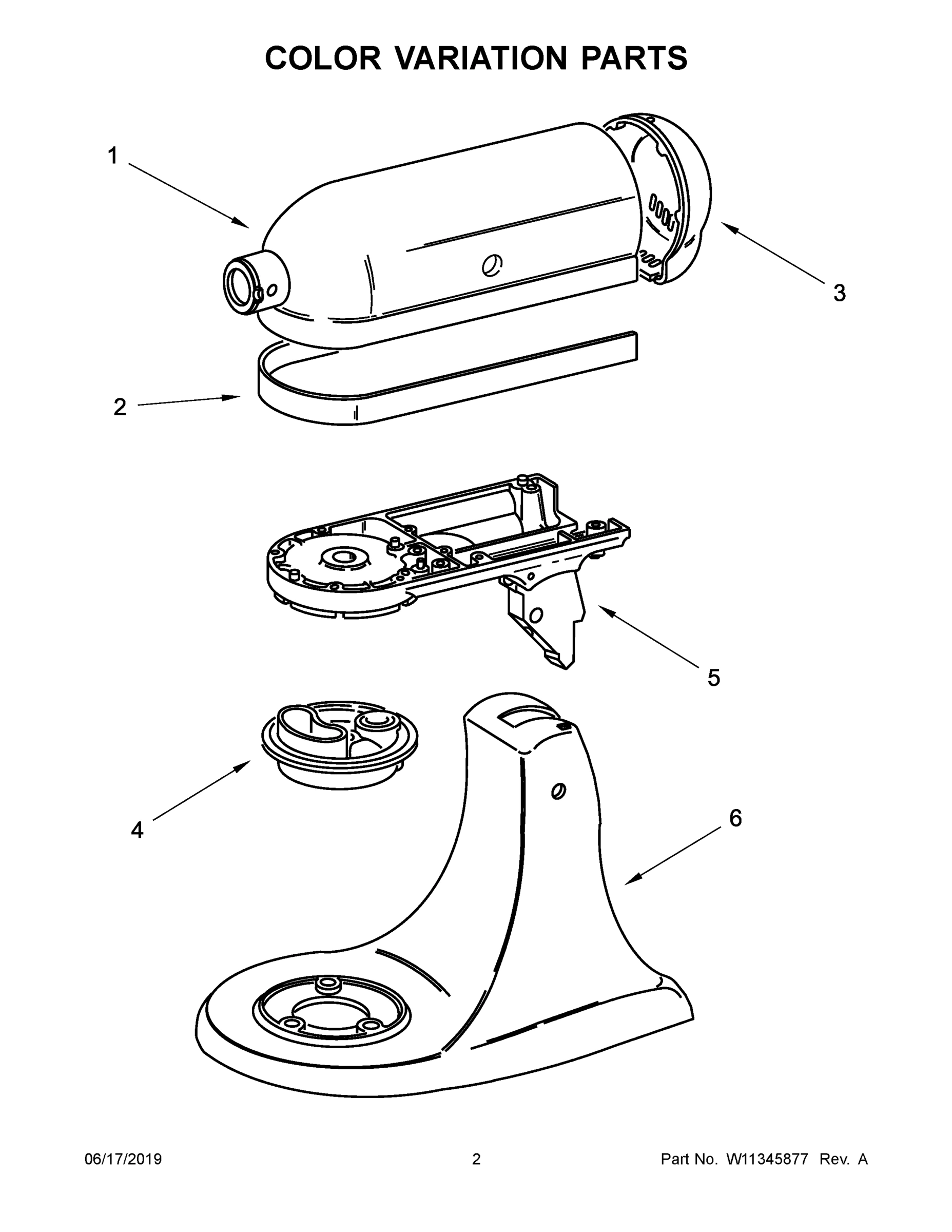

MOTOR HOUSING (MATTE FRESH LINEN) WPL W11209454 Contact Us For Availability

View on Model

1B

MOTOR HOUSING (IMPERIAL GREY) WPL 24029122 Contact Us For Availability

View on Model

1C

MOTOR HOUSING (LAVENDER CREAM) WPL W11266860 Contact Us For Availability

View on Model

1D

MOTOR HOUSING (MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability

View on Model

1E

MOTOR HOUSING (SEA GLASS) WPL W10703460 Contact Us For Availability

View on Model

2

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $5.97

View on Model

2

W11188411 Whirlpool Trim Band Backorder WPL W11188411 $13.73

View on Model

2

WPW10191926 Whirlpool Cap Screw In Stock WPL WPW10191926 $10.87

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

END COVER (BLACK MATTE) WPL W10885707 Contact Us For Availability

View on Model

3A

END COVER (MATTE FRESH LINEN) WPL W11209458 Contact Us For Availability

View on Model

3B

END COVER (IMPERIAL GREY) WPL 24025323 Contact Us For Availability

View on Model

3C

W10678729 Whirlpool Cover Assembly Backorder WPL W10678729 $32.65

View on Model

3D

END COVER (MATTE MILKSHAKE) WPL W11113835 Contact Us For Availability

View on Model

3E

END COVER (SEA GLASS) WPL W10703454 Contact Us For Availability

View on Model

4

W11170306 Whirlpool Planetary Assembly Backorder WPL W11170306 $17.77

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4A

PLANETARY (MATTE FRESH LINEN) WPL W11209453 Contact Us For Availability

View on Model

4B

PLANETARY (IMPERIAL GREY) WPL 24028624 Contact Us For Availability

View on Model

4C

PLANETARY (LAVENDER CREAM) WPL W10678731 Contact Us For Availability

View on Model

4D

W11113886 Whirlpool Planetary Mixer Backorder WPL W11113886 $33.47

View on Model

4E

PLANETARY (SEA GLASS) WPL W10703456 Contact Us For Availability

View on Model

5

WP8533914 Whirlpool Lock Backorder WPL WP8533914 $2.91

View on Model

5

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $2.91

View on Model

5

LOWER GEARCASE (BLACK MATTE) WPL W10885699 Contact Us For Availability

View on Model

5A

LOWER GEARCASE (MATTE FRESH LINEN) WPL W11209451 Contact Us For Availability

View on Model

5B

LOWER GEARCASE (IMPERIAL GREY) WPL 24035086 Contact Us For Availability

View on Model

5C

LOWER GEARCASE (LAVENDER CREAM) WPL W10678734 Contact Us For Availability

View on Model

5D

LOWER GEARCASE (MATTE MILKSHAKE) WPL W11113859 Contact Us For Availability

View on Model

5E

LOWER GEARCASE (SEA GLASS) WPL W10703458 Contact Us For Availability

View on Model

6

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

6

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $2.91

View on Model

6

PEDESTAL WITH FEET AND HEADLOCK (BLACK MATTE) WPL W11185575 Contact Us For Availability

View on Model

6A

PEDESTAL WITH FEET AND HEADLOCK (MATTE FRESH WPL W11209449 Contact Us For Availability

View on Model

6B

PEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GRE WPL 9703998 Contact Us For Availability

View on Model

6C

PEDESTAL WITH FEET AND HEADLOCK (LAVENDER CRE WPL W11266841 Contact Us For Availability

View on Model

6D

PEDESTAL WITH FEET AND HEADLOCK (MATTE MILKSH WPL W11259895 Contact Us For Availability

View on Model

6E

PEDESTAL WITH FEET AND HEADLOCK (SEA GLASS) WPL W10816461 Contact Us For Availability

View on Model

7

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $2.91

View on Model

7

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

8

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

8

WPW10417246 Whirlpool Field Assembly Backorder WPL WPW10417246 $34.70

View on Model

9

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

10

GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability

View on Model

11

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

12

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.44

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

14

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

15

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

15

WPW10672617 Whirlpool Stand Mixer Flat Beater In Stock WPL WPW10672617 $13.18

View on Model

15

PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability

View on Model

16

WPW10323378 Whirlpool Washer Backorder WPL WPW10323378 $6.06

View on Model

17

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

17

WPW10674618 Whirlpool Dough Hook In Stock WPL WPW10674618 $13.10

View on Model

18

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

18

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

18

WP9704329 Whirlpool Wire Whip Backorder WPL WP9704329 $17.95

View on Model

20

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

20

SCREW WPL 7101P11560 Contact Us For Availability

View on Model

21

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

21

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

22

W11170598 Whirlpool Screw Backorder WPL W11170598 $2.91

View on Model

22

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

24

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

25

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

26

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

27

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

27

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

28

W11028216 Whirlpool Screw Backorder WPL W11028216 $2.91

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

29

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $2.91

View on Model

30

W11173547 Whirlpool Screw Backorder WPL W11173547 $2.91

View on Model

31

O RING WPL 6750055 Contact Us For Availability

View on Model

32

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

View on Model

33

COVER, END (REFER TO COLOR VARIATION PARTS PA WPL NP Contact Us For Availability

View on Model

34

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

35

WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability

View on Model

36

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

37

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

38

LEAD, FILTER WPL 9702311 Contact Us For Availability

View on Model

39

4176340 Whirlpool Refrigerator Mixer Filter Backorder WPL 4176340 $22.31

View on Model

40

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

All Categories

Brands

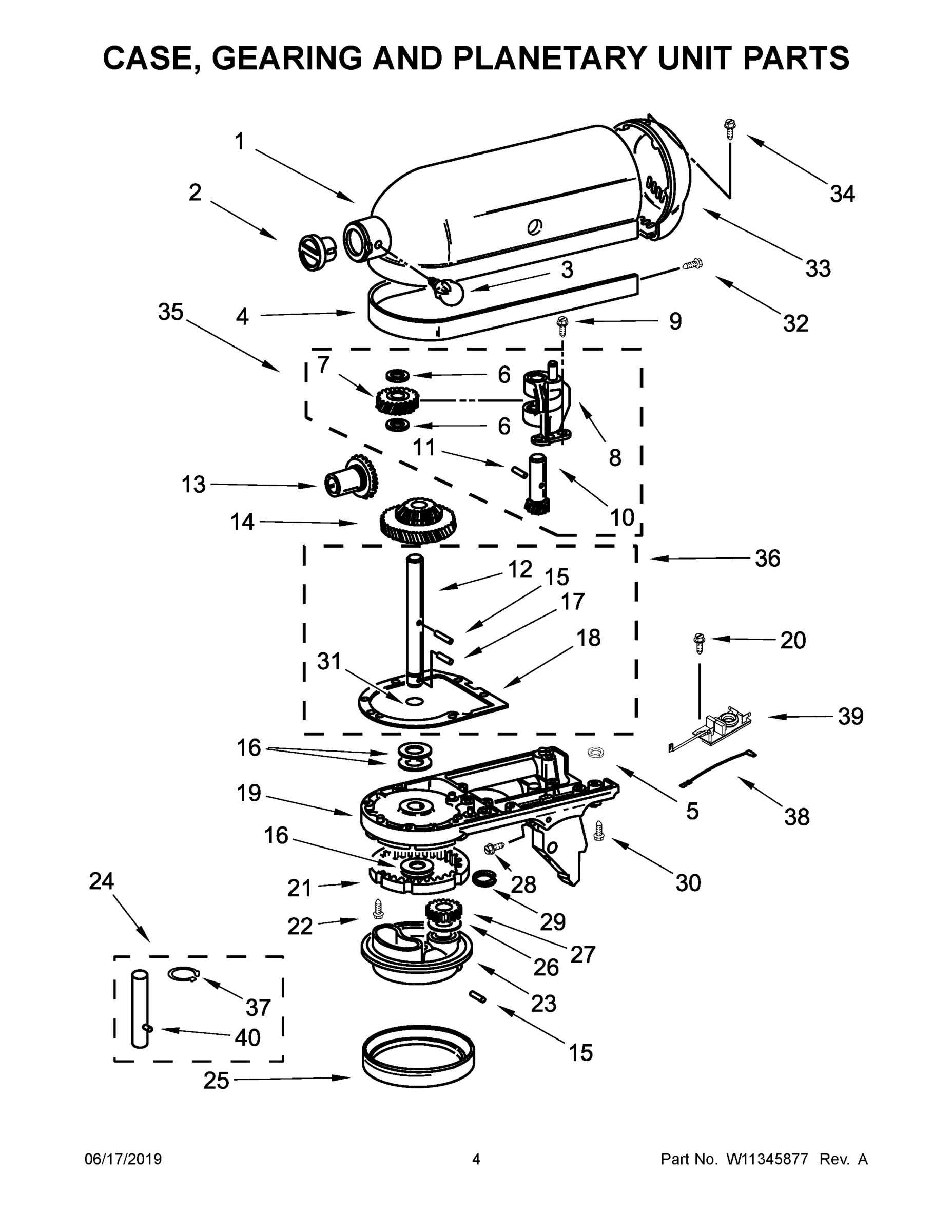

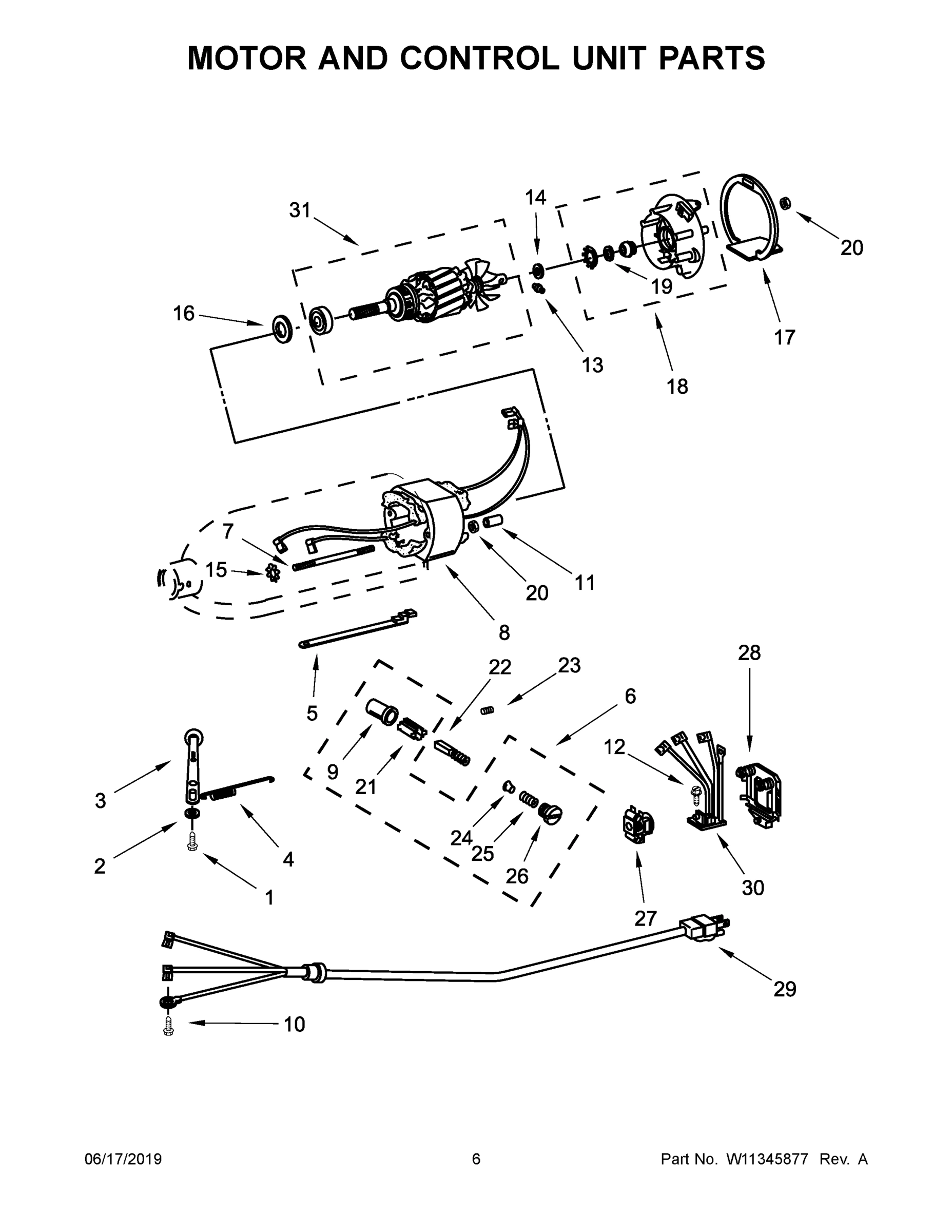

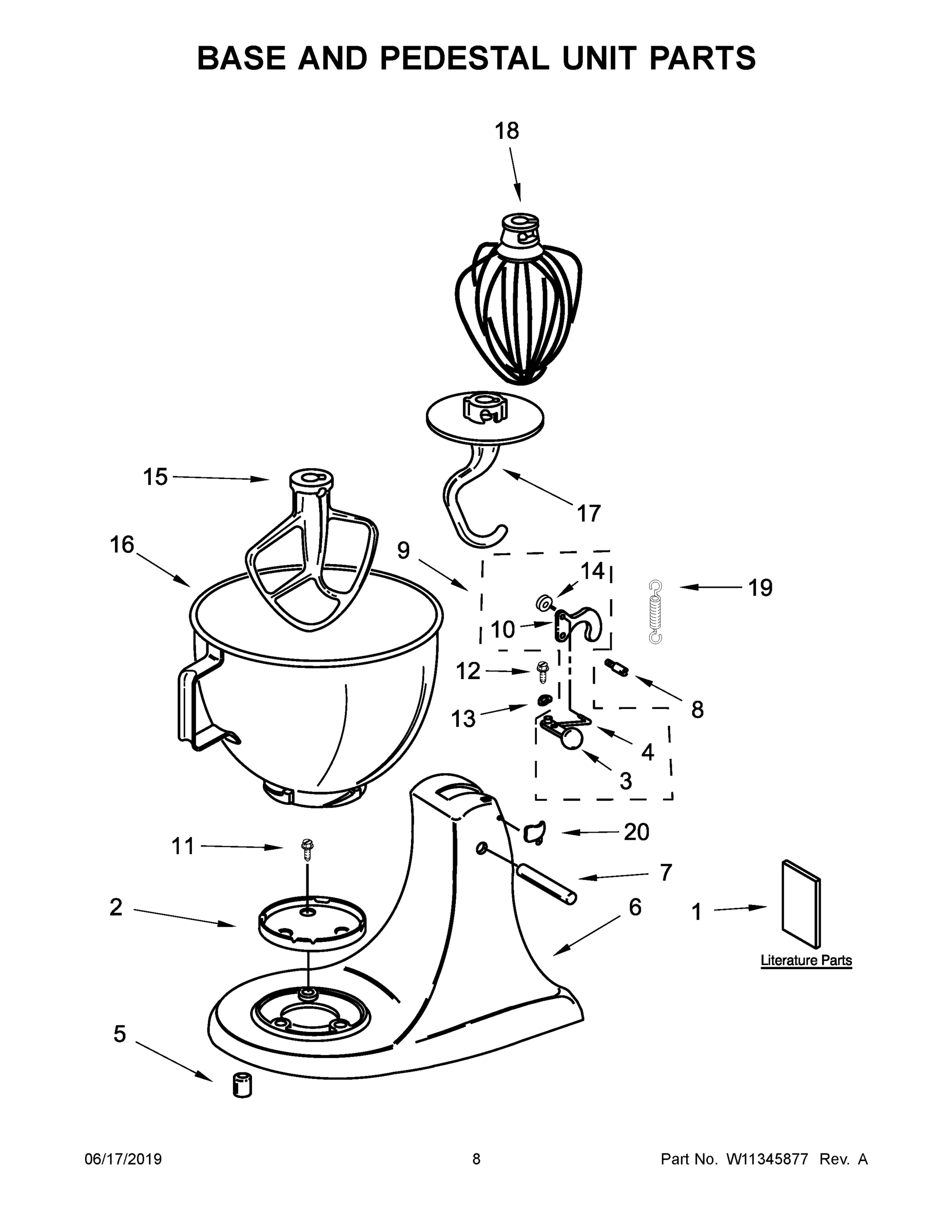

Model Whirlpool 5KSM156HMEGR4 SMALL APPLIANCE, STAND MIXER, 5 QT – Common Parts & Diagrams
