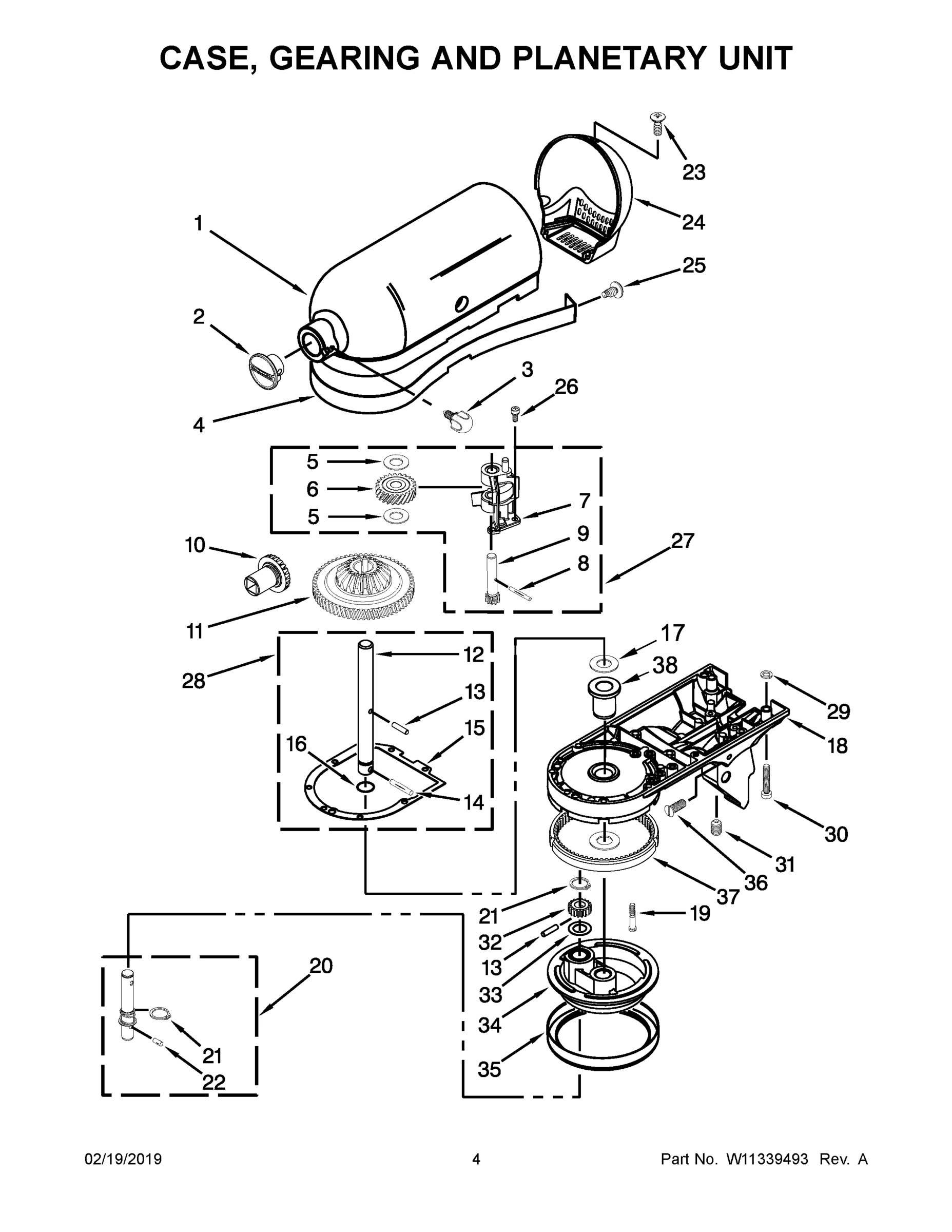

Whirlpool 5KSM156GCEGD4 SMALL APPLIANCE, STAND MIXER, 5 QT

1

W10572197 Whirlpool Housing Backorder WPL W10572197 $69.76

View on Model

1A

MOTOR HOUSING (PISTACHIO MATTE) WPL W10871876 Contact Us For Availability

View on Model

1B

MOTOR HOUSING (INK BLUE) WPL W11113875 Contact Us For Availability

View on Model

1C

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

2

W11048596 Whirlpool Hub Chrome Cap In Stock WPL W11048596 $5.97

View on Model

2

W11188411 Whirlpool Trim Band Backorder WPL W11188411 $13.73

View on Model

3

W10572184 Whirlpool Cover Backorder WPL W10572184 $33.38

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

WPW10672617 Whirlpool Stand Mixer Flat Beater In Stock WPL WPW10672617 $13.18

View on Model

3A

W10839419 Whirlpool Screw Backorder WPL W10839419 $4.58

View on Model

3A

W10871879 Whirlpool Cover Backorder WPL W10871879 $30.16

View on Model

3B

END COVER (INK BLUE) WPL W11113833 Contact Us For Availability

View on Model

3C

END COVER (WHITE) WPL 2402531 Contact Us For Availability

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

PLANETARY (GRENADINE) WPL W10572189 Contact Us For Availability

View on Model

4A

PLANETARY (PISTACHIO MATTE) WPL W10871877 Contact Us For Availability

View on Model

4B

PLANETARY (INK BLUE) WPL W11113890 Contact Us For Availability

View on Model

4C

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

5

W10572193 Whirlpool Gearcase Assembly Backorder WPL W10572193 $45.16

View on Model

5

WPW10323373 Whirlpool Washer Backorder WPL WPW10323373 $2.91

View on Model

5A

LOWER GEARCASE (PISTACHIO MATTE) WPL W10871871 Contact Us For Availability

View on Model

5B

LOWER GEARCASE (INK BLUE) WPL W11113862 Contact Us For Availability

View on Model

5C

LOWER GEARCASE (WHITE) WPL 2403504 Contact Us For Availability

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

6

WPW10191926 Whirlpool Cap Screw In Stock WPL WPW10191926 $10.87

View on Model

6

PEDESTAL W/FEET & HEADLOCK (GRENADINE) WPL W11257678 Contact Us For Availability

View on Model

6A

PEDESTAL W/FEET & HEADLOCK (PISTACHIO MATTE) WPL W11269279 Contact Us For Availability

View on Model

6B

PEDESTAL W/FEET & HEADLOCK (INK BLUE) WPL W11269286 Contact Us For Availability

View on Model

6C

WP3184273 Whirlpool Pedestal Backorder WPL WP3184273 $71.53

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

7

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $2.91

View on Model

8

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

8

WP9704329 Whirlpool Wire Whip Backorder WPL WP9704329 $17.95

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

9

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

9

WPW10674618 Whirlpool Dough Hook In Stock WPL WPW10674618 $13.10

View on Model

9

GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability

View on Model

11

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

11

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

12

WP240026 Whirlpool Control Shaft Backorder WPL WP240026 $5.44

View on Model

13

PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability

View on Model

14

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

15

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

16

O RING WPL 6750055 Contact Us For Availability

View on Model

17

WPW10323378 Whirlpool Washer Backorder WPL WPW10323378 $6.06

View on Model

17

WPW10417246 Whirlpool Field Assembly Backorder WPL WPW10417246 $34.70

View on Model

18

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $2.91

View on Model

19

W11170598 Whirlpool Screw Backorder WPL W11170598 $2.91

View on Model

19

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

21

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

22

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 $4.43

View on Model

23

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

24

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $2.91

View on Model

25

W10853069 Whirlpool Screw Backorder WPL W10853069 $2.91

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

26

W11097298 Whirlpool Dishwasher Screw Backorder WPL W11097298 $2.91

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

27

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $2.91

View on Model

27

WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

29

WP8533914 Whirlpool Lock Backorder WPL WP8533914 $2.91

View on Model

29

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

30

W11173547 Whirlpool Screw Backorder WPL W11173547 $2.91

View on Model

30

W11174552 Whirlpool Stand Mixer Phase Board In Stock WPL W11174552 $11.49

View on Model

31

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $2.91

View on Model

31

POWER CORD (BLACK (UNITED KINGDOM)) WPL W11103222 Contact Us For Availability

View on Model

31A

W11112762 Whirlpool Power Cord Backorder WPL W11112762 $11.88

View on Model

31B

POWER CORD (WHITE (UNITED KINGDOM)) WPL W11207282 Contact Us For Availability

View on Model

31C

W10706734 Whirlpool Power Cord Backorder WPL W10706734 $28.68

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

34

PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL NP Contact Us For Availability

View on Model

35

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

36

W11028216 Whirlpool Screw Backorder WPL W11028216 $2.91

View on Model

37

W11340106 Whirlpool Gear Assembly Backorder WPL W11340106 $11.95

View on Model

38

WP16897 Whirlpool Bearing In Stock WPL WP16897 $2.91

View on Model
