Model Whirlpool 5KSM150PSEOB5 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

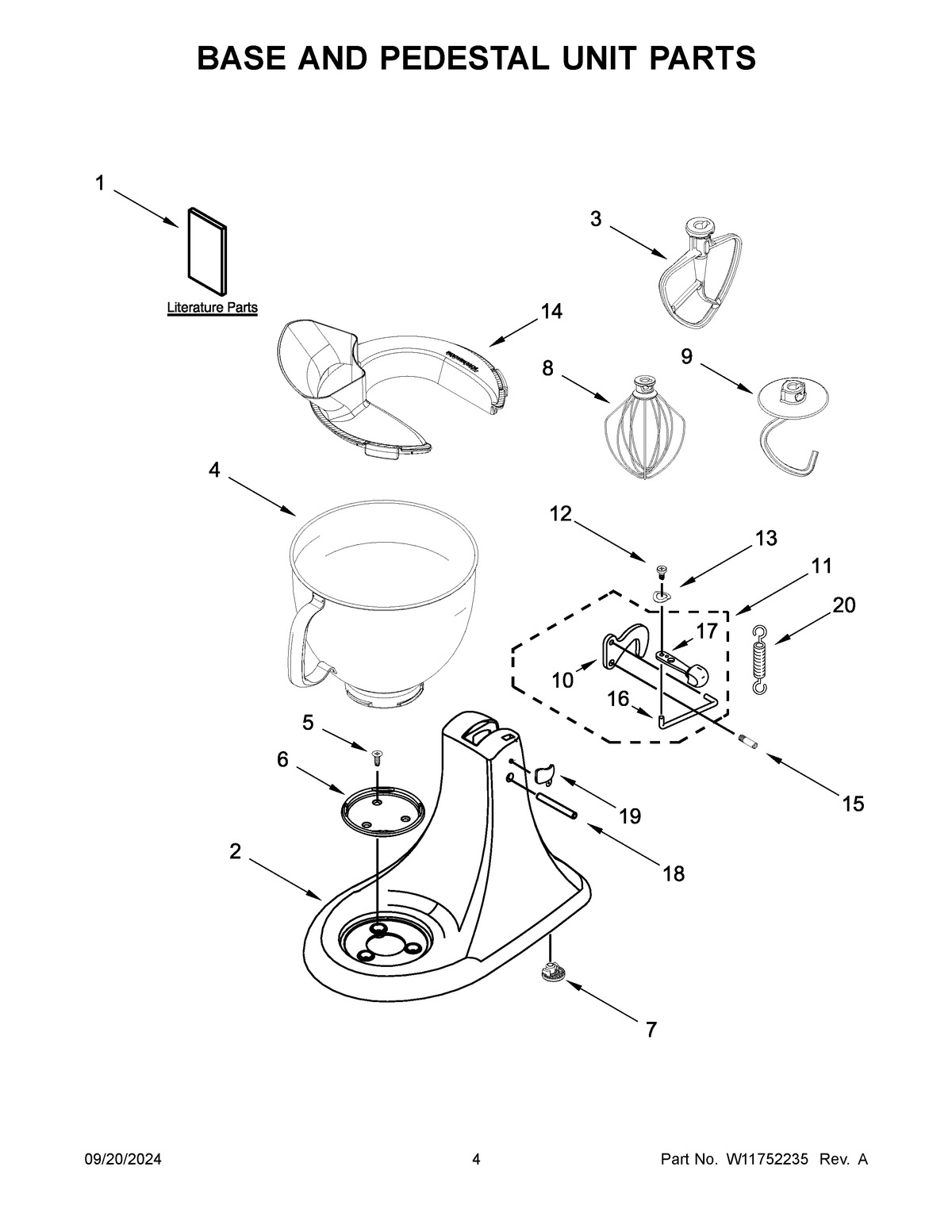

03 - BASE AND PEDESTAL UNIT PARTS

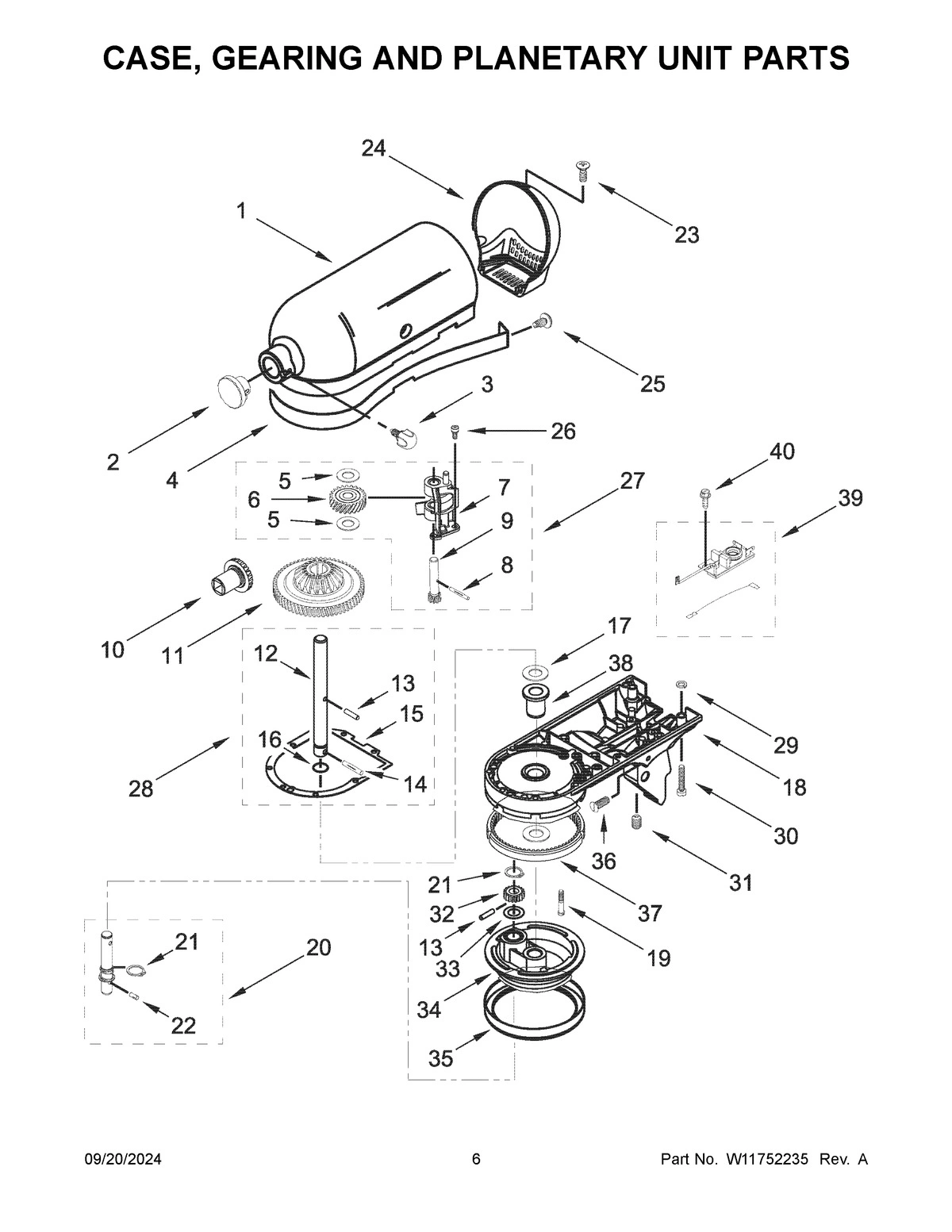

04 - CASE, GEARING AND PLANETARY UNIT PARTS

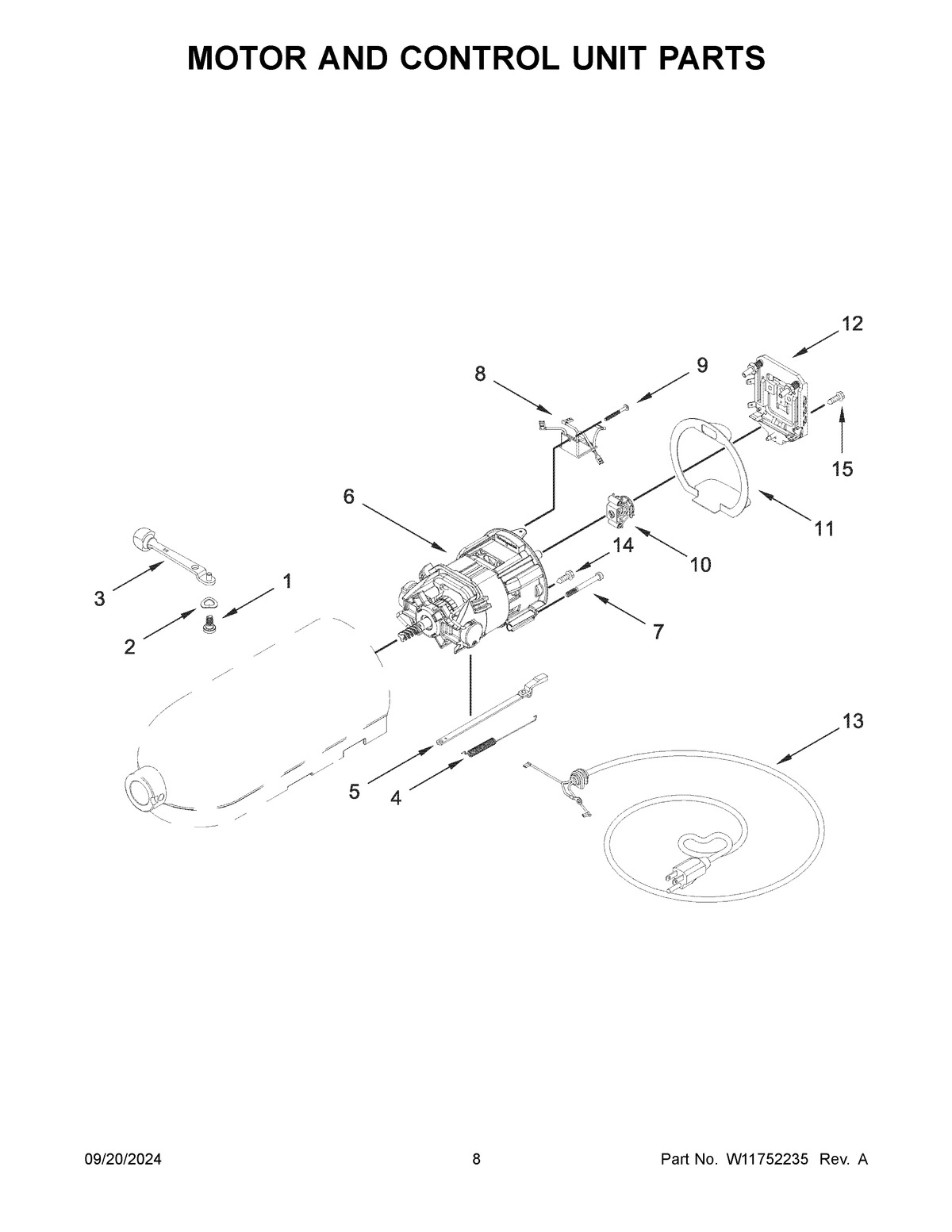

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool 5KSM150PSEOB5 SMALL APPLIANCE, STAND MIXER
1
USE & CARE GUIDE WPL W11615827 Contact Us For Availability
1
GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT WPL ARI33F21CE8839E6A9E729A46FBA298BEC9 Contact Us For Availability
1
SCREW WPL W11611890 Contact Us For Availability
1A
MOTOR HOUSING (CANDY APPLE RED) WPL W11605631 Contact Us For Availability
1B
MOTOR HOUSING (CAST IRON/IMPERIAL BLACK) WPL W11604104 Contact Us For Availability
1C
MOTOR HOUSING (EMPIRE RED) WPL W11601656 Contact Us For Availability
1D
MOTOR HOUSING (ICE/ICE BLUE) WPL W11617715 Contact Us For Availability
1E
MOTOR HOUSING (MEDALLION SILVER) WPL W11604411 Contact Us For Availability
1F
MOTOR HOUSING (ONYX BLACK) WPL W11601672 Contact Us For Availability
1G
MOTOR HOUSING (PISTACHIO) WPL W11603687 Contact Us For Availability
1H
MOTOR HOUSING (WHITE) WPL W11601255 Contact Us For Availability
2
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL ARIF75EE2D15D3C0612D837BA31F9C56284 Contact Us For Availability
3
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3B
END COVER (CAST IRON/IMPERIAL BLACK) WPL 9704805 Contact Us For Availability
3C
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3D
END COVER (ICE/ICE BLUE) WPL 9707667 Contact Us For Availability
3F
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3G
END COVER (PISTACHIO) WPL 9706841 Contact Us For Availability
3H
END COVER (WHITE) WPL 2402531 Contact Us For Availability
4
PLANETARY (ALMOND CREAM/CREME) WPL 24028618 Contact Us For Availability
4
BAND, TRIM (REFER TO COLOR VARIATION PARTS PA WPL ARIBCA4922FCDA0811E32A4250D3BAC8839 Contact Us For Availability
4A
PLANETARY (CANDY APPLE RED) WPL W10239112 Contact Us For Availability
4B
PLANETARY (CAST IRON/IMPERIAL BLACK) WPL 9704797 Contact Us For Availability
4C
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
4D
PLANETARY (ICE/ICE BLUE) WPL 9707665 Contact Us For Availability
4F
PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability
4G
PLANETARY (PISTACHIO) WPL 9706839 Contact Us For Availability
4H
PLANETARY (WHITE) WPL 2402861 Contact Us For Availability
5
LOWER GEARCASE (ALMOND CREAM/CREME) WPL 24035062 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
LOWER GEARCASE (CANDY APPLE RED) WPL W10245786 Contact Us For Availability
5B
LOWER GEARCASE (CAST IRON/IMPERIAL BLACK) WPL 9707103 Contact Us For Availability
5C
LOWER GEARCASE (EMPIRE RED) WPL 24035091 Contact Us For Availability
5D
LOWER GEARCASE (ICE/ICE BLUE) WPL 9708868 Contact Us For Availability
5F
LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability
5G
LOWER GEARCASE (PISTACHIO) WPL 9706832 Contact Us For Availability
5H
LOWE WPL 2403504 Contact Us For Availability
6
WPL 9705577 WPL 9705577 Contact Us For Availability
6
MOTOR ASSEMBLY WPL W11610691 Contact Us For Availability
6A
WPL W10245720 WPL W10245720 Contact Us For Availability
6B
WPL W10648651 WPL W10648651 Contact Us For Availability
6C
WPL 3184280 WPL 3184280 Contact Us For Availability
6D
WPL 9708865 WPL 9708865 Contact Us For Availability
6F
WPL 3184275 WPL 3184275 Contact Us For Availability
6G
WPL 9709637 WPL 9709637 Contact Us For Availability
7
FOOT WPL W11626982 Contact Us For Availability
7
SCREW, MOTOR MOUNTING WPL W11573199 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
11
SEAL, END WPL 2407751 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
13
CORD, POWER (BLACK) WPL W11649237 Contact Us For Availability
13A
CORD, POWER (WHITE) WPL W11649236 Contact Us For Availability
15
GASKET, TRANSMISSION WPL 240684 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
18
LOWER GEAR CASE (REFER TO COLOR VARIATION PAR WPL ARIEEF1A622BEAEFB23DF6AAD74FAA5F1B3 Contact Us For Availability
24
COVER, END (REFER TO COLOR VARIATION PARTS PA WPL ARIA42AF3C648852D218FE775E70963B46D Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
34
PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL ARIE1E6A119255DCE4ACEB73D1DA4BBAB1D Contact Us For Availability
40
SCREW WPL 7101P11560 Contact Us For Availability
× ![]()
