Model Whirlpool 5KSM150PSCAC0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams

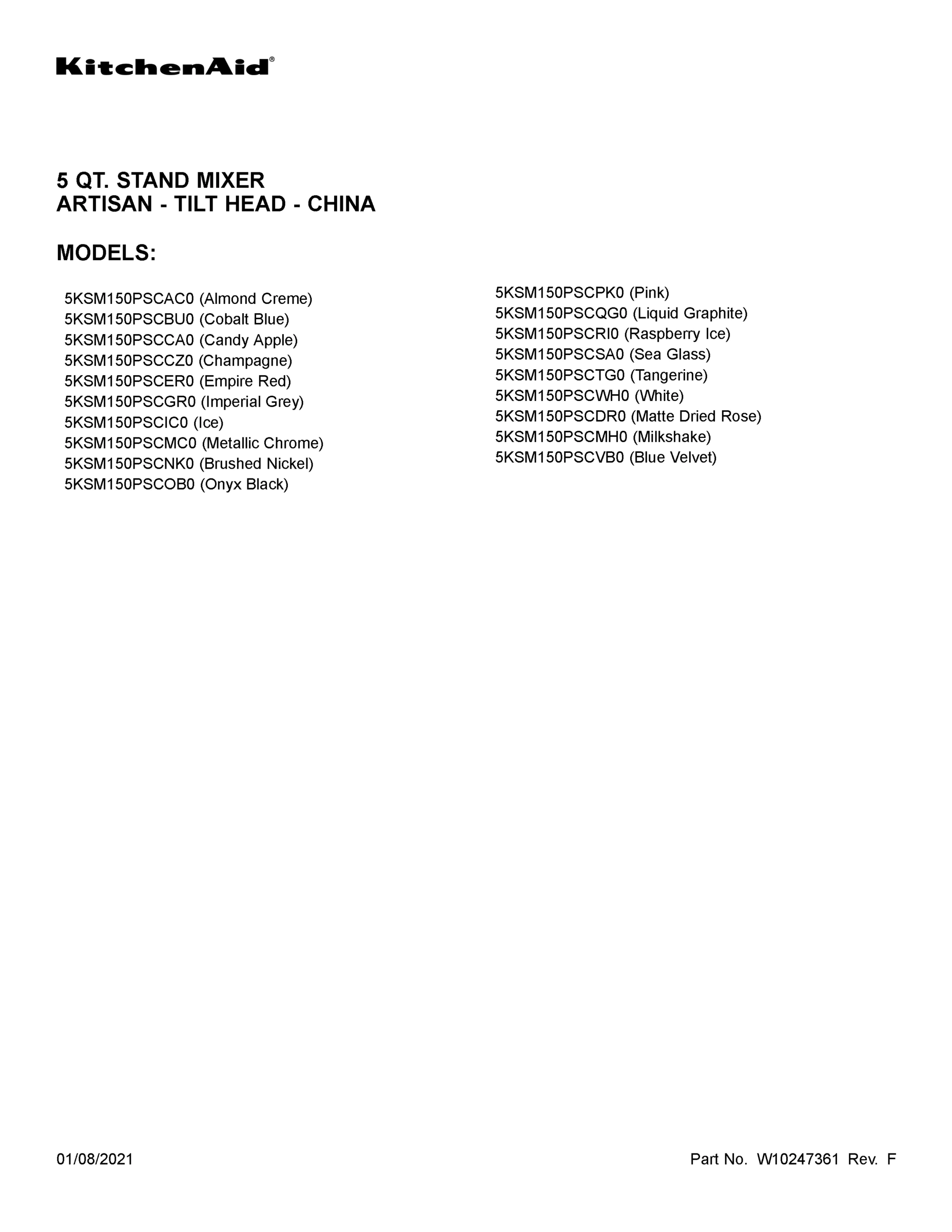

01 - COVER SHEET

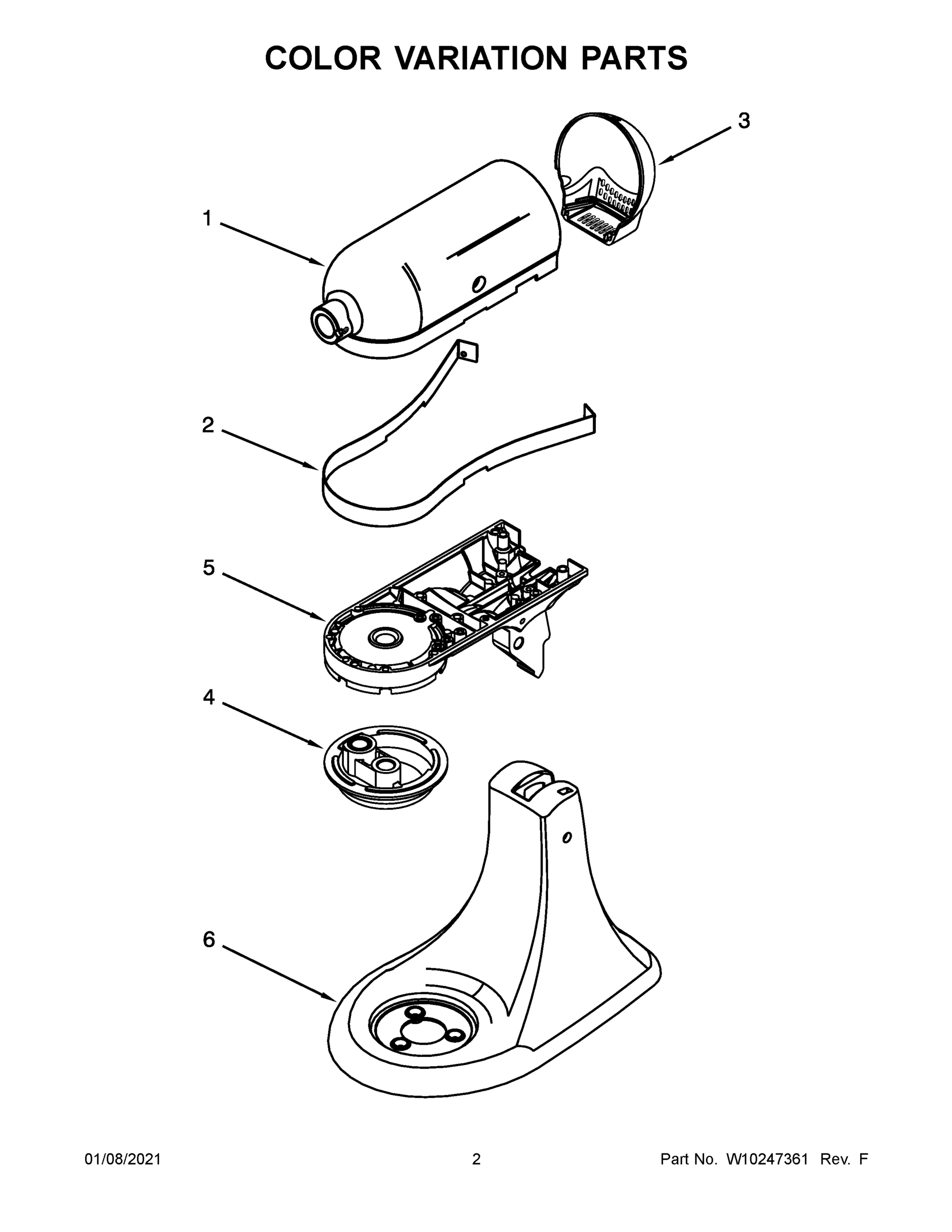

02 - COLOR VARIATION PARTS

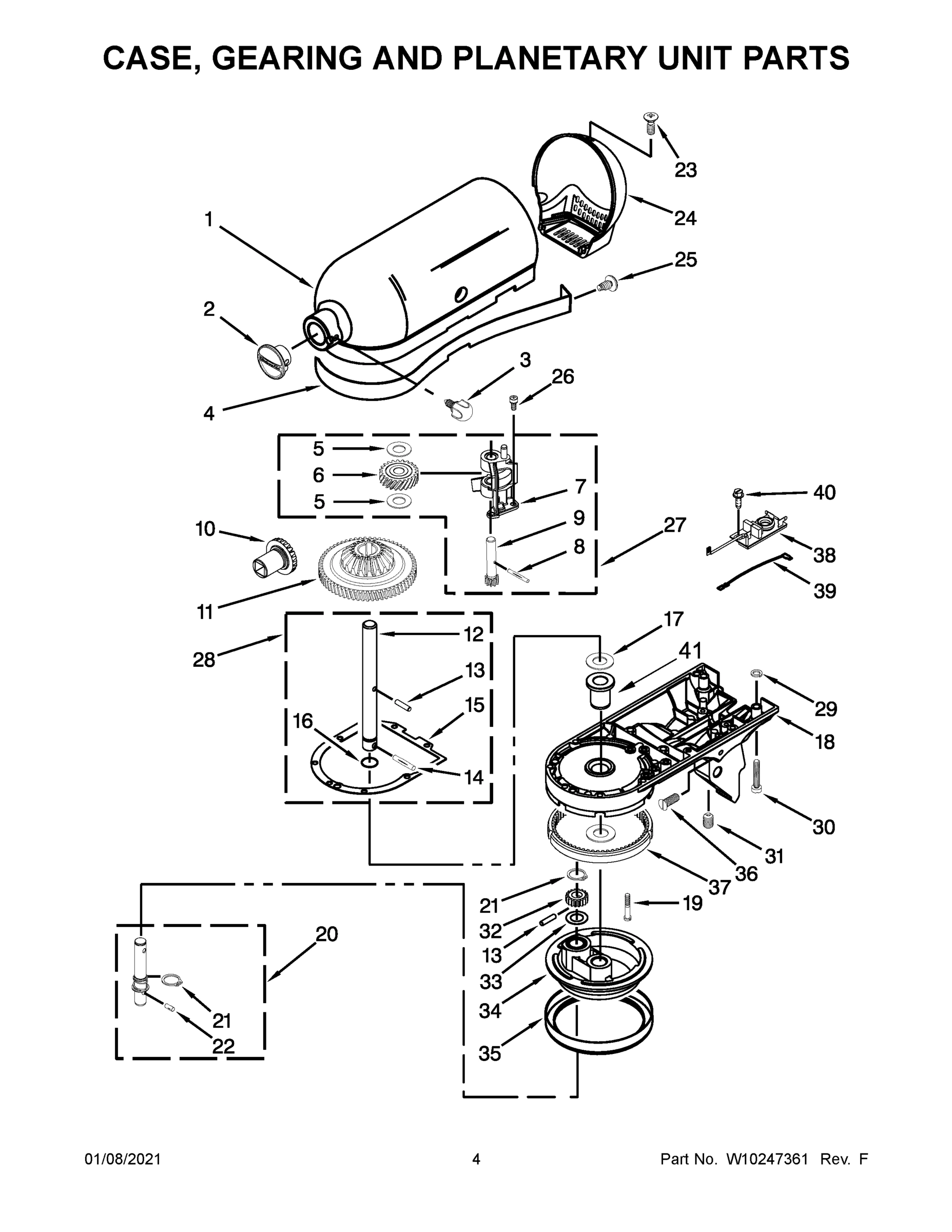

03 - CASE, GEARING AND PLANETARY UNIT PARTS

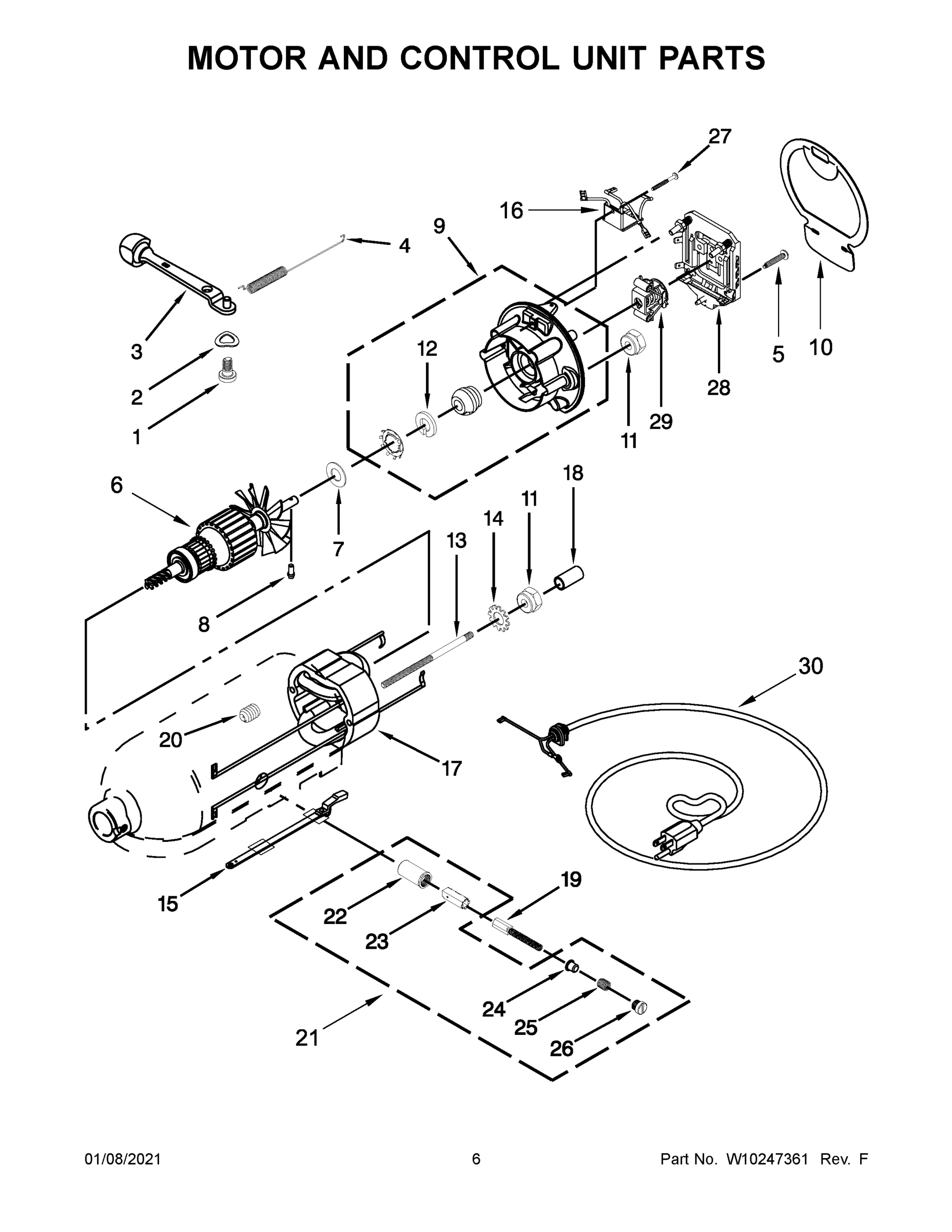

04 - MOTOR AND CONTROL UNIT PARTS

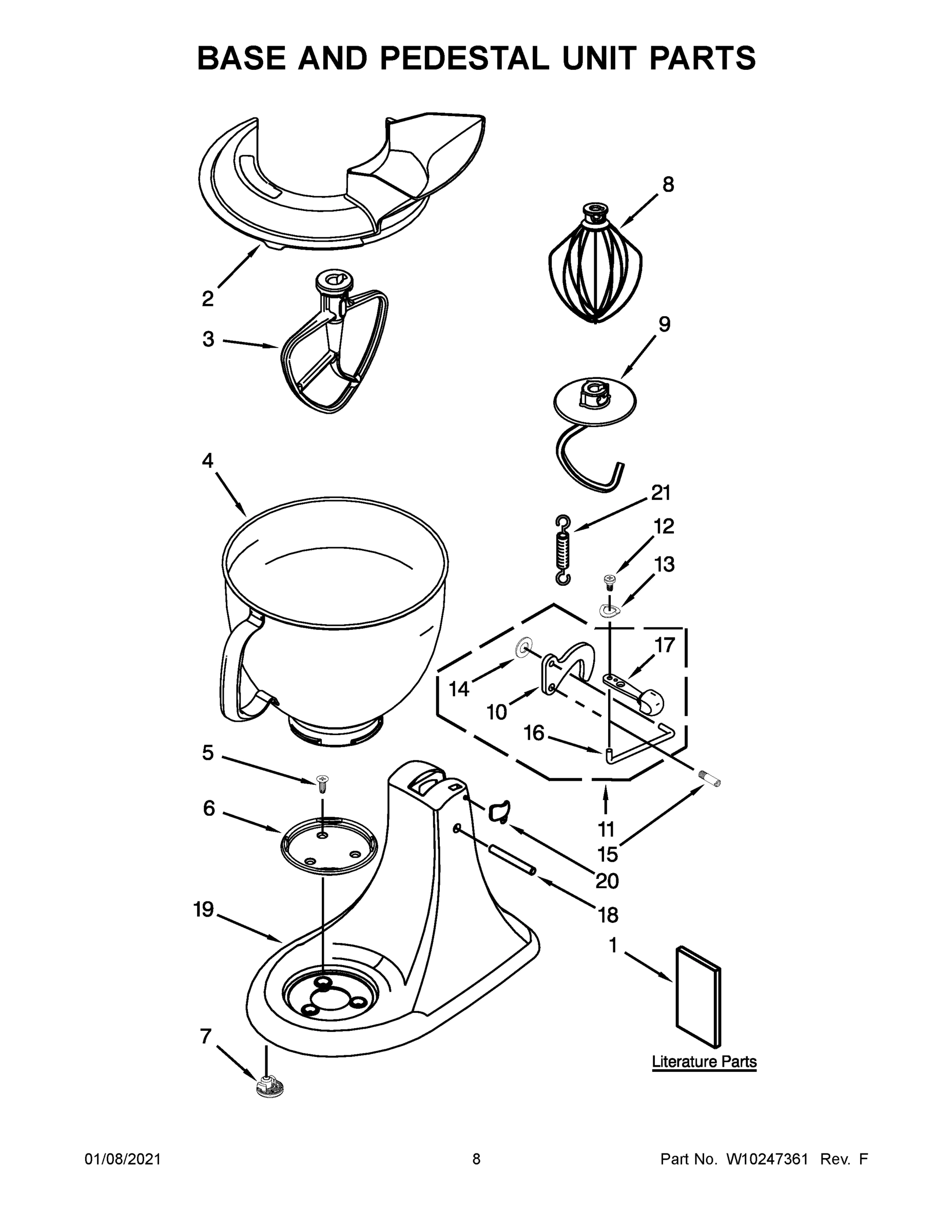

05 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool 5KSM150PSCAC0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE AND CARE GUIDE (CHINA) WPL W11159894 Contact Us For Availability
1D
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1E
MOTOR HOUSING (IMPERIAL GREY) WPL 24029122 Contact Us For Availability
1F
MOTOR HOUSING (ICE/ICE BLUE) WPL 9707662 Contact Us For Availability
1G
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
1H
MOTOR HOUSING (BRUSHED NICKEL) WPL 9706461 Contact Us For Availability
1I
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1J
MOTOR HOUSING (PINK) WPL 9706473 Contact Us For Availability
1K
MOTOR HOUSING (LIQUID GRAPHITE) WPL W10513207 Contact Us For Availability
1L
MOTOR HOUSING (RASPBERRY ICE) WPL W10384420 Contact Us For Availability
1M
MOTOR HOUSING (SEA GLASS) WPL W10703460 Contact Us For Availability
1N
MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability
1O
MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability
1P
MOTOR HOUSING (MATTE DRIED ROSE) WPL W11209495 Contact Us For Availability
1Q
MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability
1R
MOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE WPL W11209471 Contact Us For Availability
3
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3A
END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability
3C
END COVER (CHAMPAGNE) WPL W10754809 Contact Us For Availability
3D
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3E
END COVER (IMPERIAL GREY) WPL 24025323 Contact Us For Availability
3F
END COVER (ICE/ICE BLUE) WPL 9707667 Contact Us For Availability
3G
END COVER (METALLIC CHROME) WPL 9704029 Contact Us For Availability
3I
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3J
END COVER (PINK) WPL 9706469 Contact Us For Availability
3K
END COVER (LIQUID GRAPHITE) WPL W10512234 Contact Us For Availability
3L
END COVER (RASPBERRY ICE) WPL W10384429 Contact Us For Availability
3M
END COVER (SEA GLASS) WPL W10703454 Contact Us For Availability
3N
END COVER (TANGERINE) WPL 9706854 Contact Us For Availability
3O
END COVER (WHITE) WPL 2402531 Contact Us For Availability
3P
END COVER (MA WPL W11209501 Contact Us For Availability
3Q
WPL W11113835 WPL W11113835 Contact Us For Availability
3R
WPL W11209472 WPL W11209472 Contact Us For Availability
4
WPL 24028618 WPL 24028618 Contact Us For Availability
4A
WPL 24028610 WPL 24028610 Contact Us For Availability
4B
WPL W10239112 WPL W10239112 Contact Us For Availability
4C
WPL W10754811 WPL W10754811 Contact Us For Availability
4D
WPL 24028623 WPL 24028623 Contact Us For Availability
4E
WPL 24028624 WPL 24028624 Contact Us For Availability
4F
WPL 9707665 WPL 9707665 Contact Us For Availability
4G
WPL 9706670 WPL 9706670 Contact Us For Availability
4H
WPL 9706271 WPL 9706271 Contact Us For Availability
4I
WPL 24028616 WPL 24028616 Contact Us For Availability
4J
WPL 9706475 WPL 9706475 Contact Us For Availability
4K
WPL W10512355 WPL W10512355 Contact Us For Availability
4L
WPL W10384425 WPL W10384425 Contact Us For Availability
4M
WPL W10703456 WPL W10703456 Contact Us For Availability
4N
WPL 9706852 WPL 9706852 Contact Us For Availability
4O
WPL 2402861 WPL 2402861 Contact Us For Availability
4P
WPL W11209496 WPL W11209496 Contact Us For Availability
4Q
WPL W11113886 WPL W11113886 Contact Us For Availability
4R
WPL W11209470 WPL W11209470 Contact Us For Availability
5
WPL 24035062 WPL 24035062 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 9701420 WPL 9701420 Contact Us For Availability
5B
WPL W10245786 WPL W10245786 Contact Us For Availability
5C
WPL W10754813 WPL W10754813 Contact Us For Availability
5D
WPL 24035091 WPL 24035091 Contact Us For Availability
5E
WPL 24035086 WPL 24035086 Contact Us For Availability
5F
WPL 9708868 WPL 9708868 Contact Us For Availability
5I
WPL 24035056 WPL 24035056 Contact Us For Availability
5J
WPL 9707364 WPL 9707364 Contact Us For Availability
5K
WPL W10513075 WPL W10513075 Contact Us For Availability
5L
WPL W10384415 WPL W10384415 Contact Us For Availability
5M
WPL W10703458 WPL W10703458 Contact Us For Availability
5N
WPL 9707936 WPL 9707936 Contact Us For Availability
5O
WPL 2403504 WPL 2403504 Contact Us For Availability
5P
WPL W11209493 WPL W11209493 Contact Us For Availability
5Q
WPL W11113859 WPL W11113859 Contact Us For Availability
5R
WPL W11209465 WPL W11209465 Contact Us For Availability
6
WPL 9705577 WPL 9705577 Contact Us For Availability
6A
WPL 3184278 WPL 3184278 Contact Us For Availability
6B
WPL W10245720 WPL W10245720 Contact Us For Availability
6C
WPL W10755436 WPL W10755436 Contact Us For Availability
6D
WPL 3184280 WPL 3184280 Contact Us For Availability
6E
WPL 9703998 WPL 9703998 Contact Us For Availability
6F
WPL 9708865 WPL 9708865 Contact Us For Availability
6G
WPL 9707188 WPL 9707188 Contact Us For Availability
6H
WPL 9706456 WPL 9706456 Contact Us For Availability
6I
WPL 3184275 WPL 3184275 Contact Us For Availability
6J
WPL 9707361 WPL 9707361 Contact Us For Availability
6K
WPL W10638035 WPL W10638035 Contact Us For Availability
6L
WPL W10384370 WPL W10384370 Contact Us For Availability
6M
WPL W10816461 WPL W10816461 Contact Us For Availability
6N
WPL 9707933 WPL 9707933 Contact Us For Availability
6P
WPL W11209491 WPL W11209491 Contact Us For Availability
6Q
WPL W11259895 WPL W11259895 Contact Us For Availability
6R
WPL W11209463 WPL W11209463 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
15
GASKET, TRANSMISSION WPL 240684 Contact Us For Availability
16
O RING WPL 67500 Contact Us For Availability
19
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
35A
RING, PLANETARY DRIP (POLISHED) WPL 2402852 Contact Us For Availability
39
LEAD, FILTER WPL 9702311 Contact Us For Availability
40
SCREW WPL 7101P11560 Contact Us For Availability
× ![]()
