Model Whirlpool 5KSM150PSAMH0 SMALL APPLIANCE, STAND MIXER, 5 QT – Common Parts & Diagrams

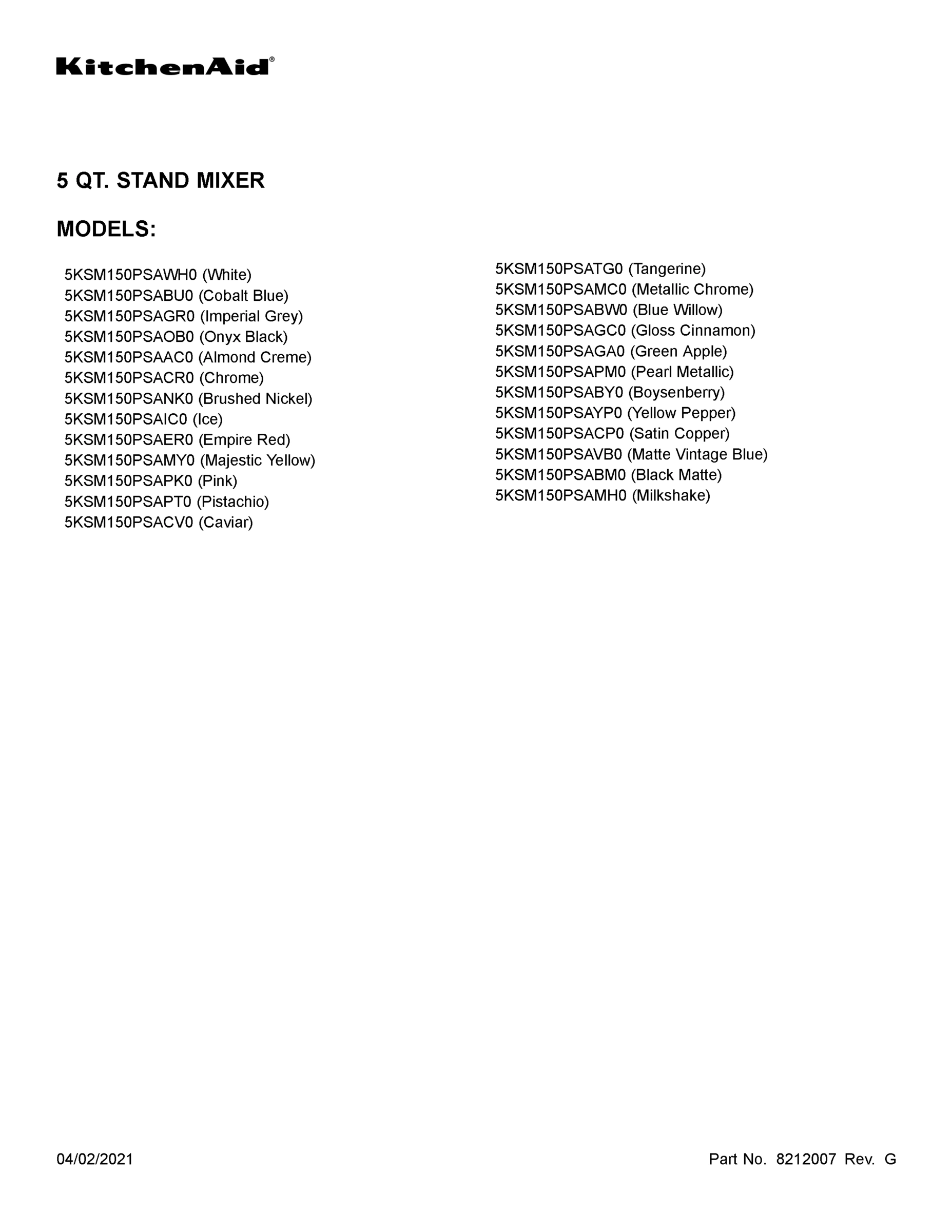

01 - COVER SHEET

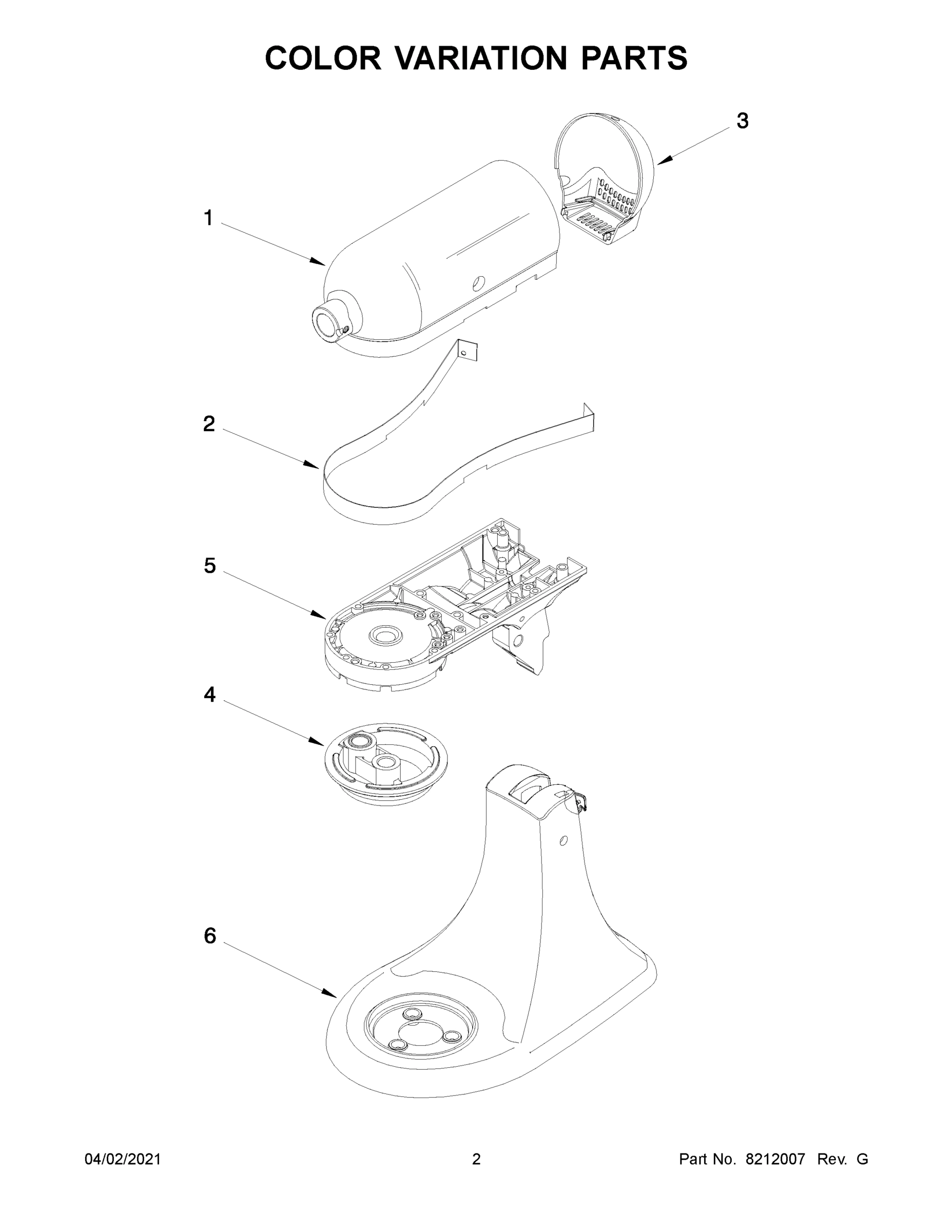

02 - COLOR VARIATION PARTS
03 - CASE, GEARING AND PLANETARY UNIT PARTS
04 - MOTOR AND CONTROL UNIT PARTS
05 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool 5KSM150PSAMH0 SMALL APPLIANCE, STAND MIXER, 5 QT
1
USE AND CARE GUIDE (EUROPE/ASIA/AUSTRALIA) WPL W10544160 Contact Us For Availability
1E
MOTOR HOUSING (CHROME) WPL 24029119 Contact Us For Availability
1F
MOTOR HOUSING (BRUSHED NICKEL) WPL 9706461 Contact Us For Availability
1G
MOTOR HOUSING (ICE/ICE BLUE) WPL 9707662 Contact Us For Availability
1H
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1I
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1J
MOTOR HOUSING (PINK) WPL 9706473 Contact Us For Availability
1K
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1L
MOTOR HOUSING (CAVIAR) WPL 9705243 Contact Us For Availability
1M
MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability
1N
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
1O
MOTOR HOUSING (BLUE WILLOW) WPL 9709600 Contact Us For Availability
1P
MOTOR HOUSING (GLOSS CINNAMON) WPL 9709442 Contact Us For Availability
1Q
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1R
MOTOR HOUSING (PEARL METALLIC) WPL W10128417 Contact Us For Availability
1S
MOTOR HOUSING (BOYSENBERRY) WPL W10140801 Contact Us For Availability
1T
MOTOR HOUSING (YELLOW PEPPER) WPL W10266833 Contact Us For Availability
1U
MOTOR HOUSING (SATIN COPPER) WPL 9704752 Contact Us For Availability
1V
MOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE WPL W11209471 Contact Us For Availability
1W
MOTOR HOUSING (BLACK MATTE) WPL W10885700 Contact Us For Availability
1X
MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability
3
END COVER (WHITE) WPL 2402531 Contact Us For Availability
3A
END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability
3B
END COVER (IMPERIAL GREY) WPL 24025323 Contact Us For Availability
3C
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3D
END COVER (ALMOND CREAM/CREME) WPL 24025316 Contact Us For Availability
3E
END COVER (CHROME) WPL 24025320 Contact Us For Availability
3G
END COVER (ICE/ICE BLUE) WPL 9707667 Contact Us For Availability
3H
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3I
END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability
3J
END COVER (PINK) WPL 9706469 Contact Us For Availability
3K
END COVER ( WPL 9706841 Contact Us For Availability
3L
WPL 9705241 WPL 9705241 Contact Us For Availability
3M
WPL 9706854 WPL 9706854 Contact Us For Availability
3N
WPL 9704029 WPL 9704029 Contact Us For Availability
3O
WPL 9709595 WPL 9709595 Contact Us For Availability
3P
WPL 9709437 WPL 9709437 Contact Us For Availability
3Q
WPL 9709683 WPL 9709683 Contact Us For Availability
3S
WPL W10140796 WPL W10140796 Contact Us For Availability
3T
WPL W10266822 WPL W10266822 Contact Us For Availability
3U
WPL W10291365 WPL W10291365 Contact Us For Availability
3V
WPL W11209472 WPL W11209472 Contact Us For Availability
3W
WPL W10885707 WPL W10885707 Contact Us For Availability
3X
WPL W11113835 WPL W11113835 Contact Us For Availability
4
WPL 2402861 WPL 2402861 Contact Us For Availability
4A
WPL 24028610 WPL 24028610 Contact Us For Availability
4B
WPL 24028624 WPL 24028624 Contact Us For Availability
4C
WPL 24028616 WPL 24028616 Contact Us For Availability
4D
WPL 24028618 WPL 24028618 Contact Us For Availability
4E
WPL 24028621 WPL 24028621 Contact Us For Availability
4F
WPL 9706271 WPL 9706271 Contact Us For Availability
4G
WPL 9707665 WPL 9707665 Contact Us For Availability
4H
WPL 24028623 WPL 24028623 Contact Us For Availability
4I
WPL 24028622 WPL 24028622 Contact Us For Availability
4J
WPL 9706475 WPL 9706475 Contact Us For Availability
4K
WPL 9706839 WPL 9706839 Contact Us For Availability
4L
WPL 9705244 WPL 9705244 Contact Us For Availability
4M
WPL 9706852 WPL 9706852 Contact Us For Availability
4N
WPL 9706670 WPL 9706670 Contact Us For Availability
4O
WPL 9709597 WPL 9709597 Contact Us For Availability
4P
WPL 9709439 WPL 9709439 Contact Us For Availability
4Q
WPL 9709685 WPL 9709685 Contact Us For Availability
4R
WPL W10128414 WPL W10128414 Contact Us For Availability
4S
WPL W10140798 WPL W10140798 Contact Us For Availability
4T
WPL W10266829 WPL W10266829 Contact Us For Availability
4U
WPL 9704755 WPL 9704755 Contact Us For Availability
4V
WPL W11209470 WPL W11209470 Contact Us For Availability
4X
WPL W11113886 WPL W11113886 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 9701420 WPL 9701420 Contact Us For Availability
5B
WPL 24035086 WPL 24035086 Contact Us For Availability
5C
WPL 24035056 WPL 24035056 Contact Us For Availability
5D
WPL 24035062 WPL 24035062 Contact Us For Availability
5G
WPL 9708868 WPL 9708868 Contact Us For Availability
5H
WPL 24035091 WPL 24035091 Contact Us For Availability
5I
WPL 24035093 WPL 24035093 Contact Us For Availability
5J
WPL 9707364 WPL 9707364 Contact Us For Availability
5K
WPL 9706832 WPL 9706832 Contact Us For Availability
5L
WPL 9706911 WPL 9706911 Contact Us For Availability
5M
WPL 9707936 WPL 9707936 Contact Us For Availability
5O
WPL 9709603 WPL 9709603 Contact Us For Availability
5P
WPL 9709445 WPL 9709445 Contact Us For Availability
5Q
WPL 9709691 WPL 9709691 Contact Us For Availability
5R
WPL W10128420 WPL W10128420 Contact Us For Availability
5S
WPL W10140804 WPL W10140804 Contact Us For Availability
5T
WPL W10266836 WPL W10266836 Contact Us For Availability
5U
WPL 9704749 WPL 9704749 Contact Us For Availability
5V
WPL W11209465 WPL W11209465 Contact Us For Availability
5W
WPL W10885699 WPL W10885699 Contact Us For Availability
5X
WPL W11113859 WPL W11113859 Contact Us For Availability
6A
WPL 3184278 WPL 3184278 Contact Us For Availability
6B
WPL 9703998 WPL 9703998 Contact Us For Availability
6C
WPL 3184275 WPL 3184275 Contact Us For Availability
6D
WPL 9705577 WPL 9705577 Contact Us For Availability
6E
WPL 3184277 WPL 3184277 Contact Us For Availability
6F
WPL 9706456 WPL 9706456 Contact Us For Availability
6G
WPL 9708865 WPL 9708865 Contact Us For Availability
6H
WPL 3184280 WPL 3184280 Contact Us For Availability
6I
WPL 3184281 WPL 3184281 Contact Us For Availability
6J
WPL 9707361 WPL 9707361 Contact Us For Availability
6K
WPL 9709637 WPL 9709637 Contact Us For Availability
6L
WPL 9709632 WPL 9709632 Contact Us For Availability
6M
WPL 9707933 WPL 9707933 Contact Us For Availability
6N
WPL 9707188 WPL 9707188 Contact Us For Availability
6O
WPL W10119207 WPL W10119207 Contact Us For Availability
6P
WPL W10119202 WPL W10119202 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
16
SCREW WPL 7101P11560 Contact Us For Availability
19
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
31
CORD, POWER (BLACK (AUSTRALIA)) WPL W10704839 Contact Us For Availability
38
LEAD, FILTER WPL 9702311 Contact Us For Availability
× ![]()
