Whirlpool 5KPM5EER4 SMALL APPLIANCE, STAND MIXER, TILT HEAD

1

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

1A

MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability

View on Model

1B

MOTOR HOUSING (IMPERIAL GREY) WPL 24029122 Contact Us For Availability

View on Model

1C

MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability

View on Model

2

TRIM BAND (BLACK) WPL W10474763 Contact Us For Availability

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

3A

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

3B

PLANETARY (IMPERIAL GREY) WPL 24028624 Contact Us For Availability

View on Model

3C

PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability

View on Model

4

3179300 Whirlpool Support Assembly Backorder WPL 3179300 $43.59

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

4

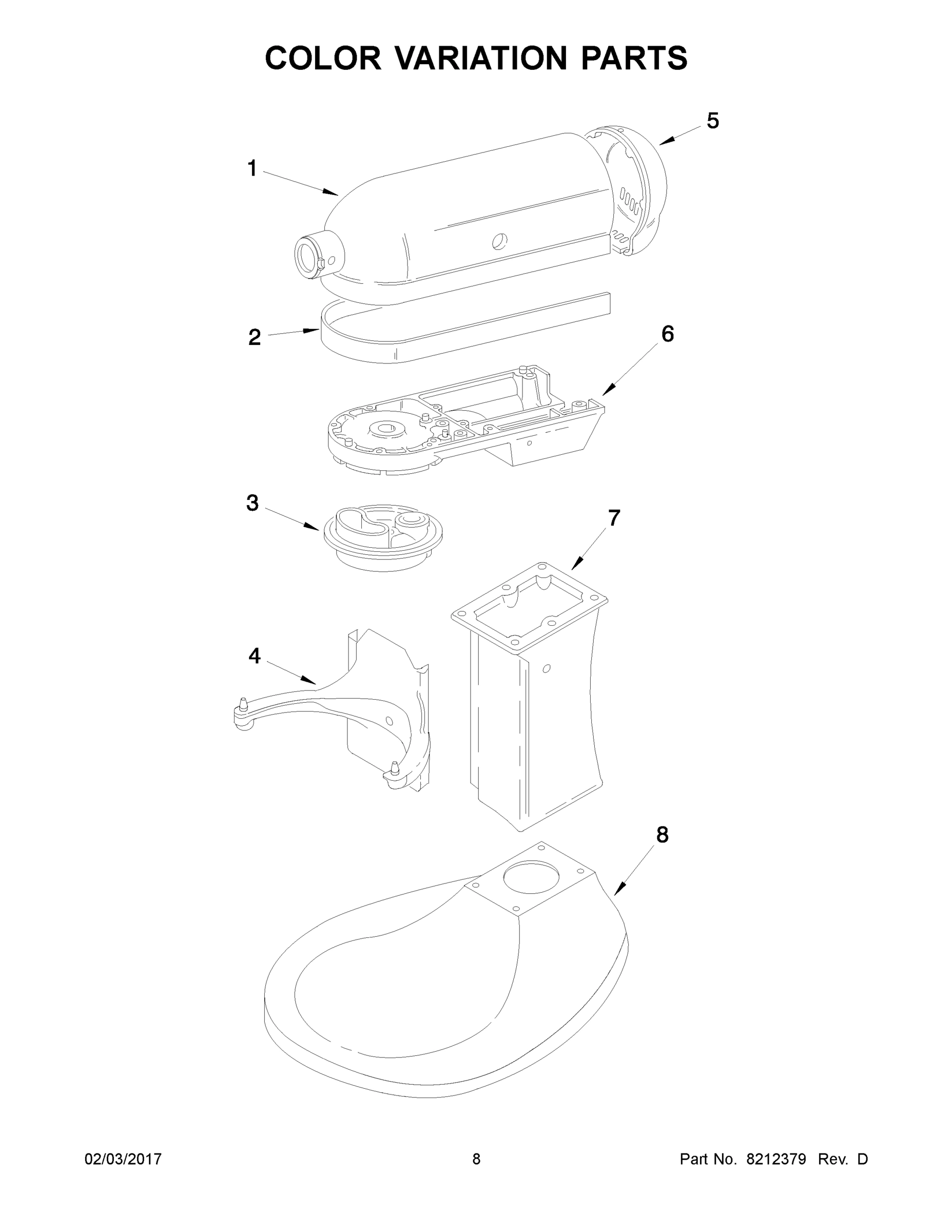

BOWL SUPPORT (REFER TO COLOR VARIATION PARTS WPL NP Contact Us For Availability

View on Model

4A

BOWL SUPPORT & PINS (EMPIRE RED) WPL 3179318 Contact Us For Availability

View on Model

4B

WP3179304 Whirlpool Support Backorder WPL WP3179304 $77.47

View on Model

4C

BOWL SUPPORT & PINS (ONYX BLACK) WPL 3179311 Contact Us For Availability

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.58

View on Model

5

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

5

END COVER (WHITE) WPL 2402531 Contact Us For Availability

View on Model

5A

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

5B

END COVER (IMPERIAL GREY) WPL 24025323 Contact Us For Availability

View on Model

5C

END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability

View on Model

6

WP241764 Whirlpool Mixer Lift Arm Bowl In Stock WPL WP241764 $4.89

View on Model

6

LOWER GEARCASE (WHITE) WPL 9701508 Contact Us For Availability

View on Model

6A

LOWER GEARCASE (EMPIRE RED) WPL W10218387 Contact Us For Availability

View on Model

6B

LOWER GEARCASE (IMPERIAL GREY) WPL W10777150 Contact Us For Availability

View on Model

6C

LOWER GEARCASE (ONYX BLACK) WPL 24035443 Contact Us For Availability

View on Model

7

W10598834 Whirlpool Lift Rod Backorder WPL W10598834 $21.06

View on Model

7

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

7

COLUMN (WHITE) WPL 2401484 Contact Us For Availability

View on Model

7A

COLUMN (EMPIRE RED) WPL 9702393 Contact Us For Availability

View on Model

7B

COLUMN (IMPERIAL GREY) WPL 24014810 Contact Us For Availability

View on Model

7C

COLUMN (ONYX BLACK) WPL 24014815 Contact Us For Availability

View on Model

8

3179280 Whirlpool Base Backorder WPL 3179280 $48.06

View on Model

8

WP9704608 Whirlpool Cotter Pin Backorder WPL WP9704608 $2.91

View on Model

8A

BASE & FOOT ASSEMBLY (EMPIRE RED) WPL 3179299 Contact Us For Availability

View on Model

8B

BASE & FOOT ASSEMBLY (IMPERIAL GREY) WPL 2404938 Contact Us For Availability

View on Model

8C

BASE & FOOT ASSEMBLY (ONYX BLACK) WPL 3179292 Contact Us For Availability

View on Model

9

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

9

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

9

WASHER WPL W10260809 Contact Us For Availability

View on Model

10

4159622 Whirlpool PP Spring Backorder WPL 4159622 $2.91

View on Model

11

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 $17.70

View on Model

12

W10598843 Whirlpool Handle Assembly Backorder WPL W10598843 $24.96

View on Model

12

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

13

WP9703442 Whirlpool Roll Pin Backorder WPL WP9703442 $2.91

View on Model

14

W10802050 Whirlpool Mixer Bowl Backorder WPL W10802050 $59.26

View on Model

14

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

15

W10807813 Whirlpool Mixer Beater In Stock WPL W10807813 $13.10

View on Model

16

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

16

WPW10674621 Whirlpool Dough Hook Assembly Backorder WPL WPW10674621 $33.43

View on Model

17

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $19.11

View on Model

18

240169 Whirlpool Bracket Backorder WPL 240169 $19.16

View on Model

18

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

19

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 $2.91

View on Model

19

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

20

W10861883 Whirlpool Screw Backorder WPL W10861883 $2.91

View on Model

20

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

21

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

21

WP4162403 Whirlpool Screw Backorder WPL WP4162403 $2.91

View on Model

22

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.91

View on Model

22

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

23

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $2.91

View on Model

24

3182904 Whirlpool Screw Backorder WPL 3182904 $19.27

View on Model

24

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

25

W11312468 Whirlpool Pour Shelf In Stock WPL W11312468 $19.38

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

26

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

27

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

27

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

28

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

29A

W11112762 Whirlpool Power Cord Backorder WPL W11112762 $11.88

View on Model

33

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

35

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

36

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model
