Whirlpool 5KPM5CSM0 SMALL APPLIANCE, STAND MIXER, 5 QT

1

USE AND CARE GUIDE WPL W10399721 Contact Us For Availability

View on Model

1

MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability

View on Model

1A

W10121193 Whirlpool Housing Backorder WPL W10121193 $67.71

View on Model

1B

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

2

TRIM BAND (BLACK) WPL W11092114 Contact Us For Availability

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

3A

9706670 Whirlpool Planetary Backorder WPL 9706670 $31.48

View on Model

3B

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

4

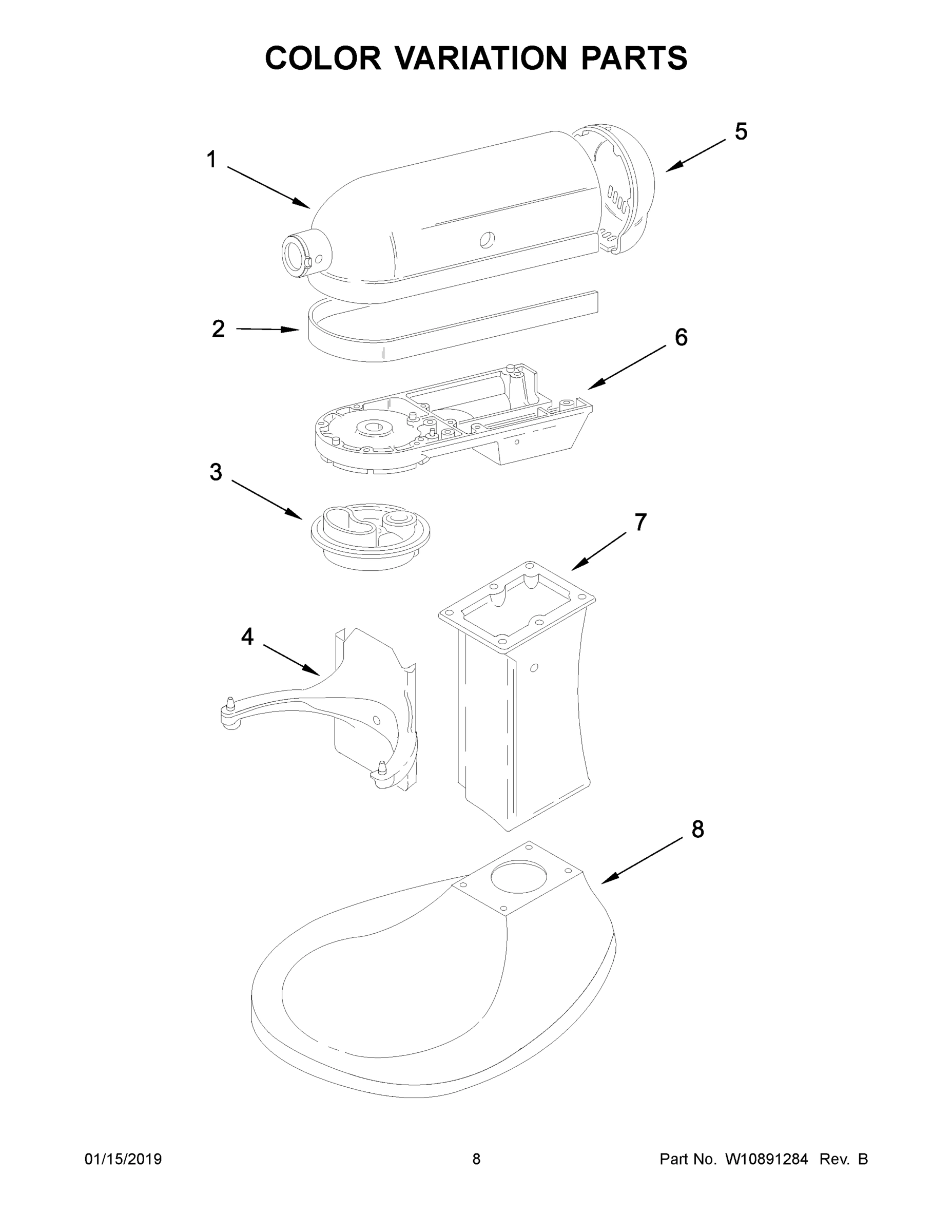

BOWL SUPPORT (REFER TO COLOR VARIATION PARTS WPL NP Contact Us For Availability

View on Model

4

BOWL SUPPRT & PINS (EMPIRE RED) WPL 3179318 Contact Us For Availability

View on Model

4A

BOWL SUPPRT & PINS (SILVER METALLIC) WPL W10158518 Contact Us For Availability

View on Model

4B

3179300 Whirlpool Support Assembly Backorder WPL 3179300 $43.59

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.58

View on Model

5

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

5A

W10121188 Whirlpool Cover Assembly Backorder WPL W10121188 $29.99

View on Model

5B

END COVER (WHITE) WPL 2402531 Contact Us For Availability

View on Model

6

WP241764 Whirlpool Mixer Lift Arm Bowl In Stock WPL WP241764 $4.89

View on Model

6

LOWER GEARCASE (EMPIRE RED) WPL W10218387 Contact Us For Availability

View on Model

6A

LOWER GEARCASE (SILVER METALLIC) WPL W10158521 Contact Us For Availability

View on Model

6B

LOWER GEARCASE (WHITE) WPL 9701508 Contact Us For Availability

View on Model

7

W10598834 Whirlpool Lift Rod Backorder WPL W10598834 $21.06

View on Model

7

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

7

COLUMN (EMPIRE RED) WPL 9702393 Contact Us For Availability

View on Model

7A

COLUMN (SILVER METALLIC) WPL W10158516 Contact Us For Availability

View on Model

7B

COLUMN (WHITE) WPL 2401484 Contact Us For Availability

View on Model

8

WP9704608 Whirlpool Cotter Pin Backorder WPL WP9704608 $2.91

View on Model

8

WPW10417246 Whirlpool Field Assembly Backorder WPL WPW10417246 $34.70

View on Model

8

BASE & FOOT ASSEMBLY (EMPIRE RED) WPL 3179299 Contact Us For Availability

View on Model

8A

W10158515 Whirlpool Base Backorder WPL W10158515 $54.44

View on Model

8B

3179280 Whirlpool Base Backorder WPL 3179280 $48.06

View on Model

9

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

9

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

9

WASHER WPL W10260809 Contact Us For Availability

View on Model

10

4159622 Whirlpool PP Spring Backorder WPL 4159622 $2.91

View on Model

11

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

11

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 $17.70

View on Model

12

W10598843 Whirlpool Handle Assembly Backorder WPL W10598843 $24.96

View on Model

12

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

13

WP9703442 Whirlpool Roll Pin Backorder WPL WP9703442 $2.91

View on Model

14

W10802050 Whirlpool Mixer Bowl Backorder WPL W10802050 $59.26

View on Model

15

W10807813 Whirlpool Mixer Beater In Stock WPL W10807813 $13.10

View on Model

16

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

16

WPW10674621 Whirlpool Dough Hook Assembly Backorder WPL WPW10674621 $33.43

View on Model

17

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $19.11

View on Model

18

240169 Whirlpool Bracket Backorder WPL 240169 $19.16

View on Model

18

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

19

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 $2.91

View on Model

19

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

20

W10861883 Whirlpool Screw Backorder WPL W10861883 $2.91

View on Model

20

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

21

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

21

WP4162403 Whirlpool Screw Backorder WPL WP4162403 $2.91

View on Model

22

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $2.91

View on Model

22

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

23

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $2.91

View on Model

24

3182904 Whirlpool Screw Backorder WPL 3182904 $19.27

View on Model

24

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

25

W11312468 Whirlpool Pour Shelf In Stock WPL W11312468 $19.38

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

26

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

27

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

27

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

31

W10900799 Whirlpool Armature Backorder WPL W10900799 $51.40

View on Model

32

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $2.91

View on Model

33

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

33

SCREW WPL 3184609 Contact Us For Availability

View on Model

36

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model
