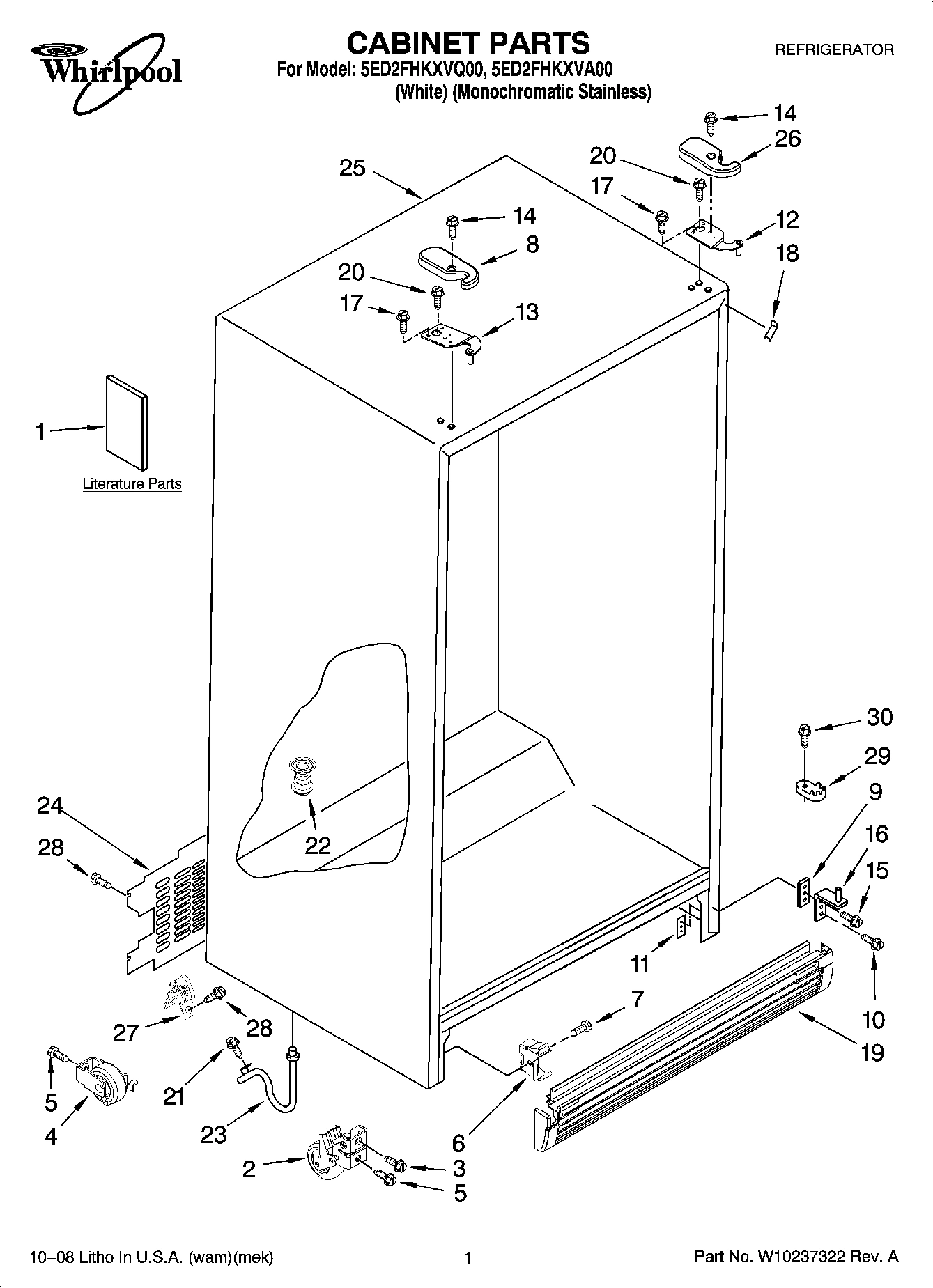

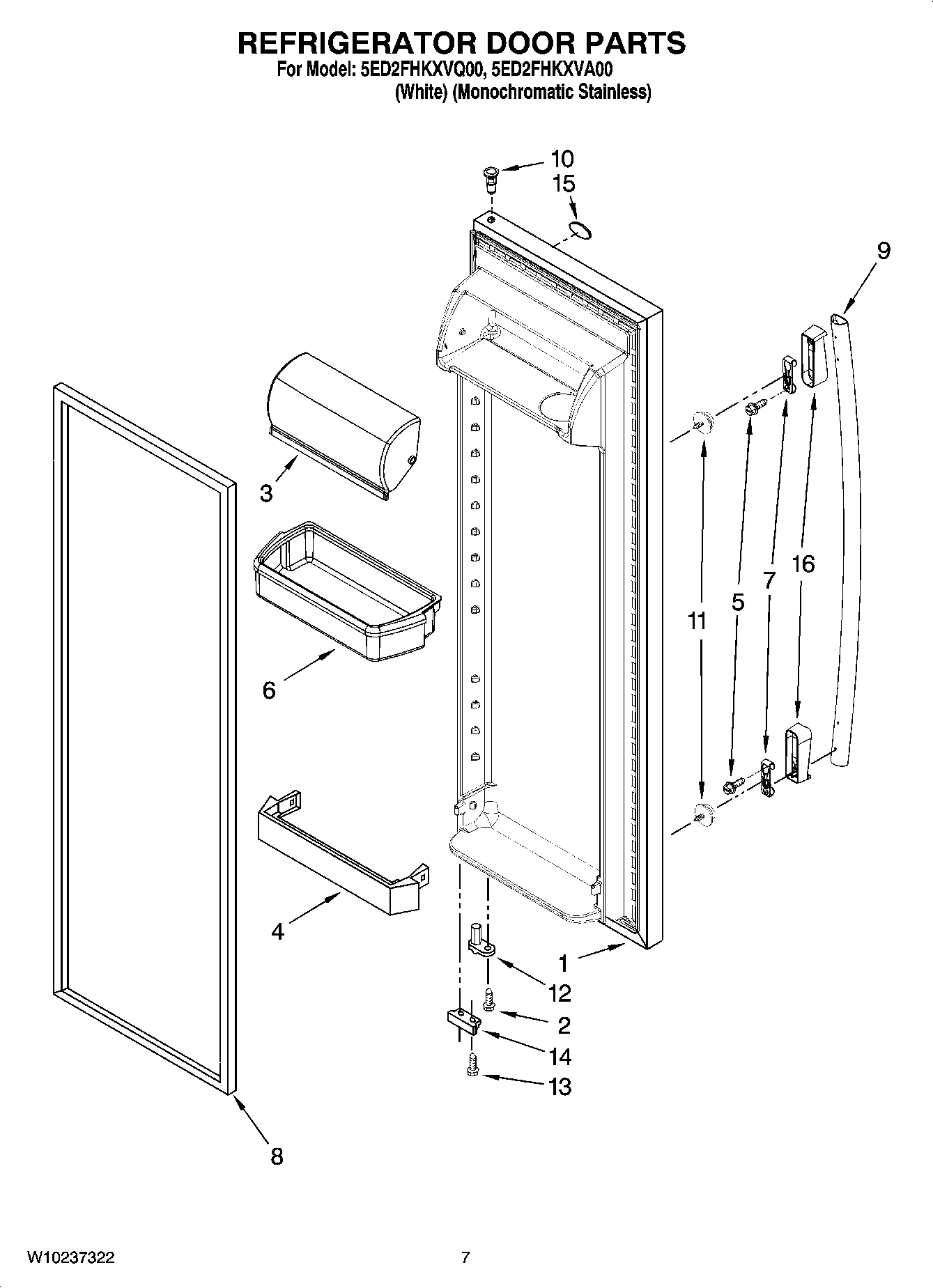

Model Whirlpool 5ED2FHKXVQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI140900A Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134) WPL ARI140901A Contact Us For Availability

1

2200135 Whirlpool Refrigerator Control Box Backorder WPL 2200135 $71.93

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Liner (Not A Serviceable Part) WPL ARI140898A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI140899A Contact Us For Availability

1

Grommet, Screw WPL 509812 Contact Us For Availability

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $28.80

2

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

4

2223173 Whirlpool Refrigerator Tube Plug Backorder WPL 2223173 $4.78

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2321289 Whirlpool Refrigerator Thermostat Backorder WPL WP2321289 $102.65

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

5

Wire Harness, Dual Crisper Light WPL W10178915 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $101.56

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

7

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

7

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $52.17

7

WPW10318951 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10318951 $45.84

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

8

WPW10318949 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10318949 $45.95

8

Shroud, Light WPL W10119914 Contact Us For Availability

9

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2321305 Whirlpool Thermostat Backorder WPL WP2321305 $99.26

9

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

9

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

9

WPW10151378 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151378 $165.99

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WPW10318953 Whirlpool Wire Shelf Backorder WPL WPW10318953 $45.27

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $56.13

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Bale Strap WPL 2302129 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2312007 Whirlpool Refrigerator Start Device Backorder WPL WP2312007 $63.66

WPW10318952 Whirlpool Wire Shelf Backorder WPL WPW10318952 $46.79

13

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

13

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

13

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Wiring Cover WPL 2160912 Contact Us For Availability

15

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

Switch, Rocker Arm WPL 2321286 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

17

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

17

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

17

Heat Shield WPL W10173095 Contact Us For Availability

18

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $51.83

18

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

19

W10129766 Whirlpool Wire Harness Backorder WPL W10129766 $43.11

19

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

20

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

21

CLIP, WIRING WPL 1115375 Contact Us For Availability

22

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

23

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

23

Extension Tube WPL 2304937 Contact Us For Availability

23

Escutcheon Control Box WPL W10203047 Contact Us For Availability

24

WP2321271 Whirlpool Refrigerator Condenser Mo Backorder WPL WP2321271 $231.95

24

Light Bar (FC) WPL 2179921 Contact Us For Availability

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

Harness, Unit WPL W10129772 Contact Us For Availability

27

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10183407 Whirlpool Refrigerator Compressor Backorder WPL W10183407 $361.52

29

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

31

Clip, Heat WPL 2155547 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WPW10123612 Whirlpool Heater Assembly Backorder WPL WPW10123612 $29.43

34

Clip WPL 2161324 Contact Us For Availability

36

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

38

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11
