Model Electrolux 58715379100B Dishwasher (Kenmore 58715379100B) – Common Parts &amp; Diagrams

1

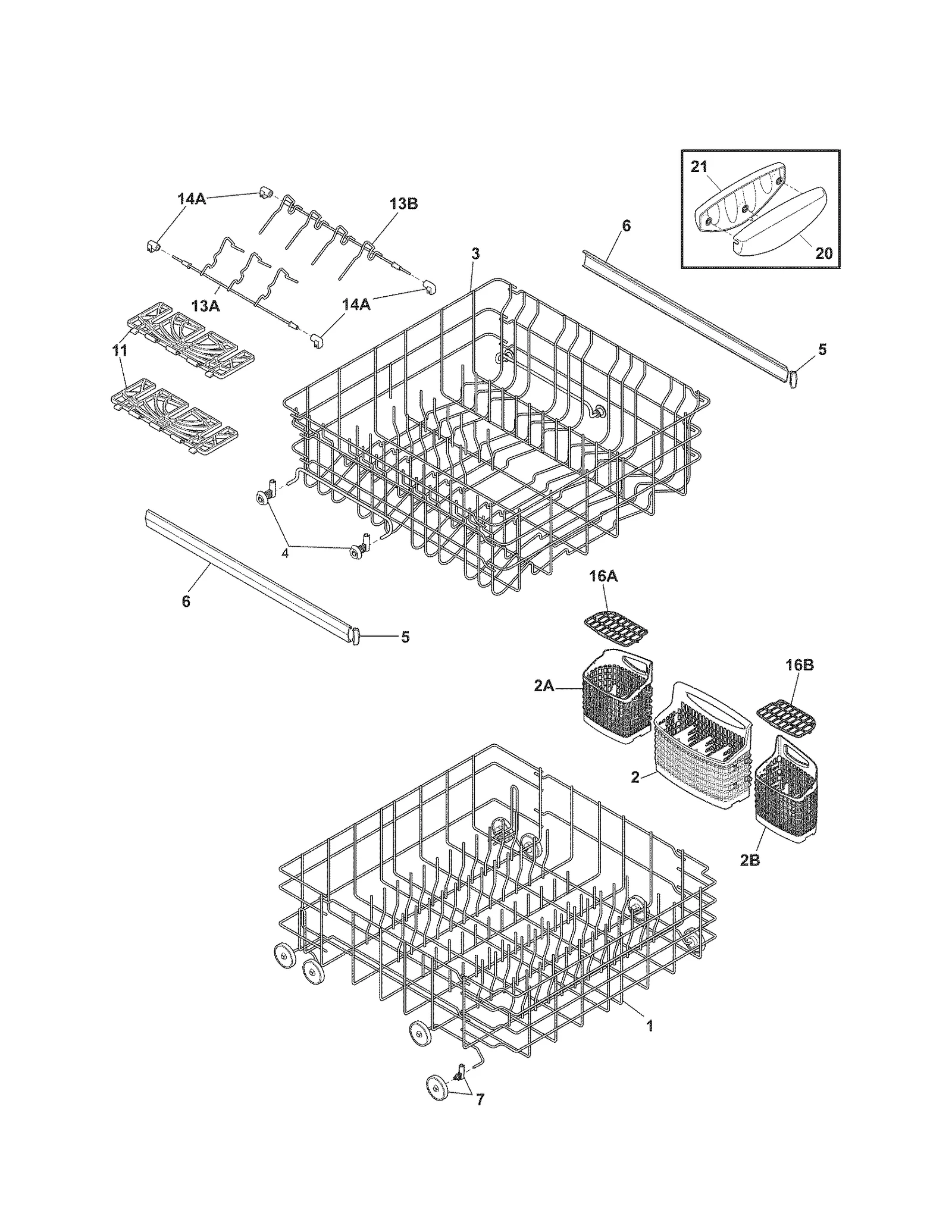

5304533200 Frigidaire Dishwasher Rack with Wh Backorder WCI 5304533200 $91.56

1

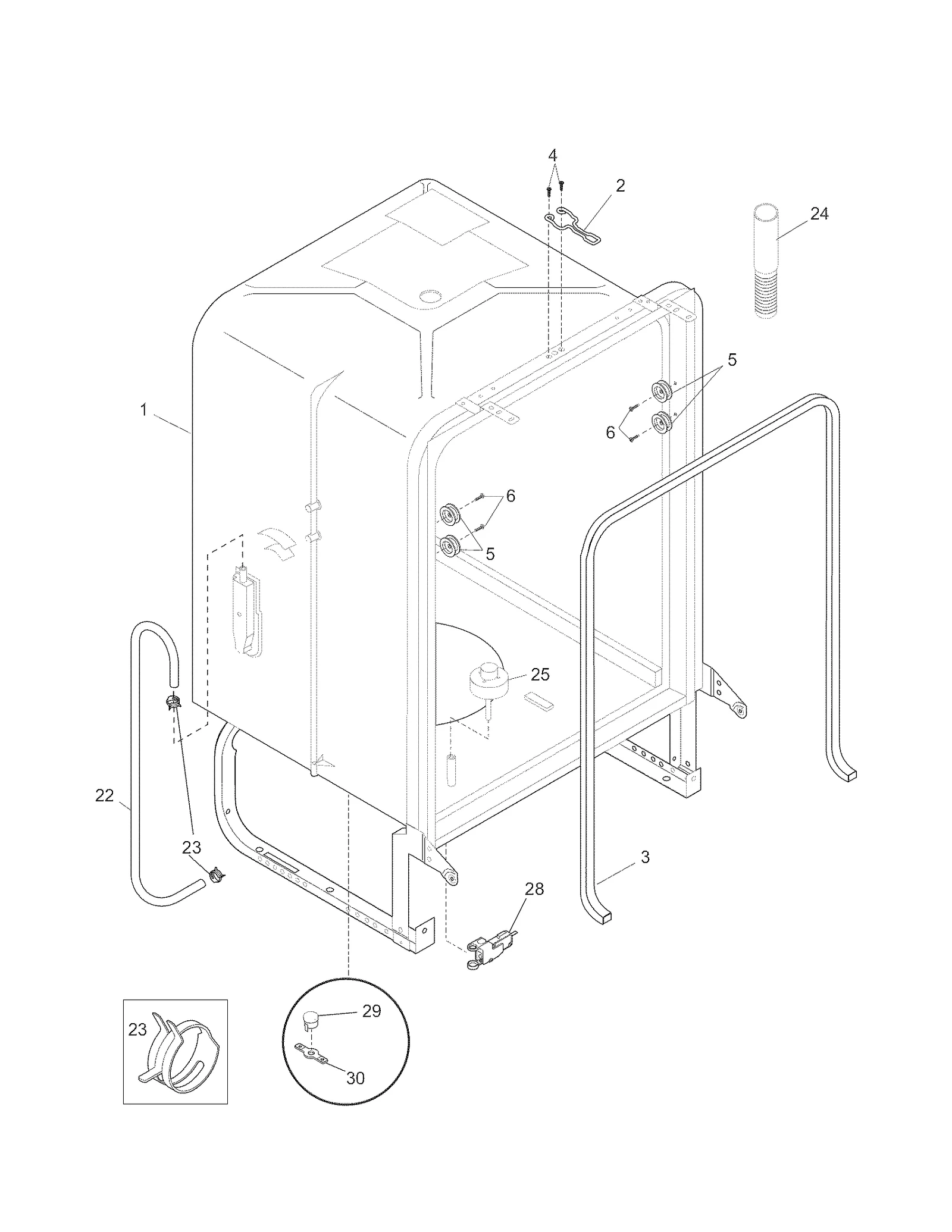

Dishwasher Tub WCI 154729401 Contact Us For Availability

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $9.69

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.25

2

5304532796 Frigidaire Dishwasher Strike In Stock WCI 5304532796 $7.23

3

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $13.39

3

Dishwasher Dishrack, Upper WCI 154319526 Contact Us For Availability

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.58

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $18.12

4

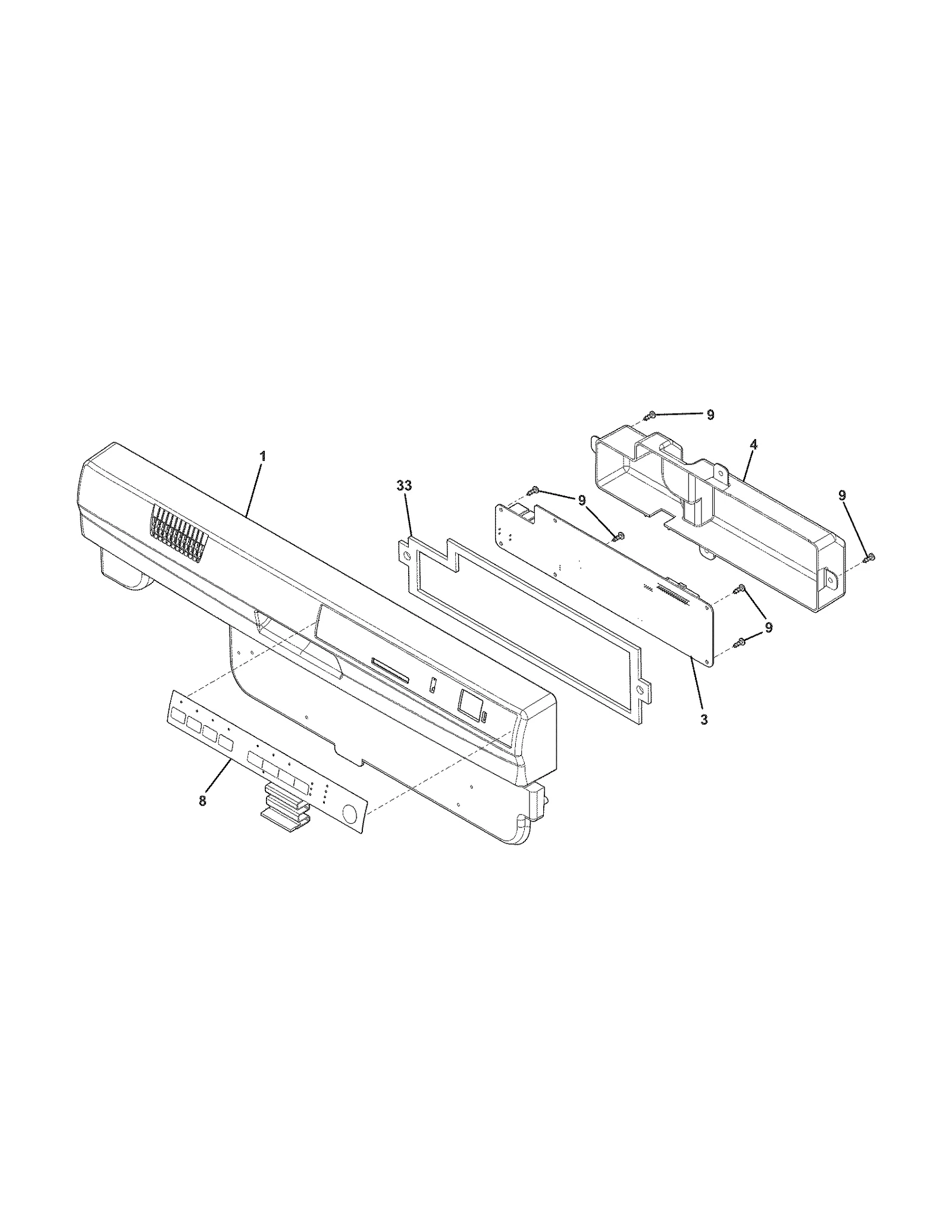

Dishwasher Control Board Cover WCI 154718801 Contact Us For Availability

4

Dishwasher Screw WCI 154200602 Contact Us For Availability

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $4.51

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $10.87

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $4.88

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $11.32

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $3.18

7

Dishwasher Door Inner Panel Assembly (White) WCI 154743501 Contact Us For Availability

8

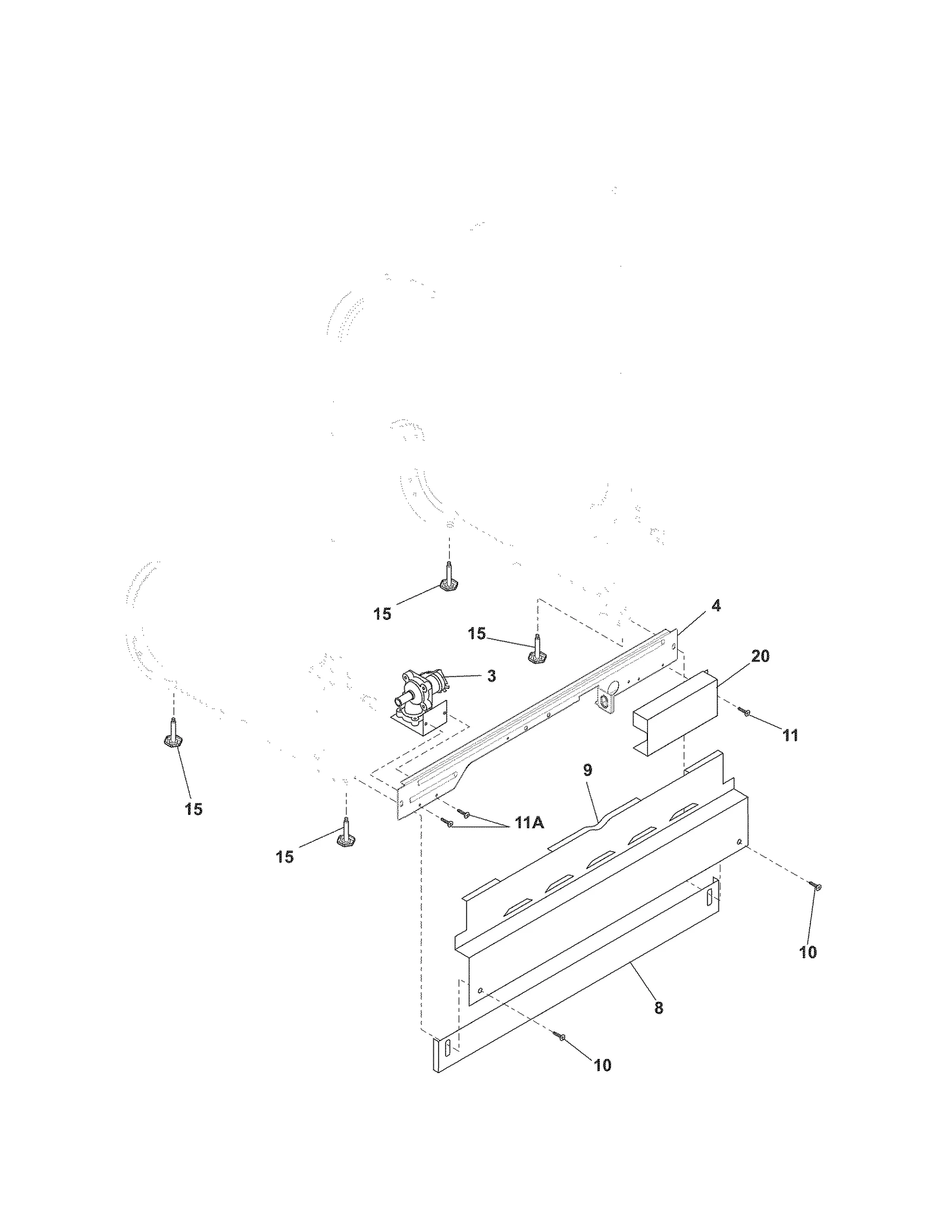

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

9

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $49.74

9

Dishwasher Toe Panel (White) WCI 154854901 Contact Us For Availability

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw In Stock WCI 154371301 $8.14

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $6.32

154754801 Frigidaire Dishwasher Screw In Stock WCI 154754801 $1.35

11

5304532945 Frigidaire Cup Shelf Backorder WCI 5304532945 $4.62

12

5304525218 Frigidaire Door Latch Assembly In Stock WCI 5304525218 $31.25

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $31.71

13

Dishwasher Air Duct WCI 154755801 Contact Us For Availability

13A

154740304 Frigidaire Dishwasher Fold-Down Tin Backorder WCI 154740304 $20.84

14

154728201 Frigidaire Dishwasher Sump Assembly In Stock WCI 154728201 $39.44

14

Dishwasher Vent Assembly WCI 154784401 Contact Us For Availability

14A

5304506508 Frigidaire Bracket Support Backorder WCI 5304506508 $3.59

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

20

154758501 Frigidaire Power Cord Cover In Stock WCI 154758501 $12.67

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

21

5304504913 Frigidaire Dishwasher Handle Backorder WCI 5304504913 $8.60

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.48

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $24.92

24A

A01986801 Frigidaire Upper Rack Assembly In Stock WCI A01986801 $109.03

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $14.48

25

5304532207 Frigidaire Float In Stock WCI 5304532207 $4.31

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $10.39

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $43.03

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.99

33

154478901 Frigidaire Dishwasher Gasket Backorder WCI 154478901 $39.00

51

Dishwasher Wire Clamp WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S Backorder WCI 154247001 $36.24

61

5304532204 Frigidaire Grommet Assembly In Stock WCI 5304532204 $5.36

62

5304532235 Frigidaire Support Assembly In Stock WCI 5304532235 $4.57

65

154283005 Frigidaire Dishwasher Filter Assemb Backorder WCI 154283005 $151.31

66

5304532206 Frigidaire Trap In Stock WCI 5304532206 $4.73

70

154844301 Frigidaire Dishwasher Motor Kit In Stock WCI 154844301 $176.50

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

154388801 Frigidaire Dishwasher Rinse Aid Dis In Stock WCI 154388801 $15.85

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.26

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $8.60

154753101 Frigidaire Dishwasher Thermistor In Stock WCI 154753101 $15.83

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $0.87

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $4.51

5304504853 Frigidaire Dishwasher Harness Backorder WCI 5304504853 $78.56

5304538695 Frigidaire Door Insulation Backorder WCI 5304538695 $1.48

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

Dishwasher Screw WCI 154200601 Contact Us For Availability

Dishwasher Screw WCI 154793401 Contact Us For Availability
