Model Whirlpool 4YED27DQAN00 REFRIGERATOR – Common Parts & Diagrams
11 - CONTROL
01 - CABINET

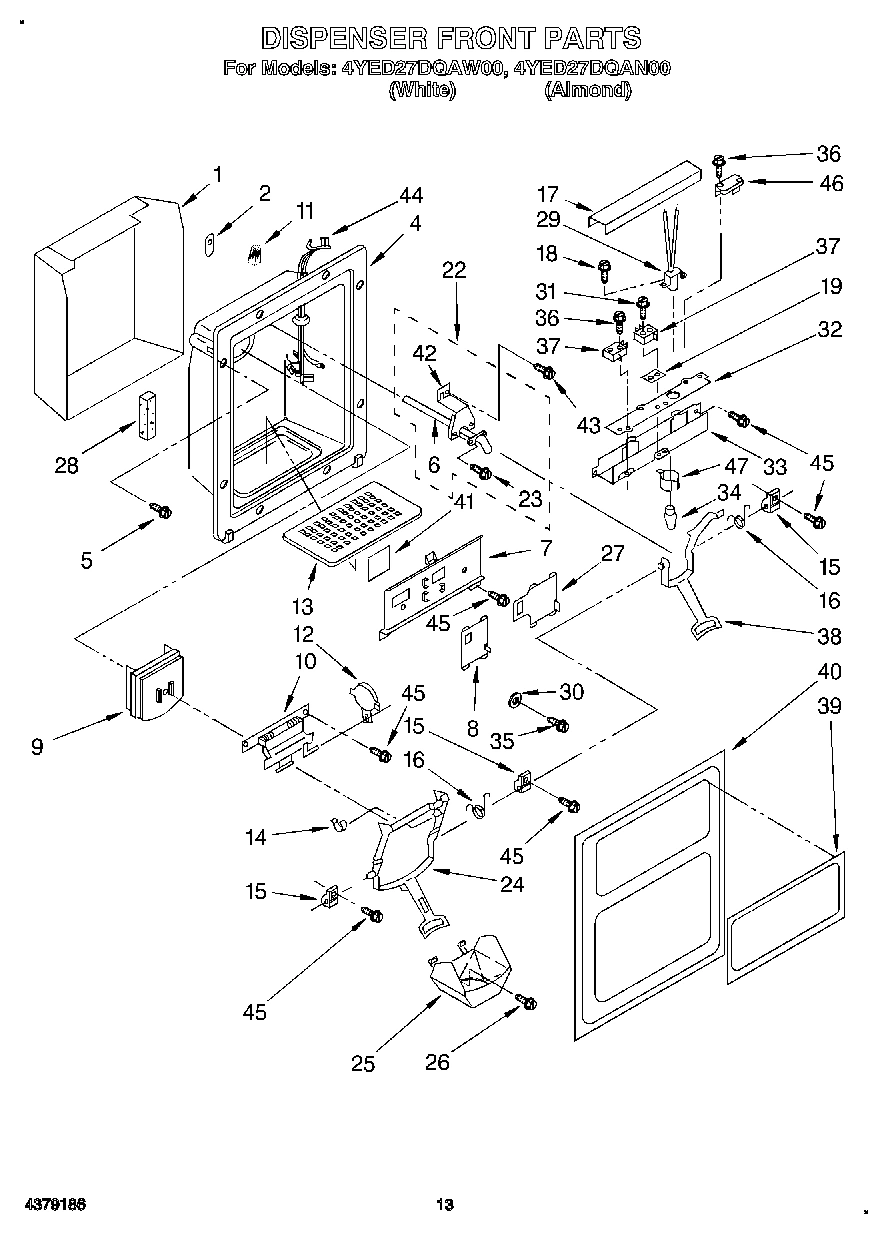

08 - DISPENSER FRONT

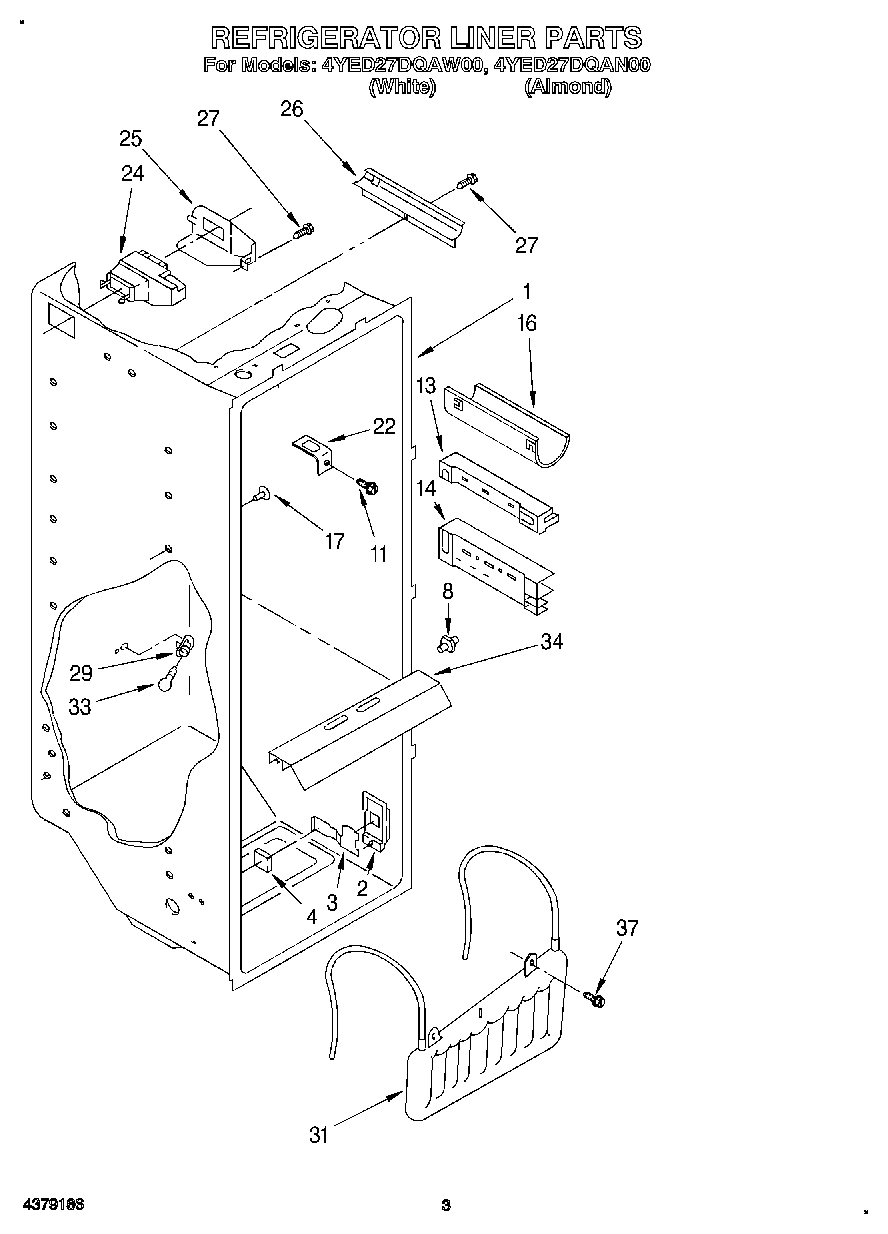

02 - REFRIGERATOR LINER

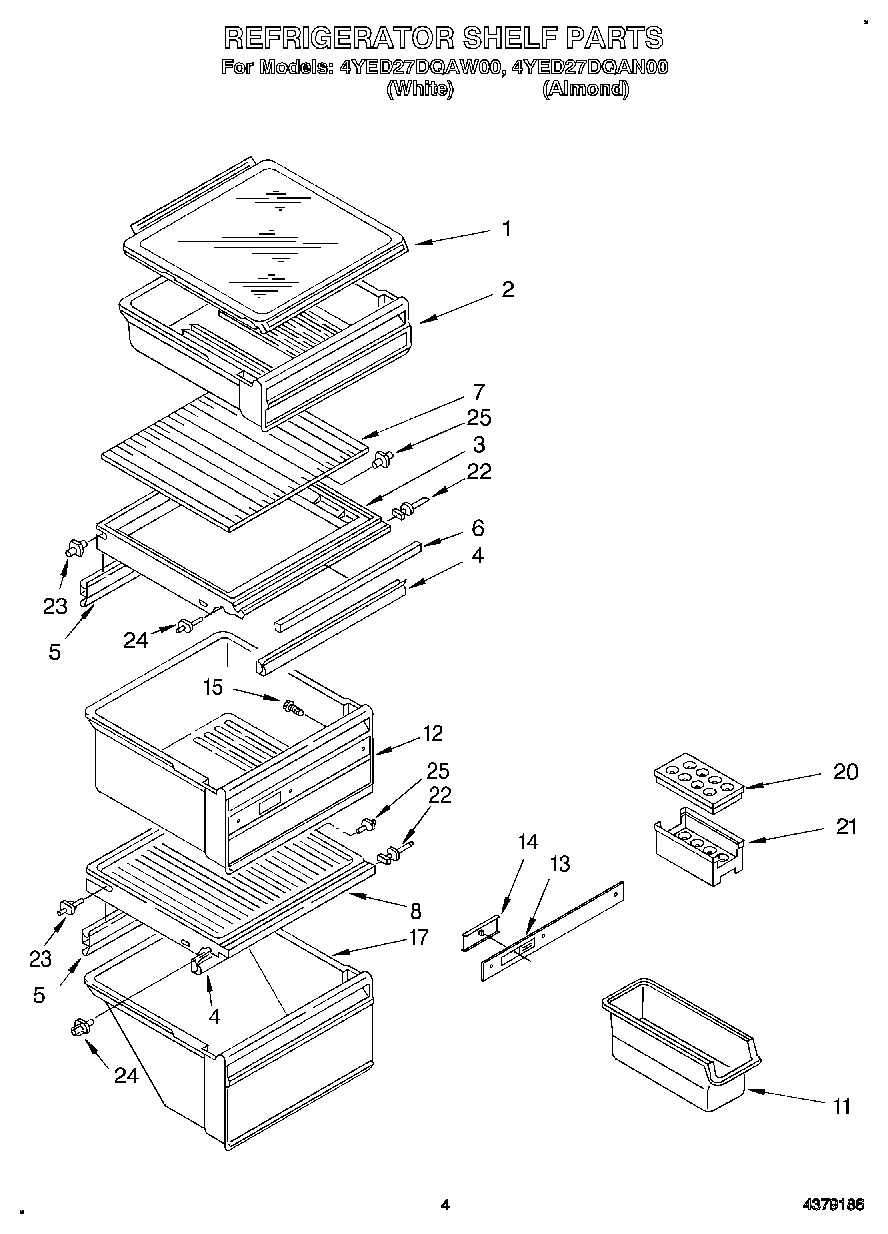

03 - REFRIGERATOR SHELF

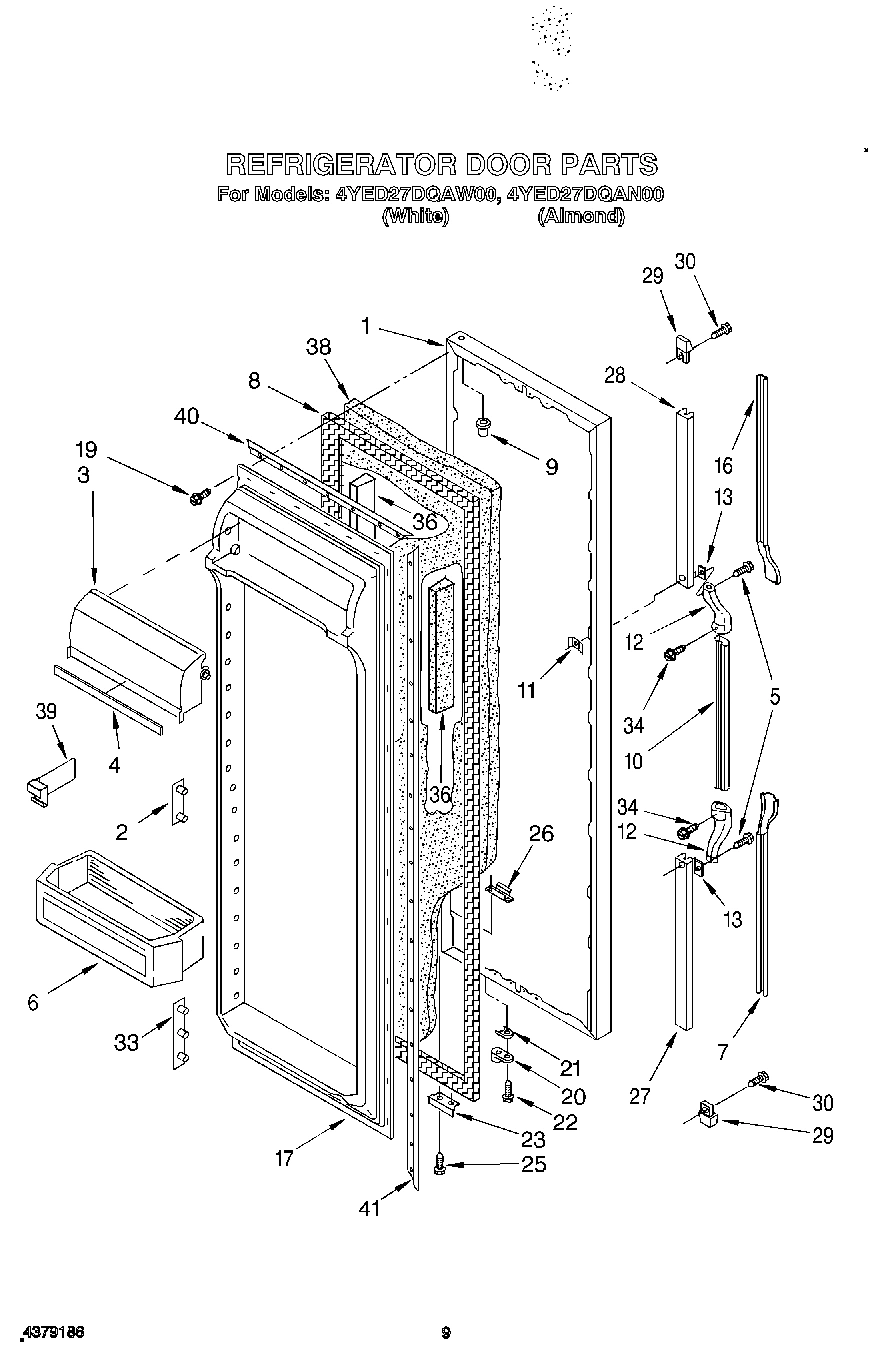

06 - REFRIGERATOR DOOR
10 - AIR FLOW

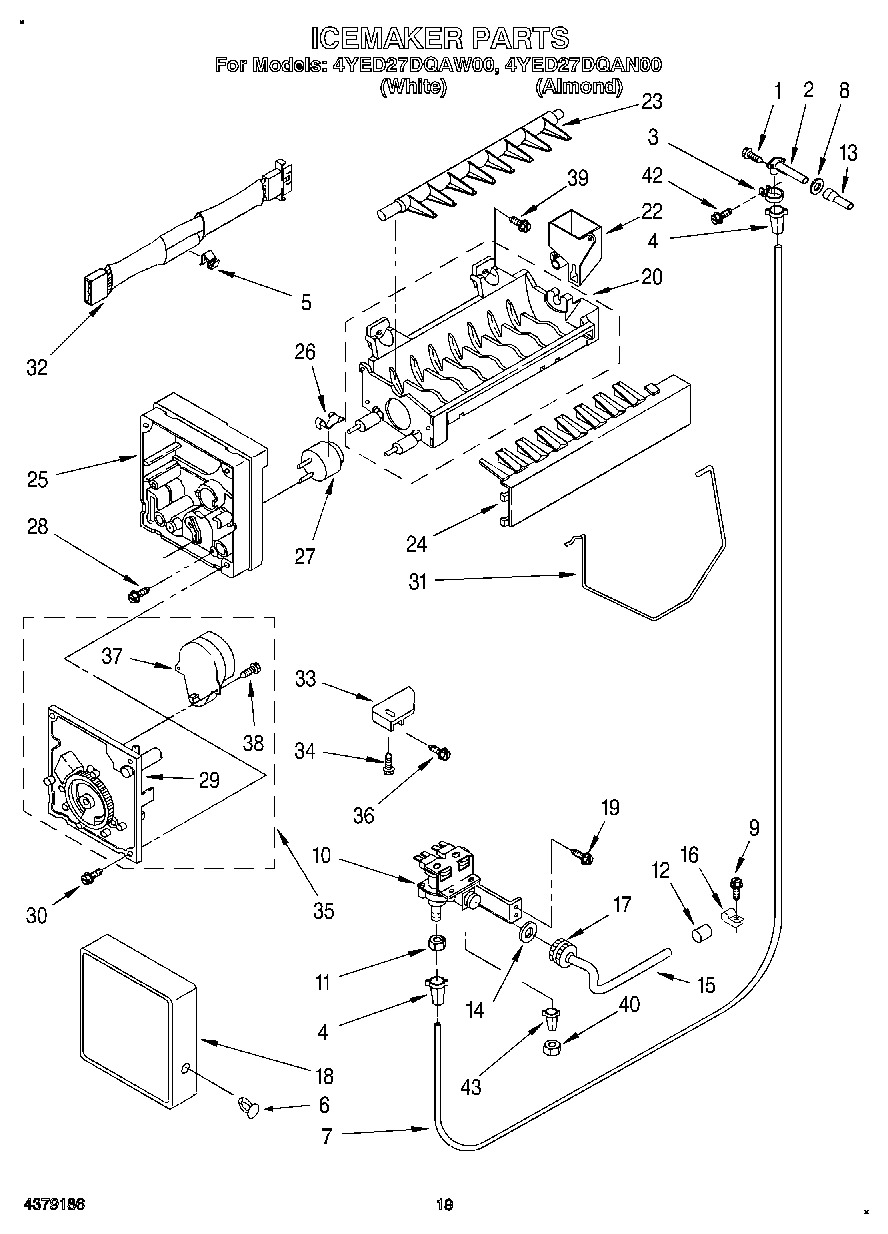

12 - ICEMAKER, LIT/OPTIONAL
04 - FREEZER LINER

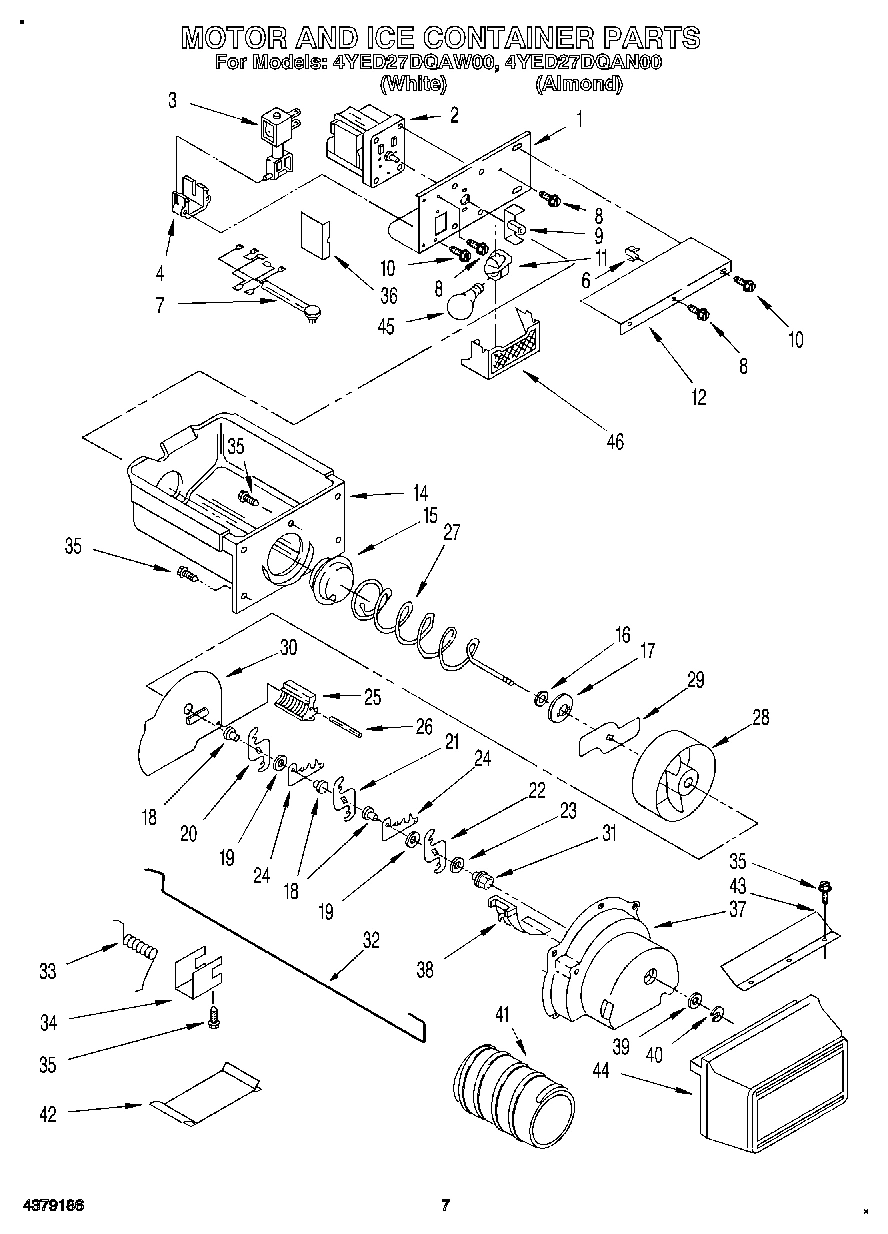

05 - MOTOR AND ICE CONTAINER

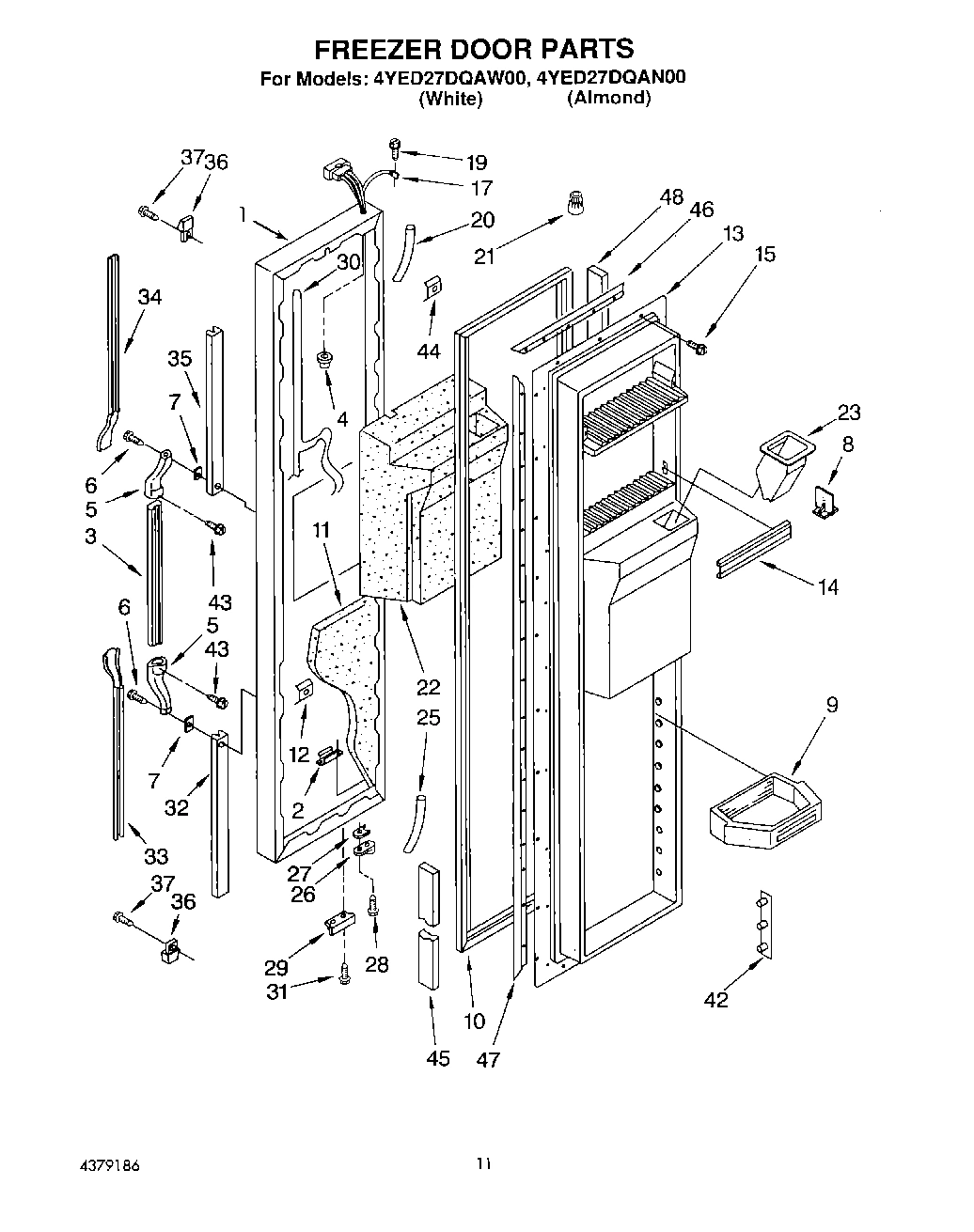

07 - FREEZER DOOR
09 - UNIT
Common parts from model Whirlpool 4YED27DQAN00 REFRIGERATOR
WPL LIT2167102 WPL LIT2167102 Contact Us For Availability
WPL LIT2167105 WPL LIT2167105 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14824A6 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 1127321 Contact Us For Availability
1
Refrigerator, Door Panel (Almond (Also Order WPL 1127324 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14825A7 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1127357 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1127360 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability
2
Snack Bin WPL 2167177 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 1123568 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center (White) WPL 1124713 Contact Us For Availability
3
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 2167182 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Basket WPL 2155600 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
6
Shelf Bin (2) WPL 2150134 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Door Gasket, Magnetic (For Almond Model) WPL 1127307 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
9
Shelf Bin (4) WPL 2150137 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Door Gasket, Magnetic (For Almond Model) WPL 1127308 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper Pan WPL 2167169 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Panel, Interior Door WPL 1121470 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Screw WPL 489268 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Heater, Door WPL 2165376 Contact Us For Availability
17
Meat Pan WPL 2167170 Contact Us For Availability
17
Panel, Interior Door WPL 1121447 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door WPL 2167055 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Egg Container, Top WPL 1107388 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
21
Egg Container, Bottom WPL 1107384 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Wire Connector WPL 850145 Contact Us For Availability
22
Door, Top Compartment WPL 2167178 Contact Us For Availability
22
Insulation, Dispenser WPL 1119037 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Chute, Ice WPL 1121473 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
29
Bracket, Door Stop WPL 2157611 Contact Us For Availability
29
Module, Assembly WPL 628358 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Insert, Handle (White) WPL 1119373 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Door Dike (2) WPL 1123622 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2167171 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2167172 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2167175 Contact Us For Availability
40
Front Cover, Hous WPL 2167176 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Pin Plate (6) WPL 1116986 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Screw WPL 489022 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
47
WPL 1129333 WPL 1129333 Contact Us For Availability
47
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
48
Door Dike (2) WPL 1123587 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
