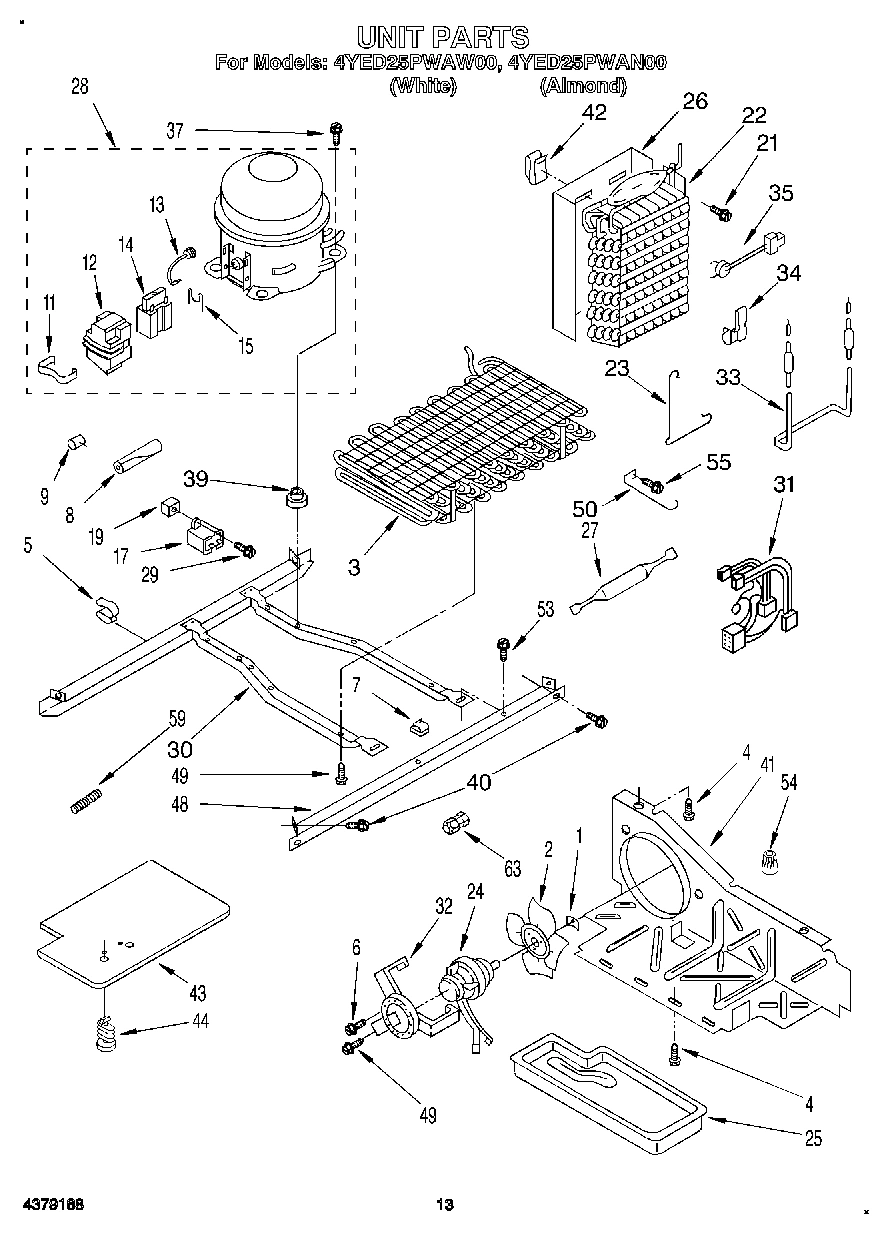

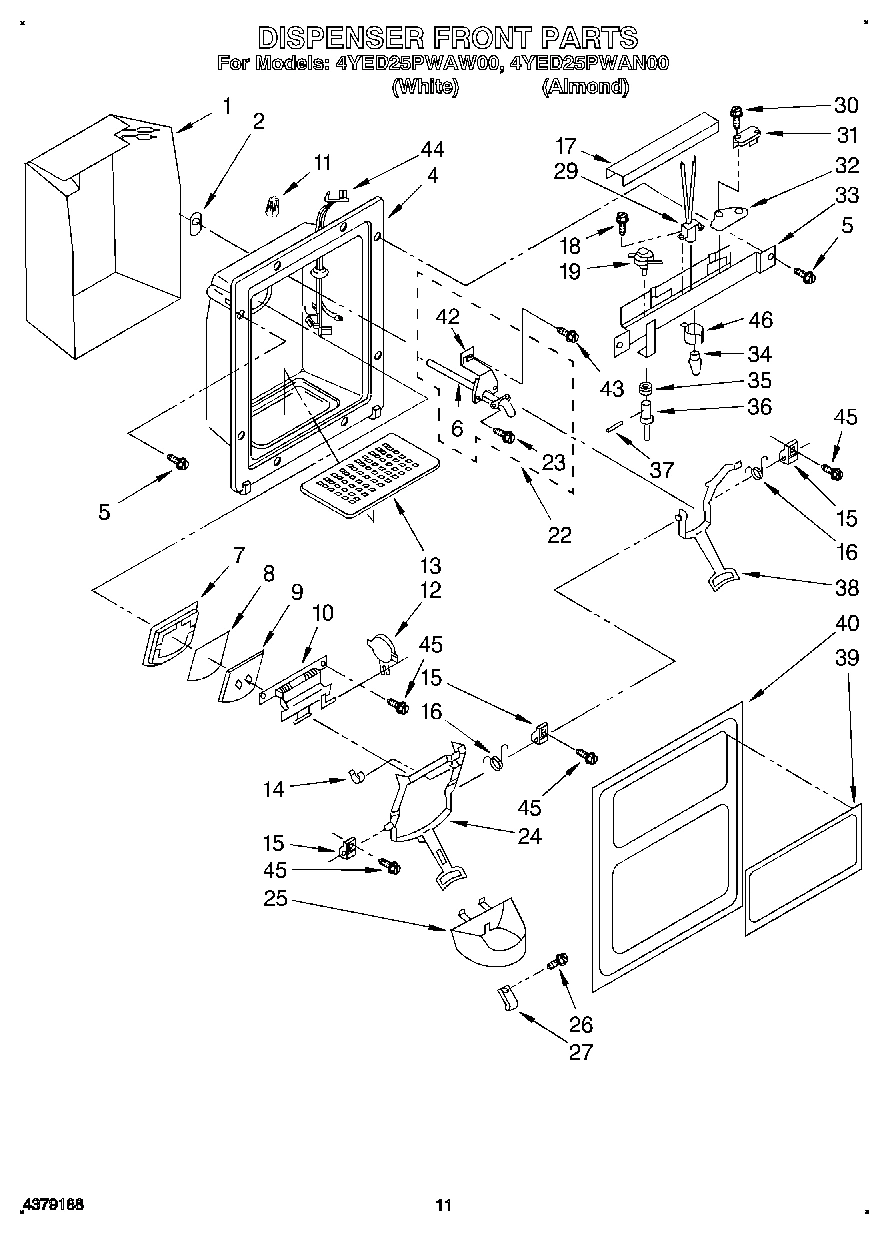

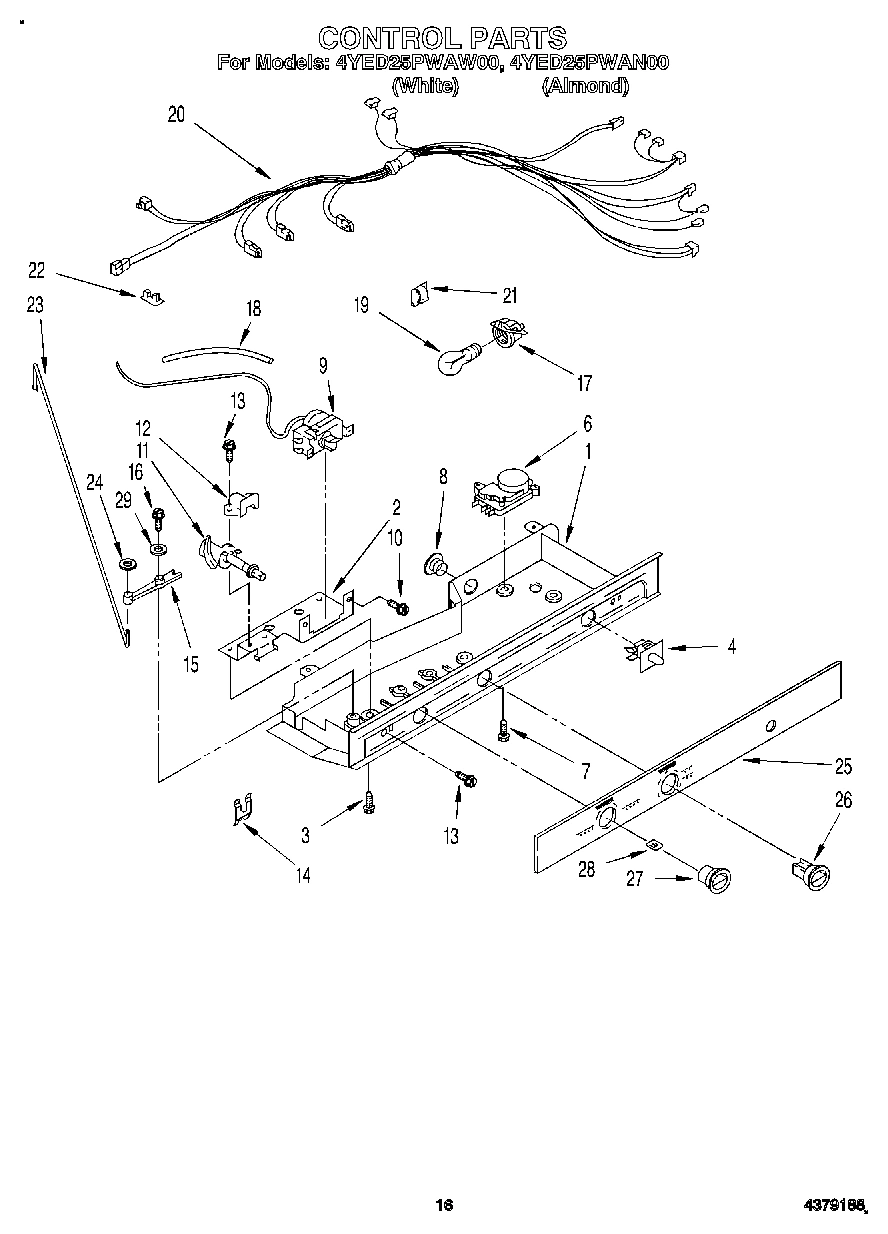

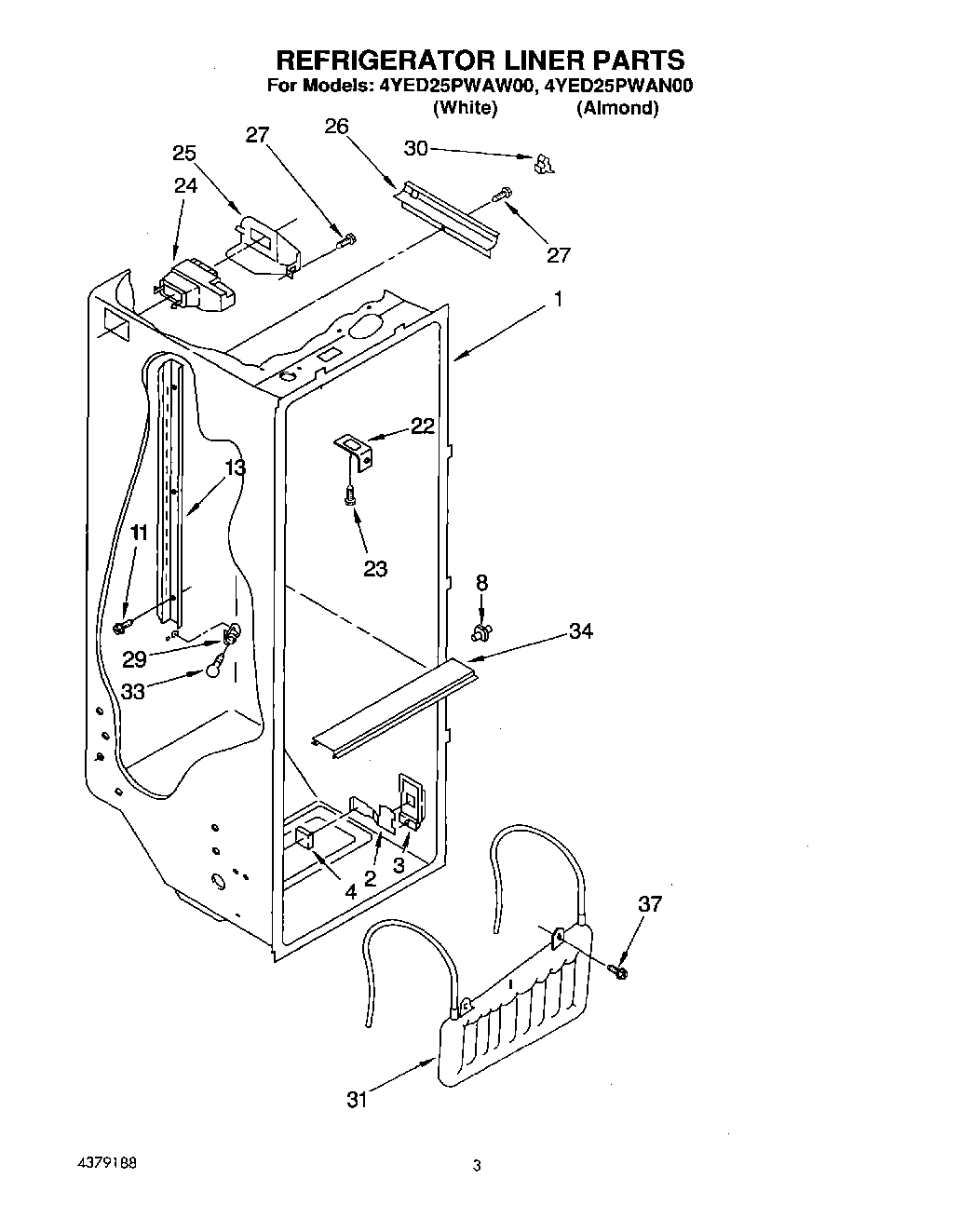

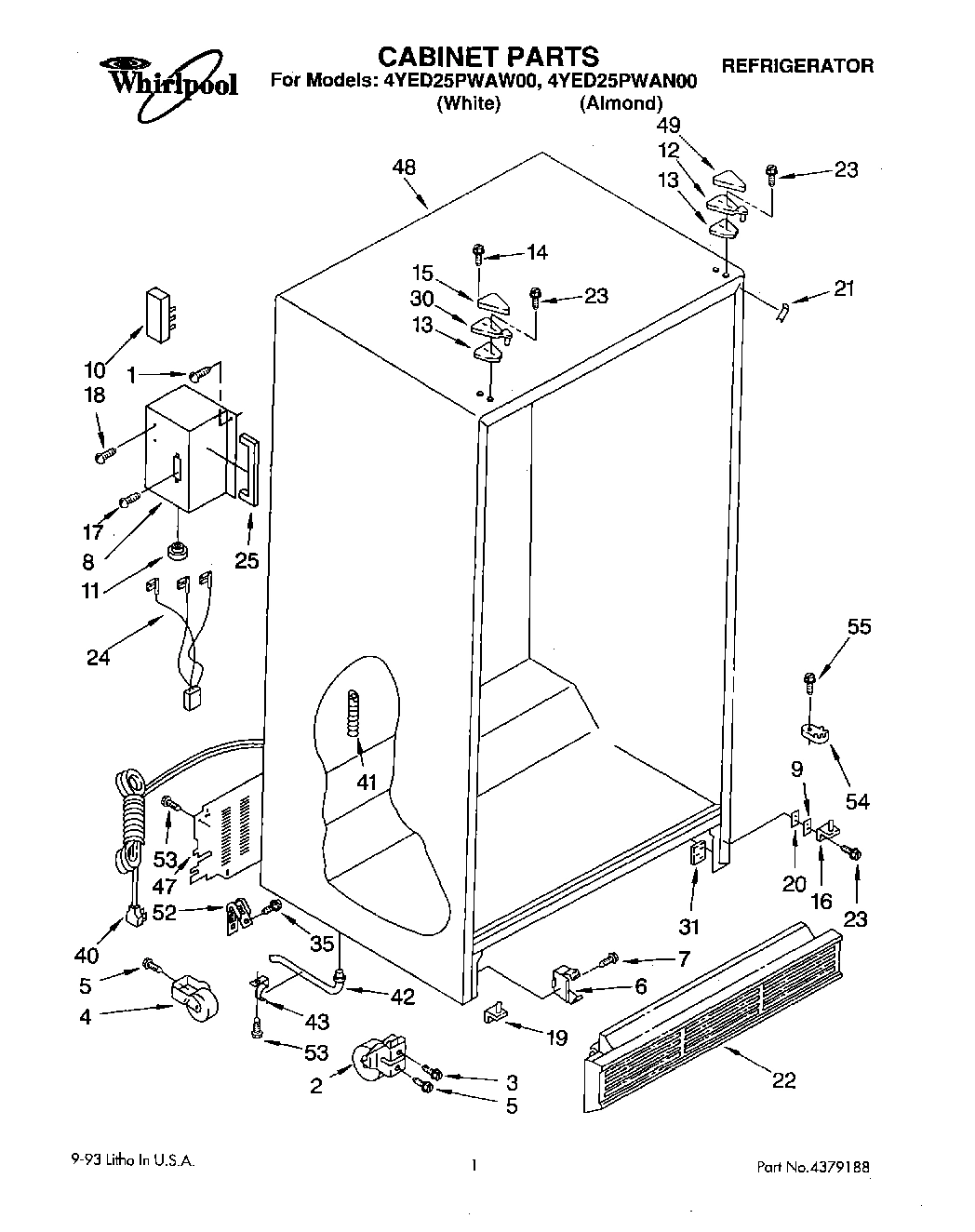

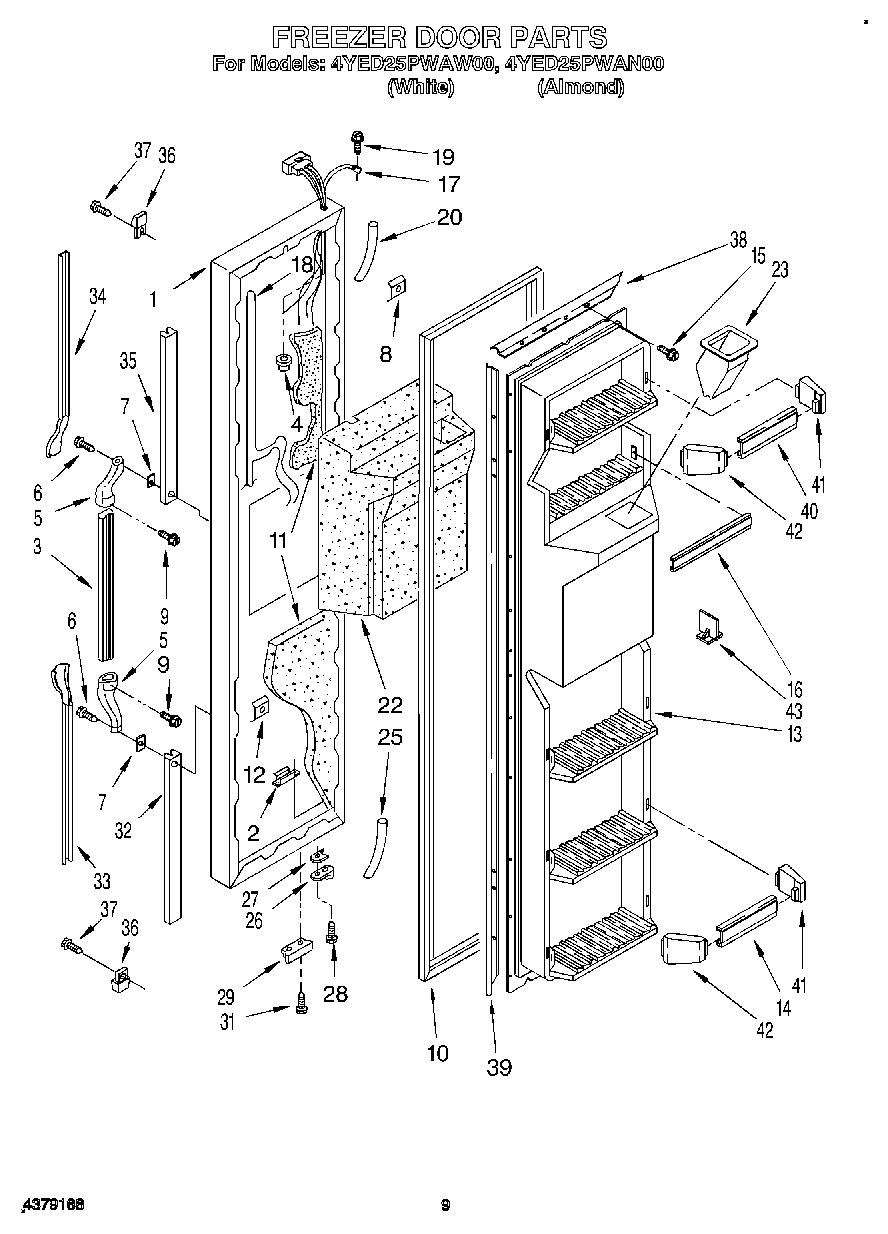

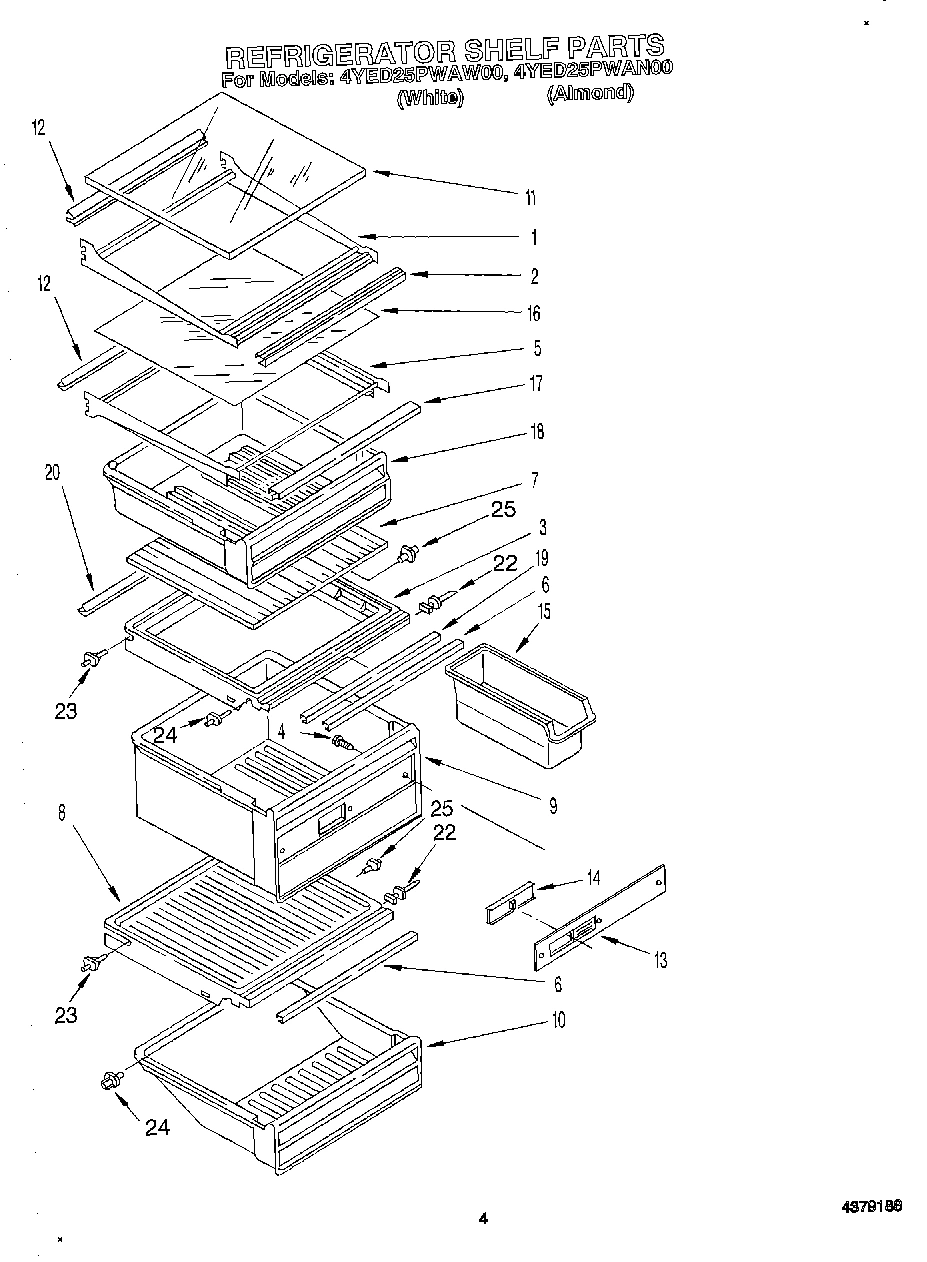

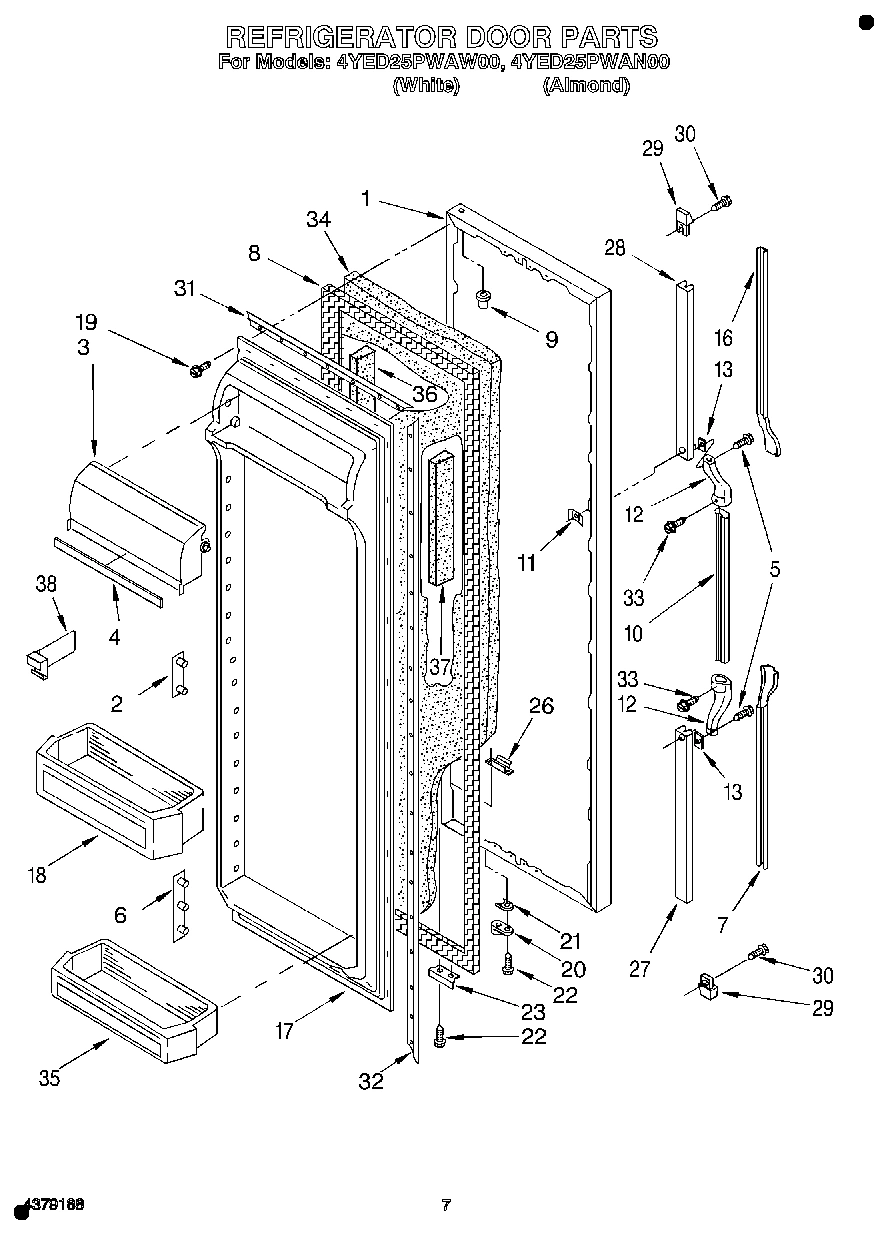

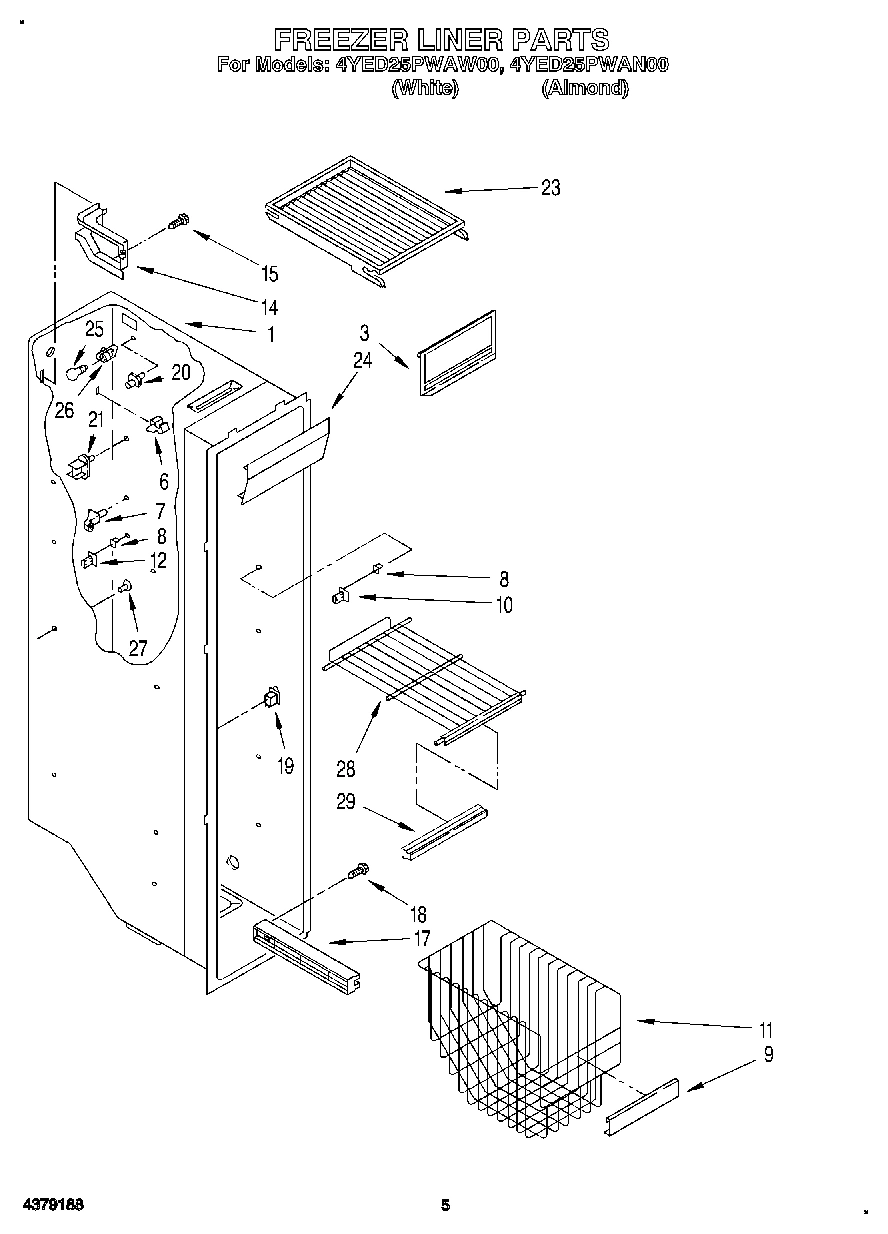

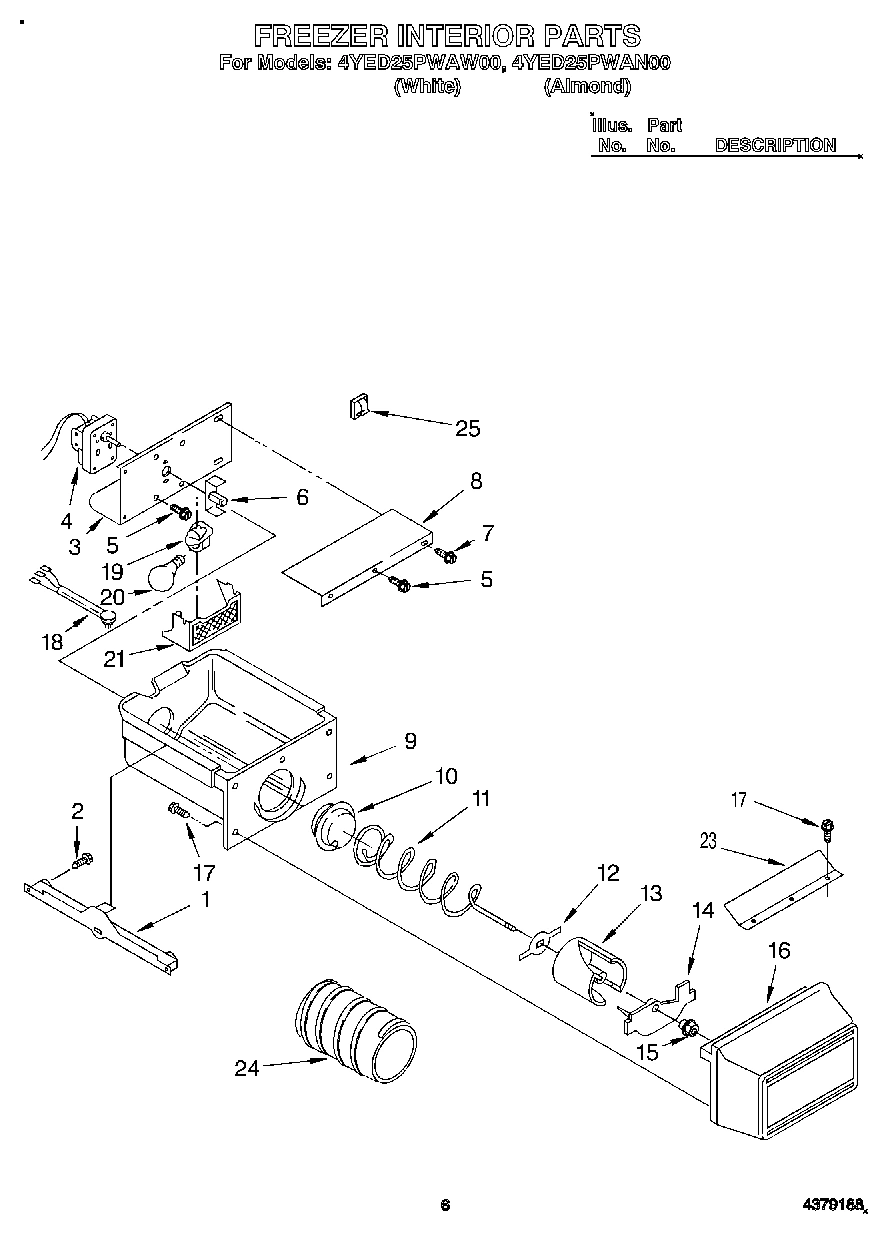

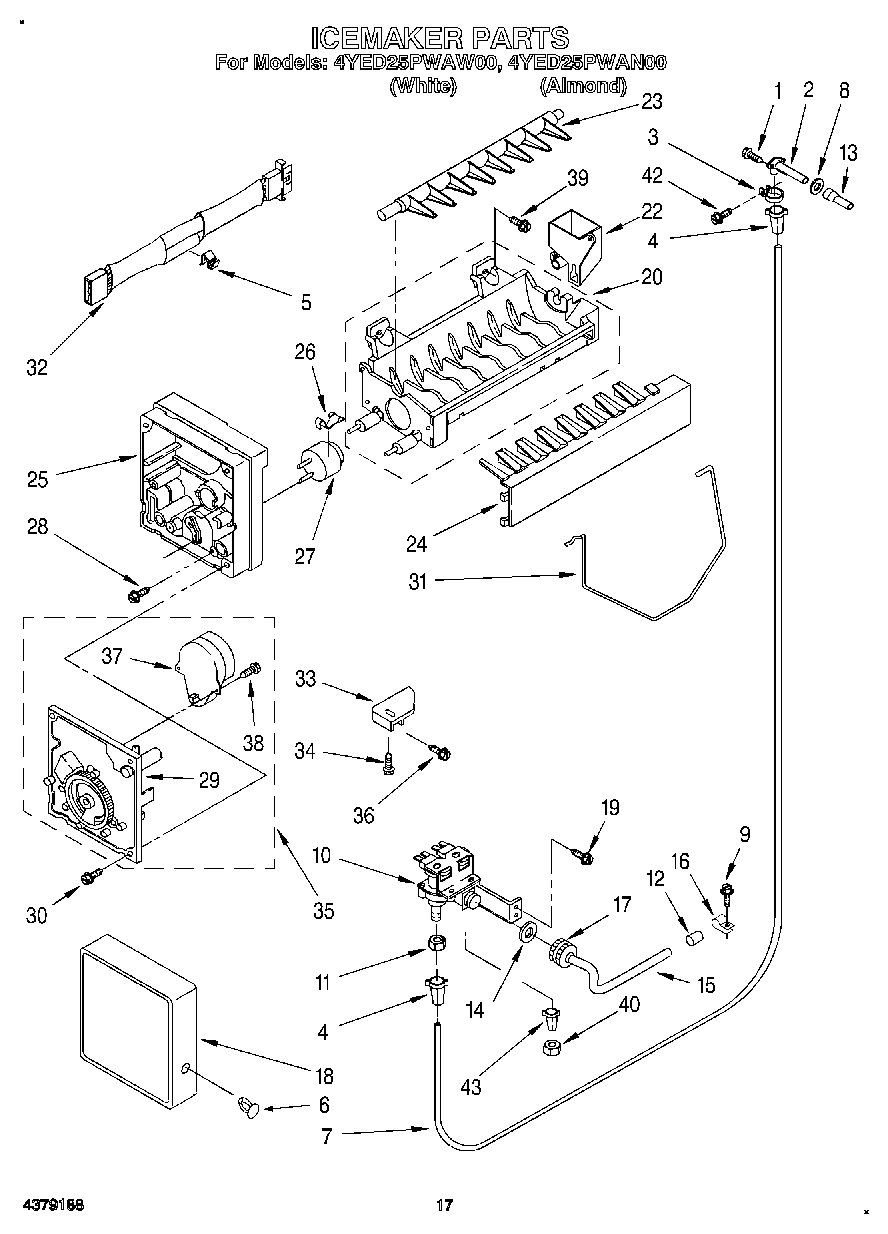

Model Whirlpool 4YED25PWAN00 REFRIGERATOR – Common Parts & Diagrams

WPL  LIT2167105
WPL LIT2167105 WPL LIT2167105 Contact Us For Availability
View on Model
WPL  LIT2167244
WPL LIT2167244 WPL LIT2167244 Contact Us For Availability
View on Model
WPL  LIT628371
WPL LIT628371 WPL LIT628371 Contact Us For Availability
View on Model
1
Refrigerator, Door Panel (White)
Refrigerator, Door Panel (White) WPL 1110642 Contact Us For Availability
View on Model
1
Refrigerator, Door Panel (Almond (Also Order
Refrigerator, Door Panel (Almond (Also Order WPL 1110645 Contact Us For Availability
View on Model
1
Heater, Dispenser
Heater, Dispenser WPL 2165241 Contact Us For Availability
View on Model
1
Shelf Assembly, Cantilever (2)
Shelf Assembly, Cantilever (2) WPL 1118413 Contact Us For Availability
View on Model
1
Control Box
Control Box WPL 2169147 Contact Us For Availability
View on Model
2
Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Mounting Bracket
Mounting Bracket WPL 1110629 Contact Us For Availability
View on Model
2
Pin Plate (4)
Pin Plate (4) WPL 1118048 Contact Us For Availability
View on Model
2
Grommet
Grommet WPL 987048 Contact Us For Availability
View on Model
2
Trim, Shelf
Trim, Shelf WPL 1114302 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2152011 Contact Us For Availability
View on Model
3
Door, Compartment
Door, Compartment WPL 2148702 Contact Us For Availability
View on Model
3
Air Scoop
Air Scoop WPL 2161231 Contact Us For Availability
View on Model
3
Condenser Assembly
Condenser Assembly WPL 2164504 Contact Us For Availability
View on Model
3
Bracket, Ice Dispenser
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
View on Model
3
Screw (2)
Screw (2) WPL 489397 Contact Us For Availability
View on Model
3
Screw
Screw WPL 489393 Contact Us For Availability
View on Model
4
Trim, Compartment Door
Trim, Compartment Door WPL 1110717 Contact Us For Availability
View on Model
4
Housing, Dispenser
Housing, Dispenser WPL 1107943 Contact Us For Availability
View on Model
4
Screw (3)
Screw (3) WPL 489226 Contact Us For Availability
View on Model
4
Motor
Motor WPL 2167014 Contact Us For Availability
View on Model
5
Air Duct Freezer
Air Duct Freezer WPL 2155575 Contact Us For Availability
View on Model
5
Clip, Wire
Clip, Wire WPL 2155658 Contact Us For Availability
View on Model
5
Pan Shelf & Slide Assembly
Pan Shelf & Slide Assembly WPL 2148122 Contact Us For Availability
View on Model
5
Screw,
Screw, WPL 488454 Contact Us For Availability
View on Model
6
Pin Plate (10)
Pin Plate (10) WPL 1116986 Contact Us For Availability
View on Model
6
Tube, Water (See Item No.22)
Tube, Water (See Item No.22) WPL ARI140856A Contact Us For Availability
View on Model
6
Trim, Crisper Cover
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
View on Model
7
Glass, Crisper Cover
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
View on Model
7
Gasket, Door
Gasket, Door WPL 983691 Contact Us For Availability
View on Model
7
Insert, Handle (White)
Insert, Handle (White) WPL 1119361 Contact Us For Availability
View on Model
7
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
View on Model
7
Fan Motor
Fan Motor WPL 2154986 Contact Us For Availability
View on Model
7
Clip, Tube (3)
Clip, Tube (3) WPL 934011 Contact Us For Availability
View on Model
8
Shield, Ice Door
Shield, Ice Door WPL 987121 Contact Us For Availability
View on Model
8
Door Gasket, Magnetic
Door Gasket, Magnetic WPL 1127309 Contact Us For Availability
View on Model
8
Cover, Motor
Cover, Motor WPL 1115339 Contact Us For Availability
View on Model
8
Cover, Terminal Block
Cover, Terminal Block WPL 2158579 Contact Us For Availability
View on Model
9
Door, Ice
Door, Ice WPL 983690 Contact Us For Availability
View on Model
9
Cap, Hinge Sleeve
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
View on Model
9
Pan, Crisper
Pan, Crisper WPL 2167180 Contact Us For Availability
View on Model
9
Shim
Shim WPL 836196 Contact Us For Availability
View on Model
10
Valve, Solenoid
Valve, Solenoid WPL 2167100 Contact Us For Availability
View on Model
10
Handle, Center
Handle, Center WPL 1118417 Contact Us For Availability
View on Model
10
Door Mechanism Assembly
Door Mechanism Assembly WPL 938669 Contact Us For Availability
View on Model
10
Grommet, Fan (2)
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
View on Model
10
Pan, Meat
Pan, Meat WPL 2167181 Contact Us For Availability
View on Model
10
Terminal Block
Terminal Block WPL 1129346 Contact Us For Availability
View on Model
11
Foam Insulation (Required When Replacing Exte
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
View on Model
11
Screw Anchor (2)
Screw Anchor (2) WPL 941242 Contact Us For Availability
View on Model
11
Wire Connector
Wire Connector WPL 850145 Contact Us For Availability
View on Model
11
Strap
Strap WPL 2154721 Contact Us For Availability
View on Model
11
Glass, Shelf
Glass, Shelf WPL 2148237 Contact Us For Availability
View on Model
11
Conveyor
Conveyor WPL 1115214 Contact Us For Availability
View on Model
11
Cam Assembly
Cam Assembly WPL 2161250 Contact Us For Availability
View on Model
11
Bushing
Bushing WPL 1129449 Contact Us For Availability
View on Model
12
End Cap, Center Handle
End Cap, Center Handle WPL 1119359 Contact Us For Availability
View on Model
12
Harness, Fan Evaporator, And Heater, Bi-Metal
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
View on Model
12
Cover
Cover WPL 2154722 Contact Us For Availability
View on Model
12
Reflector, Shelf
Reflector, Shelf WPL 1114306 Contact Us For Availability
View on Model
12
Hinge Top (R.H.)
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
View on Model
13
Grille, Overflow
Grille, Overflow WPL 983900 Contact Us For Availability
View on Model
13
Shim, Hinge Top
Shim, Hinge Top WPL 1123515 Contact Us For Availability
View on Model
13
Tube, Water Inlet
Tube, Water Inlet WPL 2155247 Contact Us For Availability
View on Model
13
Shim
Shim WPL 935075 Contact Us For Availability
View on Model
13
Overload
Overload WPL 2154719 Contact Us For Availability
View on Model
13
Front, Crisper Pan
Front, Crisper Pan WPL 2158950 Contact Us For Availability
View on Model
14
Washer
Washer WPL 628337 Contact Us For Availability
View on Model
14
Clip, Bearing (2)
Clip, Bearing (2) WPL 987917 Contact Us For Availability
View on Model
14
Relay
Relay WPL 2154720 Contact Us For Availability
View on Model
14
Slide
Slide WPL 1116718 Contact Us For Availability
View on Model
14
Baffle
Baffle WPL 1115362 Contact Us For Availability
View on Model
14
Retainer, Damper
Retainer, Damper WPL 938439 Contact Us For Availability
View on Model
14
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
15
Pivot Arm
Pivot Arm WPL 1110559 Contact Us For Availability
View on Model
15
Tube, Inlet Valve
Tube, Inlet Valve WPL 627860 Contact Us For Availability
View on Model
15
Bearing, Lever (3)
Bearing, Lever (3) WPL 983697 Contact Us For Availability
View on Model
15
Overload Spring
Overload Spring WPL 943320 Contact Us For Availability
View on Model
15
Nut, Bearing
Nut, Bearing WPL 946195 Contact Us For Availability
View on Model
16
Spring, Lever (2)
Spring, Lever (2) WPL 983696 Contact Us For Availability
View on Model
16
Clamp
Clamp WPL 510716 Contact Us For Availability
View on Model
16
Insert, Handle (White)
Insert, Handle (White) WPL 1119373 Contact Us For Availability
View on Model
16
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
View on Model
16
Glass, Shelf
Glass, Shelf WPL 2148300 Contact Us For Availability
View on Model
16
Front Cover
Front Cover WPL 2148312 Contact Us For Availability
View on Model
16
Hinge Bottom (R.H.)
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
View on Model
17
Nut, Valve
Nut, Valve WPL 537588 Contact Us For Availability
View on Model
17
Panel, Interior Door
Panel, Interior Door WPL 1124842 Contact Us For Availability
View on Model
17
Shield, Wiring
Shield, Wiring WPL 984494 Contact Us For Availability
View on Model
17
Cover, Evaporator
Cover, Evaporator WPL 2155612 Contact Us For Availability
View on Model
17
Capacitor
Capacitor WPL 2154717 Contact Us For Availability
View on Model
17
Trim, Shelf
Trim, Shelf WPL 2148301 Contact Us For Availability
View on Model
18
Cover
Cover WPL 628329 Contact Us For Availability
View on Model
18
Shelf Bin (2)
Shelf Bin (2) WPL 2163336 Contact Us For Availability
View on Model
18
Snack Bin
Snack Bin WPL 2158957 Contact Us For Availability
View on Model
18
Wiring Assembly, Ice Dispenser
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
View on Model
18
Screw
Screw WPL 489346 Contact Us For Availability
View on Model
19
Switch, Light
Switch, Light WPL 851386 Contact Us For Availability
View on Model
19
Screw Grommet
Screw Grommet WPL 509812 Contact Us For Availability
View on Model
19
Gasket, Crisper (Front)
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
View on Model
19
hinge Bottom (L.H.)
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
View on Model
20
Gasket, Crisper (Rear)
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
View on Model
20
Control Box Harness
Control Box Harness WPL 2149186 Contact Us For Availability
View on Model
20
Spacer, Hinge
Spacer, Hinge WPL 1129868 Contact Us For Availability
View on Model
21
Lens, Dispenser Light
Lens, Dispenser Light WPL 983359 Contact Us For Availability
View on Model
21
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
View on Model
21
Filler, Wrapper (Almond)
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
View on Model
22
Evaporator
Evaporator WPL 2164519 Contact Us For Availability
View on Model
22
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
22
Grille
Grille WPL 1129054 Contact Us For Availability
View on Model
23
Shelf Stud
Shelf Stud WPL 1115290 No Longer Available
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
23
Bracket, Door Stop
Bracket, Door Stop WPL 1115906 Contact Us For Availability
View on Model
23
Deflector, Ice Container
Deflector, Ice Container WPL 1119043 Contact Us For Availability
View on Model
23
Connecting Rod
Connecting Rod WPL 1123960 Contact Us For Availability
View on Model
24
Fastener, Push-On
Fastener, Push-On WPL 489285 Contact Us For Availability
View on Model
24
Light Lens
Light Lens WPL 1115389 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
View on Model
24
Wiring Assembly
Wiring Assembly WPL 2165297 Contact Us For Availability
View on Model
25
Guide, Ice
Guide, Ice WPL 1118269 Contact Us For Availability
View on Model
25
Tray, Evaporator
Tray, Evaporator WPL 1110674 Contact Us For Availability
View on Model
25
Escutcheon Control
Escutcheon Control WPL 2167184 Contact Us For Availability
View on Model
25
Gasket
Gasket WPL 2167227 Contact Us For Availability
View on Model
26
Tap Plate
Tap Plate WPL 988402 Contact Us For Availability
View on Model
26
Screw
Screw WPL 489197 Contact Us For Availability
View on Model
26
Heat Shield
Heat Shield WPL 2149294 Contact Us For Availability
View on Model
27
Stop, Glass
Stop, Glass WPL 1119056 Contact Us For Availability
View on Model
27
Grommet (8)
Grommet (8) WPL 1110779 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
27
Retainer, Insert (Bottom)
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
View on Model
27
Knob, Air Control
Knob, Air Control WPL 1116853 Contact Us For Availability
View on Model
28
Shelf (Large 2)
Shelf (Large 2) WPL 1116956 Contact Us For Availability
View on Model
28
Retainer, Insert
Retainer, Insert WPL 1119372 Contact Us For Availability
View on Model
28
Compressor (Includes Items 11, 12, 13, 14, 15
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
View on Model
28
Knob, Retainer
Knob, Retainer WPL 837444 Contact Us For Availability
View on Model
29
Trim, Shelf (3)
Trim, Shelf (3) WPL 1120547 Contact Us For Availability
View on Model
29
Motor Module
Motor Module WPL 628358 Contact Us For Availability
View on Model
29
End Cap (2)
End Cap (2) WPL 2156220 Contact Us For Availability
View on Model
29
Socket, Lamp
Socket, Lamp WPL 987265 Contact Us For Availability
View on Model
30
Screw
Screw WPL 489075 Contact Us For Availability
View on Model
30
Screw
Screw WPL 488362 Contact Us For Availability
View on Model
30
Hinge, Top (L.H.)
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
View on Model
31
Gasket Retainer, Top & Bottom
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
View on Model
31
Unit, Harness
Unit, Harness WPL 2167065 Contact Us For Availability
View on Model
31
Tap Plate (2)
Tap Plate (2) WPL 2147310 Contact Us For Availability
View on Model
32
Gasket Retainer, Side (2)
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
View on Model
32
Insulator, Switch (2)
Insulator, Switch (2) WPL 984683 Contact Us For Availability
View on Model
32
Fan, Motor Bracket
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
View on Model
33
Screw (4)
Screw (4) WPL 489022 Contact Us For Availability
View on Model
33
Bracket, Control
Bracket, Control WPL 1129283 Contact Us For Availability
View on Model
33
Heater, Defrost
Heater, Defrost WPL 2162214 Contact Us For Availability
View on Model
34
Screw,
Screw, WPL 489365 Contact Us For Availability
View on Model
34
Bulb, Light
Bulb, Light WPL 989331 Contact Us For Availability
View on Model
34
Clip
Clip WPL 2161330 Contact Us For Availability
View on Model
35
Shelf Bin (2)
Shelf Bin (2) WPL 2163337 Contact Us For Availability
View on Model
35
Spring, Plunger
Spring, Plunger WPL 983986 Contact Us For Availability
View on Model
36
Screw
Screw WPL 486214 Contact Us For Availability
View on Model
36
Reinforcement, Shelf
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
View on Model
36
Plunger
Plunger WPL 1116563 Contact Us For Availability
View on Model
37
Reinforcement, Shelf
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
View on Model
37
Pin, Retainer
Pin, Retainer WPL 983987 Contact Us For Availability
View on Model
37
Screw
Screw WPL 489387 Contact Us For Availability
View on Model
38
Divider, Bin
Divider, Bin WPL 2152336 Contact Us For Availability
View on Model
38
Lever Assembly, Water Dispenser
Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability
View on Model
39
Plaque, Front Cover
Plaque, Front Cover WPL 2158952 Contact Us For Availability
View on Model
39
Grommet (4)
Grommet (4) WPL 2162067 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
40
Front Cover, Housing (Includes Item 39)
Front Cover, Housing (Includes Item 39) WPL 2158967 Contact Us For Availability
View on Model
40
Service Cord
Service Cord WPL 1129332 Contact Us For Availability
View on Model
42
Bracket, Water
Bracket, Water WPL 987049 Contact Us For Availability
View on Model
42
Clip, Heat Shield
Clip, Heat Shield WPL 2155547 Contact Us For Availability
View on Model
43
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
43
Insert
Insert WPL 1129177 Contact Us For Availability
View on Model
43
Leveler, Enamel (13 Oz. Spray Can)
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
View on Model
43
Transformer (115-230 Volt)
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
View on Model
43
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
43
WPL  799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
43
WPL  799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
43
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
43
Screw
Screw WPL 488316 Contact Us For Availability
View on Model
43
Unit Cover, Bottom
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
View on Model
44
Wiring Assembly, Door
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
View on Model
46
Shroud, Bracket
Shroud, Bracket WPL 1129333 Contact Us For Availability
View on Model
47
Cover, Unit
Cover, Unit WPL 2167191 Contact Us For Availability
View on Model
48
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI140853A Contact Us For Availability
View on Model
49
Screw
Screw WPL 488624 Contact Us For Availability
View on Model
50
Guard, Fan
Guard, Fan WPL 1110663 Contact Us For Availability
View on Model
54
Wire Connector
Wire Connector WPL 227991 Contact Us For Availability
View on Model
59
Spring-Tube
Spring-Tube WPL 983659 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
63
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
