Model Whirlpool 4YED22PWAW01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
08 - DISPENSER FRONT

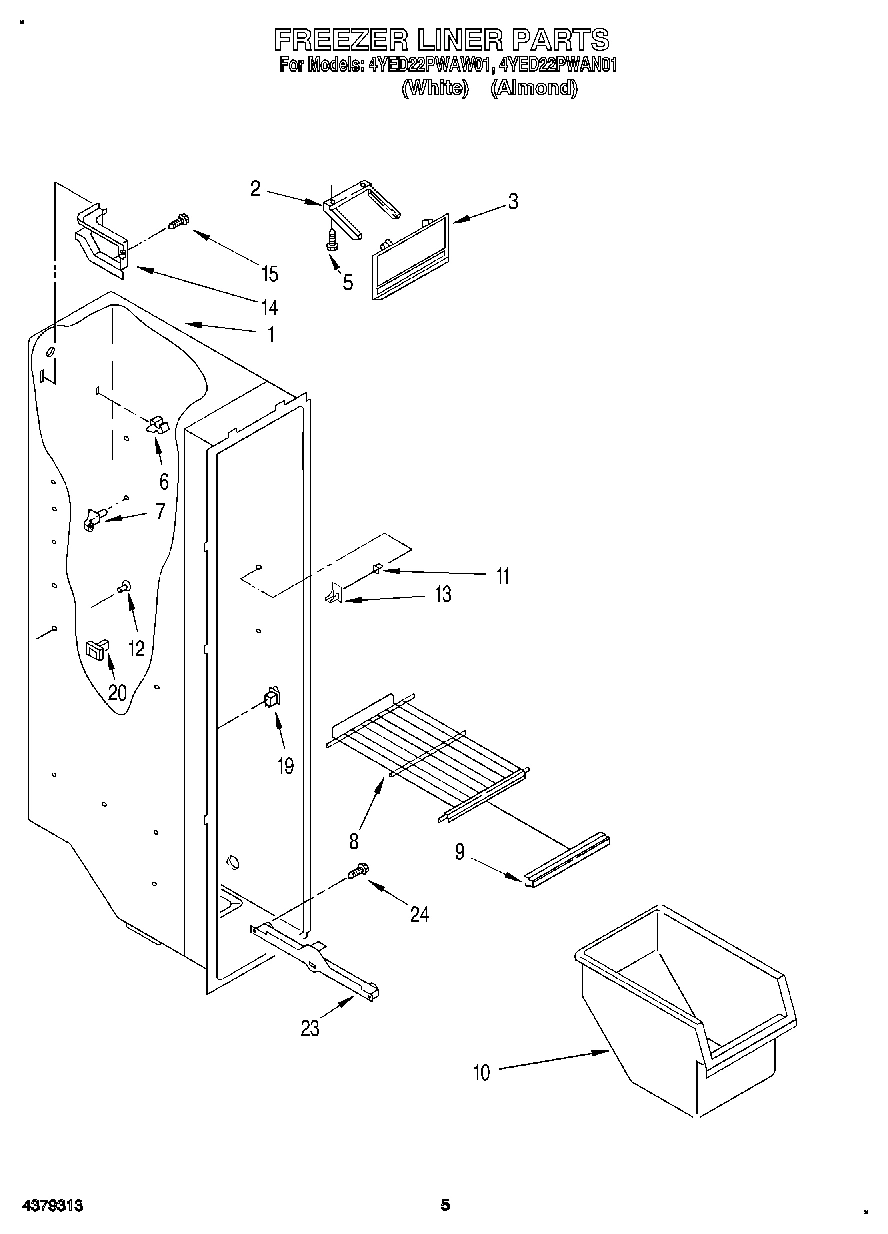

04 - FREEZER LINER

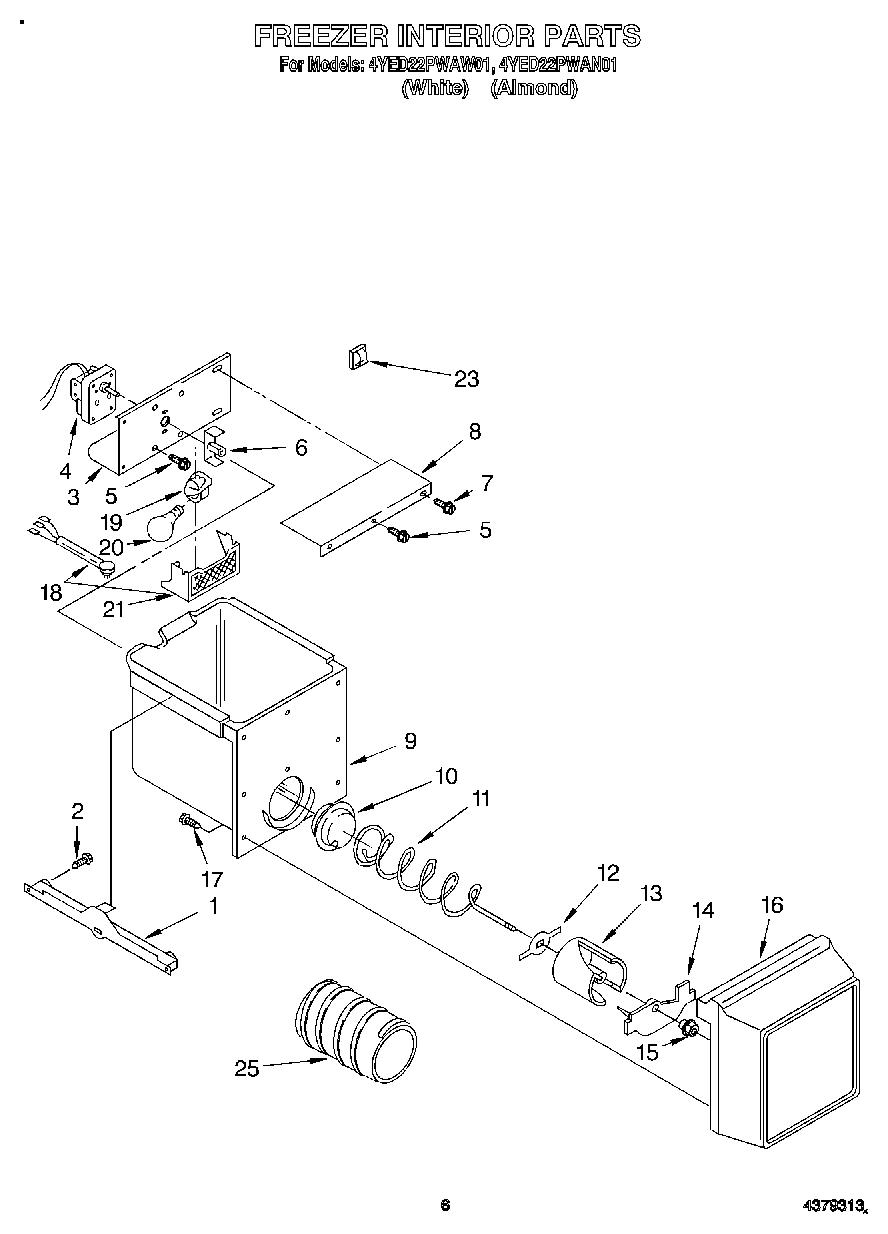

05 - FREEZER INTERIOR

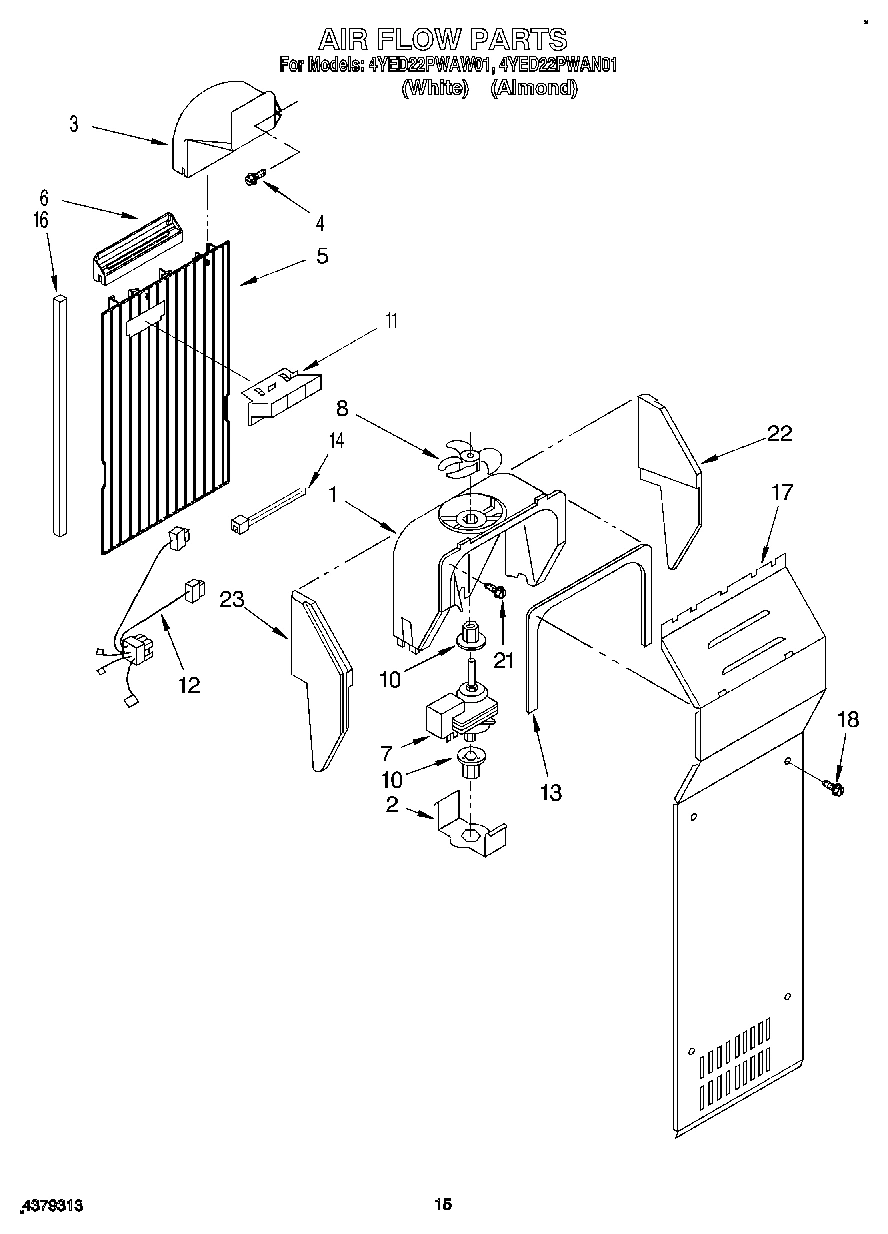

10 - AIR FLOW

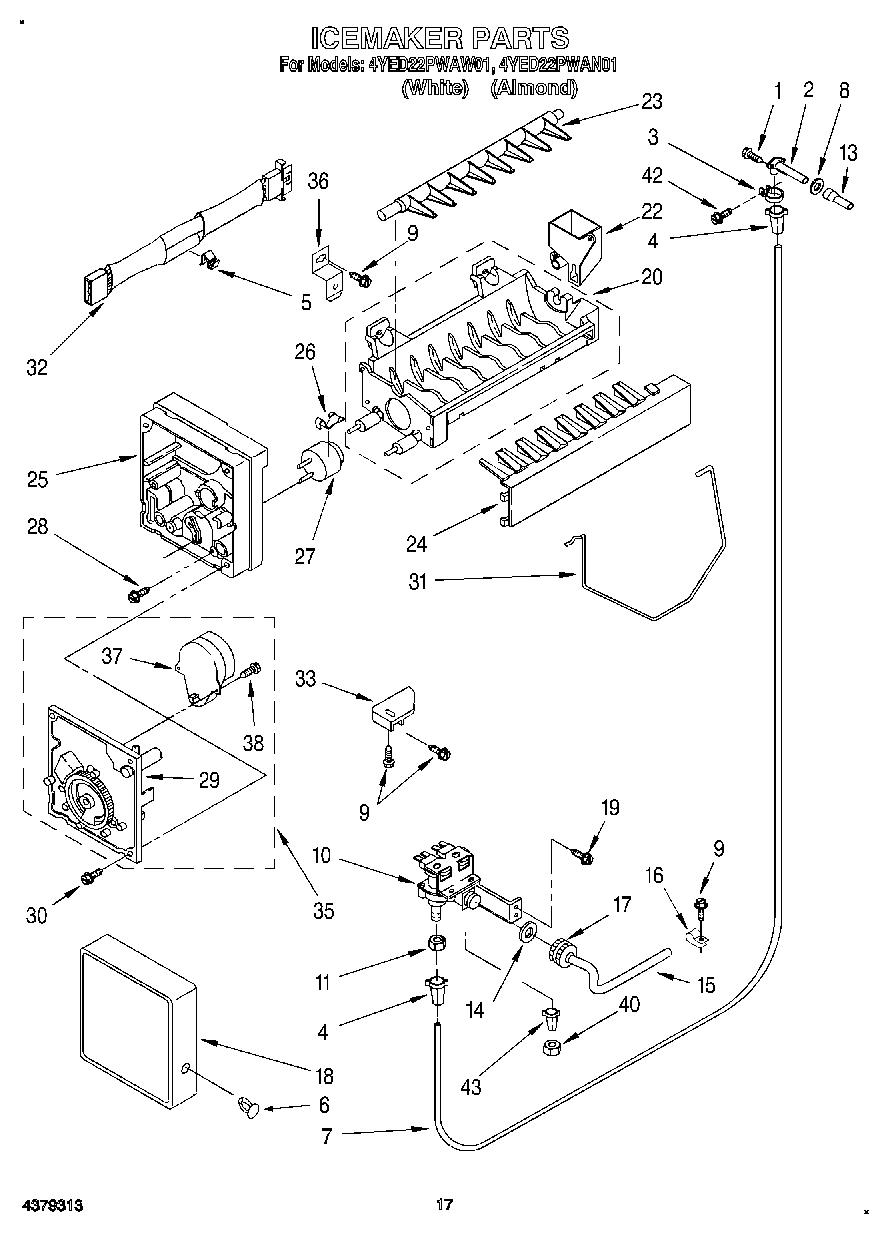

12 - ICEMAKER, LIT/OPTIONAL

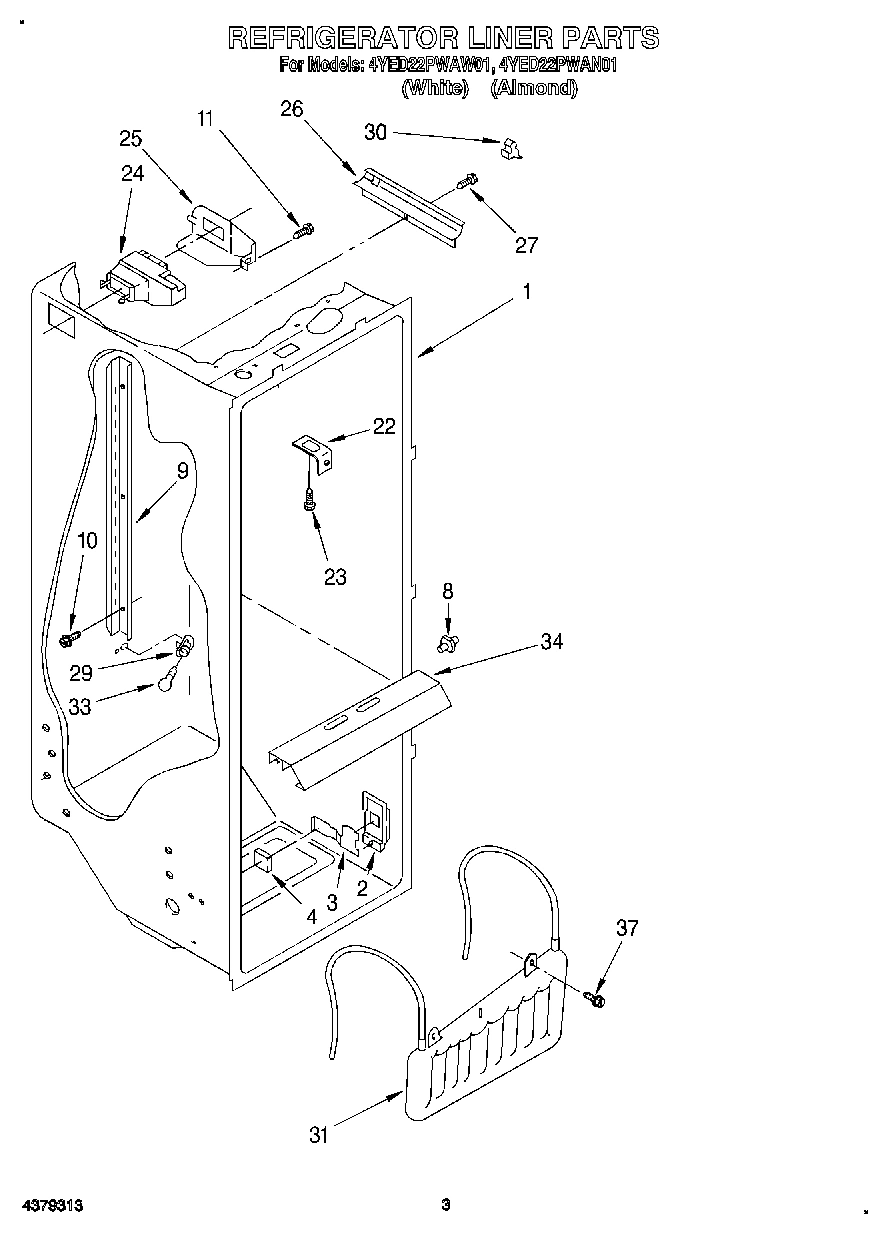

02 - REFRIGERATOR LINER
03 - REFRIGERATOR SHELF

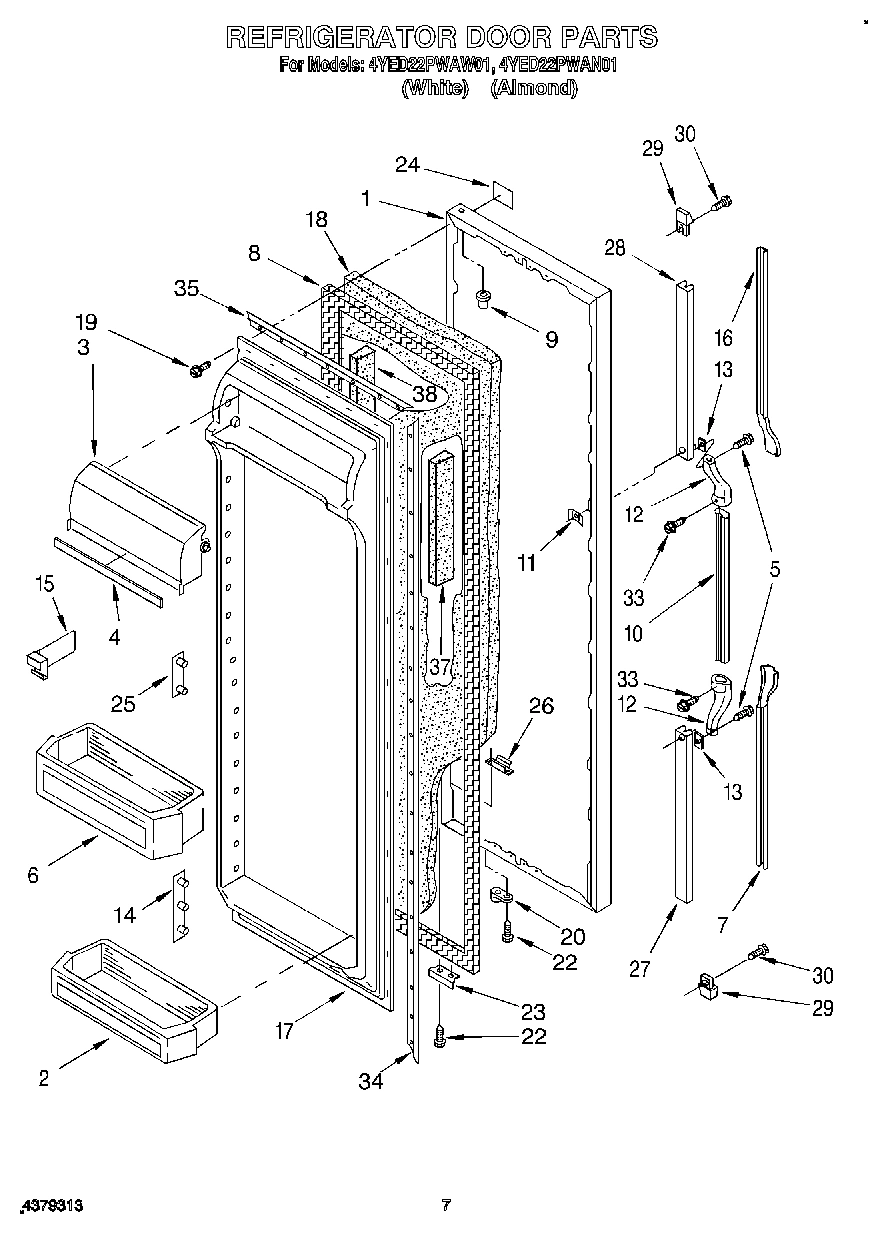

06 - REFRIGERATOR DOOR

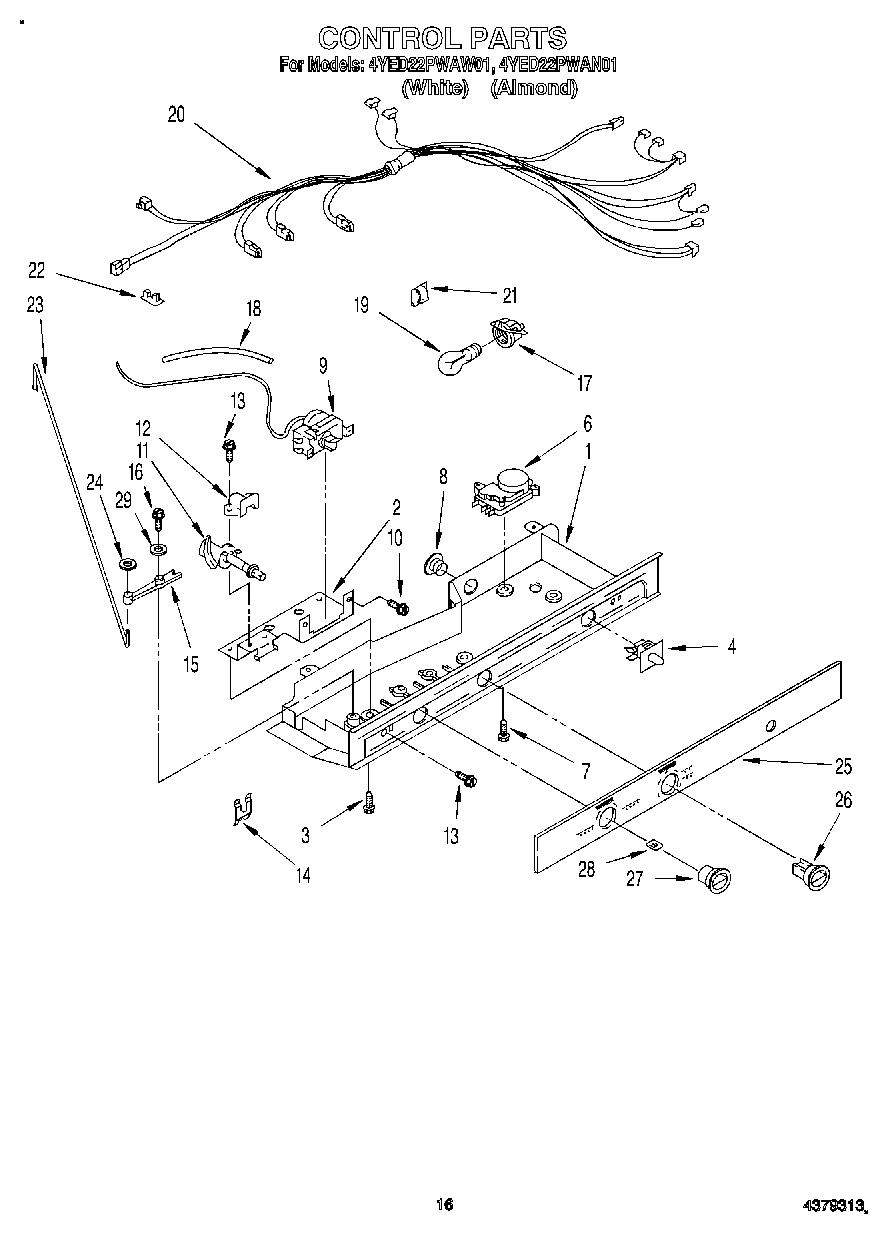

11 - CONTROL
07 - FREEZER DOOR

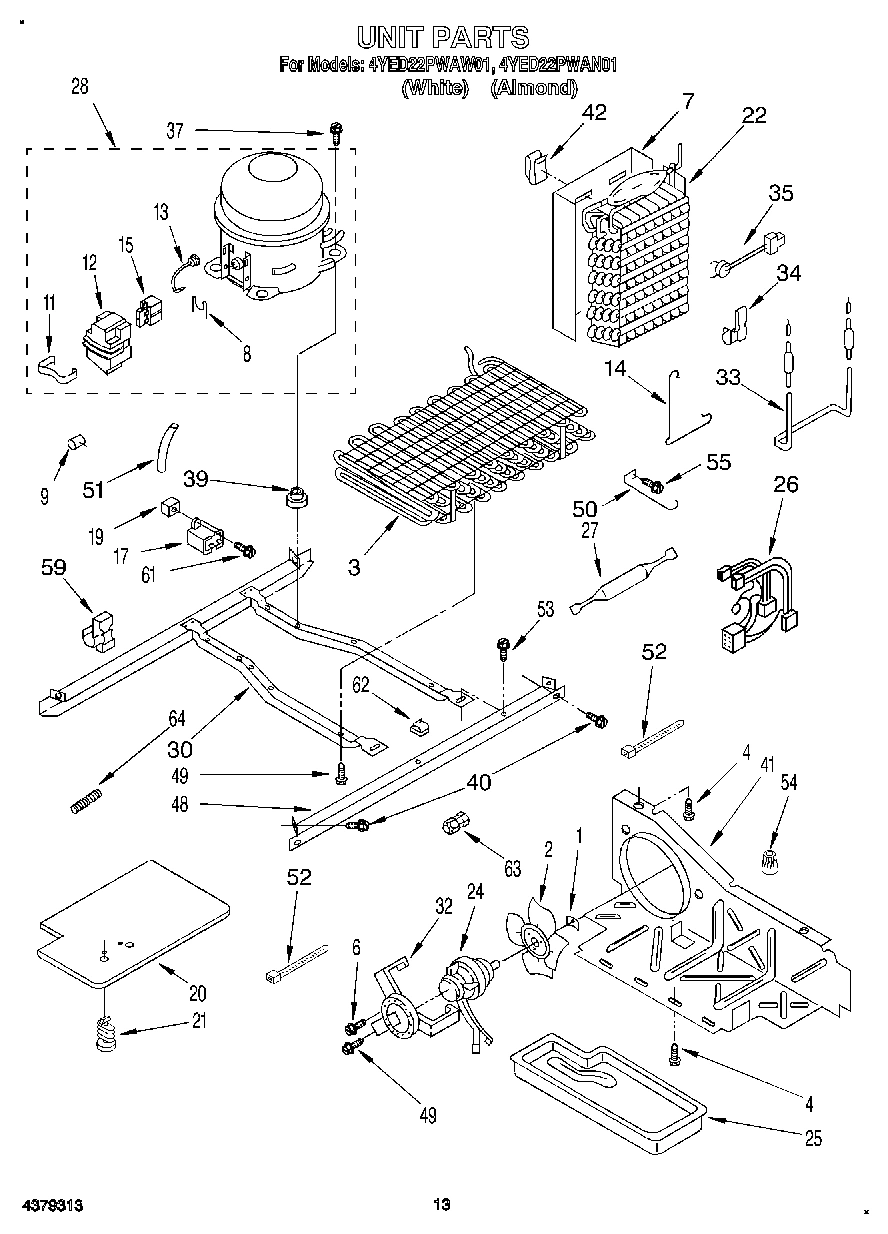

09 - UNIT
Common parts from model Whirlpool 4YED22PWAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2167105 WPL LIT2167105 Contact Us For Availability
WPL LIT2167243 WPL LIT2167243 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140815A Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Shelf Bin (2) WPL 2163337 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2148702 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Motor WPL 2167014 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Reflector, Shelf WPL 1114306 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Trim, Shelf WPL 1114302 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172710 Contact Us For Availability
6
Shelf Bin (2) WPL 2163336 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (Short) WPL 1118165 Contact Us For Availability
8
Heater, Door WPL 2165376 Contact Us For Availability
8
Overload Spring WPL 943320 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Trim Shelf WPL 1110782 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Pan, Crisper WPL 2167180 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Pan, Meat WPL 2167181 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Front, Crisper WPL 2158950 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Slide, Crisper WPL 1116718 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Overload WPL 2158785 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Screw WPL 489226 Contact Us For Availability
14
Pin Plate WPL 1116986 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
trim, door shelf (4) WPL 2148265 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet WPL 627860 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Divider, Bin WPL 2152336 Contact Us For Availability
15
Relay WPL 2154720 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2171254 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Trim, Door Shelf WPL 2148252 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Trim, Shelf WPL 2148301 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Harness, Door WPL 2167053 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
18
Snack Bin WPL 2158957 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Nameplate (Almond) WPL 2165147 Contact Us For Availability
24
Nameplate (White) WPL 2165148 Contact Us For Availability
25
Pin Plate WPL 1118048 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167184 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2167065 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Compressor (Includes Items 8, 11, 12, 13, 15, WPL 2162439 Contact Us For Availability
29
Module, Assembly WPL 628358 Contact Us For Availability
29
Bracket, Door Stop WPL 2155334 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Insert, Handle (White) WPL 1119367 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Screw WPL 489022 Contact Us For Availability
38
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
41
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
