Model Whirlpool 4RF315PXDQ0 ELECTRIC RANGE – Common Parts & Diagrams

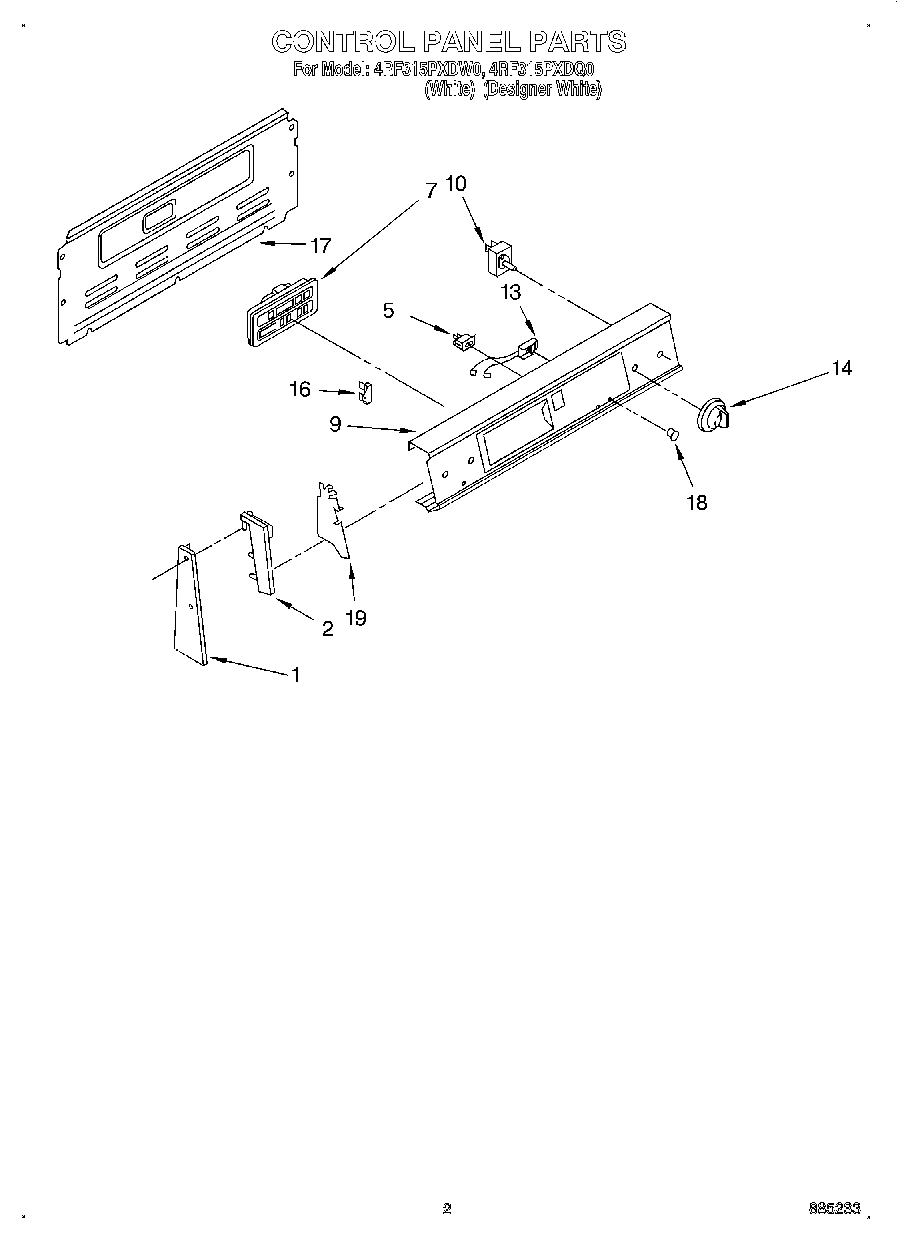

02 - CONTROL PANEL

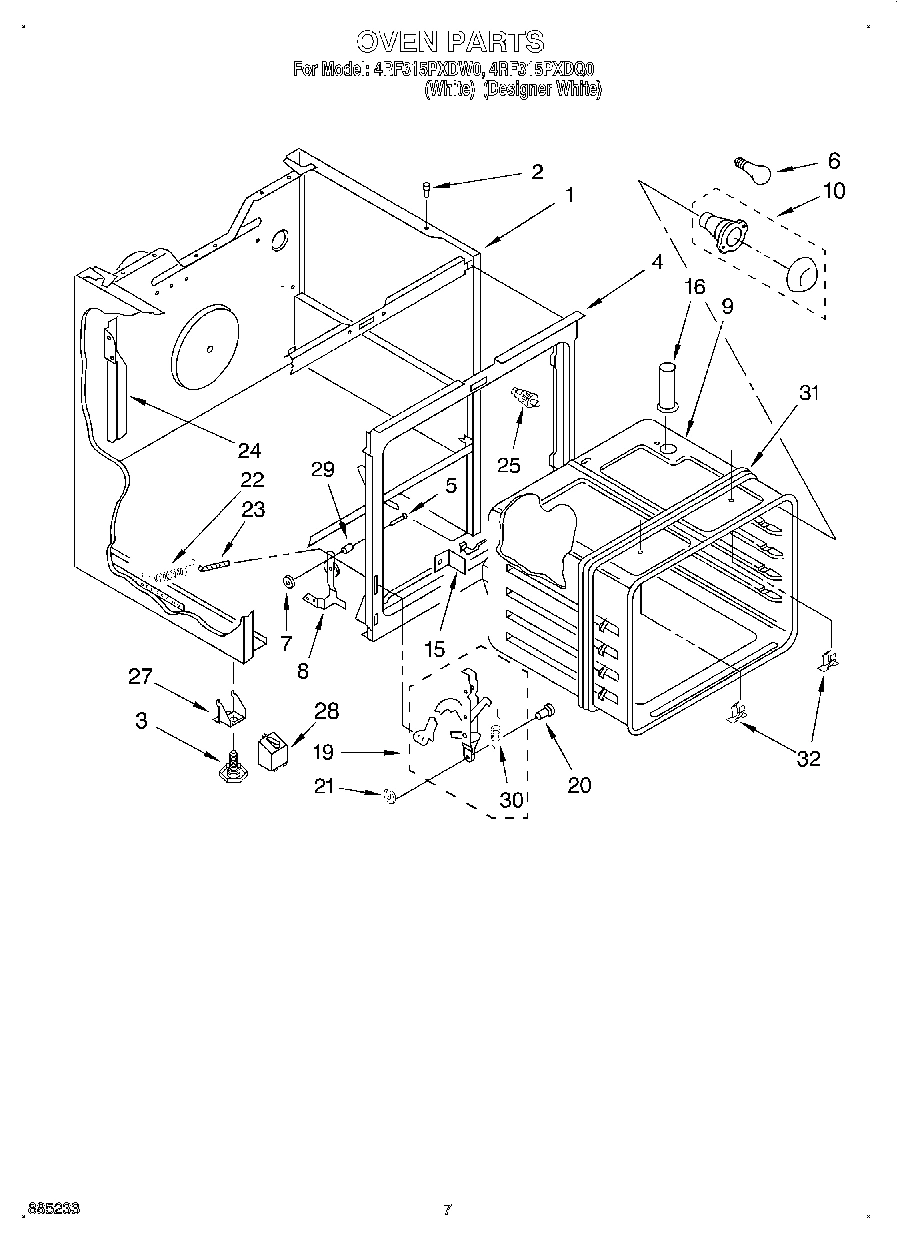

05 - OVEN
01 - COOKTOP, LITERATURE
03 - UNIT
04 - DOOR AND DRAWER
06 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool 4RF315PXDQ0 ELECTRIC RANGE
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Tech Sheet WPL LIT3169511 Contact Us For Availability
Use & Care Guide WPL LIT3189078 Contact Us For Availability
Instructions, Installation WPL LIT3189985 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Nut WPL 814102 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Harness, Wire (Surface Unit) WPL 3190716 Contact Us For Availability
2
Wiring Harness (Oven) WPL 3169541 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Glass, Inner WPL 3169202 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
5
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw, 8-18x3/8 (6) WPL 3185647 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
WPL 72112 WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Cap, Top (Designer Models Only) (Screw (2)) WPL 3188399 Contact Us For Availability
6
Cap, Top (Designer Models Only) (Designer Whi WPL 3189001 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Outer Glass (Designer White) WPL 3188738 Contact Us For Availability
9
Outer Glass (Black) WPL 3188739 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Door (Black) WPL 3188695 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Handle, Door (Designer White) WPL 3188696 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
14
Frame, Door (Screw, Bottom (3)) WPL 3149333 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Frame, Door (Screw, Side (4)) WPL 3149253 Contact Us For Availability
14
Frame, Door (Screw, Bottom (3)) WPL 3185918 Contact Us For Availability
14
Frame, Door (Screw, Side (4)) WPL 3188403 Contact Us For Availability
14
Frame, Door (Black) WPL 3188997 Contact Us For Availability
14
Frame, Door (Designer White) WPL 3188998 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
15
Door Top, Vent (Black) WPL 3188692 Contact Us For Availability
15
Door Top, Vent (Designer White) WPL 3188693 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Lens, Amber (2) WPL 313101 Contact Us For Availability
18
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
18
Sensor, Temperature WPL 3148440 Contact Us For Availability
18
Screw (2) WPL 98520 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Panel Drawer (White) WPL 3169422 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Handle, Drawer (White) WPL 3169473 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
26
Bracket, Rail (2) WPL 3169420 Contact Us For Availability
27
Support, Foot (2) WPL 3169418 Contact Us For Availability
28
Rail, Slide (Screw (2)) WPL 307748 Contact Us For Availability
28
Cover, Foot (2) WPL 3169448 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 3169283 Contact Us For Availability
32
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
