Model Whirlpool 3XKVN600F04 REFRIGERATOR – Common Parts & Diagrams

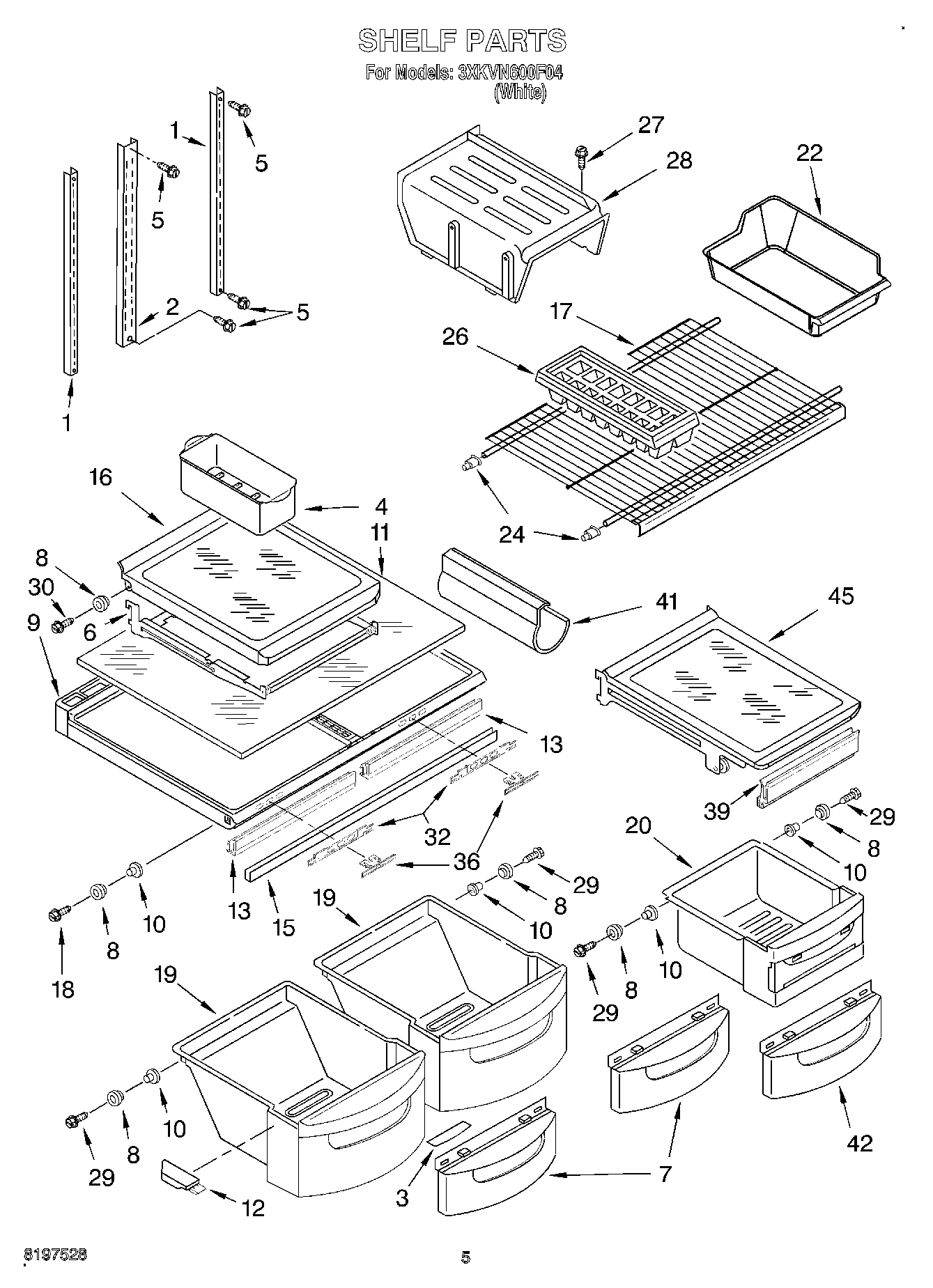

03 - SHELF
06 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET
04 - UNIT
05 - REFRIGERATOR DOOR
02 - LINER
Common parts from model Whirlpool 3XKVN600F04 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.8) WPL 2183935 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13306A2 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
5
Housing Base WPL 2184633 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187306 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2201150 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
12
Spacer, Door Handle WPL 2188146 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2210379 Contact Us For Availability
14
Insert, Handle WPL 2195986 Contact Us For Availability
15
Endcap, Top WPL 2195994W Contact Us For Availability
15
Retainer, Insert WPL 2195993W Contact Us For Availability
16
Cover, Evaporator WPL 2201180 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Screw WPL 3400873 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap, Top WPL 2195995W Contact Us For Availability
20
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
20
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
20
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171066 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
24
Support Block WPL 2201185 Contact Us For Availability
25
Endcap, Bottom WPL 2195990 Contact Us For Availability
25
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200511 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Freezer Floor WPL 2190589 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
39
Air Baffle WPL 2188262 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2187294 Contact Us For Availability
40
Gasket, Rear WPL 2166284 Contact Us For Availability
42
Wire Assy. Unit WPL 2210358 Contact Us For Availability
42
Shield, heat WPL 2204639 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Electric Shield WPL 2193491 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
45
Shield WPL 2201082 Contact Us For Availability
46
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
47
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
48
Roller, Slide WPL 2176246 Contact Us For Availability
49
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
50
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
