Model Whirlpool 3XKGN701000 REFRIGERATOR – Common Parts & Diagrams

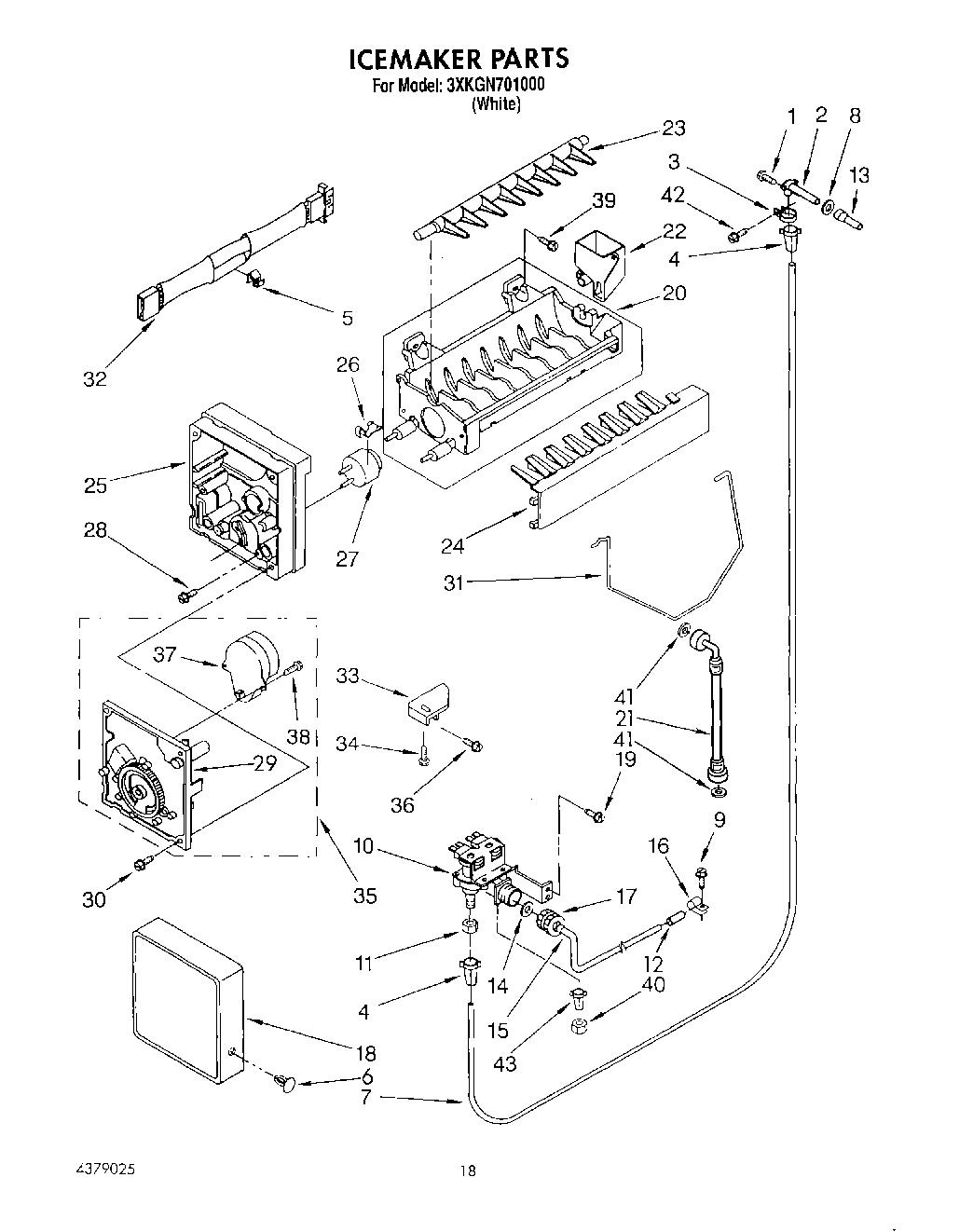

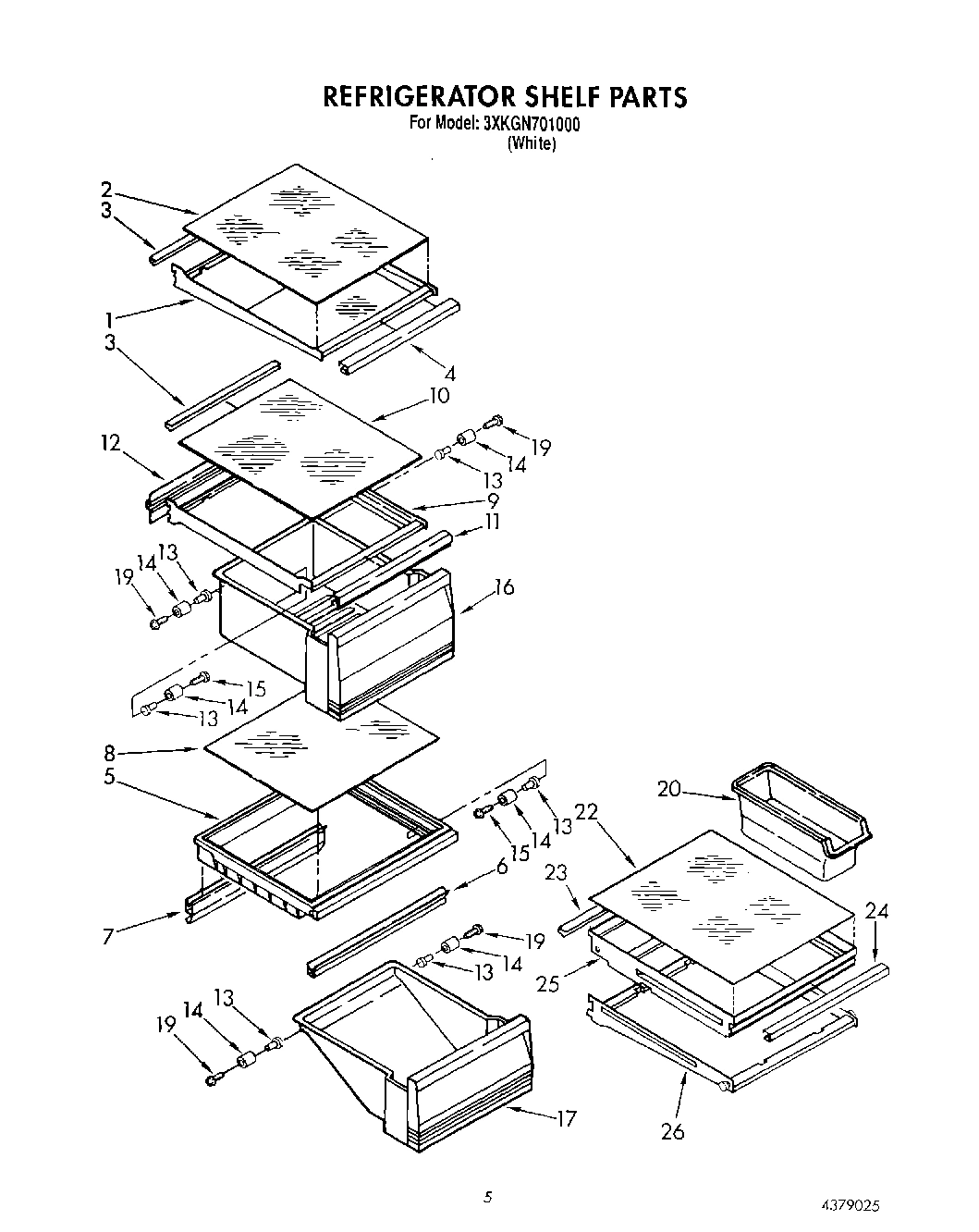

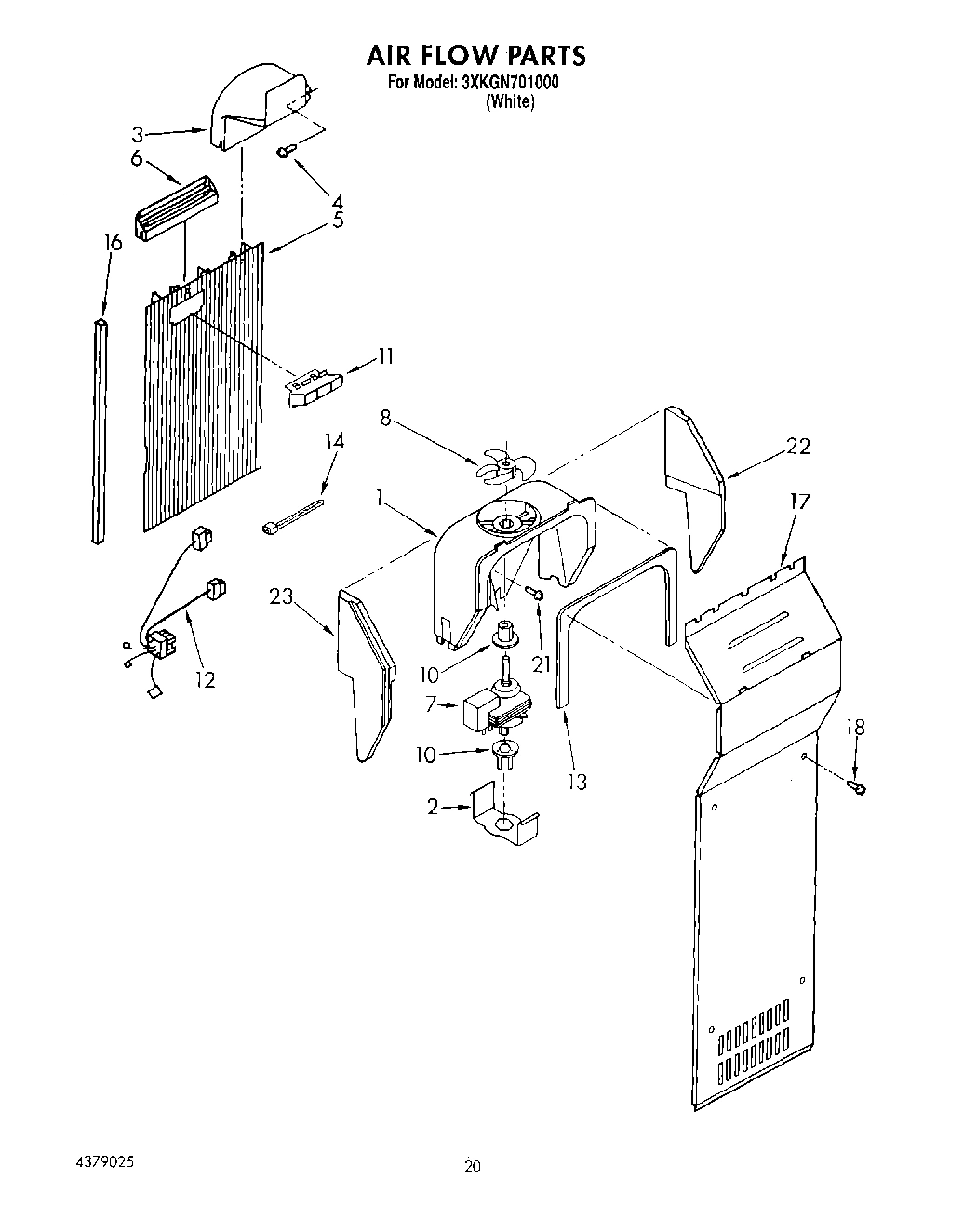

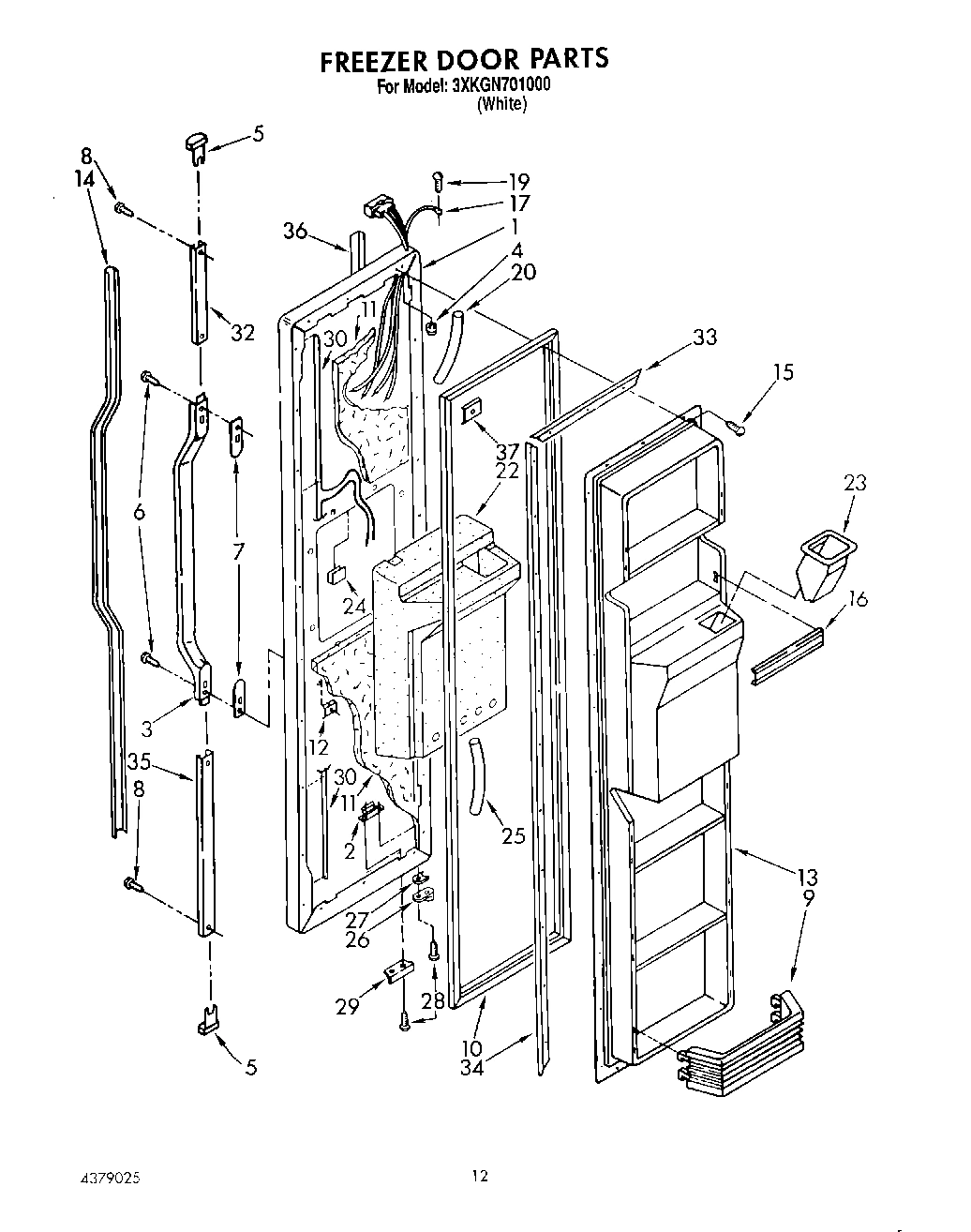

Common parts from model Whirlpool 3XKGN701000 REFRIGERATOR
1

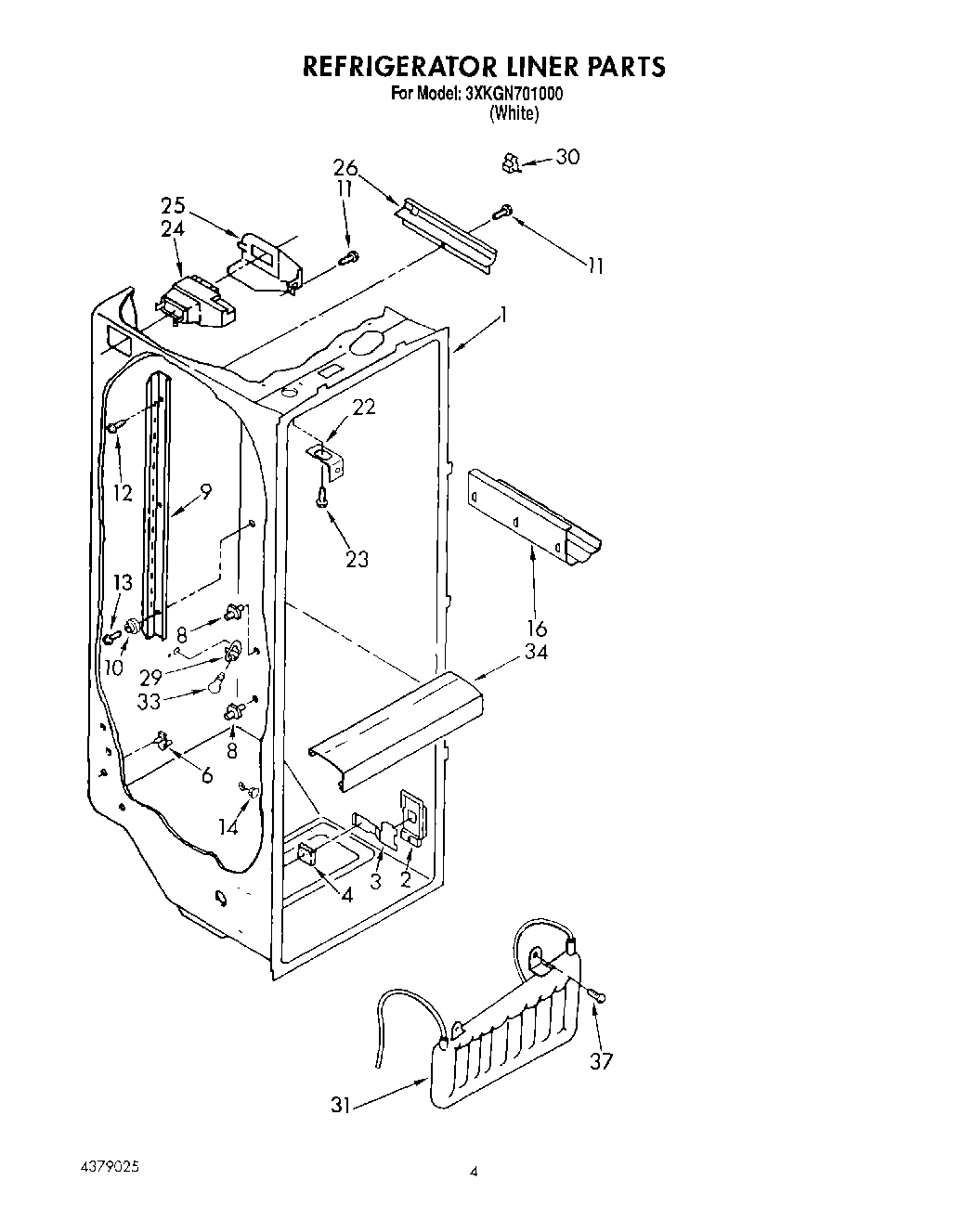

Liner (Not A Serviceable Part) WPL ARI13212A9 Contact Us For Availability
1

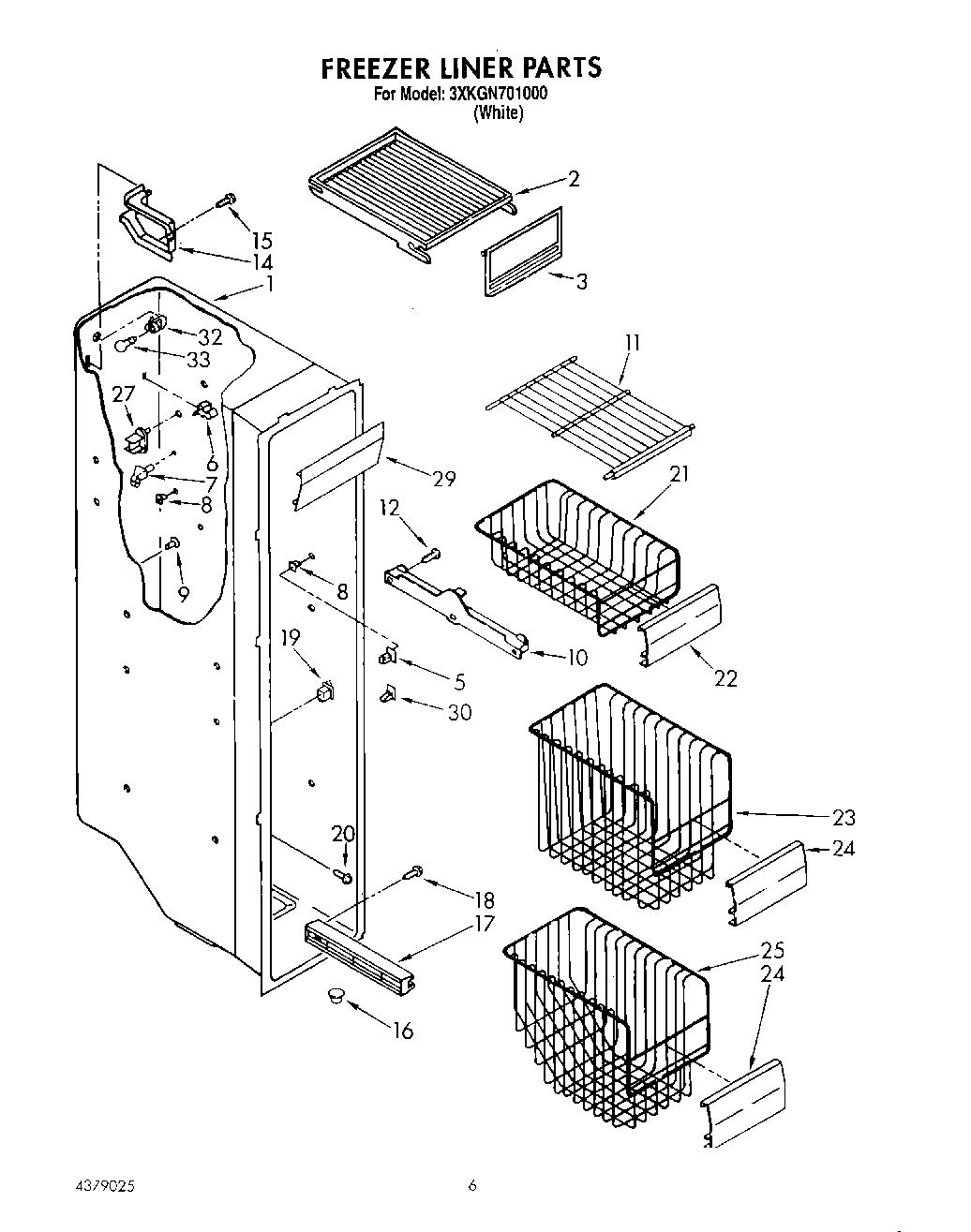

Liner (Not A Serviceable Part) WPL ARI13213A5 Contact Us For Availability
1

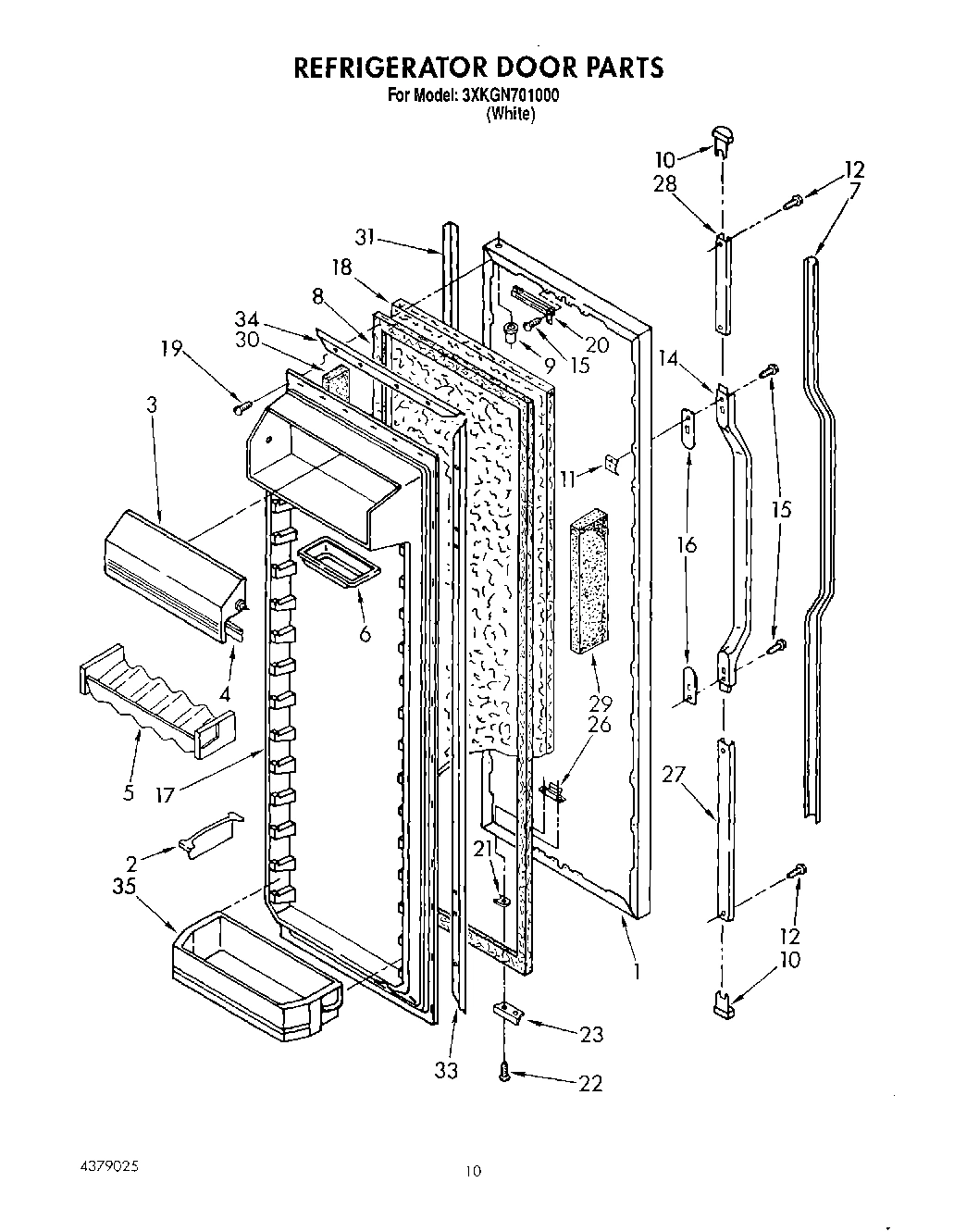

Refrigerator Door (Also Order Item 18) WPL 1117863 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1

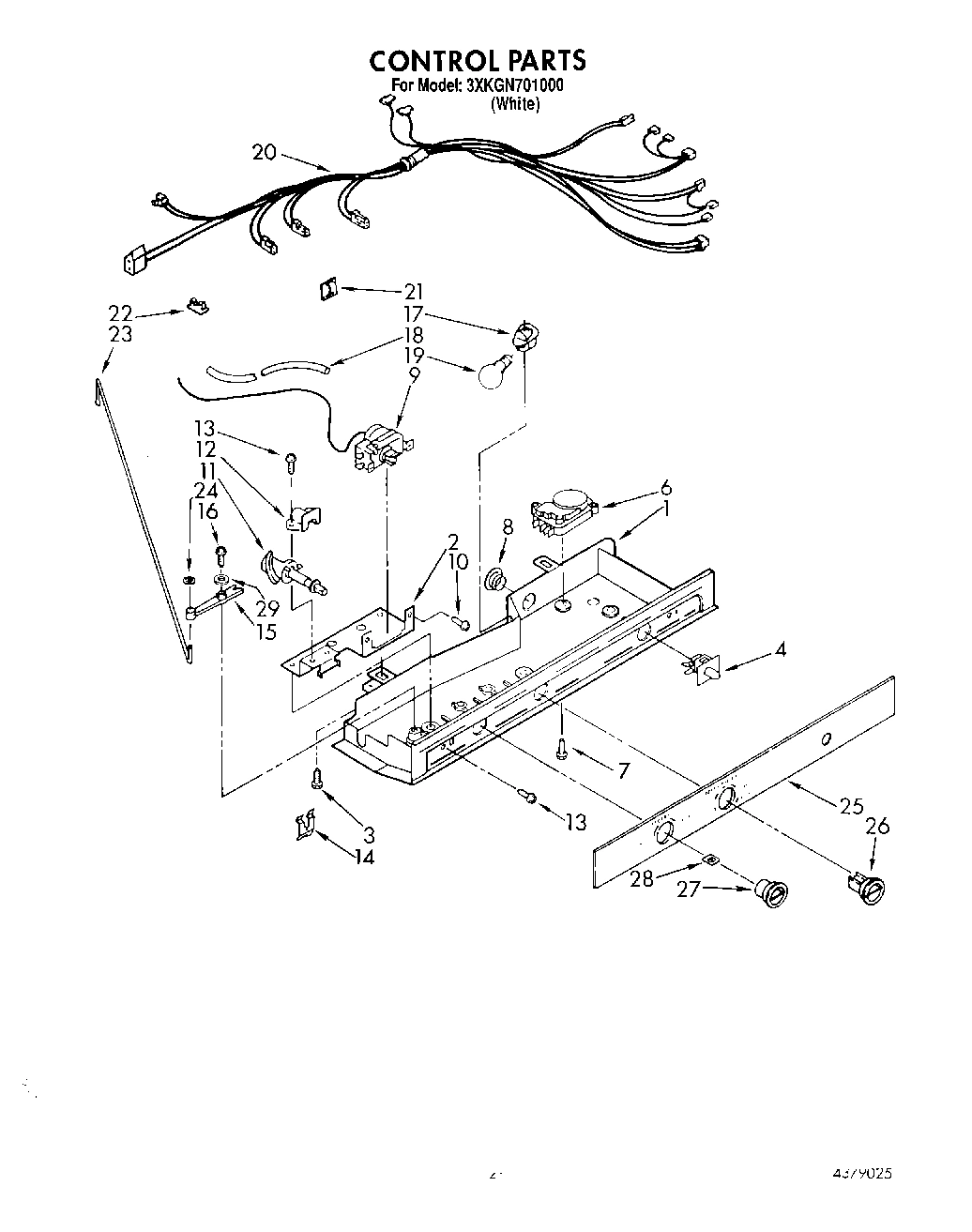

Control Box WPL 2155518 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2

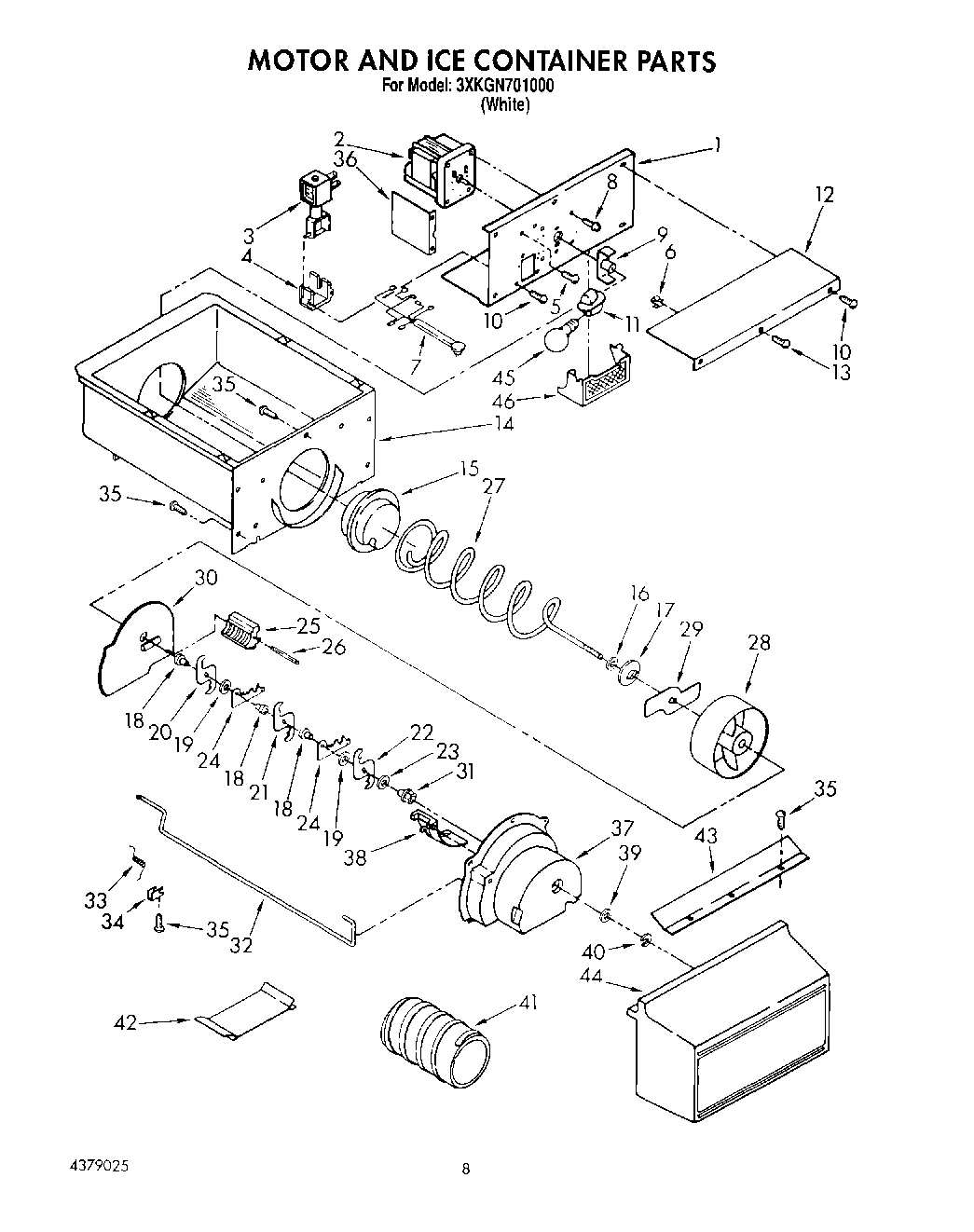

Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4

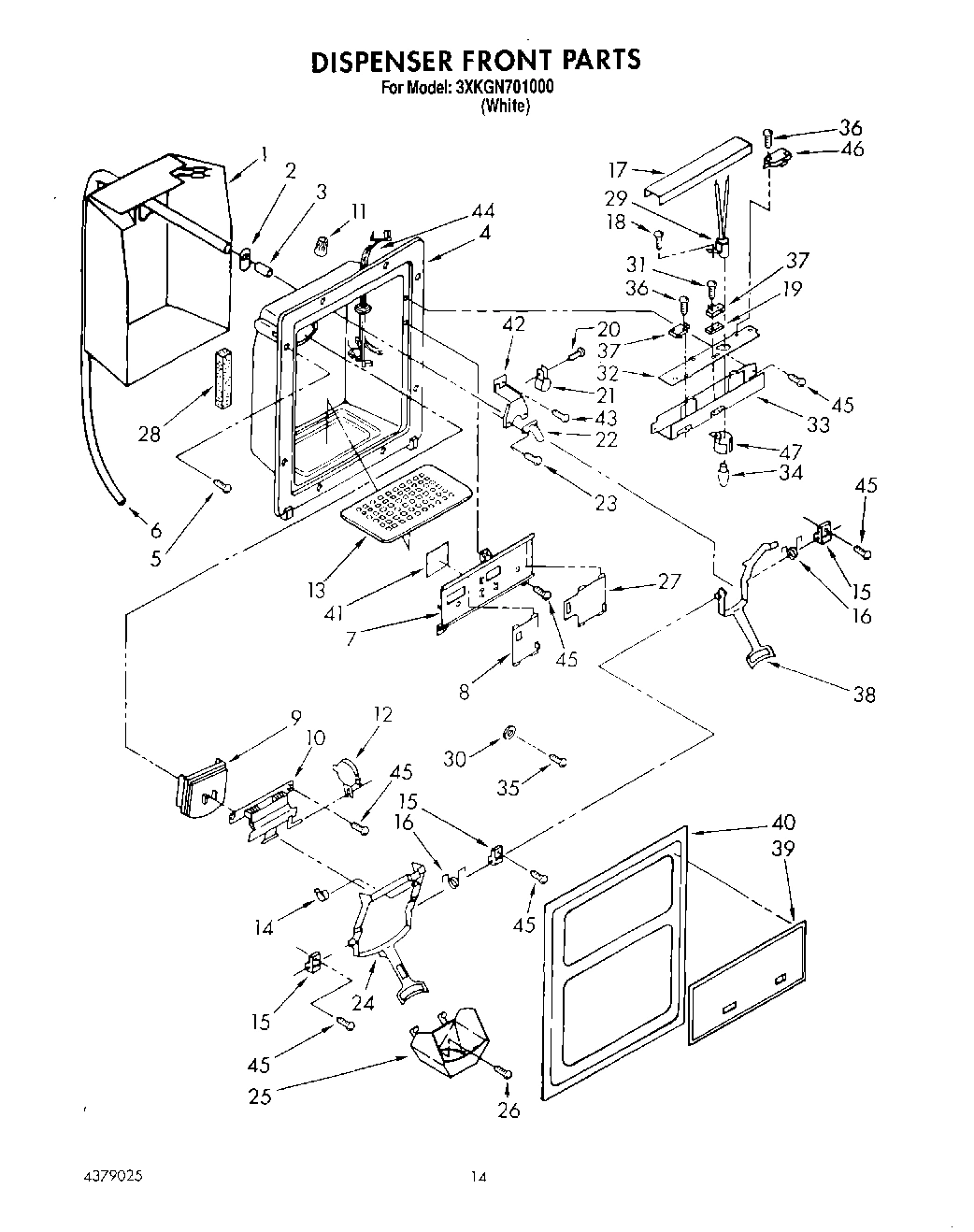

Housing, Dispenser WPL 1124715 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Cover, Terminal Block WPL 2158579 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
7
Insert, Handle WPL 1117948 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7

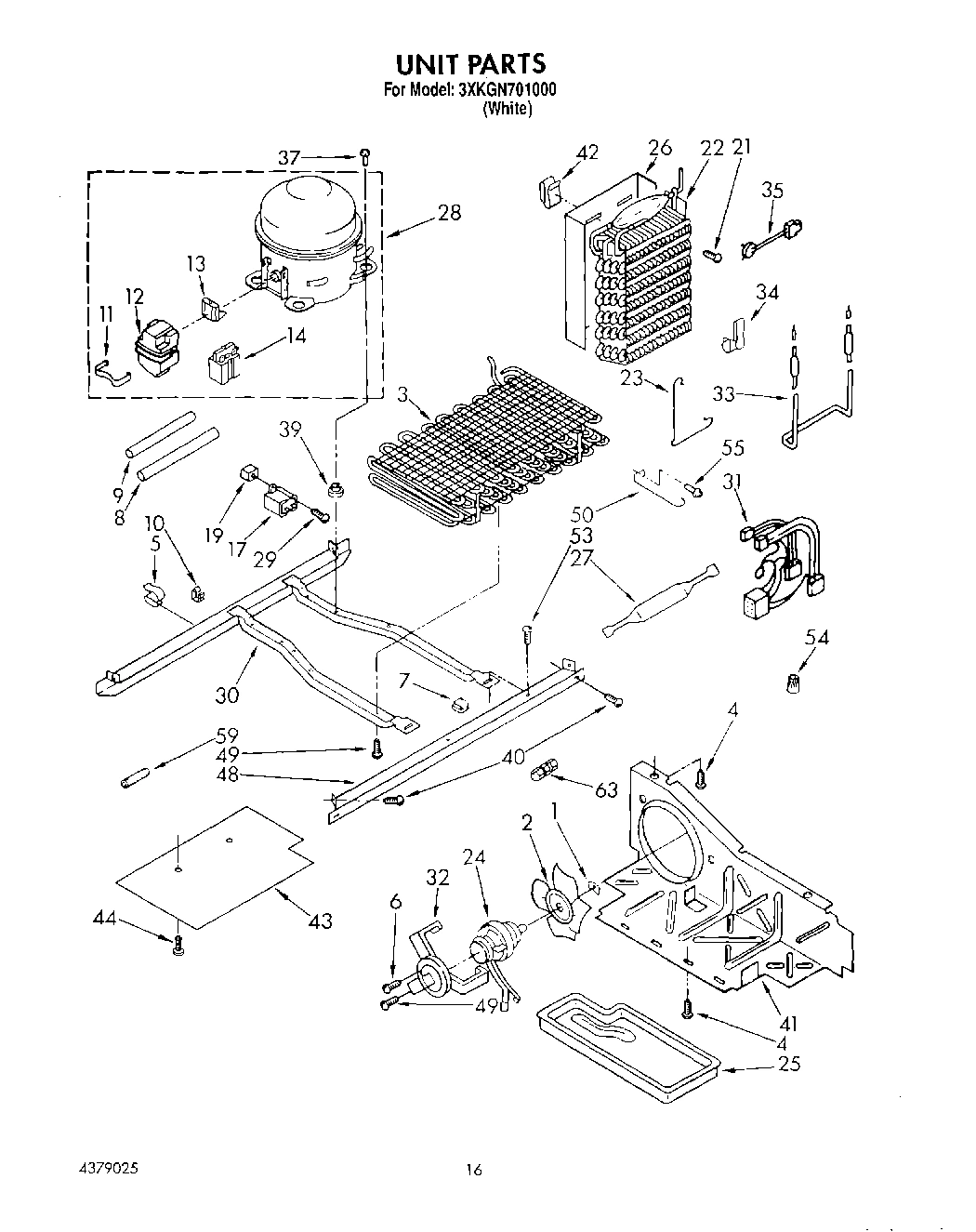

Fan, Motor WPL 2154976 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Bushing WPL 1129449 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Valve, Solenoid WPL 2165238 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Screw WPL 489346 Contact Us For Availability
12
Screw WPL 489075 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Panel, Interior Door WPL 1117905 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Gasket WPL 2158999 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
18
Gasket WPL 2165003 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
21
Water Tube WPL 1129682 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1125715 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2155815 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Retainer, Insert WPL 1107243 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Trim, Door WPL 1119062 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
35
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
35
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
35
Trim Kit WPL 4318336 Contact Us For Availability
35
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
35
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
35
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159199 Contact Us For Availability
39
Plaque, Front Cover WPL 2150334 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150338 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Washer WPL 1129722 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
46
Switch, Water WPL 841336 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
CEMENT, ALUMILASTIC (1 WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48

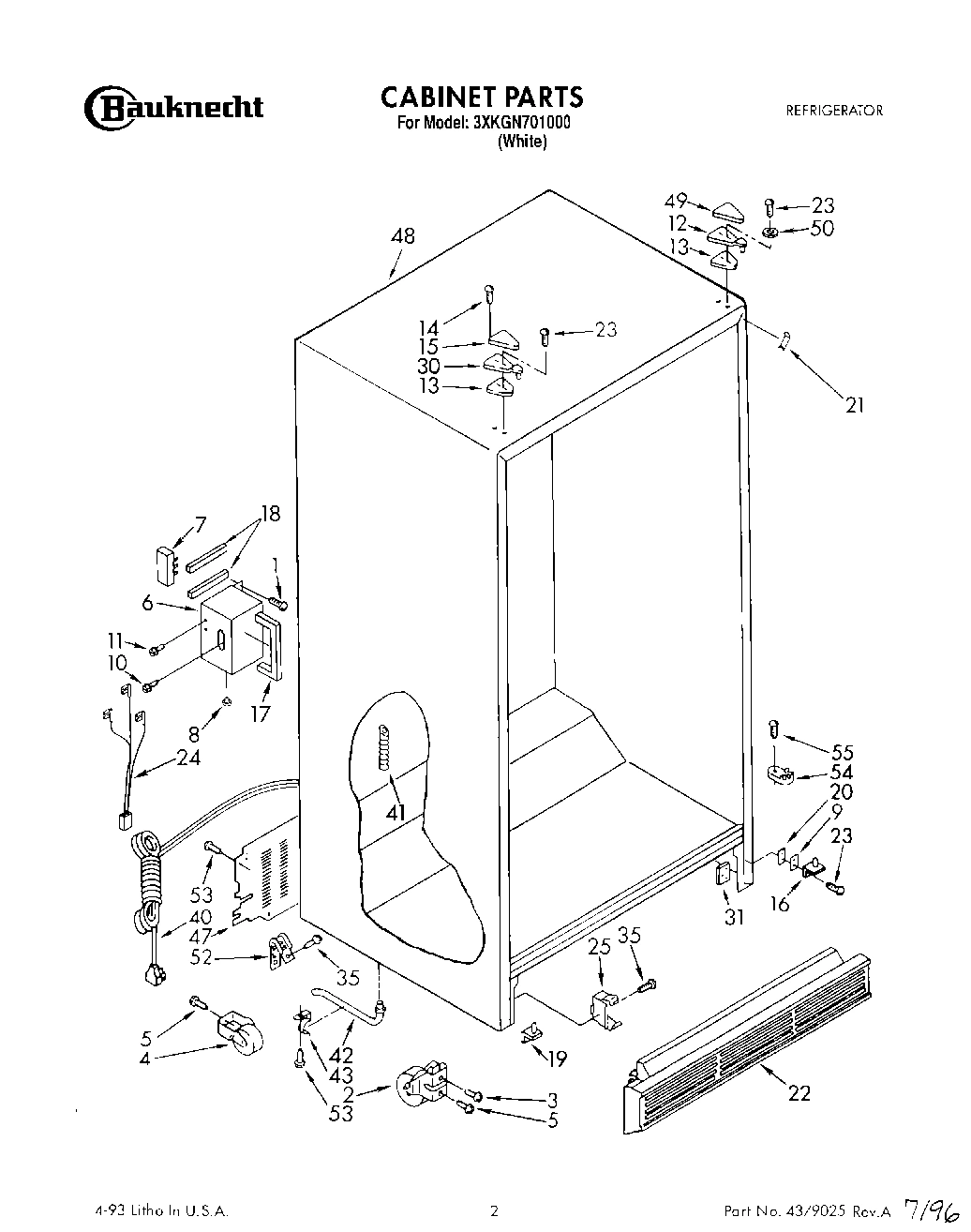

Cabinet (Not A Serviceable Part) WPL ARI13211A8 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
