Model Whirlpool 3XARG484WP02 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - REFRIGERATOR SHELF

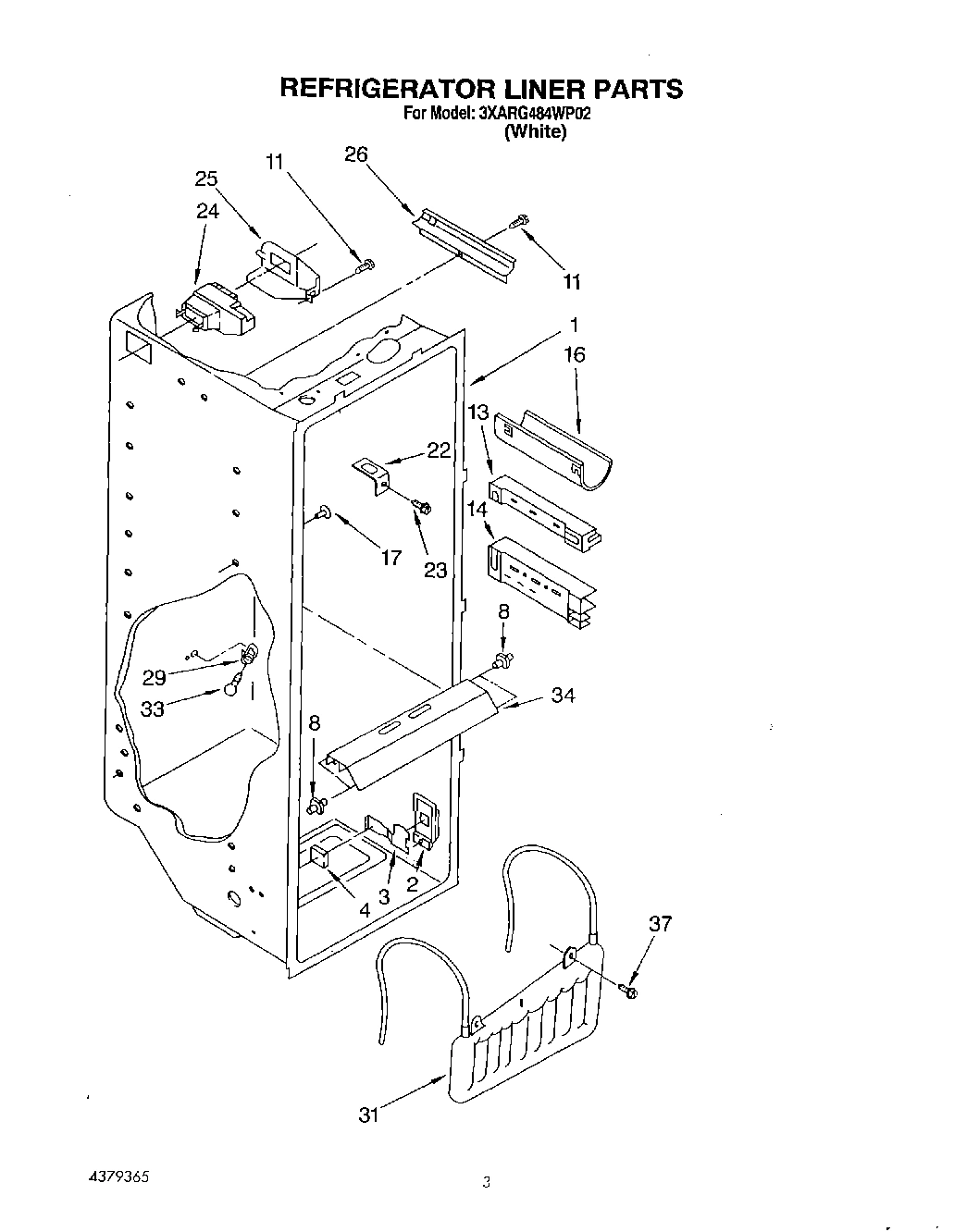

02 - REFRIGERATOR LINER

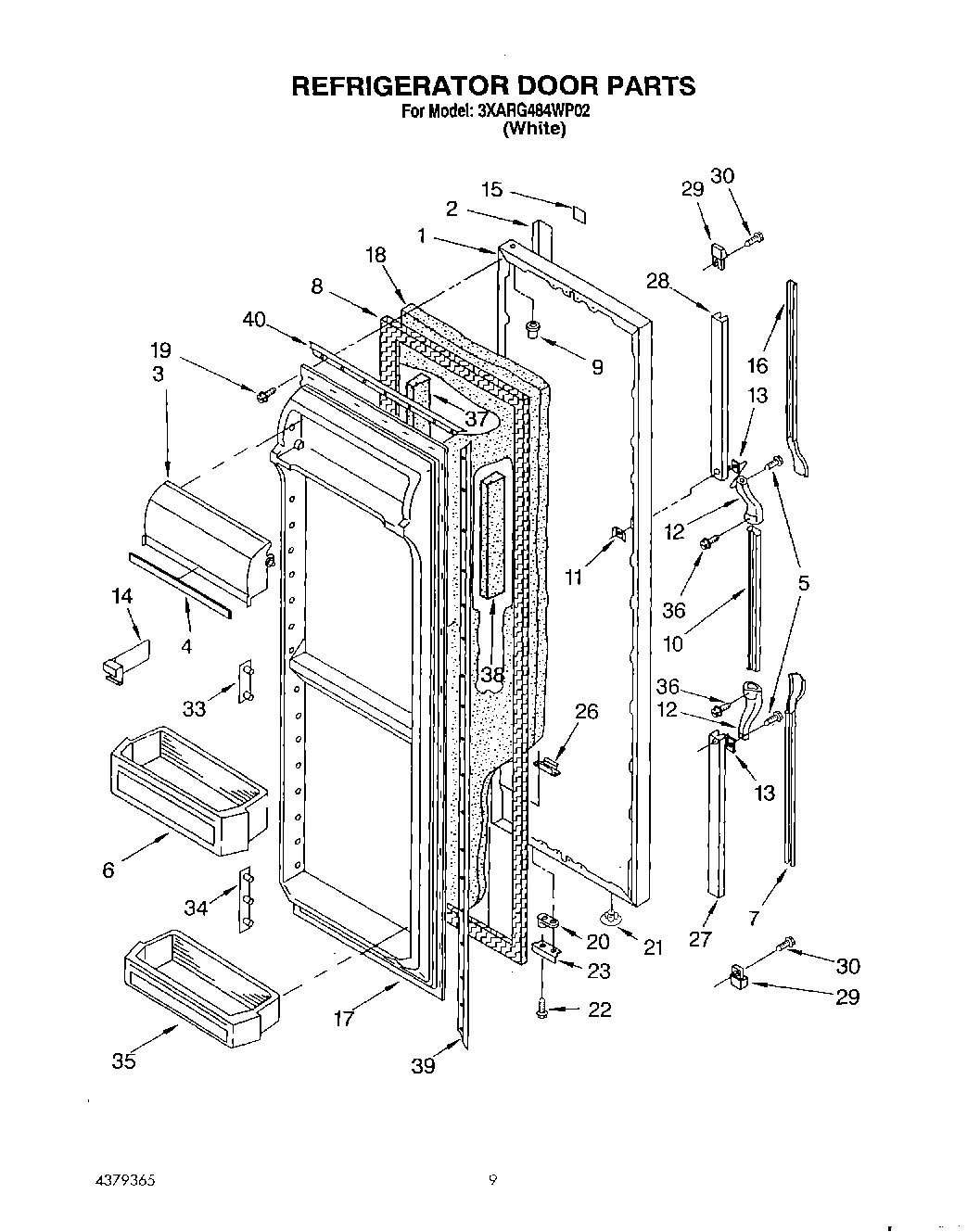

07 - REFRIGERATOR DOOR

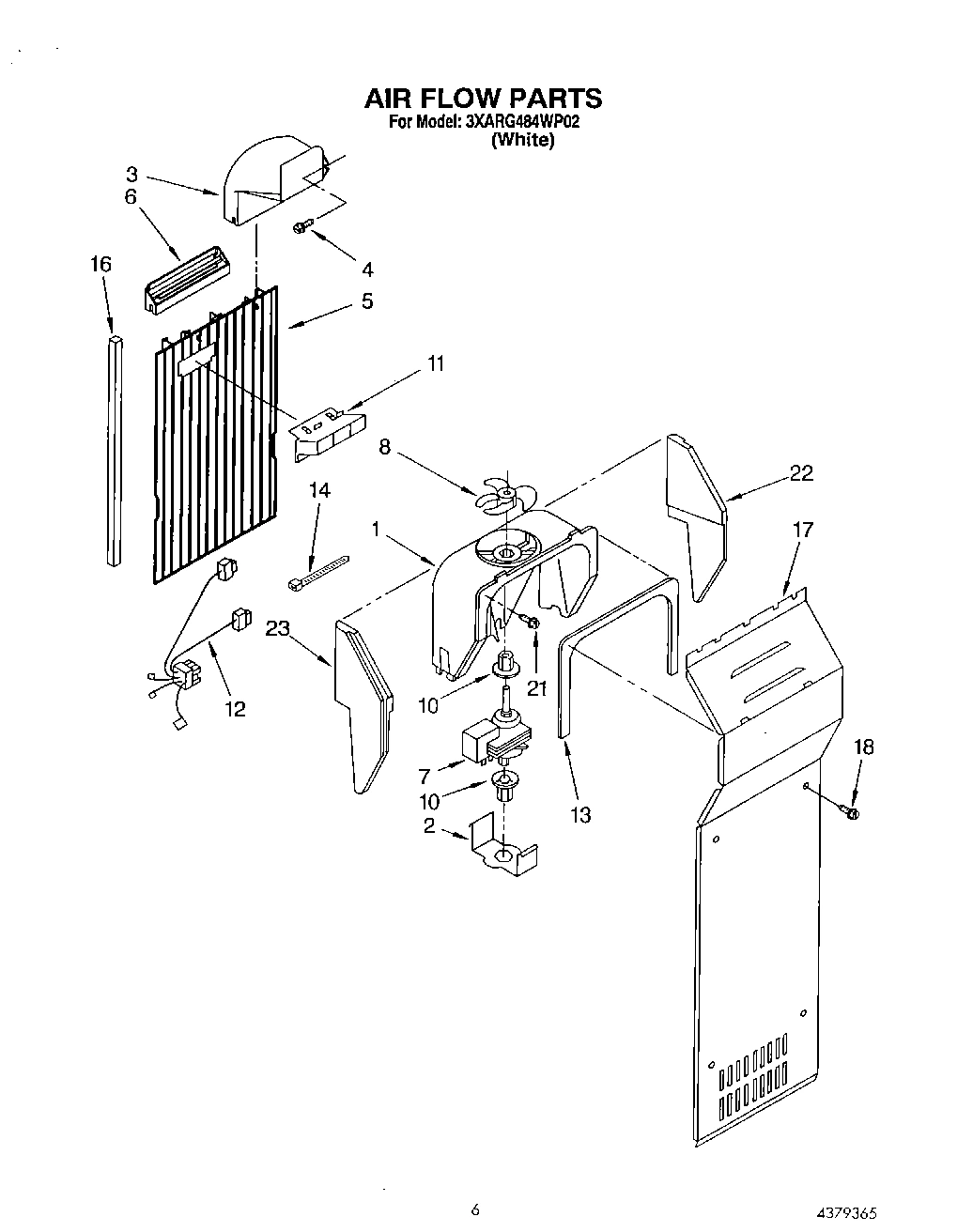

05 - AIR FLOW

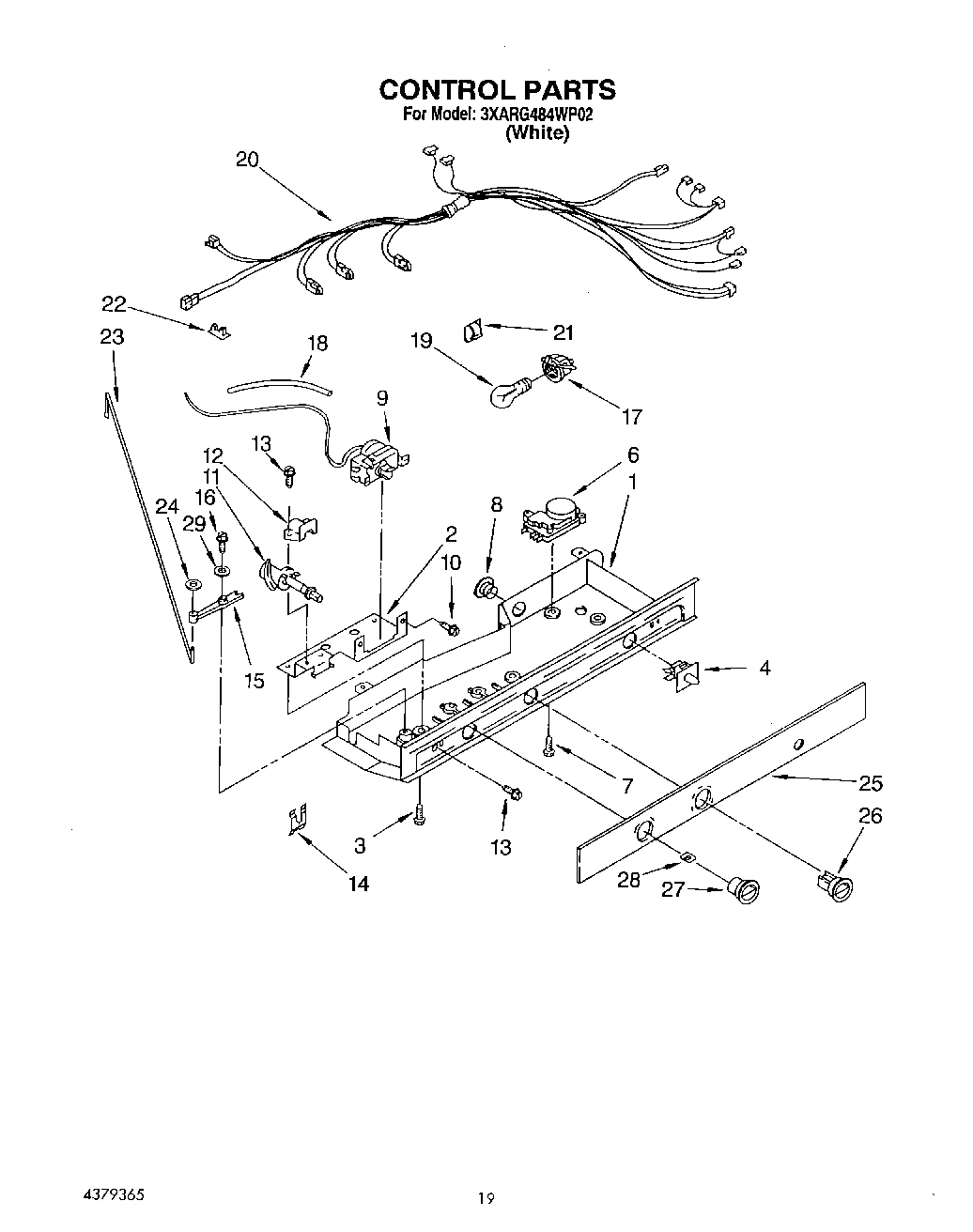

12 - CONTROL, LIT/OPTIONAL

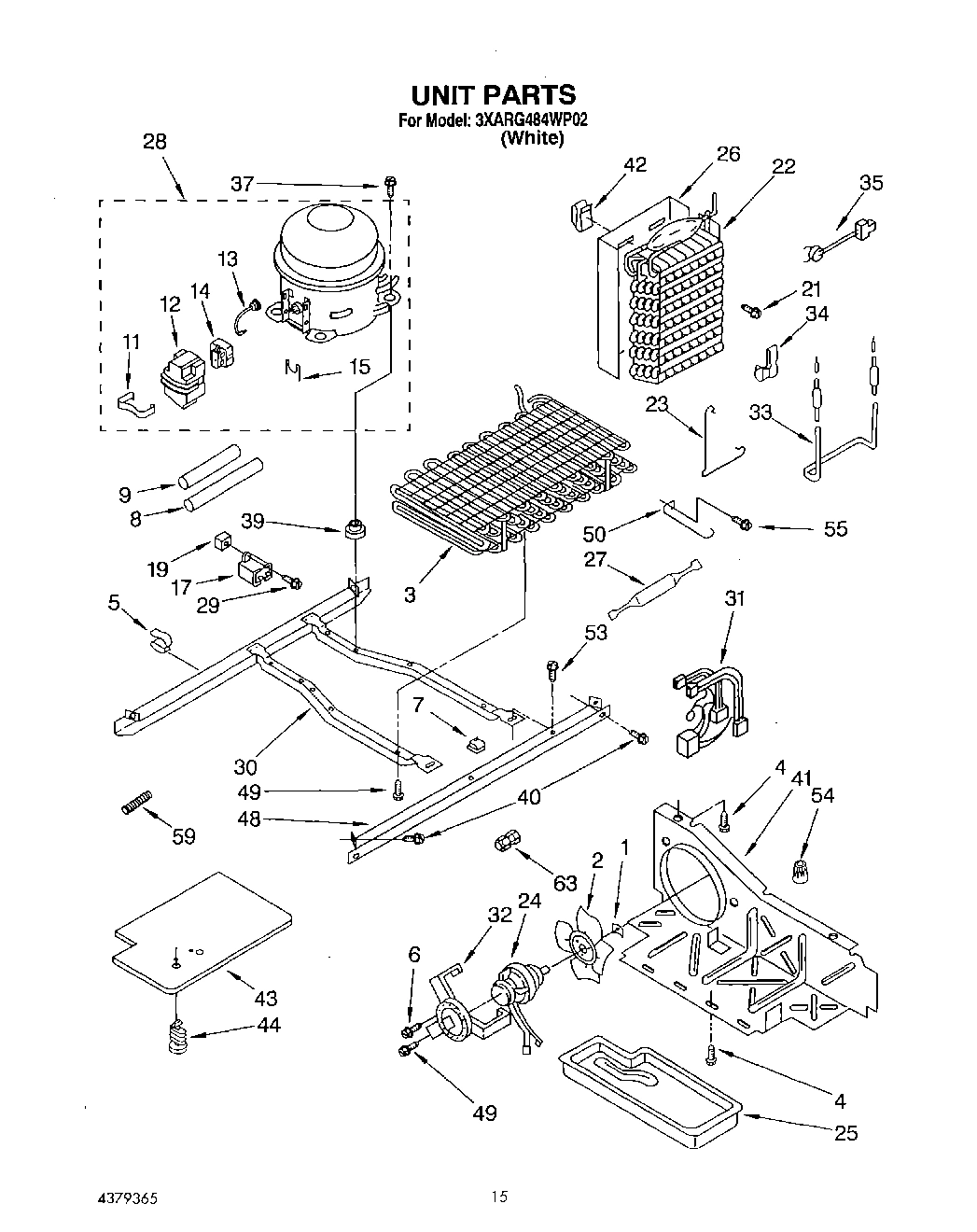

10 - UNIT

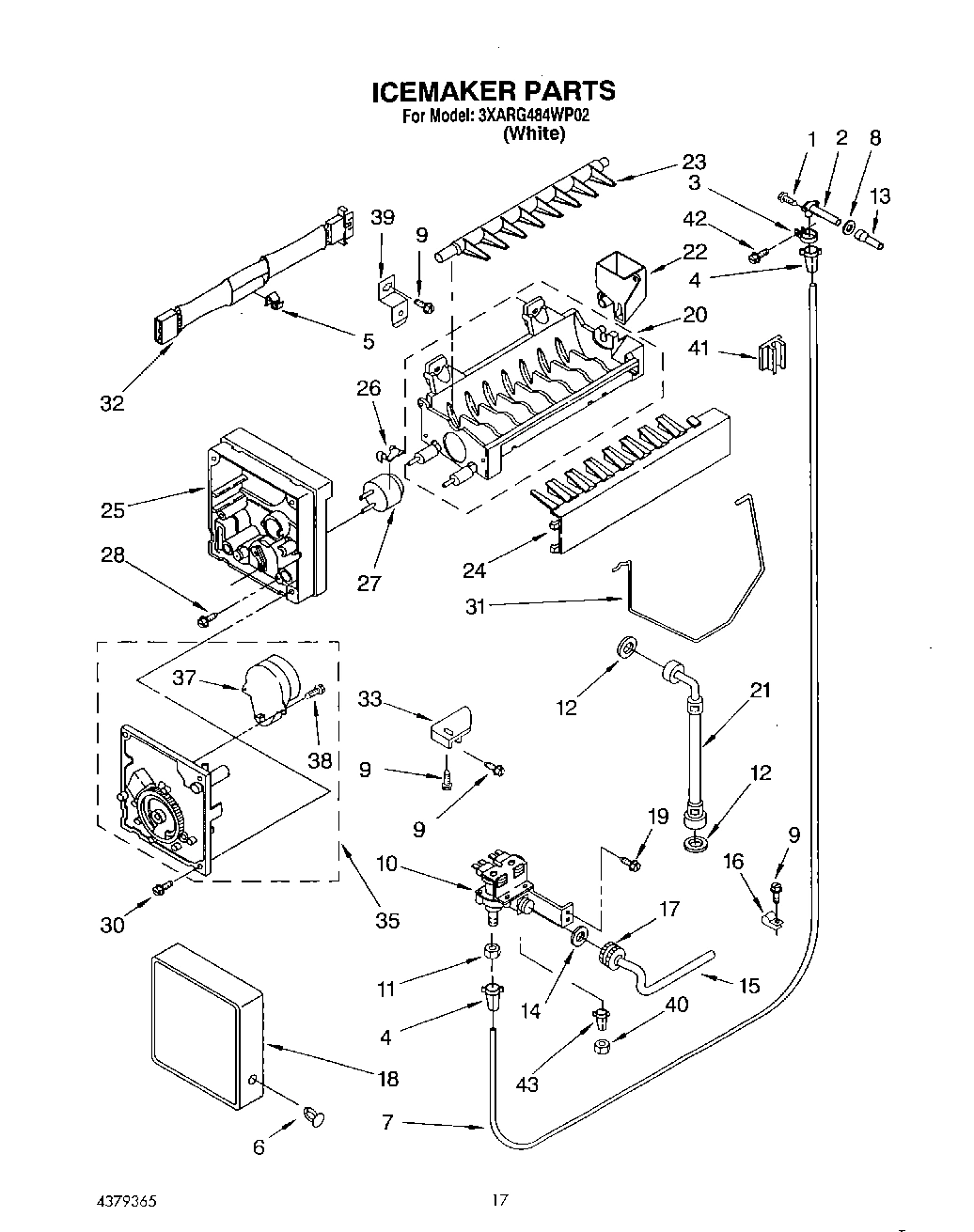

11 - ICEMAKER

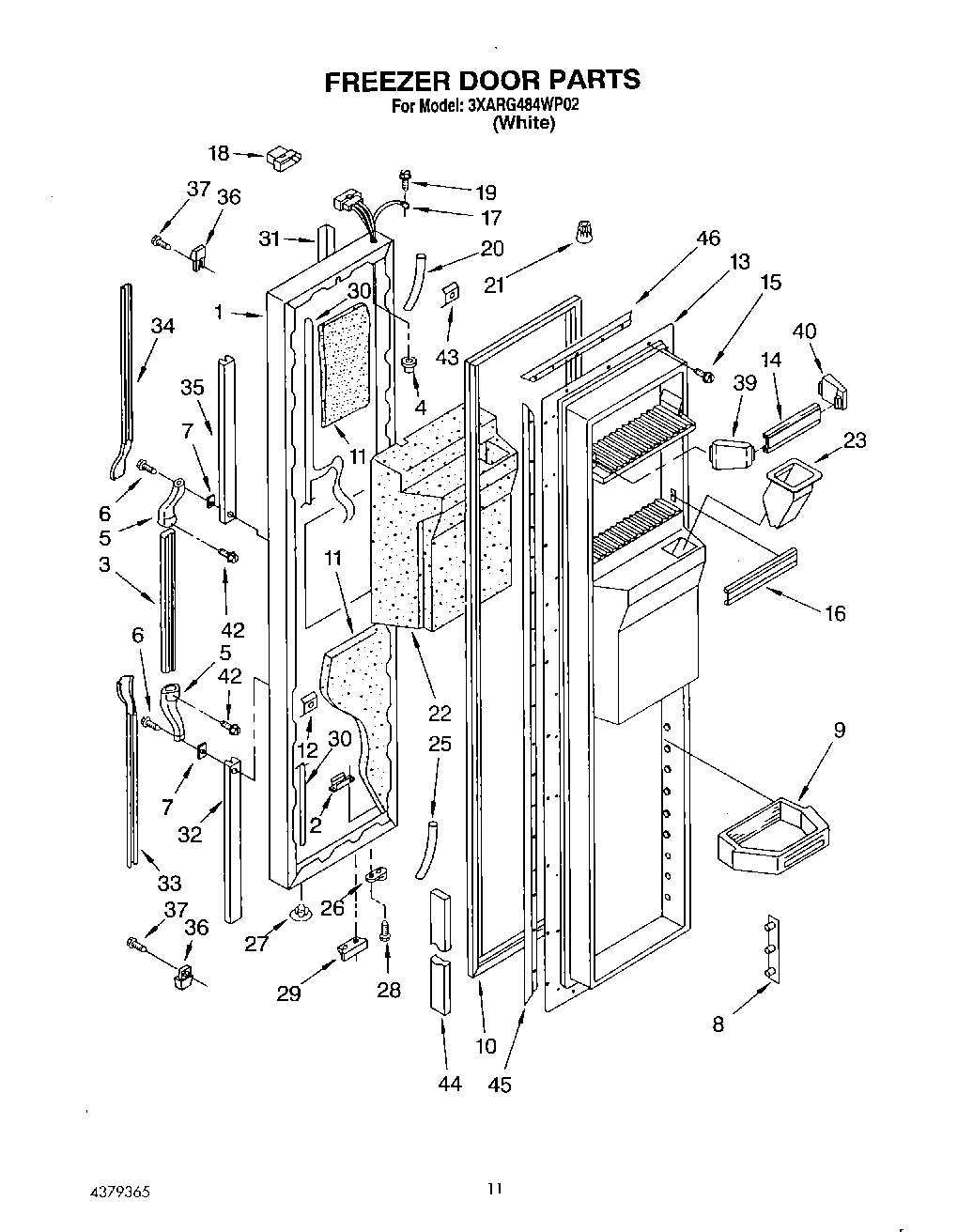

08 - FREEZER DOOR

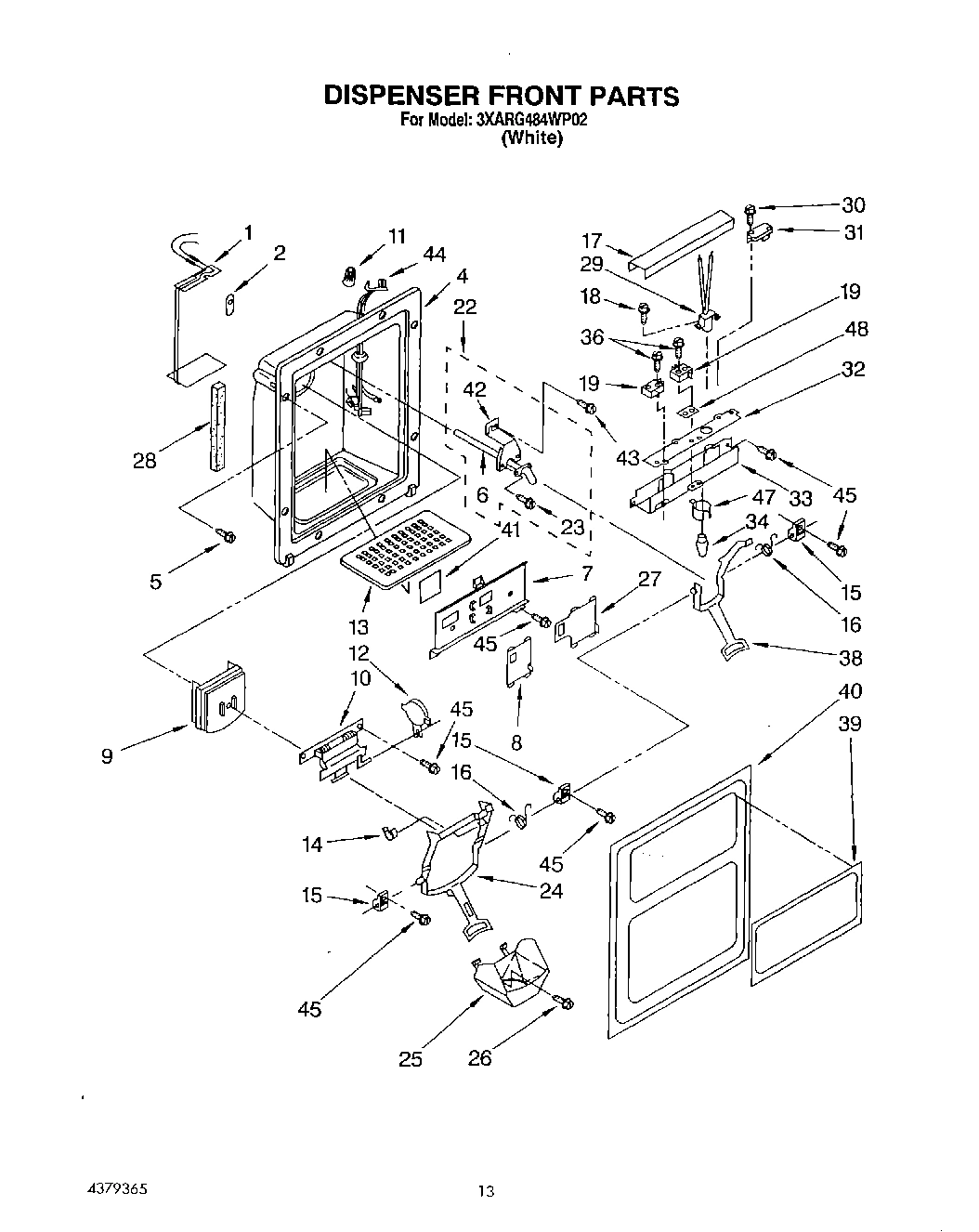

09 - DISPENSER FRONT

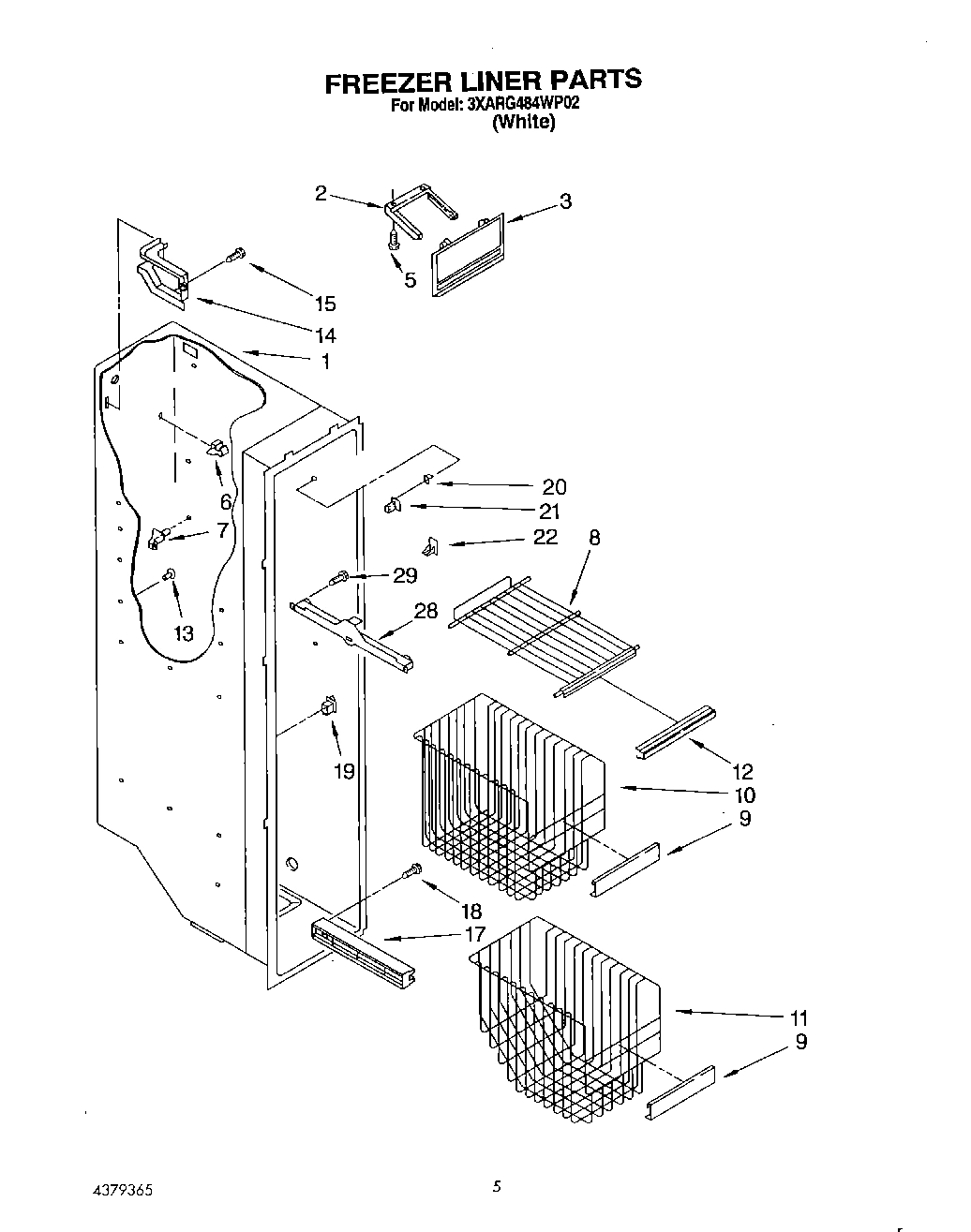

04 - FREEZER LINER

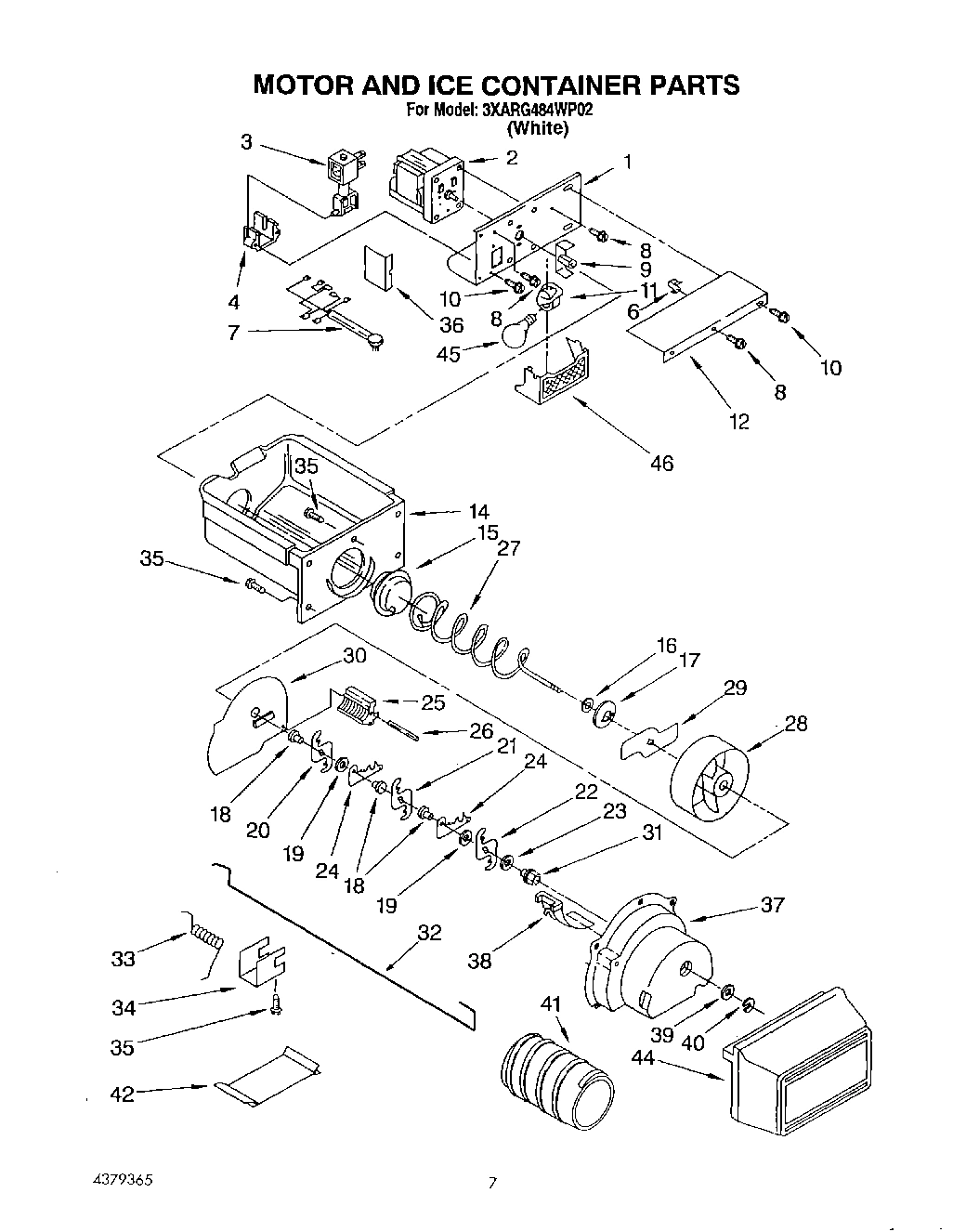

06 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool 3XARG484WP02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL 2153725 WPL 2153725 Contact Us For Availability
WPL LIT2167370 WPL LIT2167370 Contact Us For Availability
WPL LIT2167387 WPL LIT2167387 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115235 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12760A5 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Door, Ice Compartment WPL 2149091 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI12761A1 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shelf Bin (3) WPL 2167385 Contact Us For Availability
9
Trim, Basket WPL 2149088 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Valve, Solenoid WPL 2165238 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Washer WPL 1129722 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Trim, Shelf WPL 2149090 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2158785 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Trim, Door Shelf WPL 2167383 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Trim, Door Shelf WPL 2167384 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Running Capacitor WPL 2154717 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 2167055 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
European Water Connection Tube WPL 1129682 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Shelf Stud WPL 1115290 No Longer Available
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug WPL 2151653 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2154723 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Bracket, Door Stop WPL 2155332 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Heater, Door WPL 2165376 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Insert, Handle WPL 1119367 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159197 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Clip WPL 2155021 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Plaque, Front Cover WPL 2167374 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
Front Cover, Housing (Includes No.39) WPL 2167376 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171260 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Hinge Cover WPL 1119787 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
