Model Whirlpool 3XARG484WP00 REFRIGERATOR – Common Parts & Diagrams

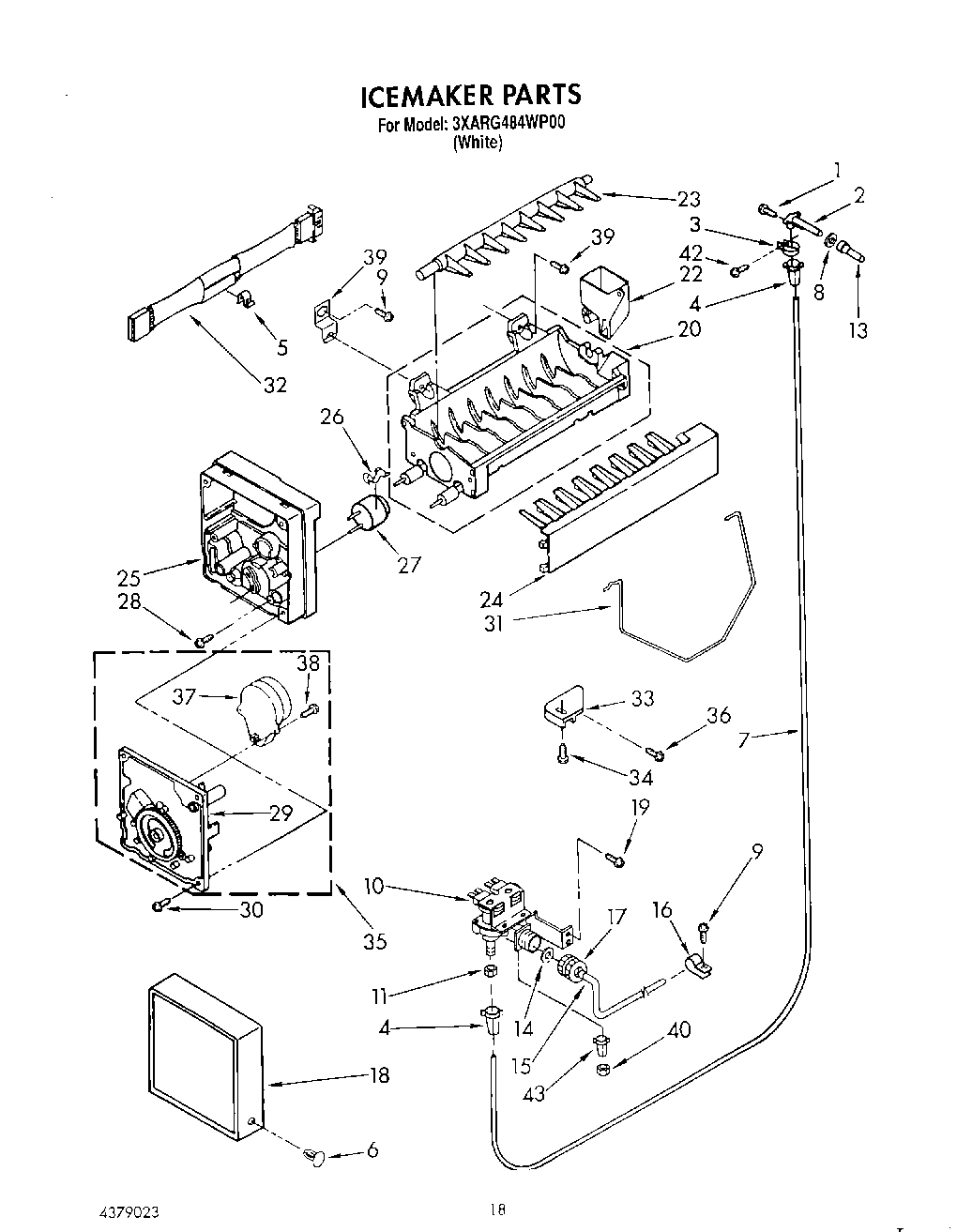

11 - ICEMAKER

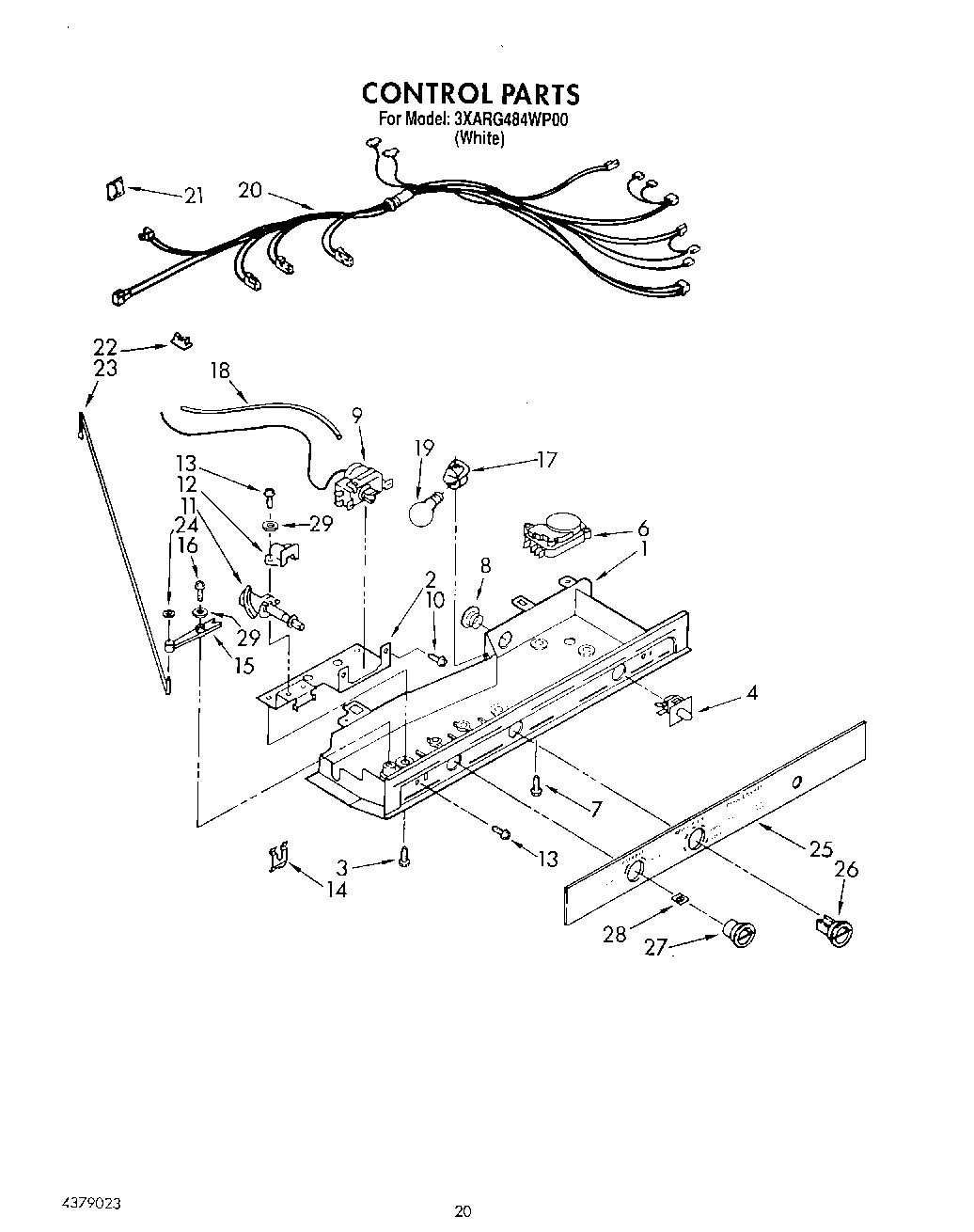

12 - CONTROL, LIT/OPTIONAL

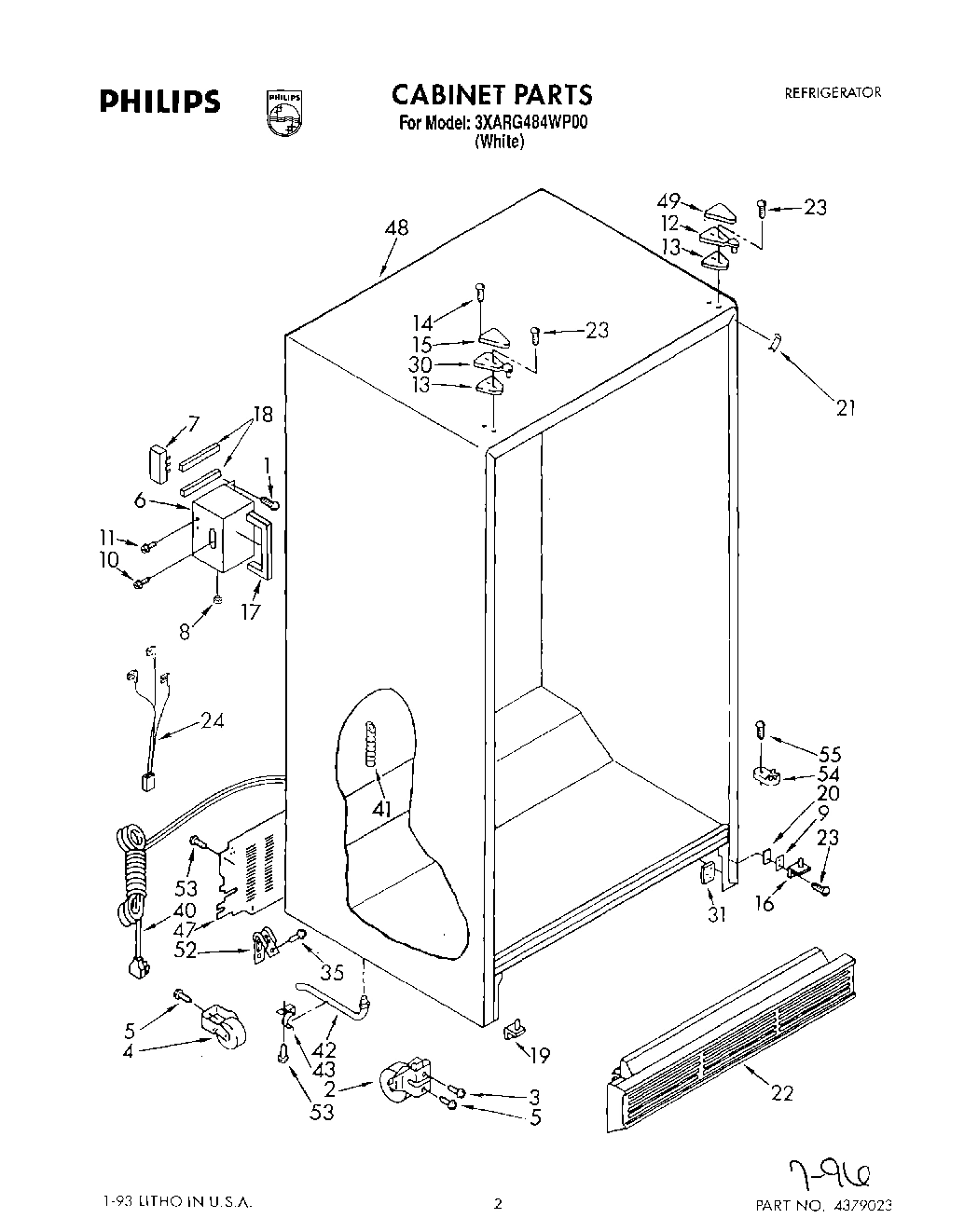

01 - CABINET

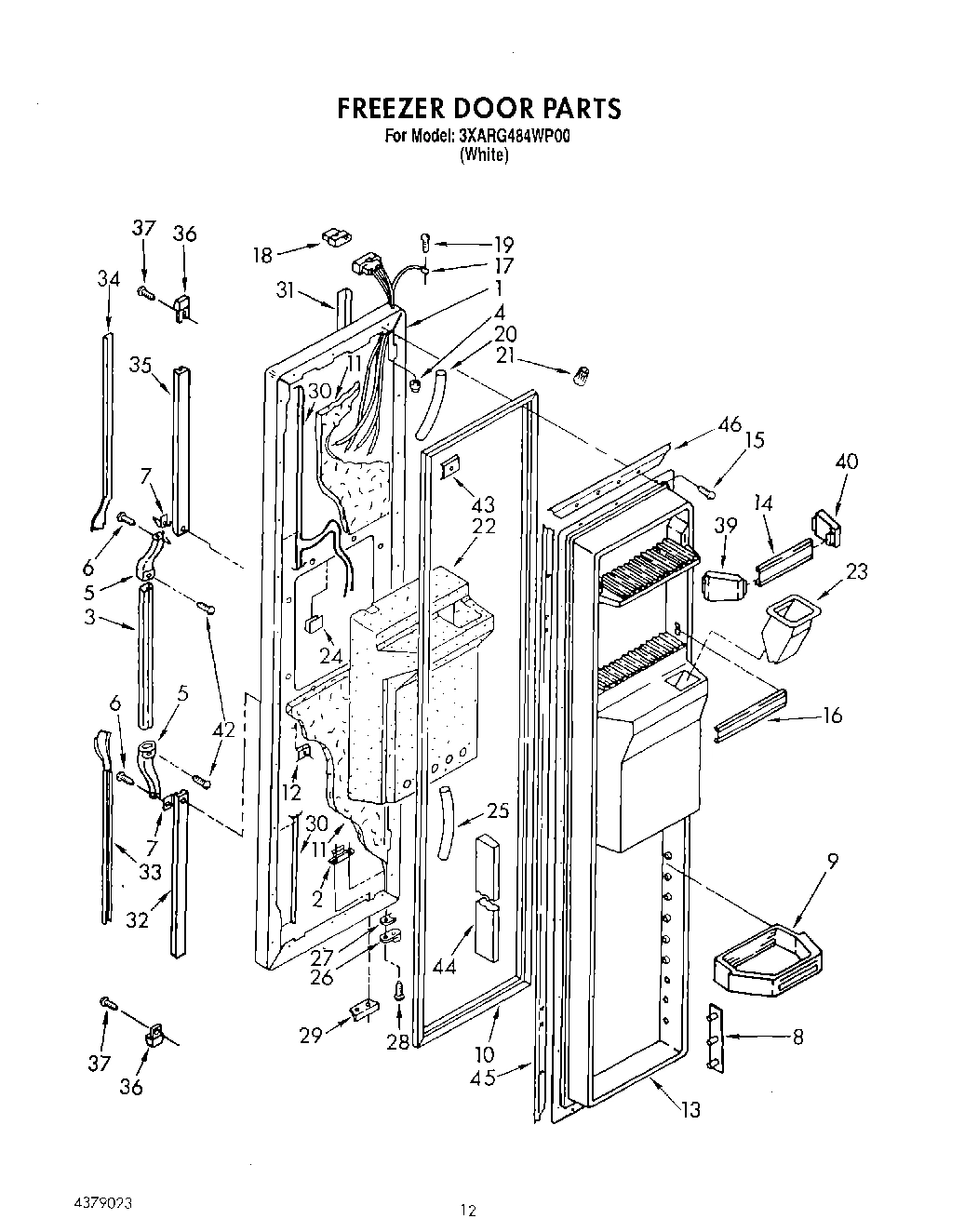

08 - FREEZER DOOR

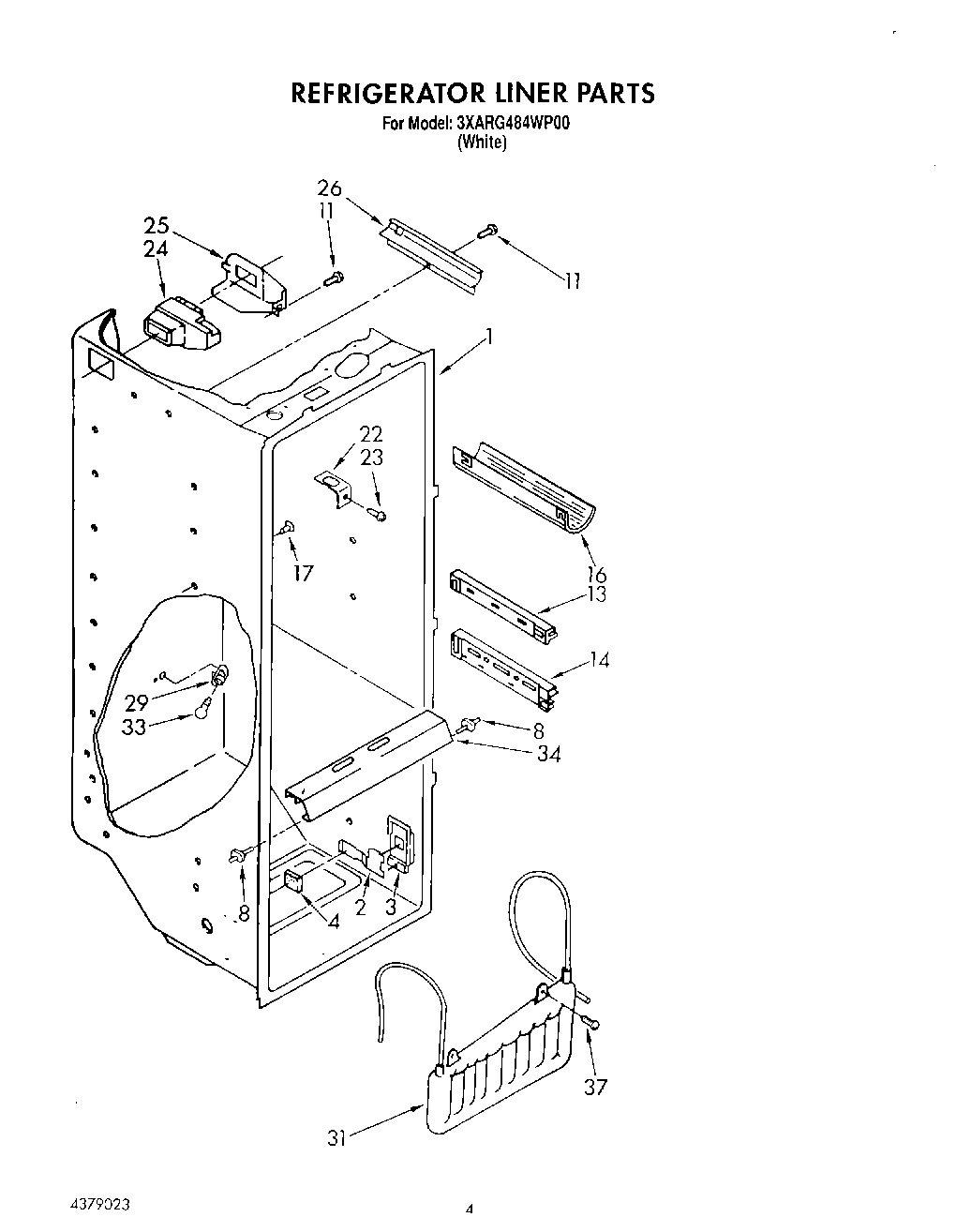

02 - REFRIGERATOR LINER

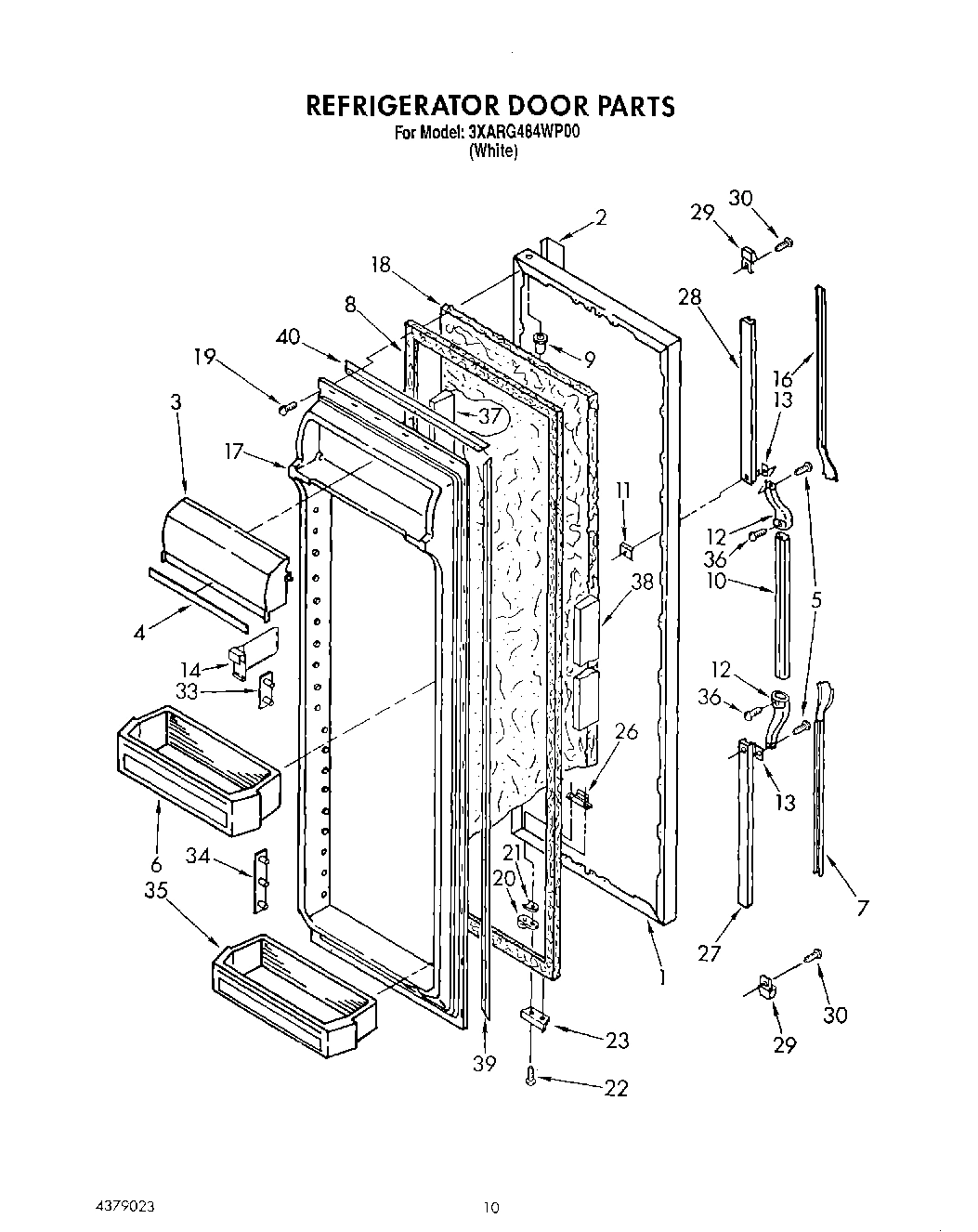

07 - REFRIGERATOR DOOR

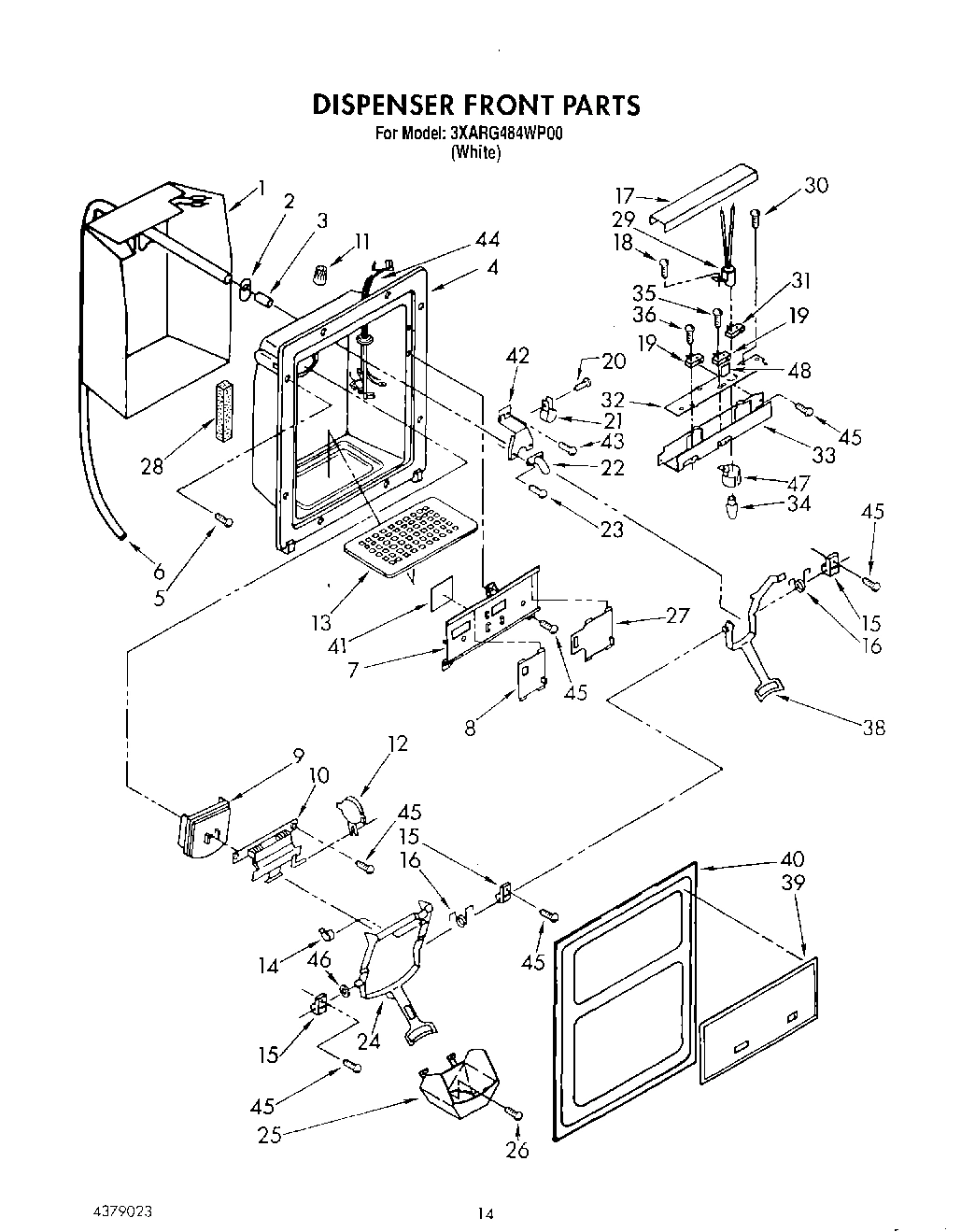

09 - DISPENSER FRONT

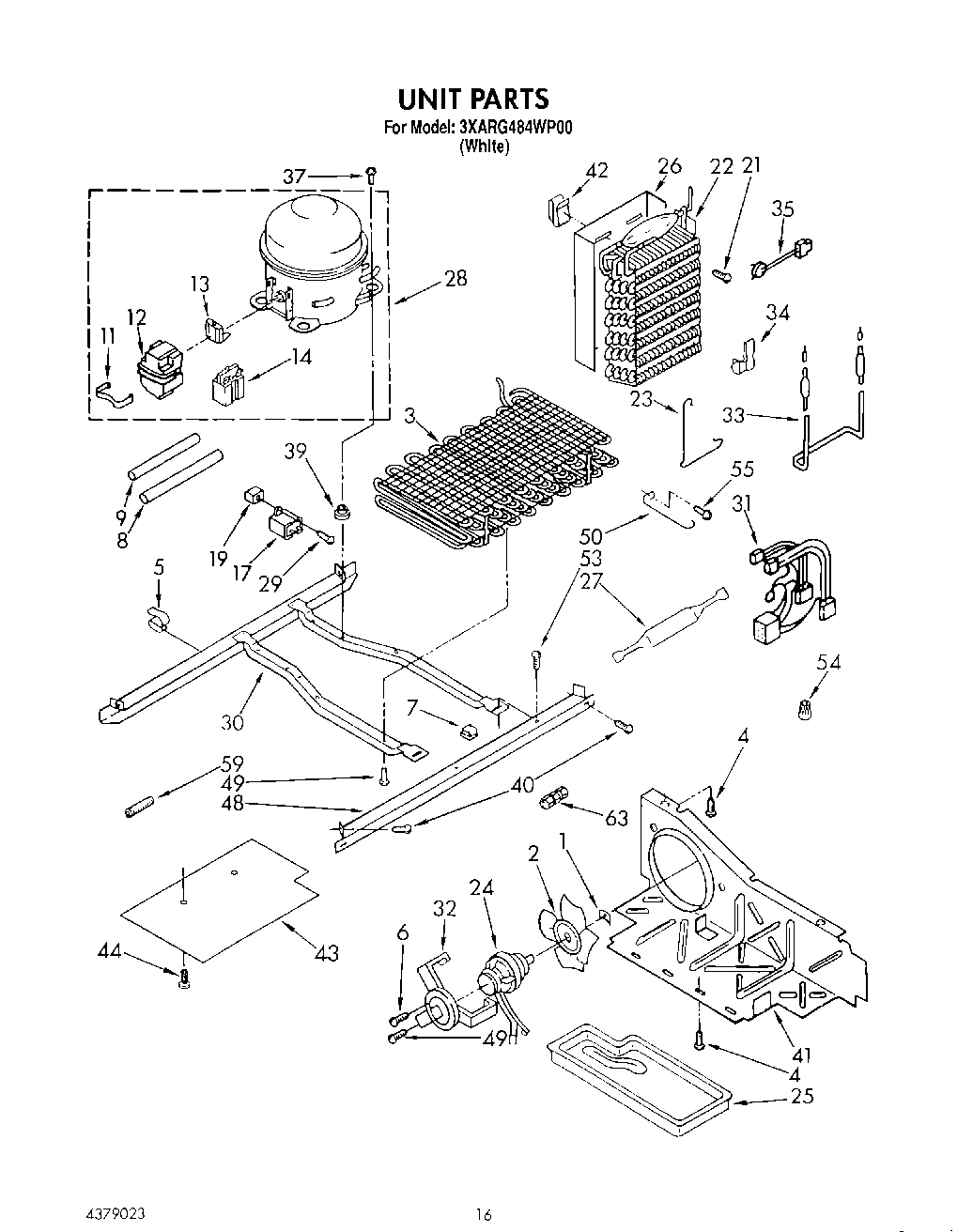

10 - UNIT

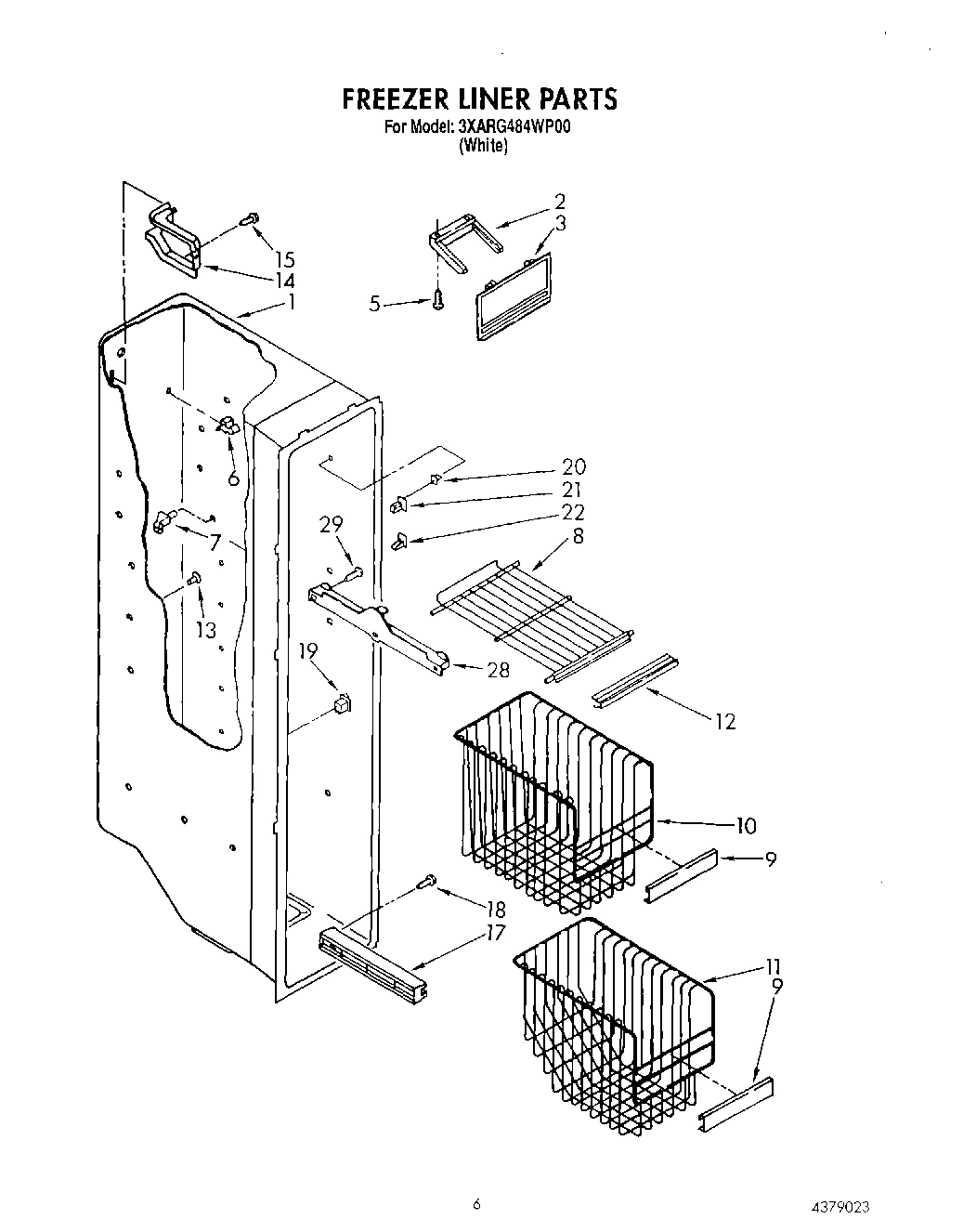

04 - FREEZER LINER

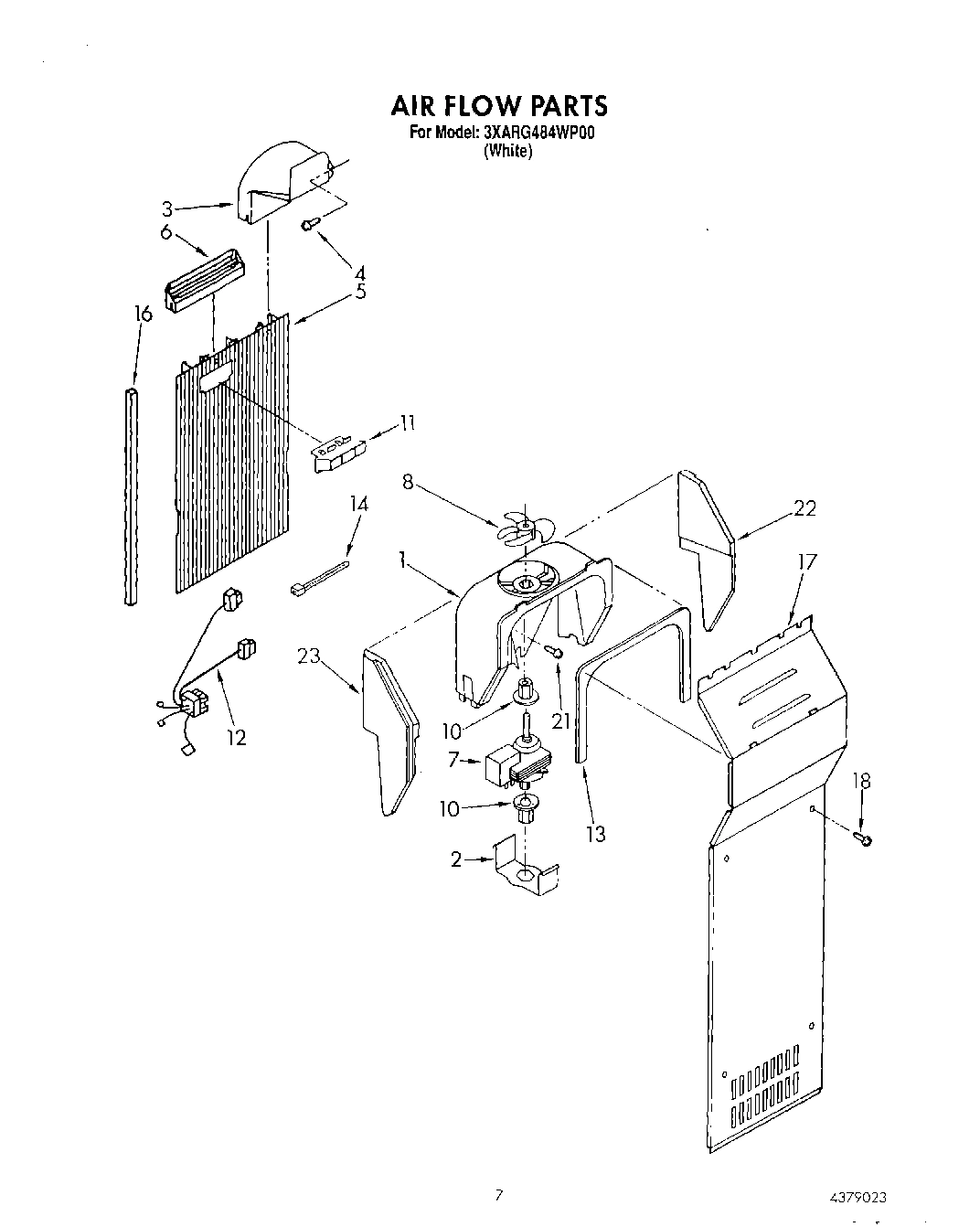

05 - AIR FLOW

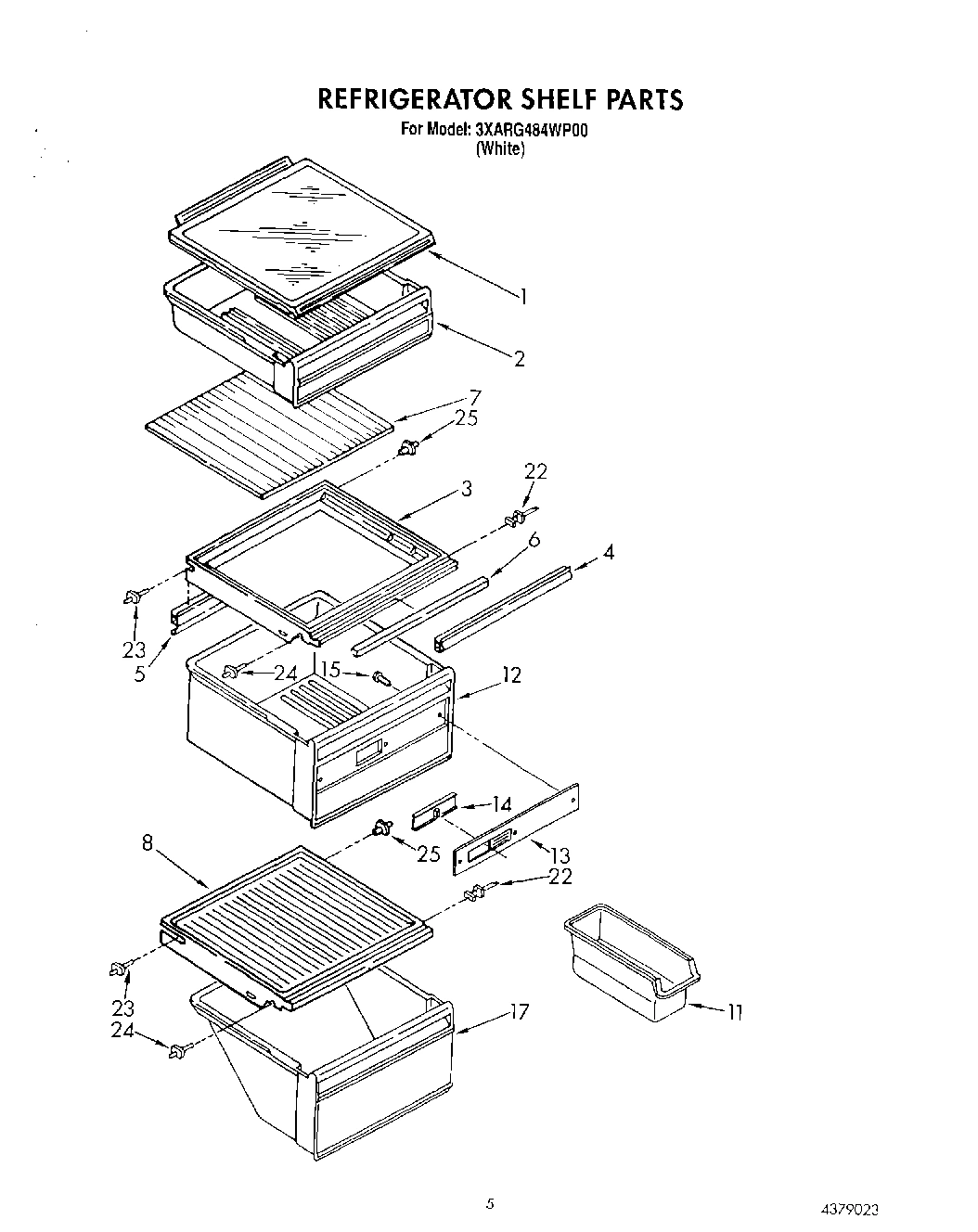

03 - REFRIGERATOR SHELF

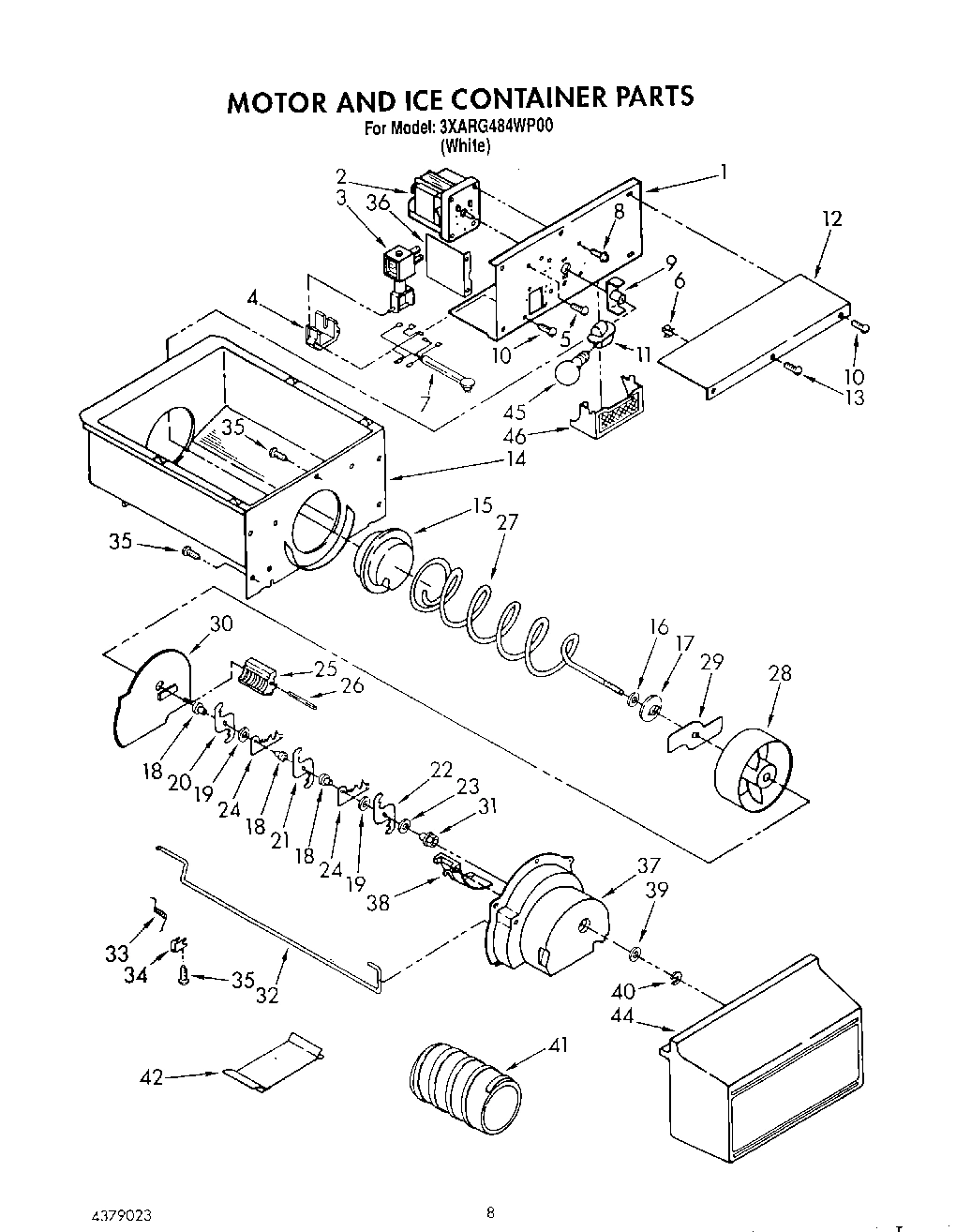

06 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool 3XARG484WP00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115238 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12755A5 Contact Us For Availability
1
Refrigerator Door (Also Order Item 18) WPL 1115273 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12756A3 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Trim, Door WPL 1119061 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Door, Ice Compartment WPL 2149091 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
6
Shelf Bin (2) WPL 1124847 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Insert, Handle WPL 1119361 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Shelf WPL 2155640 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shelf Bin (3) WPL 2149085 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Trim, Basket WPL 2149088 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle, Center WPL 1124713 Contact Us For Availability
10
Basket, Tall WPL 2152087 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Basket, Slope WPL 2152089 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Trim, Shelf WPL 2149090 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Overload (Includes Relay) WPL 2158785 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
13
Front, Crisper Pan WPL 2162712 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Trim, Door Shelf WPL 2149084 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Relay (See Overload) WPL ARI12757A6 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Screw (3) Control WPL 489268 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2149083 Contact Us For Availability
16
Insert, Handle WPL 1119367 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 2167055 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Running Capacitor WPL 2154717 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Meat Pan WPL 2162710 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Protector WPL 939143 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14 & 1 WPL 2154723 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Heater, Door WPL 2165376 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Switch, Water WPL 841336 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Screw (2) WPL 489360 Contact Us For Availability
36
Screw WPL 489022 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
Lever, Water Dispenser WPL 1124721 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Front Cover, Housing WPL 2150314 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
