Model Whirlpool 3XARG457WP01 REFRIGERATOR – Common Parts & Diagrams

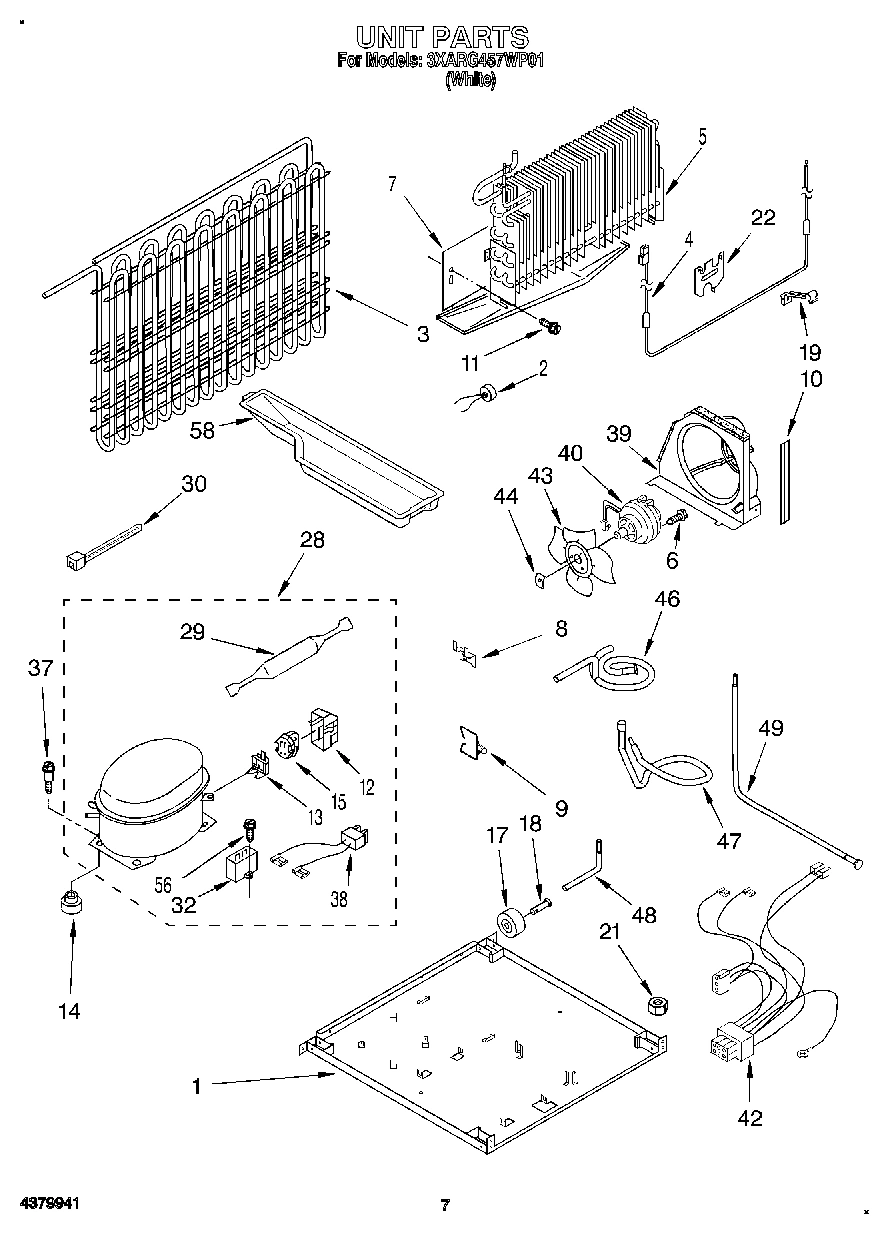

04 - UNIT

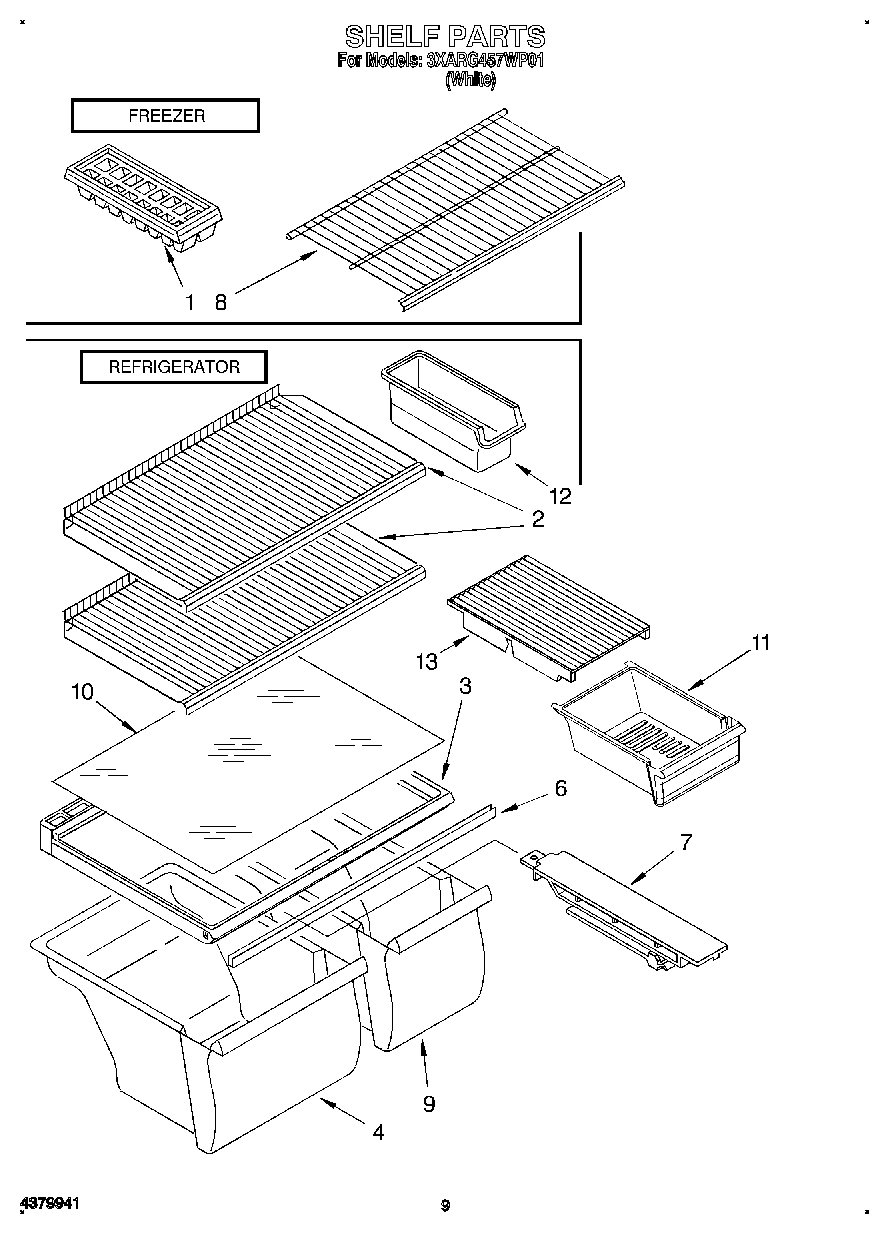

05 - SHELF, LIT/OPTIONAL

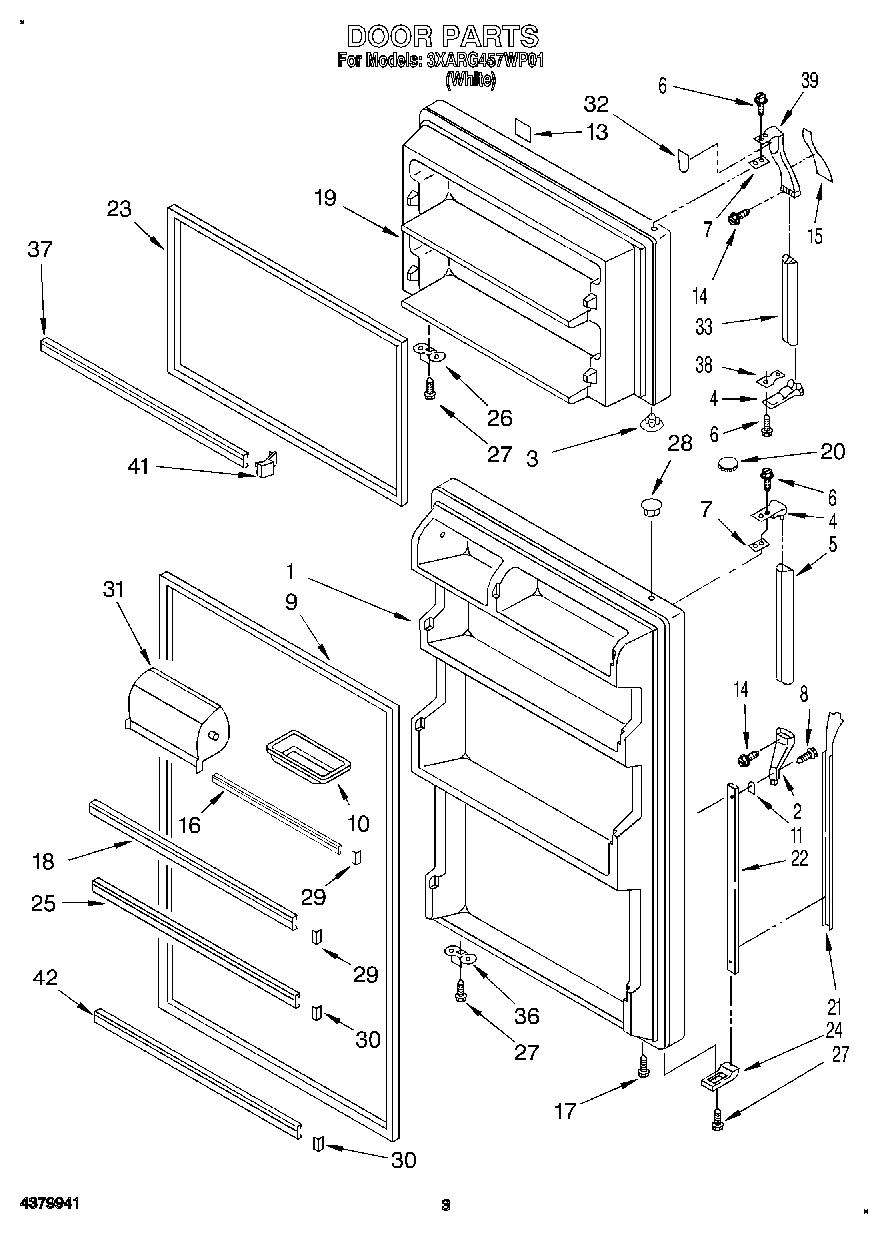

02 - DOOR

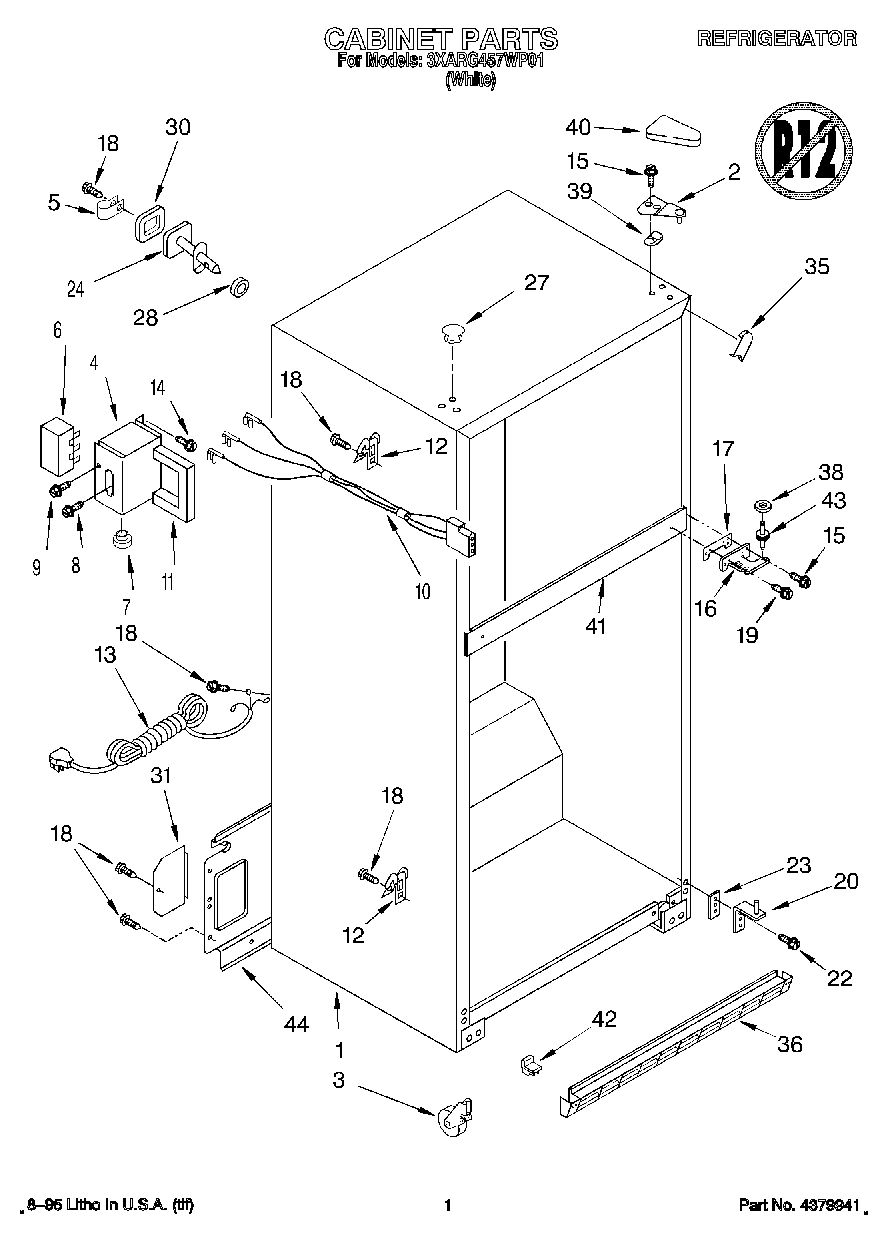

01 - CABINET

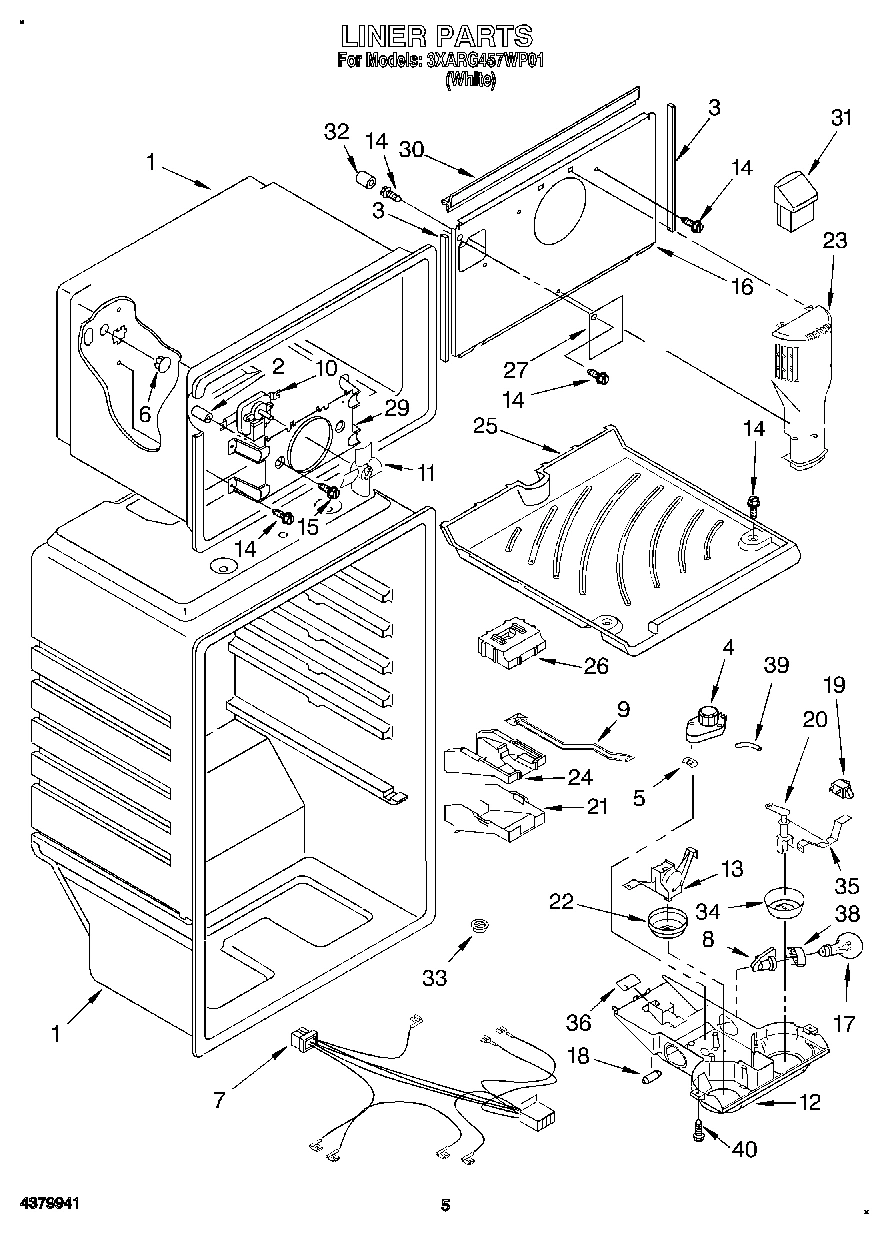

03 - LINER
Common parts from model Whirlpool 3XARG457WP01 REFRIGERATOR
1
Refrigerator Door (Includes Item 9) (White) WPL 2171269 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12669A5 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12674A1 Contact Us For Availability
2
Handle End, Side WPL 1109189 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
4
End Cap, Handle WPL 944157 Contact Us For Availability
4
Enclosure, Term. WPL 2158579 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
6
Terminal Block WPL 1129346 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Bushing WPL 1129449 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Screw WPL 489346 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Butter, Tray WPL 1125936 Contact Us For Availability
10
Wiring Assy. WPL 2166651 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
11
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
11
Gasket WPL 2167227 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Nameplate WPL 2165148 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
14
Screw WPL 489022 Contact Us For Availability
15
Insert, Handle (White) WPL 1108828 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
16
Cover-Evaporator WPL 2183151 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159446 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
22
Retainer, Insert WPL 2159417 Contact Us For Availability
22
Screw WPL 489459 Contact Us For Availability
22
Control Knob WPL 2182421 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159056 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2182339 Contact Us For Availability
24
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12670A7 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI12671A2 Contact Us For Availability
29
Orifice, Fan WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI12672A5 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Shim WPL 935074 Contact Us For Availability
33
Handle, F.C. (White) WPL 2166437 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Handle End, Top WPL 944163 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI12673A3 Contact Us For Availability
42
Trim, Door WPL 2171141 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
