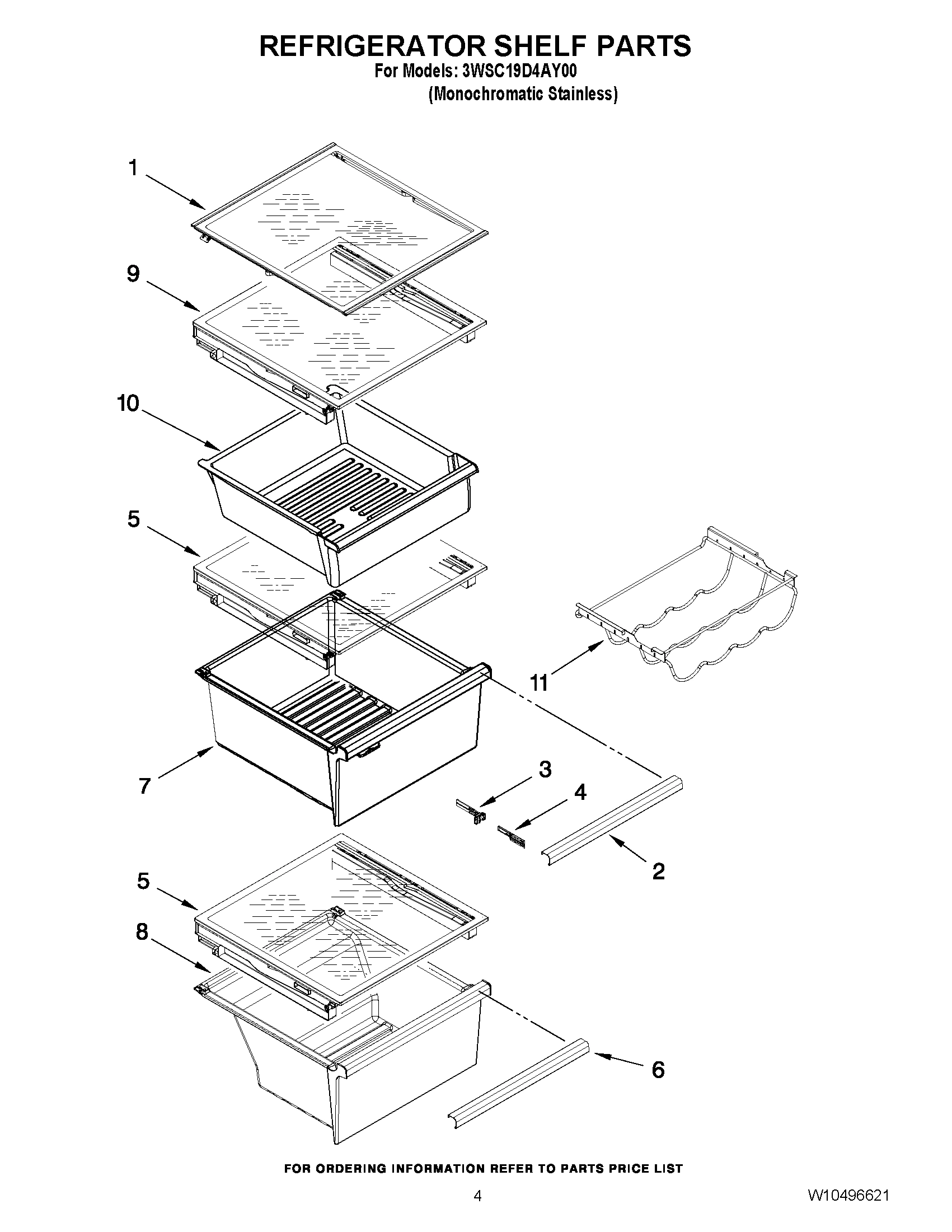

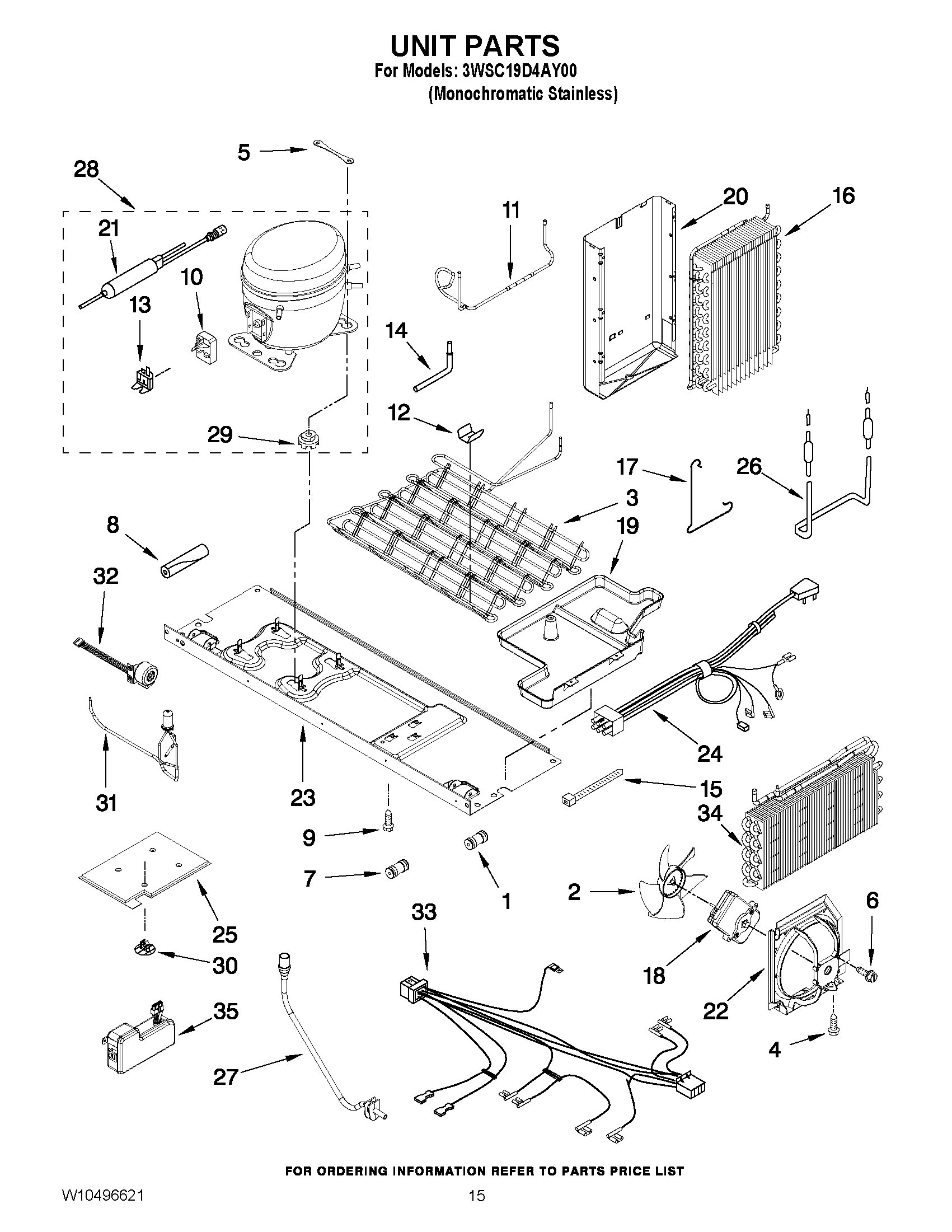

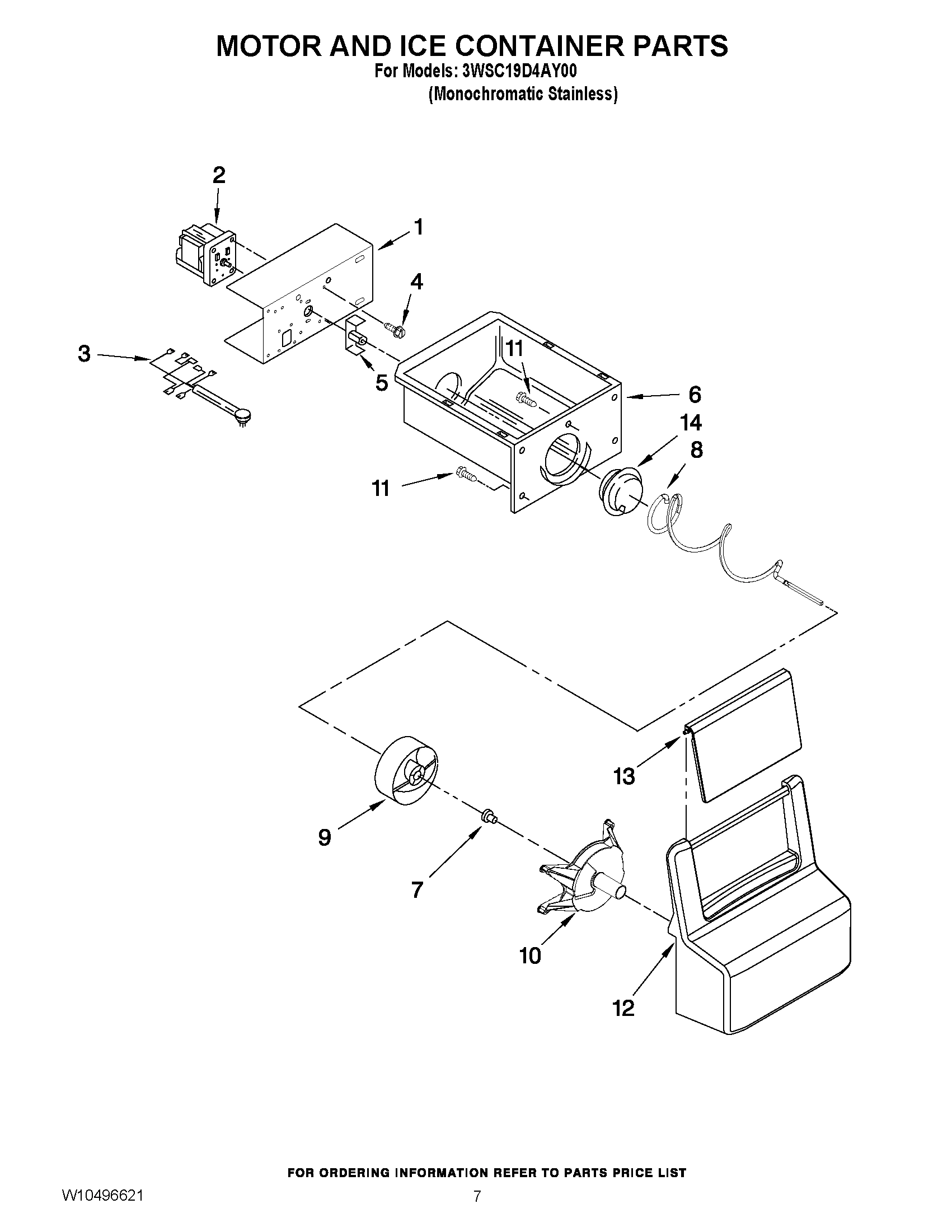

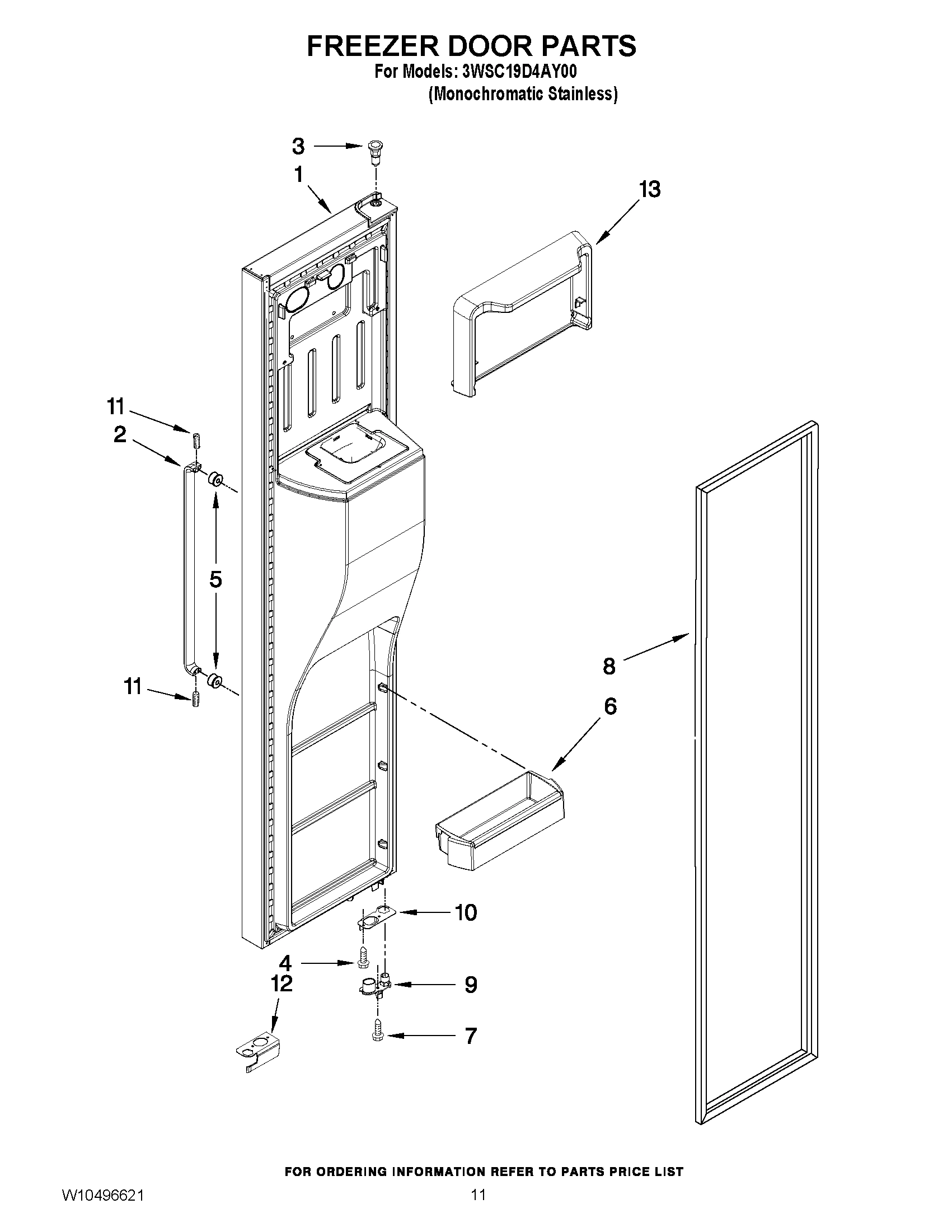

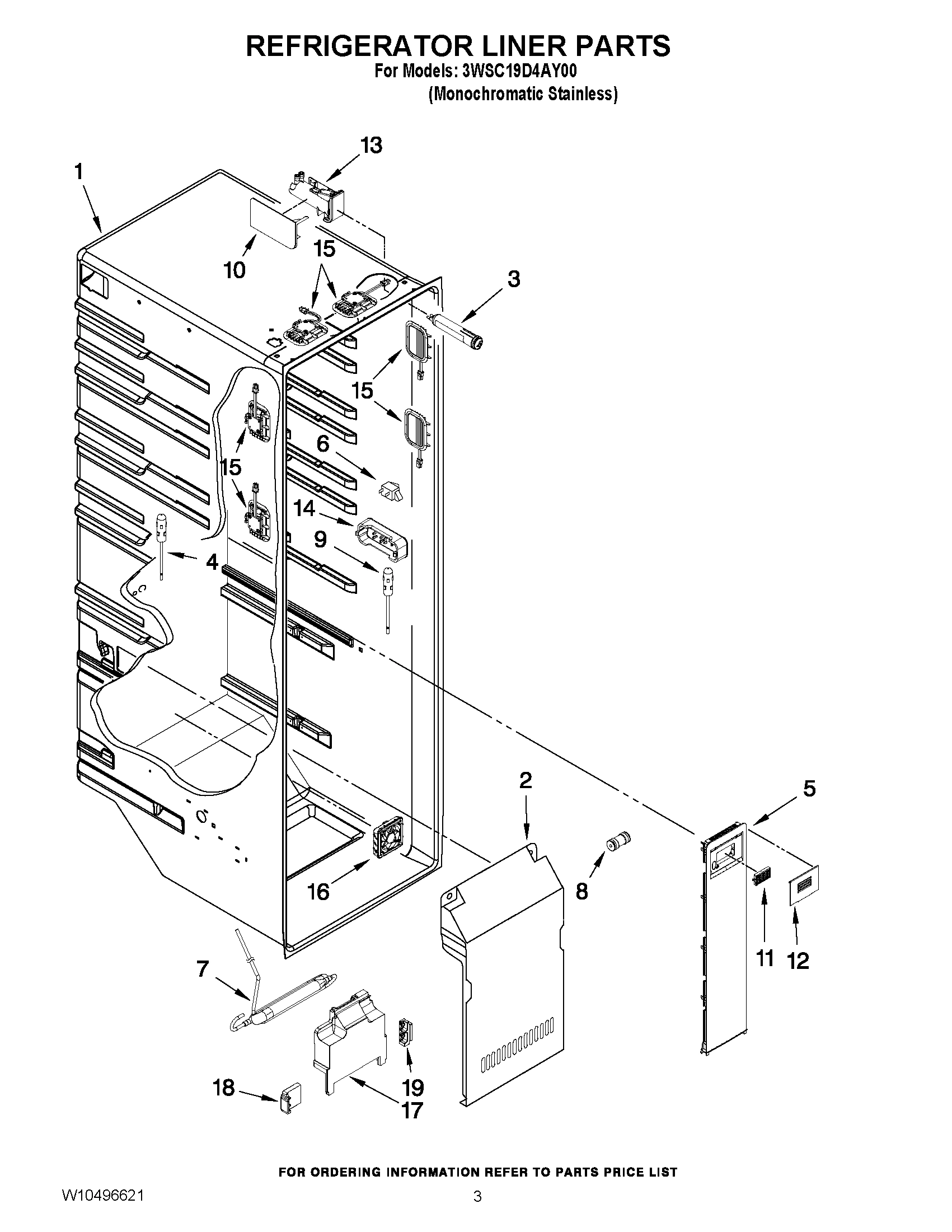

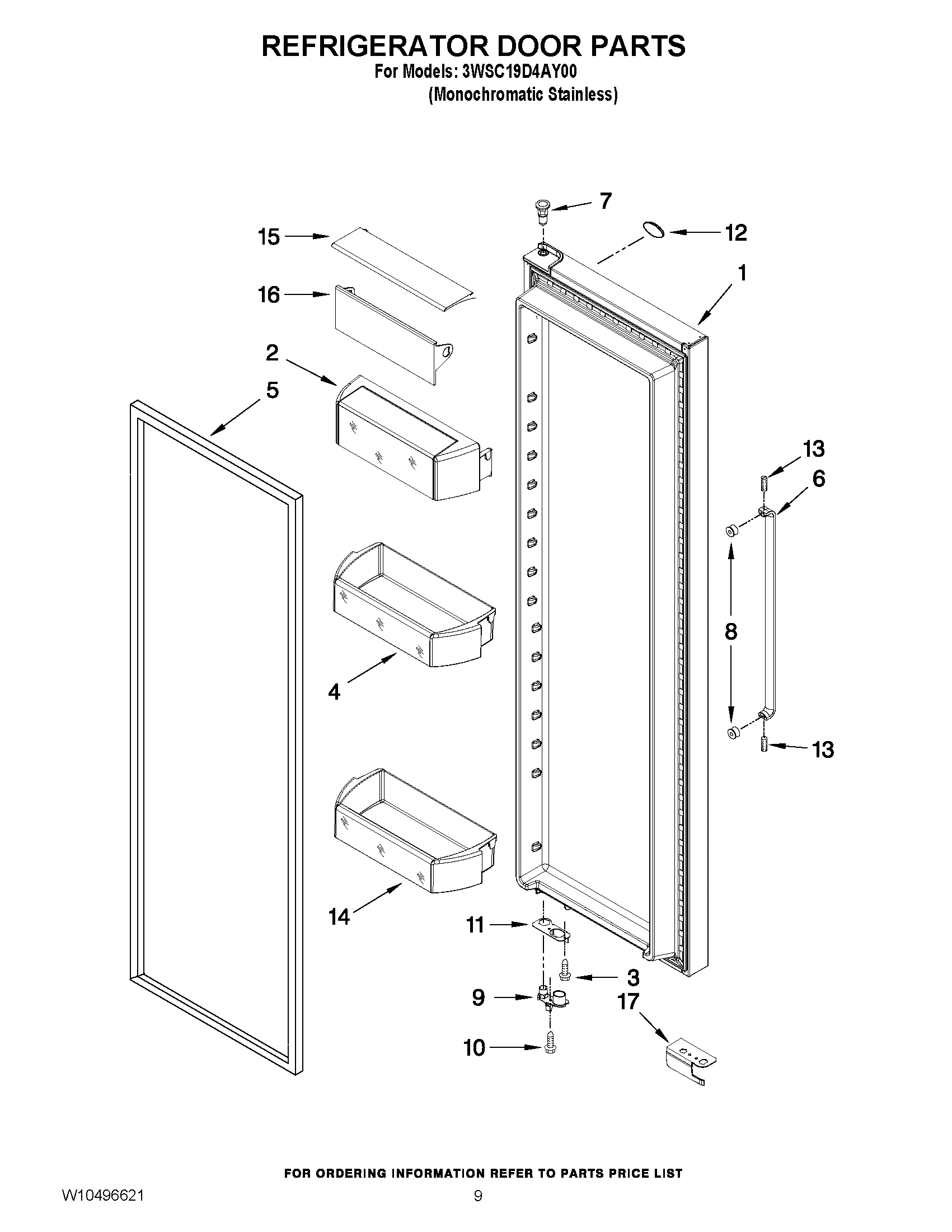

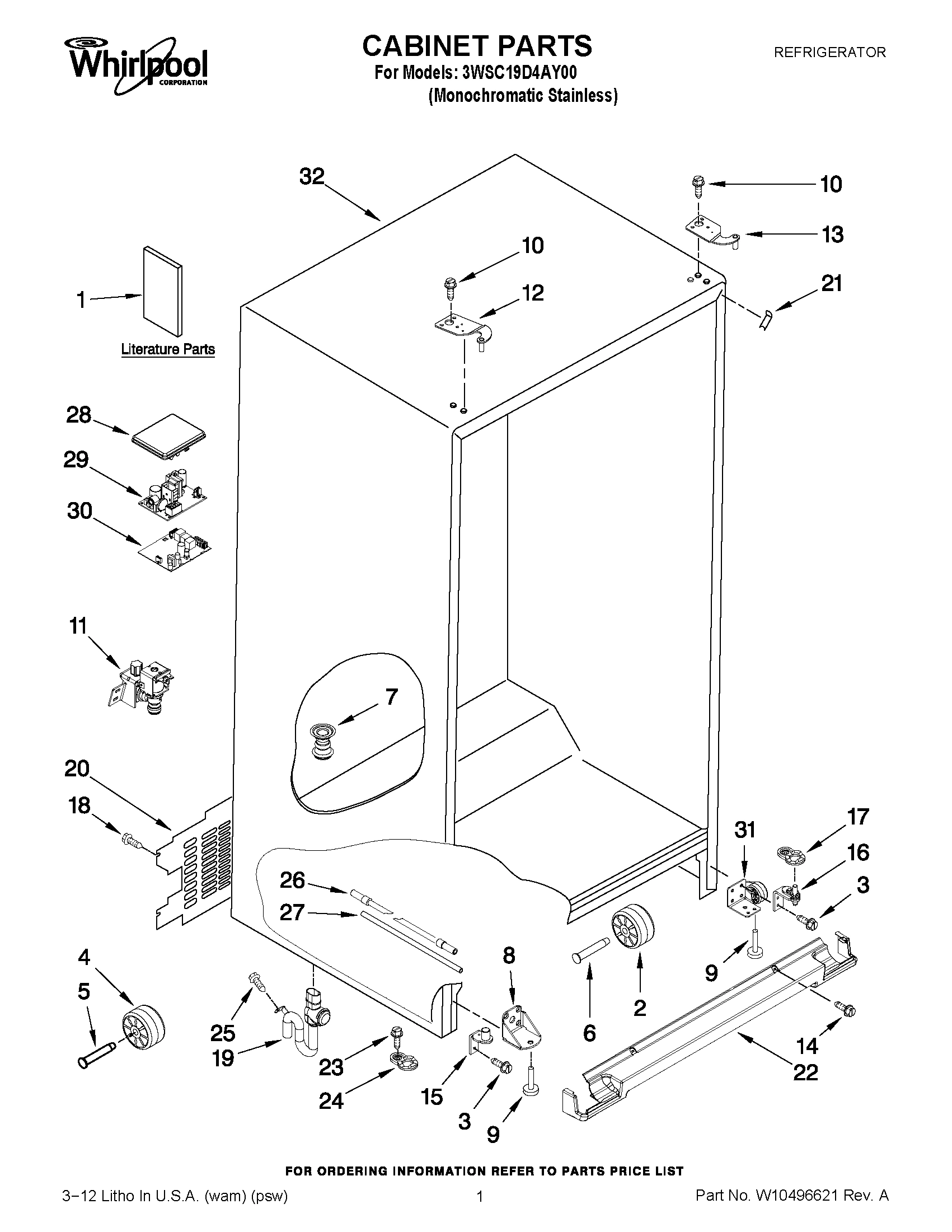

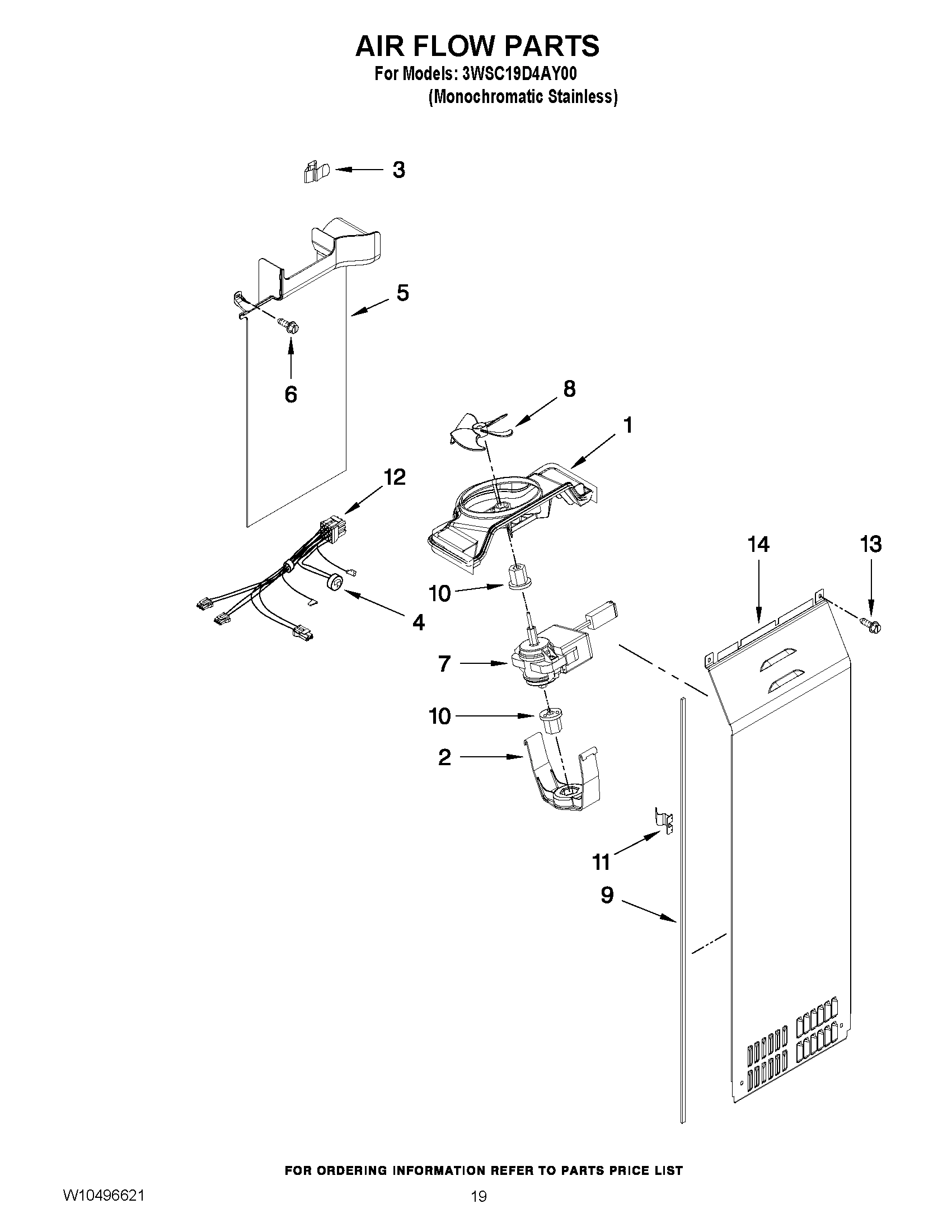

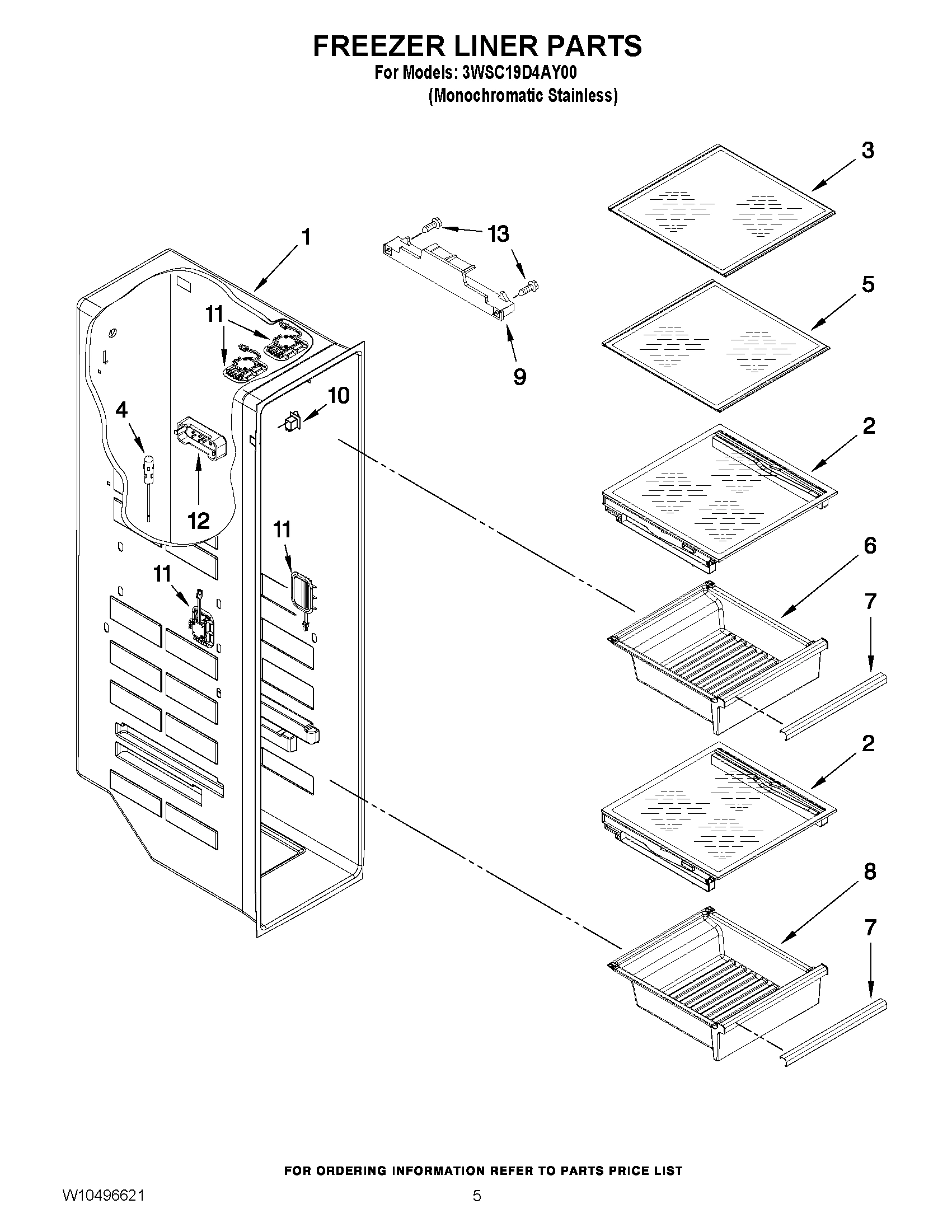

Model Whirlpool 3WSC19D4AY00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10269156 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10269156 $80.53

1

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STA WPL W10287403 Contact Us For Availability

1

SERVICE & WIRING SHEET WPL W10323426 Contact Us For Availability

1

USE & CARE GUIDE WPL W10475427 Contact Us For Availability

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $63.48

2

WPW10387382 Whirlpool Refrigerator Evaporator In Stock WPL WPW10387382 $107.89

2

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $12.35

3

EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refri In Stock WPL EDR1RXD1 $56.07

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WPW10297485 Whirlpool Refrigerator Screw Backorder WPL WPW10297485 $2.51

3

SCREW WPL W10296816 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $38.59

4

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

4

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

4

DOOR BIN, SHALLOW WPL W10335221 Contact Us For Availability

5

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

5

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $63.04

5

W10355582 Whirlpool Refrigerator Door Gasket In Stock WPL W10355582 $150.72

5

W11098699 Whirlpool Glass Shelf Backorder WPL W11098699 $133.54

5

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

COVER, AIR TOWER WPL W10425172 Contact Us For Availability

6

W10781989 Whirlpool Refrigerator Ice Door Backorder WPL W10781989 $61.43

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

HANDLE WPL W10277354 Contact Us For Availability

7

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $28.64

7

W11204869 Whirlpool Refrigerator Reservoir In Stock WPL W11204869 $60.15

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

7

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

THERMISTOR In Stock WPL W11724692 $12.76

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $9.63

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.99

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W10300484 Whirlpool Refrigerator Filter Cover Backorder WPL W10300484 $52.08

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $54.68

W10311524 Whirlpool Refrigerator FreshFlow Ai In Stock WPL W10311524 $5.92

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $31.52

WPW10223328 Whirlpool Refrigerator Tube Backorder WPL WPW10223328 $53.03

WPW10341317 Whirlpool Inlet Valve Backorder WPL WPW10341317 $103.80

W10425253 Whirlpool Refrigerator Cover Backorder WPL W10425253 $32.24

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $9.37

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

WPW10370592 Whirlpool Refrigerator Pad Backorder WPL WPW10370592 $126.68

AIR FILTER COVER WPL W10321024 Contact Us For Availability

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $26.74

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $31.88

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $151.55

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $51.26

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $38.33

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $26.85

W11683241 Whirlpool Module In Stock WPL W11683241 $129.64

WPW10316883 Whirlpool Refrigerator Door Compr Backorder WPL WPW10316883 $39.51

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10451901 Whirlpool Refrigerator Evaporator M Backorder WPL W10451901 $109.59

W10500004 Whirlpool Refrigerator Door Hinge Backorder WPL W10500004 $52.32

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WPW10316885 Whirlpool Refrigerator Compressor In Stock WPL WPW10316885 $51.95

17

W11105244 Whirlpool Refrigerator Scroll Fan Backorder WPL W11105244 $119.78

17

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

17

Clamp WPL 2161324 Contact Us For Availability

18

W11028224 Whirlpool Refrigerator Support Backorder WPL W11028224 $6.28

18

Screw WPL W10141645 Contact Us For Availability

19

W10837626 Whirlpool Refrigerator Support Backorder WPL W10837626 $27.63

19

W11519143 Whirlpool Refrigerator Extension In Stock WPL W11519143 $13.03

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

20

COVER, UNIT WPL W10257325 Contact Us For Availability

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

22

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $61.32

23

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $11.51

25

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

26

WPW10279882 Whirlpool Water Line In Stock WPL WPW10279882 $30.48

27

W11409190 Whirlpool Refrigerator Drain Tube In Stock WPL W11409190 $24.06

27

WPW10279885 Whirlpool Refrigerator Water Tube In Stock WPL WPW10279885 $45.15

28

COVER WPL 12957702 Contact Us For Availability

29

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $227.62

31

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

31

W11590197 Whirlpool Refrigerator Valve In Stock WPL W11590197 $72.24

32

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $102.36

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
