Model Whirlpool 3VET20DKFW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - SHELF

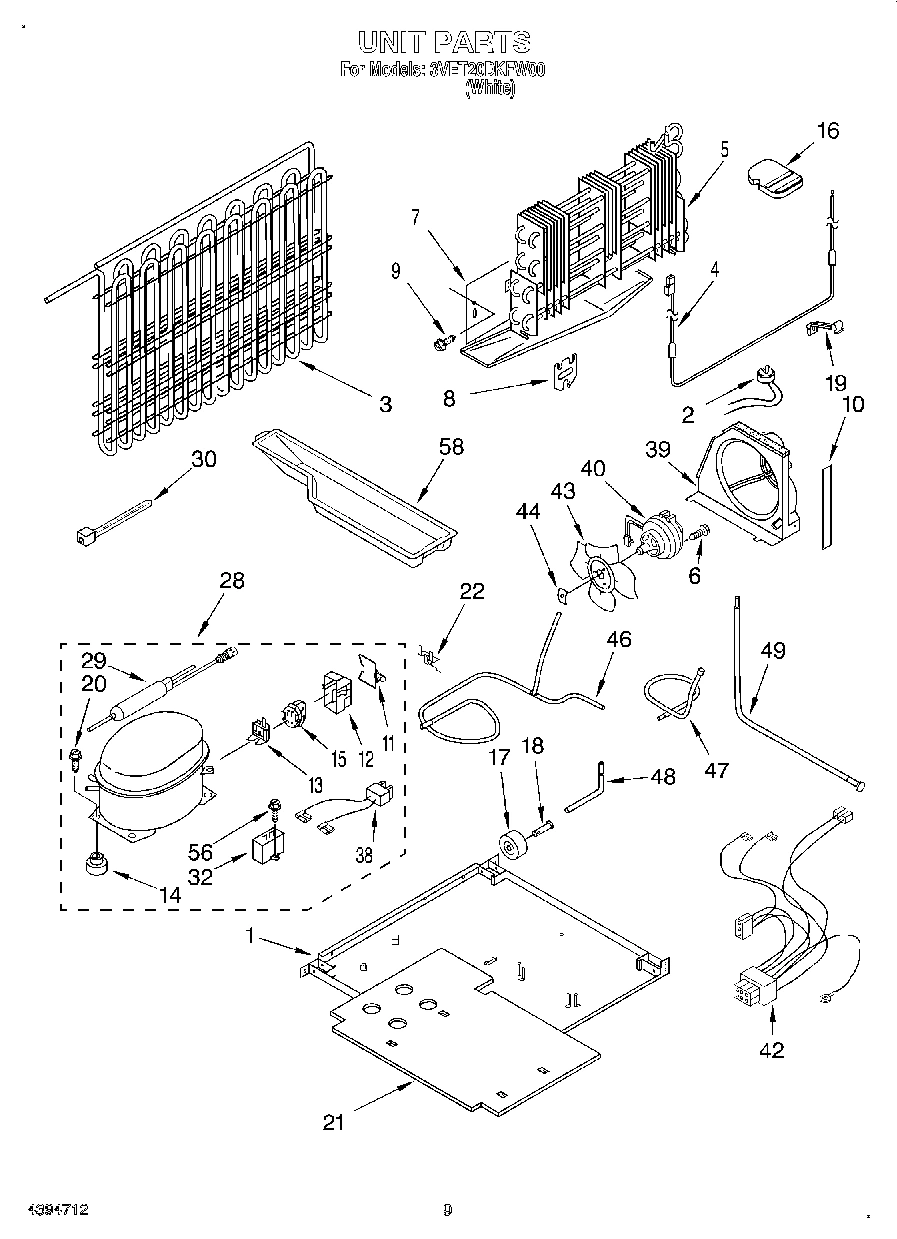

05 - UNIT

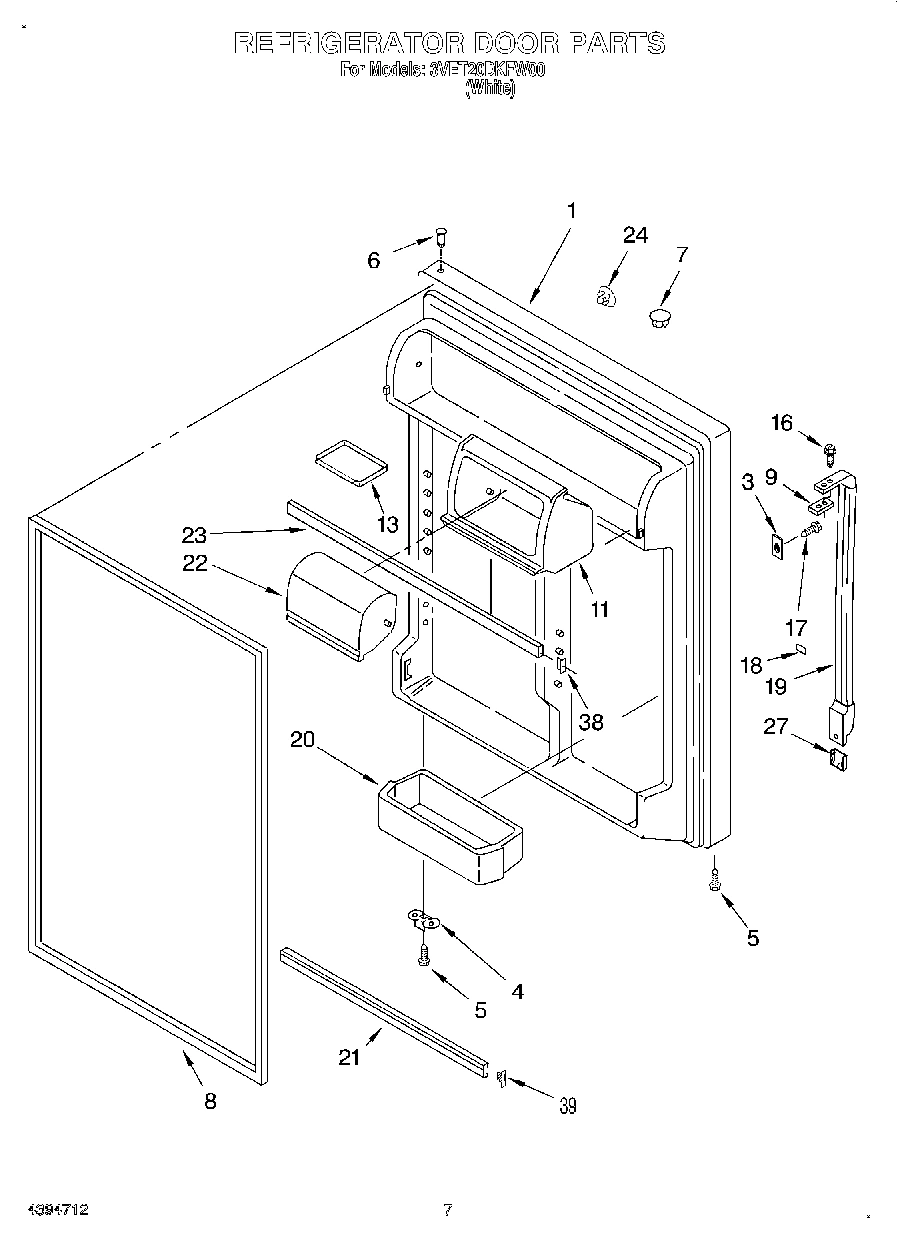

04 - REFRIGERATOR DOOR

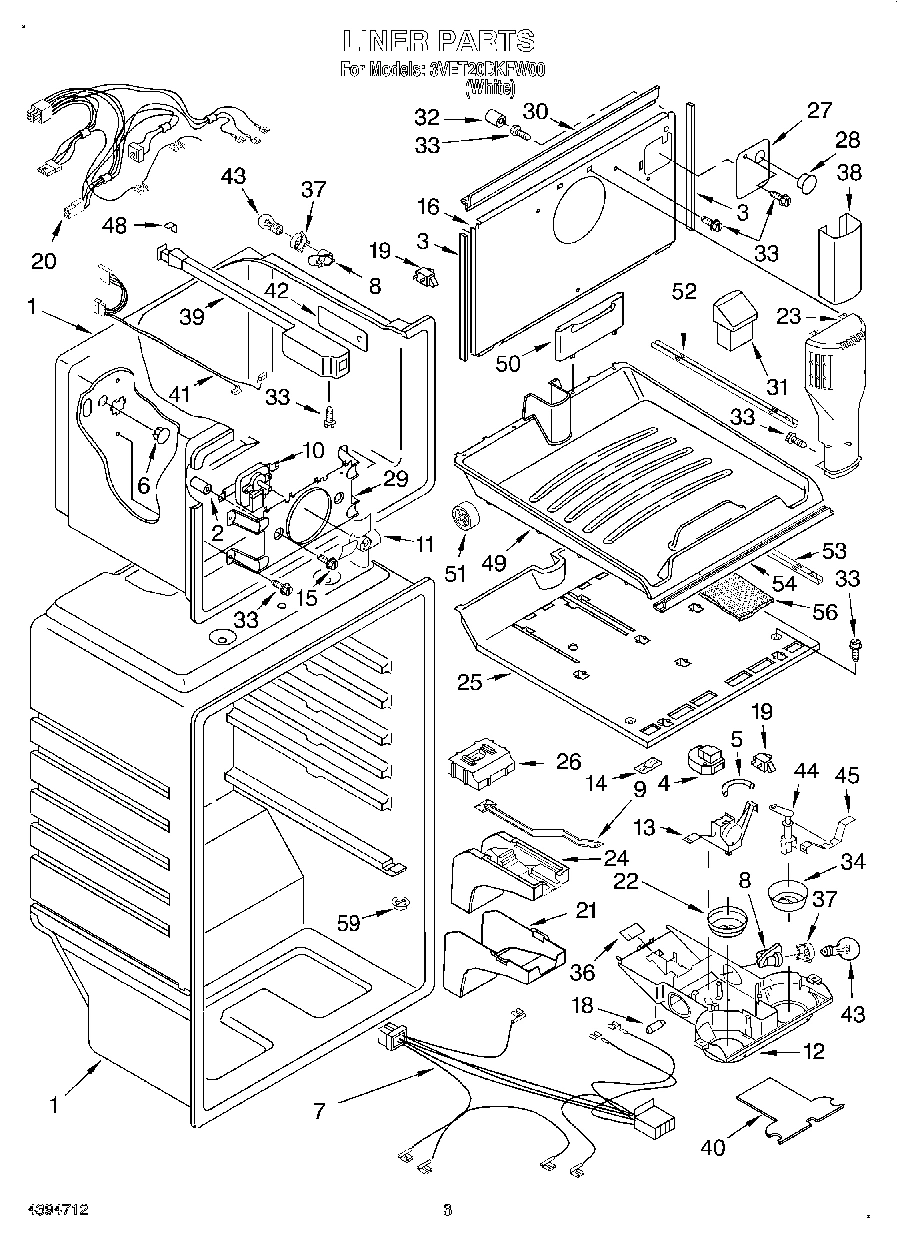

02 - LINER

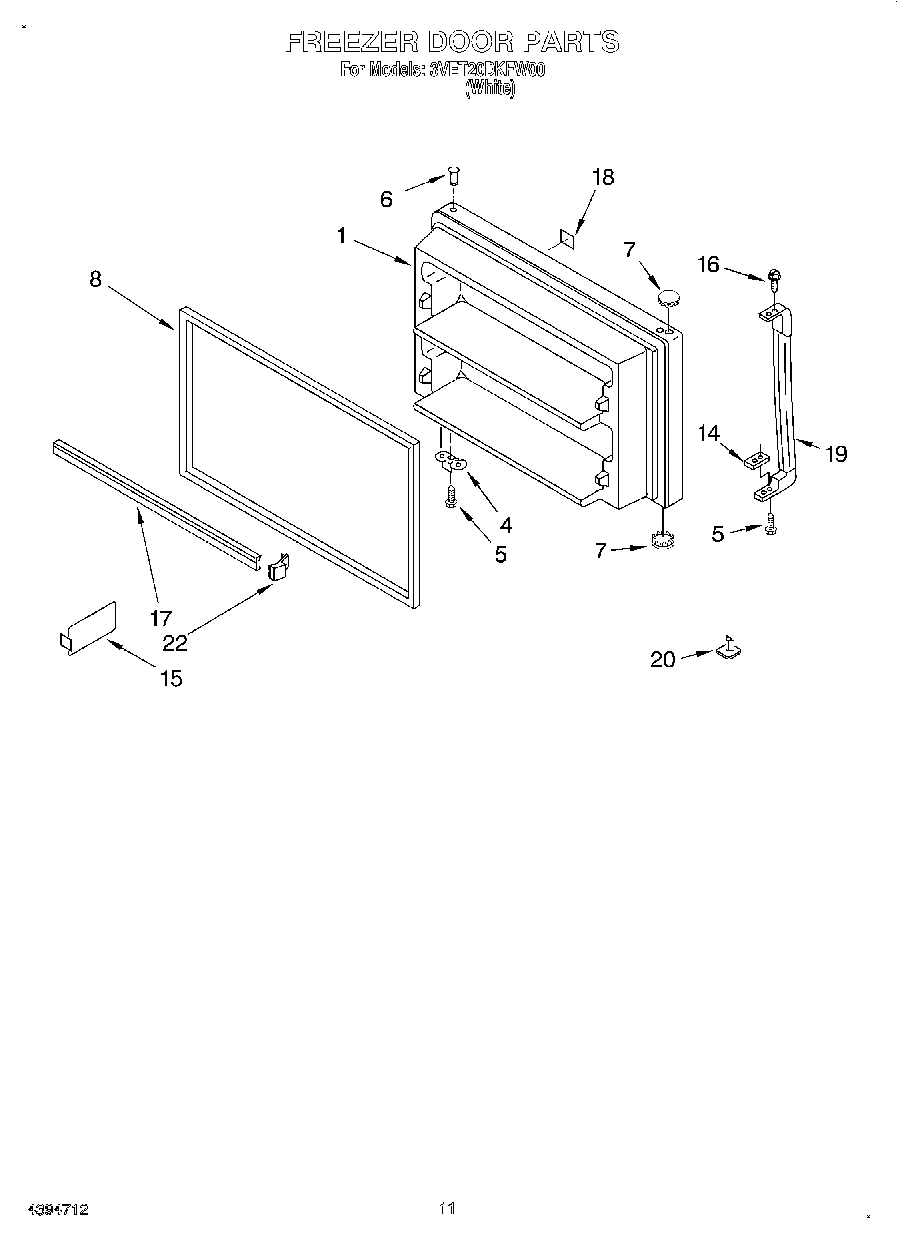

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool 3VET20DKFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195465 WPL LIT2195465 Contact Us For Availability
WPL LIT2195605 WPL LIT2195605 Contact Us For Availability
WPL LIT2198830 WPL LIT2198830 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) WPL 2183864 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12615A8 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) WPL 2183860 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193492 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183828 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Tray, Door WPL 2195388 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Handle WPL 2183811 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2183808 Contact Us For Availability
19
Nameplate WPL 2175380 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2179605 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195657 Contact Us For Availability
20
Hole Plug WPL 2174433 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Cover, End Cap WPL 2174006 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
38
Sleeve WPL 2179712 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Shield WPL 2190519 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Wire Assy. Unit WPL 2195489 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2195483 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 12,15, 22) Also See Ref. WPL 2197523 Contact Us For Availability
100
Door Reversal Instructions WPL 2176379 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
