Model Whirlpool 3VET19NKFN01 REFRIGERATOR – Common Parts & Diagrams

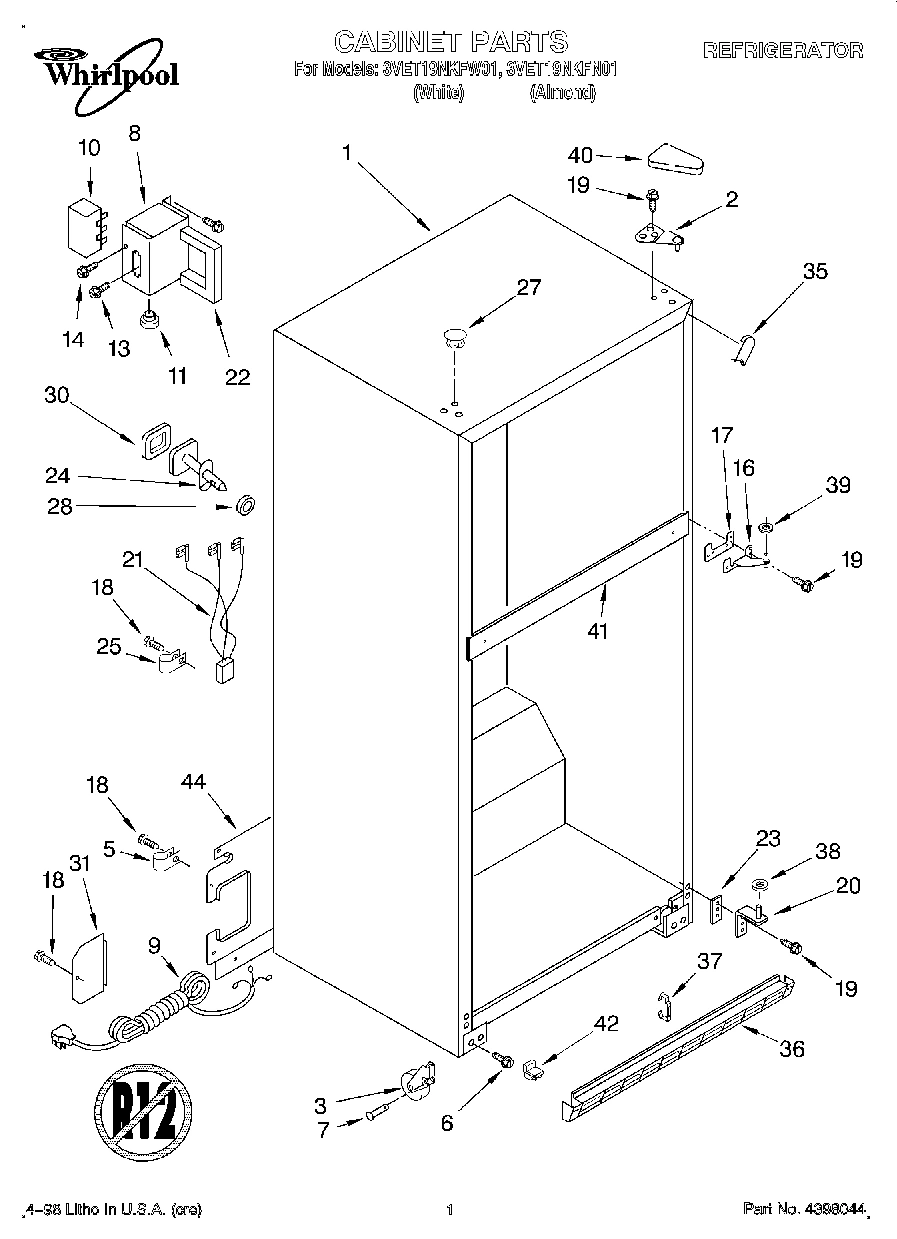

01 - CABINET

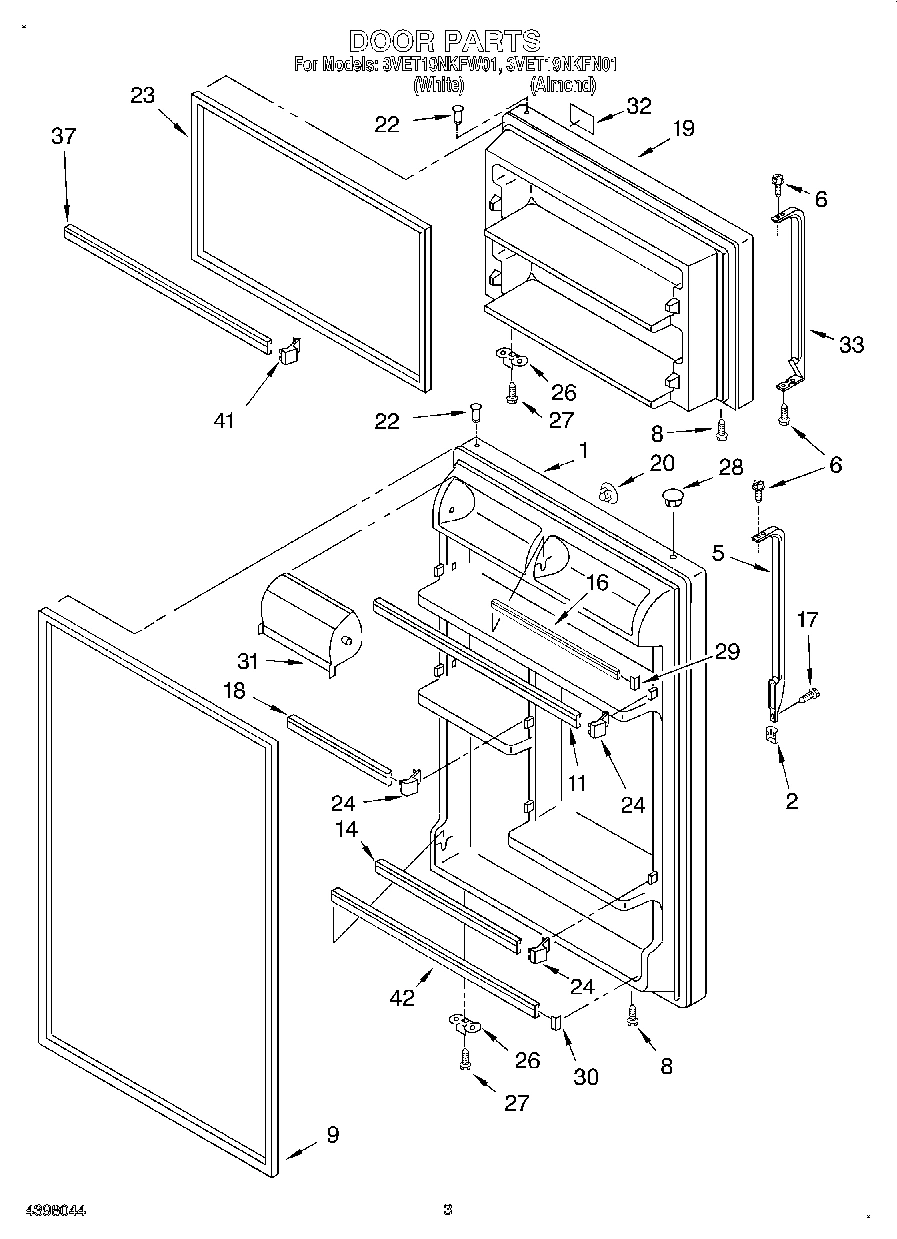

02 - DOOR
05 - SHELF, LIT/OPTIONAL
03 - LINER
04 - UNIT
Common parts from model Whirlpool 3VET19NKFN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12552A4 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193492 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Fan Motor WPL 2183828 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195941 Contact Us For Availability
11
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Overload (Includes Relay) (Production) WPL 2169411 Contact Us For Availability
13
Overload (Includes Relay) (Service) WPL 4387961 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI12553A1 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
18
Trim, Door WPL 2195942 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI12554A1 Contact Us For Availability
22
Support WPL 2189314 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
22
Clip WPL 2166683 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Clip, Wire WPL 489435 Contact Us For Availability
24
Support Block WPL 2176302 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2195657 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
42
Wire Assy. Unit WPL 2195489 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Shield WPL 2190519 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
