Model Whirlpool 3VED23DQAW01 REFRIGERATOR – Common Parts & Diagrams
09 - UNIT
10 - AIR FLOW

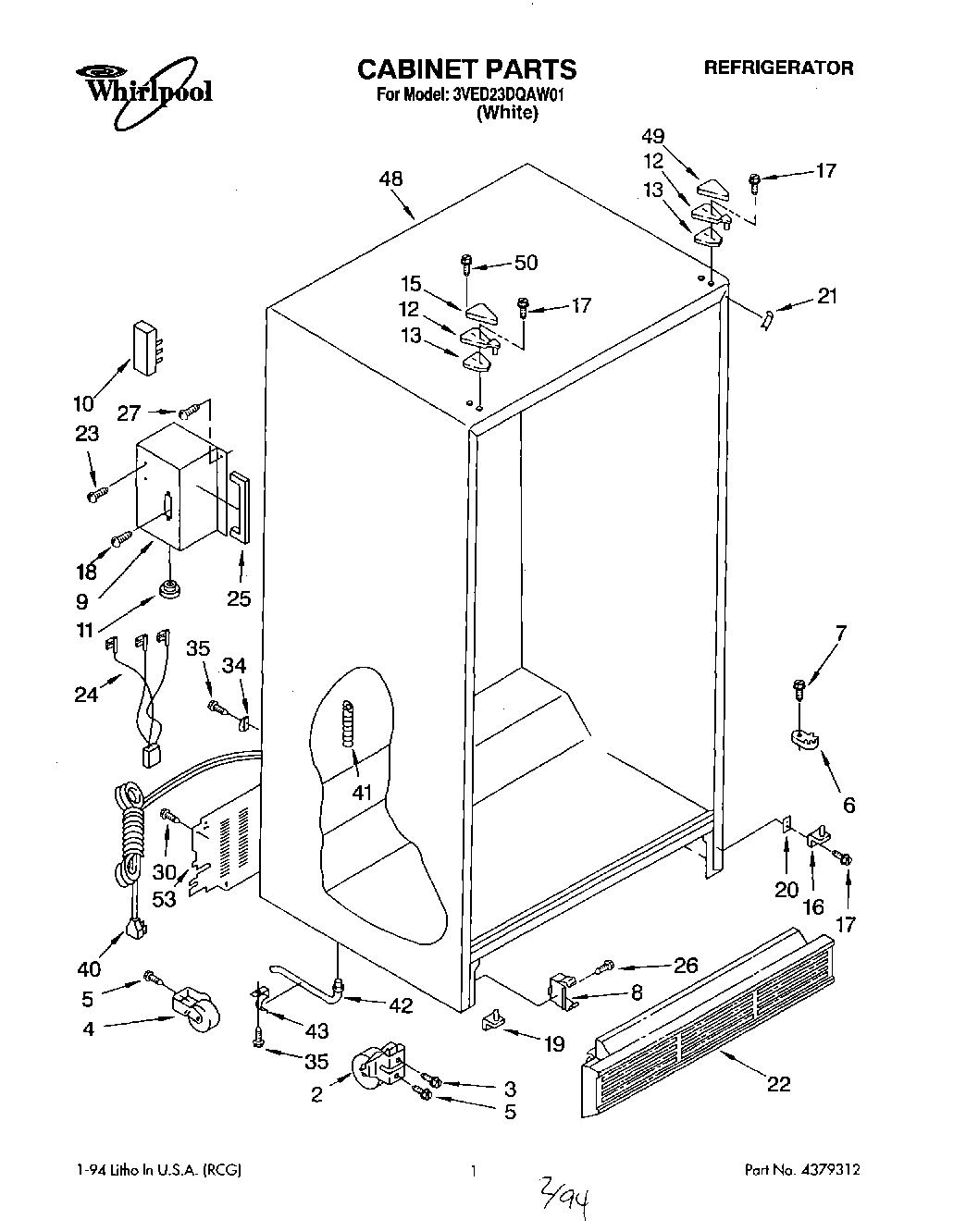

01 - CABINET

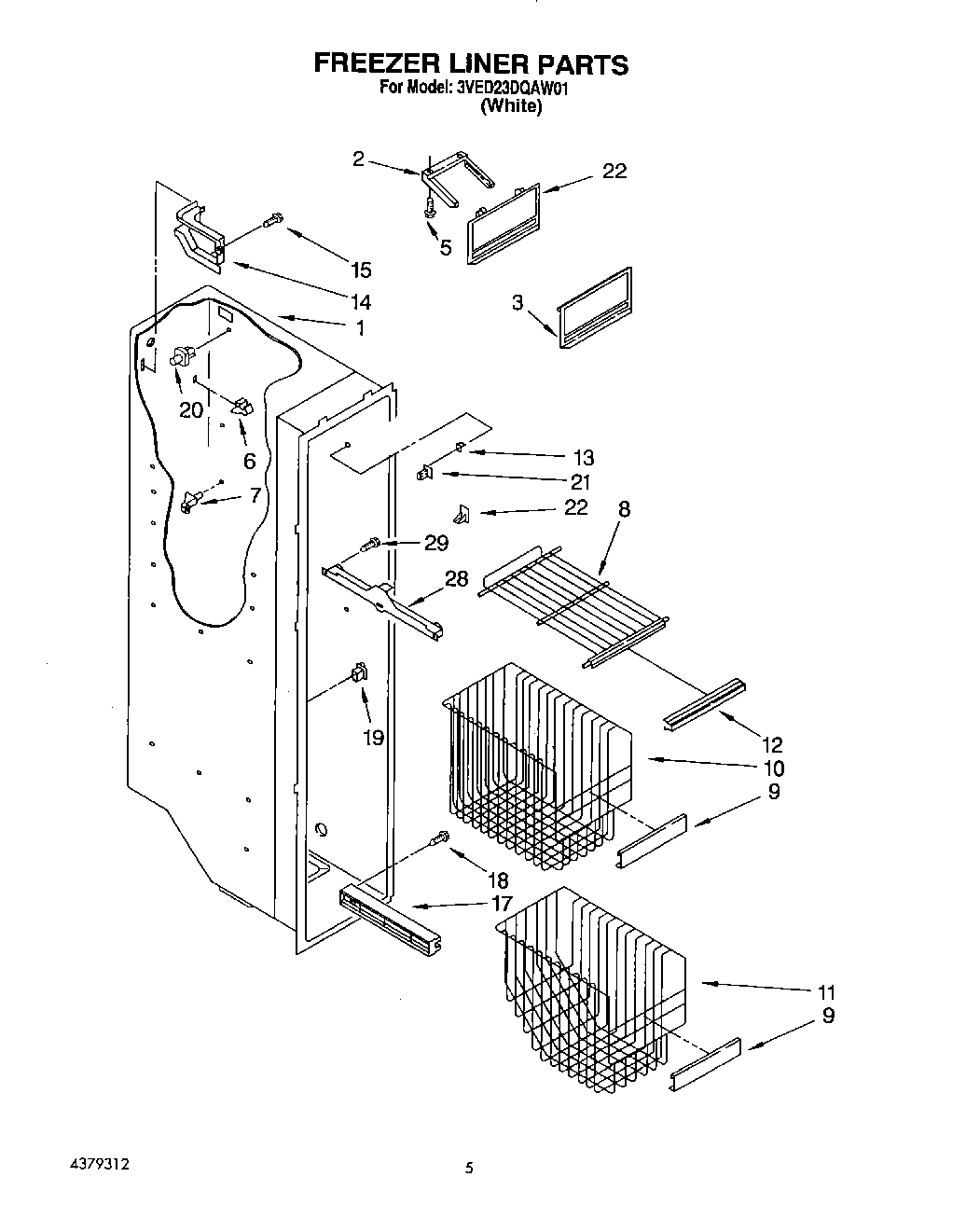

04 - FREEZER LINER

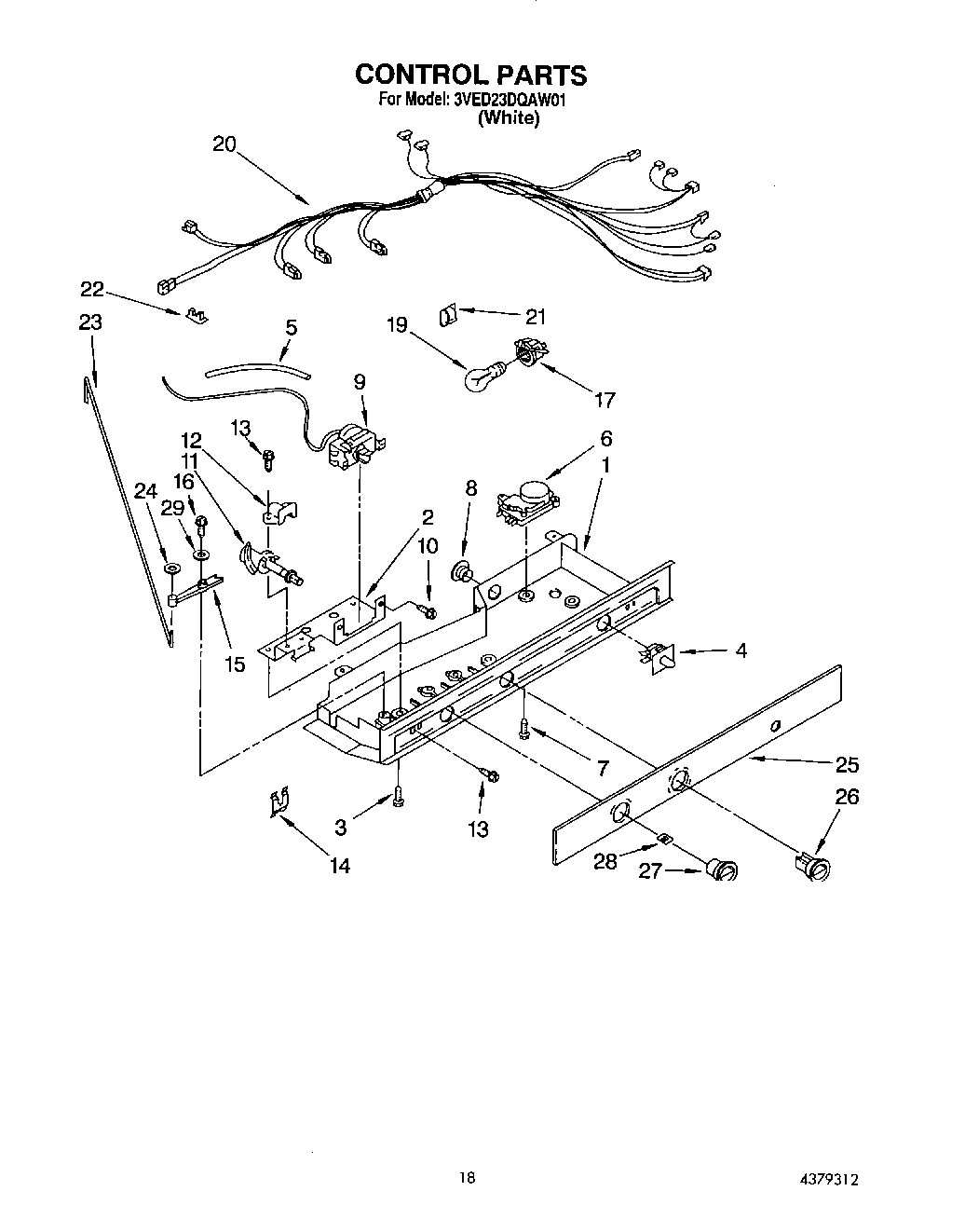

11 - CONTROL

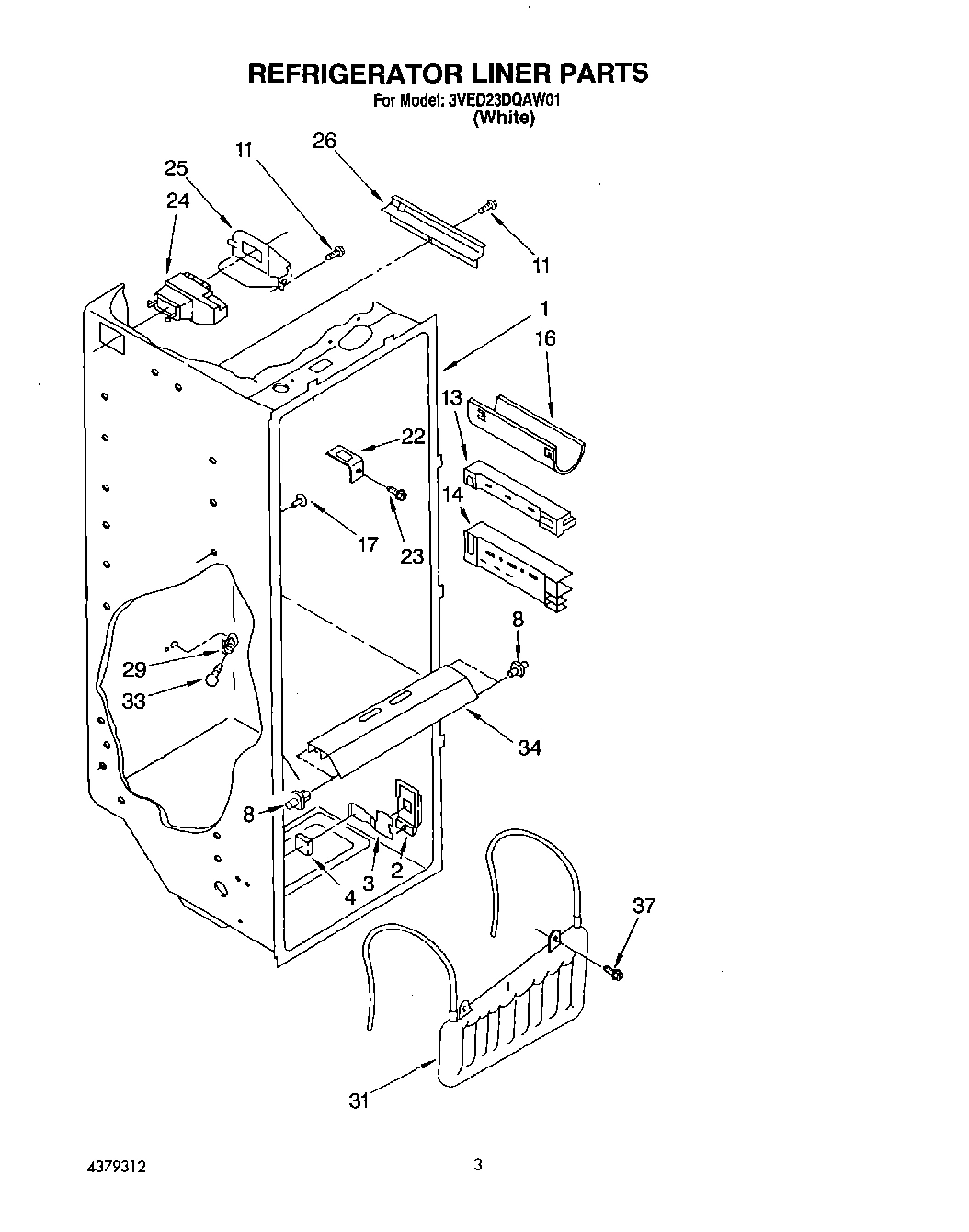

02 - REFRIGERATOR LINER

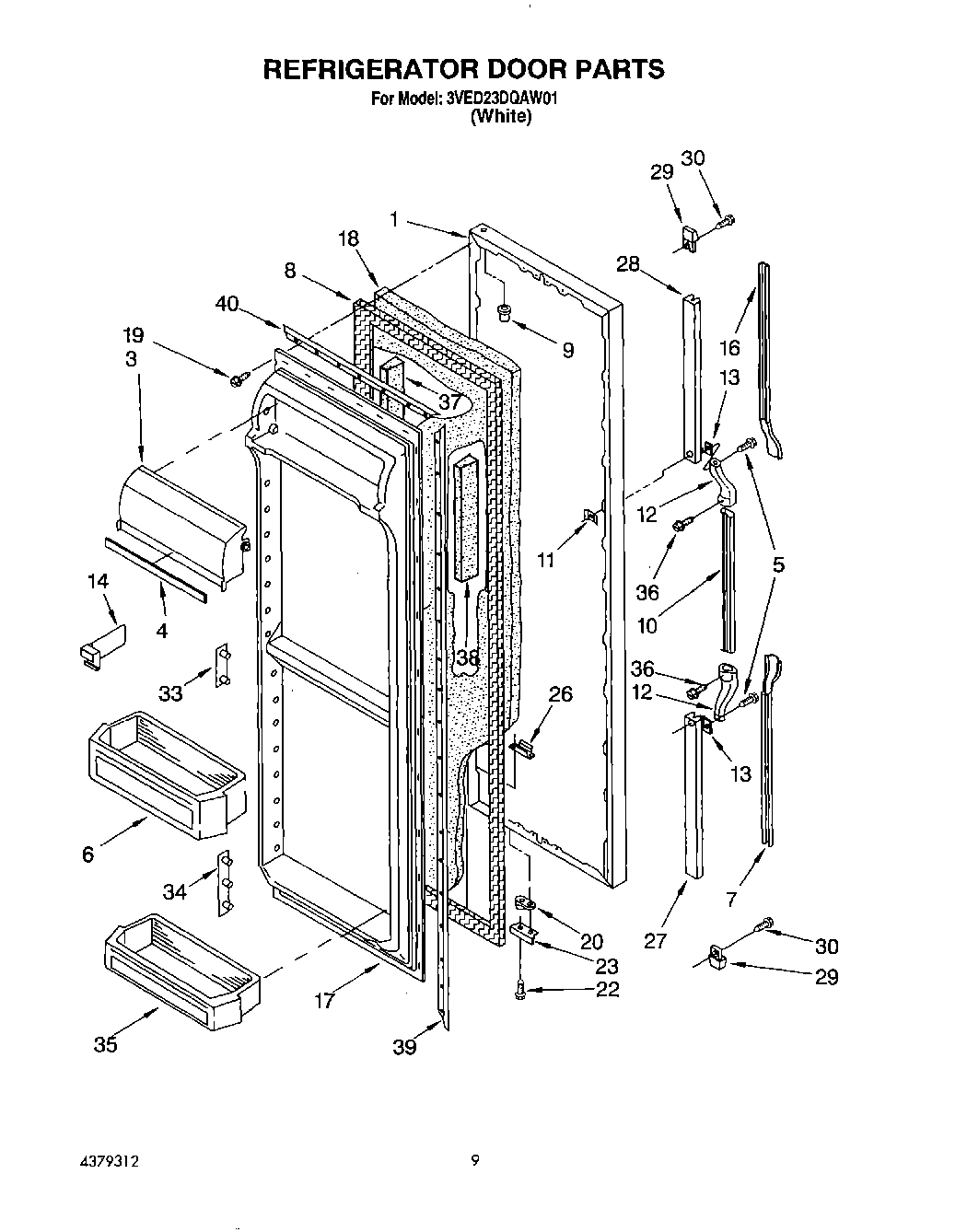

06 - REFRIGERATOR DOOR

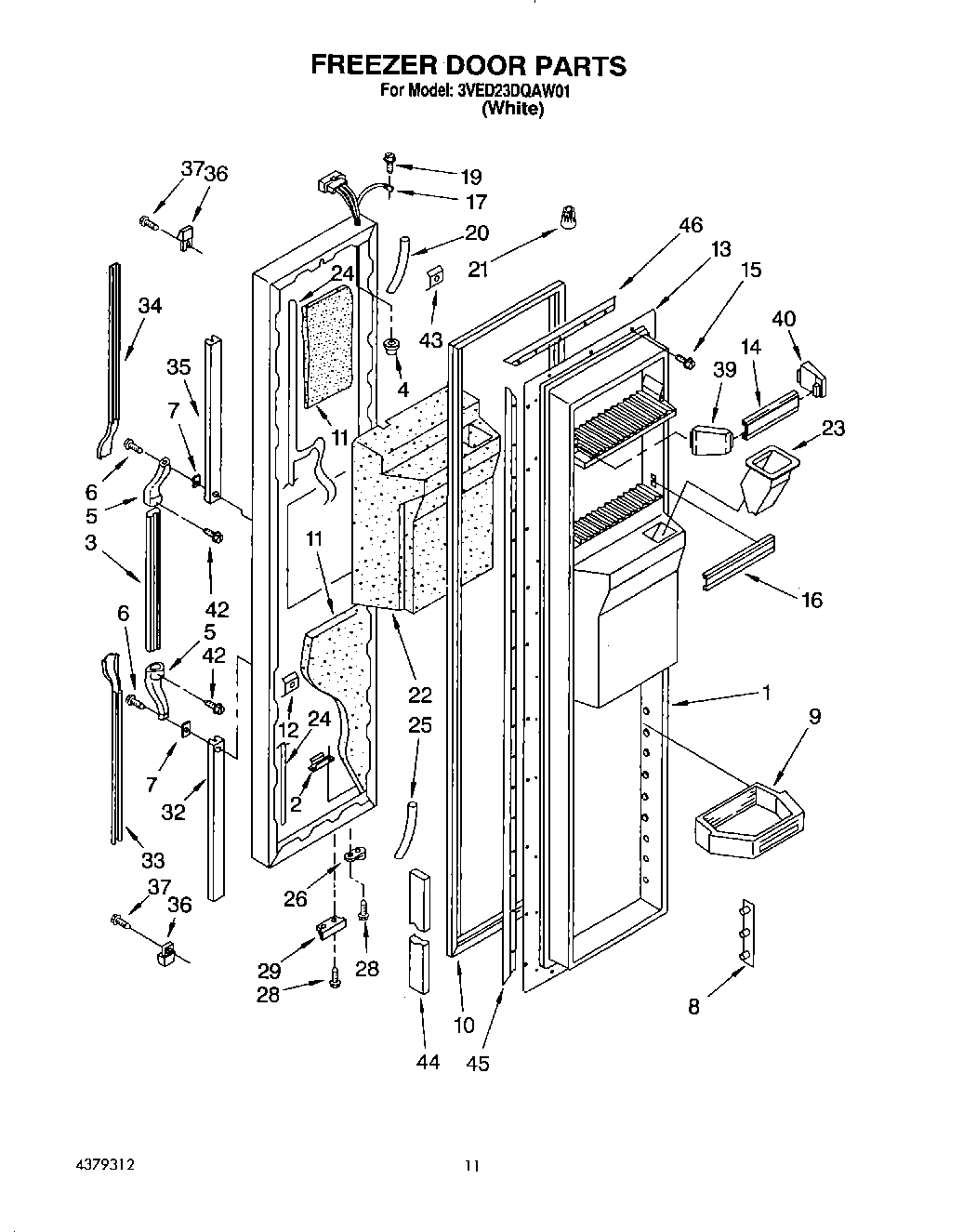

07 - FREEZER DOOR

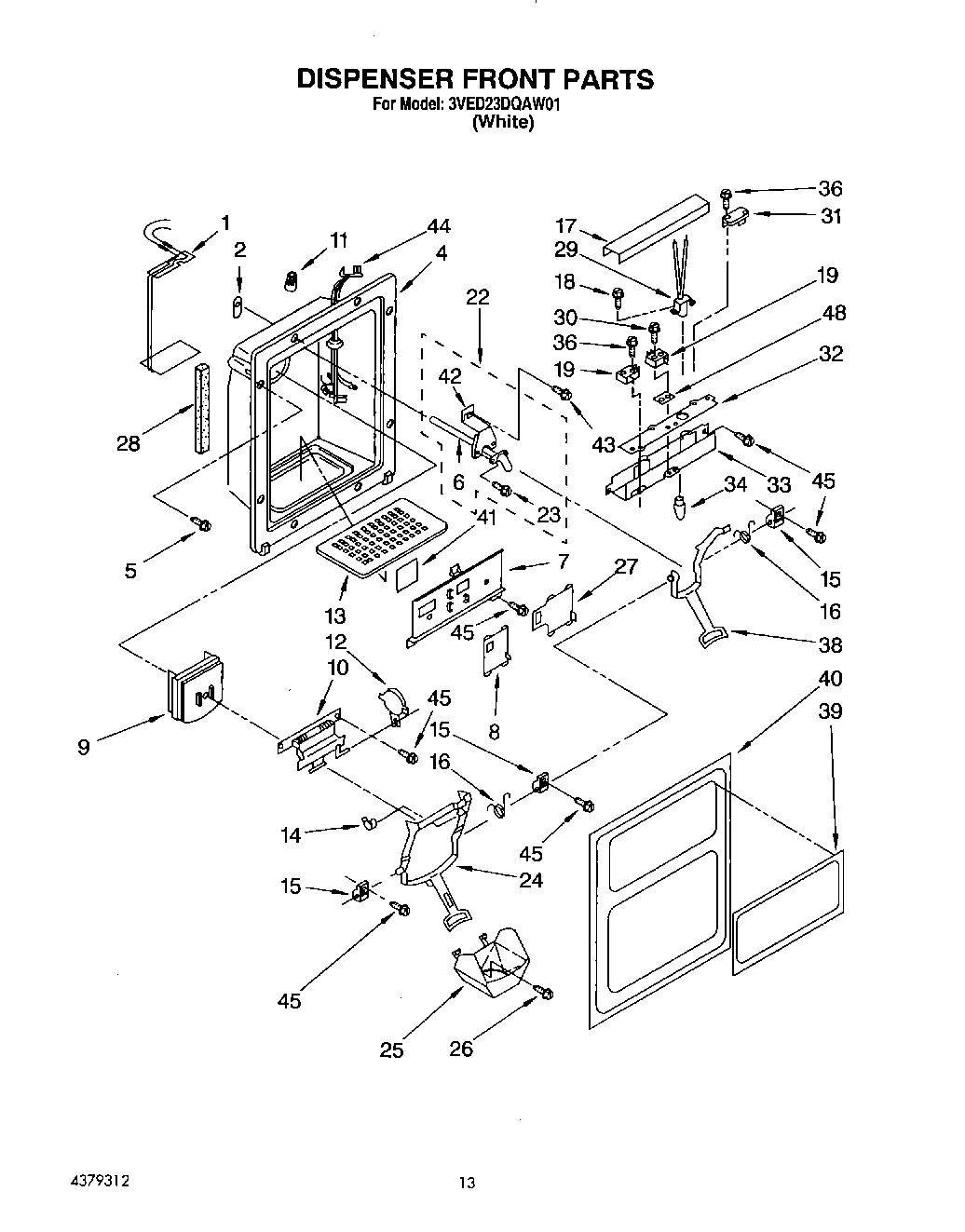

08 - DISPENSER FRONT

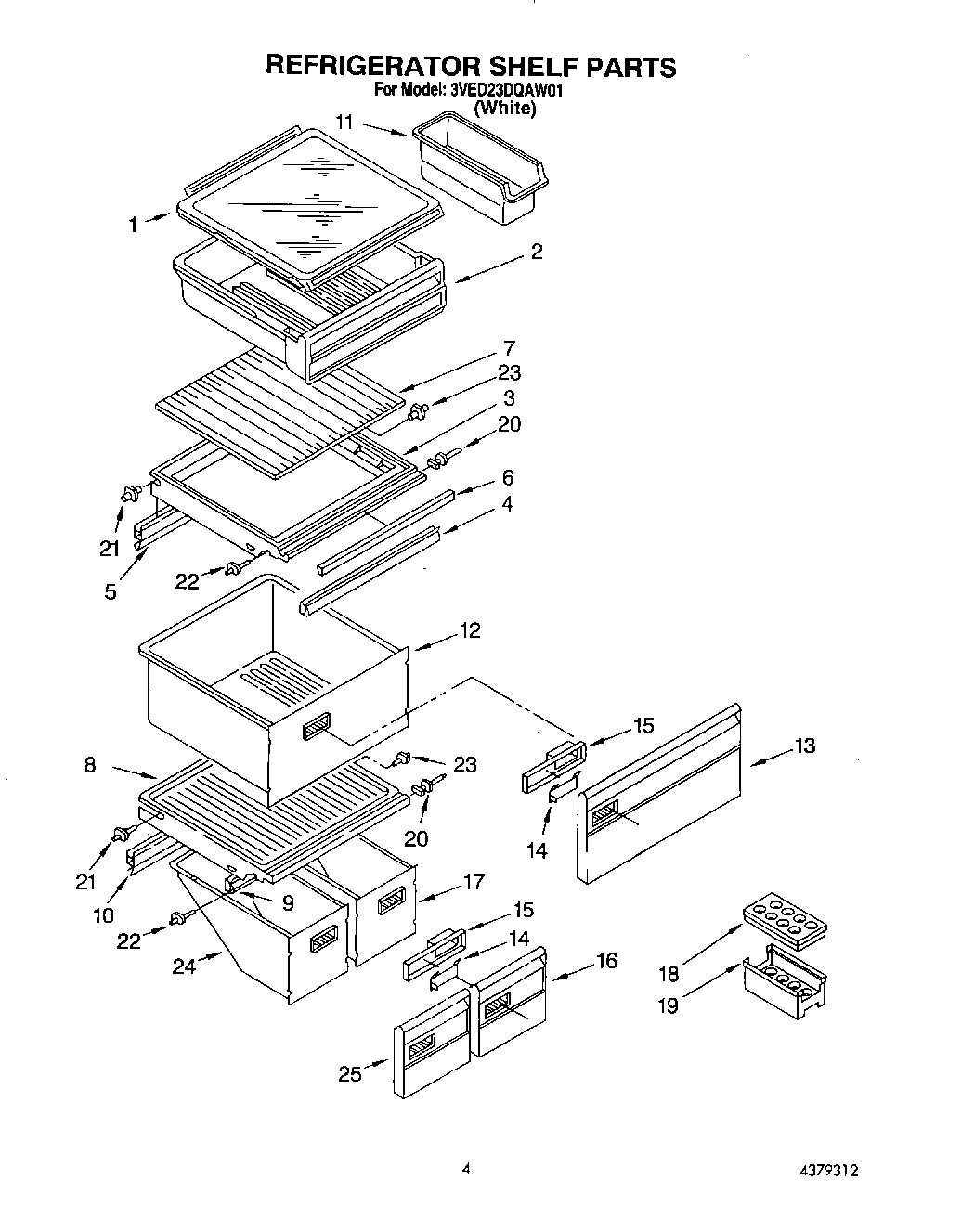

03 - REFRIGERATOR SHELF

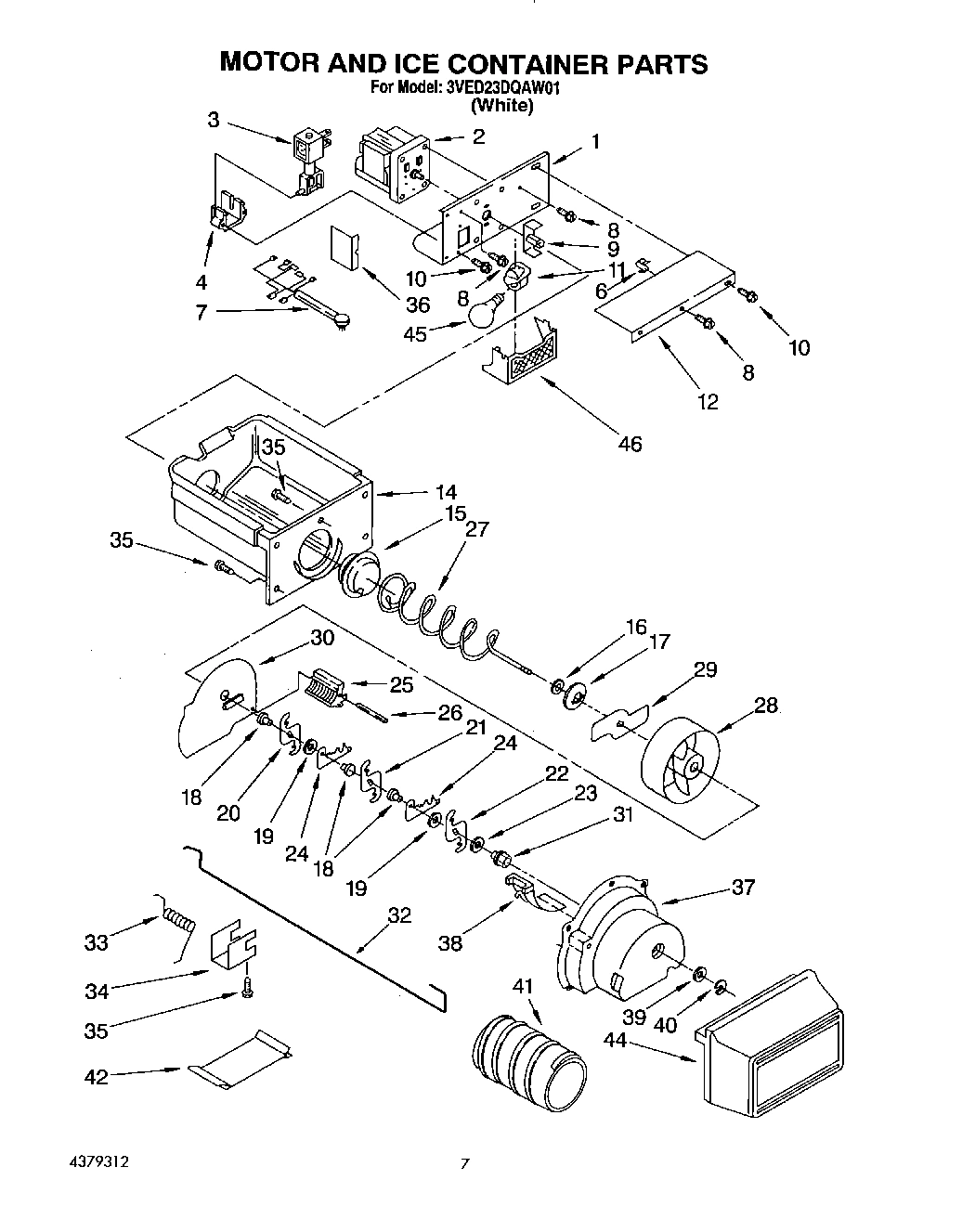

05 - MOTOR AND ICE CONTAINER

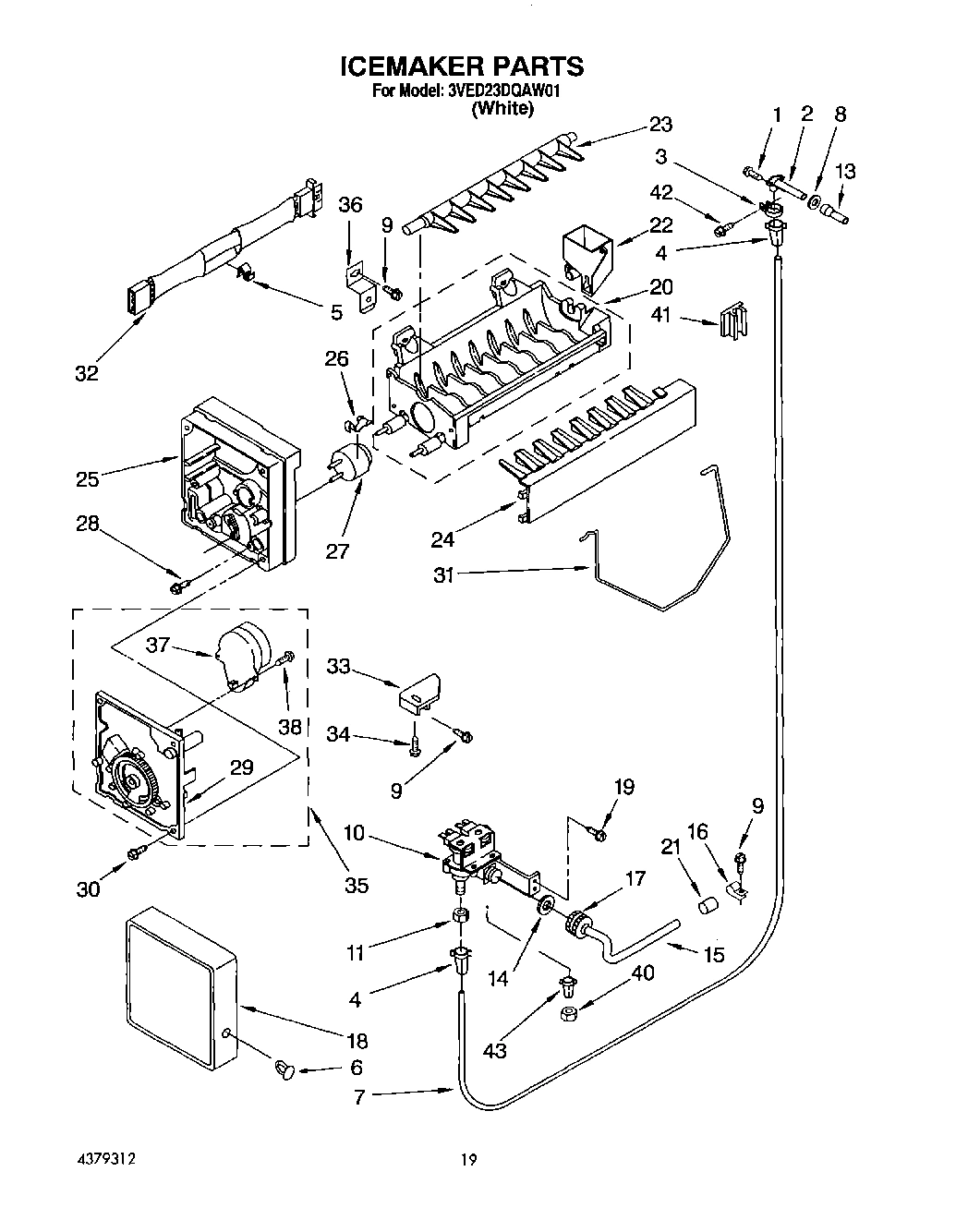

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 3VED23DQAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165259 WPL LIT2165259 Contact Us For Availability
WPL LIT2170035 WPL LIT2170035 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12339A6 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 18) WPL 4362040 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115235 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Shelf Bin (2) WPL 1124847 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI12341A1 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Pin Plate (6) WPL 1116986 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
8
Cover, Meat Pan WPL 1124812 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (3) WPL 2149085 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Valve, Solenoid WPL 2165238 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
13
Panel, Interior Door WPL 2149009 Contact Us For Availability
13
Front, Crisper Pan WPL 1124825 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Trim, Door Shelf WPL 2149084 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Slide, Humidity Control WPL 1124819 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Housing WPL 1124820 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Trim, Door Shelf WPL 2149083 Contact Us For Availability
16
Front, Crisper Pan WPL 1124817 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Harness, Door WPL 2167055 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Pan, Crisper WPL 1114690 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Egg Container, Top WPL 1107388 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
19
Egg Container, Bottom WPL 1107384 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Shelf Stud WPL 1115290 No Longer Available
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Heater, Door WPL 2165376 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
24
Meat Pan WPL 1114691 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Front, Meat Pan WPL 1124814 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Bracket, Door Stop WPL 2155332 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Insert, Handle WPL 1119367 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159197 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150314 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
44
Door Dike (2) WPL 1115378 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Containter WPL 2149005 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
