Model Whirlpool 3RAWZ481GML1 GAS DRYER – Common Parts &amp; Diagrams

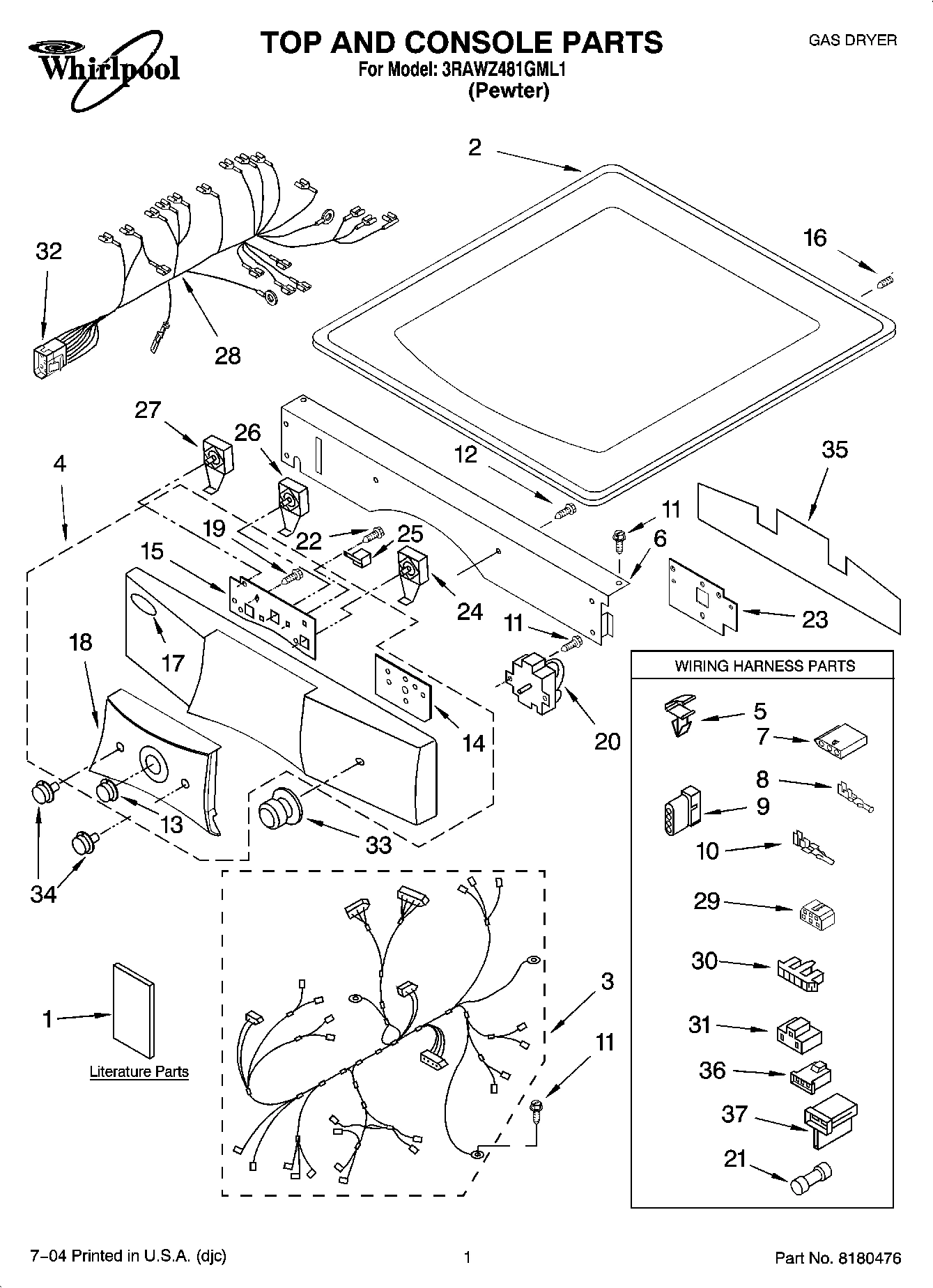

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $10.30

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $41.96

1

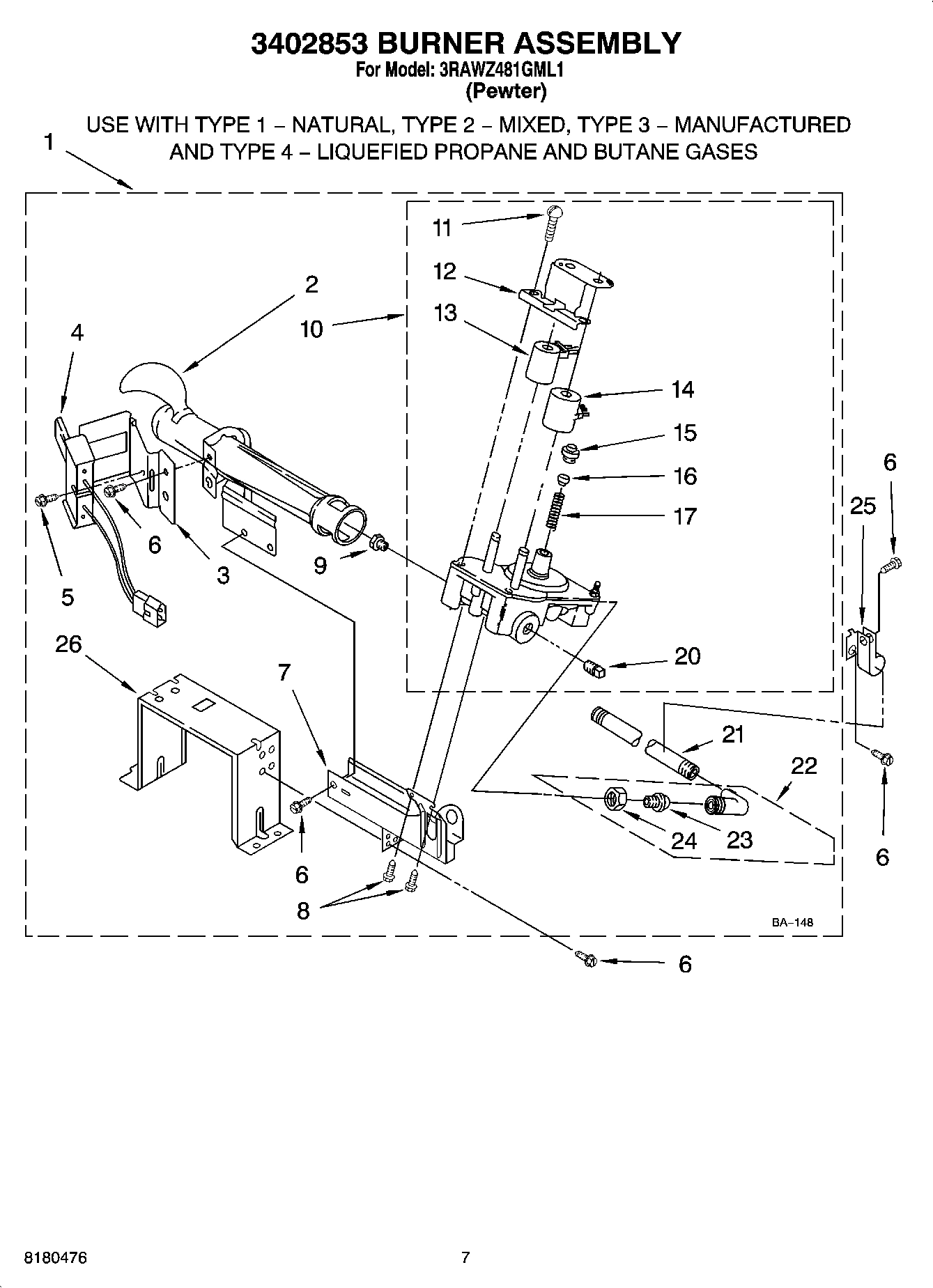

Burner Assembly 50 Hz. (White Rodgers) WPL 3402853 Contact Us For Availability

2

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Side (R.H.) WPL 8519217 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WP8318457 Whirlpool Switch Plug Backorder WPL WP8318457 $16.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

Pad, Door Handle WPL 8519336 Contact Us For Availability

6

Dry Rack (Top) WPL 8521947 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

Panel, Side (L.H.) WPL 8519216 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

9

ORIFICE, BURNER TYPE 1 WPL 234660 Contact Us For Availability

9

Orifice, Burner (Butane) WPL 299372 Contact Us For Availability

10

WP8281918 Whirlpool Gas Valve Backorder WPL WP8281918 $148.40

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

WP307930 Whirlpool Coil Valve Backorder WPL WP307930 $55.66

13

Button, Push-To-Start WPL 3980121 Contact Us For Availability

3978776 Whirlpool Bracket Backorder WPL 3978776 $30.25

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WPY307931 Whirlpool Valve Coil Backorder WPL WPY307931 $63.49

Bracket, Timer WPL 3979738 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

15

Bracket, Switch Mounting WPL 3979743 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

Medallion WPL 8543319 Contact Us For Availability

17

Sound Panel WPL 8528076 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

Console, Center WPL 3956540 Contact Us For Availability

19

Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability

19

Wire, Jumper (Includes Illus. 41) WPL 8543119 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Timer WPL 3980205 Contact Us For Availability

21

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $10.47

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Pipe, Gas Supply WPL 3387224 Contact Us For Availability

22

3406051 Whirlpool Elbow Backorder WPL 3406051 $39.03

22

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

Dry Rack Support WPL 8521961 Contact Us For Availability

23

Spacer Plate (Timer) WPL 3980421 Contact Us For Availability

24

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

24

W10168170 Whirlpool Switch Backorder WPL W10168170 $69.07

24

Nut, Compression WPL 233076 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

BUZZER-NON Backorder WPL 8522378 $43.70

25

Dry Rack Assembly WPL 8521950 Contact Us For Availability

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

WPW10112668 Whirlpool Relay Push to Start Backorder WPL WPW10112668 $46.43

Conversion Kit WPL 279918 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI12264A5 Contact Us For Availability

27

W10168169 Whirlpool Switch Backorder WPL W10168169 $30.89

27

W10416573 Whirlpool Drive Motor Backorder WPL W10416573 $197.31

28

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $8.51

28

Harness, Console WPL 8543291 Contact Us For Availability

29

3402548 Whirlpool Motor Pulley Backorder WPL 3402548 $48.50

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

29

Connector 6-Circuit WPL 3347243 Contact Us For Availability

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $11.24

30

Connector, Timer WPL 3397269 Contact Us For Availability

31

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

32

Connector WPL 692997 Contact Us For Availability

33

Knob, Timer Assembly WPL 3980218 Contact Us For Availability

33

Cord, Power WPL 3977712 Contact Us For Availability

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

34

Knob, Control (2) WPL 3980129 Contact Us For Availability

35

Shield, Drip WPL 3980339 Contact Us For Availability

36

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $30.89

37

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $11.37

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

41

Switch, Door WPL 8541808 Contact Us For Availability

42

3400934 Whirlpool Screw Backorder WPL 3400934 $4.56

42

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $45.40

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

47

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

48

W10851673 Whirlpool Transformer Backorder WPL W10851673 $227.00

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Wire, Ground WPL 340025 Contact Us For Availability

50

Base, Cabinet WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

51

Front Panel WPL 8562170 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

53

WP8316063 Whirlpool Adapter Backorder WPL WP8316063 $54.93

56

Bracket, Control WPL 8519273 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

61

Toe, Panel WPL 3980095 Contact Us For Availability

62

Panel, Rear WPL 8543118 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

64

Screw, 10-24 x 3/8 WPL 3400097 Contact Us For Availability

64

Optional WPL ARI12263A8 Contact Us For Availability

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11
