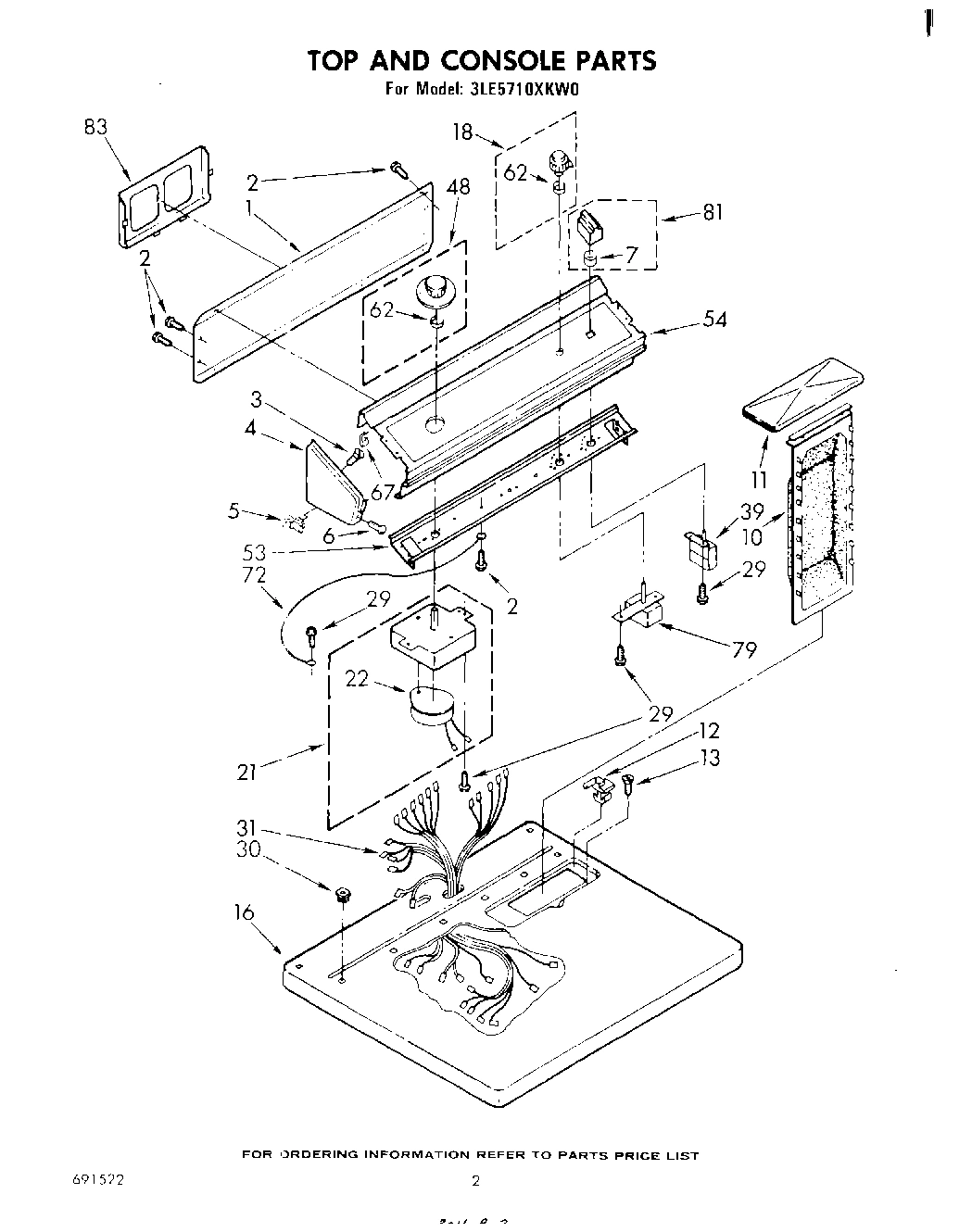

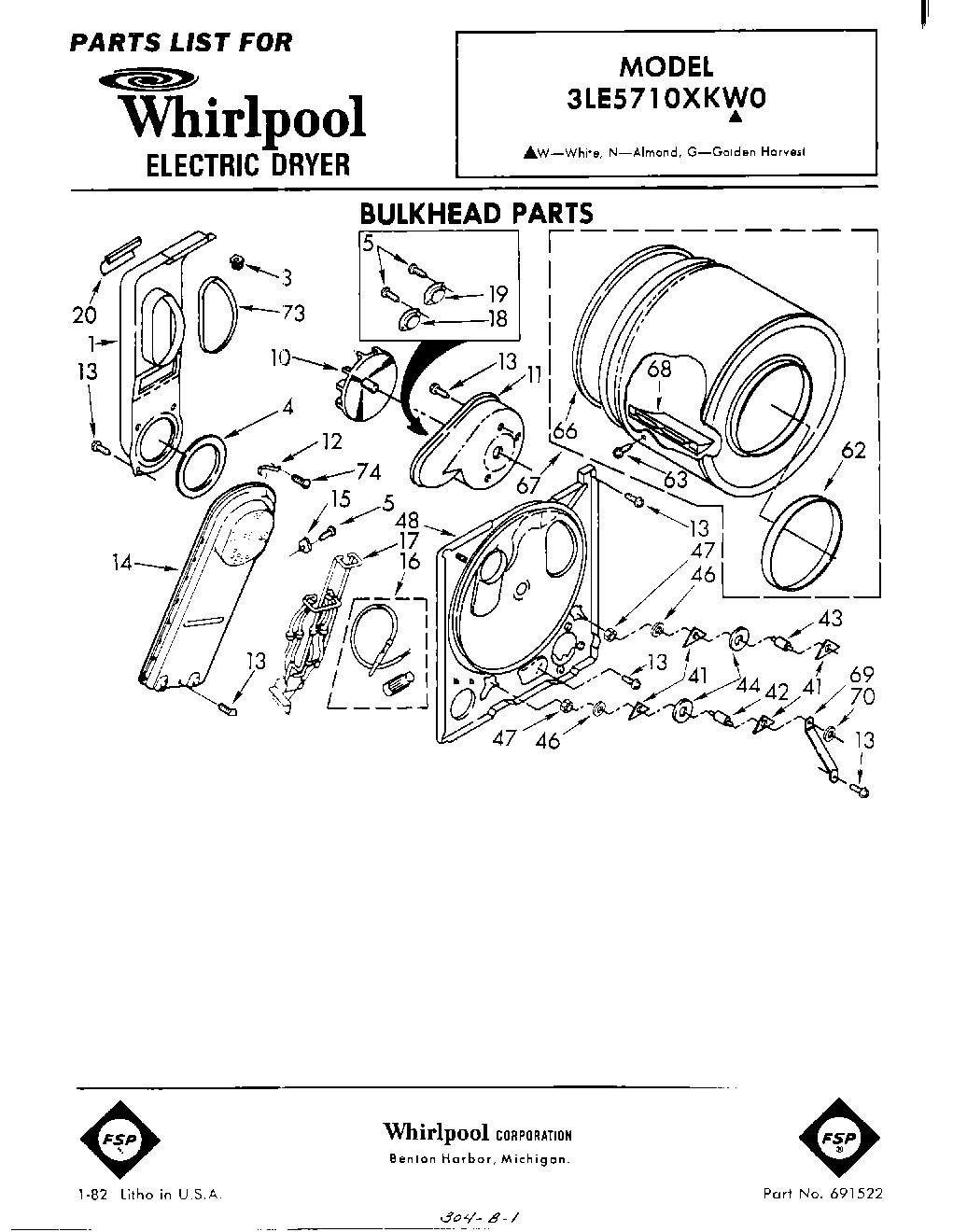

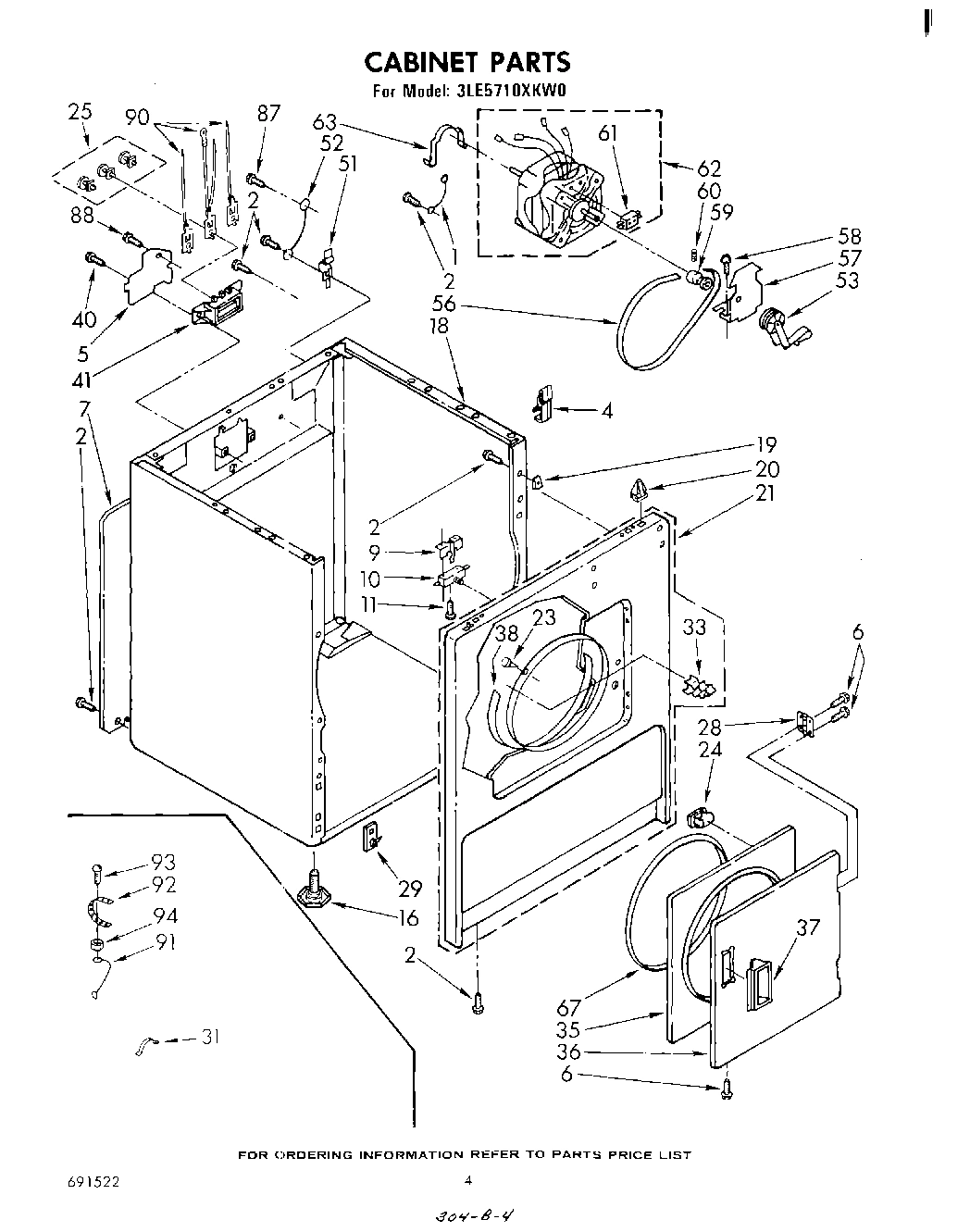

Model Whirlpool 3LE5710XKW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT688898 WPL LIT688898 Contact Us For Availability

WPL LIT691266 WPL LIT691266 Contact Us For Availability

WPL LIT691522 WPL LIT691522 Contact Us For Availability

WPL LIT692787 WPL LIT692787 Contact Us For Availability

1

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Clip, Strain Relief WPL 689180 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Stop, Push-In WPL 358472 Contact Us For Availability

6

Screw WPL 689791 Contact Us For Availability

6

Screw, 8-18 WPL 358225 Contact Us For Availability

7

Panel, Rear WPL 346368 Contact Us For Availability

7

Clip WPL 90015 Contact Us For Availability

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Control Knob Assembly WPL 690303 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Upper Front Panel Assembly (Also Includes Ill WPL 348390 Contact Us For Availability

Upper Front Panel Assembly (Also Includes Ill WPL 689294 Contact Us For Availability

Upper Front Panel Assembly (Also Includes Ill WPL 689299 Contact Us For Availability

Timer, 230 Volt (50/60 Hz.) WPL 687939 Contact Us For Availability

22

Motor WPL 685886 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

25

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 688857 Contact Us For Availability

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

36

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

36

Door, Front (Almond) WPL 689314 Contact Us For Availability

36

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

37

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

37

Handle, Door (Almond) WPL 689306 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (Alternate) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start (Alternate) WPL 692021 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

48

Timer Knob Assembly WPL 690204 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

Wire, Ground WPL 340025 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 691675 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11618508 Whirlpool Drive Motor Backorder WPL W11618508 $189.75

60

Set Screw WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

67

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

79

Switch, Rotary WPL 348686 Contact Us For Availability

81

Button Assembly WPL 689857 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

87

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

90

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

91

WPL 685449 WPL 685449 Contact Us For Availability

92

WPL 22965 WPL 22965 Contact Us For Availability

93

WPL 132848 WPL 132848 Contact Us For Availability

94

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59
