Model Whirlpool 3ET16NKXDW02 REFRIGERATOR – Common Parts & Diagrams
03 - LINER
05 - SHELF, LIT/OPTIONAL
02 - DOOR
04 - UNIT

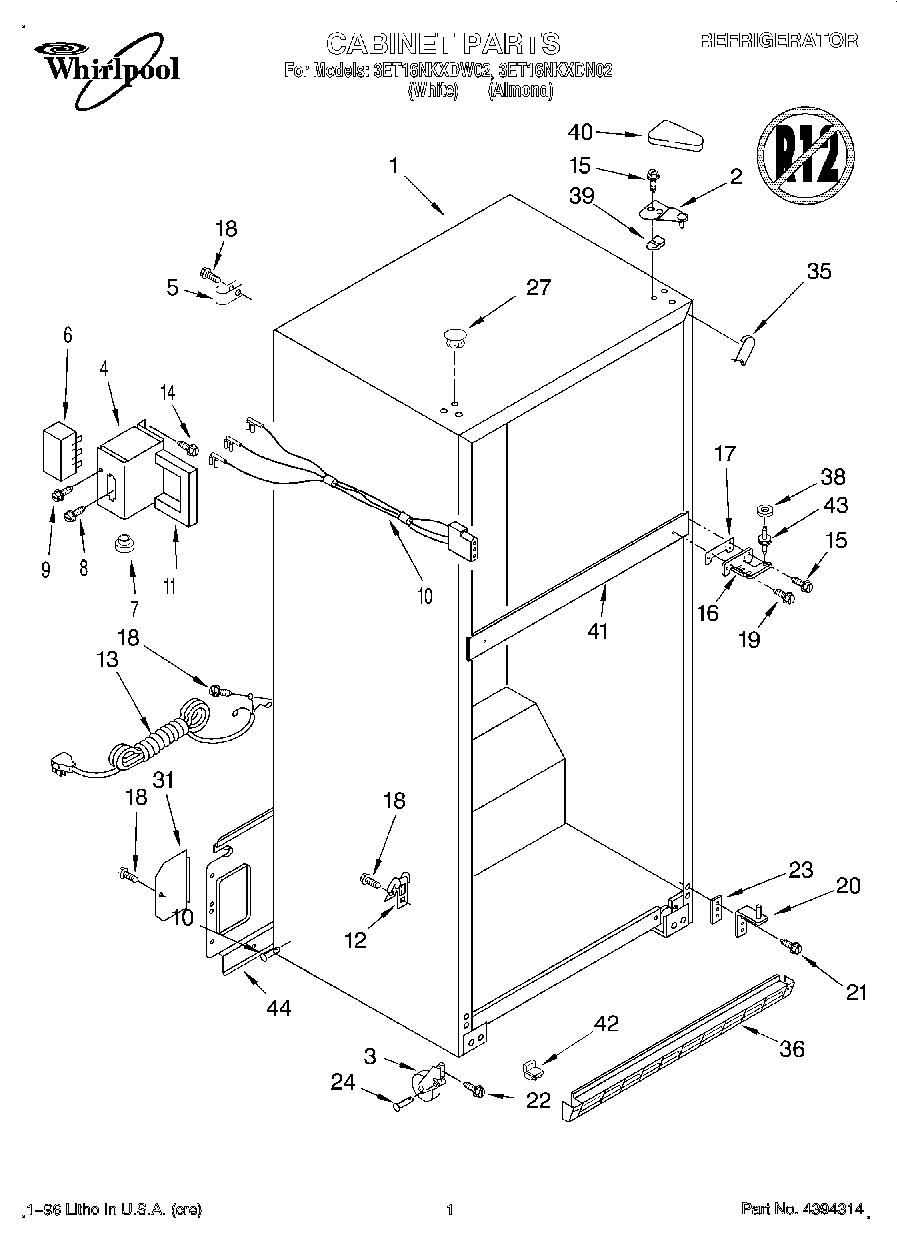

01 - CABINET
Common parts from model Whirlpool 3ET16NKXDW02 REFRIGERATOR
1
Support Plate, Compressor WPL 2182437 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI11896A9 Contact Us For Availability
2
Handle End, Side WPL 1109189 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Heater, Defrost WPL 2166871 Contact Us For Availability
4
Enclosure, Term. WPL 2158579 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
5
Evaporator Assy. WPL 2166206 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Terminal Block WPL 1129346 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172619 Contact Us For Availability
7
Bushing WPL 1129449 Contact Us For Availability
8
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
9
Clip, Wire WPL 489435 Contact Us For Availability
9
Screw WPL 489346 Contact Us For Availability
10
Butter, Tray WPL 1125936 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Wiring Assy. WPL 2166651 Contact Us For Availability
11
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
11
Gasket WPL 2167227 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Nameplate WPL 2165148 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
14
Screw WPL 489022 Contact Us For Availability
15
Insert, Handle (White) WPL 1108828 Contact Us For Availability
15
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
16
Bracket, Heater WPL 2176301 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159447 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Protector WPL 2183183 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
21
Screw WPL 489459 Contact Us For Availability
22
Retainer, Insert WPL 2159417 Contact Us For Availability
22
Screw WPL 2174650 Contact Us For Availability
23
Door Gasket, Magnetic (Service) WPL 2159056 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 29, 32 WPL 2169447 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Shim WPL 935074 Contact Us For Availability
33
Handle, F.C. (White) WPL 2166437 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2166786 Contact Us For Availability
36
Bracket, Door Stop WPL 944035 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Handle End, Top WPL 944163 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI11897A2 Contact Us For Availability
42
Trim, Door WPL 2184570 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
