Model Whirlpool 3ET16NKXBN00 REFRIGERATOR – Common Parts & Diagrams

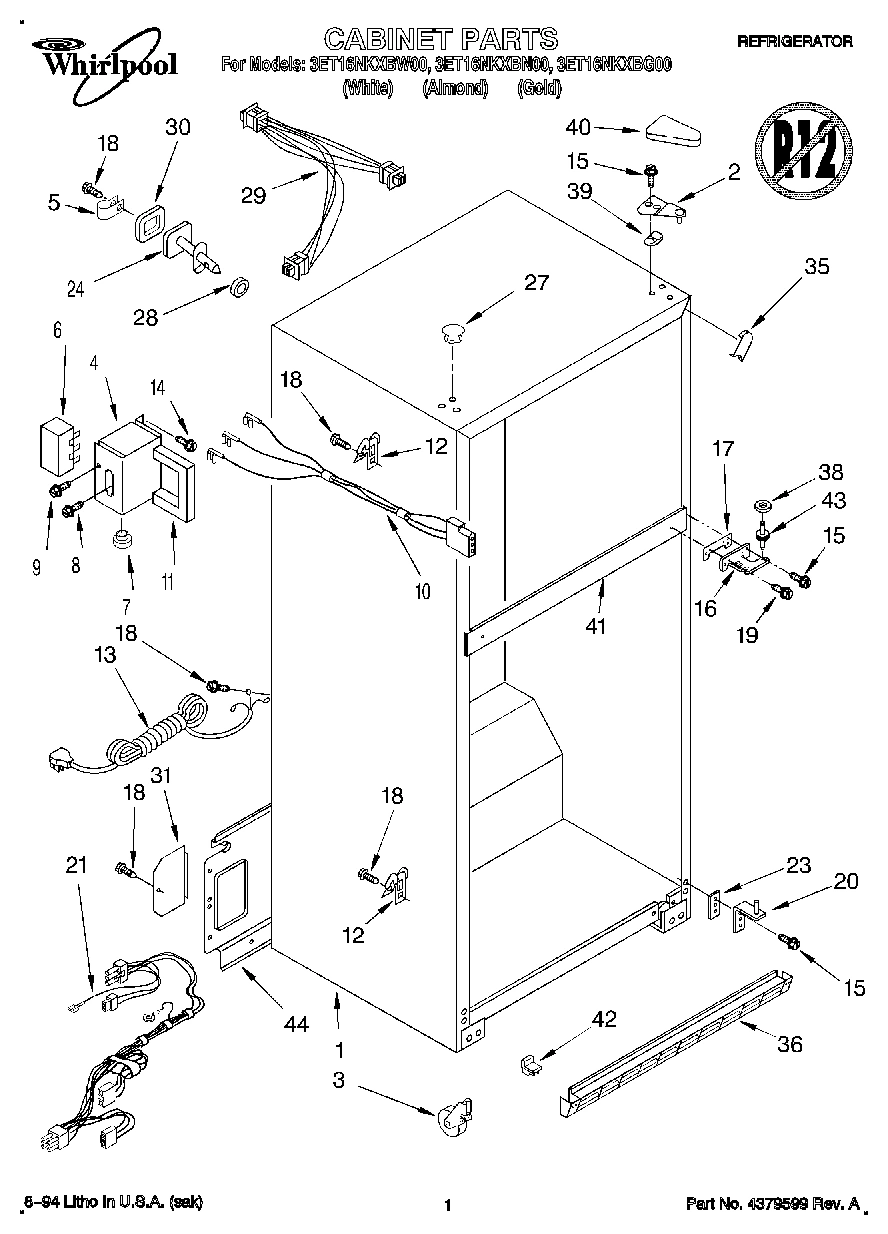

01 - CABINET

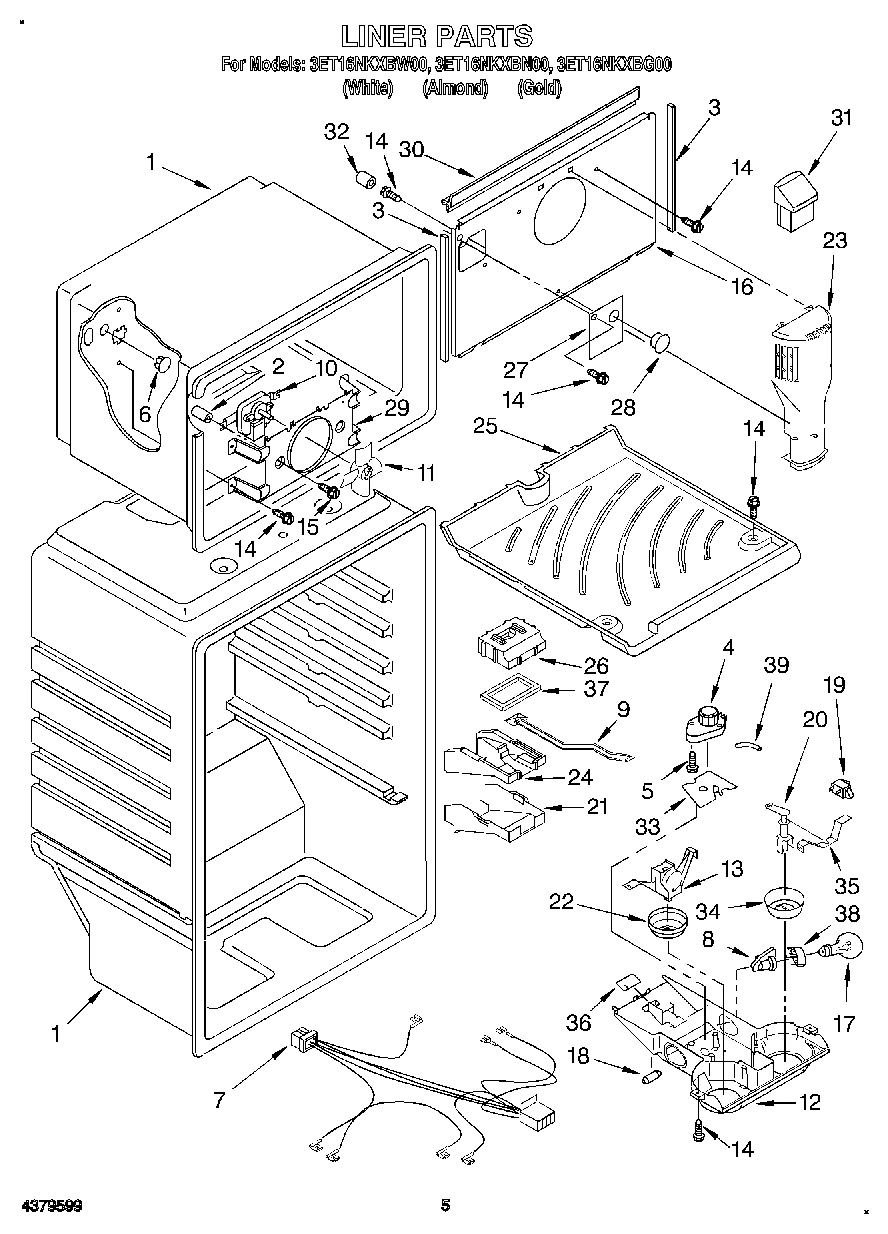

03 - LINER

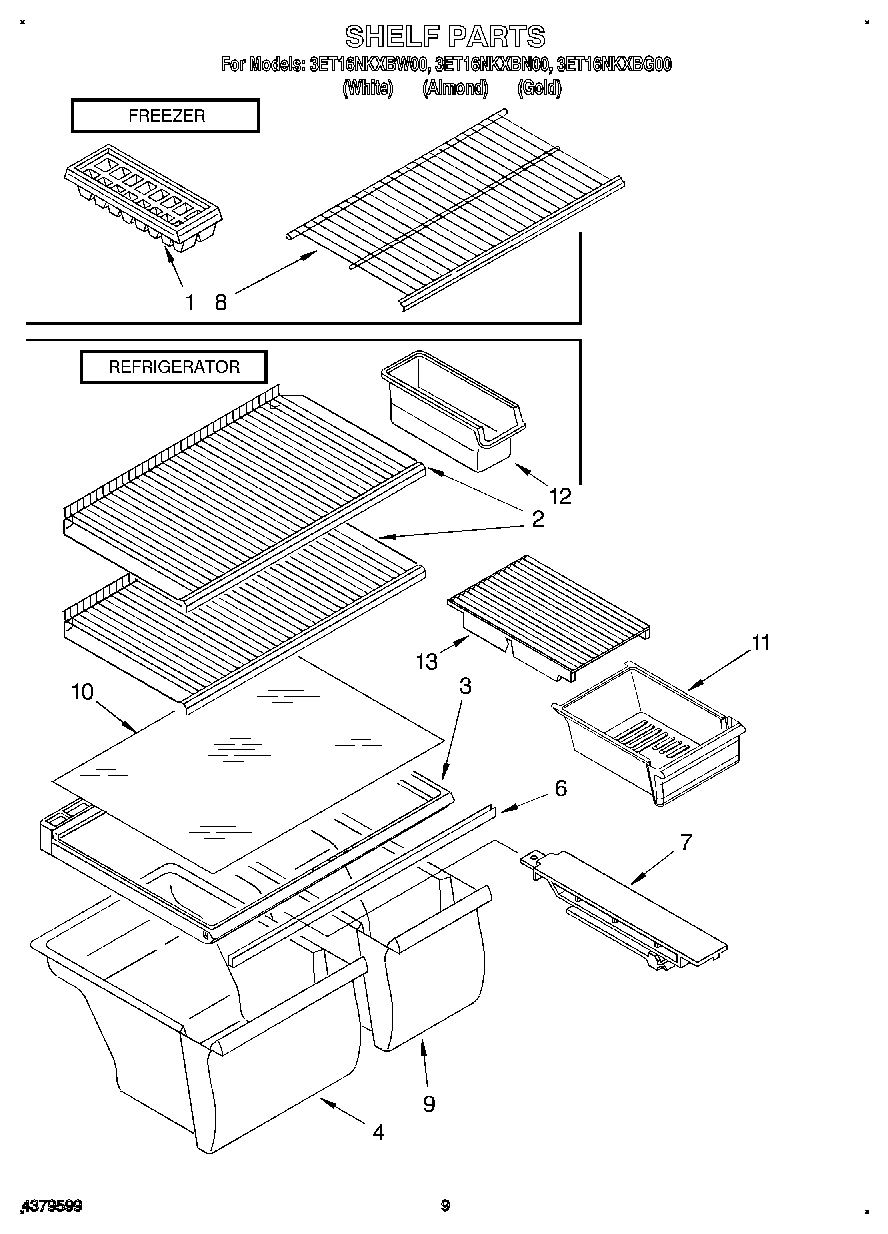

05 - SHELF, LIT/OPTIONAL

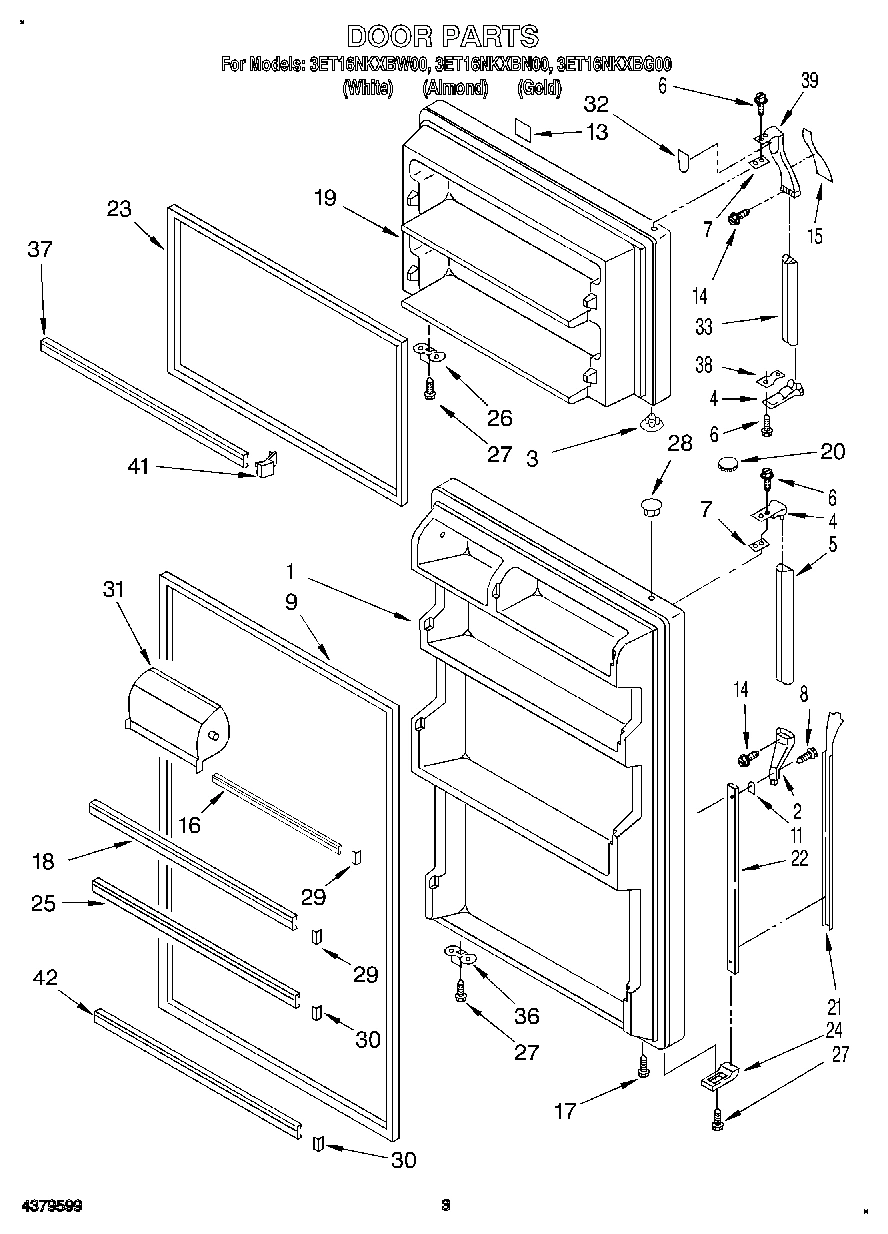

02 - DOOR

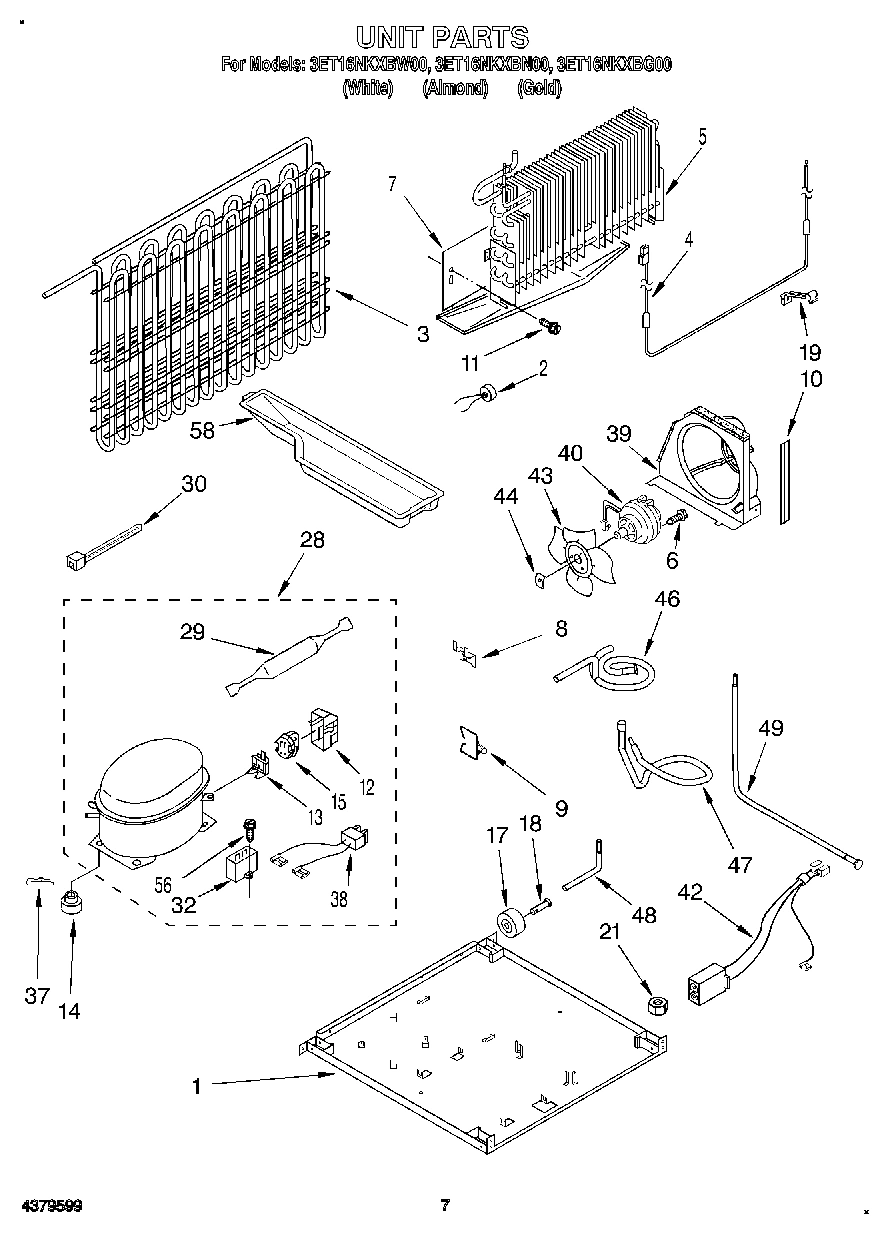

04 - UNIT
Common parts from model Whirlpool 3ET16NKXBN00 REFRIGERATOR
Service and WPL LIT2166777 Contact Us For Availability
WPL LIT2166793 WPL LIT2166793 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Gold) WPL 2166866 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Almond) WPL 2171270 Contact Us For Availability
1
Support Plate, Compressor WPL 2176202 Contact Us For Availability
2
Handle End, Side WPL 1109189 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
End Cap, Handle WPL 944157 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Handle, Center (Black) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
5
Evaporator Assy. WPL 2172669 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172618 Contact Us For Availability
8
Shelf WPL 2163828 Contact Us For Availability
8
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Clip, Wire WPL 489435 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
13
Overload (Production) WPL 2166738 Contact Us For Availability
14
Screw WPL 489022 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Insert, Handle (White) WPL 1108828 Contact Us For Availability
15
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
15
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159447 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Gold) WPL 2166782 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
21
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
21
Insert, Handle (White) WPL 2166438 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI140070A Contact Us For Availability
22
Control Knob WPL 2163800 Contact Us For Availability
22
Retainer, Insert WPL 2159417 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Chocolate) WPL 2159050 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159056 Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
24
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
WPL 989196 WPL 989196 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 29, 32 WPL 2169227 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
32
WPL 935074 WPL 935074 Contact Us For Availability
33
Hole Cover, Defrost Timer WPL 2166805 Contact Us For Availability
33
WPL 2159415 WPL 2159415 Contact Us For Availability
33
WPL 2166437 WPL 2166437 Contact Us For Availability
33
WPL 2166786 WPL 2166786 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
WPL 2159368 WPL 2159368 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Clip, Compressor WPL 2163787 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
42
WPL 2171141 WPL 2171141 Contact Us For Availability
42
Wire Assy. Unit WPL 2166649 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
