Model Whirlpool 3CGP2951BW0 GAS DRYER – Common Parts & Diagrams

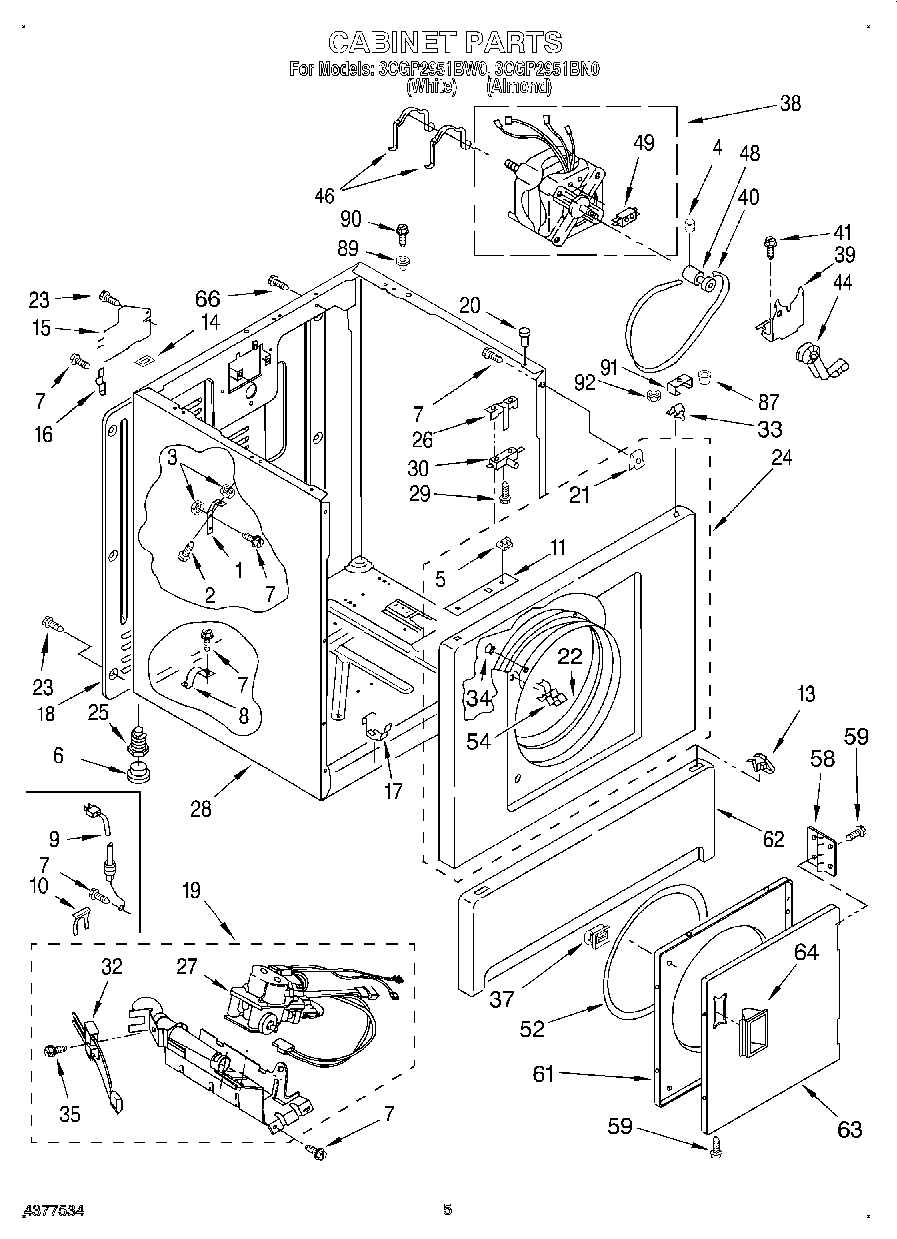

03 - CABINET

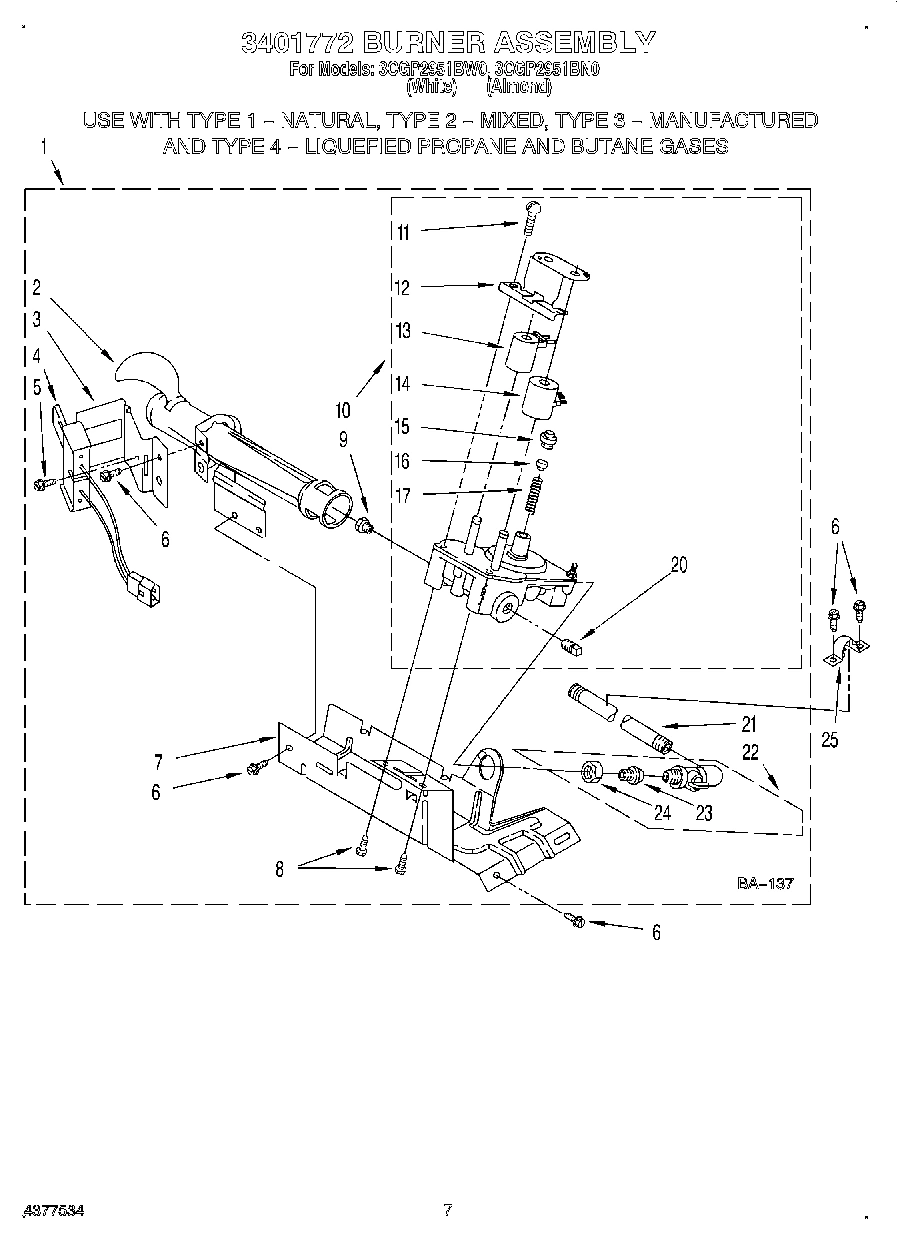

04 - 3401772 BURNER

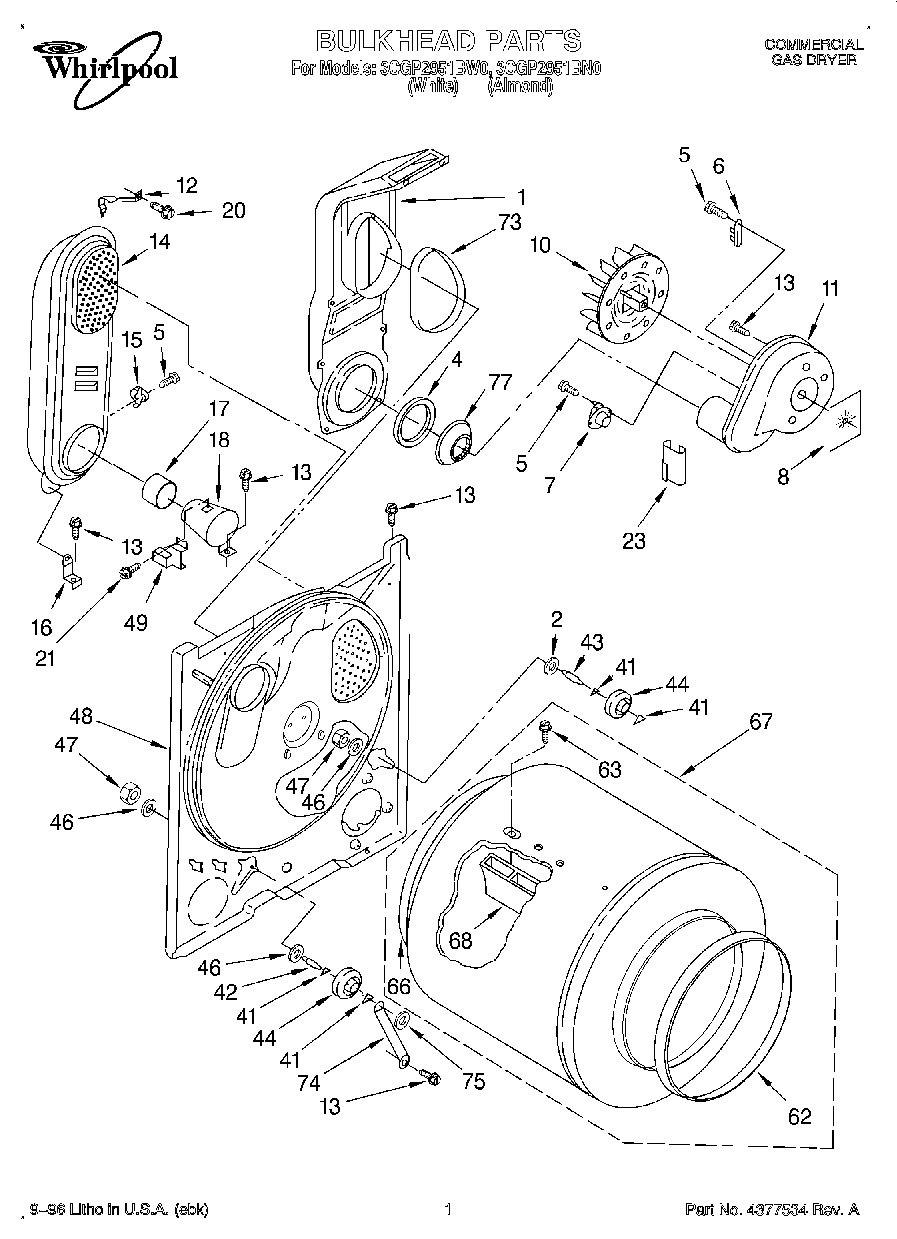

01 - BULKHEAD, LIT/OPTIONAL

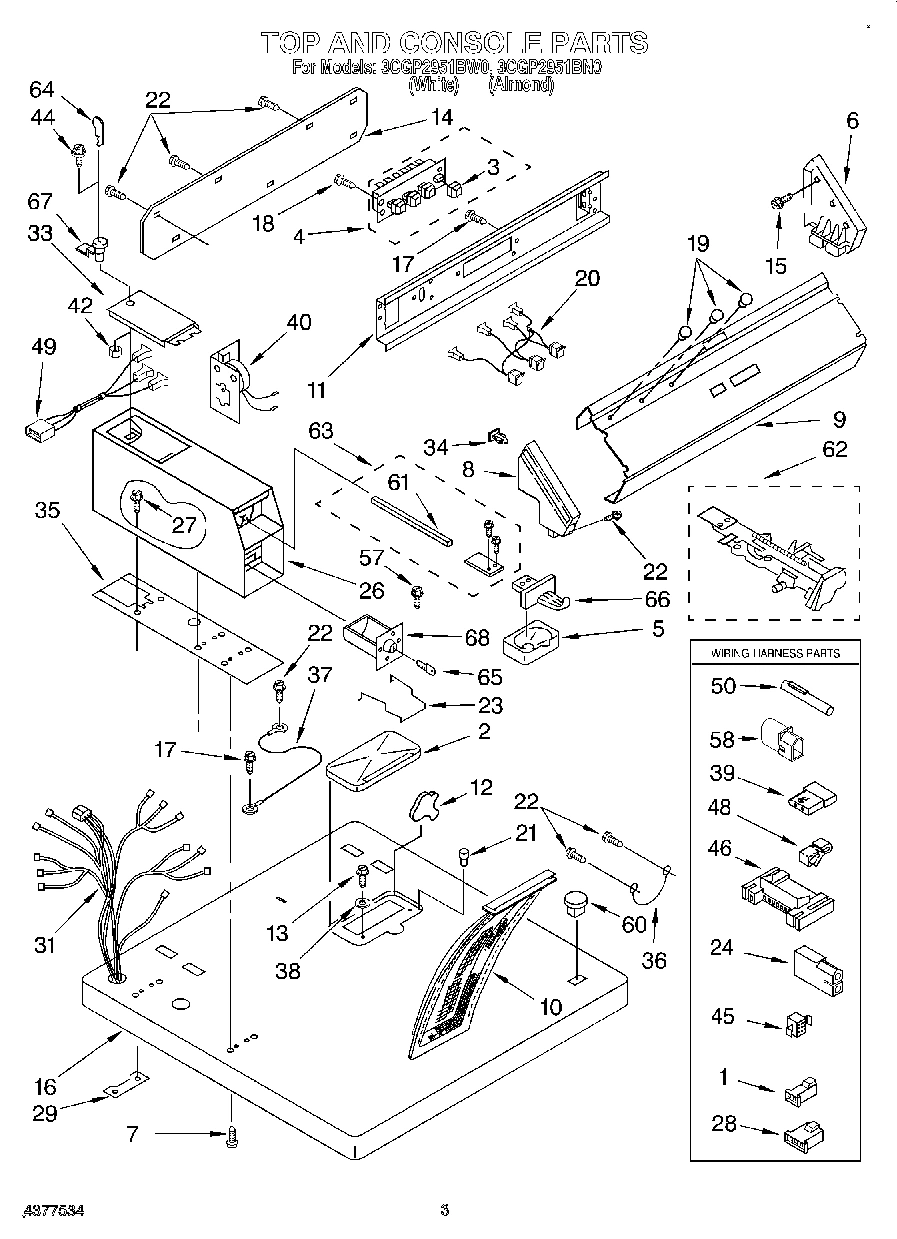

02 - TOP AND CONSOLE
Common parts from model Whirlpool 3CGP2951BW0 GAS DRYER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
New Gold WPL 261890 Contact Us For Availability
New Gold (Uncut) WPL 261891 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Label, Operating Instructions WPL LIT3394996 Contact Us For Availability
Instructions, Installation WPL LIT3395317 Contact Us For Availability
Label, Wiring Diagram WPL LIT3401731 Contact Us For Availability
Instr WPL LIT348772 Contact Us For Availability
WPL LIT692257 WPL LIT692257 Contact Us For Availability
1
Burner Assembly 50 Hz. (Type 1, 2 & 3) (White WPL 3401772 Contact Us For Availability
1
Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability
2
Cover, Lint Screen WPL 691205 Contact Us For Availability
3
Button (4) WPL 3348587 Contact Us For Availability
4
Switch, Pushbutton WPL 3394078 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
8
Seal, Blower WPL 3392123 Contact Us For Availability
8
End Cap (L.H.) WPL 3347710 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
9
ORIFICE, BURNER TYPE 1 WPL 234660 Contact Us For Availability
9
Panel, Control WPL 3393405 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Screw, Bracket Mounting (8-32 x 1/2) (2) WPL 694421 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
11
Bracket, Control WPL 3398113 Contact Us For Availability
12
Bracket, Coil WPL 694538 Contact Us For Availability
14
Panel, Rear WPL 3387978 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Top (White) WPL 3402300 Contact Us For Availability
16
Top (Almond) WPL 3402301 Contact Us For Availability
20
Lights, Indicator (240 Volts) WPL 3401760 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Bumper, Lint Lid WPL 297535 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
23
Pipe, Tail WPL 3393767 Contact Us For Availability
23
Guide, Drawer WPL 3352295 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
24
Receptacle, 2 Way WPL 717252 Contact Us For Availability
25
Clamp, Pipe WPL 341029 Contact Us For Availability
26
Case, Meter (White) WPL 3395378 Contact Us For Availability
26
Case, Meter (Almond) WPL 3395379 Contact Us For Availability
28
Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability
29
Plate & Nut Assembly WPL 3347825 Contact Us For Availability
31
Harness, Wiring WPL 3401768 Contact Us For Availability
33
Door, Service (For Almond Model) WPL 3351137 Contact Us For Availability
36
Wire, Ground WPL 690853 Contact Us For Availability
37
Wire, Ground WPL 340025 Contact Us For Availability
38
Washer WPL 237446 Contact Us For Availability
40
Timer, 50 Hz. WPL 694307 Contact Us For Availability
44
Screw & Washer WPL 358409 Contact Us For Availability
45
Plug WPL 342529 Contact Us For Availability
46
Connector, Housing WPL 3395683 Contact Us For Availability
48
Bulkhead WPL 3397260 Contact Us For Availability
48
Clip, Harness WPL 689180 Contact Us For Availability
49
Harness, Timer WPL 3401692 Contact Us For Availability
50
Receptacle WPL 351296 Contact Us For Availability
57
Screw, 10-32 X 3/16 WPL 339805 Contact Us For Availability
58
Receptacle, 4-Way WPL 717315 Contact Us For Availability
62
Panel, Toe (Almond) WPL 697096 Contact Us For Availability
63
WPL 689314 WPL 689314 Contact Us For Availability
64
WPL 689308 WPL 689308 Contact Us For Availability
74
Bracket, Support Shaft WPL 348945 Contact Us For Availability
77
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
77
Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability
77
Screw, No. 10 WPL 3394926 Contact Us For Availability
87
WPL 356674 WPL 356674 Contact Us For Availability
89
WPL 356837 WPL 356837 Contact Us For Availability
90
WPL 427190 WPL 427190 Contact Us For Availability
92
WPL 90984 WPL 90984 Contact Us For Availability
× ![]()
