Model GE 363.58062897 Refrigerator (Kenmore 36358062897) – Common Parts & Diagrams

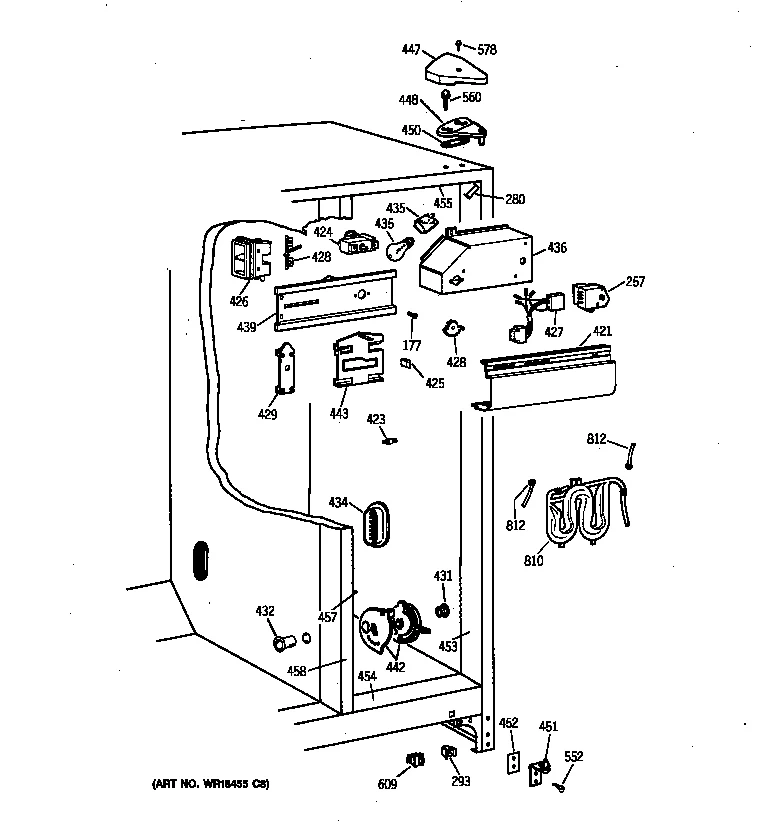

FRESH FOOD SECTION

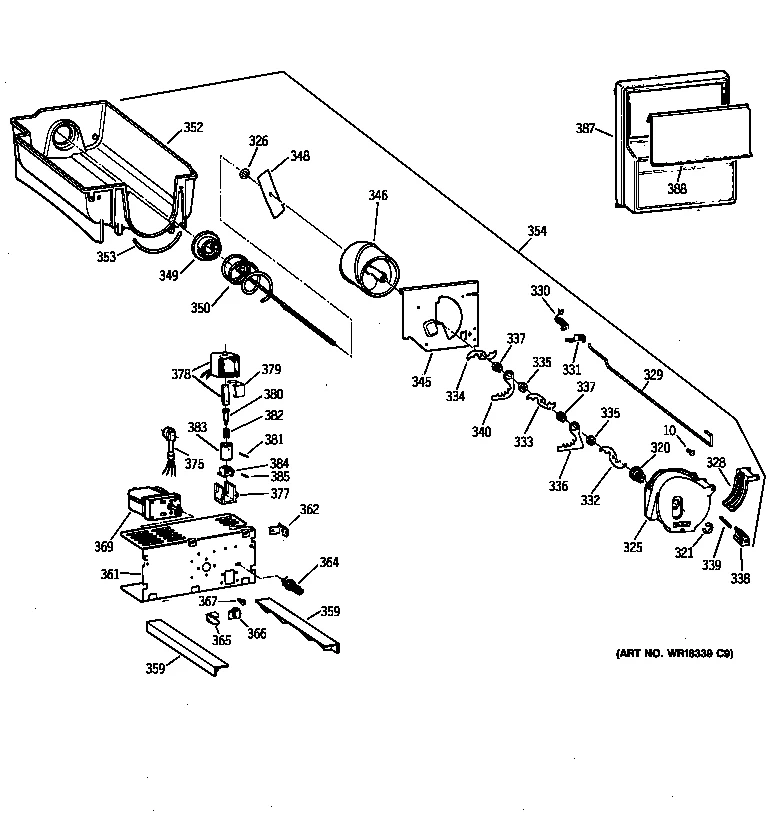

ICE BUCKET

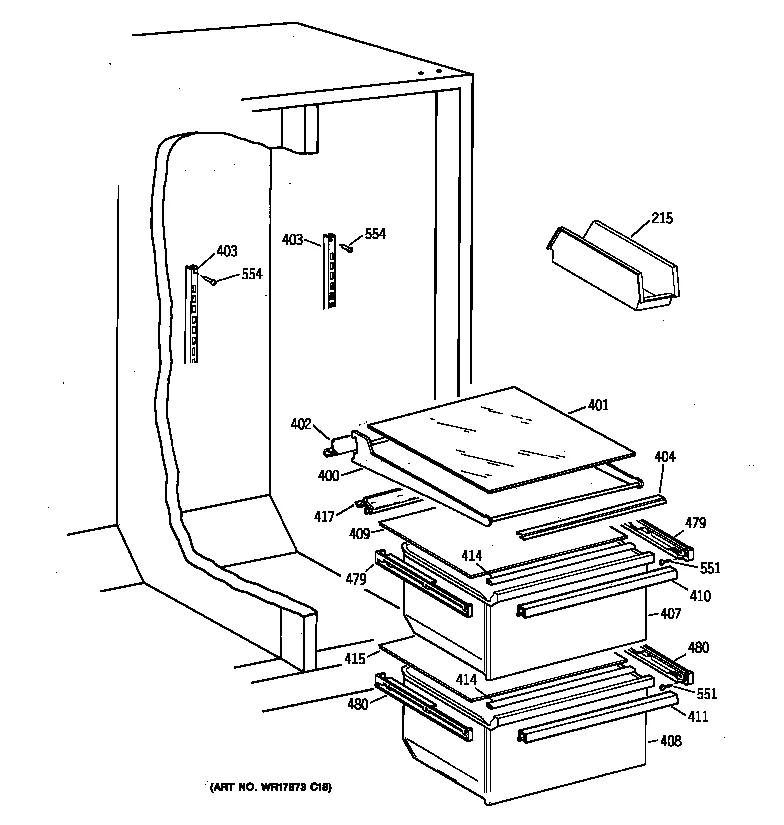

FRESH FOOD SECTION

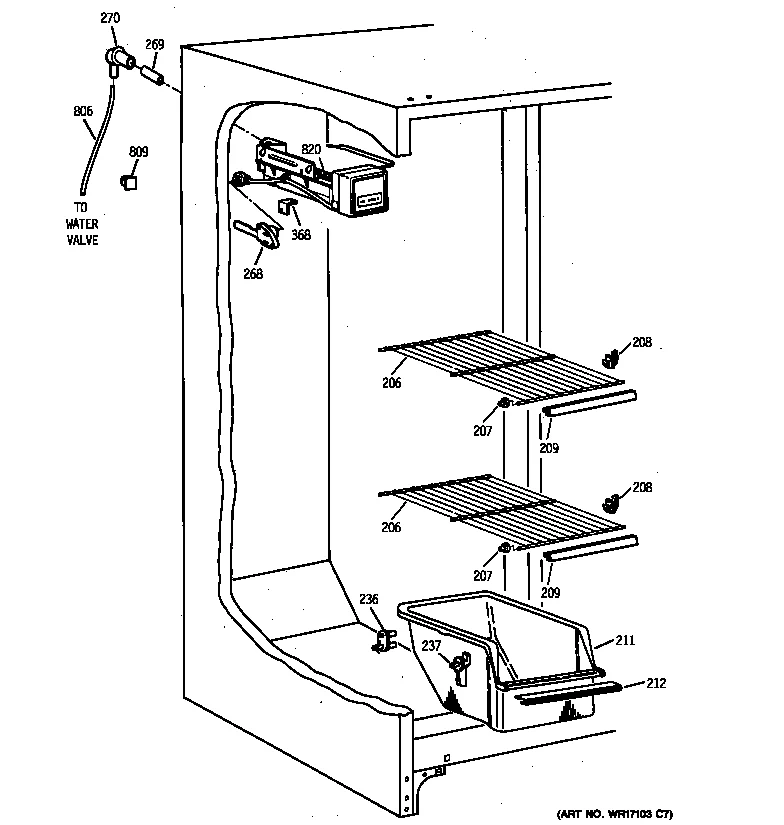

FREEZER SECTION

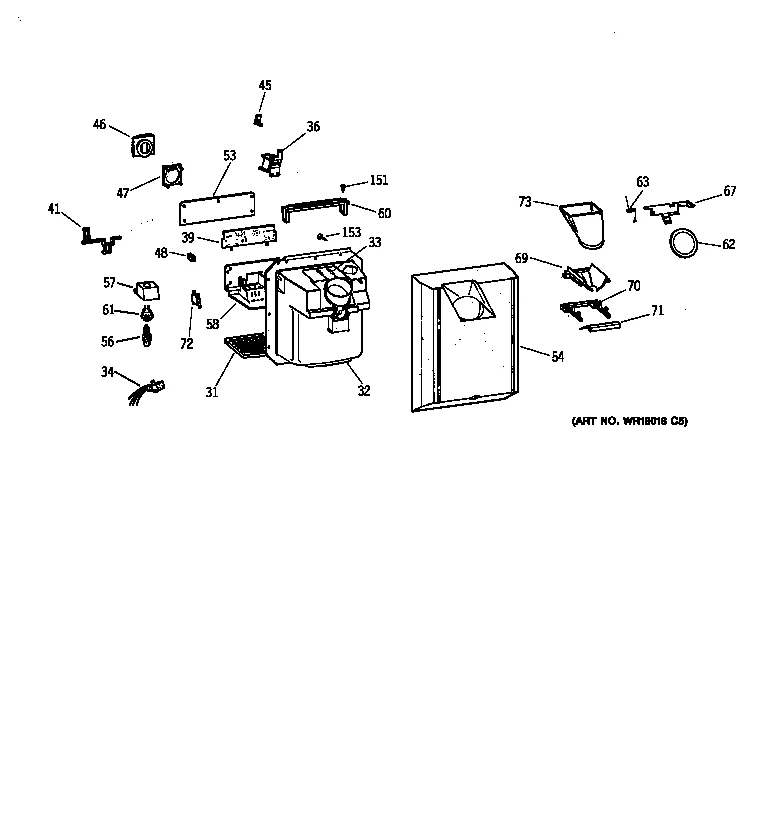

DISPENSER
All Parts

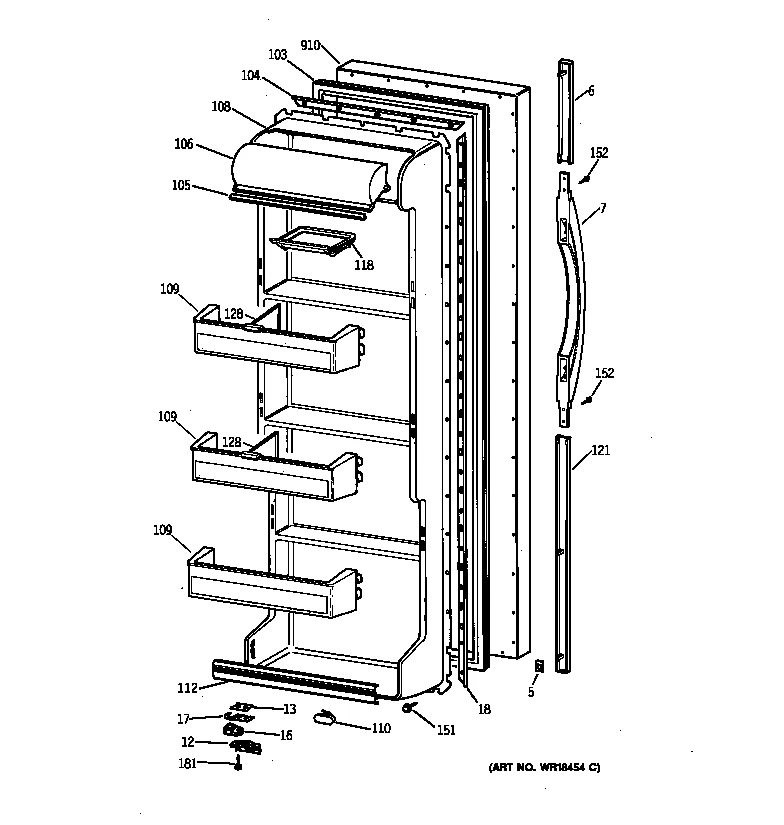

FRESH FOOD DOOR

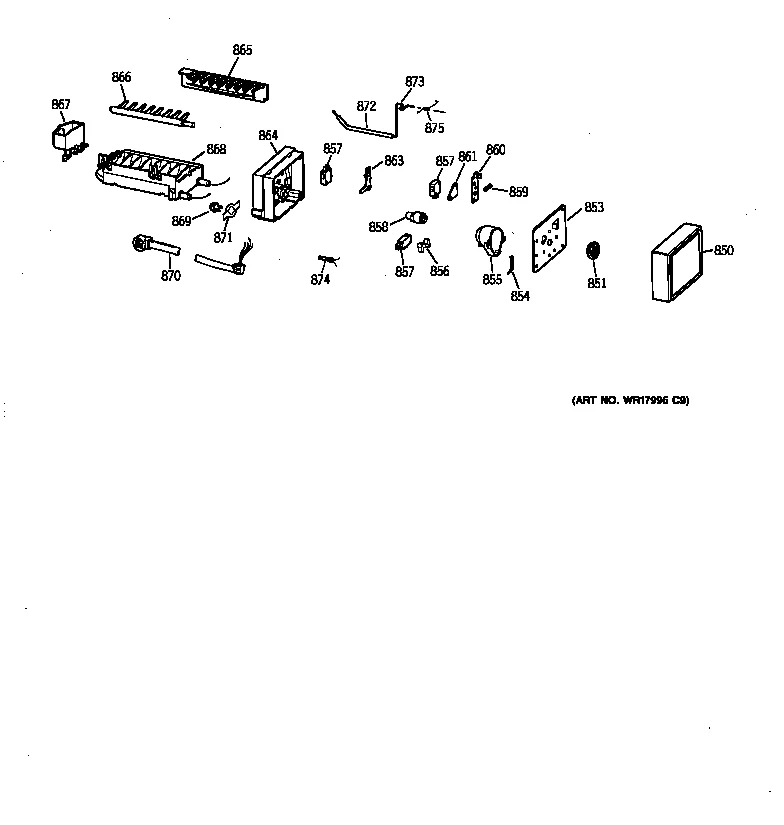

ICEMAKER WR30X0327

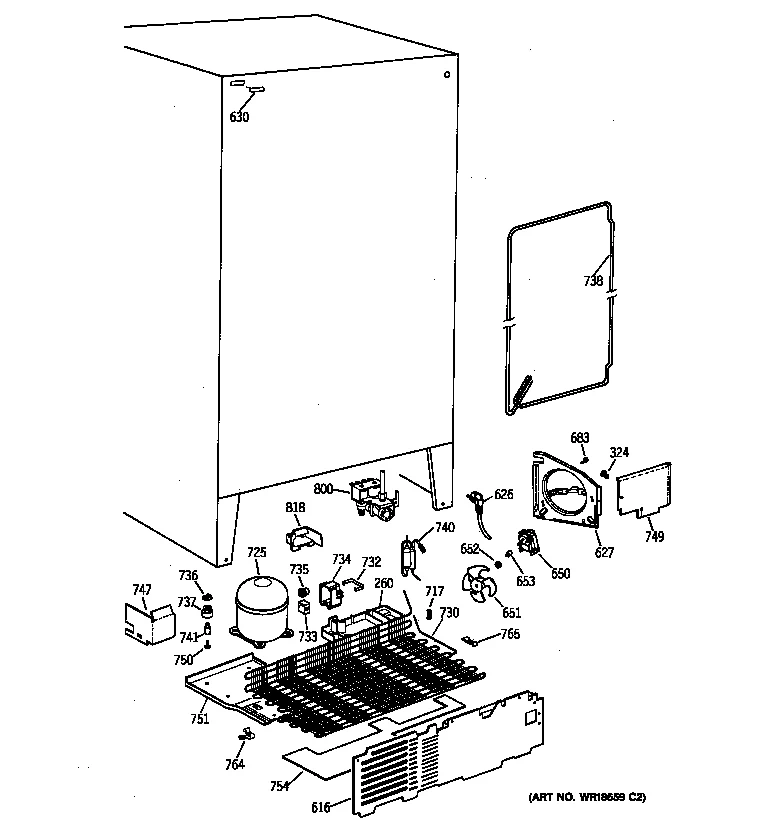

UNIT PARTS

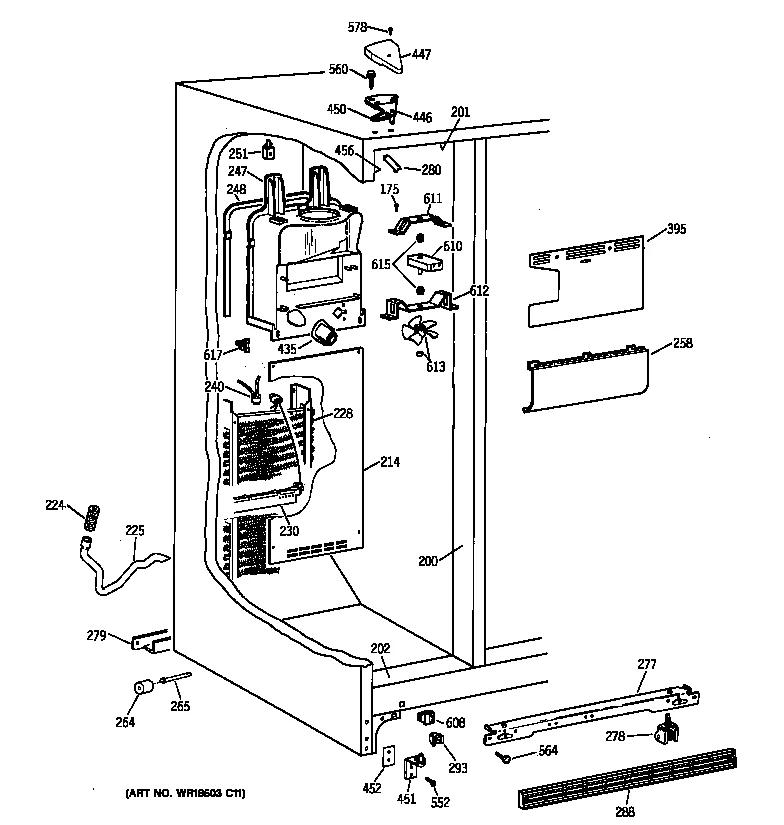

FREEZER SECTION

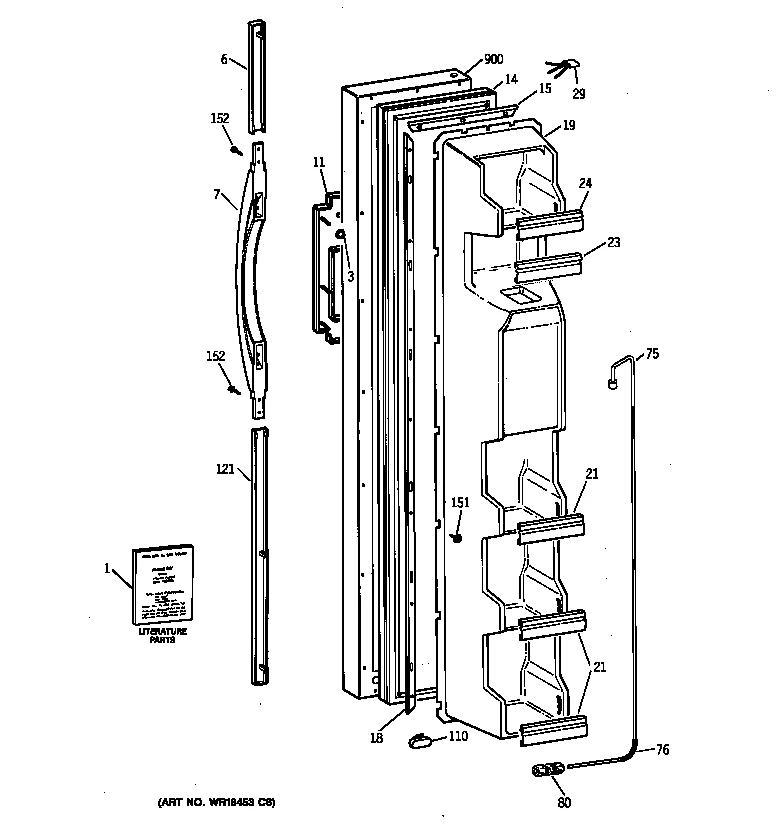

FREEZER DOOR
Common parts from model GE 363.58062897 Refrigerator (Kenmore 36358062897)
1A
Connection Block GEN WB17X5062 Contact Us For Availability
1D
Refrigerator Owner's Manual GEN 31-51267 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10041 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
11
Refrigerator Dispenser Trim (White) GEN WR38X10039 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10041 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X527 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
16
Refrigerator Riser Cam GEN WR2X10140 Contact Us For Availability
17A
Refrigerator Door Hinge Shim GEN WR2X7491 Contact Us For Availability
17B
Riser Shim GEN WR2X9147 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
19
I.d.panel Fz GEN WR77X600 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
23
Door Front GEN WR17X10091 Contact Us For Availability
24
Door Front GEN WR17X10092 Contact Us For Availability
29
Refrigerator Wire Harness GEN WR23X10114 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
75
Grommet Tube GEN WR17X3669 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X528 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X3120 Contact Us For Availability
105
Bright Trim GEN WR38X10040 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X438 Contact Us For Availability
108
I.d.panel Ff GEN WR77X598 Contact Us For Availability
109A
Refrigerator Module GEN WR71X10039 Contact Us For Availability
109B
Door Module GEN WR71X2373 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
112
Refrigerator Freezer Door Shelf Rail GEN WR17X10447 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
128
Snugger Module GEN WR2X7971 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
175
Scr 8-18 GEN WR1X10035 Contact Us For Availability
181
SCR 10-32 GX IHXW 13/16S GEN WR1X10161 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
207
Refrigerator Freezer Shelf Support Grommet GEN WR2X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR2X4674 No Longer Available
211
Refrigerator Freezer Basket GEN WR21X188 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X455 Contact Us For Availability
214B
Clip Evaporator GEN WR1X10064 Contact Us For Availability
214C
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
224
Refrigerator Grommet GEN WR2X8657 Contact Us For Availability
225A
Refrigerator Clamp GEN WR1X5042 Contact Us For Availability
225B
Tube Drai GEN WR2X10395 Contact Us For Availability
230B
Refrigerator Defrost Heater and Thermostat GEN WR51X10031 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X3484 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265A
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3117 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10448 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
288
Grl Base Wh GEN WR74X225 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X258 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324
Button Plug GEN WR2X7069 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328B
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
345
Refrigerator Ice Dispenser Container Mounting GEN WR17X2760 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X257 Contact Us For Availability
359A
Refrigerator Right Side Ice Bucket Shelf GEN WR71X10197 Contact Us For Availability
359B
Refrigerator Ice Container GEN WR71X10196 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10339 Contact Us For Availability
395
Fan Shield GEN WR17X10220 Contact Us For Availability
400
Refrigerator Cantilever Shelf Frame GEN WR71X2290 Contact Us For Availability
407
Refrigerator Crisper Drawer GEN WR32X1178 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8262 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8263 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR2X4497 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
479A
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X10010 Contact Us For Availability
479B
Refrigerator Upper Drawer Slide Rail, Right GEN WR72X10009 Contact Us For Availability
480A
Refrigerator Lower Drawer Slide Rail, Left GEN WR72X10008 Contact Us For Availability
480B
Refrigerator Lower Drawer Slide Rail, Right GEN WR72X10007 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10043 Contact Us For Availability
627
Housing Condenser GEN WR17X10449 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10024 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10034 Contact Us For Availability
652
Refrigerator Complete Ring GEN WR2X10323 Contact Us For Availability
683
Scr 8-32 GEN WR1X10127 Contact Us For Availability
717
Clip Condenser GEN WR2X10335 Contact Us For Availability
730
Refrigerator Condenser Coils Assembly GEN WR84X188 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR7X277 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10005 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X10427 Contact Us For Availability
749
Baff Sd Disc GEN WR17X3988 Contact Us For Availability
751
Plate Comp M GEN WR17X10337 Contact Us For Availability
754
Condenser Floor Baffle GEN WR82X10066 Contact Us For Availability
818
Guard Spl GEN WR2X10422 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10191 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10192 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10187 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10189 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
SCR 8-36 T IHW 3/8 S N GEN WR1K01 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
NI
Scr 6-19 GEN WR1X10123 Contact Us For Availability
NI
Refrigerator Rivet Plate GEN WR1X1987 Contact Us For Availability
NI
Refrigerator Fastener Plug GEN WR1X2110 Contact Us For Availability
NI
SCR 8-18 AB HXW 1/2 S GEN WZ6X136 Contact Us For Availability
× ![]()
Login and Registration Form
