Model GE 363.58042893 Refrigerator (Kenmore 36358042893) – Common Parts & Diagrams
All Parts
ICEMAKER WR30X0327

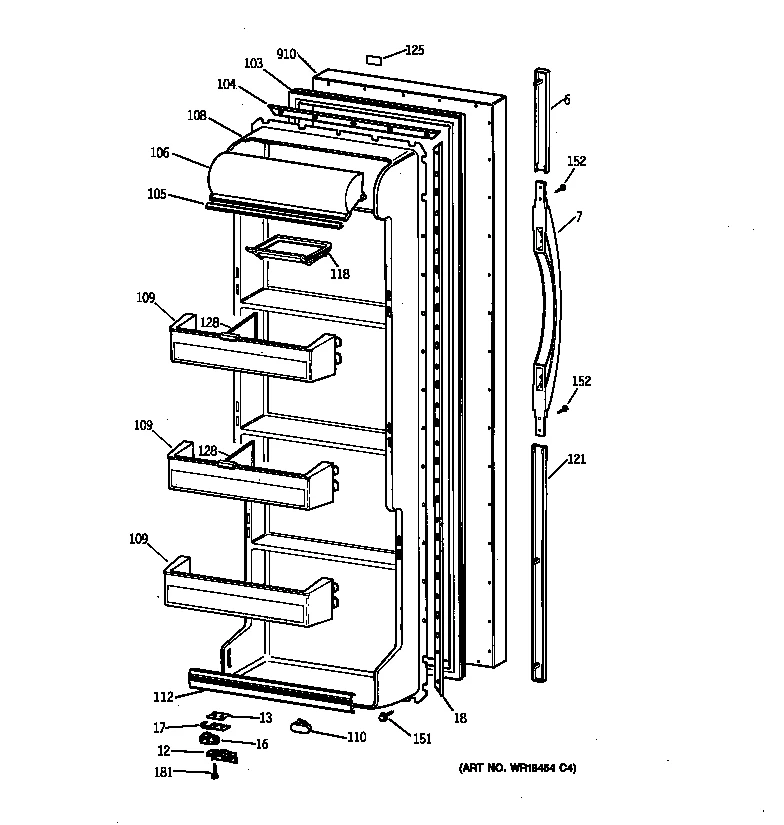

FRESH FOOD DOOR

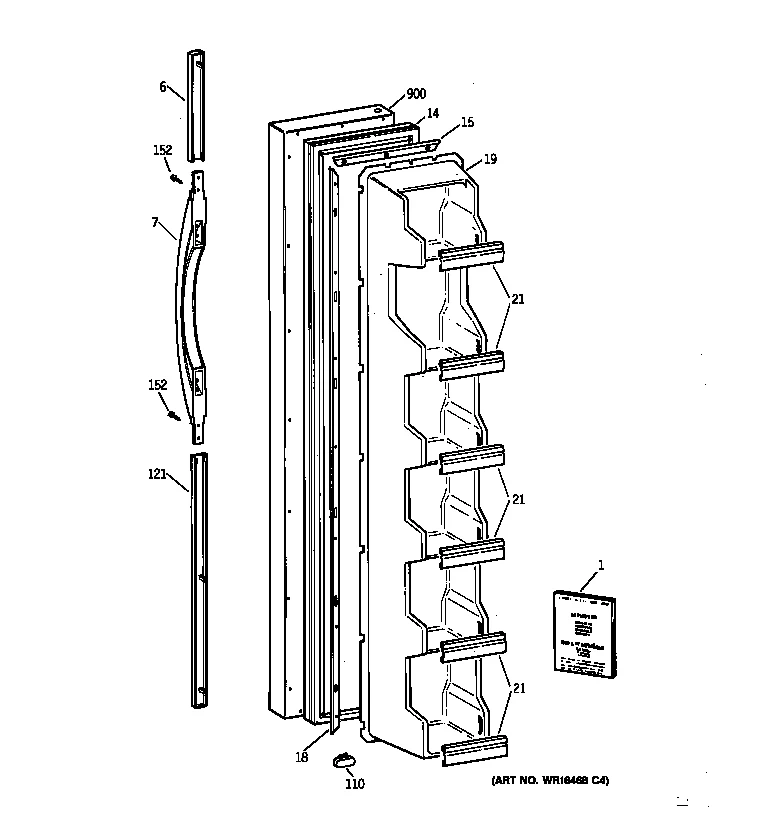

FREEZER DOOR

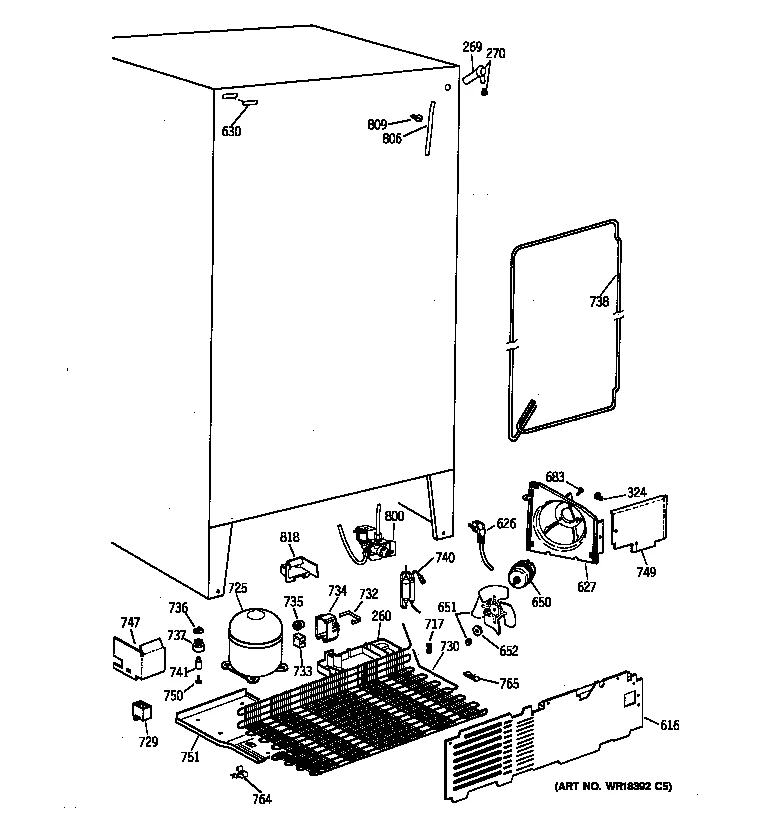

UNIT PARTS

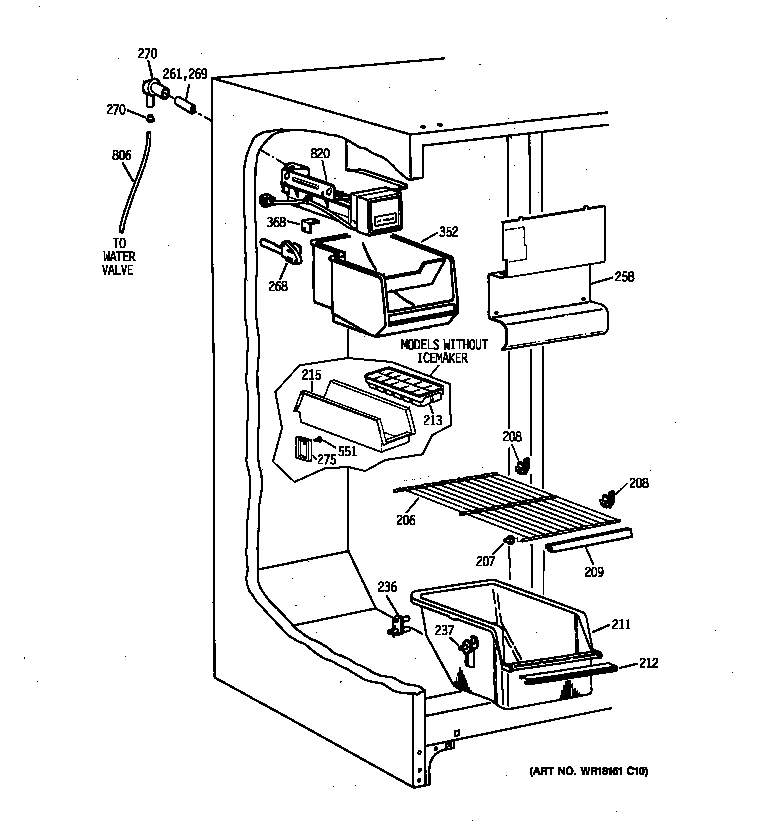

FREEZER SECTION

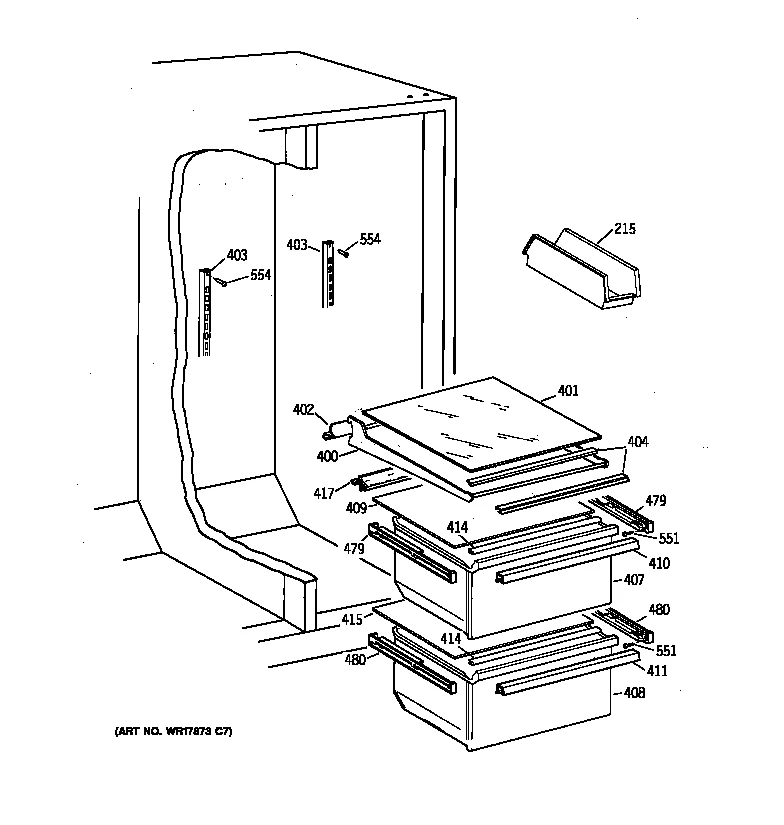

FRESH FOOD SECTION

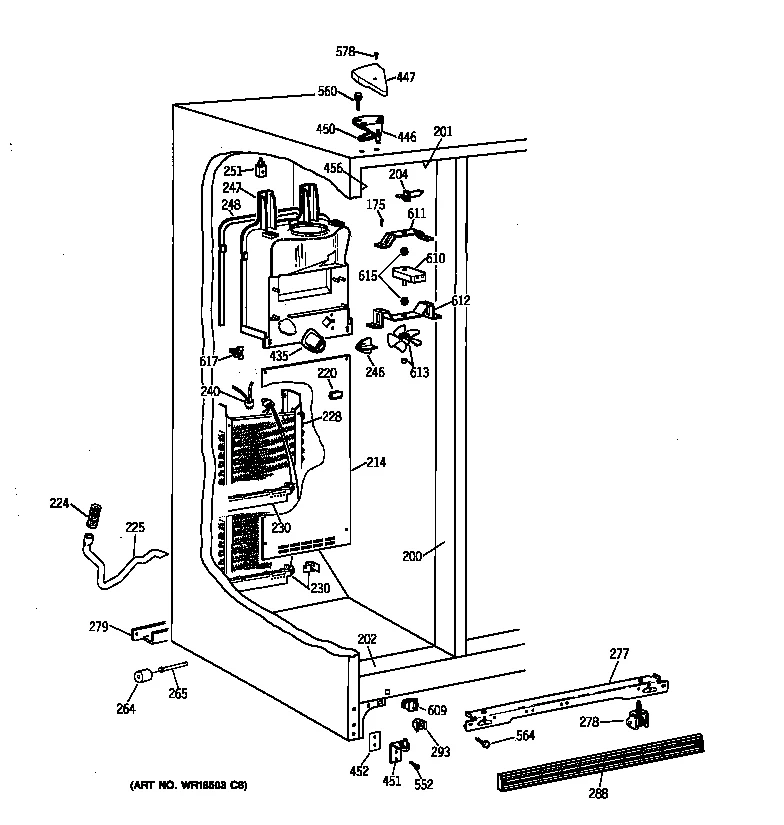

FREEZER SECTION

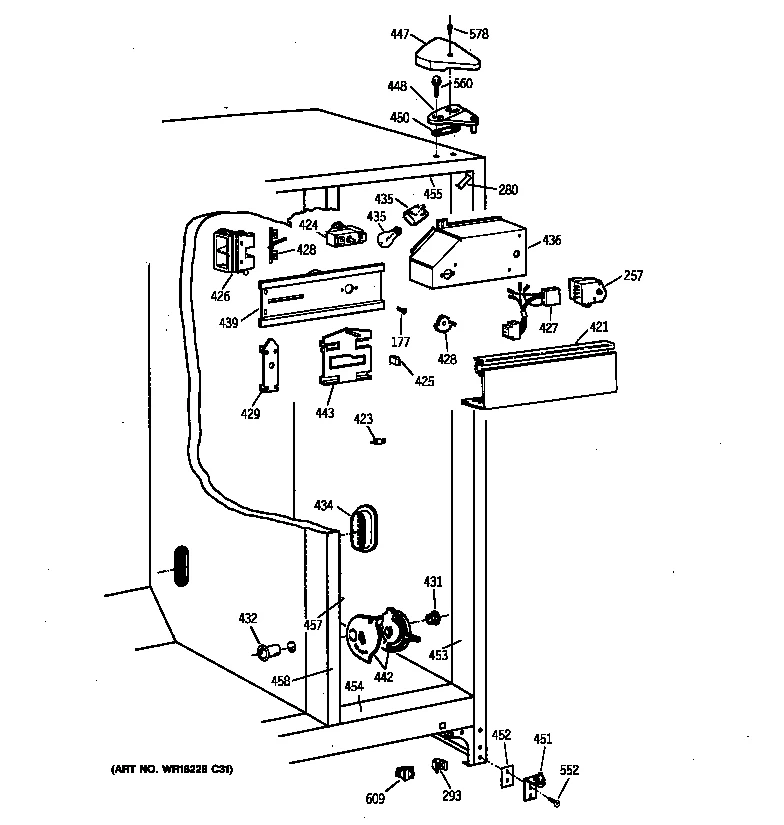

FRESH FOOD SECTION
Common parts from model GE 363.58042893 Refrigerator (Kenmore 36358042893)
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X527 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X528 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
175
Scr 8-18 GEN WR1X10035 Contact Us For Availability
177
Refrigerator Screw, 2-pack GEN WR1X5034 Contact Us For Availability
181
SCR 10-32 MA HX 1 S XTW GEN WZ6X105 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
204
Supt Fz S GEN WR2X9217 Contact Us For Availability
206
Refrigerator Freezer Shelf GEN WR71X1888 Contact Us For Availability
207
Refrigerator Freezer Shelf Support Grommet GEN WR2X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR2X4674 No Longer Available
209
Refrigerator Trim Shelf Wire GEN WR38X10037 Contact Us For Availability
211
Refrigerator Basket GEN WR21X183 Contact Us For Availability
212
Refrigerator Handle Trim GEN WR38X10035 Contact Us For Availability
214A
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
214B
Clip Evaporator GEN WR1X10064 Contact Us For Availability
214C
Refrigerator Evaporator Cover Gasket GEN WR14X455 Contact Us For Availability
215
Bucket Utili GEN WR32X897 Contact Us For Availability
220
Line Plug GEN WR2X9002 Contact Us For Availability
224
Refrigerator Grommet GEN WR2X8657 Contact Us For Availability
225A
Refrigerator Clamp GEN WR1X5042 Contact Us For Availability
225B
Tube Drai GEN WR2X8293 Contact Us For Availability
230A
Defrost Bracket GEN WR2X8671 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
246
Refrigerator Hole Plug GEN WR2X10102 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Fan Cover GEN WR17X10212 Contact Us For Availability
261
Refrigerator Ice Maker Fill Tube GEN WR2X6087 Contact Us For Availability
265B
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
270
Refrigerator Button Plug GEN WR2X3248 Contact Us For Availability
275
Cvr Im Re GEN WR2X9004 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3117 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10059 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
288
Grl Base Wh GEN WR74X225 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X258 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
368
Refrigerator Ice Maker Mounting Bracket GEN WR2X8459 Contact Us For Availability
400
Refrigerator Cantilever Shelf Frame GEN WR71X2290 Contact Us For Availability
401
Refrigerator Cantilever Shelf GEN WR32X10021 Contact Us For Availability
402
Refrigerator Glass Reflector GEN WR38X10038 Contact Us For Availability
403
Refrigerator Cantilever Shelf Track GEN WR72X255 Contact Us For Availability
404
Glass Shelf Trim GEN WR38X10036 Contact Us For Availability
407
Refrigerator Crisper Drawer GEN WR32X1178 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1177 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10020 Contact Us For Availability
410
Vegetable Pan Handle GEN WR17X10087 Contact Us For Availability
411
Vegetable Pan Handle GEN WR17X10088 Contact Us For Availability
414
Pan Cover Gasket GEN WR14X444 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Insert GEN WR32X1105 Contact Us For Availability
417
Gasket Shield GEN WR14X10031 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10089 Contact Us For Availability
423
Grommet S GEN WR2X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR9X570 Contact Us For Availability
425
Refrigerator Knob GEN WR2X8398 Contact Us For Availability
426A
Housing Nozzle GEN WR2X8514 Contact Us For Availability
426B
Foam Nozzle GEN WR2X8425 Contact Us For Availability
427
Refrigerator Wire Harness GEN WR23X316 Contact Us For Availability
428A
Refrigerator Gear Control GEN WR2X8513 Contact Us For Availability
428B
Control Double Bracket Damper Washer GEN WR2X8582 Contact Us For Availability
429
Heat Holder GEN WR2X8516 Contact Us For Availability
432
Duct Mullion GEN WR2X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR2X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR2X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR2X8570 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8262 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8263 Contact Us For Availability
448
Refrigerator Door Top Hinge GEN WR13X646 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1757 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1758 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1759 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458
Mullion Ad GEN WR40X1751 Contact Us For Availability
458
Mullion Wh GEN WR40X1749 Contact Us For Availability
458A
Clip Mullion GEN WR2X10334 Contact Us For Availability
458B
Refrigerator Bracket Mullion GEN WR2X9376 Contact Us For Availability
479A
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X10010 Contact Us For Availability
479B
Refrigerator Upper Drawer Slide Rail, Right GEN WR72X10009 Contact Us For Availability
480A
Refrigerator Lower Drawer Slide Rail, Right GEN WR72X10007 Contact Us For Availability
480B
Refrigerator Lower Drawer Slide Rail, Left GEN WR72X10008 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
651B
Refrigerator Nut GEN WR1X1515 Contact Us For Availability
652
Refrigerator Fan Motor Washer GEN WR1X1714 Contact Us For Availability
730
Refrigerator Condenser Coils Assembly GEN WR84X188 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR8X170 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X10427 Contact Us For Availability
749
Baff Sd Disc GEN WR17X3988 Contact Us For Availability
751
Plate Comp M GEN WR17X10337 Contact Us For Availability
818
Guard Spl GEN WR2X10181 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
× ![]()
