GE 362.91200103 Electric Range (Kenmore 36291200103) Parts List

3

WB24T10022 GE Oven Infinite Switch In Stock GEN WB24T10022 $96.35

View on Model

3

WB24T10027 GE Oven Range Top Burner Infinite In Stock GEN WB24T10027 $91.50

View on Model

5

WB25K10002 GE Stove Oven Cooktop Pilot Lamp In Stock GEN WB25K10002 $11.14

View on Model

14

WB02K10070 GE Range Thermostat Carton Cover Backorder GEN WB02K10070 $7.85

View on Model

14

WB02K10073 GE Range Clip Capillary Backorder GEN WB02K10073 $6.97

View on Model

14

WB20K10026 GE Range Thermostat In Stock GEN WB20K10026 $52.82

View on Model

100

End Cover GEN WB07K10023 Contact Us For Availability

View on Model

100

End Cover GEN WB07K10022 Contact Us For Availability

View on Model

101

End Plate GEN WB37K0018 Contact Us For Availability

View on Model

101

End Plate GEN WB37K0017 Contact Us For Availability

View on Model

103

Bracket GEN WB02K10027 Contact Us For Availability

View on Model

104

Control Trim GEN WB36K10172 Contact Us For Availability

View on Model

105

WB27T10469 GE Range Timer Control Board In Stock GEN WB27T10469 $90.88

View on Model

106

Hinge Support GEN WB10K10001 Contact Us For Availability

View on Model

106

Hinge Support GEN WB10K10002 Contact Us For Availability

View on Model

108

WB1X5364 GE Oven Mounting Screw In Stock GEN WB1X5364 $5.56

View on Model

108

Screw GEN WB01X5967 Contact Us For Availability

View on Model

108

Screw GEN WB01X5716 Contact Us For Availability

View on Model

116

WB07K10003 GE Range Right Black Endcap Backorder GEN WB07K10003 $43.57

View on Model

116

Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability

View on Model

117

Locator Pin GEN WB02K0017 Contact Us For Availability

View on Model

119

Hinge Pin GEN WB14K0005 Contact Us For Availability

View on Model

121

WB1K5119 GE Oven Screw Backorder GEN WB1K5119 $5.56

View on Model

128

Clock Plate GEN WB27T10012 Contact Us For Availability

View on Model

131

WB25T10041 GE Oven Lens In Stock GEN WB25T10041 $5.56

View on Model

134

Screw-mtg En GEN WB01K10003 Contact Us For Availability

View on Model

150

WB30K10002 GE Range Cooktop Surface Unit Burn In Stock GEN WB30K10002 $67.01

View on Model

153

WB02K10026 GE Range Rod Support In Stock GEN WB02K10026 $6.39

View on Model

154

WB31T10010 GE Oven 6" Chrome Burner Drip Bowl In Stock GEN WB31T10010 $8.11

View on Model

156

WB30T10071 GE Range Surface Element In Stock GEN WB30T10071 $55.10

View on Model

158

WB31T10011 GE Oven 8" Chrome Drip Bowl Burner In Stock GEN WB31T10011 $10.39

View on Model

161

Wire Clip GEN WB02X8115 Contact Us For Availability

View on Model

200

WB48T10095 GE Oven Rack In Stock GEN WB48T10095 $44.20

View on Model

204

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.56

View on Model

205

WB34K10029 GE Range Guard Terminal Backorder GEN WB34K10029 $27.72

View on Model

206

WR01X10065 GE Screw Backorder GEN WR01X10065 $5.56

View on Model

207

WB02K10029 GE Range Mounting Terminal Bracket Backorder GEN WB02K10029 $9.90

View on Model

208

Oven Cover GEN WB63K10005 Contact Us For Availability

View on Model

226

Door Spring GEN WB09K10001 Contact Us For Availability

View on Model

242

Guard Insulation GEN WB63K10009 Contact Us For Availability

View on Model

245

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.68

View on Model

247

WB63K10021 GE Range Top Backorder GEN WB63K10021 $50.11

View on Model

251

WB38K10002 GE Range Vent Tube Backorder GEN WB38K10002 $7.96

View on Model

251

Vent Cover GEN WB04K10002 Contact Us For Availability

View on Model

253

Bx Cook Top GEN WB64K10002 Contact Us For Availability

View on Model

290

WB30X46987 GE Bake Element In Stock GEN WB30X46987 $88.13

View on Model

291

WB02K10028 GE Range Broil Support In Stock GEN WB02K10028 $8.02

View on Model

292

WB30X46986 GE Broil Element In Stock GEN WB30X46986 $57.62

View on Model

296

Cover GEN WB34K10031 Contact Us For Availability

View on Model

300

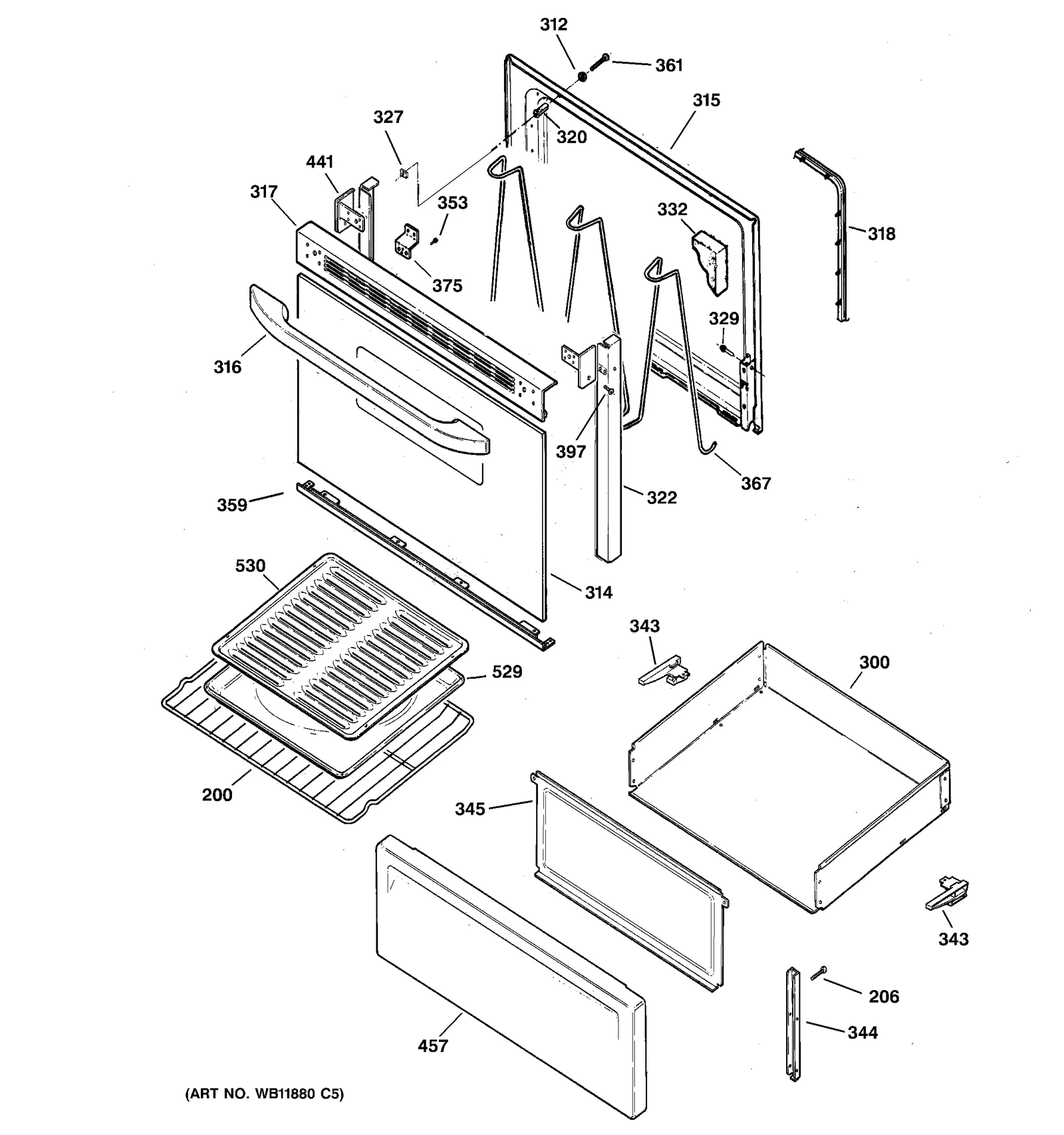

Drawer Body GEN WB58K10004 Contact Us For Availability

View on Model

312

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.08

View on Model

314

Door (Black) GEN WB56K0031 Contact Us For Availability

View on Model

315

Liner GEN WB55K0028 Contact Us For Availability

View on Model

316

Handle GEN WB15K10018 Contact Us For Availability

View on Model

317

Trim-vent Do GEN WB36K10029 Contact Us For Availability

View on Model

318

WB35X29720 GE Oven Door Gasket In Stock GEN WB35X29720 $14.55

View on Model

320

WB2K14 GE Range Spacer In Stock GEN WB2K14 $5.20

View on Model

322

Range Trim GEN WB07K10121 Contact Us For Availability

View on Model

322

Range Bottom Oven Door Trim (Black) GEN WB07K10120 Contact Us For Availability

View on Model

327

WB01K10093 GE Range Speednut Backorder GEN WB01K10093 $5.58

View on Model

329

WB1X558D GE Oven Screw Package Backorder GEN WB1X558D $15.19

View on Model

332

Door Insulation GEN WB35K0004 Contact Us For Availability

View on Model

343

WB02K10061 GE Range Drawer Glide In Stock GEN WB02K10061 $5.82

View on Model

343

WB02K10062 GE Range Drawer Glide In Stock GEN WB02K10062 $5.82

View on Model

344

Range Storage Drawer Front Panel Support Brac GEN WB02K10025 Contact Us For Availability

View on Model

345

Drawer Cover GEN WB34K10033 Contact Us For Availability

View on Model

353

WB01K10012 GE Oven Screw 8-22 PL 1HX Backorder GEN WB01K10012 $6.95

View on Model

359

WB07K10232 GE Range Bottom Trim Assembly Backorder GEN WB07K10232 $13.43

View on Model

361

WB1X5731D GE Range Nut Package of 12 Backorder GEN WB1X5731D $19.95

View on Model

367

Retaining Wire Insulation GEN WB33K0001 Contact Us For Availability

View on Model

375

WB02K10245 GE Range Door Bracket Backorder GEN WB02K10245 $6.55

View on Model

397

WB1K62 GE Range Door Assembly Backorder GEN WB1K62 $5.58

View on Model

441

WB7K263 GE Range Door Endcap Backorder GEN WB7K263 $5.56

View on Model

441

WB7K264 GE Range Door Endcap Backorder GEN WB7K264 $43.99

View on Model

457

WB56X31458 GE Black Drawer Panel Backorder GEN WB56X31458 $53.16

View on Model

529

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

711

Thermostat Knob GEN WB03K10078 Contact Us For Availability

View on Model

741

WB2X8228 GE Range Receptacle Block Kit with C In Stock GEN WB2X8228 $18.25

View on Model

961

WB17T10006 GE Range Burner Receptacle Block In Stock GEN WB17T10006 $16.76

View on Model

9999

Wiring Diagram GEN 31-21069 Contact Us For Availability

View on Model

9999

MANUAL REPAIR PARTS GEN SR4660 Contact Us For Availability

View on Model

9999

61101 +14 Se GEN SR88004 Contact Us For Availability

View on Model
