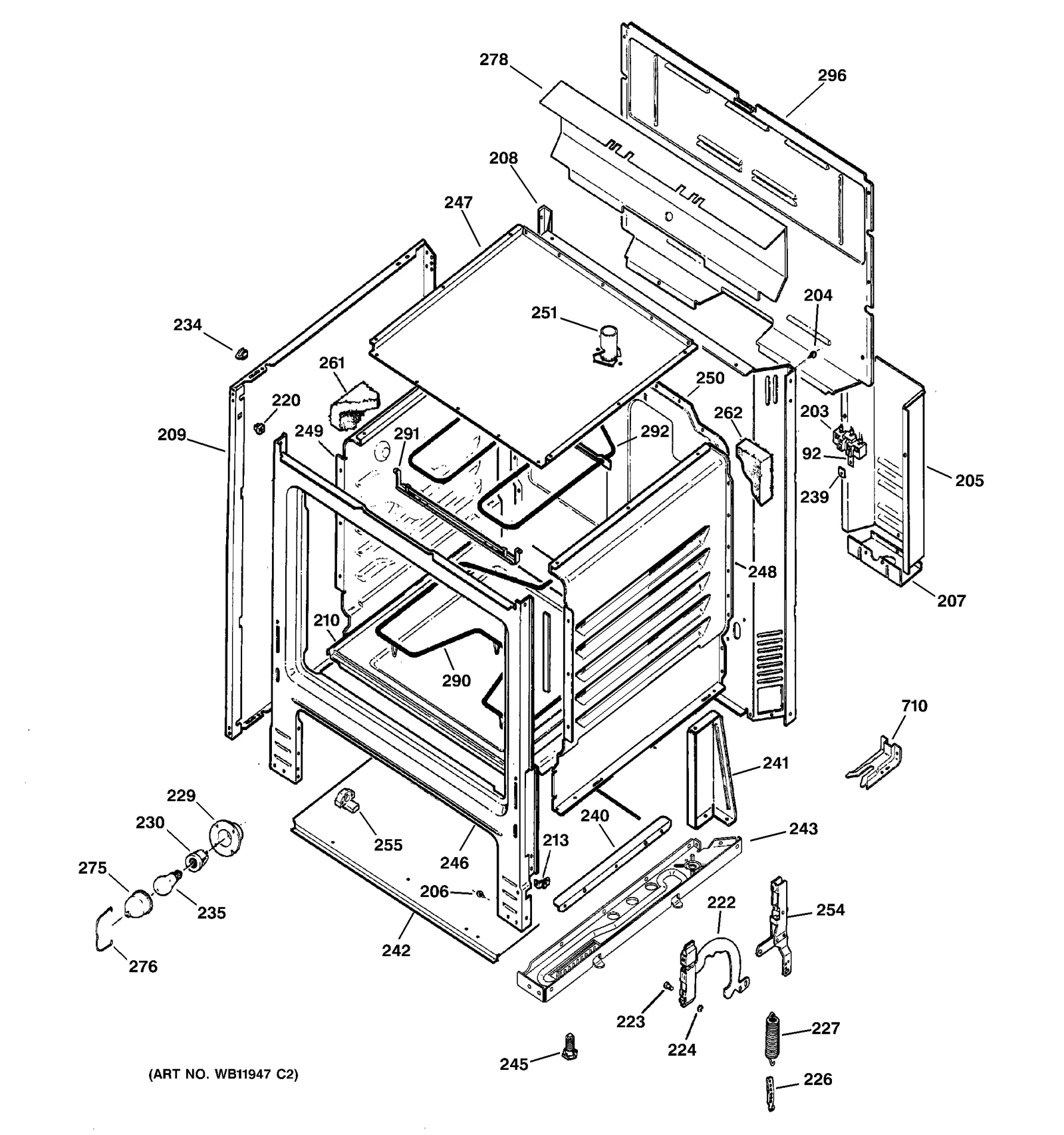

GE 362.91112003 Electric Range (Kenmore 36291112003) Parts List

2

Knob Inf (wh GEN WB03K10102 Contact Us For Availability

View on Model

3

WB24T10022 GE Oven Infinite Switch In Stock GEN WB24T10022 $96.35

View on Model

3

WB24T10027 GE Oven Range Top Burner Infinite In Stock GEN WB24T10027 $91.50

View on Model

5

WB25K10002 GE Stove Oven Cooktop Pilot Lamp In Stock GEN WB25K10002 $11.14

View on Model

14

WB02K10070 GE Range Thermostat Carton Cover Backorder GEN WB02K10070 $7.85

View on Model

92

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.56

View on Model

92

Ground Strap GEN WB02T10030 Contact Us For Availability

View on Model

92

Ground Plate GEN WB02X0646 Contact Us For Availability

View on Model

100

End Cover GEN WB07K10001 No Longer Available

View on Model

100

Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability

View on Model

104

Control Trim GEN WB36K10250 Contact Us For Availability

View on Model

105

WB27T10469 GE Range Timer Control Board In Stock GEN WB27T10469 $90.88

View on Model

106

Hinge Support GEN WB10K10001 Contact Us For Availability

View on Model

106

Hinge Support GEN WB10K10002 Contact Us For Availability

View on Model

108

WB1X5364 GE Oven Mounting Screw In Stock GEN WB1X5364 $5.56

View on Model

108

Screw End Cap GEN WB01X5874 Contact Us For Availability

View on Model

108

Screw GEN WB01X5967 Contact Us For Availability

View on Model

116

WB07K10005 GE Range Right Endcap Backorder GEN WB07K10005 $55.11

View on Model

116

WB07K10007 GE Range Endcap Left Backorder GEN WB07K10007 $55.11

View on Model

116

Range Control Panel End Cap GEN WB07K10117 Contact Us For Availability

View on Model

116

Range Control Panel End Cap, Left GEN WB07K10118 Contact Us For Availability

View on Model

117

Locator Pin GEN WB02K0017 Contact Us For Availability

View on Model

119

Hinge Pin GEN WB14K0005 Contact Us For Availability

View on Model

121

WB1K5119 GE Oven Screw Backorder GEN WB1K5119 $5.56

View on Model

128

Range Control Overlay GEN WB11K10020 Contact Us For Availability

View on Model

128

Oven Control Overlay GEN WB27T10030 Contact Us For Availability

View on Model

131

WB25T10041 GE Oven Lens In Stock GEN WB25T10041 $5.56

View on Model

134

Range Screw GEN WB01K10004 Contact Us For Availability

View on Model

134

Bisq Screw GEN WB01K10017 Contact Us For Availability

View on Model

150

WB30K10002 GE Range Cooktop Surface Unit Burn In Stock GEN WB30K10002 $67.01

View on Model

153

WB02K10026 GE Range Rod Support In Stock GEN WB02K10026 $6.39

View on Model

154

WB31T10010 GE Oven 6" Chrome Burner Drip Bowl In Stock GEN WB31T10010 $8.11

View on Model

156

WB30T10071 GE Range Surface Element In Stock GEN WB30T10071 $55.10

View on Model

158

WB31T10011 GE Oven 8" Chrome Drip Bowl Burner In Stock GEN WB31T10011 $10.39

View on Model

161

Wire Clip GEN WB02X8115 Contact Us For Availability

View on Model

203

WB17X5095 GE Black Oven Terminal Backorder GEN WB17X5095 $61.43

View on Model

204

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.56

View on Model

204

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $5.56

View on Model

204

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.79

View on Model

204

WZ4X345D GE Screw Package 12 C92 Backorder GEN WZ4X345D $16.89

View on Model

205

WB34K10029 GE Range Guard Terminal Backorder GEN WB34K10029 $27.72

View on Model

206

WR01X10065 GE Screw Backorder GEN WR01X10065 $5.56

View on Model

207

WB02K10029 GE Range Mounting Terminal Bracket Backorder GEN WB02K10029 $9.90

View on Model

208

Oven Cover GEN WB63K10005 Contact Us For Availability

View on Model

209

Panel GEN WB63K10013 Contact Us For Availability

View on Model

209

Panel GEN WB63K10026 Contact Us For Availability

View on Model

210

WB63K10006 GE Range Bottom Assembly Backorder GEN WB63K10006 $76.40

View on Model

213

WB1K3 GE Oven Speed Nut Backorder GEN WB1K3 $5.56

View on Model

220

GROMMET GEN WB02K0008 Contact Us For Availability

View on Model

223

Hinge Pin GEN WB02X6195 Contact Us For Availability

View on Model

224

Retainer GEN WB02X1082 Contact Us For Availability

View on Model

226

Door Spring GEN WB09K10001 Contact Us For Availability

View on Model

227

Door Spring GEN WB09K0001 Contact Us For Availability

View on Model

229

Hous Receptl GEN WB08K0001 Contact Us For Availability

View on Model

230

WB08T10026 GE Range Push-In Receptacle In Stock GEN WB08T10026 $5.78

View on Model

234

Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability

View on Model

235

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

View on Model

239

Nut 10-32 GEN WB01X5968 Contact Us For Availability

View on Model

240

WB39K16 GE Oven Drawer Rail Backorder GEN WB39K16 $23.44

View on Model

242

Guard Insulation GEN WB63K10009 Contact Us For Availability

View on Model

243

WB63K10232 GE Range Support Base Backorder GEN WB63K10232 $21.25

View on Model

243

WB63K10233 GE Range Support Base Backorder GEN WB63K10233 $19.75

View on Model

245

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.68

View on Model

246

Frame GEN WB63K10012 Contact Us For Availability

View on Model

247

WB63K10021 GE Range Top Backorder GEN WB63K10021 $50.11

View on Model

248

Panel GEN WB63K10010 Contact Us For Availability

View on Model

249

Oven Side Lh GEN WB63K10011 Contact Us For Availability

View on Model

250

WB63K10007 GE Range Back Backorder GEN WB63K10007 $45.16

View on Model

251

WB38K10002 GE Range Vent Tube Backorder GEN WB38K10002 $7.96

View on Model

251

Vent Cover GEN WB04K10002 Contact Us For Availability

View on Model

253

Bx Cook Top GEN WB64K10002 Contact Us For Availability

View on Model

254

Hinge Screw GEN WB01K0053 Contact Us For Availability

View on Model

254

Support Rivet GEN WB10K0013 Contact Us For Availability

View on Model

254

Support Rivet GEN WB10K0014 Contact Us For Availability

View on Model

255

WB02K10158 GE Range Drawer Support In Stock GEN WB02K10158 $5.67

View on Model

261

WB35K10108 GE Range Insulation Wrap Backorder GEN WB35K10108 $51.26

View on Model

262

Insul Ov Bck GEN WB35K0017 Contact Us For Availability

View on Model

275

WB36X192 GE Oven Light Cover In Stock GEN WB36X192 $10.65

View on Model

276

WB2K27 GE Oven Bail Backorder GEN WB2K27 $41.38

View on Model

278

Divider Wiri GEN WB34K10032 Contact Us For Availability

View on Model

290

WB30X46987 GE Bake Element In Stock GEN WB30X46987 $88.13

View on Model

291

WB02K10028 GE Range Broil Support In Stock GEN WB02K10028 $8.02

View on Model

292

WB30X46986 GE Broil Element In Stock GEN WB30X46986 $57.62

View on Model

296

Cover GEN WB34K10031 Contact Us For Availability

View on Model

300

Drawer Body GEN WB58K10004 Contact Us For Availability

View on Model

343

WB02K10061 GE Range Drawer Glide In Stock GEN WB02K10061 $5.82

View on Model

343

WB02K10062 GE Range Drawer Glide In Stock GEN WB02K10062 $5.82

View on Model

344

Range Storage Drawer Front Panel Support Brac GEN WB02K10025 Contact Us For Availability

View on Model

346

Crystal Window GEN WB57K10063 Contact Us For Availability

View on Model

457

WB56X31457 GE Drawer Panel Bisque Backorder GEN WB56X31457 $32.90

View on Model

457

WB56X31459 GE Range Drawer Front Backorder GEN WB56X31459 $54.55

View on Model

710

WB02K10254 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02K10254 $14.04

View on Model

711

Thermostat Knob GEN WB03K10079 Contact Us For Availability

View on Model

711

Range Thermostat Knob GEN WB03K10120 Contact Us For Availability

View on Model

741

WB2X8228 GE Range Receptacle Block Kit with C In Stock GEN WB2X8228 $18.25

View on Model

961

WB17T10006 GE Range Burner Receptacle Block In Stock GEN WB17T10006 $16.76

View on Model

9999

Wiring Diagram GEN 31-21069 Contact Us For Availability

View on Model

9999

Parts List GEN SR4661 Contact Us For Availability

View on Model

9999

Sears/kenmor GEN SR88009 Contact Us For Availability

View on Model
