Model GE 362.75321004 Gas Range (Kenmore 36275321004) – Common Parts & Diagrams

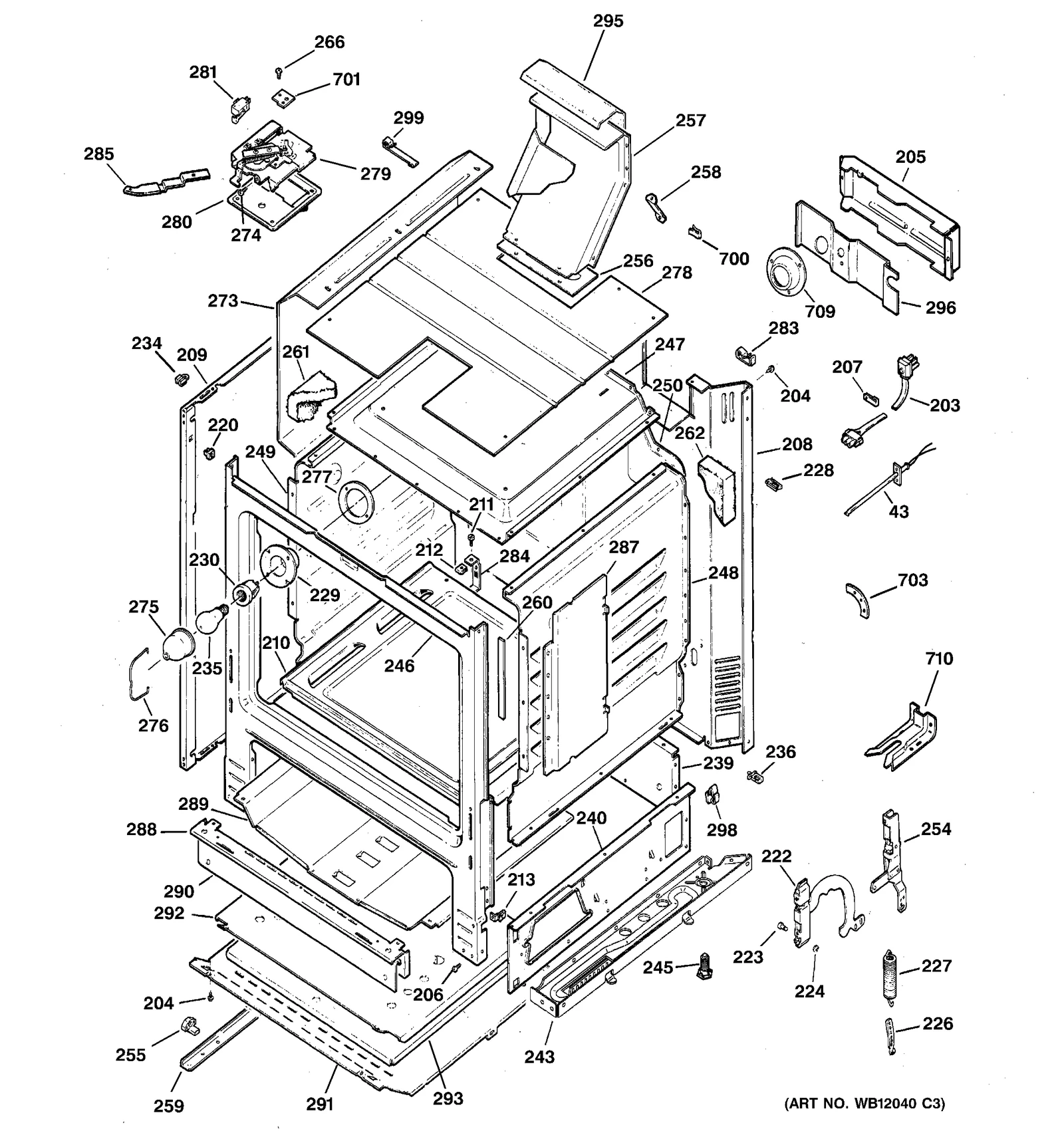

BODY PARTS

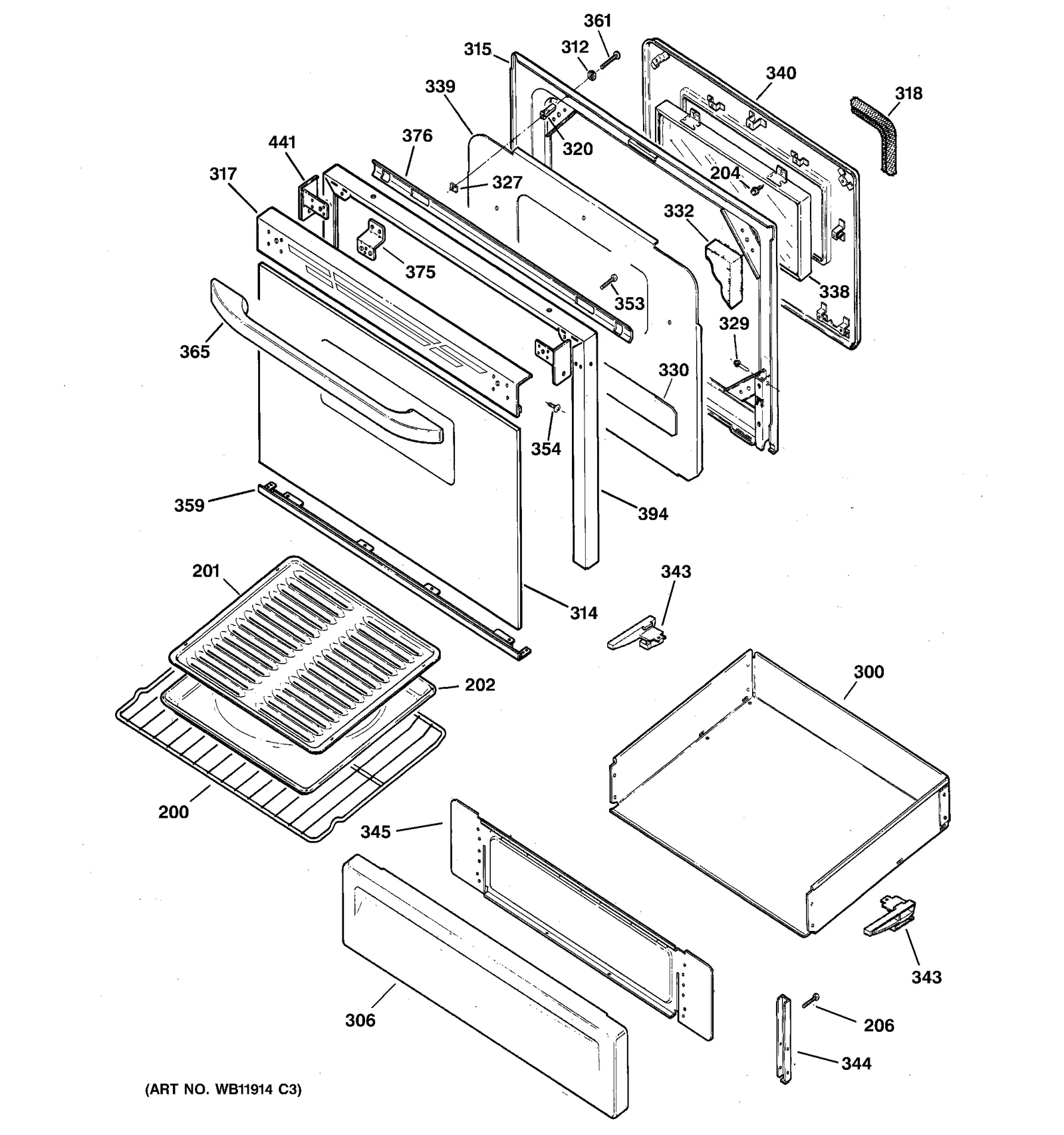

DOOR & DRAWER PARTS
CONTROL PANEL & COOKTOP
GAS & BURNER PARTS
Common parts from model GE 362.75321004 Gas Range (Kenmore 36275321004)
1
MINI-MANUAL ELEC/DIAG GEN 31-21073 Contact Us For Availability
1
MANUAL REPAIR PARTS GEN SR4663 Contact Us For Availability
1
Conversion Kit GEN WB28K10153 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10119 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
5
Manifold Panel GEN WB31K10052 Contact Us For Availability
5
Range Manifold Panel GEN WB36K10028 Contact Us For Availability
5
Manifold Panel GEN WB36K10251 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10002 Contact Us For Availability
14
Manifold Pipe GEN WB28K10057 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K0030 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
88
Pad Felt 2" GEN WB02K0062 Contact Us For Availability
88
Pad GEN WB02X1222 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10023 Contact Us For Availability
100
End Cover GEN WB07K10022 Contact Us For Availability
100
End Cap Cover GEN WB07K10115 Contact Us For Availability
100
End Cap Cover GEN WB07K10116 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10022 Contact Us For Availability
104
Control Trim GEN WB36K10023 Contact Us For Availability
104
Control Trim GEN WB36K10252 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10043 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10053 Contact Us For Availability
114
Range Main Top (White) GEN WB62K10046 Contact Us For Availability
114
Range Main Top Assembly GEN WB62K10063 Contact Us For Availability
114
Range Top GEN WB62K10061 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Range Control Panel End Cap GEN WB07K10117 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10118 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
124
Range Drip Pan GEN WB34K10012 Contact Us For Availability
125
Pan Unit GEN WB34K10020 Contact Us For Availability
125
Pan Unit GEN WB34K10040 Contact Us For Availability
125
Pan Unit Ring GEN WB34K10050 Contact Us For Availability
125
Pan Unit - R GEN WB34K10051 Contact Us For Availability
128
Overlay (wh) GEN WB27K10060 Contact Us For Availability
128
Overlay (bsq GEN WB27K10061 Contact Us For Availability
128
Range Control Overlay GEN WB27K10063 Contact Us For Availability
129
Control GEN WB27K10048 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
237
Manifold Tube GEN WB28K10169 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Range Switch Latch GEN WB24K10010 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K10040 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB58K10001 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
306
Warming Drawer GEN WB36K10164 Contact Us For Availability
314
Door Glass GEN WB57K10009 Contact Us For Availability
314
Range Oven Door Outer Panel (Biscuit) GEN WB57K10061 Contact Us For Availability
315
Liner GEN WB55K0025 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
317
Trim-vent Do GEN WB36K10037 Contact Us For Availability
317
Trim-vent Do GEN WB36K10253 Contact Us For Availability
330
Reflector GEN WB35K0022 Contact Us For Availability
332
Drive Insulation GEN WB35K0020 Contact Us For Availability
338
Wind Pack Sm GEN WB56K0019 Contact Us For Availability
339
Guard Insulation GEN WB56K0008 Contact Us For Availability
340
Panel Assembly Weld GEN WB55K0020 Contact Us For Availability
345
Drawer Cover GEN WB35K10010 Contact Us For Availability
353
Screw-mtg Hd GEN WB01K10013 Contact Us For Availability
354
Mounting Screw GEN WB01K0071 Contact Us For Availability
365
Handle GEN WB15K10018 Contact Us For Availability
365
Dr Handle-wh GEN WB15K10019 Contact Us For Availability
365
Door Handle GEN WB15K10027 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394
Trim Door (b GEN WB07K10165 Contact Us For Availability
441
Door End Cap GEN WB07K10158 Contact Us For Availability
441
Door End Cap GEN WB07K10159 Contact Us For Availability
700
Retainer GEN WB02K0030 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Surface Burner Knob GEN WB03K10111 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10110 Contact Us For Availability
711
Assembly Kit GEN WB03K10122 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
