Model GE 362.75271691 Gas Range (Kenmore 36275271691) – Common Parts & Diagrams
GAS AND BURNER
COOKTOP

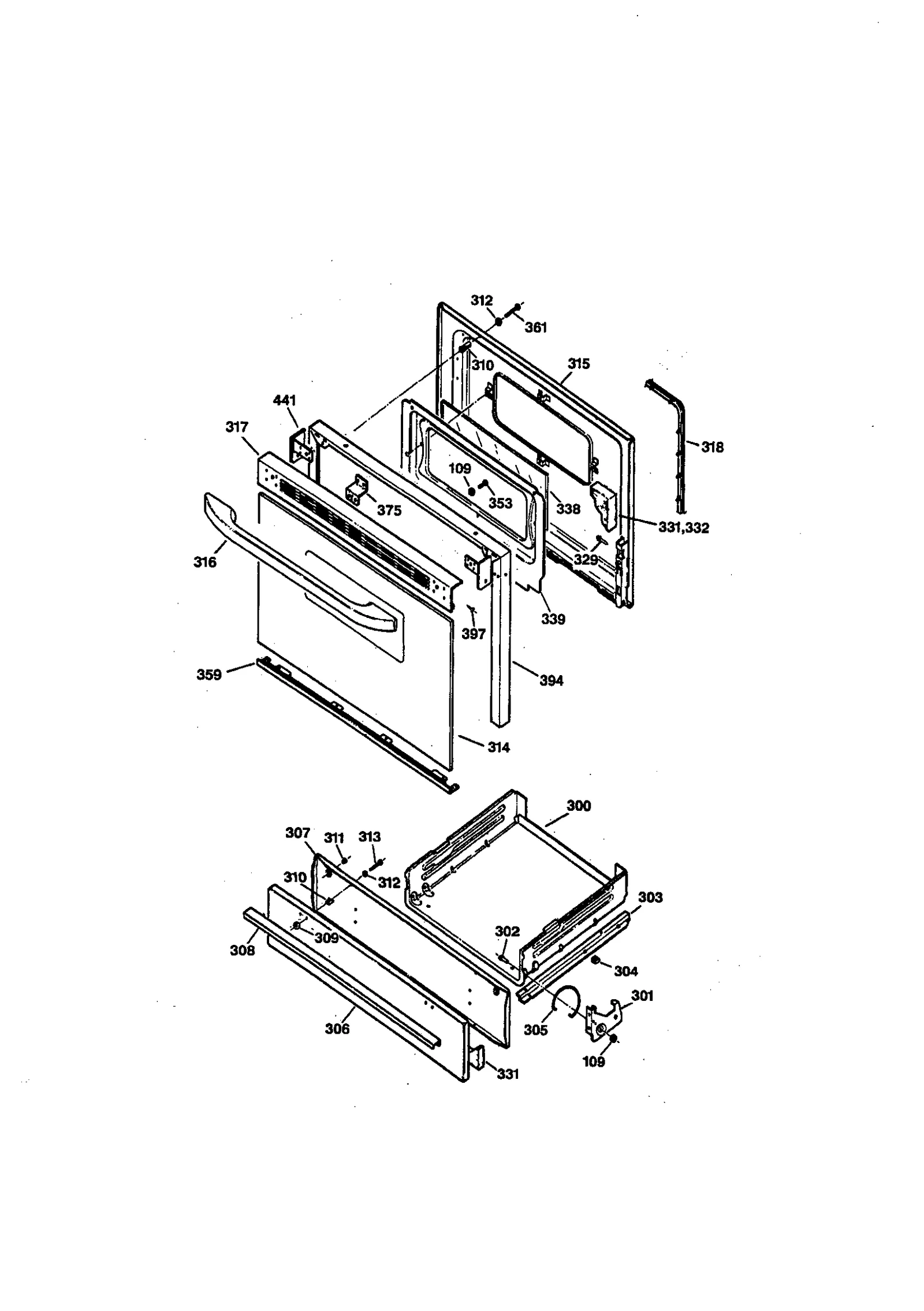

DOOR AND DRAWER

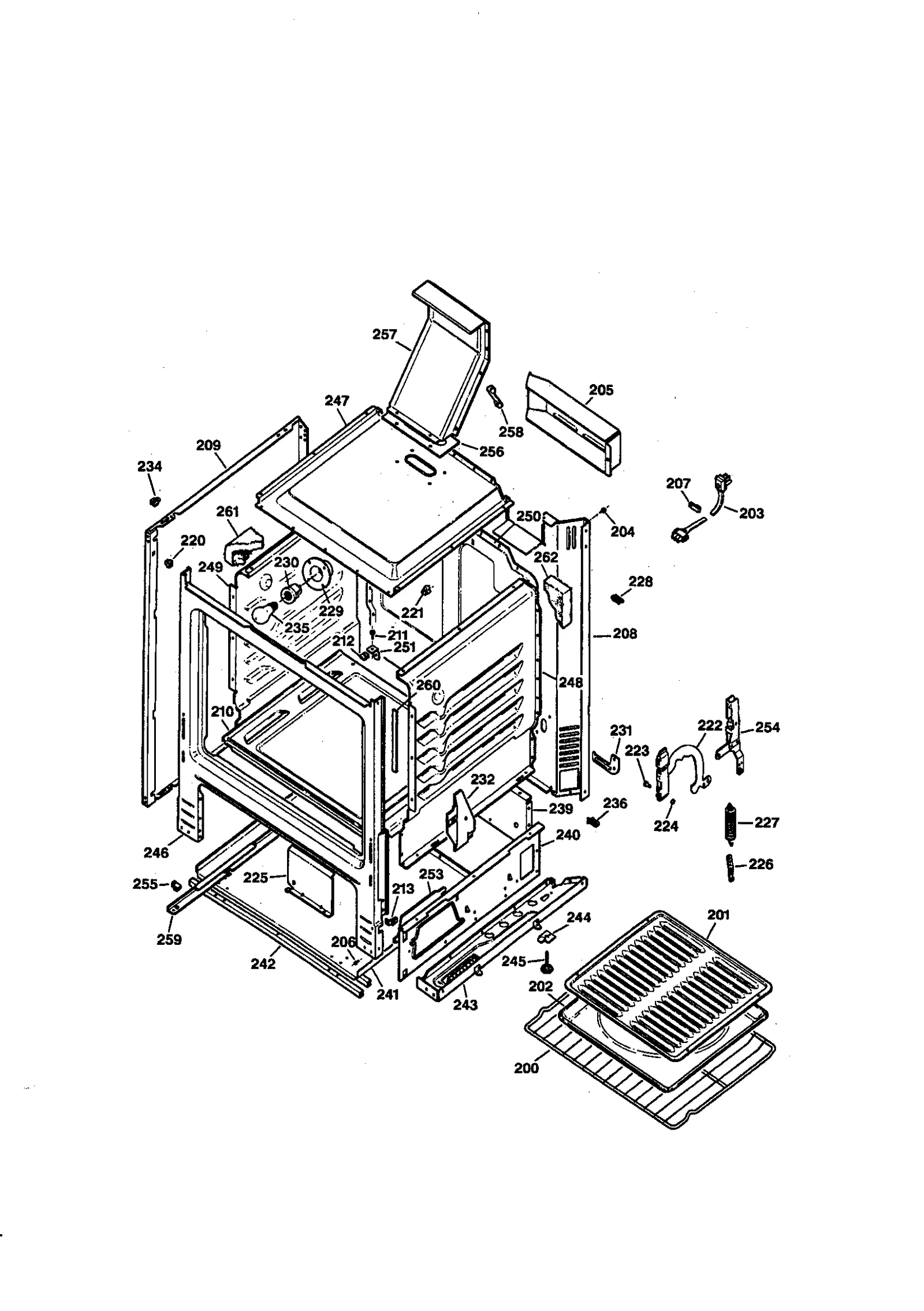

BODY
Common parts from model GE 362.75271691 Gas Range (Kenmore 36275271691)
1
Range Parts GEN SR4495 Contact Us For Availability
1A
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
1B
User's Manual GEN SR4234 Contact Us For Availability
1C
MINI MANUAL/ELEC DIAG. GEN 31-20619 Contact Us For Availability
2
Mini Valve Knob (Black) GEN WB03K0168 Contact Us For Availability
2A
Surface Burner Knob GEN WB03K0186 Contact Us For Availability
2B
Surface Burner Knob GEN WB03K0187 Contact Us For Availability
3
Orifice Spud GEN WB28K0146 Contact Us For Availability
3A
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
3B
Orif Spud Lg GEN WB28K0144 Contact Us For Availability
3C
LP Conversion Kit GEN WB28K0154 Contact Us For Availability
3D
Orifice Spud GEN WB28K0142 Contact Us For Availability
3E
Orifice Spud GEN WB28K0143 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
5
Panel Manif. GEN WB36K0166 Contact Us For Availability
5A
Manifold Panel GEN WB36K0039 Contact Us For Availability
5B
Panel Manif. GEN WB36K0167 Contact Us For Availability
6
Air Mix Tube GEN WB16K0014 Contact Us For Availability
7
Nut GEN WB01K0004 Contact Us For Availability
9
Burner Speed Box GEN WB63K0024 Contact Us For Availability
10
Burner Bracket GEN WB02K0099 Contact Us For Availability
10A
Orifice Holder Bracket GEN WB02K0098 Contact Us For Availability
12
Burner Valve Switch GEN WB24K0014 Contact Us For Availability
14
Manifold GEN WB28K0066 Contact Us For Availability
15A
Vlv Burner L GEN WB21K0020 Contact Us For Availability
15B
Vlv Burner R GEN WB21K0021 Contact Us For Availability
16
Reg Pressure GEN WB19K0028 Contact Us For Availability
18
Thermostat Cover GEN WB02K0006 Contact Us For Availability
20
Tube Orifice GEN WB28K0188 Contact Us For Availability
20A
Tube Orifice GEN WB28K0187 Contact Us For Availability
20B
Tube Orifice GEN WB28K0189 Contact Us For Availability
20C
Tube Orifice GEN WB28K0186 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
25B
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
38
Cover Regulator GEN WB34K0029 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
100
End Cover GEN WB07K0269 Contact Us For Availability
100A
End Cvr Lft GEN WB07K0336 Contact Us For Availability
100B
End Cover GEN WB07K0335 Contact Us For Availability
100C
End Cover GEN WB07K0270 Contact Us For Availability
100D
End Cover GEN WB07K0090 Contact Us For Availability
100E
End Cover GEN WB07K0089 Contact Us For Availability
101
End Plate GEN WB37K0012 Contact Us For Availability
101A
End Plate GEN WB37K0011 Contact Us For Availability
102
Lwr Frt Trim GEN WB07K0005 Contact Us For Availability
103
Timer Bracket GEN WB37K0009 Contact Us For Availability
104
Trim Ctl Blk GEN WB36K0041 Contact Us For Availability
104A
Control Trim GEN WB36K0042 Contact Us For Availability
104B
Control Trim GEN WB36K0168 Contact Us For Availability
106
Cover GEN WB36K0017 Contact Us For Availability
107
Lower Cover GEN WB36K0002 Contact Us For Availability
108A
Screw GEN WB01X5716 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
109A
Washer GEN WB01K0068 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110A
Wire Harness GEN WB18K0006 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Grate Asm Fi GEN WB31K0025 Contact Us For Availability
113A
Grate Finger GEN WB31K0081 Contact Us For Availability
113B
Grate Finger GEN WB31K0024 Contact Us For Availability
114
Cooktop (al) GEN WB62K0065 Contact Us For Availability
114A
Cooktop (wh) GEN WB62K0064 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
124
Pan Unit GEN WB32K0016 Contact Us For Availability
124A
Pan Unit Lft GEN WB32K0010 Contact Us For Availability
125
Pan Unit GEN WB32K0015 Contact Us For Availability
125A
Pan Unit GEN WB32K0009 Contact Us For Availability
133
Palnut GEN WB01K0022 Contact Us For Availability
135
Brace Backguard GEN WB37K0010 Contact Us For Availability
140
Overlay GEN WB11K0049 Contact Us For Availability
140A
Overlay GEN WB11K0047 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Burner Cap GEN WB29K0042 Contact Us For Availability
151A
Burner Cap GEN WB29K0043 Contact Us For Availability
151B
Burner Cap GEN WB29K0041 Contact Us For Availability
152
Burner Cap GEN WB29K0046 Contact Us For Availability
152A
Burner Cap GEN WB29K0044 Contact Us For Availability
152B
Burner Cap GEN WB29K0045 Contact Us For Availability
153
Burner Cap GEN WB29K0048 Contact Us For Availability
153A
Burner Cap GEN WB29K0049 Contact Us For Availability
153B
Burner Cap GEN WB29K0047 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
156
Burner Head GEN WB16K0011 Contact Us For Availability
157
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Bck Pnl GEN WB34K0021 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
209A
Panel GEN WB63K0050 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
222
Hinge Asm Gd GEN WB10K0012 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232A
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Tube Valve Support GEN WB28K0148 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243A
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
247
Oven GEN WB53K0001 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Ov Back 24" GEN WB53K0004 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254A
Support Rivet GEN WB10K0014 Contact Us For Availability
254B
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0001 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259A
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
271
Tube Valve Support GEN WB28K0149 Contact Us For Availability
301A
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0008 Contact Us For Availability
303A
Slide Brlr P GEN WB39K0007 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305A
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Bl GEN WB39K0032 Contact Us For Availability
306A
Pnl Drwr Ad GEN WB39K0024 Contact Us For Availability
306B
Pnl Drwr Wh GEN WB39K0023 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0015 Contact Us For Availability
308A
Broiler Handle GEN WB15K0017 Contact Us For Availability
308B
Broiler Handle GEN WB15K0018 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314
Pad GEN WB02X1222 Contact Us For Availability
314A
Door (Black) GEN WB57K0002 Contact Us For Availability
314B
Glass Dr (al GEN WB57K0021 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0006 Contact Us For Availability
316
Oven Handle GEN WB15K5113 Contact Us For Availability
316A
Door Handle GEN WB15K5114 Contact Us For Availability
316B
Oven Door Handle GEN WB15K5115 Contact Us For Availability
317
Trim Top Dr GEN WB07K0408 Contact Us For Availability
317A
Drive Trim Vent GEN WB07K0409 Contact Us For Availability
317B
Trim Top Dr GEN WB07K0407 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
359A
Door Trim GEN WB07K0385 Contact Us For Availability
375
Door Bracket GEN WB02K0100 Contact Us For Availability
394
Door Trim Al GEN WB07K0337 Contact Us For Availability
394A
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394B
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
397B
Mounting Screw GEN WB01K0071 Contact Us For Availability
441C
End Cap Lft GEN WB07K0262 Contact Us For Availability
441D
End Cap GEN WB07K0261 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
711
Thermostat Knob GEN WB03K0222 Contact Us For Availability
711A
Thermostat Knob GEN WB03K0119 Contact Us For Availability
711B
Thermostat Knob GEN WB03K0117 Contact Us For Availability
NI
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
NI
Natural Gas Conversion Kit GEN WB28K0168 Contact Us For Availability
× ![]()
