Model GE 362.75205892 Gas Range (Kenmore 36275205892) – Common Parts & Diagrams
BODY PARTS
DOOR & DRAWER PARTS

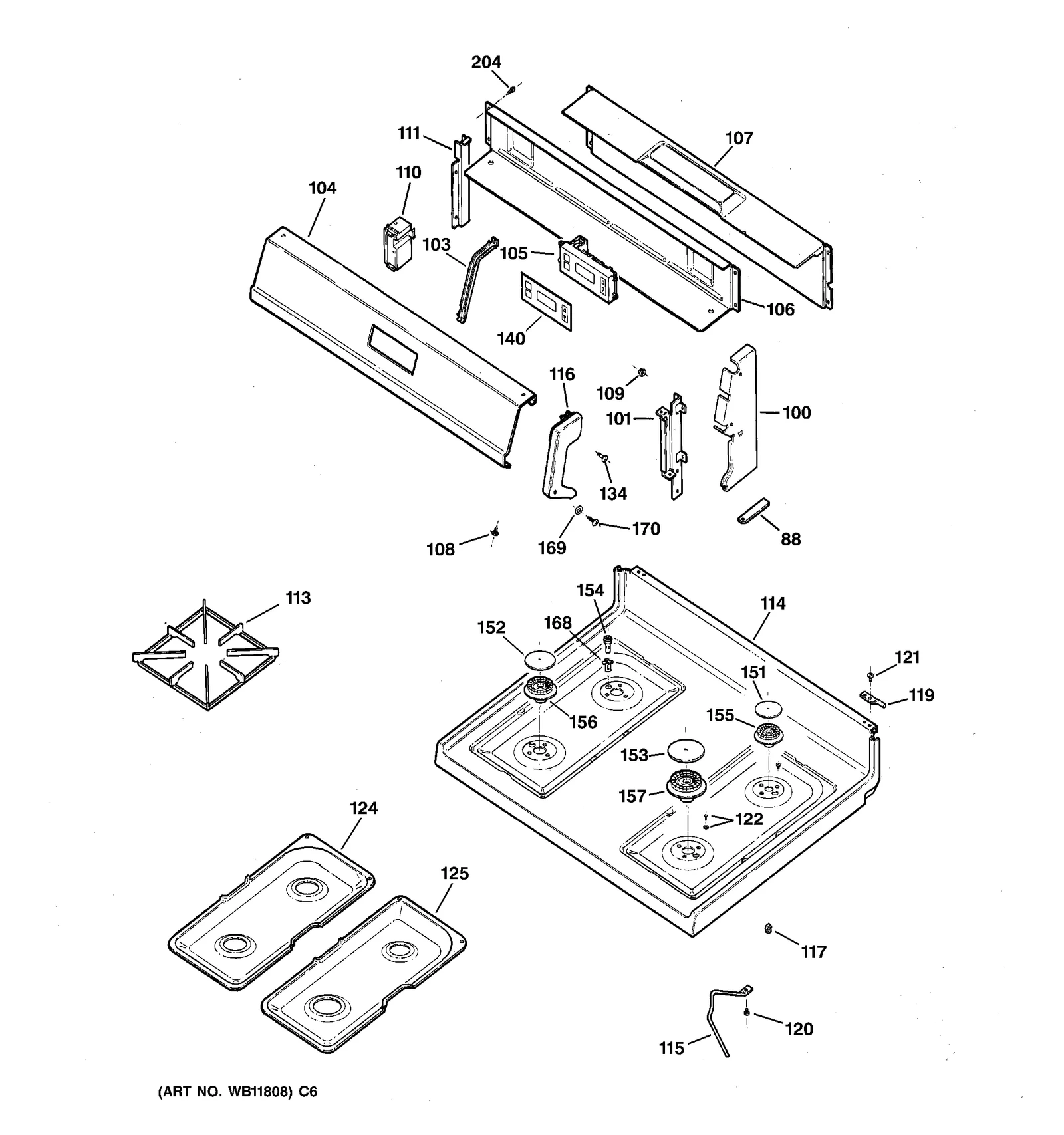

CONTROL PANEL & COOKTOP

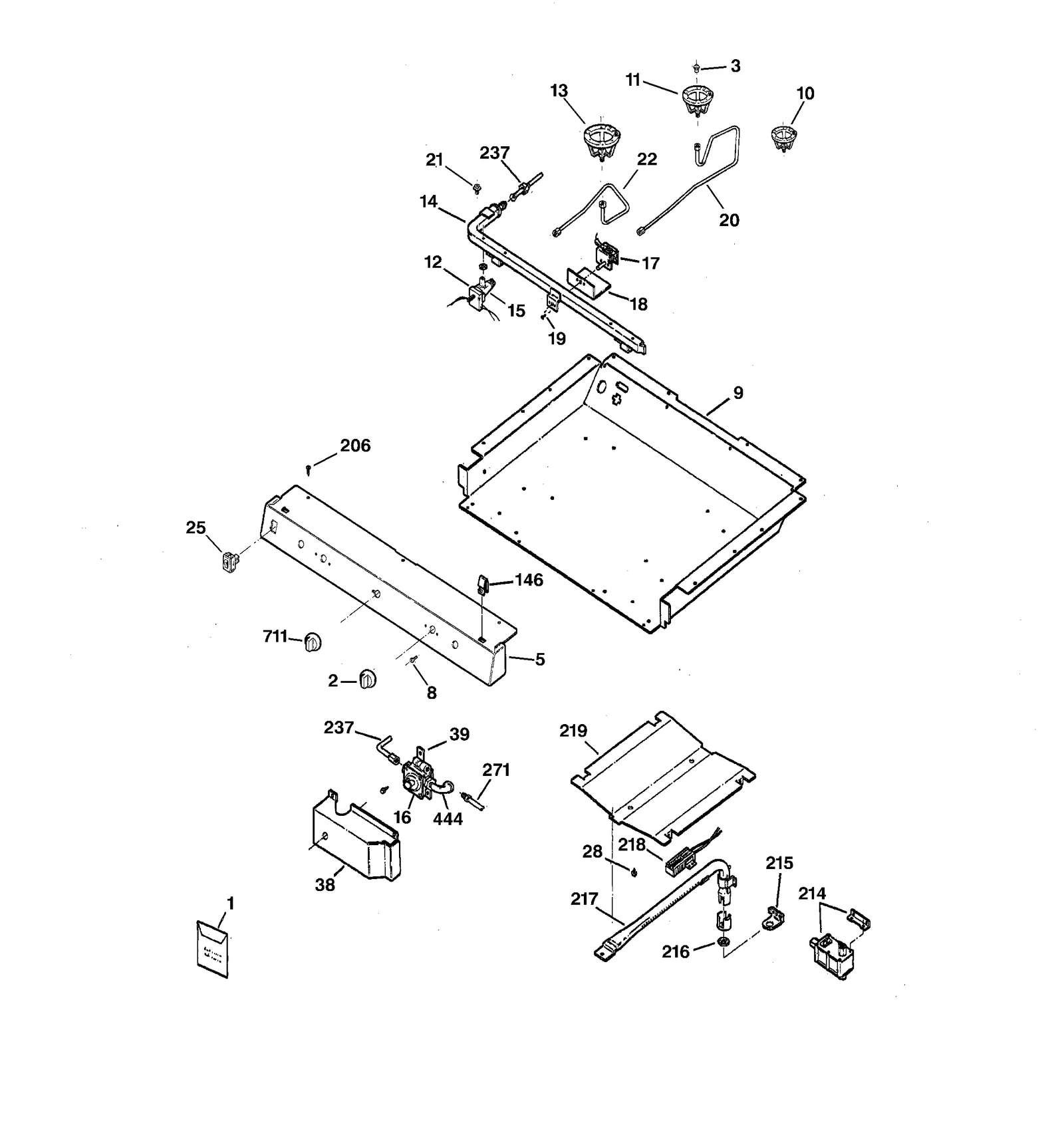

BURNER PARTS
Common parts from model GE 362.75205892 Gas Range (Kenmore 36275205892)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
1
MANUAL-MINI/ELEC DIAG GEN 31-21019 Contact Us For Availability
1
Owner's Manual GEN SR42612 Contact Us For Availability
1
Parts List GEN SR4585 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10021 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
5
Manifold Panel GEN WB36K10025 Contact Us For Availability
5
Manifold Panel GEN WB36K10026 Contact Us For Availability
5
Range Manifold Panel GEN WB36K10027 Contact Us For Availability
9
Burner Speed Box GEN WB63K0024 Contact Us For Availability
10
Burner Bracket GEN WB02K10007 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10020 Contact Us For Availability
15
Vlv Burner L GEN WB21K0041 Contact Us For Availability
15
Vlv Burner R GEN WB21K0042 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
18
Thermostat Cover GEN WB02K0006 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
38
Cover Regulator GEN WB34K0029 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10008 Contact Us For Availability
100
End Cover GEN WB07K10009 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10017 Contact Us For Availability
104
Control Trim GEN WB36K10019 Contact Us For Availability
104
Control Trim GEN WB36K10074 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10018 Contact Us For Availability
114
Range Main Top Assembly GEN WB62K10048 Contact Us For Availability
114
Main Top/ald GEN WB62K10049 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Cap-end Rt A GEN WB07K10011 Contact Us For Availability
116
Cap-end Lf A GEN WB07K10012 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan GEN WB34K10012 Contact Us For Availability
125
Pan Unit GEN WB34K10011 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
140
Range Oven Control Overlay GEN WB11K10002 Contact Us For Availability
140
Overlay (wh) GEN WB11K10003 Contact Us For Availability
140
Overlay (al) GEN WB11K10004 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw, #8-18 GEN WB01X5902 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
271
Tube Valve Support GEN WB28K0149 Contact Us For Availability
301
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0008 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Ad GEN WB39K0004 Contact Us For Availability
306
Pnl Drwr Blk GEN WB39K0010 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0015 Contact Us For Availability
308
Broiler Handle GEN WB15K0017 Contact Us For Availability
308
Broiler Handle GEN WB15K0018 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314
Door Glass GEN WB57K10009 Contact Us For Availability
314
Door Glass GEN WB57K10011 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0006 Contact Us For Availability
316
Door Handle GEN WB15K10021 Contact Us For Availability
316
Door Handle GEN WB15K10022 Contact Us For Availability
316
Door Handle GEN WB15K10023 Contact Us For Availability
317
Trim Top Dr GEN WB07K0239 Contact Us For Availability
317
Dr Trim Al GEN WB07K0338 Contact Us For Availability
317
Door Trim GEN WB07K0406 Contact Us For Availability
322
Range Trim GEN WB07K10121 Contact Us For Availability
322
Range Bottom Oven Door Trim (Black) GEN WB07K10120 Contact Us For Availability
322
Rh Dr Trim GEN WB07K10122 Contact Us For Availability
322
Lt Dr Trim/w GEN WB07K10123 Contact Us For Availability
322
Trim Door Ring GEN WB07K10126 Contact Us For Availability
322
Trim Door Le GEN WB07K10127 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
323
Handle Cap GEN WB07K5339 Contact Us For Availability
323
Handle Cap-l GEN WB07T10003 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
324
Handle Cap GEN WB07K5338 Contact Us For Availability
324
Handle Cap GEN WB07T10002 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
359
Door Trim GEN WB07K0385 Contact Us For Availability
375
Door Bracket GEN WB02K0067 Contact Us For Availability
397
Mounting Screw GEN WB01K0071 Contact Us For Availability
441
End Cap GEN WB07K0261 Contact Us For Availability
441
End Cap Lft GEN WB07K0262 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10011 Contact Us For Availability
711
Range Control Knob GEN WB03K10020 Contact Us For Availability
× ![]()
