Model GE 362.72191891 Gas Range (Kenmore 36272191891) – Common Parts & Diagrams
DOOR & DRAWER PARTS
CONTROL PANEL & COOKTOP

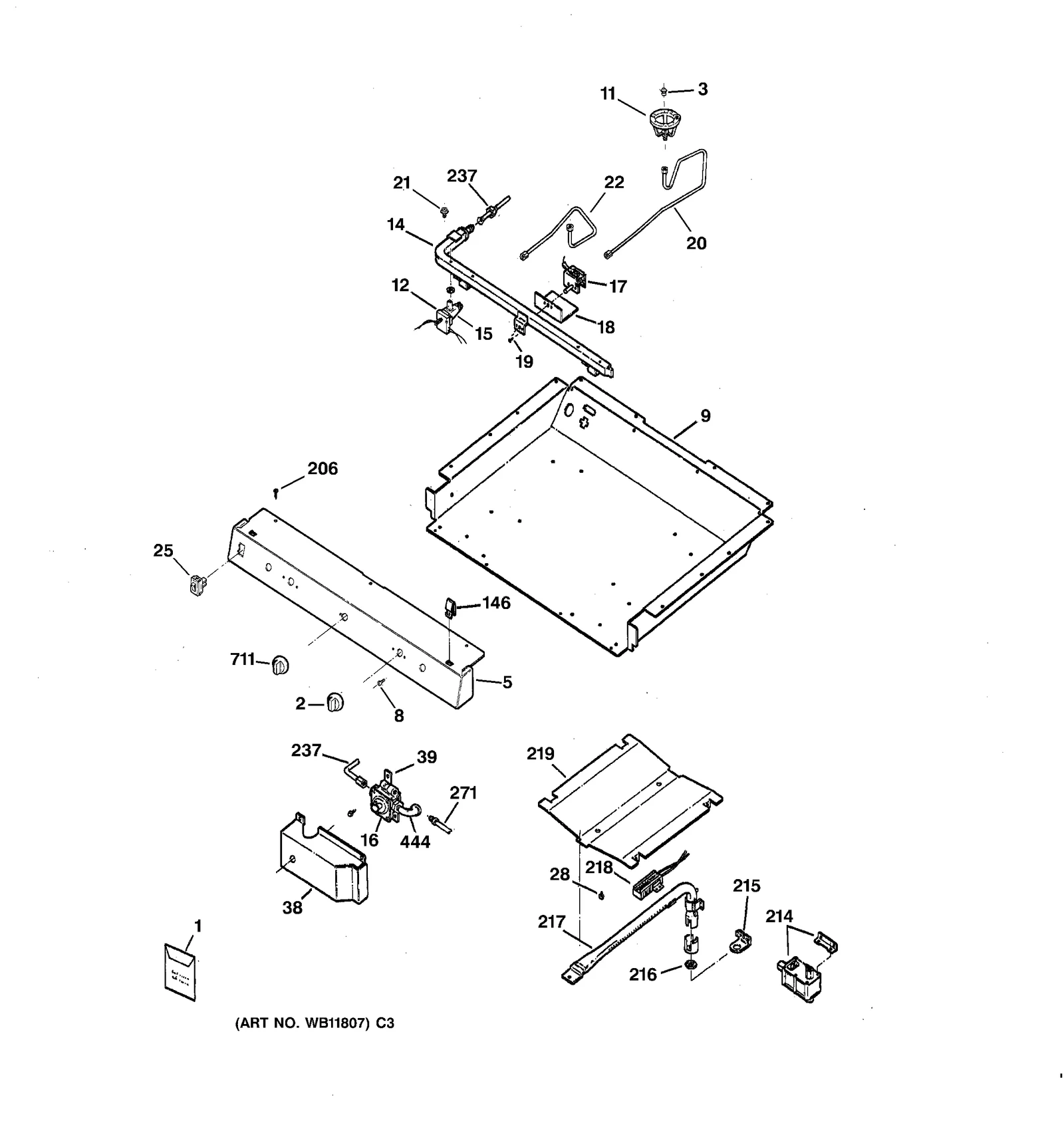

BURNER PARTS

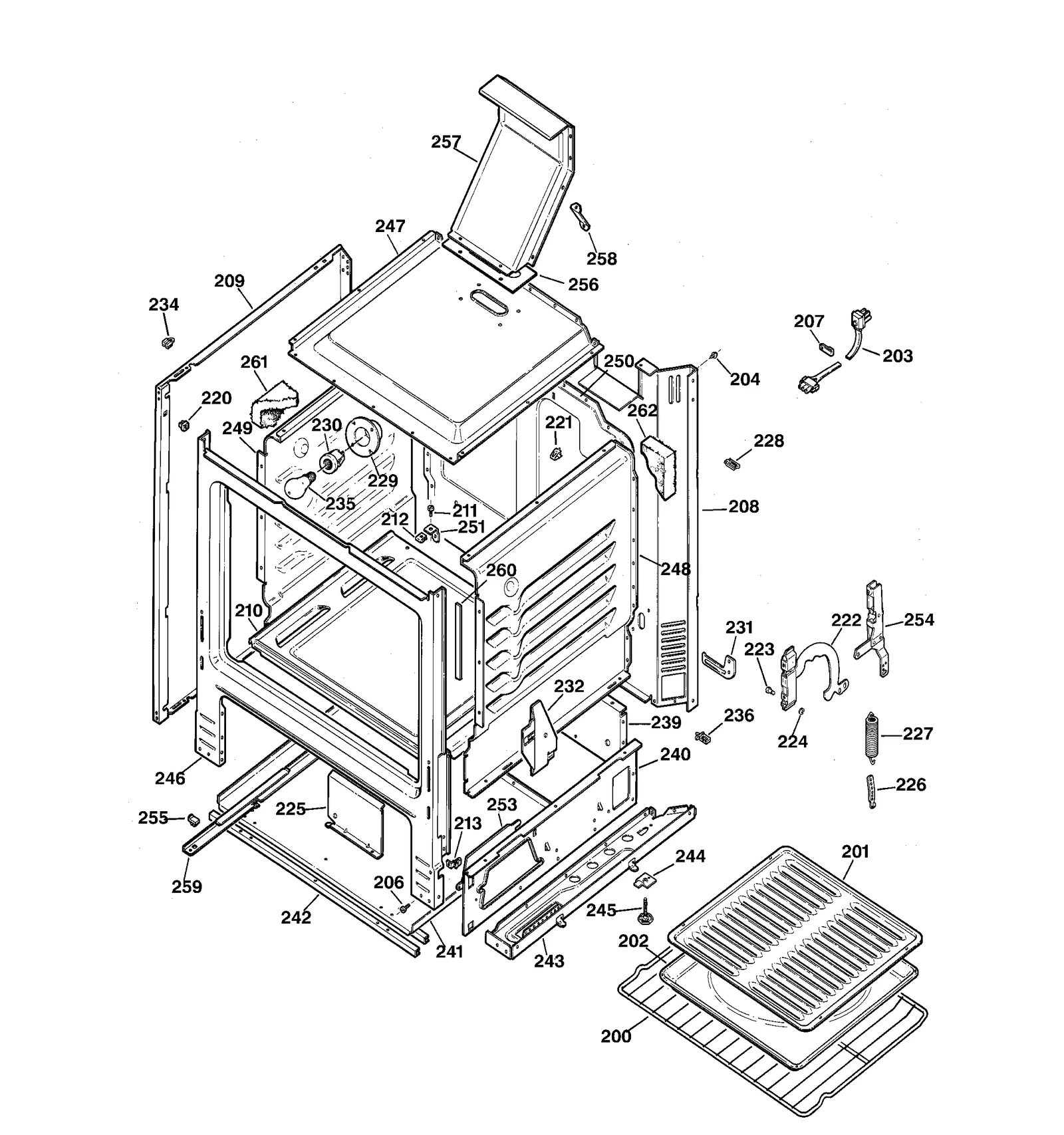

BODY PARTS
Common parts from model GE 362.72191891 Gas Range (Kenmore 36272191891)
1
Range LP Conversion Kit GEN WB28K10046 Contact Us For Availability
1
MANUAL-MINI/ELEC. DIAG. GEN 31-20640 Contact Us For Availability
1
Uc/install S GEN SR4248 Contact Us For Availability
1
Repair Parts List GEN SR4535 Contact Us For Availability
1
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
5
Manifold Panel GEN WB36K10024 Contact Us For Availability
9
Burner Speed Box GEN WB63K0024 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10002 Contact Us For Availability
14
Manifold Pipe GEN WB28K10020 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
18
Thermostat Cover GEN WB02K0006 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
38
Cover Regulator GEN WB34K0029 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10008 Contact Us For Availability
100
End Cover GEN WB07K10009 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10017 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10025 Contact Us For Availability
114
Cooktop (al) GEN WB62K10026 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
140
Range Oven Control Overlay GEN WB11K10002 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Ov Back 24" GEN WB53K0004 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
271
Tube Valve Support GEN WB28K0149 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
330
Reflector GEN WB55K0001 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
334
Door Spacer GEN WB02K0013 Contact Us For Availability
335
Spacer GEN WB02K0002 Contact Us For Availability
336
Handle Screw GEN WZ04X0423 Contact Us For Availability
337
Pnl Door Blk GEN WB56K0039 Contact Us For Availability
347
Crystal Trim GEN WB07K0086 Contact Us For Availability
348
Crystal Clip GEN WB02K0050 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
× ![]()
