Model Electrolux 31-2452-00-01 RANGE – Common Parts & Diagrams

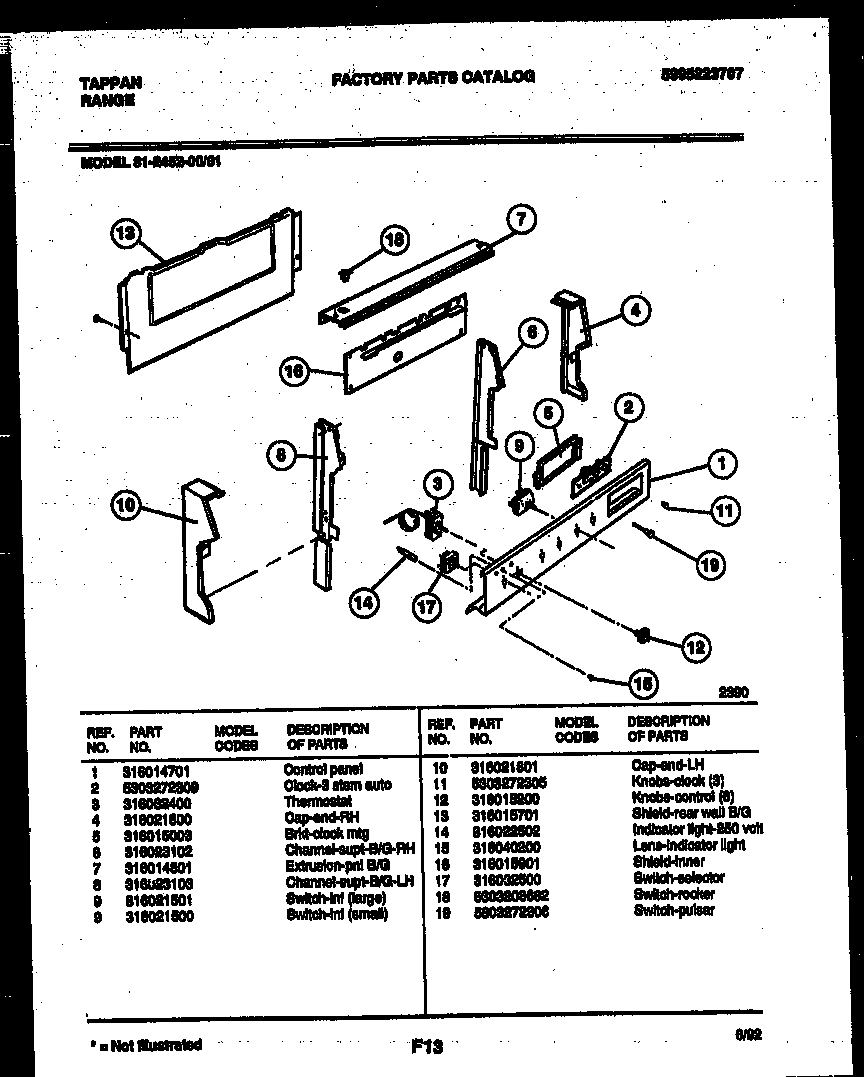

02 - BACKGUARD

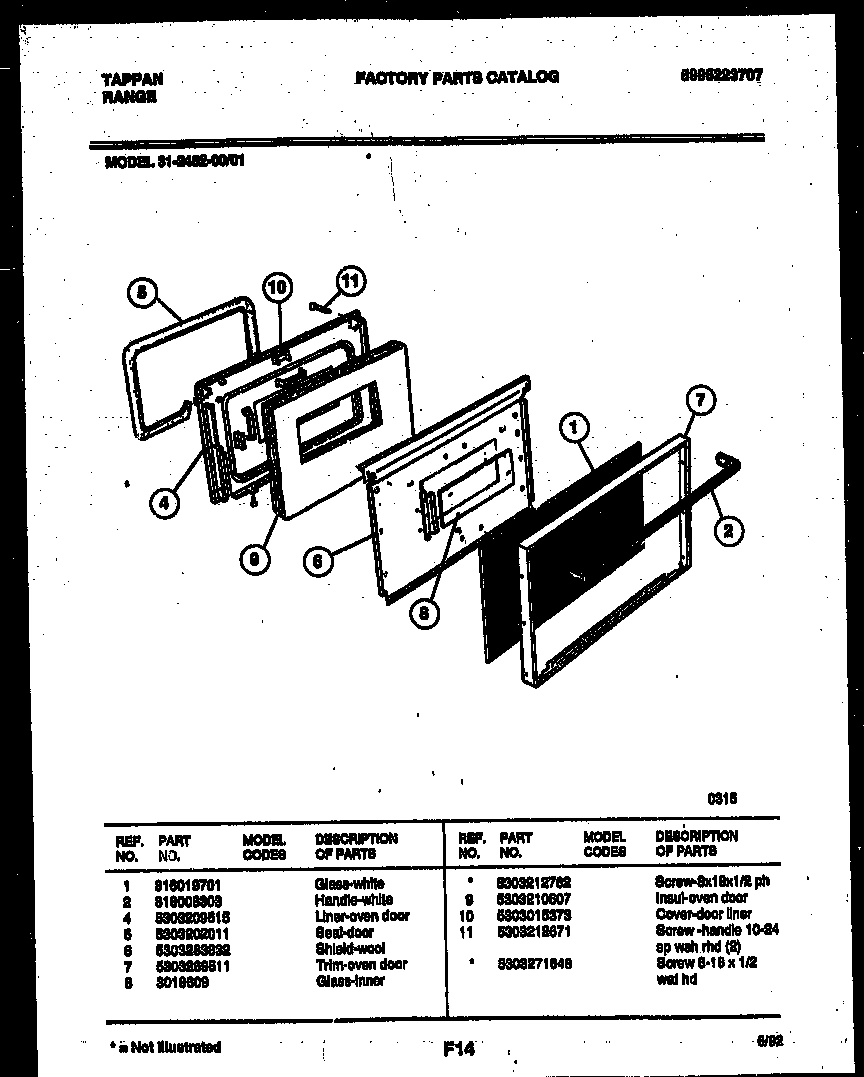

03 - DOOR PARTS

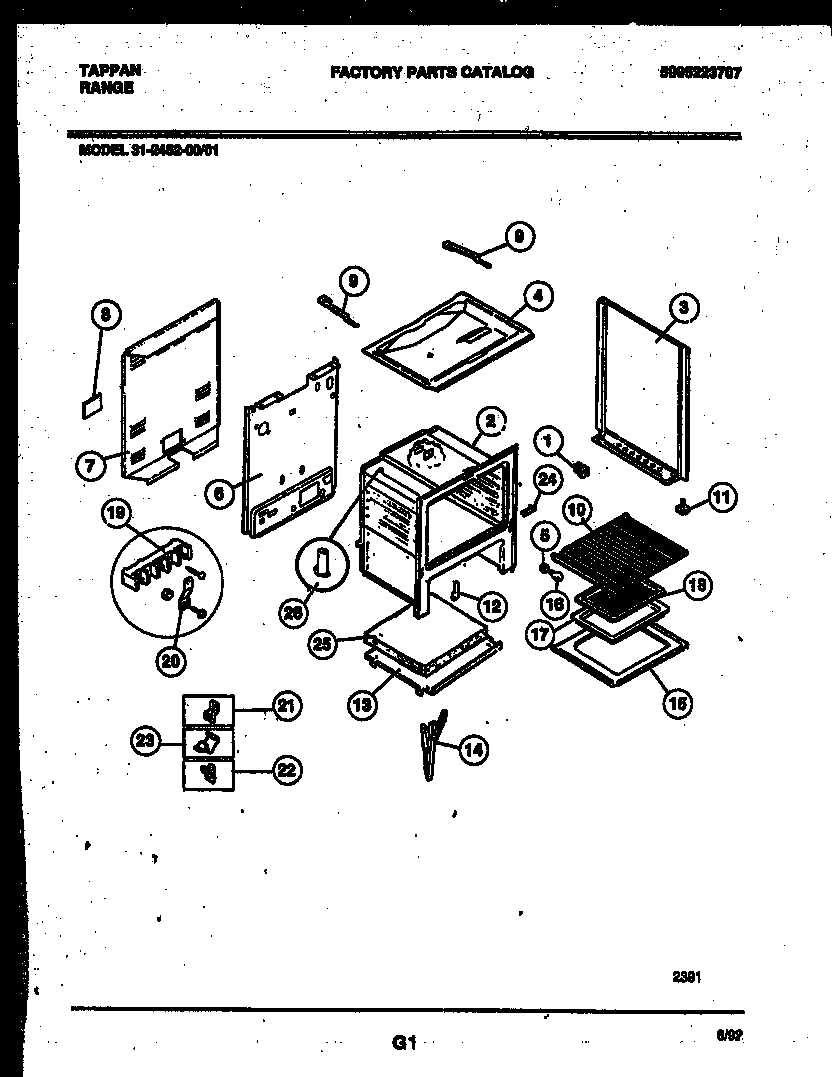

04 - BODY PARTS

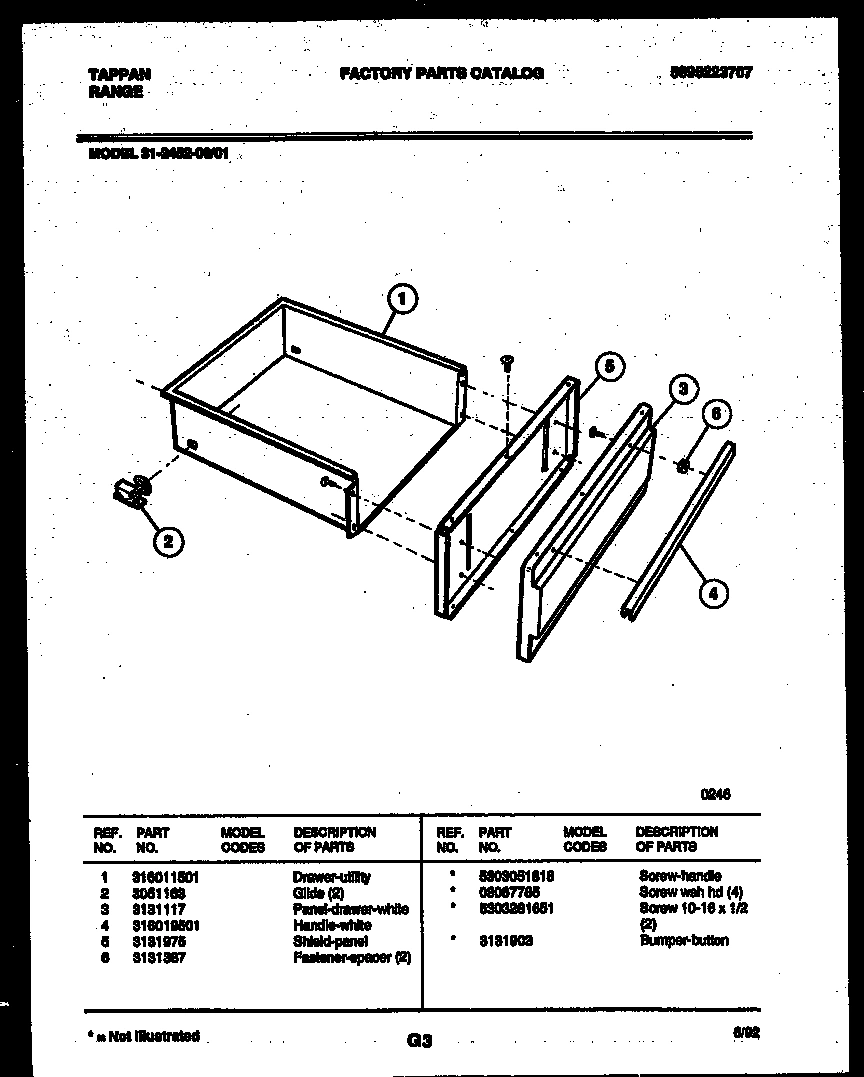

05 - DRAWER PARTS

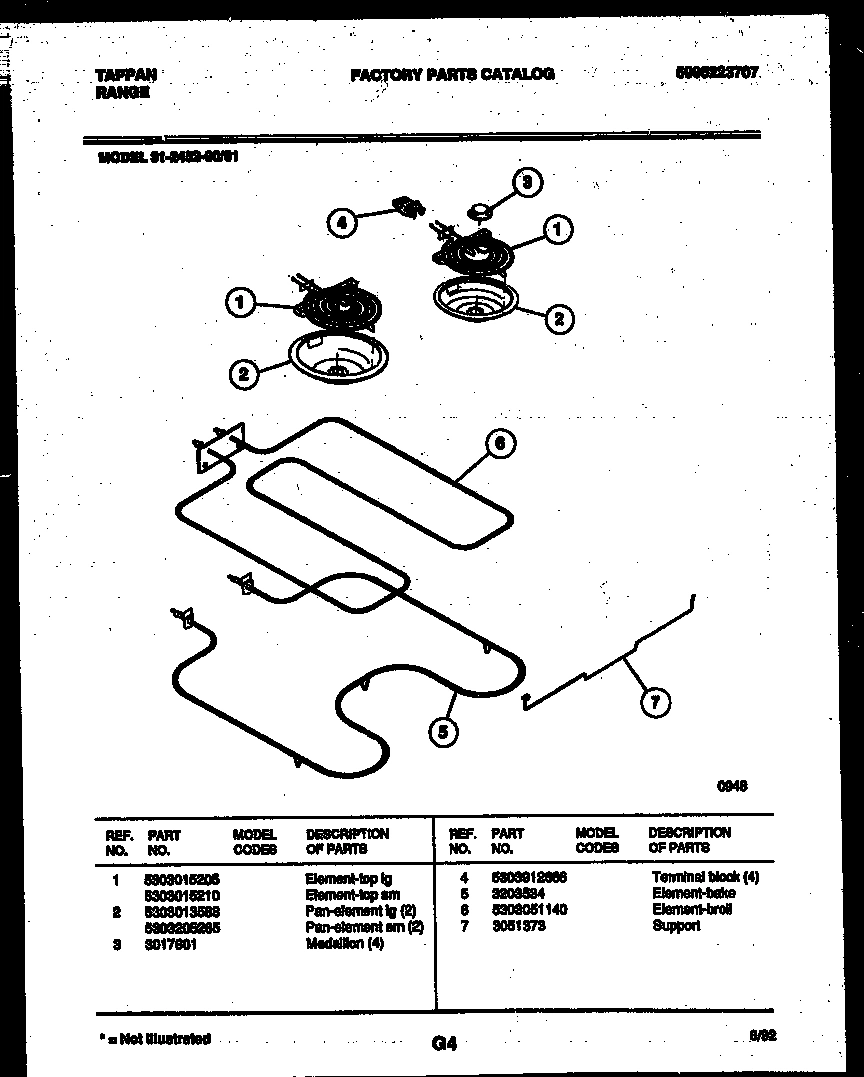

06 - BROILER PARTS

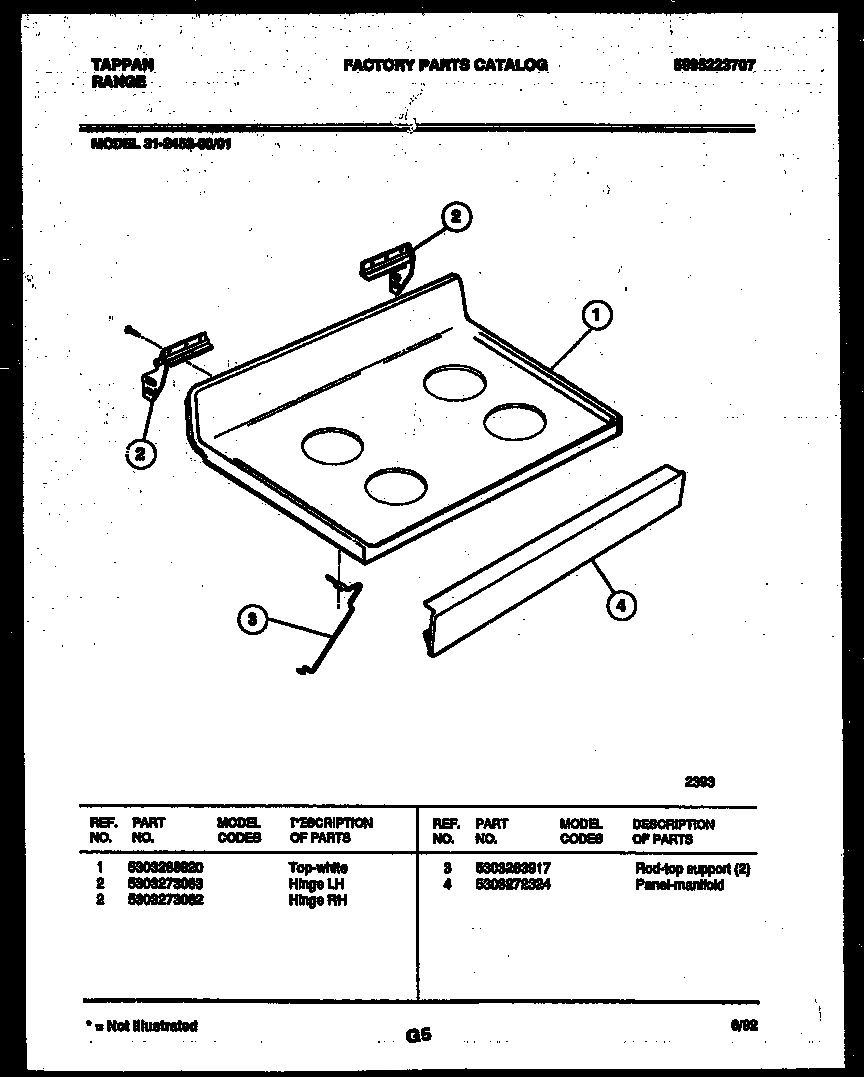

07 - COOKTOP PARTS
Common parts from model Electrolux 31-2452-00-01 RANGE
*72852
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*72852
INSULATION-BACK WCI 3203541 Contact Us For Availability
*72852
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*72853
WCI 316002001 WCI 316002001 Contact Us For Availability
*72853
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*72855
SCREW WSH HD (4) WCI 08067785 Contact Us For Availability
*72855
SCREW 10-16 X 1/2 (2) WCI 5303281651 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
HINGE RH WCI 5303273062 Contact Us For Availability
2
HINGE LH WCI 5303273063 Contact Us For Availability
3
WCI 316032400 WCI 316032400 Contact Us For Availability
3
PANEL-SIDE RH-WHITE WCI 5303269518 Contact Us For Availability
3
PANEL-SIDE LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
4
WCI 5303209515 WCI 5303209515 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
HANDLE-WHITE WCI 316019501 Contact Us For Availability
4
WCI 5303272324 WCI 5303272324 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303283832 WCI 5303283832 Contact Us For Availability
6
WCI 316029401 WCI 316029401 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303269511 WCI 5303269511 Contact Us For Availability
7
WCI 316015801 WCI 316015801 Contact Us For Availability
8
GLASS-INNER WCI 3018609 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
INSUL-OVEN DOOR WCI 5303210607 Contact Us For Availability
9
BRKT-MAIN TOP-RH WCI 5303283574 Contact Us For Availability
9
BRKT-MAIN TOP-LH WCI 5303283575 Contact Us For Availability
10
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
KNOBS-CLOCK (3) WCI 5303272305 Contact Us For Availability
11
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 5303212671 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 316007001 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
17
WCI 316032500 WCI 316032500 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 5303283907 WCI 5303283907 Contact Us For Availability
× ![]()
