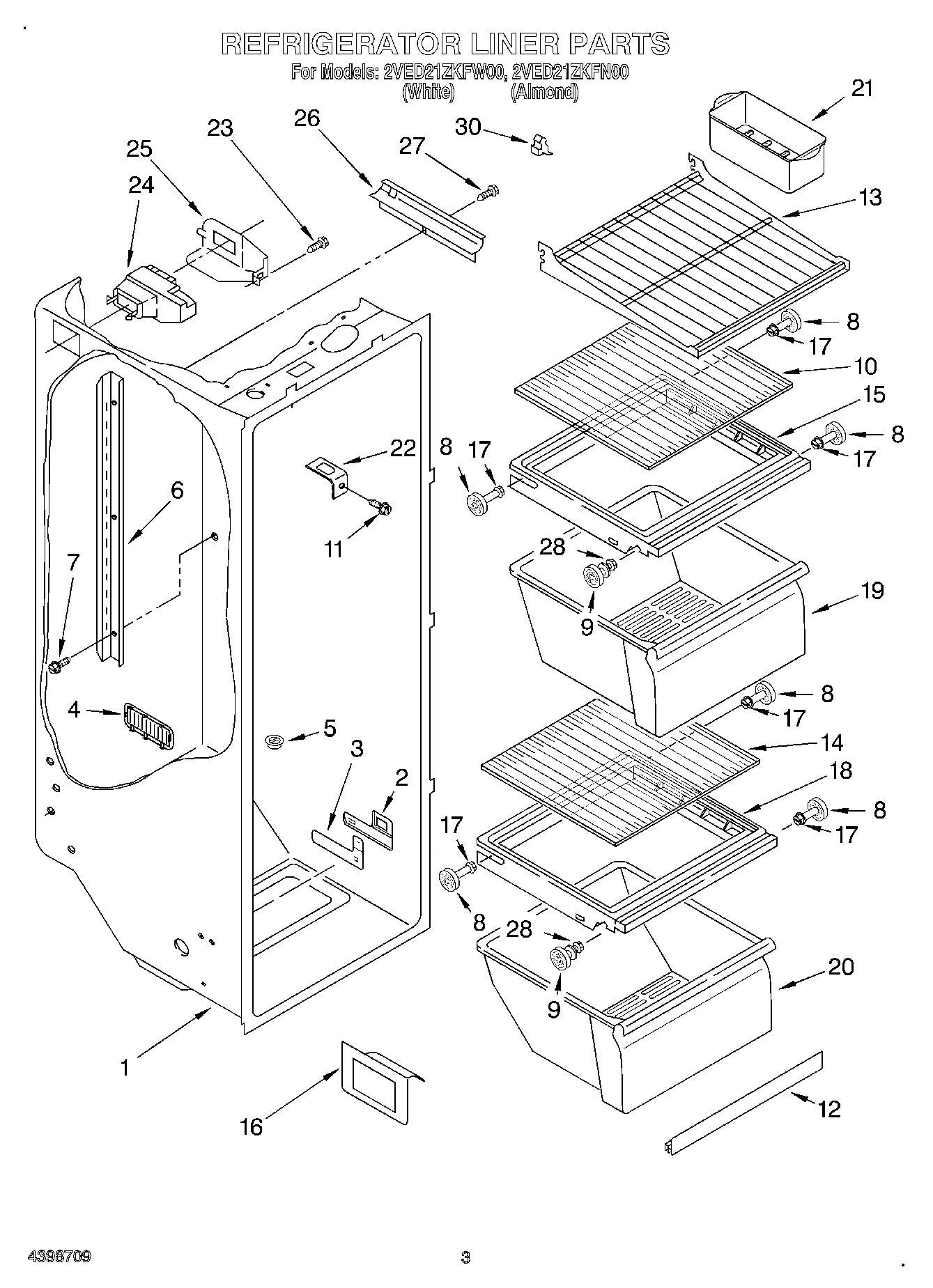

Model Whirlpool 2VED21ZKFW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door Panel (Almond) WPL 2194612N Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 2194612W Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2187141 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2204204 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI11583A7 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Tap, Plate WPL 2196135 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Seal, Hole WPL 1105408 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

Bracket, Door Stop WPL 2195950 Contact Us For Availability

6

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

6

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

6

Shroud, Light WPL 2167012 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

Enclosure, Terminal Block WPL 2188194 Contact Us For Availability

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Grommet (10) WPL 2176134 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

Terminal Block WPL 1129346 Contact Us For Availability

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Bushing WPL 1129449 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Shelf WPL 2163612 Contact Us For Availability

13

Shim, Hinge (2) WPL 2196048 Contact Us For Availability

Handle, Center (White) WPL 2186649W Contact Us For Availability

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Shelf (1) WPL 2174269 Contact Us For Availability

Shelf (2) WPL 2174270 Contact Us For Availability

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

Light Bar (RC) WPL 2179920 Contact Us For Availability

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

Bin, Freezer WPL 2171707 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

Light Bar (FC) WPL 2179921 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

Screw Anchor WPL 941242 Contact Us For Availability

18

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

19

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

19

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

20

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

20

Control Box Harness WPL 2186803 Contact Us For Availability

20

Cover, Wiring WPL 2155571 Contact Us For Availability

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

21

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

22

W10804014 Whirlpool Refrigerator Grille Backorder WPL W10804014 $73.81

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

22

Grille (Almond) WPL 2198469N Contact Us For Availability

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

23

Wiring Assembly WPL 2209657 Contact Us For Availability

23

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

24

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

24

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $53.69

24

Gasket WPL 2167227 Contact Us For Availability

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

25

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

25

Escutcheon, Control Box WPL 2175179 Contact Us For Availability

26

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

26

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

26

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

27

Window WPL 2172941 Contact Us For Availability

27

Interior Door Panel (Also Order Item No.15) WPL 2196137 Contact Us For Availability

27

Cabinet (Not A Serviceable Part) WPL ARI11581A2 Contact Us For Availability

28

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

28

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $4.48

WP2196190 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196190 $4.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

Door, Compartment WPL 2162902 Contact Us For Availability

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

Nameplate (White) WPL 2175383 Contact Us For Availability

36

Nameplate (Almond) WPL 2175384 Contact Us For Availability

37

Trim, Door Shelf WPL 2195921 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196100 $3.70

40

Service Cord WPL 1129332 Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Trim, Door Compartment WPL 2188148 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

Cover, Unit WPL 2204422 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
