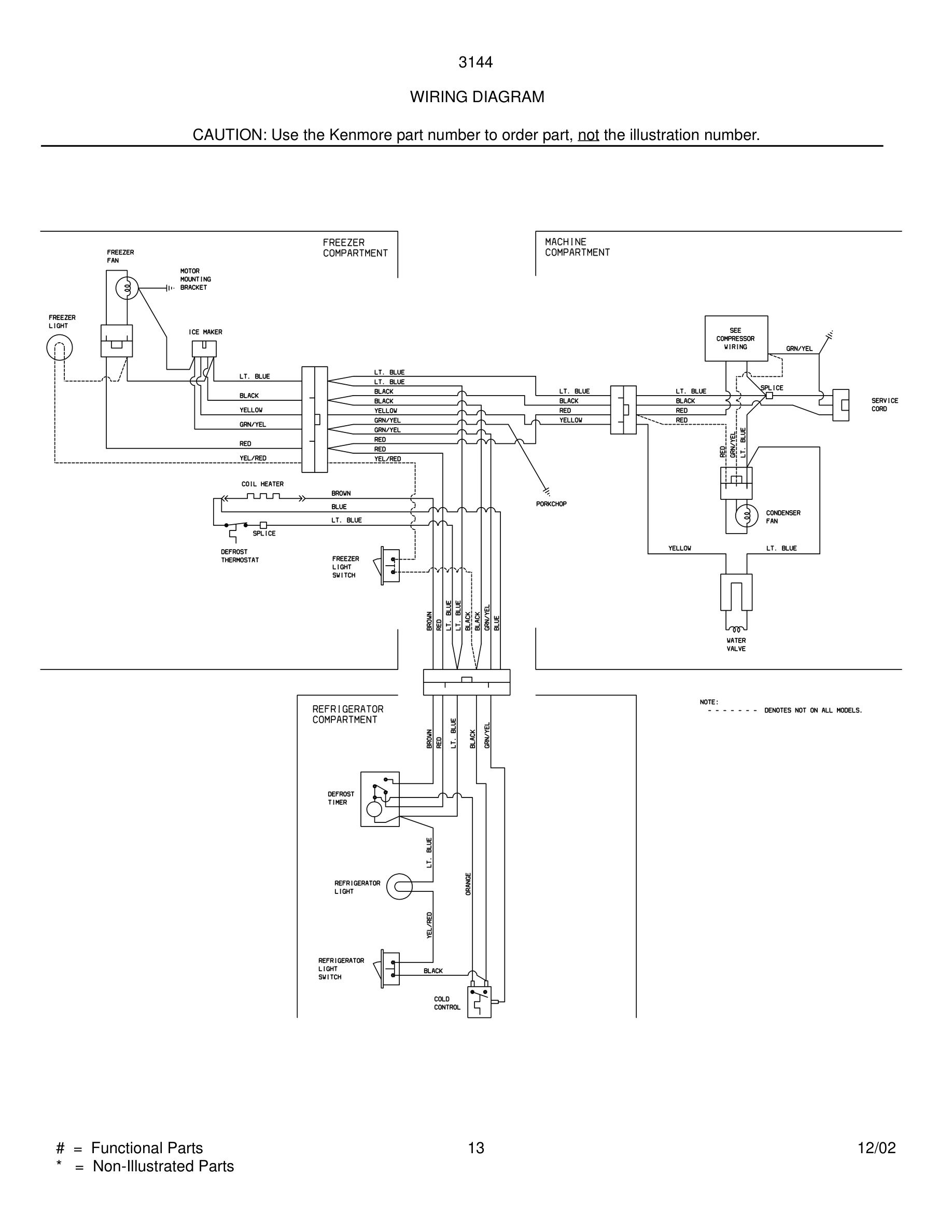

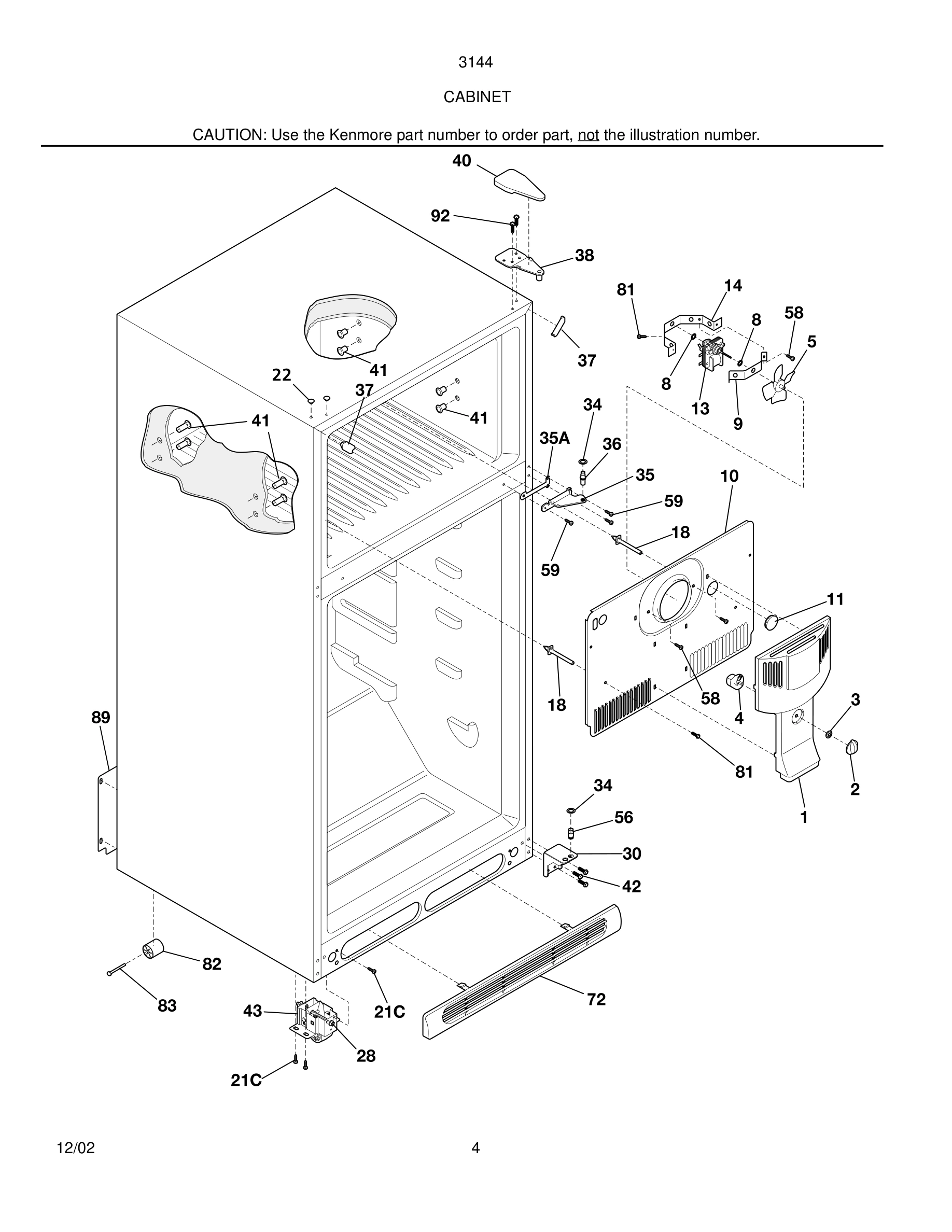

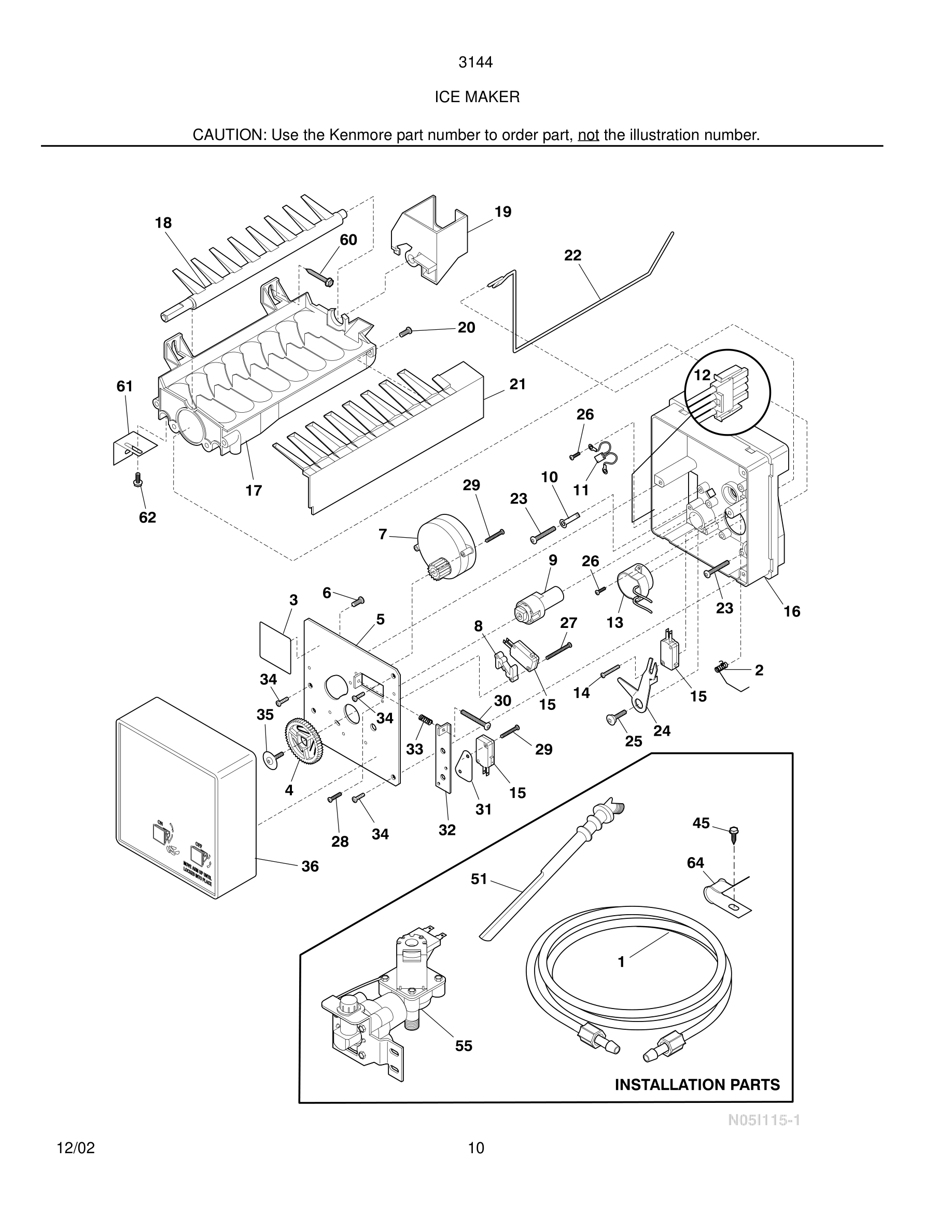

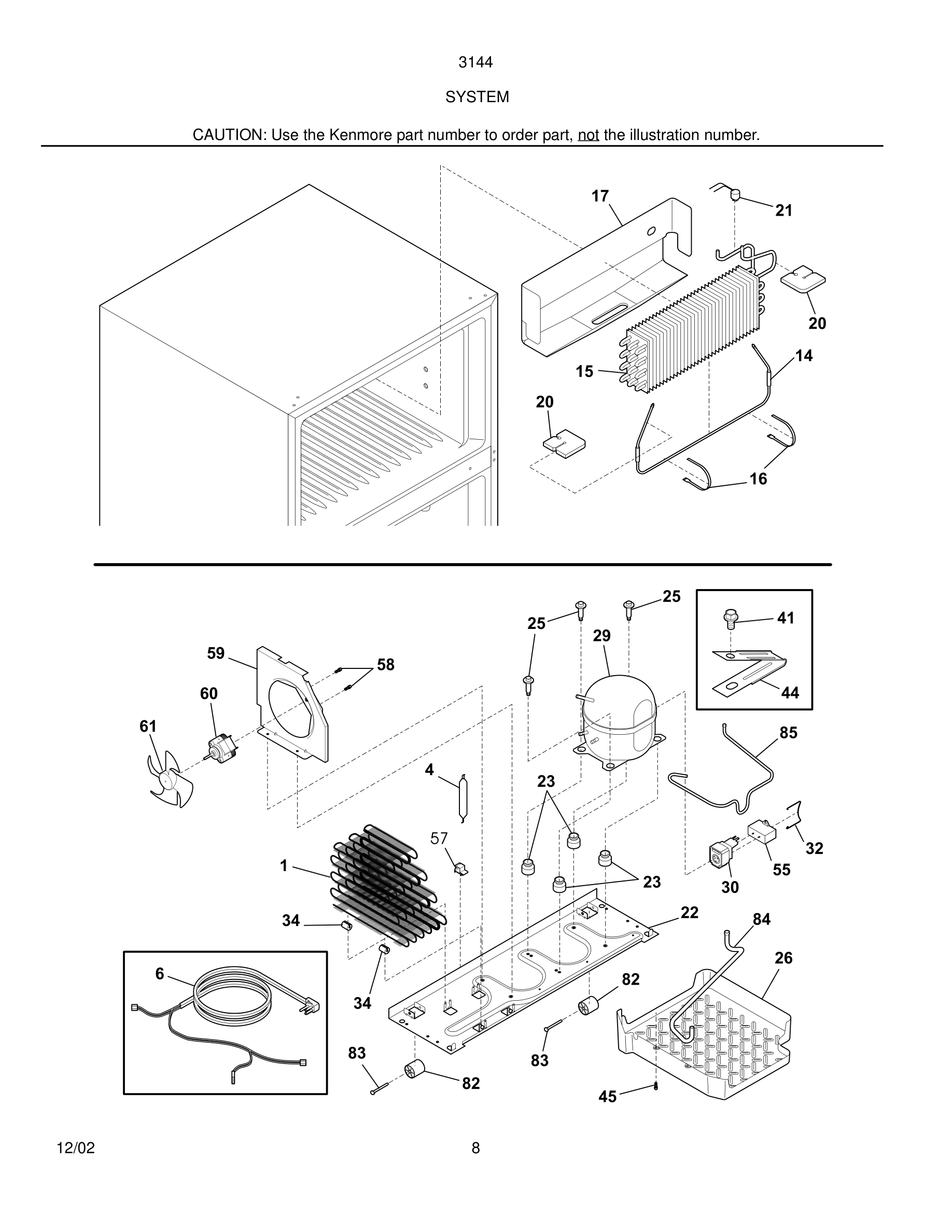

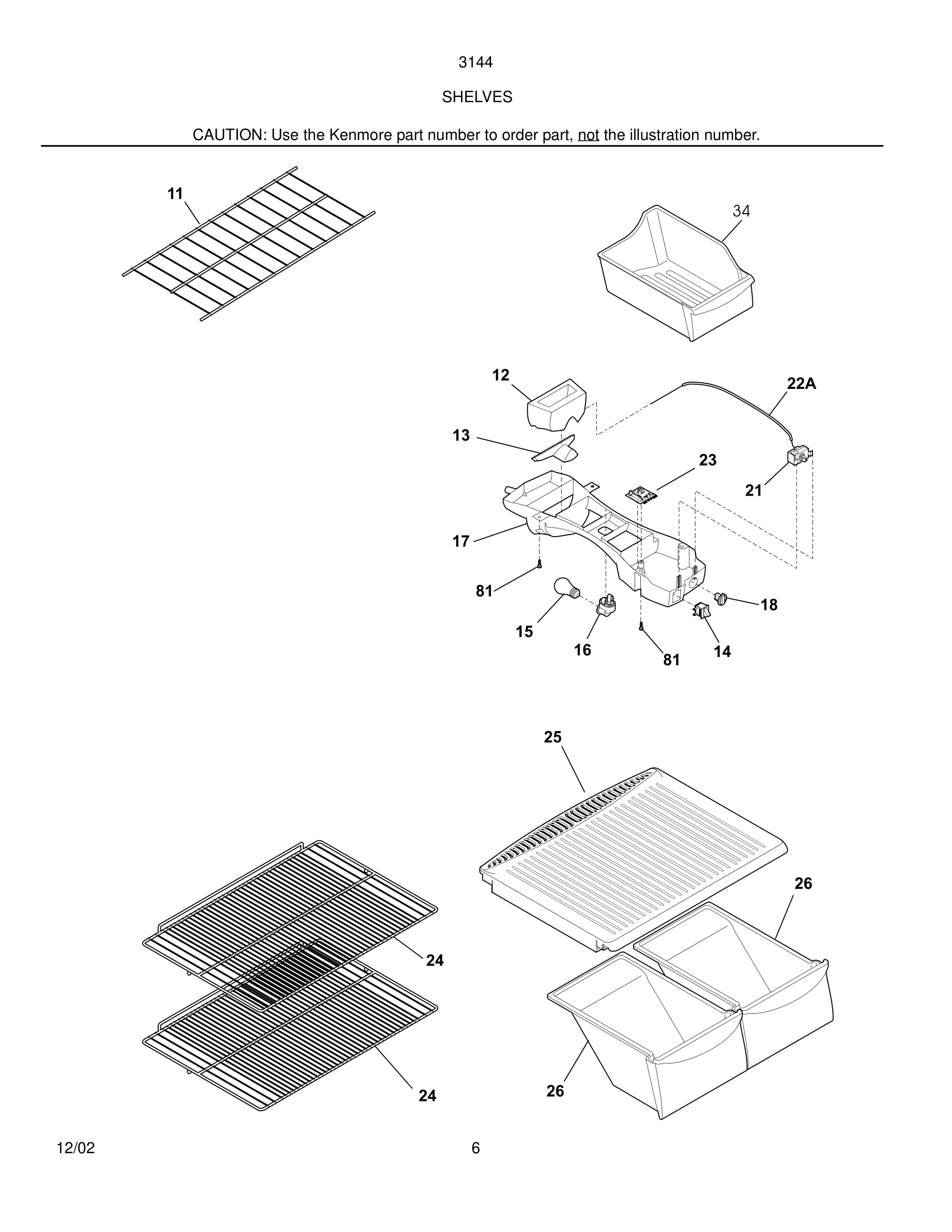

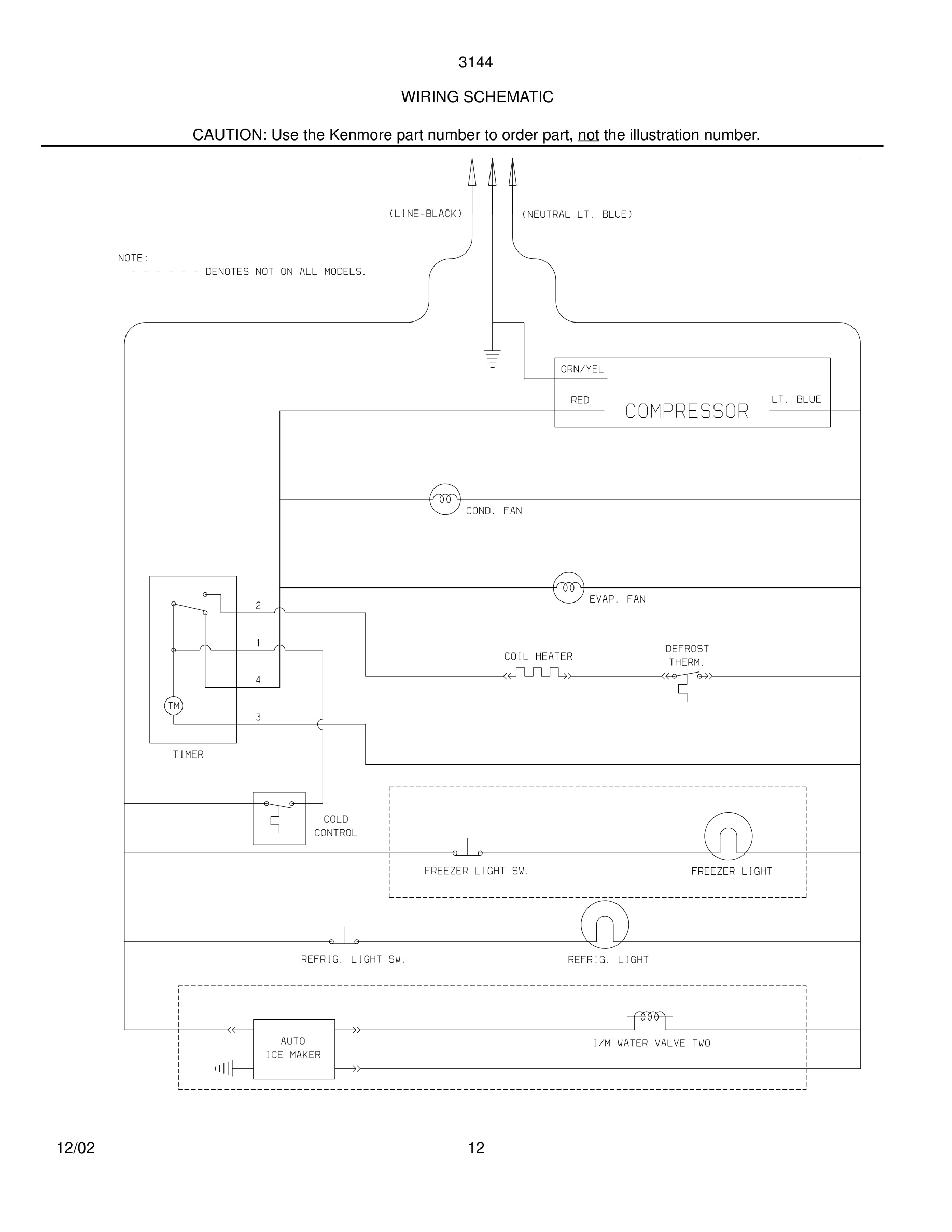

Model Kenmore 25331447300 REFRIGERATOR – Common Parts &amp; Diagrams

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

Hot Tube Repair Kit,Service WCI 5303918222 Contact Us For Availability

*#

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $316.98

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

Spring,shut-off arm WCI 5304420650 Contact Us For Availability

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

240535101 Frigidaire Refrigerator Door Rack In Stock WCI 240535101 $20.43

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Damper-fan cover WCI 240367401 Contact Us For Availability

4A

240535301 Frigidaire Refrigerator Door Shelf In Stock WCI 240535301 $24.91

4B

240535201 Frigidaire Refrigerator Door Rack In Stock WCI 240535201 $20.85

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

7

240337701 Frigidaire Refrigerator Dairy Door In Stock WCI 240337701 $26.87

7#

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

8

240535001 Frigidaire Refrigerator Shelf Bar D In Stock WCI 240535001 $30.79

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

Plug-button, bisque, hinge brg hole ,(2) WCI 240381302 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

5303282284 Frigidaire Wire Shelf In Stock WCI 5303282284 $65.12

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

12

Diffuser,air ,top WCI 240545001 Contact Us For Availability

12#

Wiring Harness, ice maker, internal, with plu WCI 5304420651 Contact Us For Availability

13

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

13

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

13#

Thermostat Assy, ice maker WCI 3206322 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

Plug-button, bisque WCI 240494002 Contact Us For Availability

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

5303918203 Frigidaire Defrost Heater Kit Backorder WCI 5303918203 $96.37

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918275 Frigidaire Refrigerator Evaporator In Stock WCI 5303918275 $169.79

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Support, phenolic WCI 5304420653 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

18

Handle-door, bisque, refr, w/block & screw WCI 218779904 No Longer Available

18

Knob,temp control WCI 240360801 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18A

Handle-door, bisque, frzr, w/nameplate, block WCI 218779810 No Longer Available

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $52.96

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

241665605 Frigidaire Refrigerator Base Compre Backorder WCI 241665605 $86.33

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

Shut-off Arm WCI 3206333 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

23#

Control-defrost, adaptive timer, PC board WCI 240545401 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Screw-compressor mtg,1/4-28 x 1.16,shoulder,t WCI 240491501 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

215817806 Frigidaire Refrigerator Egg Tray In Stock WCI 215817806 $8.14

240364501 Frigidaire Refrigerator Pan In Stock WCI 240364501 $64.62

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.71

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

29#

5304511983 Frigidaire Refrigerator Compressor Backorder WCI 5304511983 $487.91

30

Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

5304491941 Frigidaire Refrigerator Starter Re In Stock WCI 5304491941 $82.43

31

Insulator WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37A

Trim-handle, 1.34", bisque ,lower WCI 218771204 Contact Us For Availability

40

Cover-upper hinge,bisque WCI 240354403 Contact Us For Availability

41

Screw,hex washer head ,8-32 x 1/4 WCI 218897001 Contact Us For Availability

41*

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

45

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

55#

218909912 Frigidaire Capacitor Run Backorder WCI 218909912 $47.26

55#

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $31.75

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

59

Bracket-cond motor assy WCI 5304430246 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60#

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61#

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

72

240368303 Frigidaire Refrigerator Kick Plate Backorder WCI 240368303 $54.68

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube In Stock WCI 240500801 $41.24

85

Tube-connector,suction WCI 240547801 Contact Us For Availability
