Model Kenmore 253.64722400 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

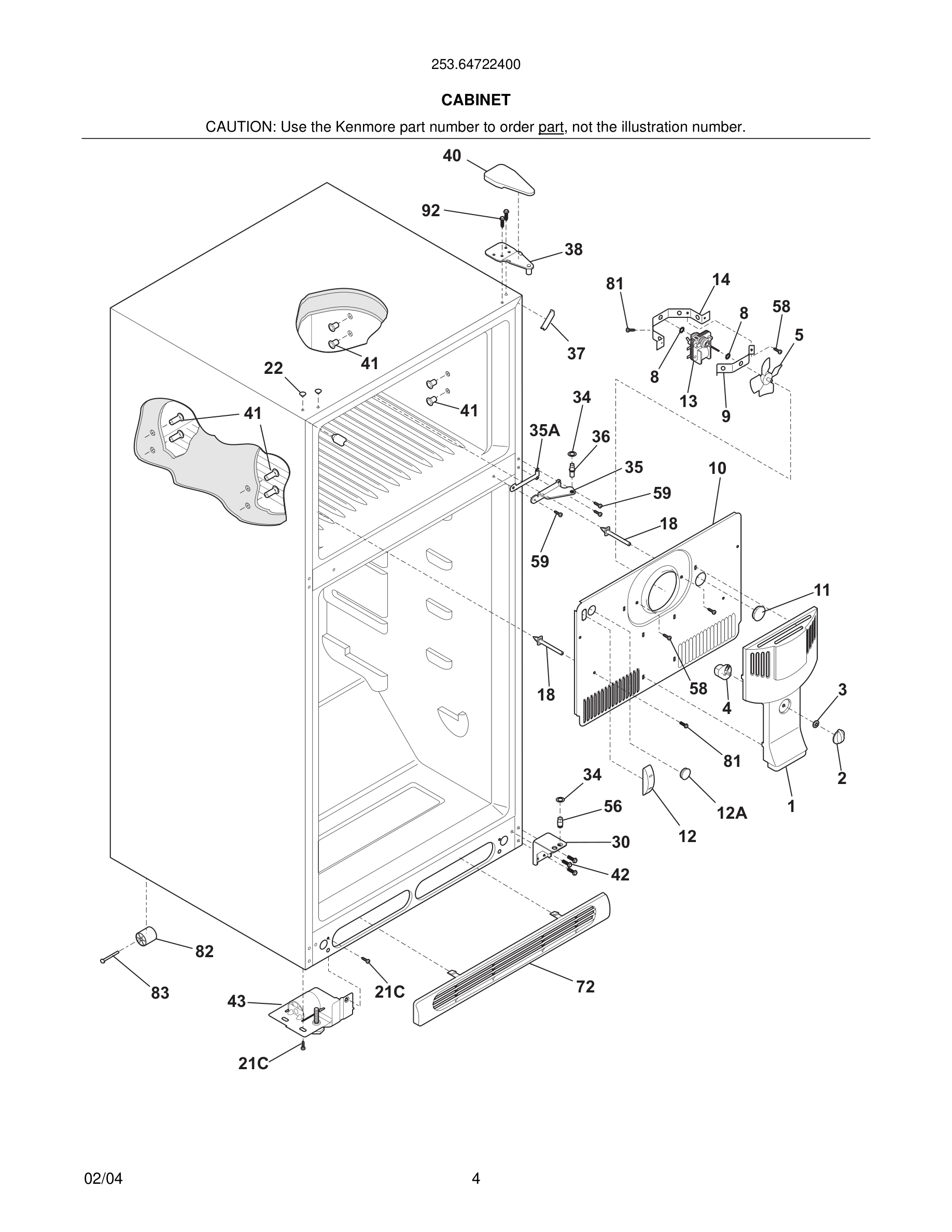

05 - CABINET
07 - SHELVES

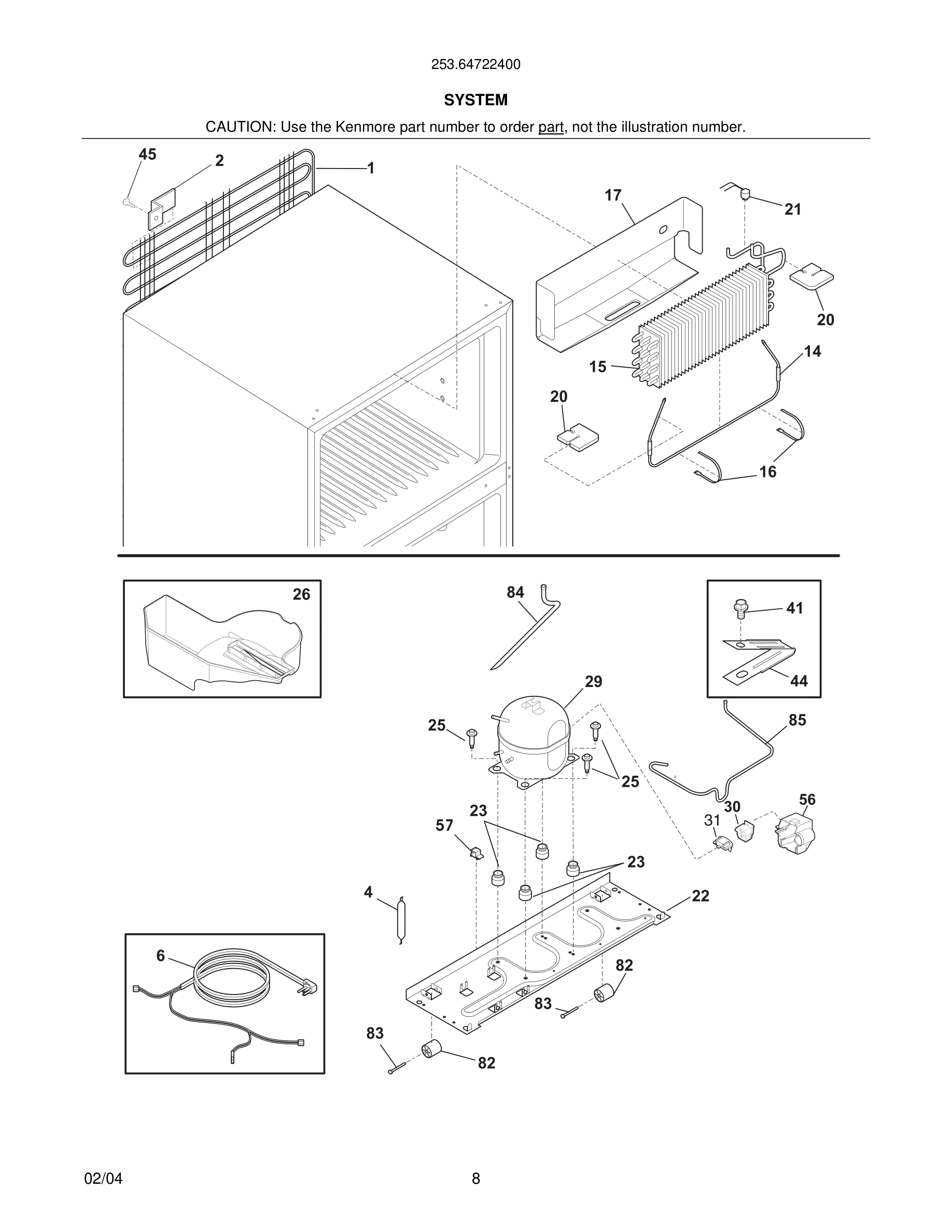

09 - SYSTEM

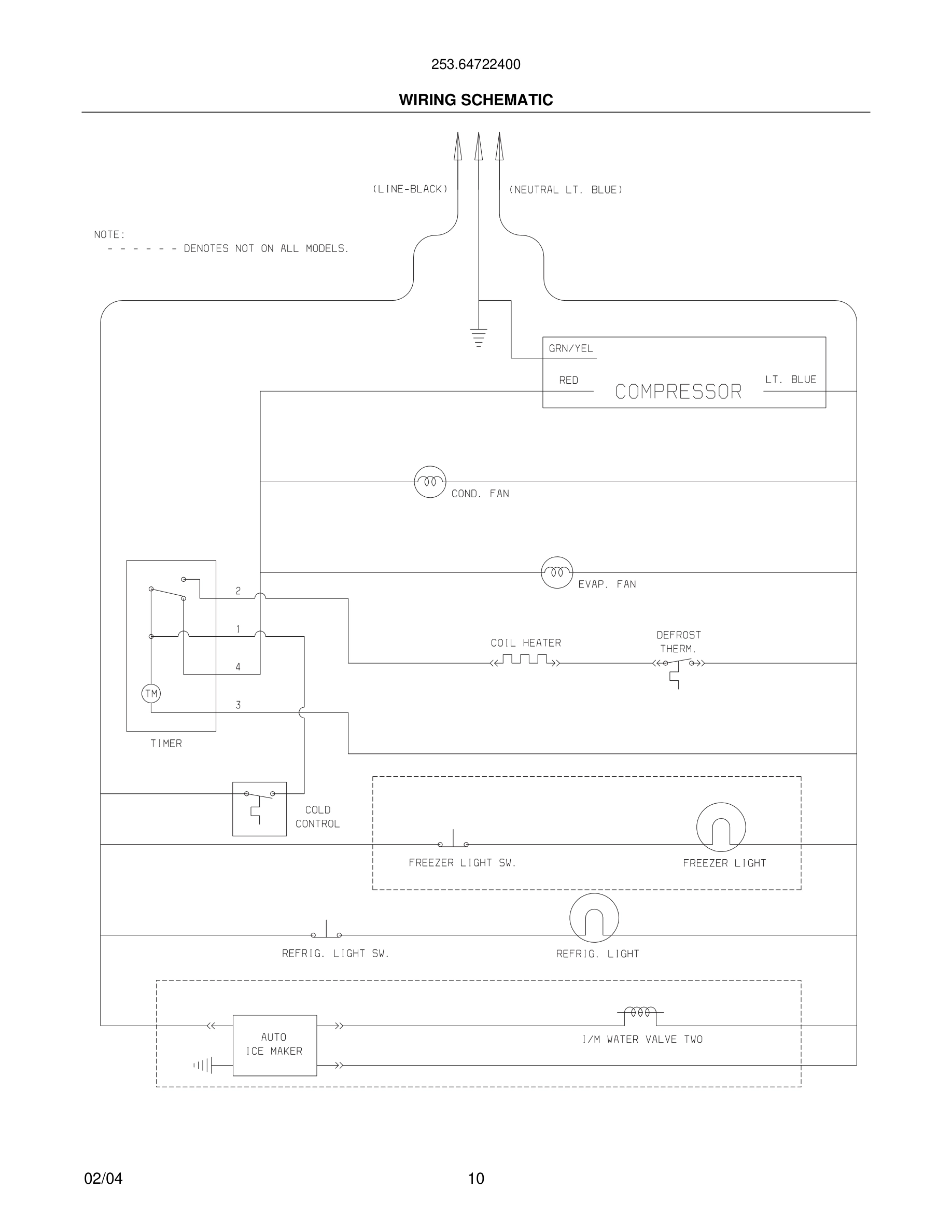

10 - WIRING SCHEMATIC

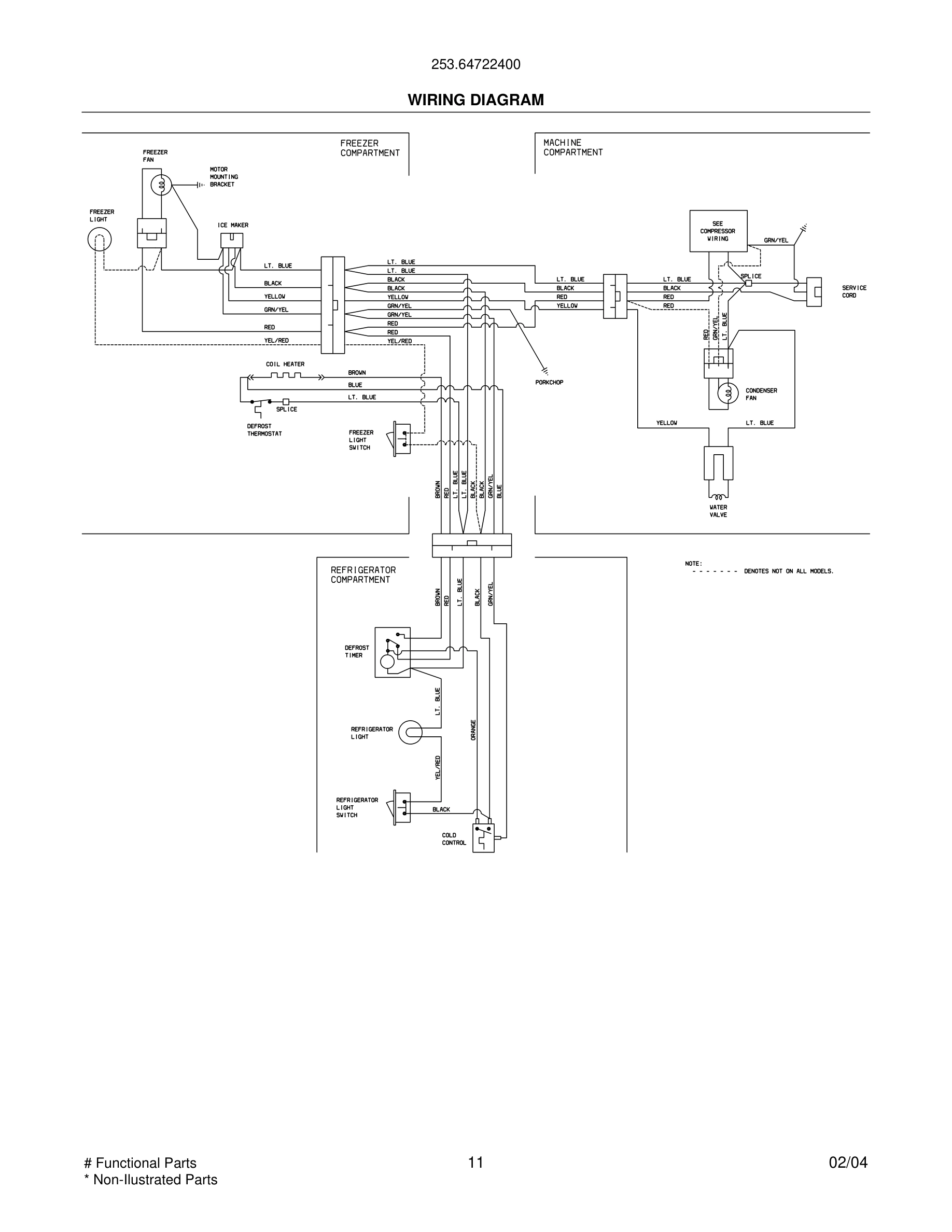

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.64722400 REFRIGERATOR
*
Heat Exchanger Kit, suction line WCI 5303918263 Contact Us For Availability
*
Hot Tube Repair Kit, Service WCI 5303918234 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
4
Rack-door WCI 240535101 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
4B
Rack-door WCI 240535201 Contact Us For Availability
5#
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
6*
Harness-wiring WCI 241520701 Contact Us For Availability
6*#
Wiring Harness, control box WCI 240388701 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
10
Plug-button, white, hinge brg hole, (2) WCI 240381301 Contact Us For Availability
12
Diffuser, air, top WCI 240545001 Contact Us For Availability
12
Plug-ice maker harness, rectangular WCI 240366801 Contact Us For Availability
12A
Plug-wtr inlet tube, round, 1" WCI 240374401 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
14
Plug-button, white WCI 240494001 Contact Us For Availability
14#
Defrost Heater Kit WCI 5303918203 Contact Us For Availability
15
Evaporator Kit WCI 5303918275 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
18
Handle-door, white, refr, w/block & screw WCI 218779901 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18A
Handle-door, white, frzr, w/nameplate, block WCI 218779809 Contact Us For Availability
21#
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
24
Frame, sliding shelf, full width WCI 240372401 Contact Us For Availability
24A
Frame, sliding shelf, full width, w/hanger ta WCI 240372404 Contact Us For Availability
26
Pan, crisper, (2) WCI 240364503 Contact Us For Availability
29
Trim, shelf, front WCI 240357703 Contact Us For Availability
37A
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
40
Panel, glass shelf, full width WCI 240350619 Contact Us For Availability
40
Cover-upper hinge, white WCI 240354401 Contact Us For Availability
42
Track, meat pan hanger, RH WCI 240530701 Contact Us For Availability
42
Track, meat pan hanger, LH WCI 240530601 Contact Us For Availability
57
Clip-wiring harness WCI 240542601 Contact Us For Availability
72
Grille/Kickplate, white WCI 240368301 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
84
Tube-drain, lower WCI 241505701 Contact Us For Availability
85
Tube-connector, suction WCI 241544301 Contact Us For Availability
× ![]()
