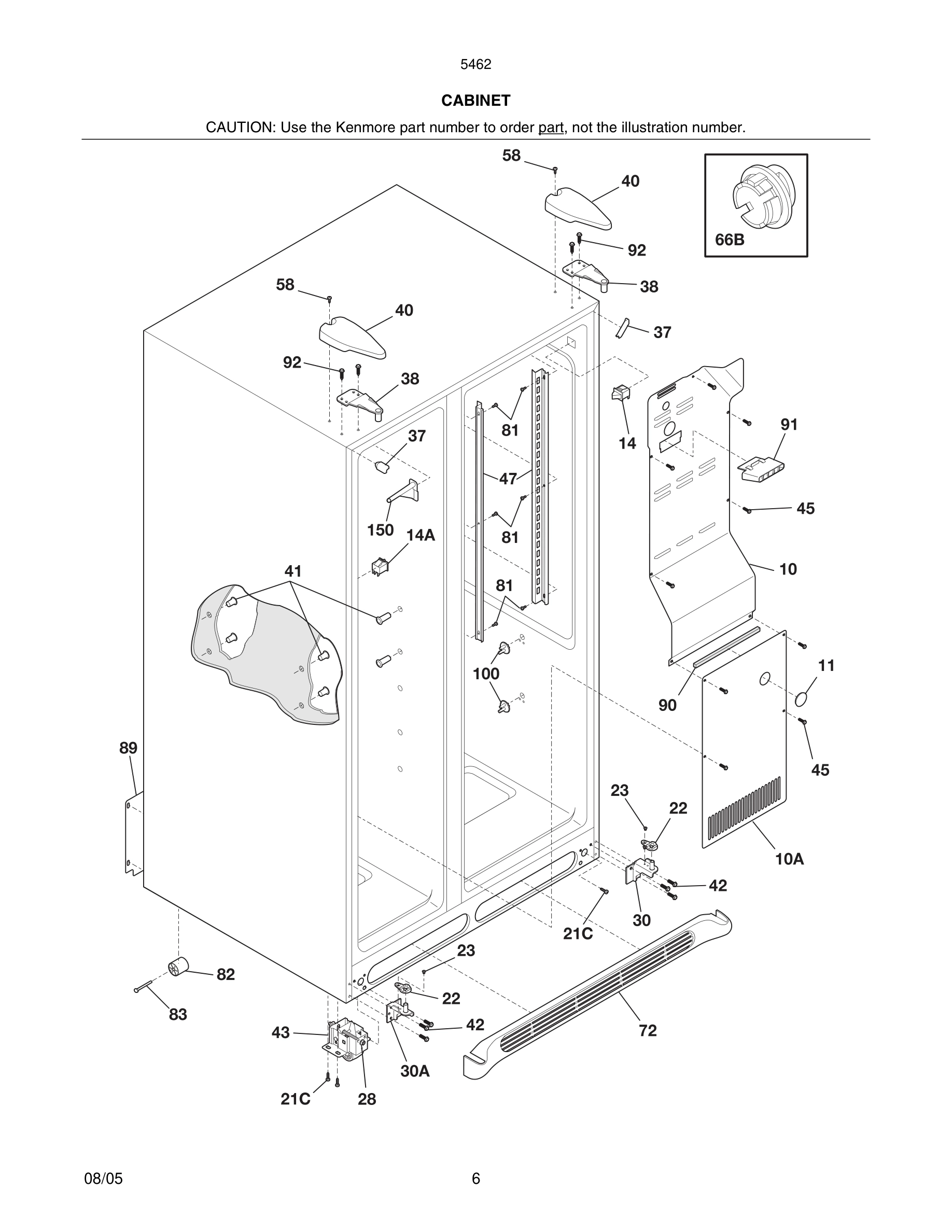

Model Kenmore 253.5462940B REFRIGERATOR – Common Parts &amp; Diagrams

*

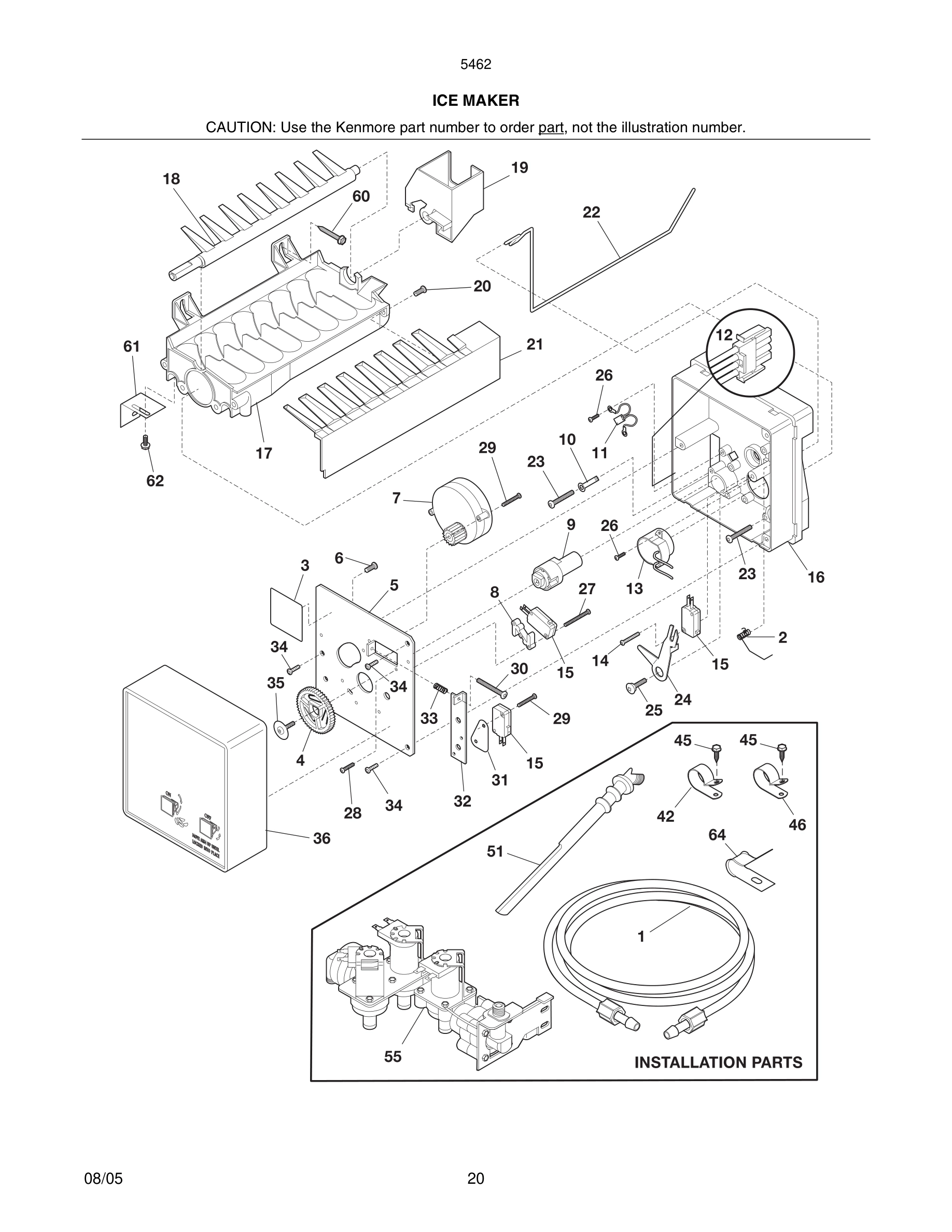

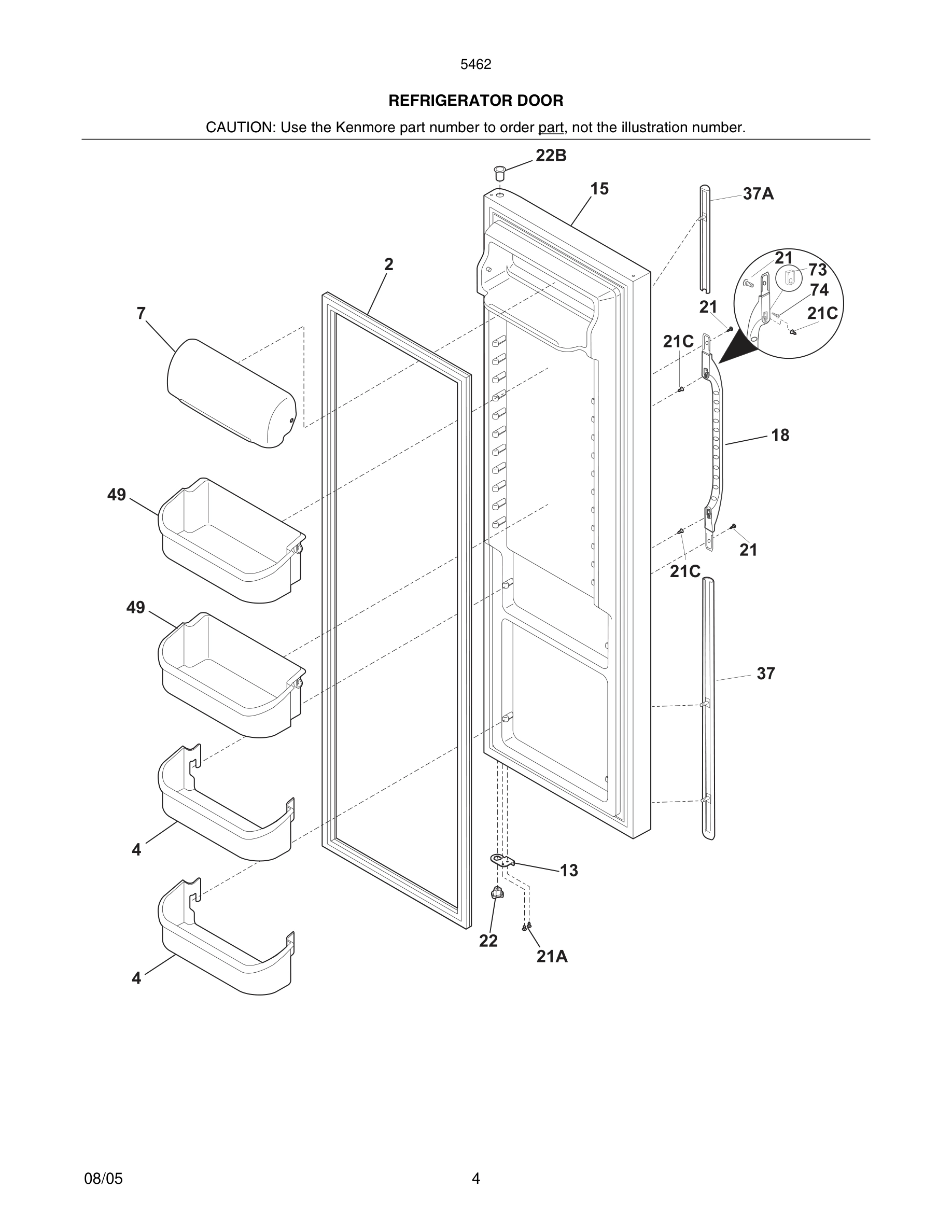

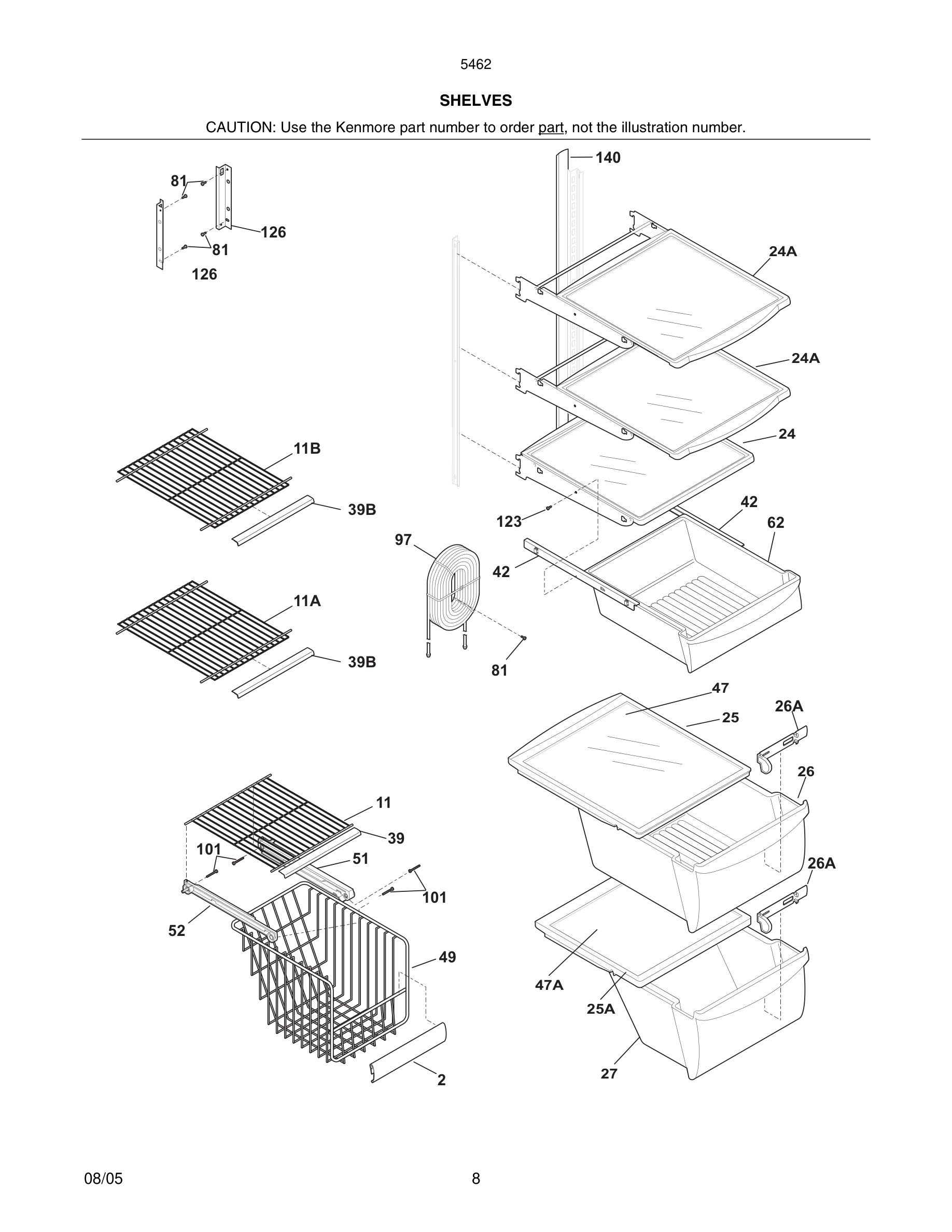

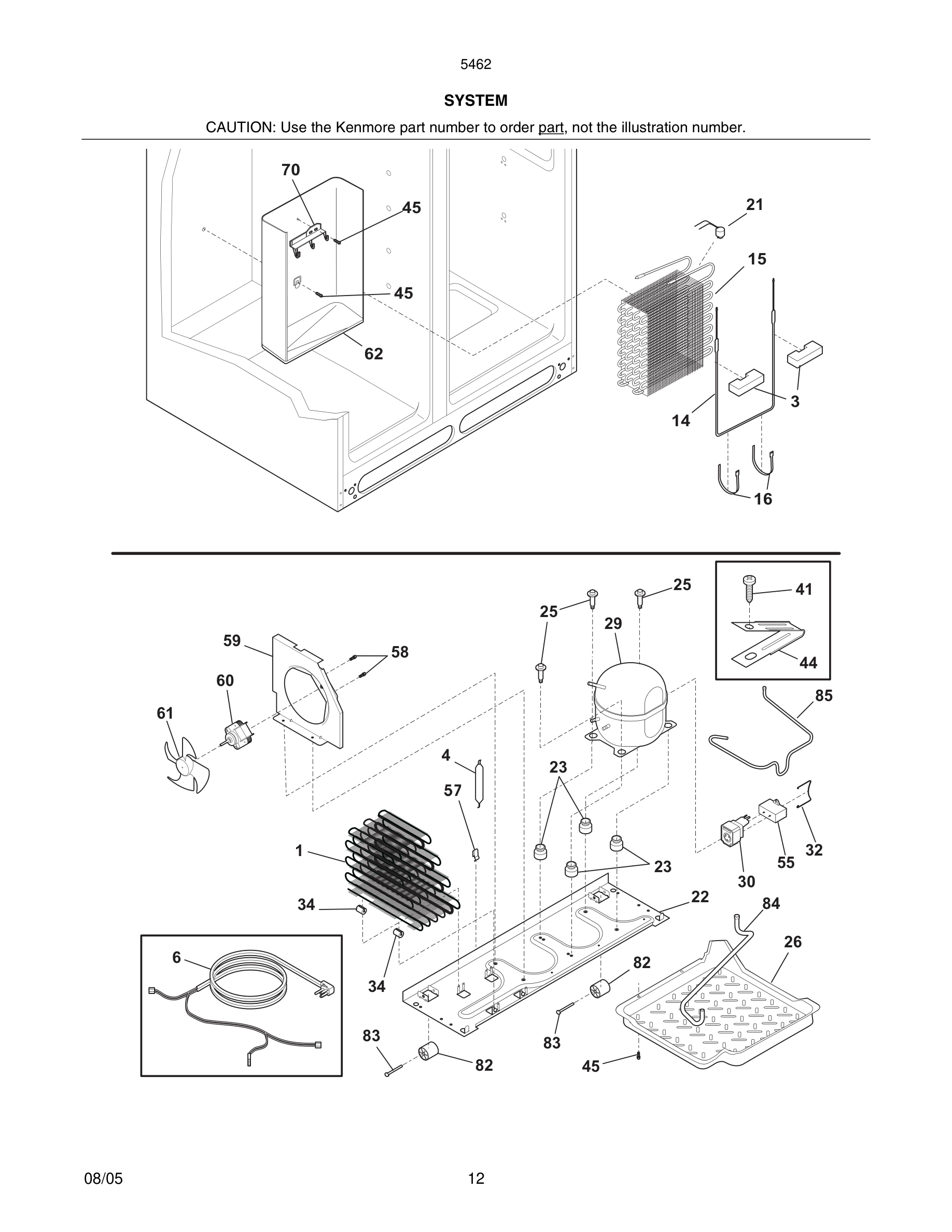

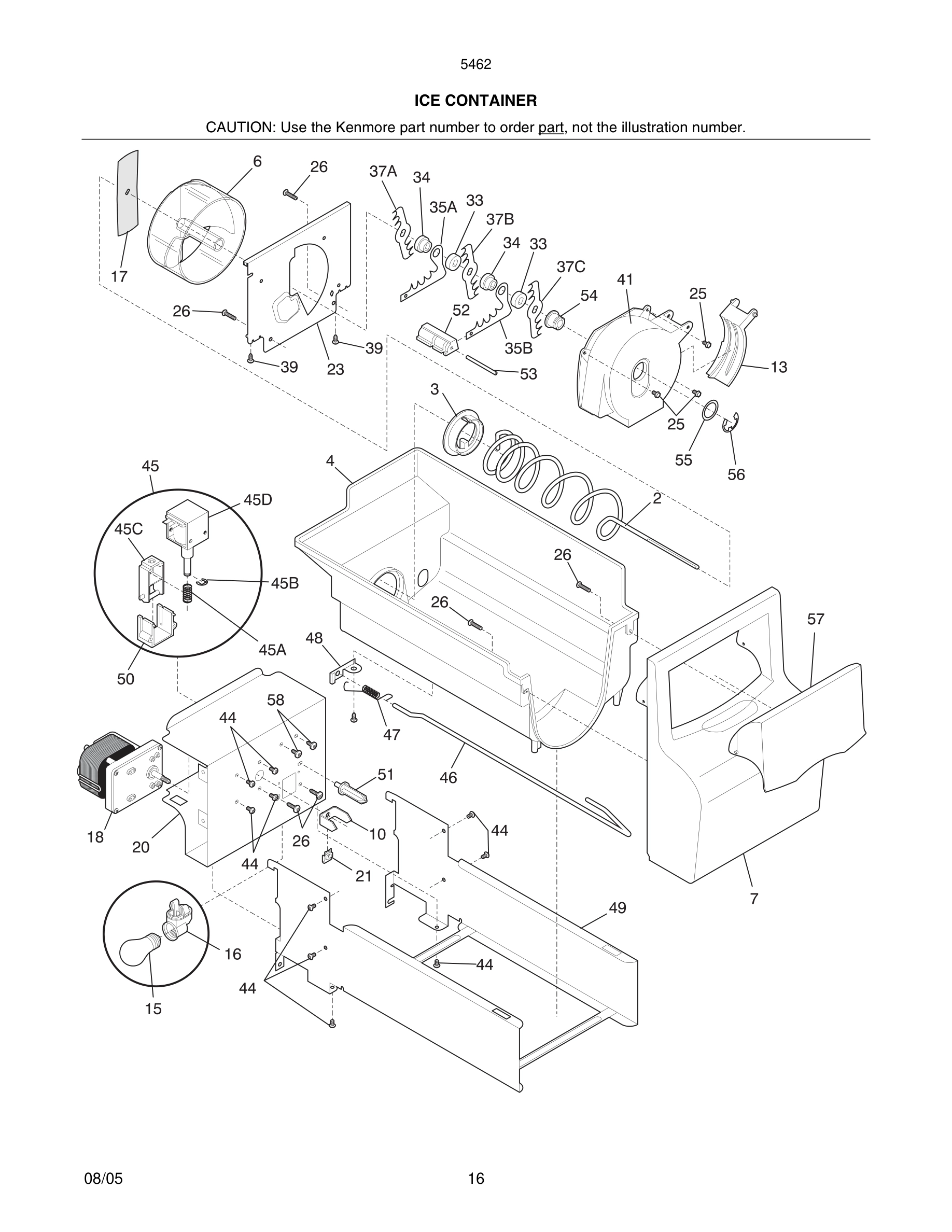

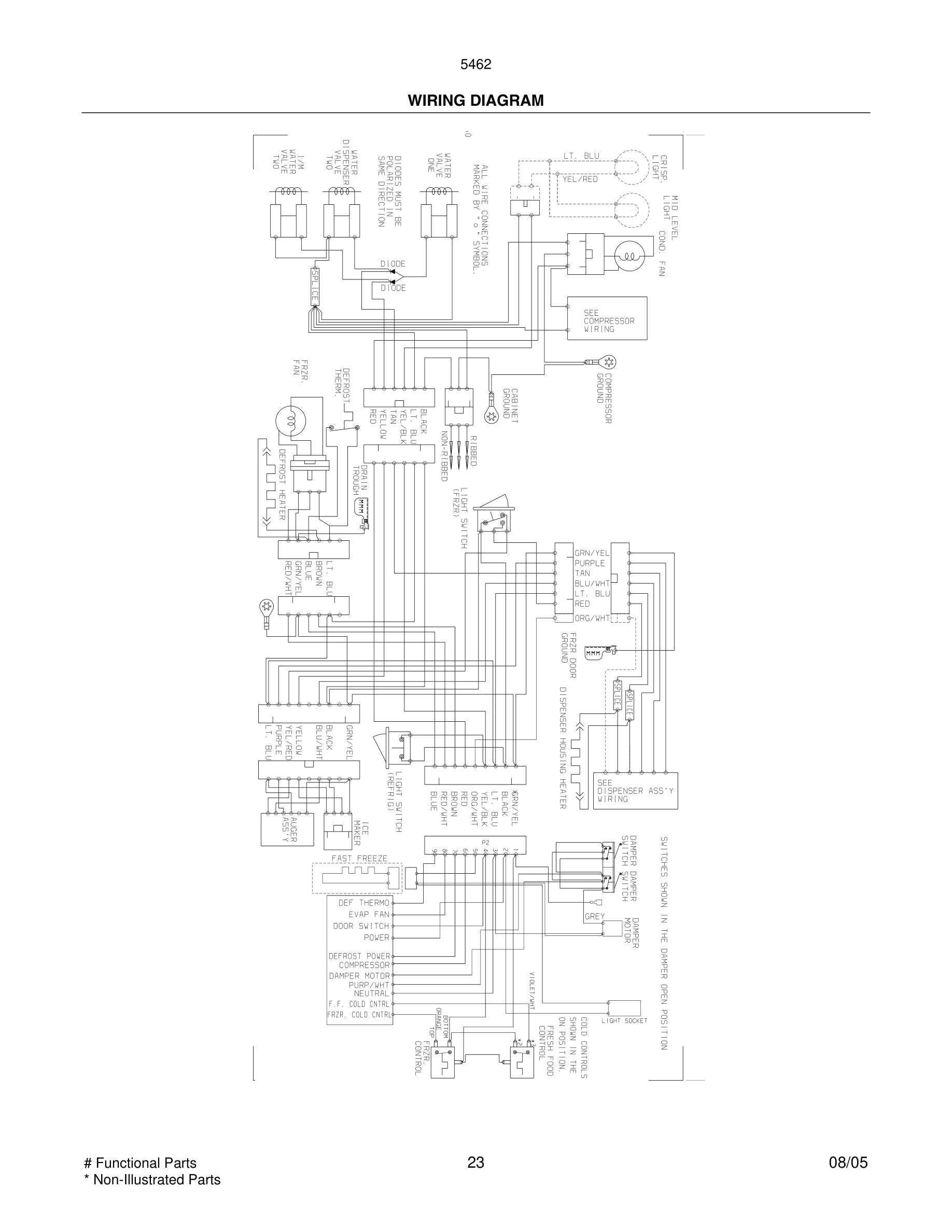

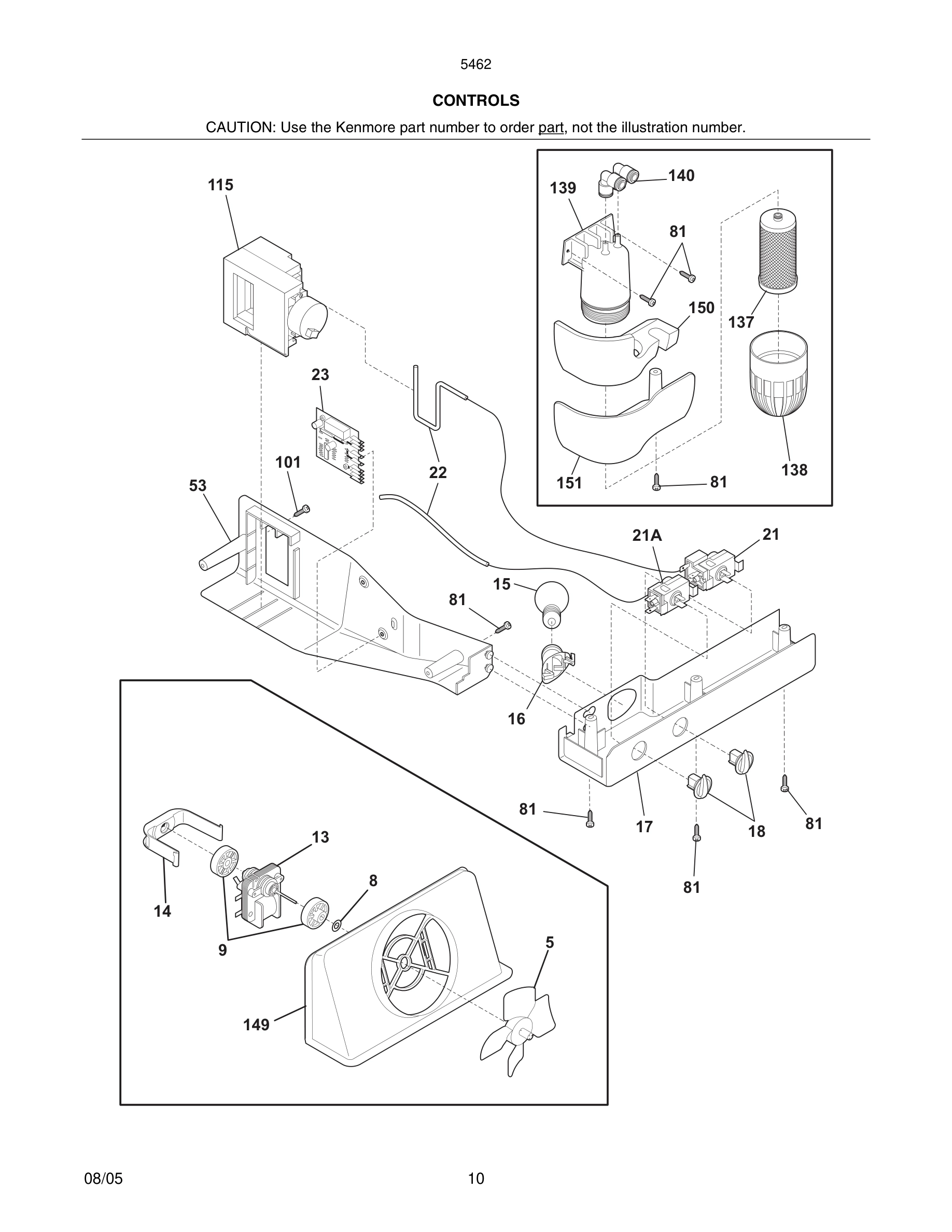

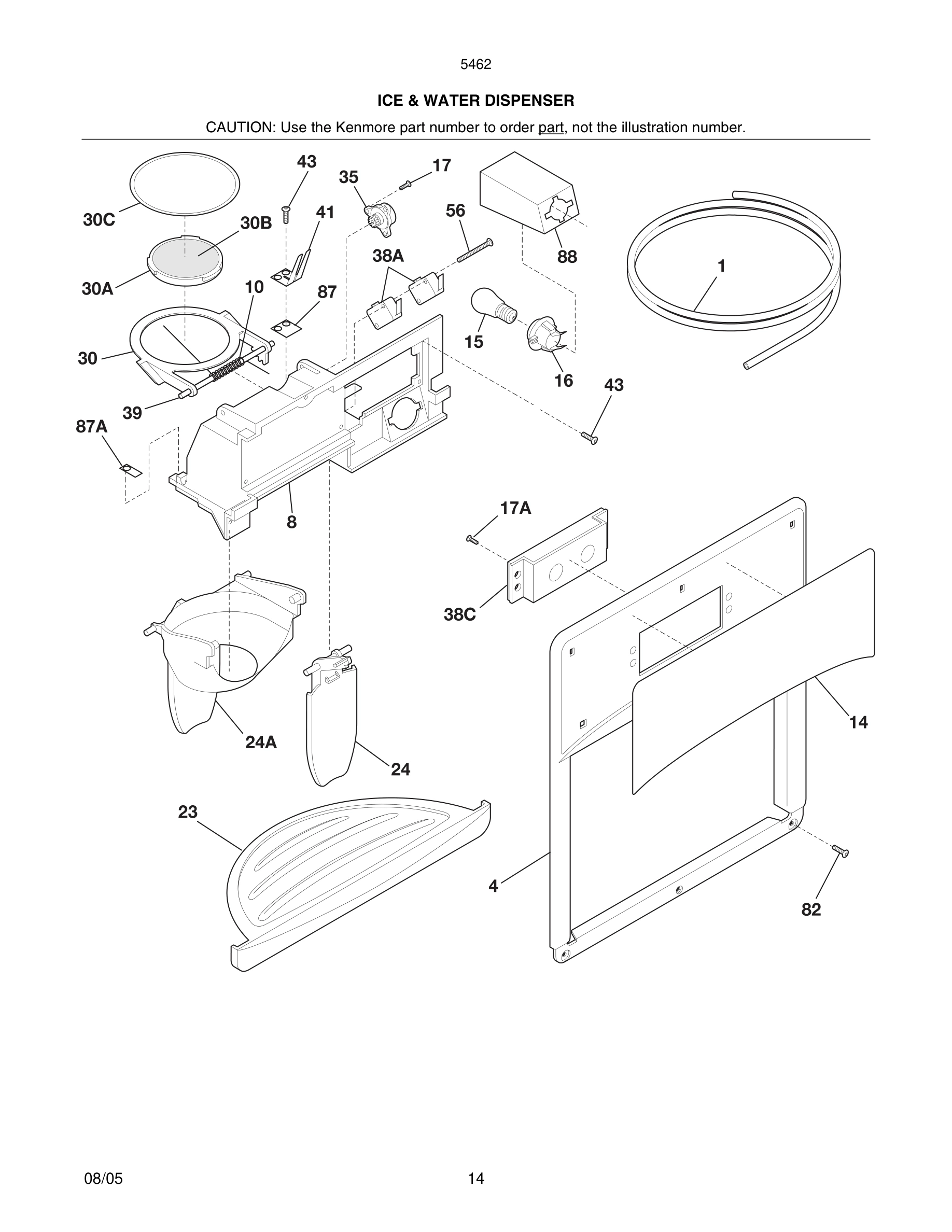

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

Paint, touch-up, black WCI 5303321321 Contact Us For Availability

*

Deflector-ice container WCI 240507202 Contact Us For Availability

*

Dispenser heater kit WCI 5303918256 Contact Us For Availability

*#

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

1

Tube-water-DOOR WCI 218976409 Contact Us For Availability

Tube-water inlet, inlet valve, to ice maker WCI 218976901 Contact Us For Availability

Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

Tube-water inlet, valve to filter WCI 218976904 Contact Us For Availability

2

Spring, shut-off arm WCI 5304420650 Contact Us For Availability

3

Label, ID plate WCI 3206299 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Bin-door, pseudo, bottom WCI 240323001 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

4A

Bin-door, frzr-upper WCI 240334201 Contact Us For Availability

4B

Bin-door WCI 240351601 Contact Us For Availability

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

Harness-wiring, machine compt WCI 241586801 Contact Us For Availability

6*

Harness-wiring WCI 241651601 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

9

Cam WCI 3206313 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

10A

Cover-evap coil, lower WCI 240475907 Contact Us For Availability

11

Shelf, flip up, wire WCI 241657602 No Longer Available

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11A

241657502 Frigidaire Refrigerator Shelf In Stock WCI 241657502 $50.29

11B

241657504 Frigidaire Refrigerator Shelf In Stock WCI 241657504 $52.54

12#

Wiring Harness, internal, with plug WCI 240352601 Contact Us For Availability

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13#

Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

Switch, light/lamp WCI 240505801 Contact Us For Availability

15

Light Bulb WCI 5304421616 Contact Us For Availability

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator Kit WCI 5303918284 Contact Us For Availability

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability

Socket-light WCI 240548901 Contact Us For Availability

Support, phenolic WCI 5304420653 Contact Us For Availability

18

Knob, temp control WCI 240360801 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Thermostat-defrost, kit WCI 5303918214 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

22

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

22

Shut-off Arm WCI 3206333 Contact Us For Availability

22B

Bearing-hinge, black, upper WCI 240328404 Contact Us For Availability

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $41.68

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

240355270 Frigidaire Spill Safe Glass Shelf F In Stock WCI 240355270 $98.11

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Cover-crisper pan, upper WCI 240350702 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

25*

Clip-slide, cover-crisper WCI 240362101 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

26*

Clip-slide, pan-crisper WCI 240349801 Contact Us For Availability

26A

Control-humidity WCI 240362201 Contact Us For Availability

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

Starter-PTC WCI 241524611 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

37

Trim-handle, 29.64", gray, lower, w/mtg lock WCI 218779320 Contact Us For Availability

37A

Trim-handle, 12.08", gray, upper, w/mtg lock WCI 218779309 Contact Us For Availability

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

Trim-shelf, 11.21", front WCI 240430706 Contact Us For Availability

39B

Trim-shelf, 12.39", front WCI 240430702 Contact Us For Availability

40

Cover-upper hinge, black WCI 240327007 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

42

Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability

42

Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability

42*

Clip, (2), tube mtg. WCI 218515402 Contact Us For Availability

44

Screw, pan head, 8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $53.06

45*

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

Clamp, .50 ID, steel, water tube WCI 5303001193 Contact Us For Availability

46

Control Rod WCI 5304404341 Contact Us For Availability

46*

Clamp, nylon, .625 ID WCI 5308000133 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

Insert-pan cover, glass WCI 240350603 Contact Us For Availability

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

Rail Assy WCI 5304404329 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

Hanger-basket, RH WCI 240343002 Contact Us For Availability

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

Hanger-basket, LH WCI 240343102 Contact Us For Availability

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

53

Box-control WCI 240369501 Contact Us For Availability

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $44.28

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.14

61

Bracket-leveling, ICE MAKER WCI 218721500 Contact Us For Availability

62

240342830 Frigidaire Meat Pan Backorder WCI 240342830 $64.71

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66B

Diffuser-air WCI 240374301 Contact Us For Availability

66B*

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.41

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

97

Water Tank Assy, coiled tubing, rear filter WCI 240545302 Contact Us For Availability

115

241600902 Frigidaire Refrigerator Damper Cont In Stock WCI 241600902 $139.02

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

O-ring, wtr filter cup WCI 218904301 Contact Us For Availability

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

Elbow-water tube WCI 240545201 Contact Us For Availability

140

Channel, wtr tube cover WCI 240430501 Contact Us For Availability

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
