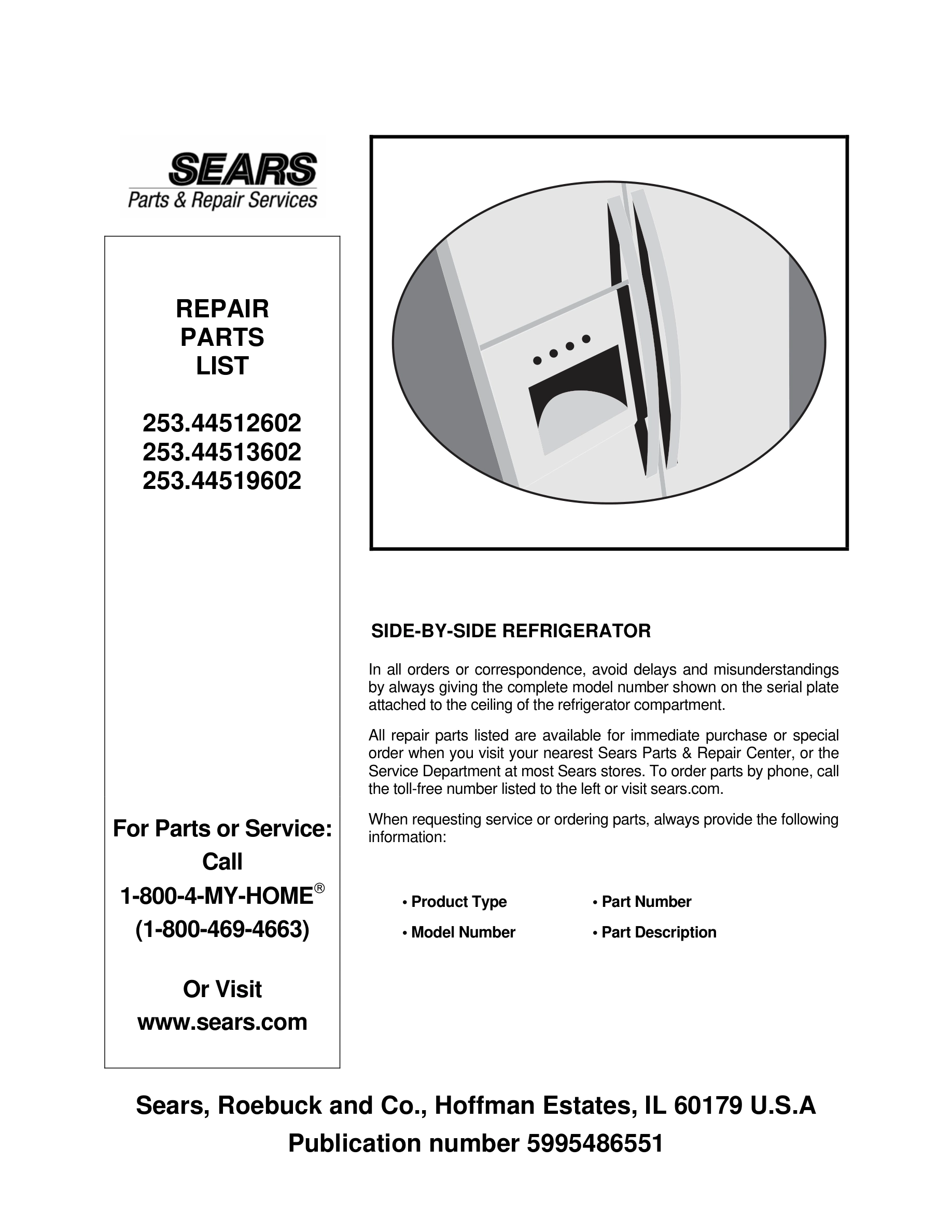

Model Kenmore 253.44519602 REFRIGERATOR – Common Parts &amp; Diagrams

*

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*

Insulator-electrical WCI 241686201 Contact Us For Availability

*#

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $176.48

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

1#

241510204 Frigidaire Refrigerator Door Gasket Backorder WCI 241510204 $58.27

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976903 Frigidaire Refrigerator Water Inlet Backorder WCI 218976903 $44.38

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $69.91

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976917 Contact Us For Availability

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $144.11

2#

241510203 Frigidaire Refrigerator Gasket Door Backorder WCI 241510203 $59.64

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

4B

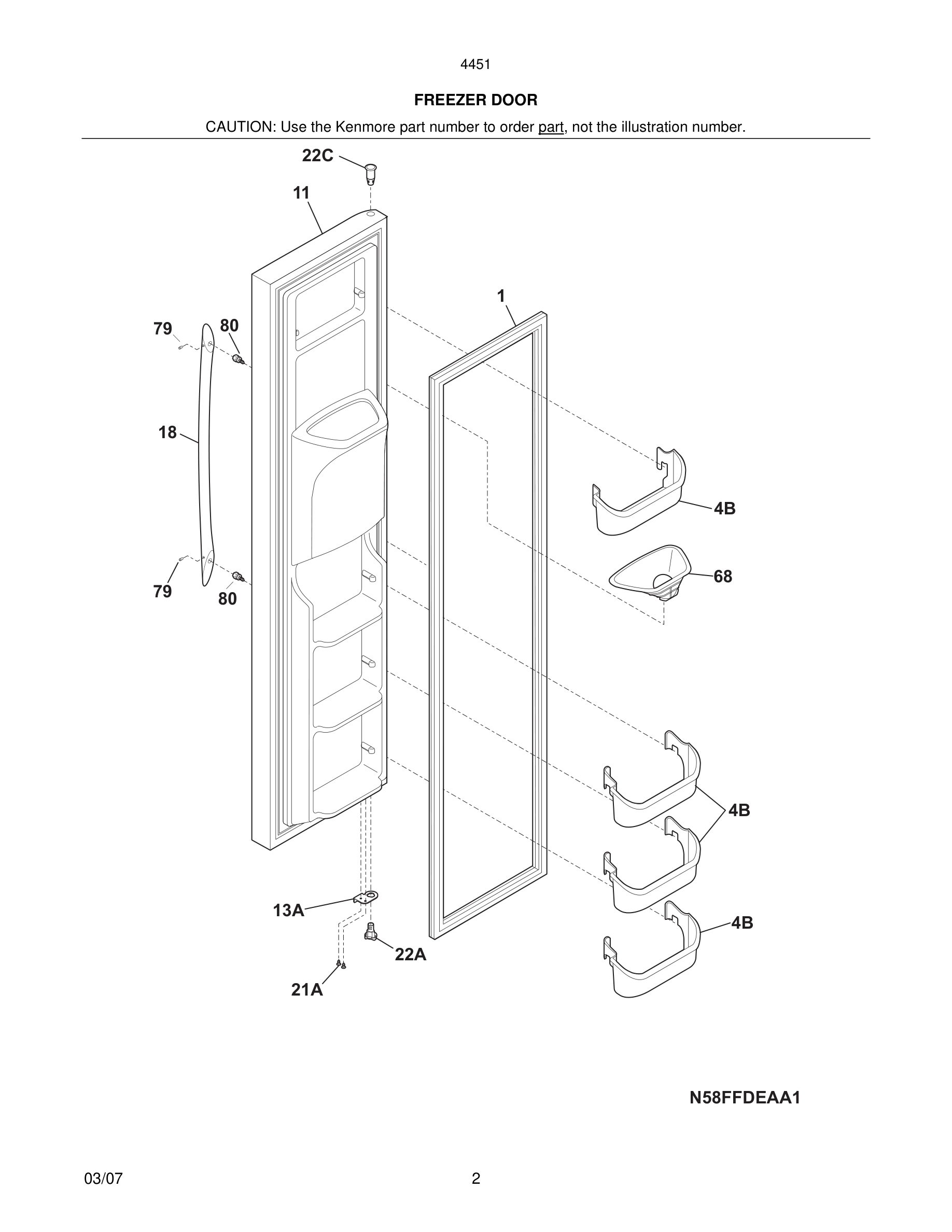

241511601 Frigidaire Refrigerator Door Bin Backorder WCI 241511601 $25.81

5

Rack-can WCI 241516101 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $25.35

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6#

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6*#

Harness-wiring WCI 241519902 Contact Us For Availability

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $71.94

7

241515606 Frigidaire Refrigerator Door-Dairy In Stock WCI 241515606 $24.46

7#

Motor-ice maker Svo WCI 5304458382 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 241680507 Contact Us For Availability

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

11

Shelf-freezer, flip-up WCI 241657605 No Longer Available

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

Thermal Cutoff, ICE MAKER WCI 5304458400 Contact Us For Availability

11A

Shelf-freezer, fixed wire WCI 241657505 Contact Us For Availability

11B

241657506 Frigidaire Refrigerator Freezer She Backorder WCI 241657506 $40.87

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.44

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $37.63

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

17*

Harness-wiring, control box WCI 241510802 Contact Us For Availability

18*

Harness-wiring, icmkr/container WCI 241522901 Contact Us For Availability

19

Cup-water inlet WCI 5304458378 Contact Us For Availability

20

241675502 Frigidaire Refrigerator Motor Cover Backorder WCI 241675502 $82.20

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

Ice Stripper WCI 5304458390 Contact Us For Availability

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

Shut-off Arm WCI 5304458375 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22*

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $50.24

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $41.68

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

24A

5304493024 Frigidaire Refrigerator Lighted Bl In Stock WCI 5304493024 $157.91

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $58.76

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

26

241697502 Frigidaire Defrost Drain Pan Backorder WCI 241697502 $91.88

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $43.91

26A*

241595202 Frigidaire Refrigerator Clip Backorder WCI 241595202 $10.85

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

Damper-rotary WCI 241689301 No Longer Available

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

37

Trim-cabinet corner, black, (2) WCI 240337603 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

38#

Board-power WCI 241708201 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C#

Board-control WCI 241708304 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

Trim-shelf, 11.60", front WCI 240430709 Contact Us For Availability

40

Clip-retainer WCI 5304458401 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

43

241720601 Frigidaire Refrigerator Extension In Stock WCI 241720601 $13.11

44

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

Control Rod WCI 241684402 Contact Us For Availability

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $73.07

48

241511706 Frigidaire Refrigerator Door Bin In Stock WCI 241511706 $43.43

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

241505301 Frigidaire Refrigerator Shelf Bin-D In Stock WCI 241505301 $42.57

49

241515001 Frigidaire Refrigerator Basket Slid Backorder WCI 241515001 $110.18

49

Rail Assy WCI 241676501 Contact Us For Availability

49A

241505501 Frigidaire Refrigerator Door Bin In Stock WCI 241505501 $59.62

50

Board-main power WCI 241511101 No Longer Available

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

Cover-magnet WCI 241508401 Contact Us For Availability

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $46.62

51

Rotation Stop WCI 241676301 Contact Us For Availability

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $48.39

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

Channel WCI 241532401 No Longer Available

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Screw-micro switch, pan head WCI 241689201 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

Diffuser-air WCI 241510301 Contact Us For Availability

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $109.45

70

Plate-mounting WCI 241504601 Contact Us For Availability

79

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

Shield-light WCI 241686101 Contact Us For Availability

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $44.58

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $47.66

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

120

241691701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691701 $47.57

121

Rail-ice cream shelf, LH WCI 241504701 Contact Us For Availability

122

Rail-ice cream shelf, RH WCI 241504702 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $23.09

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
