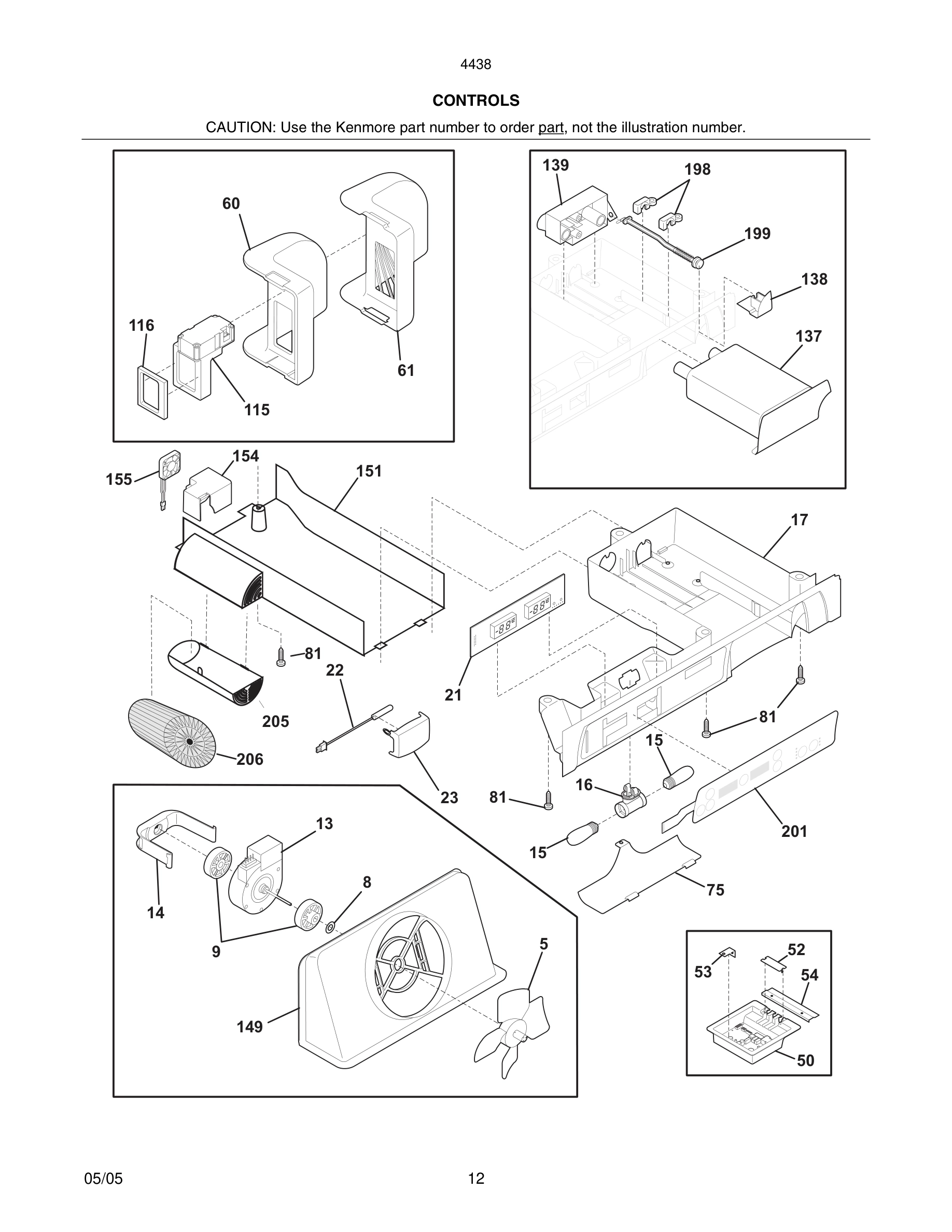

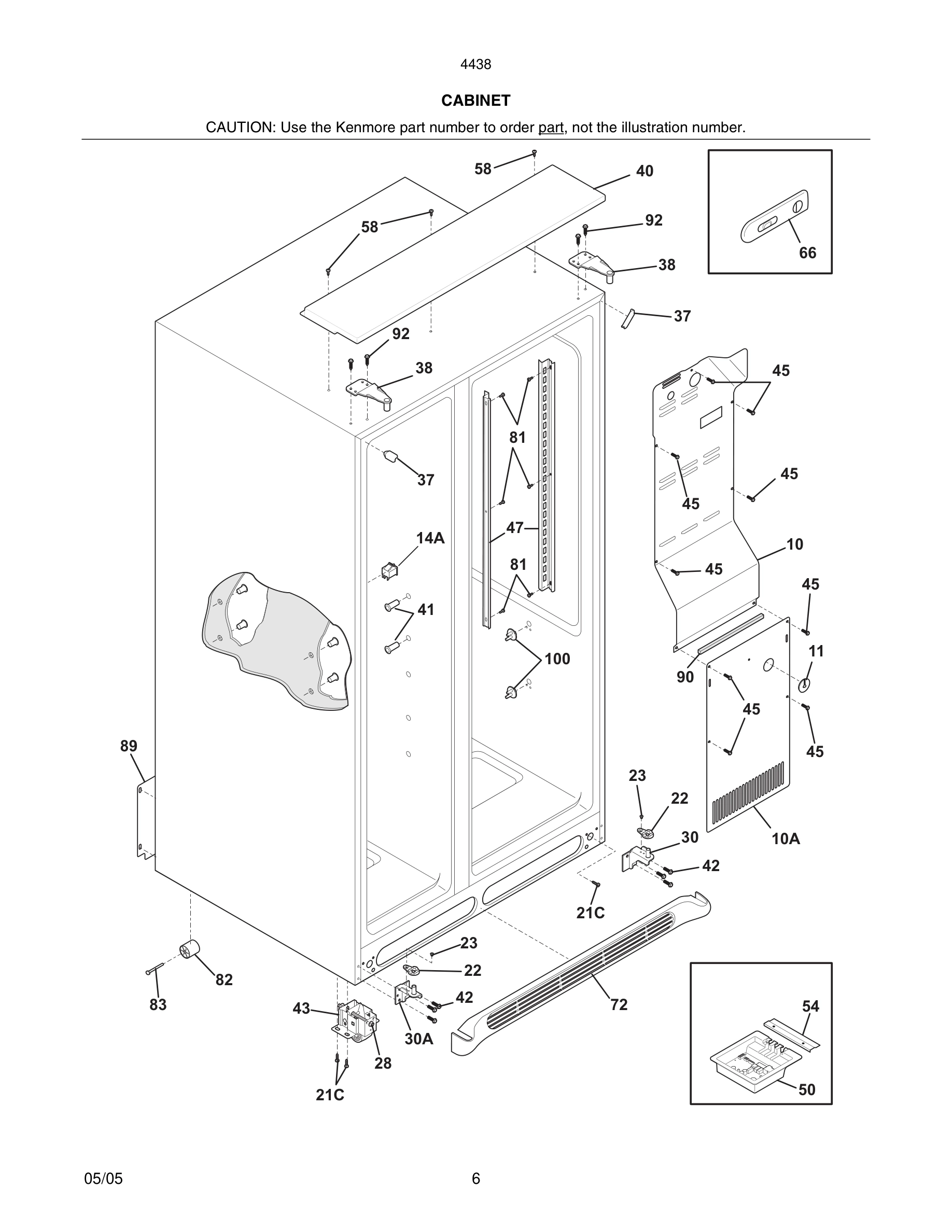

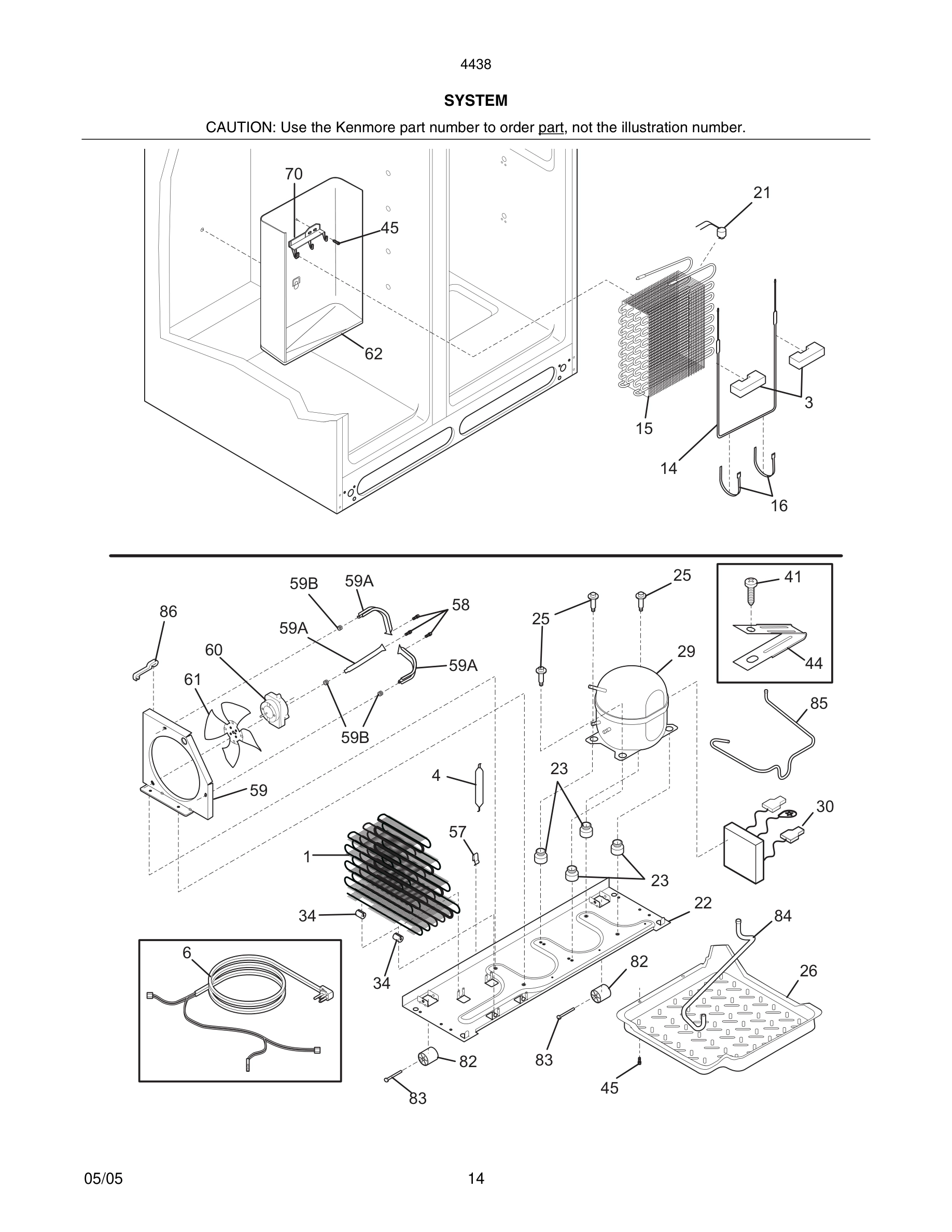

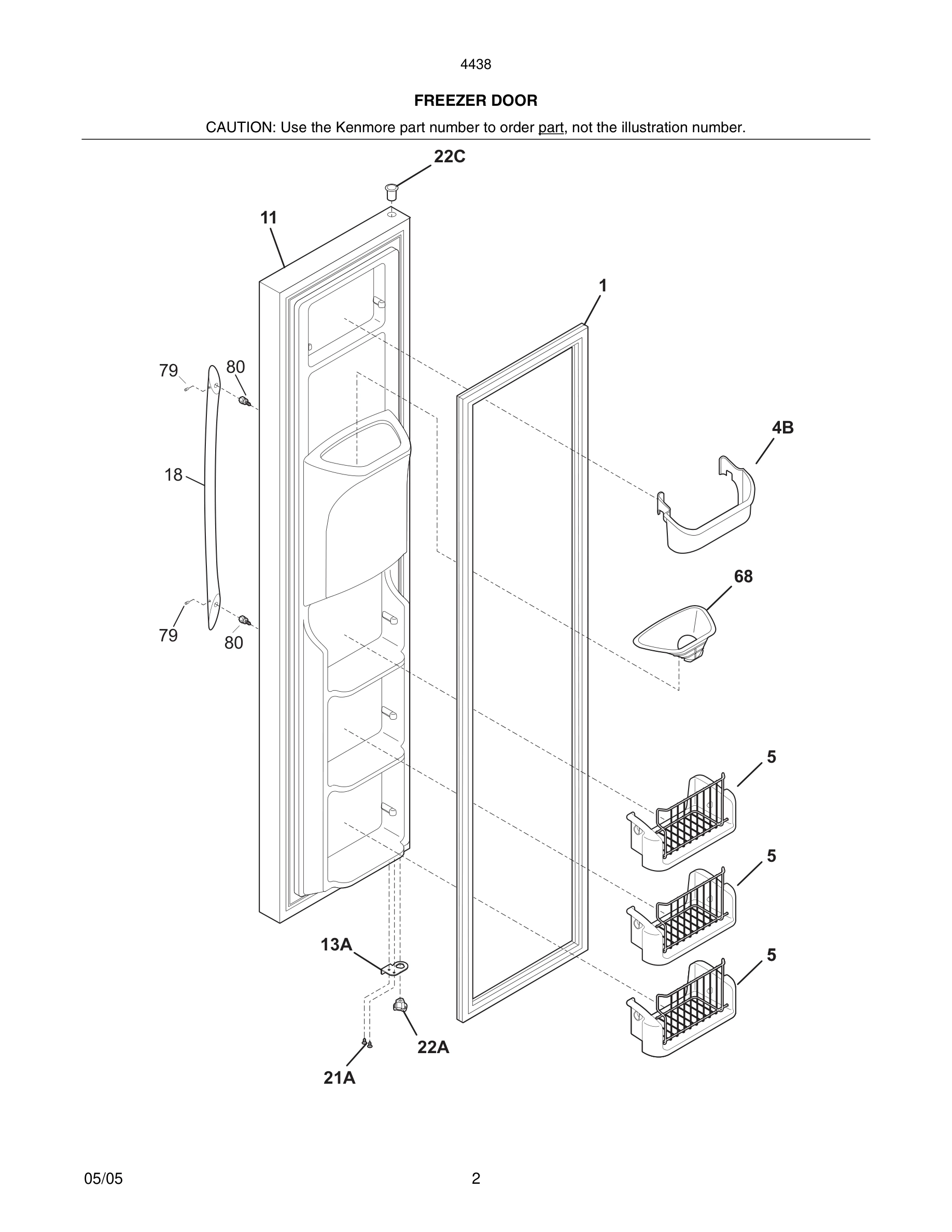

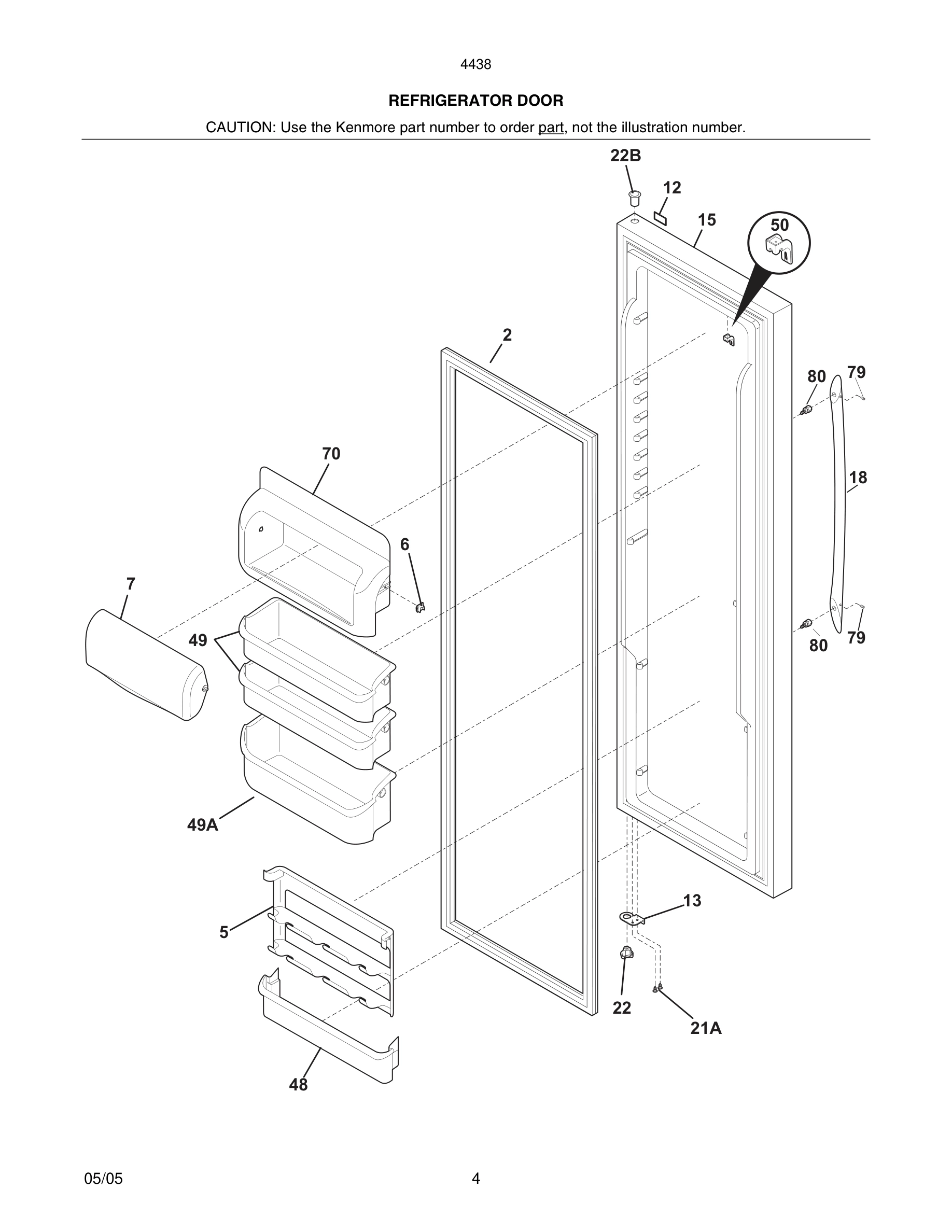

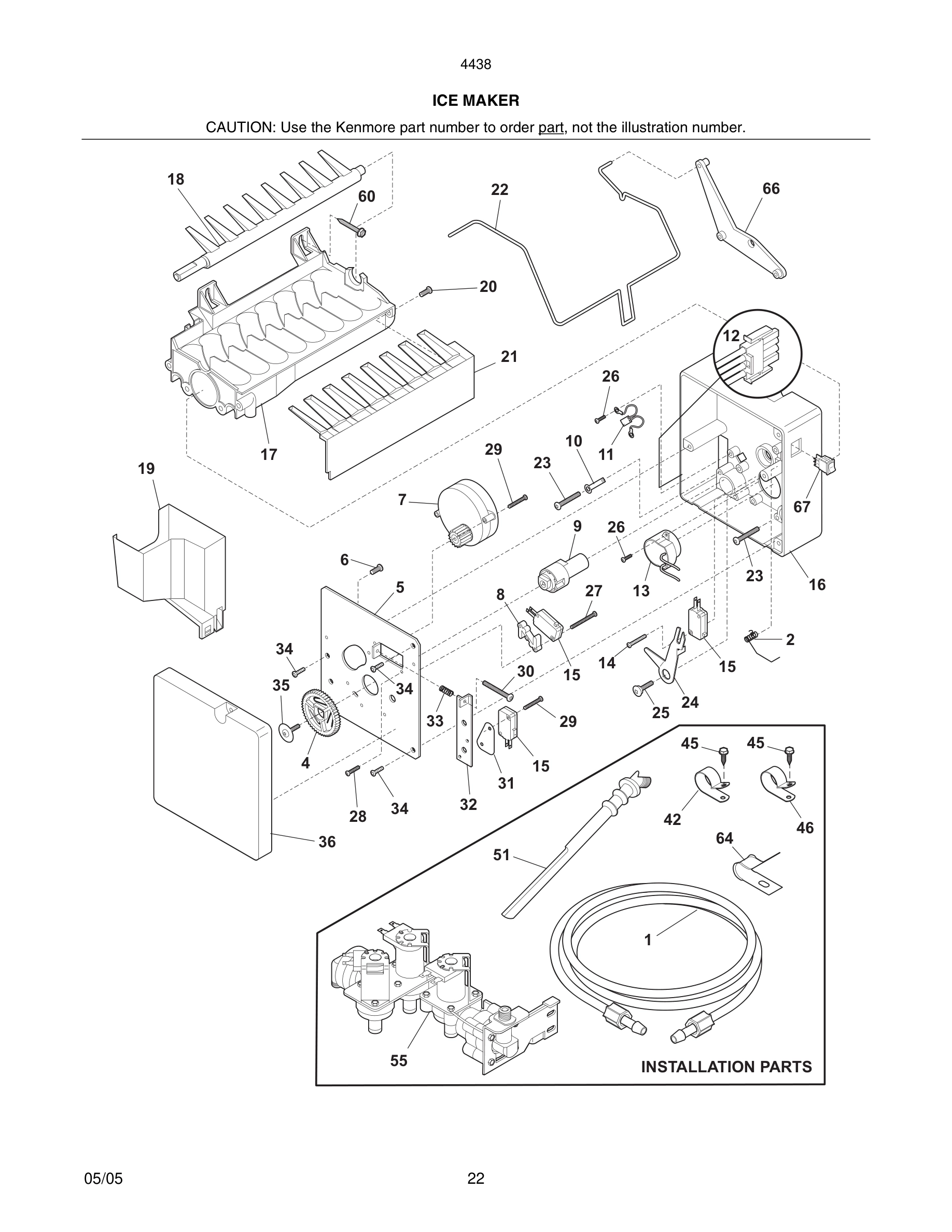

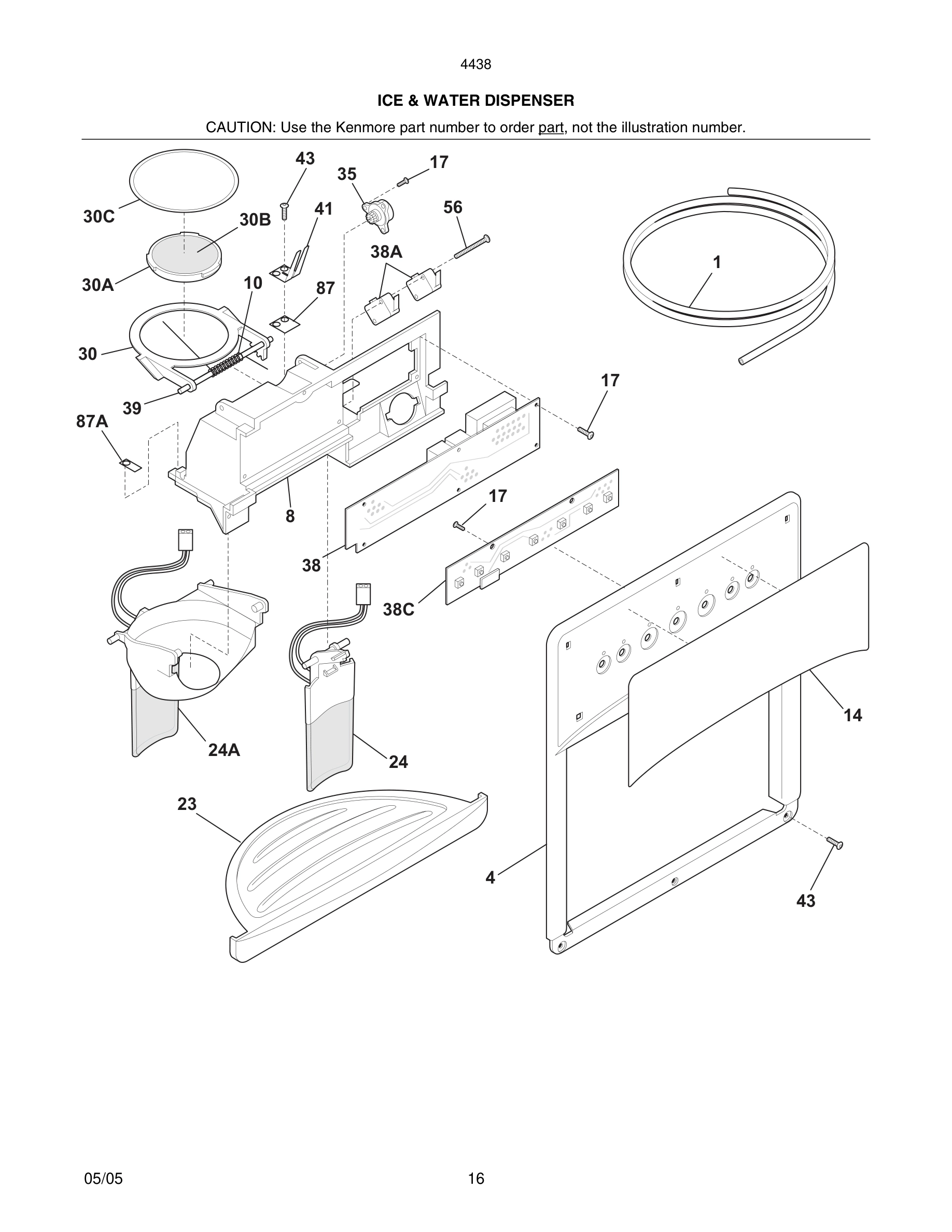

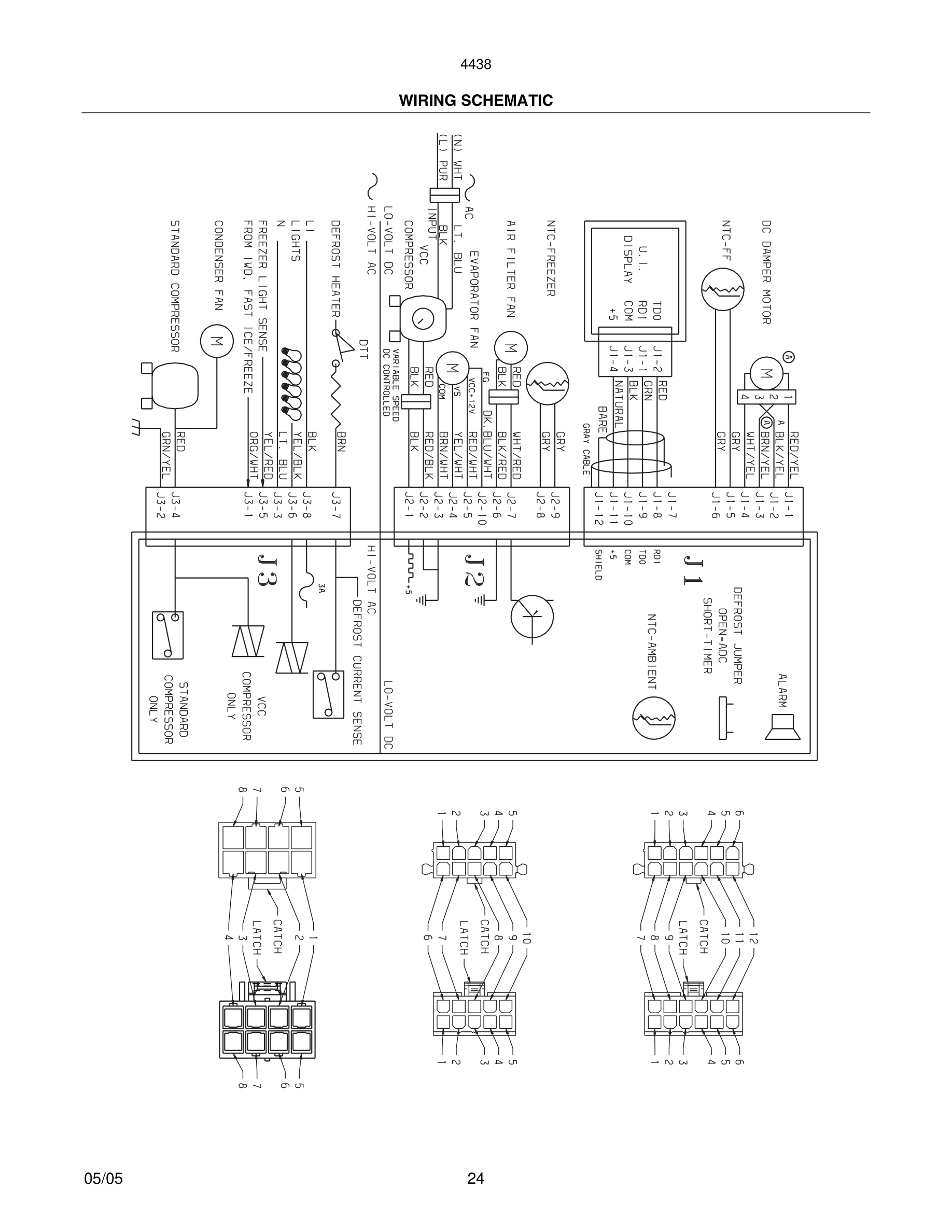

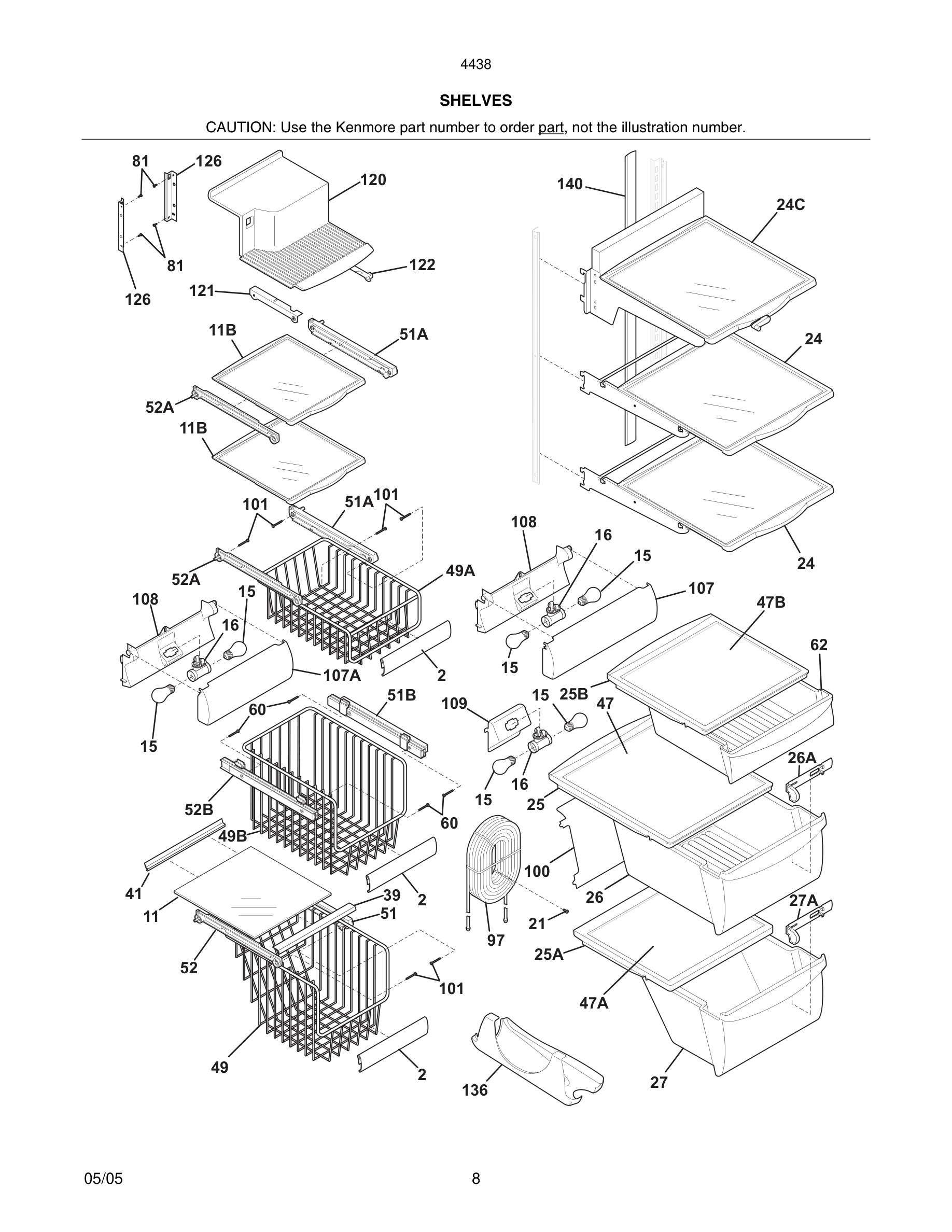

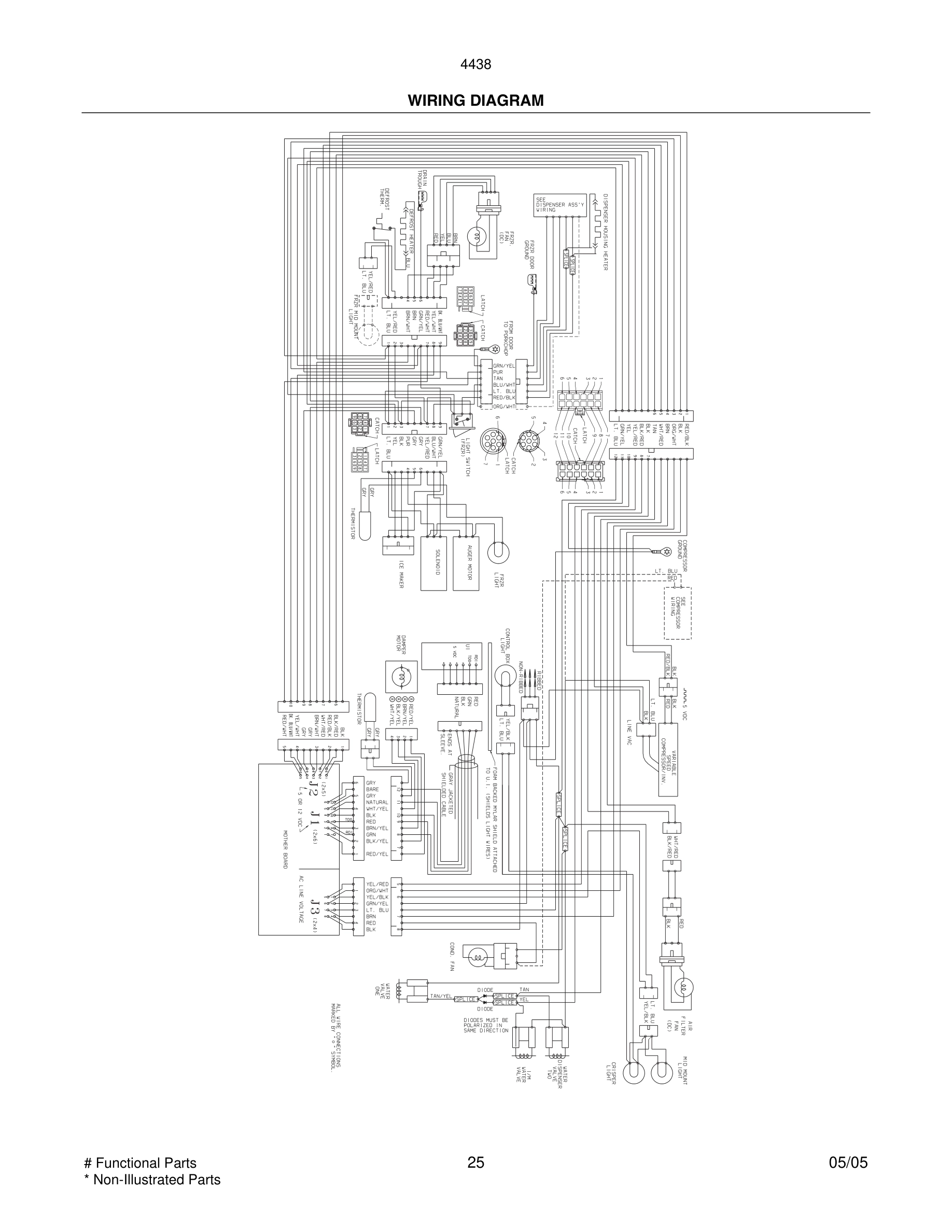

Model Kenmore 253.44389405 REFRIGERATOR – Common Parts &amp; Diagrams

*

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

*

241914702 Frigidaire Refrigerator Ice Contain In Stock WCI 241914702 $135.60

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $89.34

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*

Harness-wiring, filter fan WCI 241527201 Contact Us For Availability

*

Clip-dispenser cover WCI 240411501 Contact Us For Availability

*

Insulator-electrical WCI 5304426535 Contact Us For Availability

*#

Heat Exchanger Kit, suction line WCI 5303918300 Contact Us For Availability

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

1

5304526057 Frigidaire Refrigerator Condenser Backorder WCI 5304526057 $88.09

1#

241510204 Frigidaire Refrigerator Door Gasket Backorder WCI 241510204 $58.27

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976903 Frigidaire Refrigerator Water Inlet In Stock WCI 218976903 $44.38

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976912 Contact Us For Availability

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $144.11

2

Spring, torsion WCI 5304436616 Contact Us For Availability

2#

241510203 Frigidaire Refrigerator Gasket Door In Stock WCI 241510203 $128.44

3

218679614 Frigidaire Refrigerator Evaporator Backorder WCI 218679614 $12.67

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

4

241515202 Frigidaire Refrigerator Container Backorder WCI 241515202 $60.48

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Cover-module, black WCI 241559203 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

5

Rack-can WCI 241516102 Contact Us For Availability

5

Plate-mounting WCI 5304436604 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $25.35

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6#

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6*

241510802 Frigidaire Refrigerator Wiring Harn Backorder WCI 241510802 $26.72

6*

Harness-wiring, machine compt WCI 241635701 Contact Us For Availability

6*

Harness-wiring WCI 241520401 Contact Us For Availability

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $71.94

7

241515606 Frigidaire Refrigerator Door-Dairy In Stock WCI 241515606 $24.46

7#

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 5304424549 Contact Us For Availability

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $42.12

9

Detent WCI 5304436610 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

Clamp WCI 3206315 Contact Us For Availability

11#

Thermal Cutoff, ICE MAKER, complete assy WCI 5304436618 Contact Us For Availability

12

Harness-wiring WCI 5304436614 Contact Us For Availability

13

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $87.38

13

Thermostat, ICE MAKER WCI 5304436613 Contact Us For Availability

14

Label-module cover, black WCI 241559303 Contact Us For Availability

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $65.42

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

241622802 Frigidaire Refrigerator Light Socke In Stock WCI 241622802 $37.63

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Housing, control WCI 5304436609 Contact Us For Availability

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

Ejector-ice WCI 5304436607 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Harness-wiring, icmkr/container WCI 241522901 Contact Us For Availability

18*#

Wiring Harness, internal, with plug WCI 240352601 Contact Us For Availability

19

Cup-water inlet WCI 5304436606 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

5304473031 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304473031 $17.68

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

Base-compressor mtg WCI 240330008 Contact Us For Availability

Shut-off Arm WCI 5304436602 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22*

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $50.24

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $41.68

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

241685703 Frigidaire Refrigerator Lighted Wat In Stock WCI 241685703 $84.51

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24A

241682303 Frigidaire Refrigerator Actuator In Stock WCI 241682303 $133.50

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $58.76

25

Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

241697502 Frigidaire Defrost Drain Pan Backorder WCI 241697502 $91.88

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

27A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $43.91

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

29#

5304475104 Frigidaire Refrigerator Compressor Backorder WCI 5304475104 $596.57

30

241577501 Frigidaire Refrigerator Inverter Backorder WCI 241577501 $240.06

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

Insulator WCI 3206342 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring-thermostat WCI 5304436615 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-ice maker WCI 5304436605 Contact Us For Availability

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

38

Board-power WCI 5304433619 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

241708307 Frigidaire Refrigerator Control Boa Backorder WCI 241708307 $152.59

38C*

Harness-ribbon cable WCI 5304430811 Contact Us For Availability

39

240367603 Frigidaire Refrigerator Shelf Trim Backorder WCI 240367603 $47.07

39

241688801 Frigidaire Refrigerator Hinge Pin In Stock WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

Trim-shelf, rear WCI 241571201 Contact Us For Availability

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42*

Clip, (2), tube mtg. WCI 218515402 Contact Us For Availability

43

Screw, plask h/l, #6 x 3/8 WCI 215296300 Contact Us For Availability

43*

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

44

Screw, pan head, 8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $53.06

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

Control Rod WCI 5304436635 Contact Us For Availability

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf In Stock WCI 240350603 $73.07

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

241505301 Frigidaire Refrigerator Shelf Bin-D In Stock WCI 241505301 $44.99

49

241515001 Frigidaire Refrigerator Basket Slid In Stock WCI 241515001 $110.18

49

Rail Assy WCI 5304436702 Contact Us For Availability

49B

Basket-sliding, upper, full WCI 241514901 Contact Us For Availability

50

Board-main power WCI 241511102 No Longer Available

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

Cover-magnet WCI 241508401 Contact Us For Availability

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $46.62

51

241796406 Frigidaire Refrigerator Water Fill Backorder WCI 241796406 $12.67

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $48.39

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52B

Hanger-basket, LH WCI 240579804 Contact Us For Availability

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241532401 Frigidaire Refrigerator Channel In Stock WCI 241532401 $19.45

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $44.28

55*

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

58

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan WCI 240315501 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket, (3) WCI 240346601 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.14

60#

297279500 Frigidaire Refrigerator Condenser F In Stock WCI 297279500 $87.15

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

5304481642 Frigidaire Refrigerator Trough Backorder WCI 5304481642 $189.92

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

Bracket-ice maker WCI 5304436611 Contact Us For Availability

67

5304465210 Frigidaire Refrigerator Switch Kit Backorder WCI 5304465210 $134.77

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $40.32

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $109.45

70

Plate-mounting WCI 241504601 Contact Us For Availability

70*

215005101 Frigidaire Refrigerator Screw In Stock WCI 215005101 $9.50

70*

Screw, hex head, 8-18B x 0.875 WCI 241551601 Contact Us For Availability

79

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube In Stock WCI 241957901 $38.55

85

241856901 Frigidaire Refrigerator Connector T Backorder WCI 241856901 $46.16

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

97

Water Tank WCI 241532002 Contact Us For Availability

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $47.66

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

121

241504701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241504701 $40.80

122

Rail-ice cream shelf, RH WCI 241504702 Contact Us For Availability

138

Button-filter release WCI 240397301 Contact Us For Availability

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $23.09

151

Filter housing WCI 241526001 Contact Us For Availability

154

Duct-air WCI 241525801 Contact Us For Availability

155

Motor-air filter WCI 241526101 Contact Us For Availability

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $37.63

198*

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

199

Rod WCI 240397501 Contact Us For Availability

199*

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

201

Switch-membrane WCI 241536601 Contact Us For Availability

205

Air Filter Door WCI 241525901 Contact Us For Availability

206

AFCB Frigidaire Refrigerator Air Filter In Stock WCI AFCB $16.18
