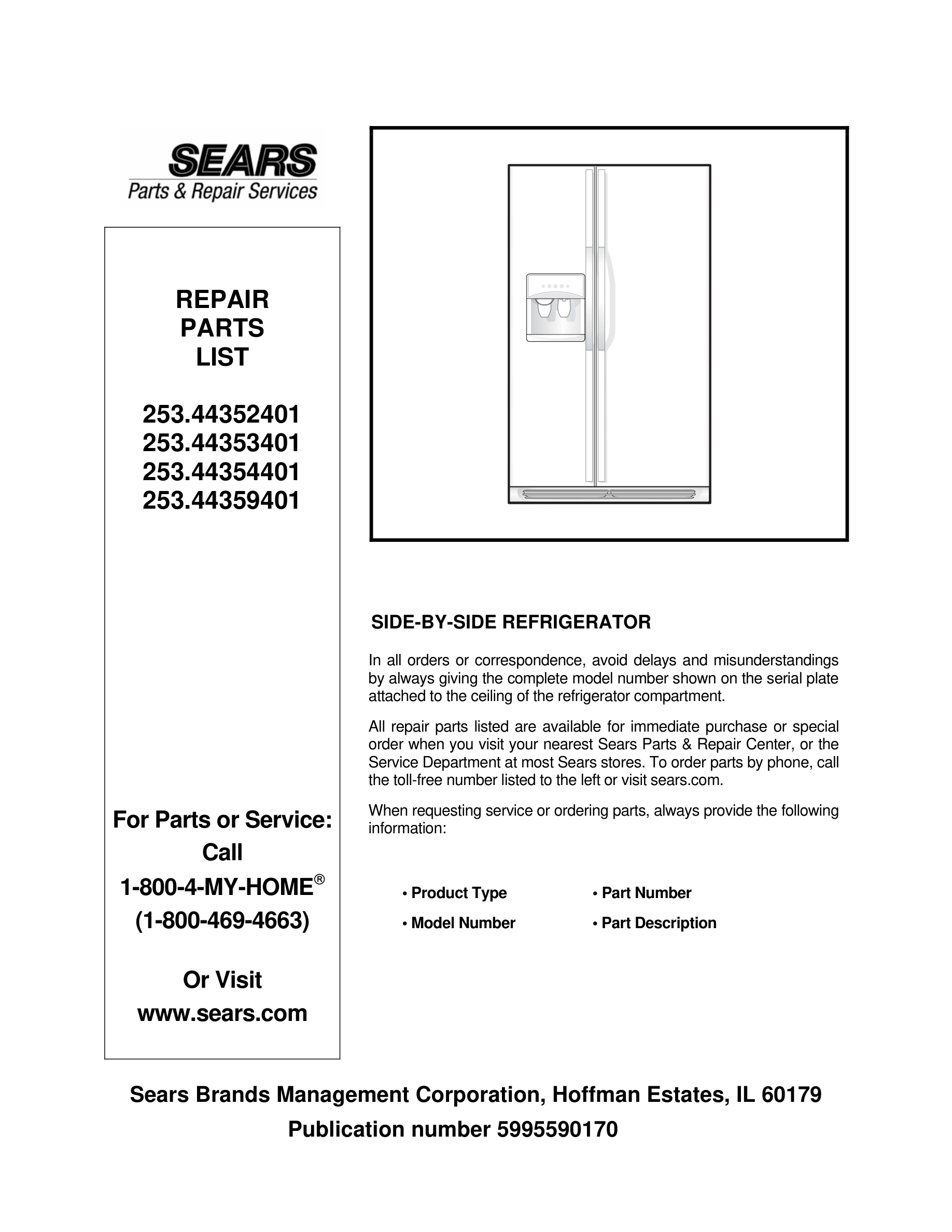

Model Kenmore 253.44354401 SIDE-BY-SIDE REFRIGERATOR – Common Parts &amp; Diagrams

*

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

*

241914702 Frigidaire Refrigerator Ice Contain In Stock WCI 241914702 $135.60

*

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $89.34

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*

Screw, hex head, 8-18B x 0.875 WCI 241551601 Contact Us For Availability

*#

Heat Exchanger Kit, suction line WCI 5303918300 Contact Us For Availability

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

1#

241510202 Frigidaire Refrigerator Door Gasket Backorder WCI 241510202 $163.07

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976903 Frigidaire Refrigerator Water Inlet In Stock WCI 218976903 $44.38

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976912 Contact Us For Availability

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $144.11

2

Spring, torsion WCI 5304436616 Contact Us For Availability

2#

241510201 Frigidaire Refrigerator Door Gasket In Stock WCI 241510201 $126.43

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

4

241515202 Frigidaire Refrigerator Container Backorder WCI 241515202 $60.48

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Cover-module, bisque WCI 5304430833 Contact Us For Availability

4B

241511601 Frigidaire Refrigerator Door Bin Backorder WCI 241511601 $25.81

5

Rack-can WCI 241516101 Contact Us For Availability

5

Plate-mounting WCI 5304436604 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $25.35

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6#

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6*

Harness-wiring WCI 241519901 Contact Us For Availability

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $71.94

7

241515606 Frigidaire Refrigerator Door-Dairy Backorder WCI 241515606 $24.46

7#

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 5304421849 Contact Us For Availability

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $42.12

9

Detent WCI 5304436610 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

Clamp WCI 3206315 Contact Us For Availability

10A

Cover-evap coil, lower WCI 240475907 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

Thermal Cutoff, ice maker, complete assy WCI 5304436618 Contact Us For Availability

11A

240443358 Frigidaire Refrigerator Shelf Backorder WCI 240443358 $57.37

12

Harness-wiring WCI 5304436614 Contact Us For Availability

13

Thermostat, ice maker WCI 5304436613 Contact Us For Availability

13A

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $87.38

14

Label-module cover, bisque WCI 240570105 Contact Us For Availability

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

Light Bulb WCI 5304421616 Contact Us For Availability

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

240548901 Frigidaire Refrigerator P-1 Socket Backorder WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

241622802 Frigidaire Refrigerator Light Socke In Stock WCI 241622802 $37.63

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Housing, control WCI 5304436609 Contact Us For Availability

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

Ejector-ice WCI 5304436607 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Harness-wiring, icmkr/container WCI 241522901 Contact Us For Availability

18*#

Wiring Harness, internal, with plug WCI 240352601 Contact Us For Availability

19

Cup-water inlet WCI 5304436606 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

5304473031 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304473031 $17.68

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $11.32

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

Shut-off Arm WCI 5304436602 Contact Us For Availability

22*

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

22B

Bearing-hinge(ref), natural, upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $50.24

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability

Drip Tray, bisque WCI 240411702 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

Actuator-water, bisque WCI 5304421636 Contact Us For Availability

24A

Actuator-ice, bisque WCI 5304421634 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $58.76

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

Pan-defrost drain WCI 241509201 Contact Us For Availability

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $43.91

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

Insulator WCI 3206342 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Spring-thermostat WCI 5304436615 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $41.66

35

Screw WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-ice maker WCI 5304436605 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38A*

241679201 Frigidaire Refrigerator Wiring Harn Backorder WCI 241679201 $51.99

38C

5304525097 Frigidaire Refrigerator 4 Button S In Stock WCI 5304525097 $61.40

38C*

5304521693 Frigidaire Refrigerator Facade Har Backorder WCI 5304521693 $20.38

39

240367603 Frigidaire Refrigerator Shelf Trim Backorder WCI 240367603 $47.07

39

241688801 Frigidaire Refrigerator Hinge Pin In Stock WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

40

Cover-upper hinge, bisque WCI 240327006 Contact Us For Availability

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

Trim-shelf, rear WCI 241571201 Contact Us For Availability

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

42

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

42*

Clip, (2), tube mtg. WCI 218515402 Contact Us For Availability

43

Screw, plask h/l, #6 x 3/8 WCI 215296300 Contact Us For Availability

44

Screw, pan head, 8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $53.06

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

Control Rod WCI 5304436635 Contact Us For Availability

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47

Spring-control rod WCI 5304404342 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf In Stock WCI 240350603 $73.07

48

241511706 Frigidaire Refrigerator Door Bin In Stock WCI 241511706 $43.43

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

49

241505306 Frigidaire Refrigerator Door Bin In Stock WCI 241505306 $43.43

49

241515001 Frigidaire Refrigerator Basket Slid In Stock WCI 241515001 $110.18

49

Rail Assy WCI 5304436702 Contact Us For Availability

49A

241505506 Frigidaire Refrigerator Door Bin In Stock WCI 241505506 $54.08

50

Board-main power WCI 241511101 No Longer Available

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

Cover-magnet WCI 241508401 Contact Us For Availability

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $46.62

51

241796406 Frigidaire Refrigerator Water Fill Backorder WCI 241796406 $12.67

51

Rotation Stop WCI 5304404336 Contact Us For Availability

51A

241514701 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514701 $40.32

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $48.39

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52A

241514801 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514801 $236.28

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241532401 Frigidaire Refrigerator Channel In Stock WCI 241532401 $19.45

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $61.57

55*

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.35

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan WCI 240315501 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket, (3) WCI 240346601 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.14

60#

5304448483 Frigidaire Refrigerator Condenser Backorder WCI 5304448483 $162.29

60*

Screw, 8-18 X 1 3/4, (2) WCI 240569501 Contact Us For Availability

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

61B

Bracket-support, cond mtr, (3) WCI 240564001 Contact Us For Availability

62

5304481642 Frigidaire Refrigerator Trough Backorder WCI 5304481642 $189.92

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

Bracket-ice maker WCI 5304436611 Contact Us For Availability

67

5304465210 Frigidaire Refrigerator Switch Kit Backorder WCI 5304465210 $134.77

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $40.32

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $109.45

70

Plate-mounting WCI 241504601 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube In Stock WCI 241957901 $38.55

85

241856901 Frigidaire Refrigerator Connector T Backorder WCI 241856901 $46.16

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

Shield-light WCI 5304421615 Contact Us For Availability

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $48.35

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

121

241504701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241504701 $40.80

122

Rail-ice cream shelf, RH WCI 241504702 Contact Us For Availability

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $23.09

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
