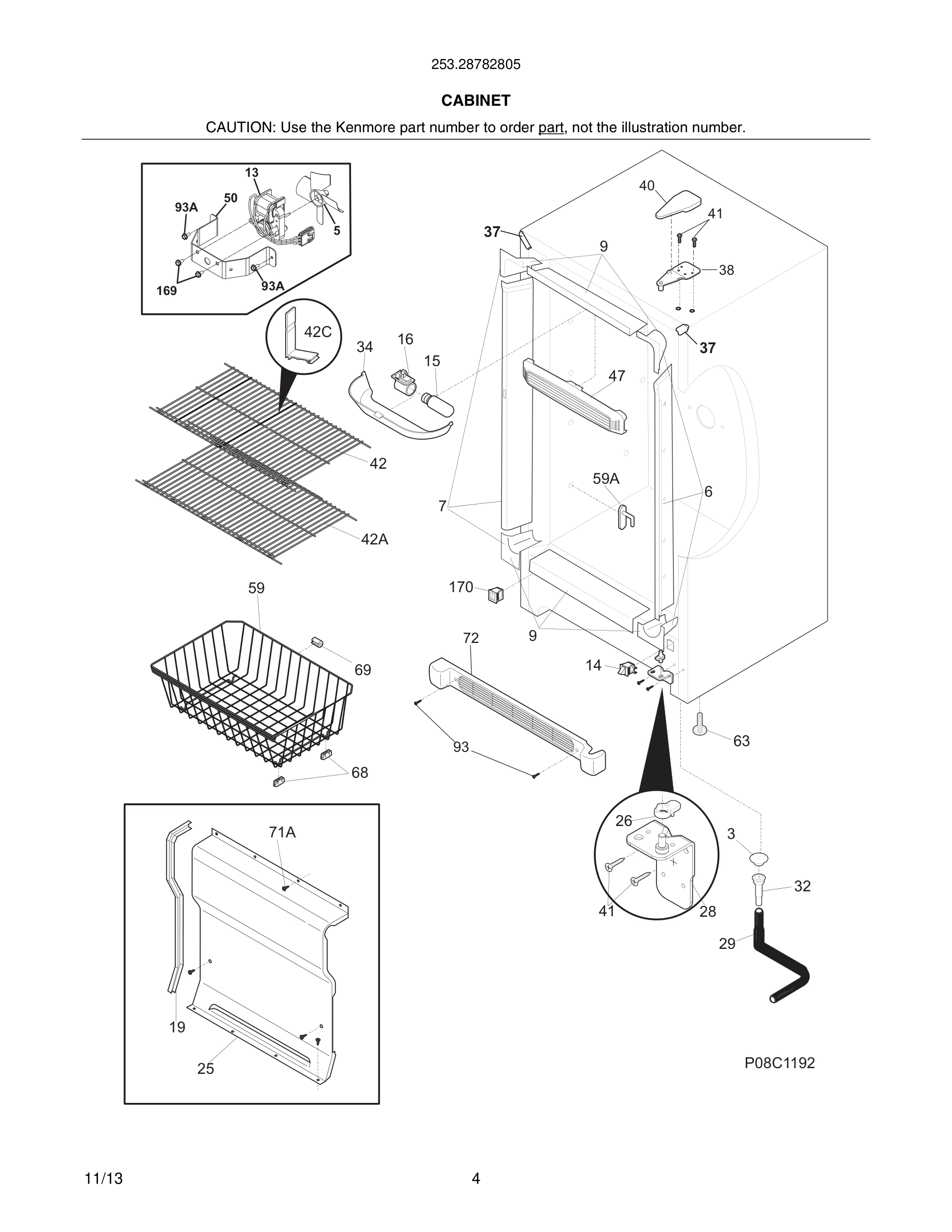

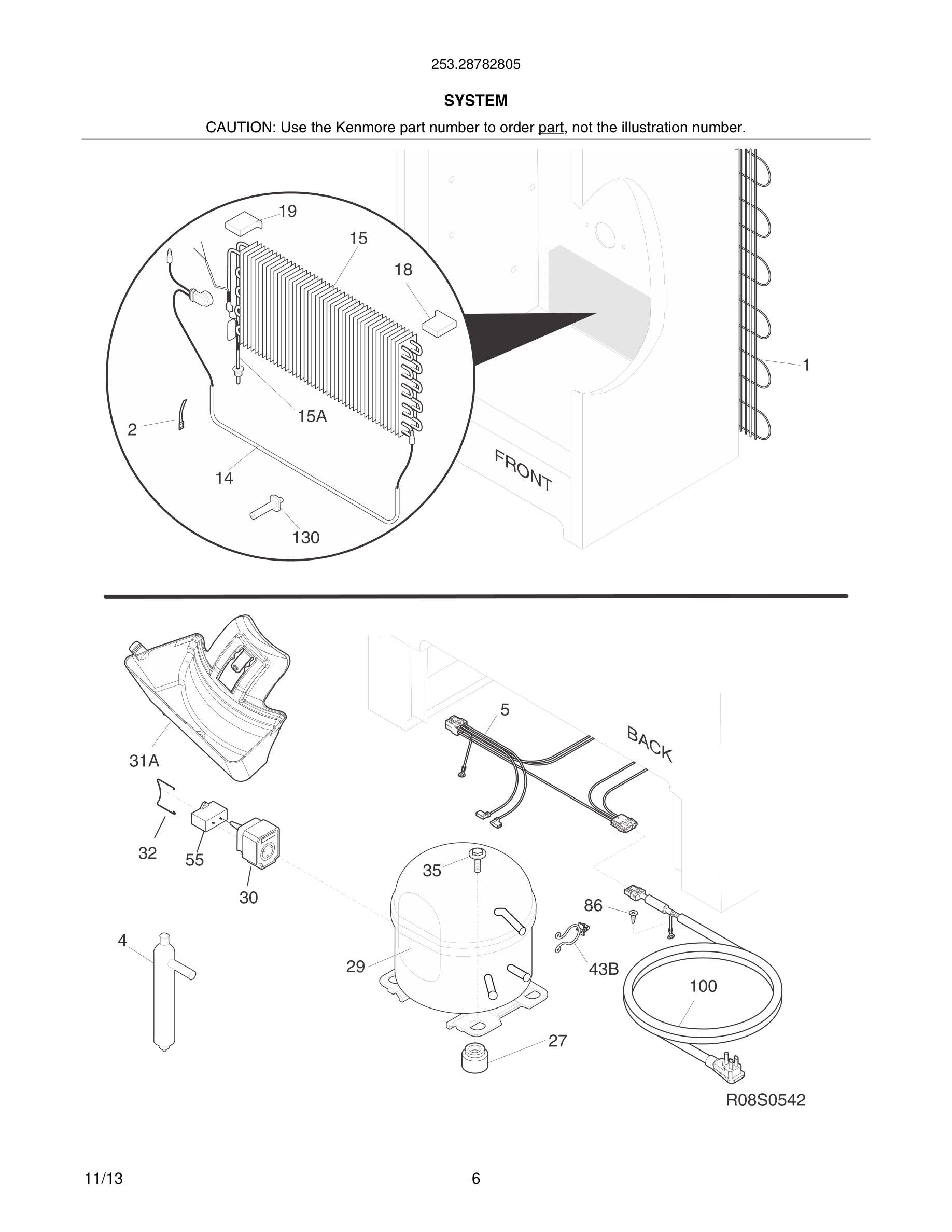

Model Kenmore 253.28782805 FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
2A
Clip, spring
Clip, spring WCI 297213300 Contact Us For Availability
View on Model
9
Panel-inner door, frzr
Panel-inner door, frzr WCI 216527816 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam, LH
Insulator-evap, styrofoam, LH WCI 297078801 Contact Us For Availability
View on Model
25
Cover-evaporator
Cover-evaporator WCI 297099251 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 297184400 Contact Us For Availability
View on Model
35
Screw-compressor mtg, 1/4-28 x 1.16, (4)
Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability
View on Model
37A
Trim-handle, 1.34", white
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
View on Model
42
SHELF WH 14.50 X 27.88
SHELF WH 14.50 X 27.88 WCI 297367400 Contact Us For Availability
View on Model
59A
Stop-basket, (2)
Stop-basket, (2) WCI 216486500 Contact Us For Availability
View on Model
63*
Bracket, RH leg levelor
Bracket, RH leg levelor WCI 297164651 Contact Us For Availability
View on Model
63*
Bracket, LH leg levelor
Bracket, LH leg levelor WCI 297164650 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
71A
Screw, 8-18AB x.470 QX
Screw, 8-18AB x.470 QX WCI 297146820 Contact Us For Availability
View on Model
72
Grille/Kickplate, 32", white
Grille/Kickplate, 32", white WCI 297198900 Contact Us For Availability
View on Model
174A
Screw, #10-32 X .375
Screw, #10-32 X .375 WCI 297347800 Contact Us For Availability
View on Model
