  • Kenmore 253.24752102

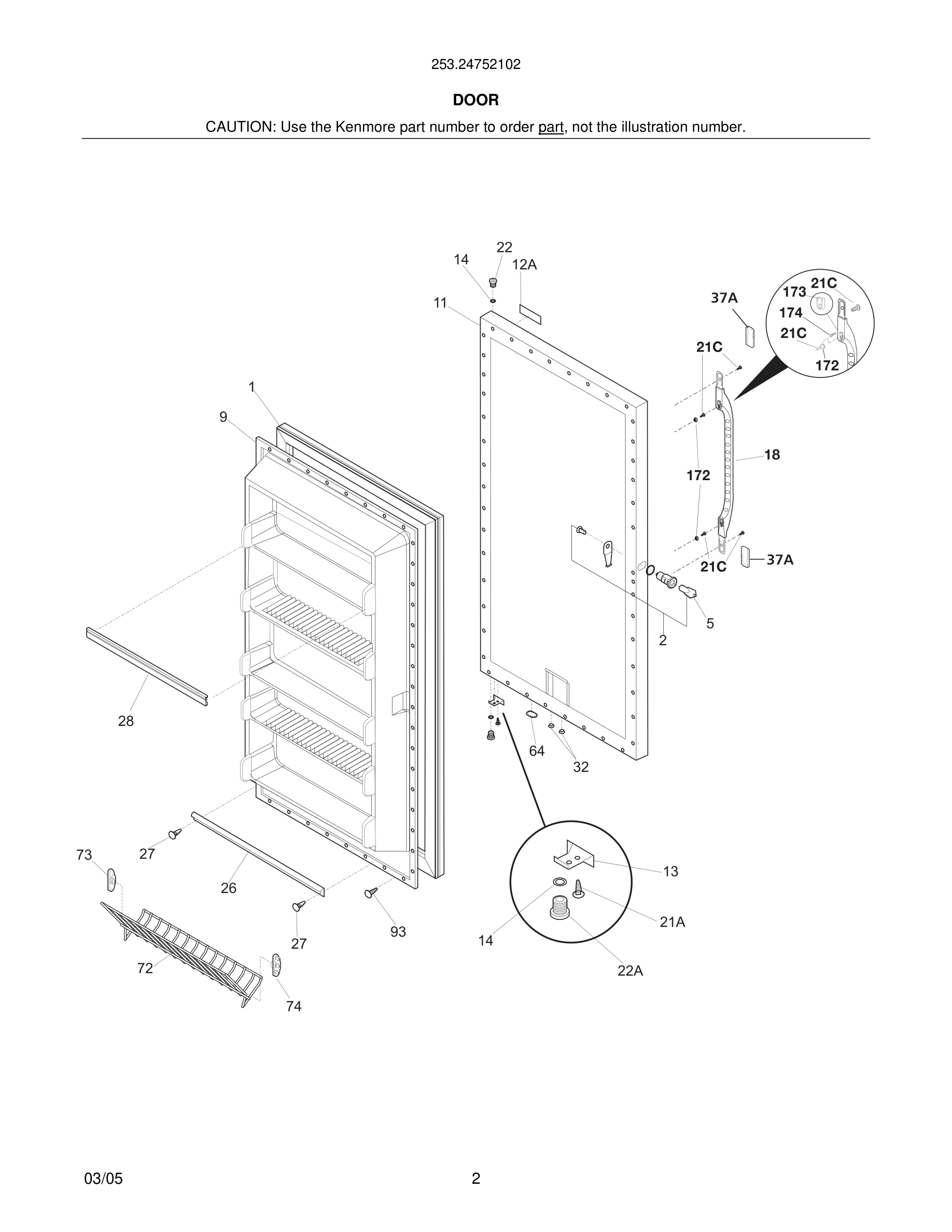

Model Kenmore 253.24752102 FREEZER – Common Parts & Diagrams

*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
*
Spacer-tube, 0.237" ID
Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 297015900 Contact Us For Availability
View on Model
9
Panel-inner door, frzr
Panel-inner door, frzr WCI 216527816 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
18
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket, evap cover
Gasket, evap cover WCI 216204900 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727700 Contact Us For Availability
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
24
Bracket
Bracket WCI 08016580 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
32
Valve, breather, door base
Valve, breather, door base WCI 5309950074 Contact Us For Availability
View on Model
32
Clamp, elec cont mtg, compressor
Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability
View on Model
34
Shield-light
Shield-light WCI 216816200 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
View on Model
37A
Trim-handle, 1.34", white
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
59A
Stop-basket
Stop-basket WCI 216486500 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Shelf, tilt out, wire
Shelf, tilt out, wire WCI 216514100 Contact Us For Availability
View on Model
87
Screw, ph truss head, 6-32(T) x 0.500, thread
Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability
View on Model
104
Light, signal, assy w/bracket
Light, signal, assy w/bracket WCI 216948401 Contact Us For Availability
View on Model
132
Screw, 6-20AB x 3/8
Screw, 6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
144
Shelf-assy, fixed, glass, (3), complete
Shelf-assy, fixed, glass, (3), complete WCI 216922300 Contact Us For Availability
View on Model
172
Button-handle mtg, dovetail
Button-handle mtg, dovetail WCI 218397000 No Longer Available
View on Model
